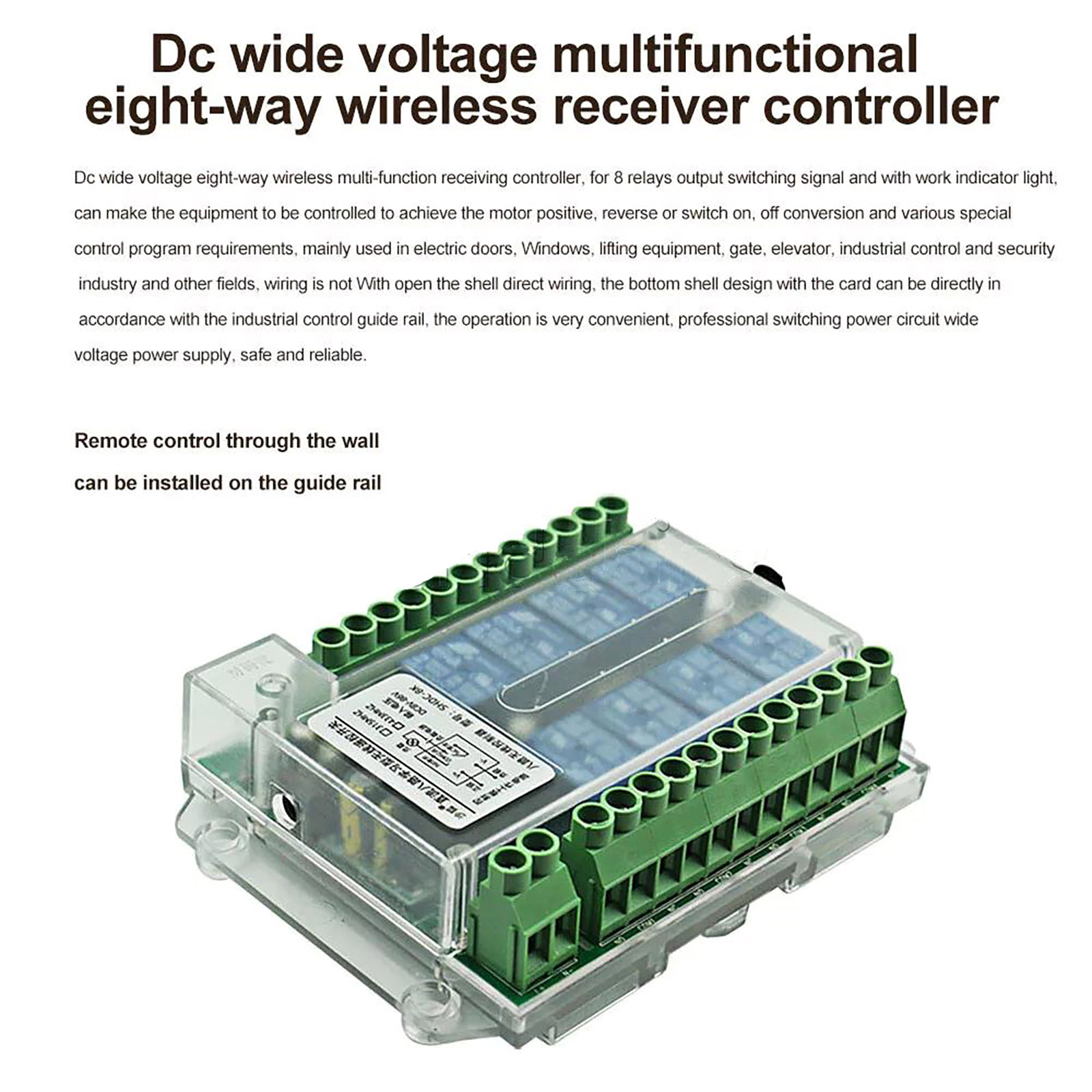

Features:
1. Compact Product, With Working Indicator Light
2. Simple Operation, Wiring Without Disassembling The Shell Direct Wiring
3. Wide Voltage Power Supply, Safe And Reliable, Stable Performance, Low Power Consumption
4. Loss Of Remote Control, Can Clear The Information Stored In The Acceptance Of The Controller
5. Wide Range Of Use: Applied To Electric Doors, Windows, Lifting Equipment, Gates, Elevators And Other Fields

Specifications:
Working Voltage: DC8-86V
Operating Temperature: -10℃-+55℃
Coding Mode: Learning Type

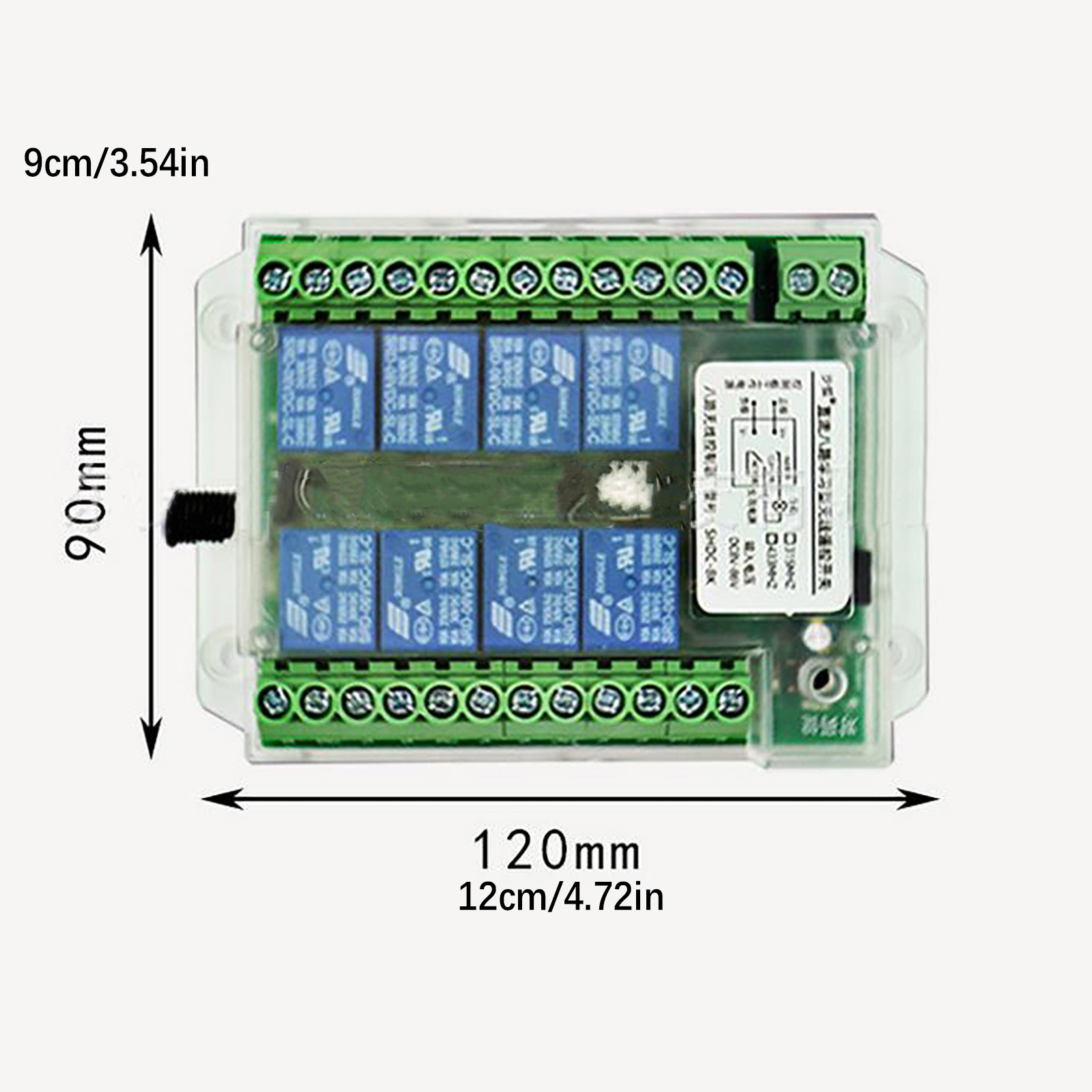

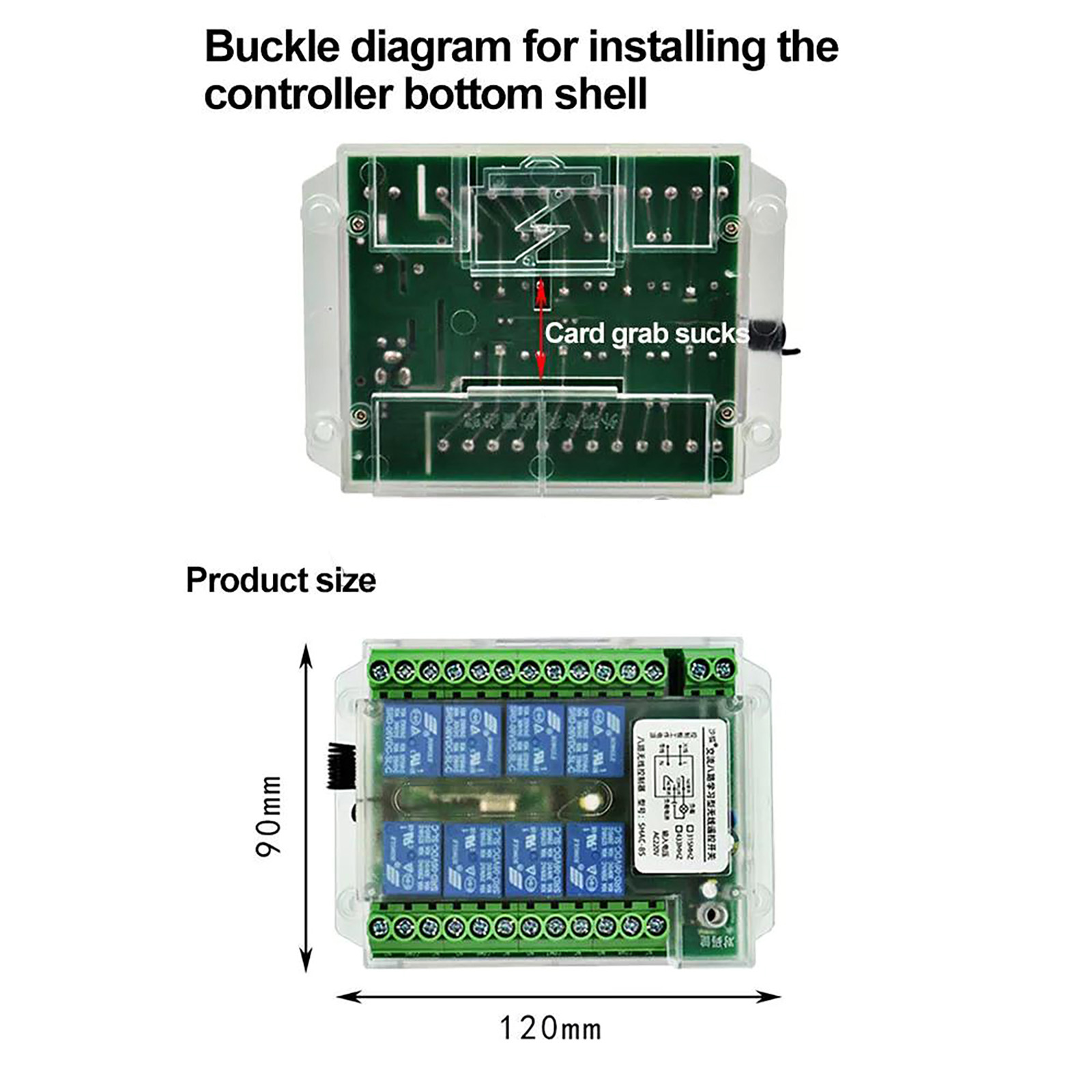

Controller Size: 120mm* 90mm* 35mm
Remote Control Battery: 2* AAA Battery(Not Included)
Operating Frequency: 433mhz
Maximum Current: 10A
Remote Control Distance: 100m-200m

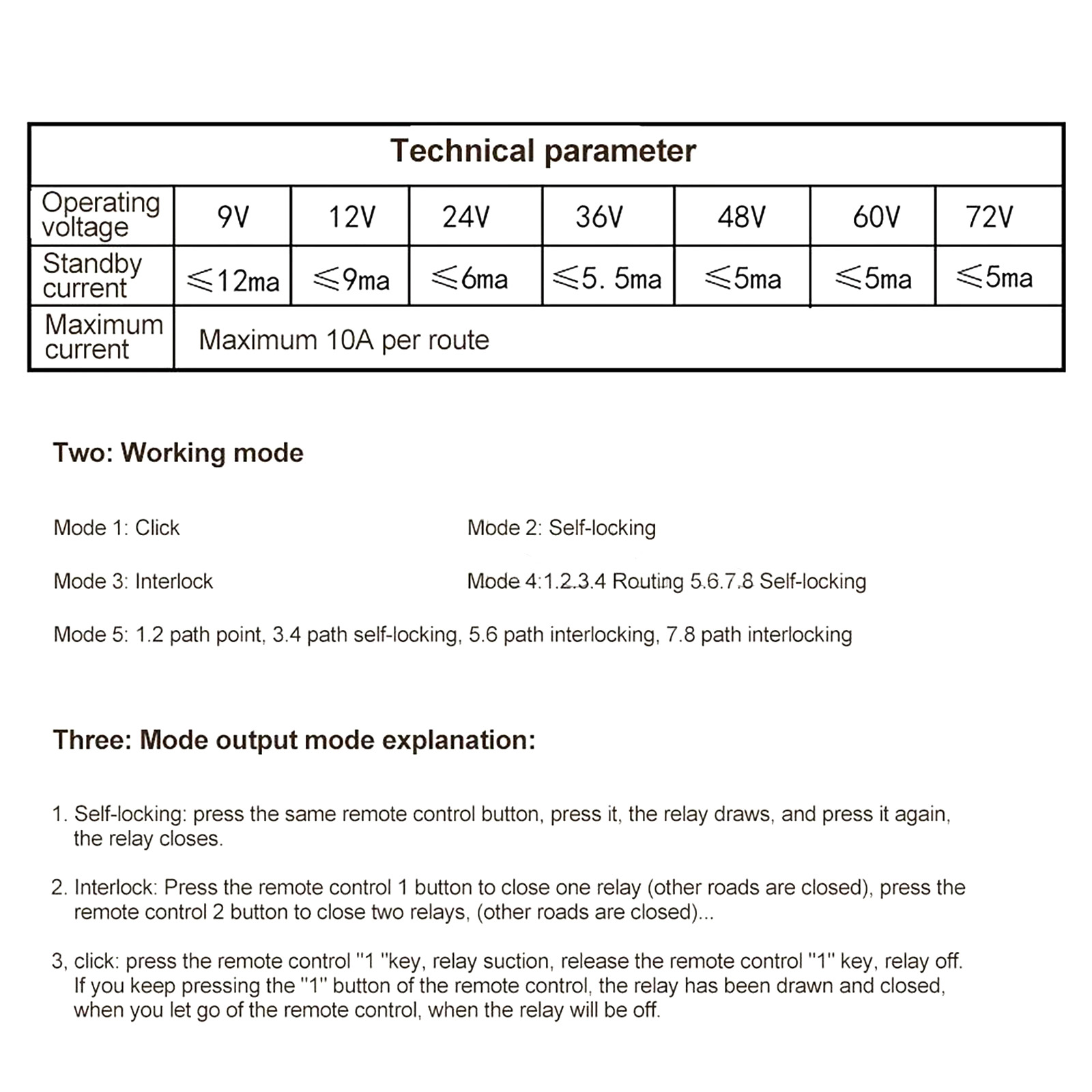

Working Mode:
Mode 1: Tap
Mode 2: Self-Locking
Mode 3: Interlock
Mode 4: 1. 2. 3. 4-Way Tap 5. 6. 7. 8 Self-Locking
Mode 5: 1. 2-Way Tap, 3. 4-Way Self-Locking, 5. 6-Way Interlocking, 7.8-Way Interlocking
Mode 6: Tap + Total Open
Mode 7: Self-Locking + ALL ON ALL OFF

Explanation Of Mode Output:
Self-Locking: Press The Same Remote Control Button, Press It Once, The Relay Will Absorb, Press It Again, The Relay Will Turn Off.
Interlocking: Press The Remote Control 1 Key, One - Way Relay Will Be Engaged (The Other Way Will Be Closed), Press The Remote Control 2 Key, Two - Way Relay Will Be Engaged (The Other Way Will Be Closed).
Tap: Press The Remote Control "1" Key, The Relay Will Absorb, Release The Remote Control "1" Key, The Relay Will Turn Off. If You Keep Pressing The Remote Control "1" Key, The Relay Is Always Active, When To Let Go Of The Remote Control, When The Relay Is Off.

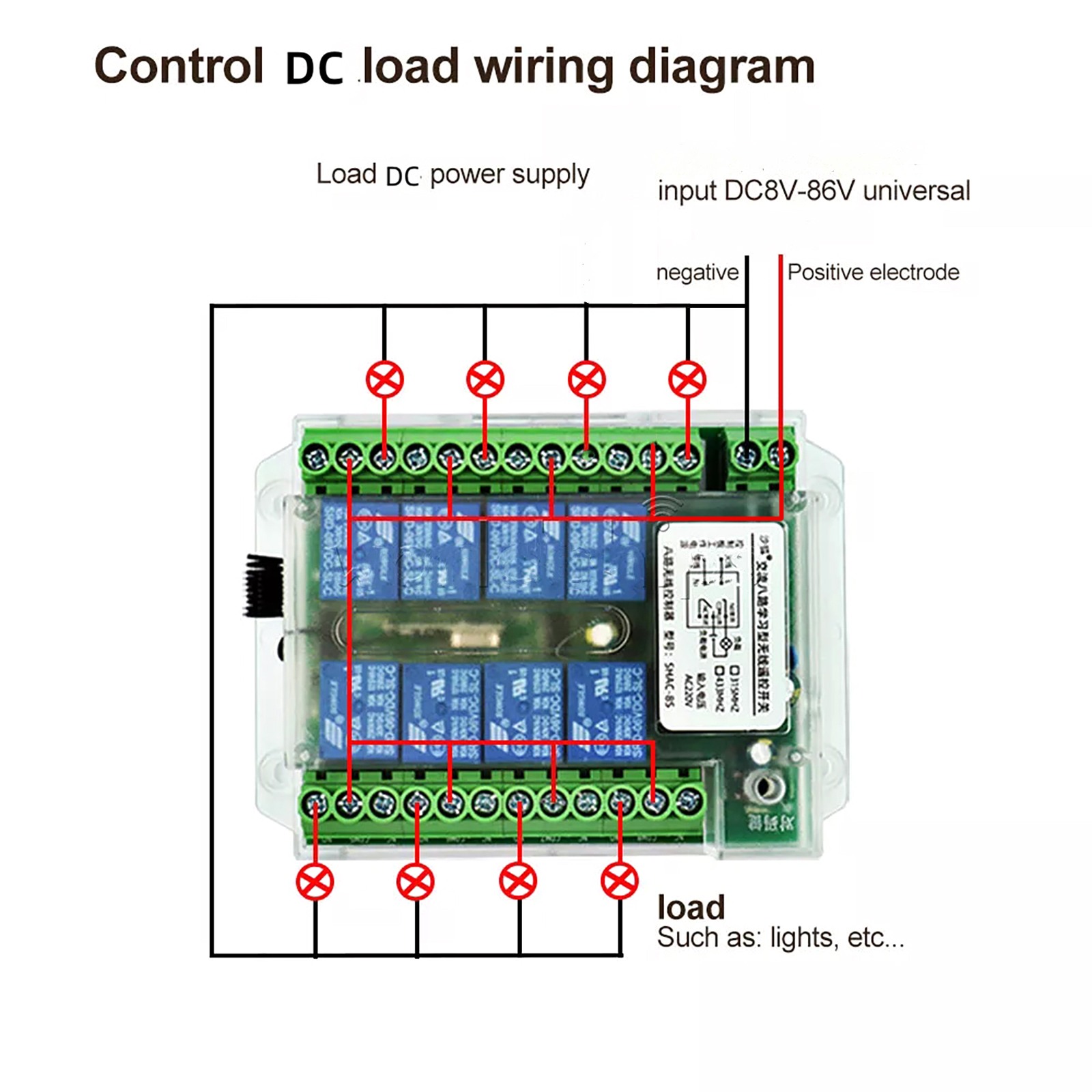

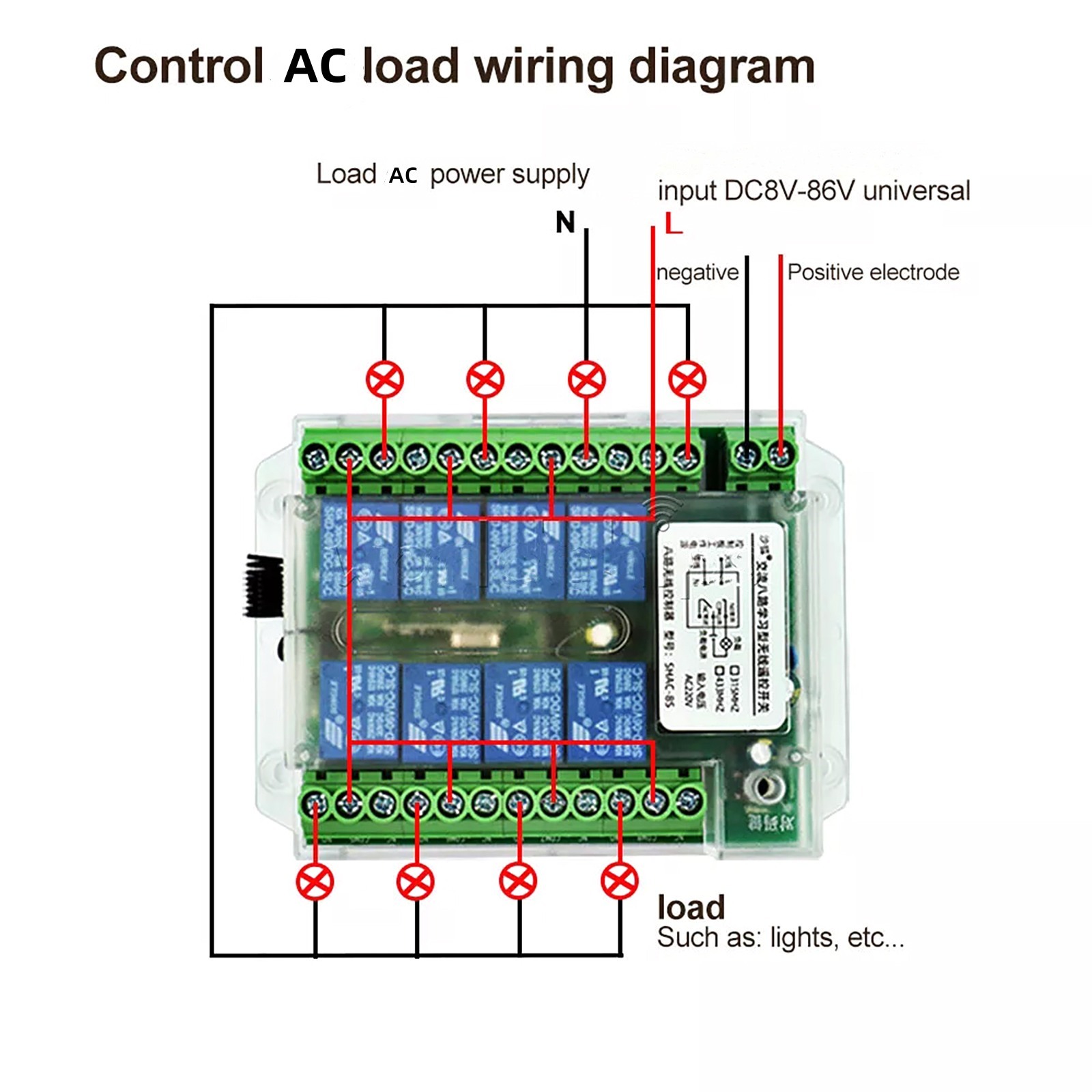

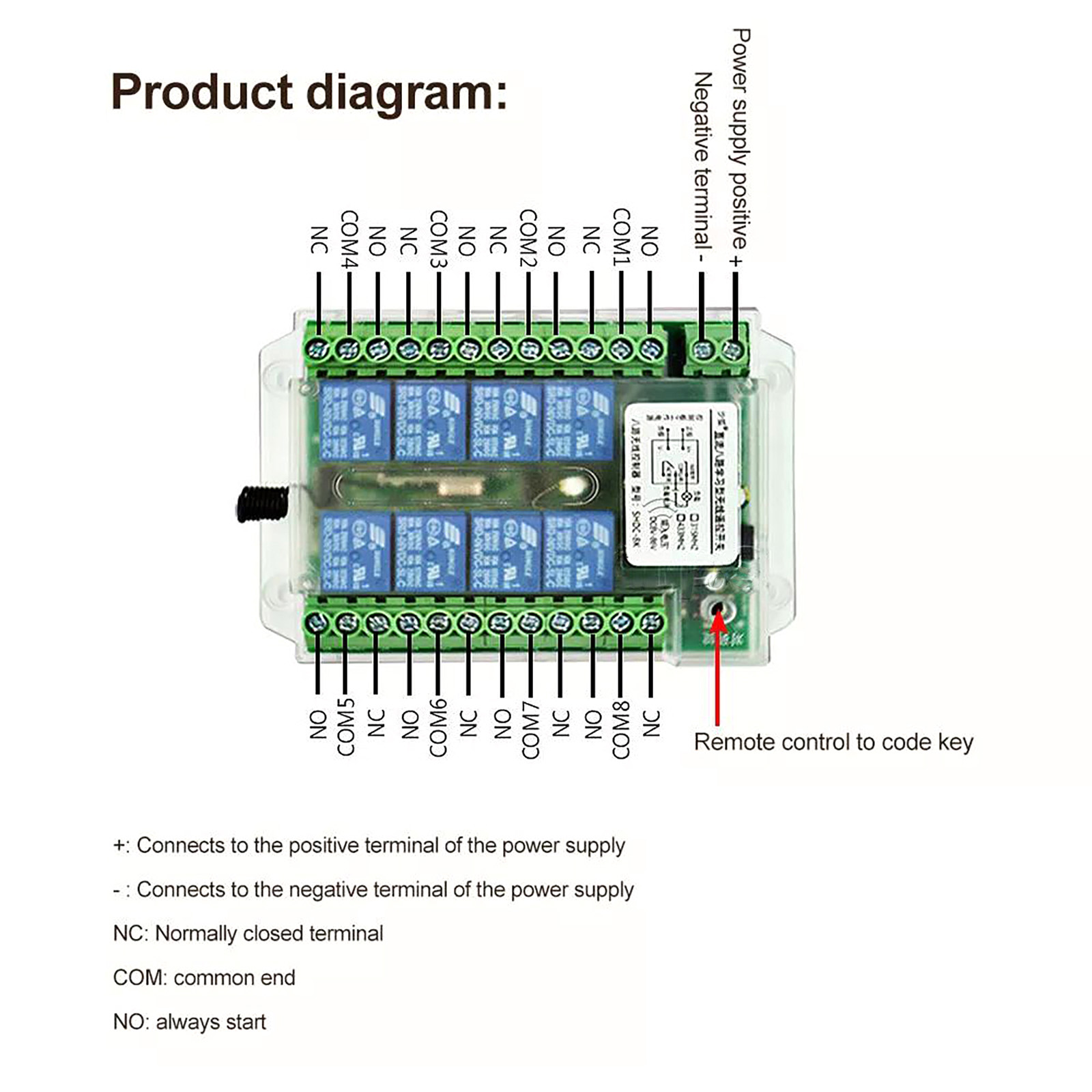

+: Connect To The Positive Terminal Of The Power Supply
-: Connect To The Negative Pole Of Power Supply
Nc: Normally Closed Terminal
Com: Common Terminal
No: Normally Open Terminal

Learning Code:
1. Mode 1 (Pointing) Learning Method: Press The Control Panel Code Button Once, Wait For The Led Indicator To Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, And The Led Indicator Of The Control Panel Will Blink 3 Times In A Row For The Code To Be Successfully Coded.
2. Mode 2 (Self-Locking) Learning Method: Continuously Press The Control Board 2 Times To The Code Button, Wait For The Led Indicator Is Lit, Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Blinks 3 Times In A Row To The Code Successfully.
3. Mode 3 (Interlock) Learning Method: Continuously Press The Control Board 3 Times To The Code Button, Wait For The Led Indicator Is Lit, Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Blinks 3 Times In A Row To The Code Successfully.
4. Mode 4 (Point + Self-Locking) Learning Method: Continuously Press The Control Board 4 Times The Code Button, Wait For The Led Indicator Light Up And Then Press Any Key Of The Remote Control Need To Code, The Control Board Led Indicator Flashes 3 Times To Code Successfully.
5. Mode 5 (Tap + Self-Locking + Interlocking) Learning Method: Continuously Press The Control Board 5 Times The Code Button, Wait For The Led Indicator Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Flashes 3 Times In A Row To The Code Successfully.
6. Mode 6 (Tap+Total) Learning Method: Press The Control Panel Code Button 11 Times In A Row, Wait For The Led Indicator To Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, The Led Indicator Of The Control Panel Will Flash 3 Times In A Row And The Code Will Be Successfully Coded.
7. Mode 7 (Self-Locking + ALL ON ALL OFF) Learning Method: Continuously Press The Control Board 12 Times To Code Button, And So On The Led Indicator Light, Light, Press Any Key Of The Remote Control That Needs To Code, The Control Board Led Indicator Blinks 3 Times In A Row To Code Successfully.
Clear Data
Press The Learning Button On The Control Board For 11 Consecutive Times, It Will Automatically Clear All The Remote Controls That Have Learned The Code. After Clearing, The Original Remote Control Will No Longer Be Controlled.

Packege Included:

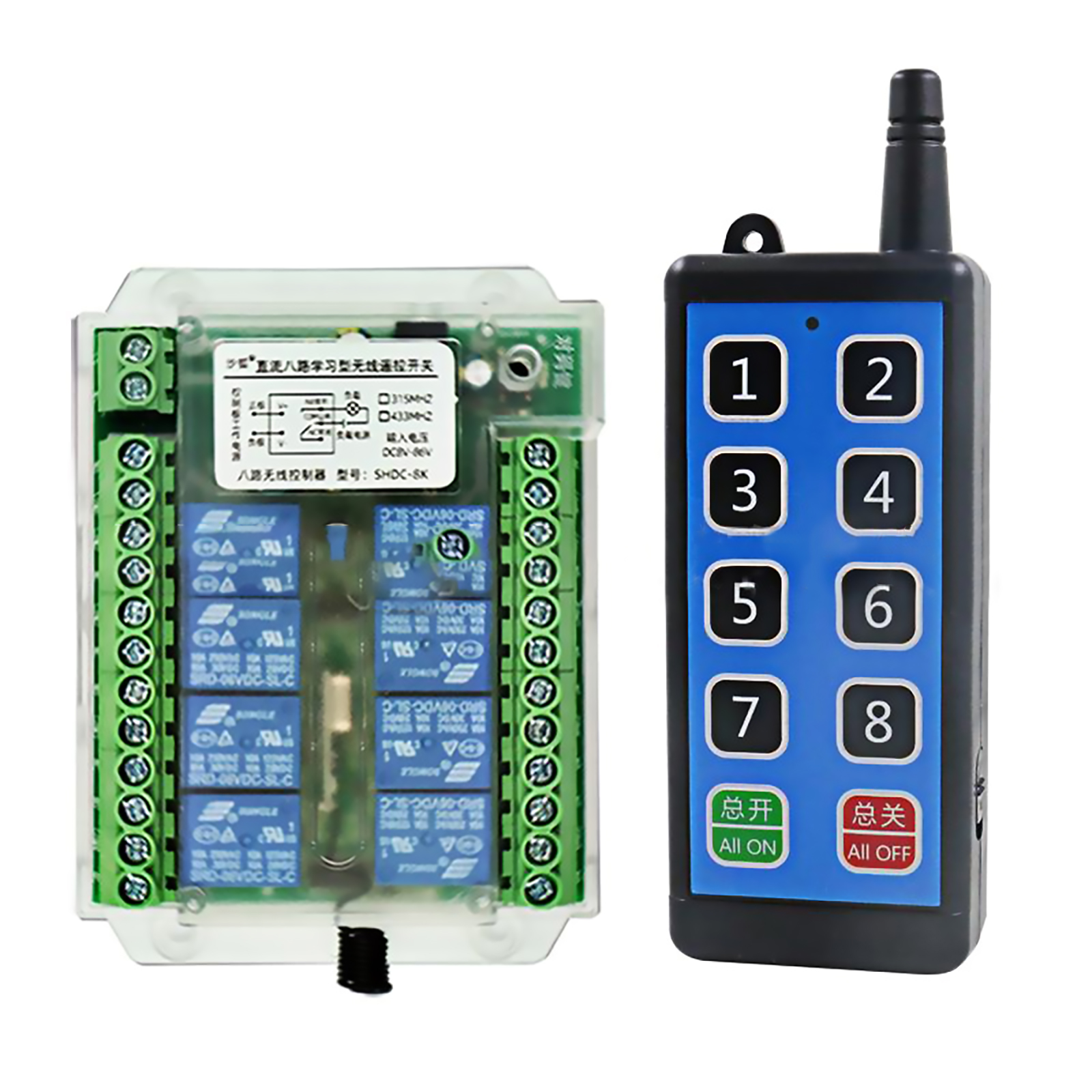

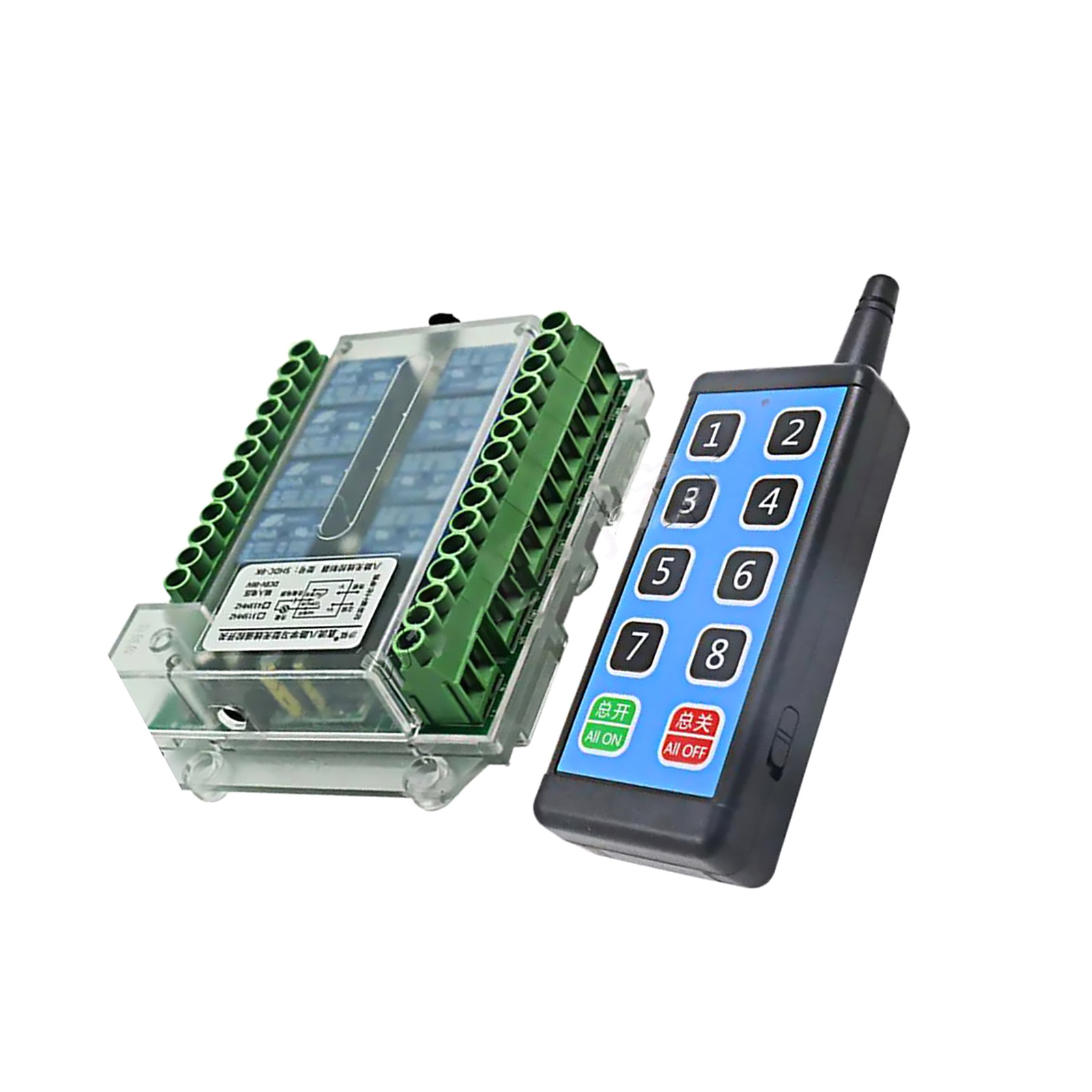

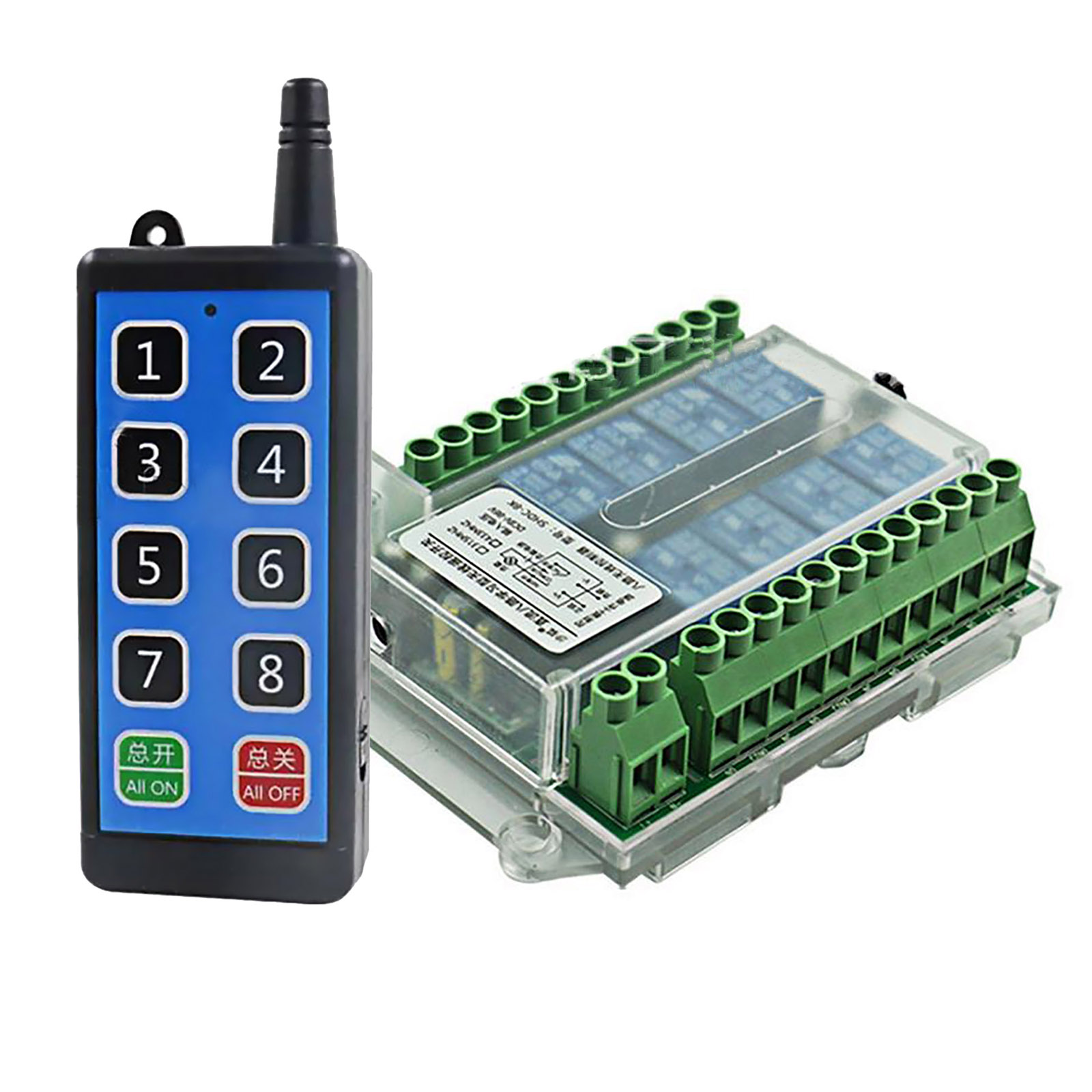

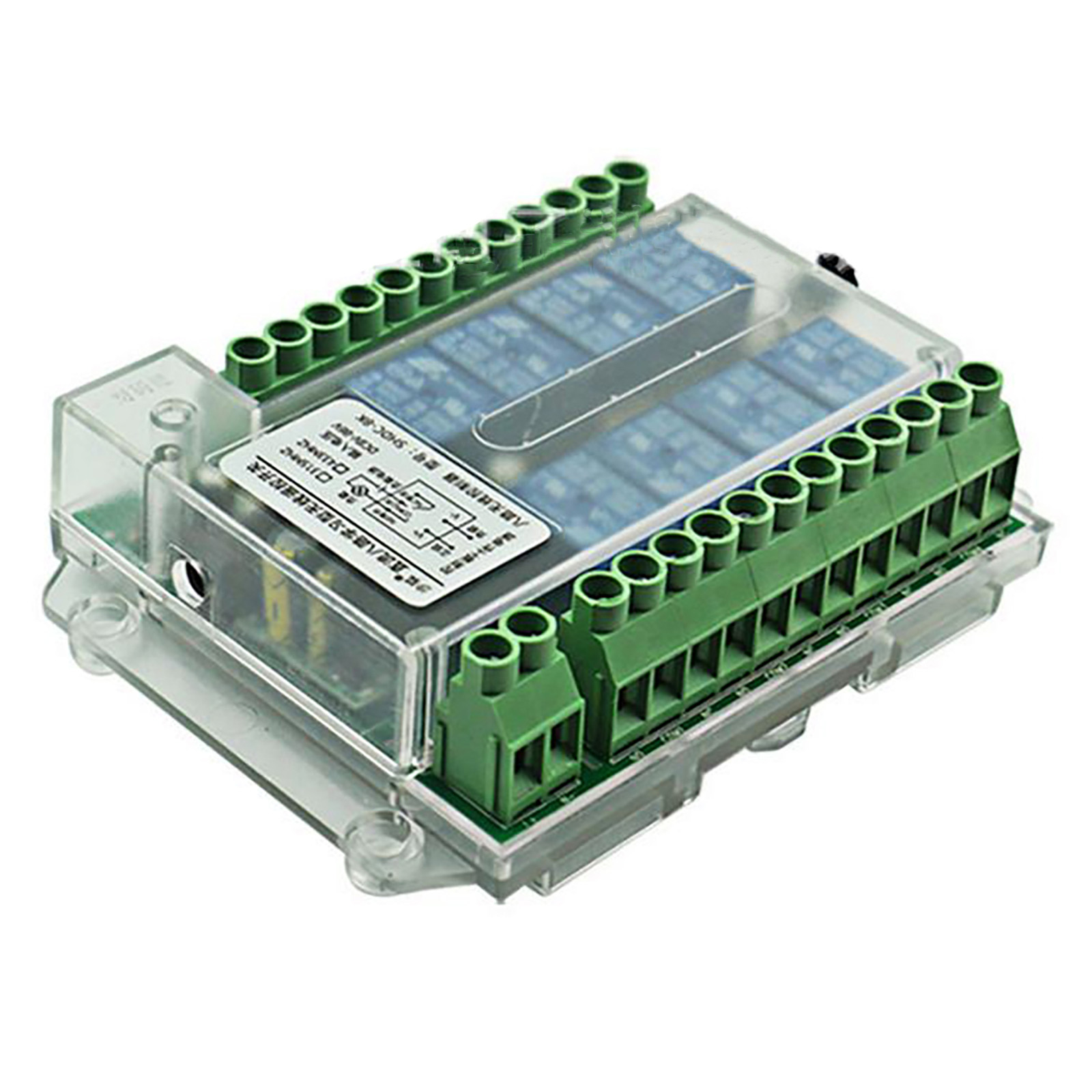

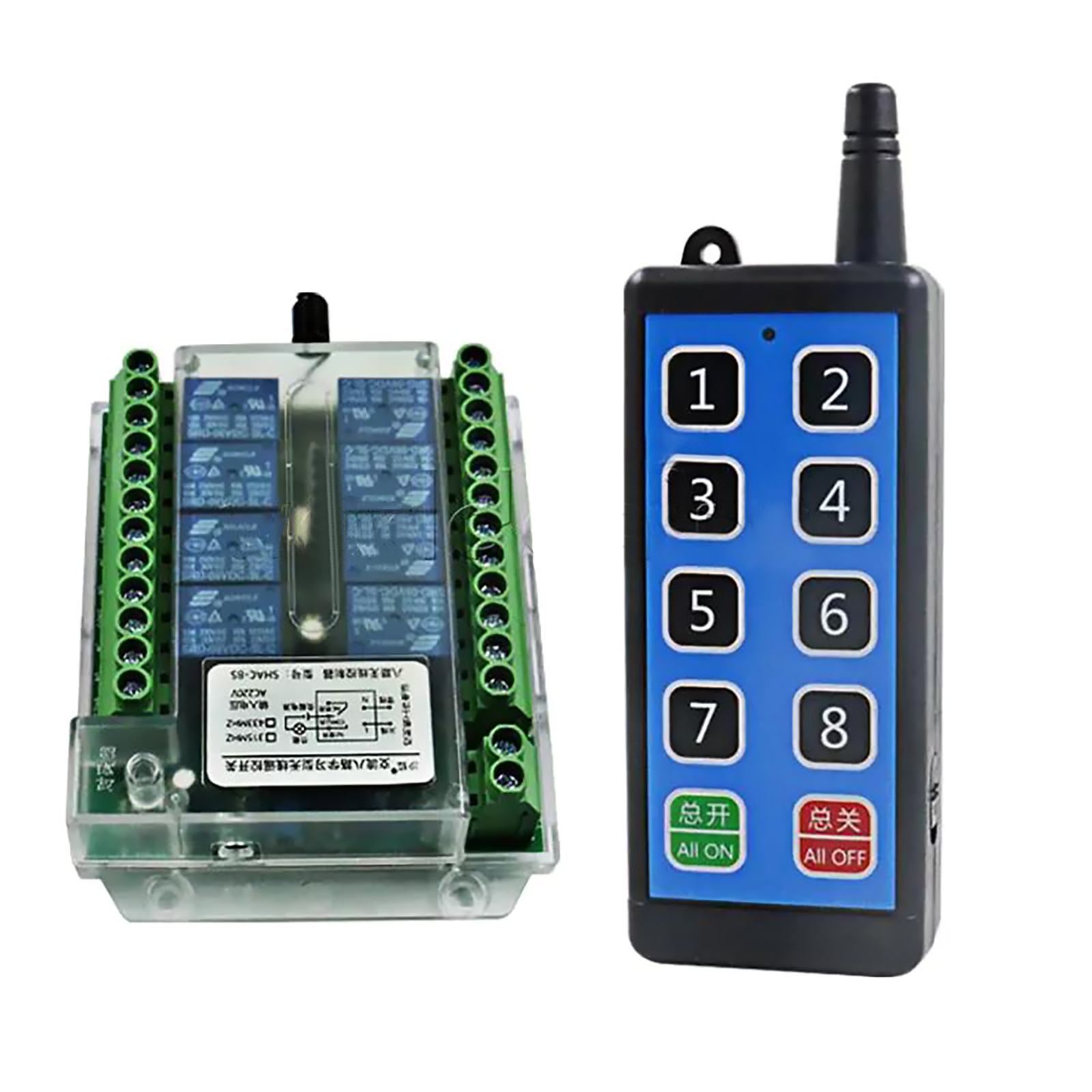

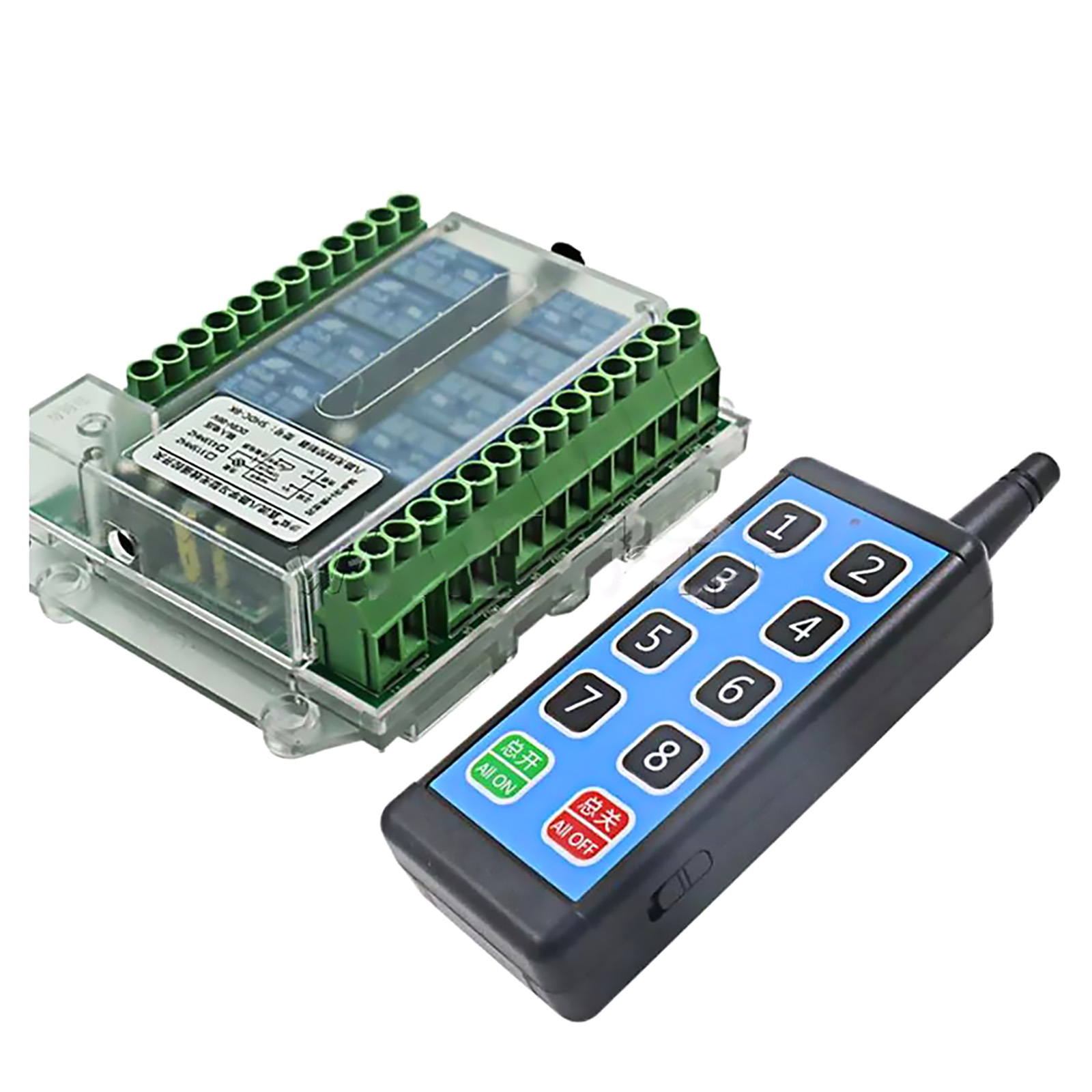

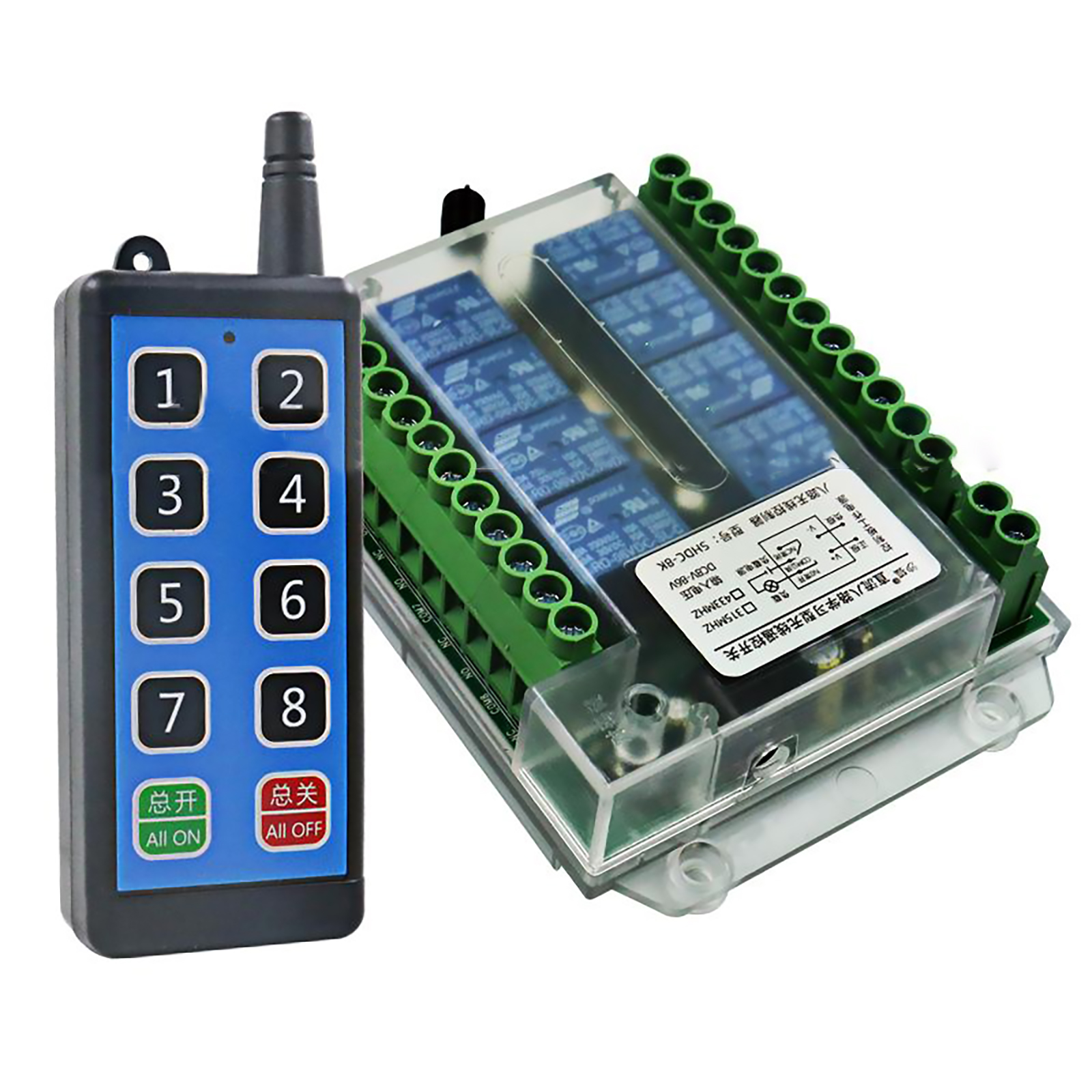

1* Relay Module

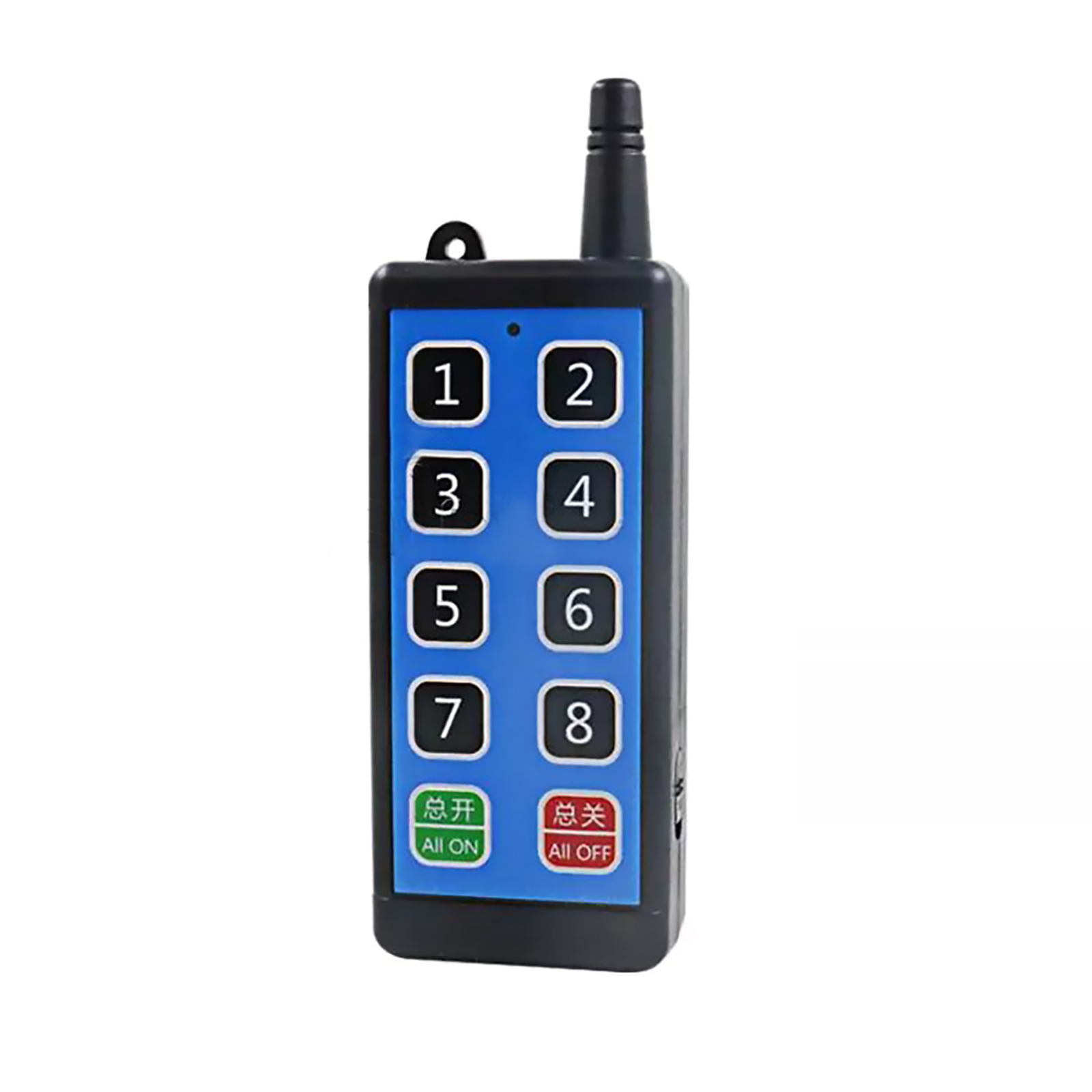

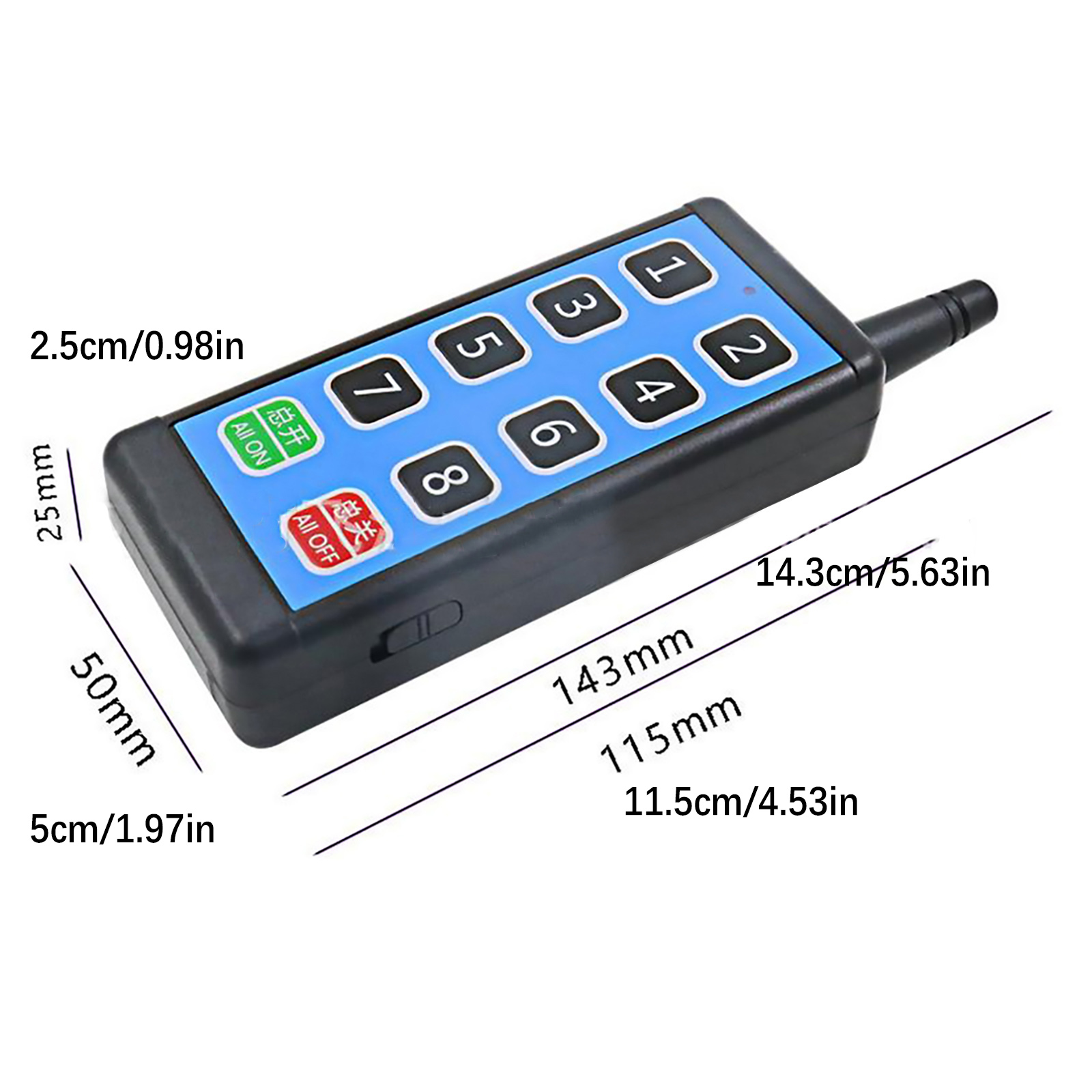

1* Remote Control
