D for diameter, T for thickness, Unit mm
Package included: 1pc ZWB3 filter
Product model:
ZWB3(UG5)254nm Black UV Transmissive Visible Absorption Filter
Features:
Allow the wavelength of 254-380nm ultraviolet light through, blocking most of the other stray light, so that the light is more pure, the detection effect is more obvious.
Application: UV lamp, UV transilluminator, rock fluorescent lamp and other fields.
Product Description:
There are three main grades of UV filters, ZWB1, ZWB2, ZWB3 (applicable wavelength 312nm/365nm/254nm).
ZWB1,ZWB3 these two models due to the special material, long-term exposure to the air will occur oxidation, mold phenomenon, please pay attention to keep in a dry environment. When used in instruments, it is necessary to pay attention to the regular replacement of lenses according to the situation.

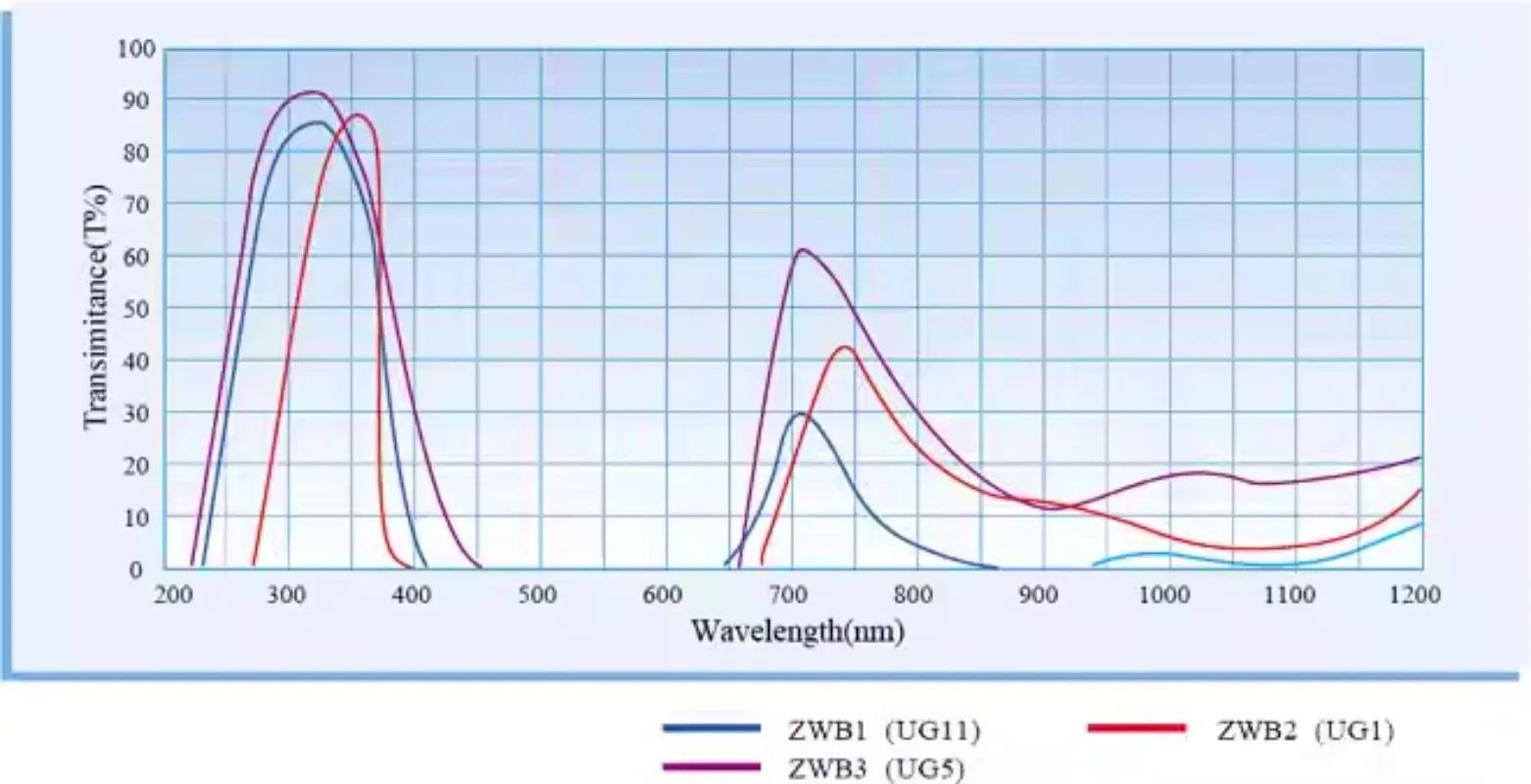

The spectrogram is as follows:
Dimensions:
Side length tolerance plus or minus 0.1mm, thickness tolerance plus or minus 0.05mm or so.
Package included: 1pc ZWB3 filter
Product model:
ZWB3(UG5)254nm Black UV Transmissive Visible Absorption Filter
Features:
Allow the wavelength of 254-380nm ultraviolet light through, blocking most of the other stray light, so that the light is more pure, the detection effect is more obvious.
Application: UV lamp, UV transilluminator, rock fluorescent lamp and other fields.
Product Description:
There are three main grades of UV filters, ZWB1, ZWB2, ZWB3 (applicable wavelength 312nm/365nm/254nm).
ZWB1,ZWB3 these two models due to the special material, long-term exposure to the air will occur oxidation, mold phenomenon, please pay attention to keep in a dry environment. When used in instruments, it is necessary to pay attention to the regular replacement of lenses according to the situation.
The spectrogram is as follows:
Dimensions: Side length tolerance plus or minus 0.1mm, thickness tolerance plus or minus 0.05mm or so.
