RaySafe X2 Diagnostic X-Ray Test System with MAM & R/F Sensors
RaySafe X2 Diagnostic X-Ray Test System with MAM and R/F sensors powers fast imaging QA with touchscreen measurement for radiographic, fluoroscopic, dental, CT kVp/HVL, and mammography testing, waveform review, and RaySafe View data handling support.
Detailed Overview
RaySafe X2 Diagnostic X-Ray Test System for R/F and Mammography QA
The RaySafe X2 Diagnostic X-Ray Test System with MAM and R/F sensors supports fast X-ray measurement across radiographic, fluoroscopic, dental, CT kVp/HVL, and mammography QA workflows. The confirmed R/F and MAM sensor configuration matters because it expands the RaySafe X2 platform from general diagnostic X-ray testing into mammography-specific dose, HVL, kVp, pulse, and waveform measurement.

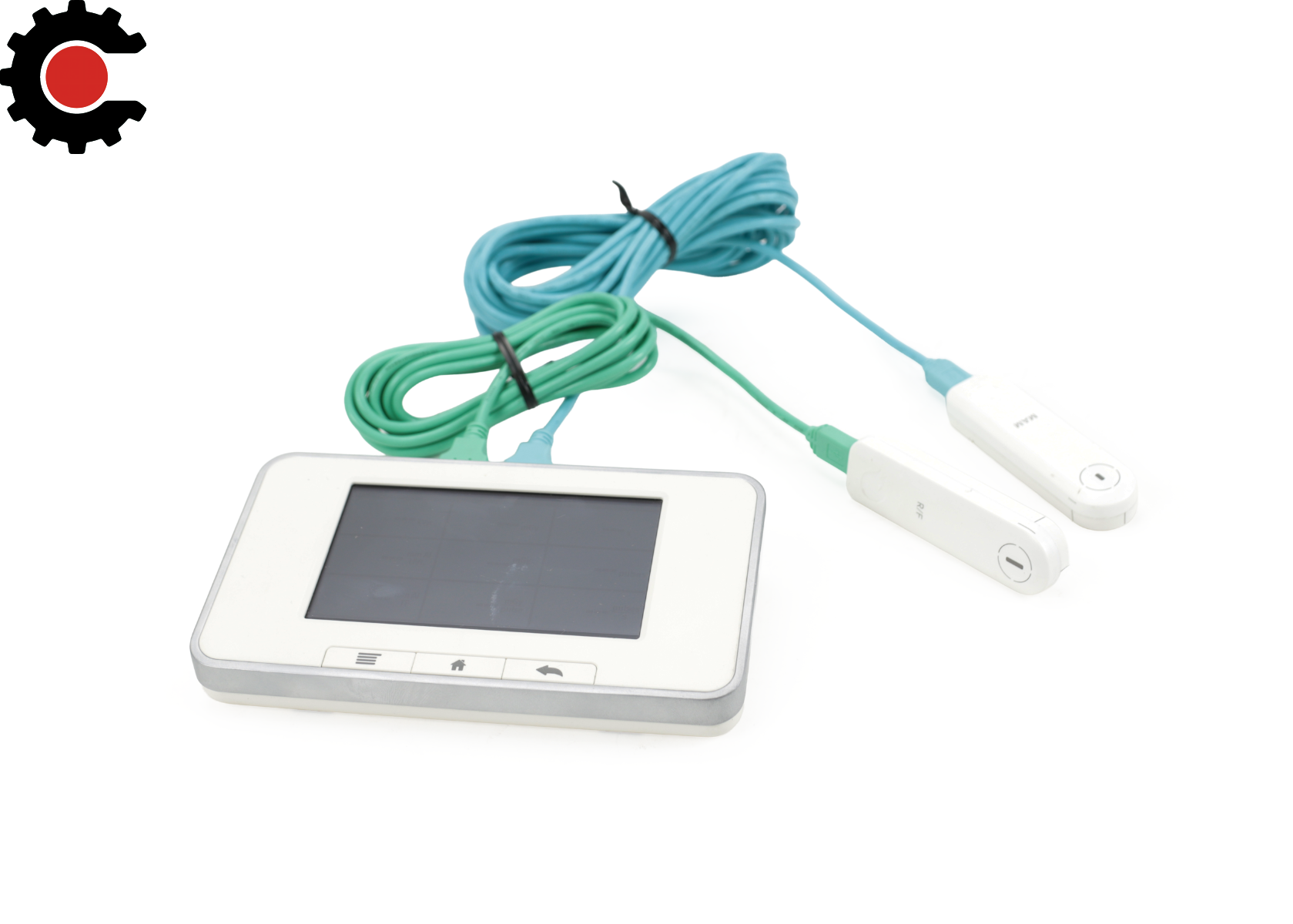

R/F and MAM Sensor Measurement for Diagnostic X-Ray Testing
The R/F and MAM sensors reduce setup complexity by capturing multiple radiological parameters in one exposure through the X2 base unit. The R/F sensor is orientation independent and does not require range or mode selection, while the MAM sensor supports mammography dose and HVL measurement without beam-quality selection across specified mammography beam qualities.
- R/F sensor measurement for dose, dose rate, kVp, HVL, total filtration, time, pulses, pulse rate, dose per pulse, and waveforms
- MAM sensor measurement for dose, dose rate, kVp, HVL, time, pulses, pulse rate, dose per pulse, and waveforms
- One-exposure measurement workflow with touchscreen review of available parameters and waveform data
RaySafe View Data Handling and Measurement Review
The RaySafe X2 base unit stores exposure data and supports follow-up analysis through RaySafe View software. Measurement sessions can be reviewed on the base unit and transferred to RaySafe View for data handling, analysis, reporting workflows, and Microsoft Excel export.
- Approximately 10,000 latest exposures stored in base unit memory
- RaySafe View support for data handling, analysis, and reporting workflows
- Microsoft Excel export support for measurement documentation and QA records

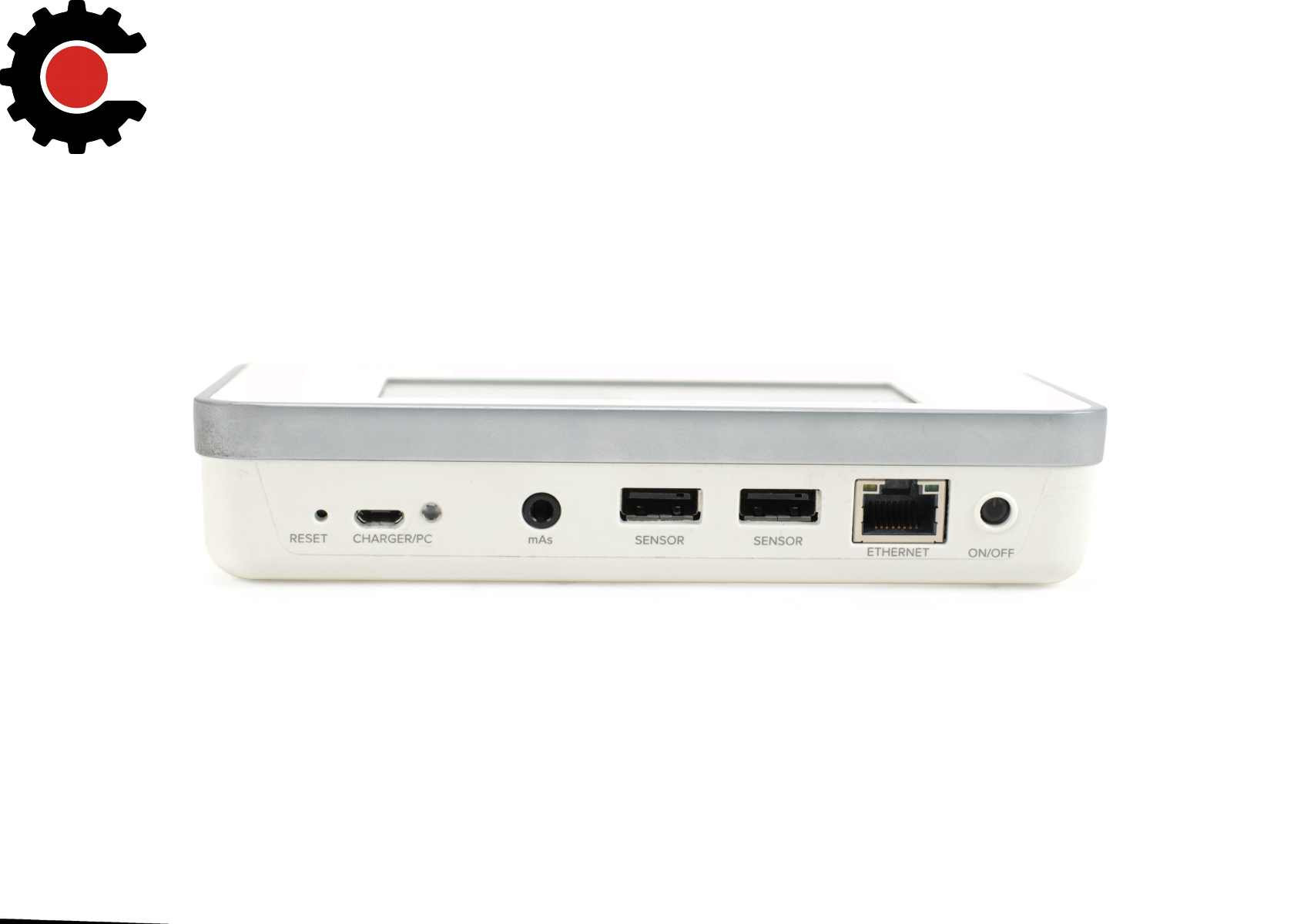

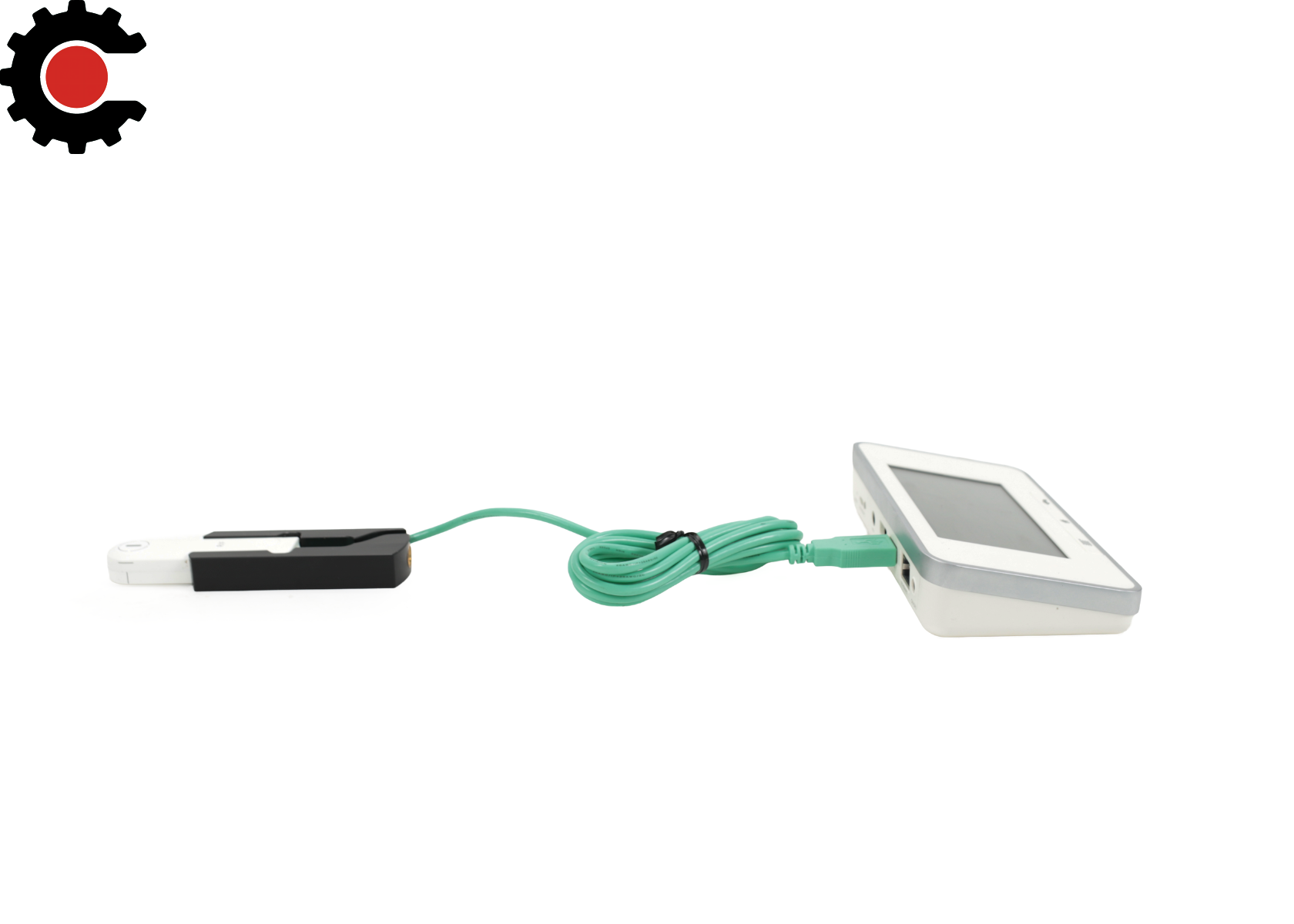

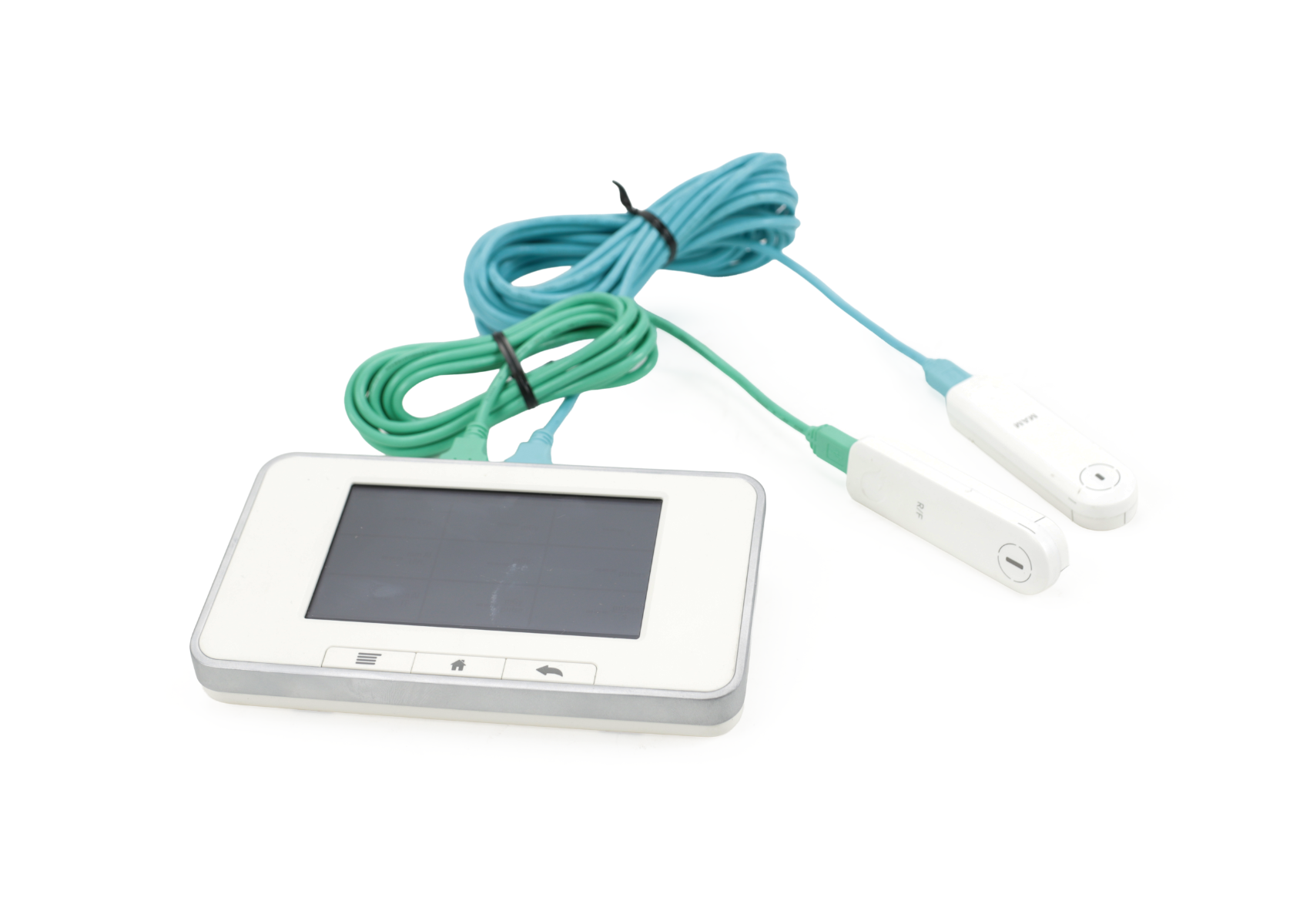

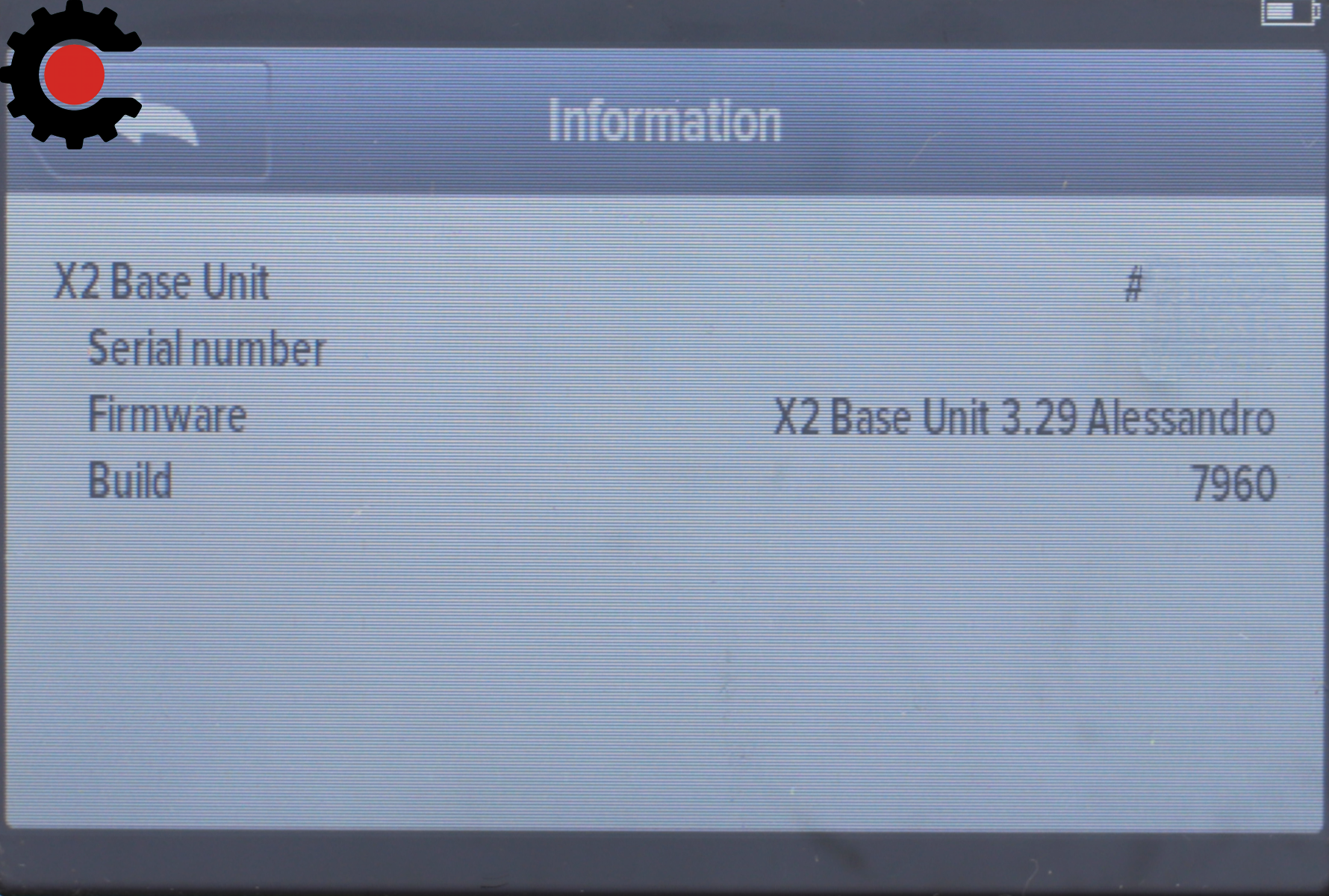

Touchscreen Operation and Portable X2 System Hardware

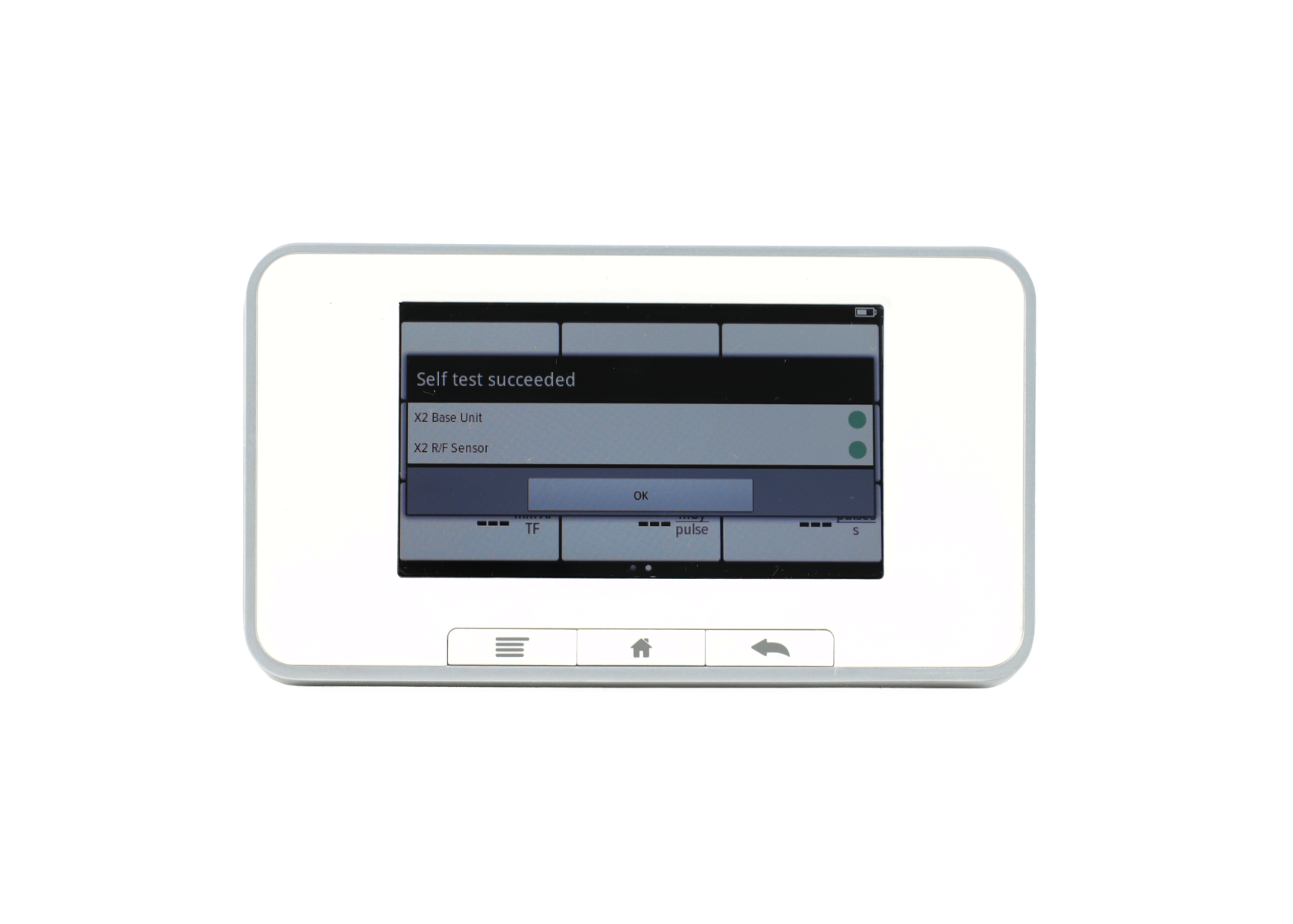

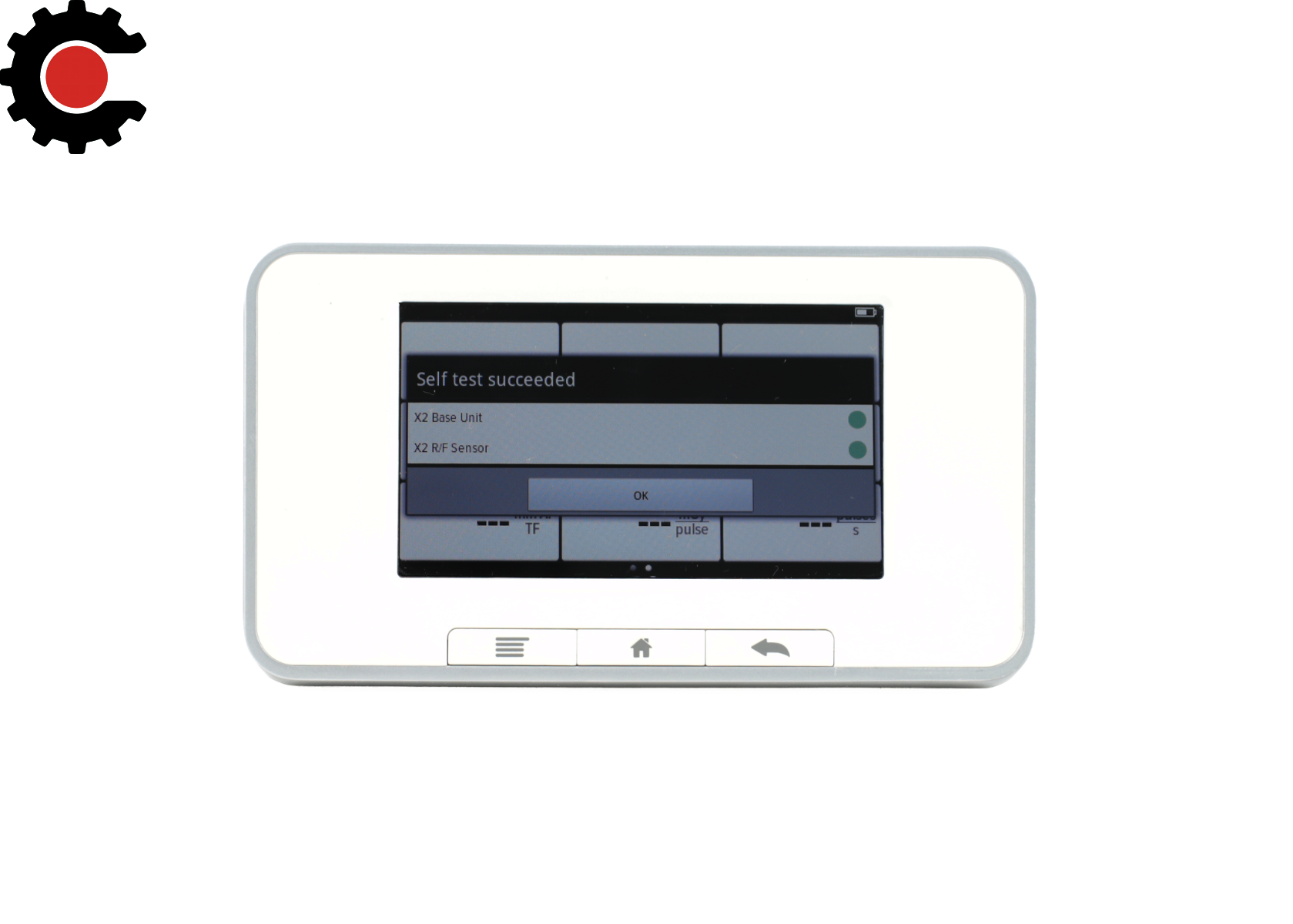

The RaySafe X2 base unit uses a 4.3-inch capacitive touchscreen for viewing measurement parameters, selecting larger parameter views, and reviewing waveform behavior. The included hard case, flexi stand, cables, power adapter, and mounting hardware support organized transport, sensor positioning, and daily imaging QA use.
- Compact X2 base unit with rechargeable Li-ion battery and approximately 10 hours of intensive usage
- 4.3-inch LCD capacitive touch display for parameter viewing, waveform review, and navigation

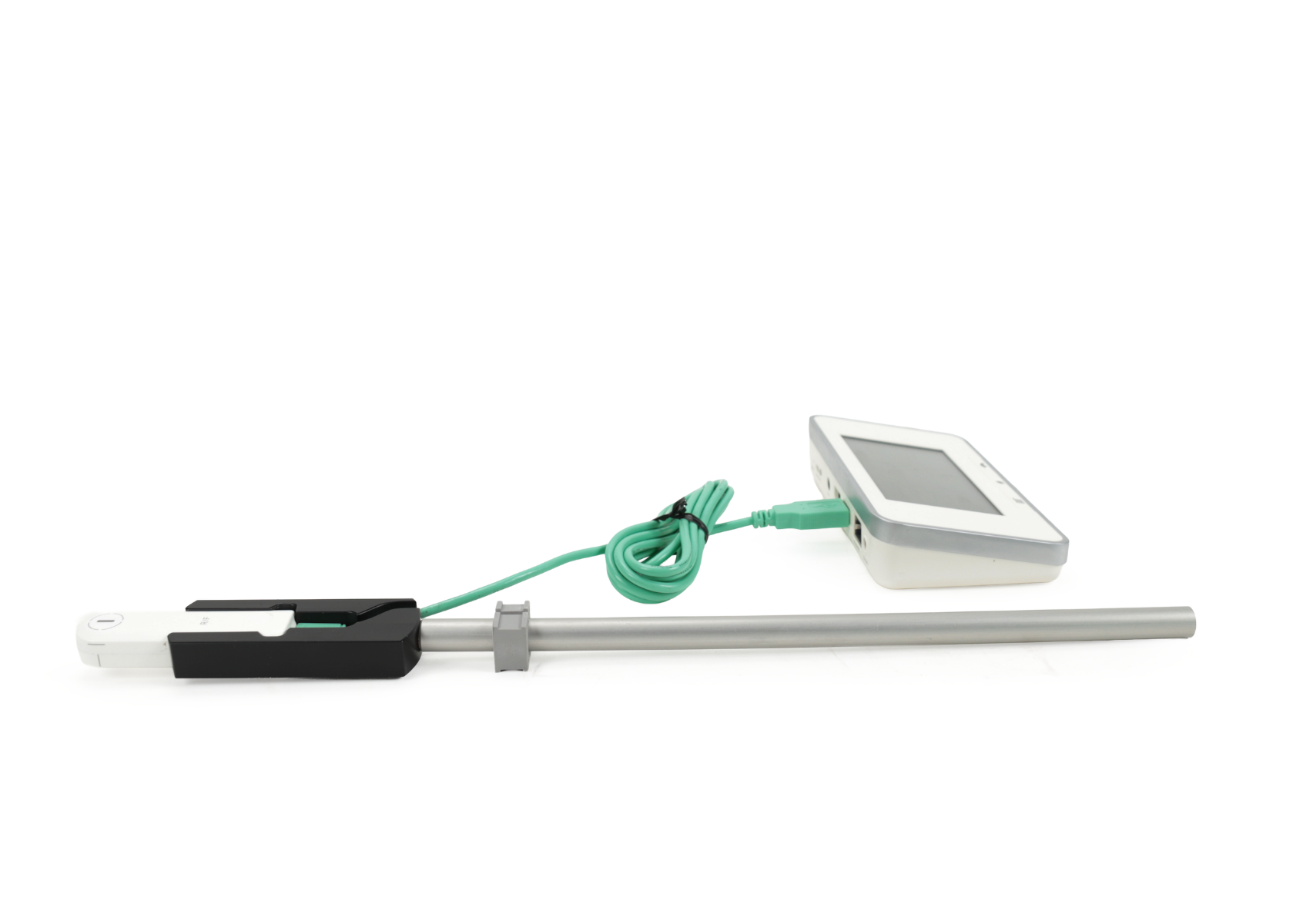

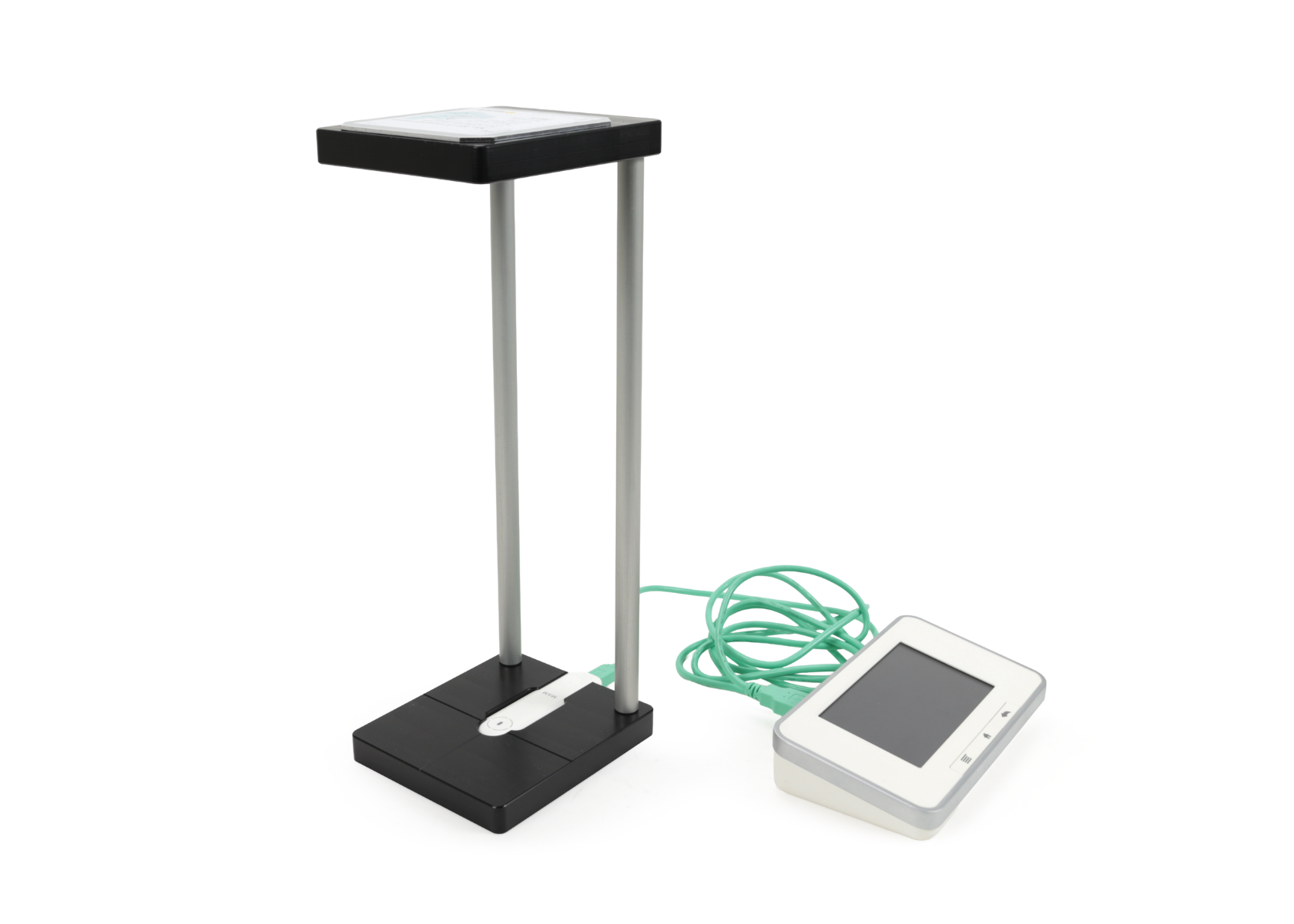

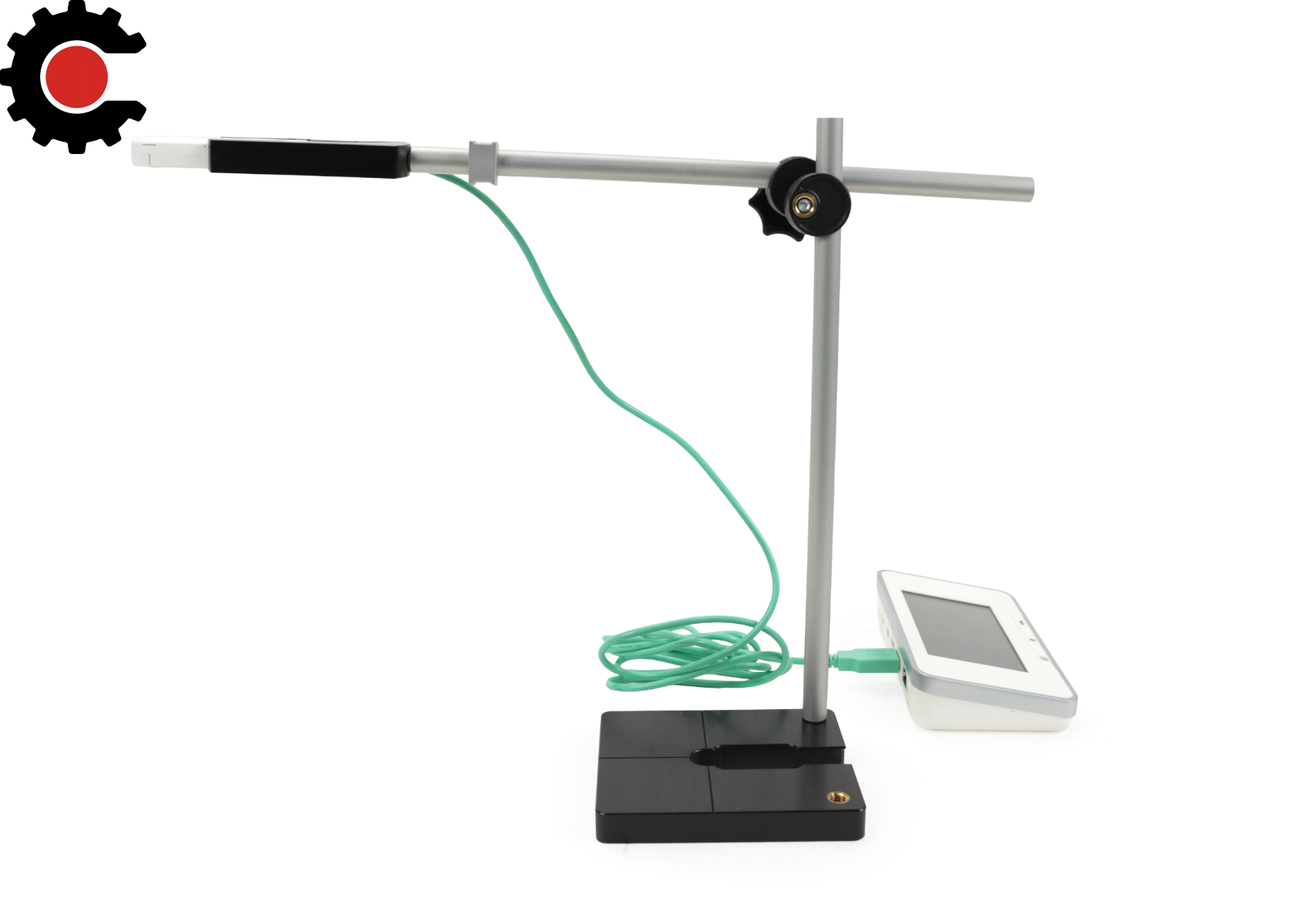

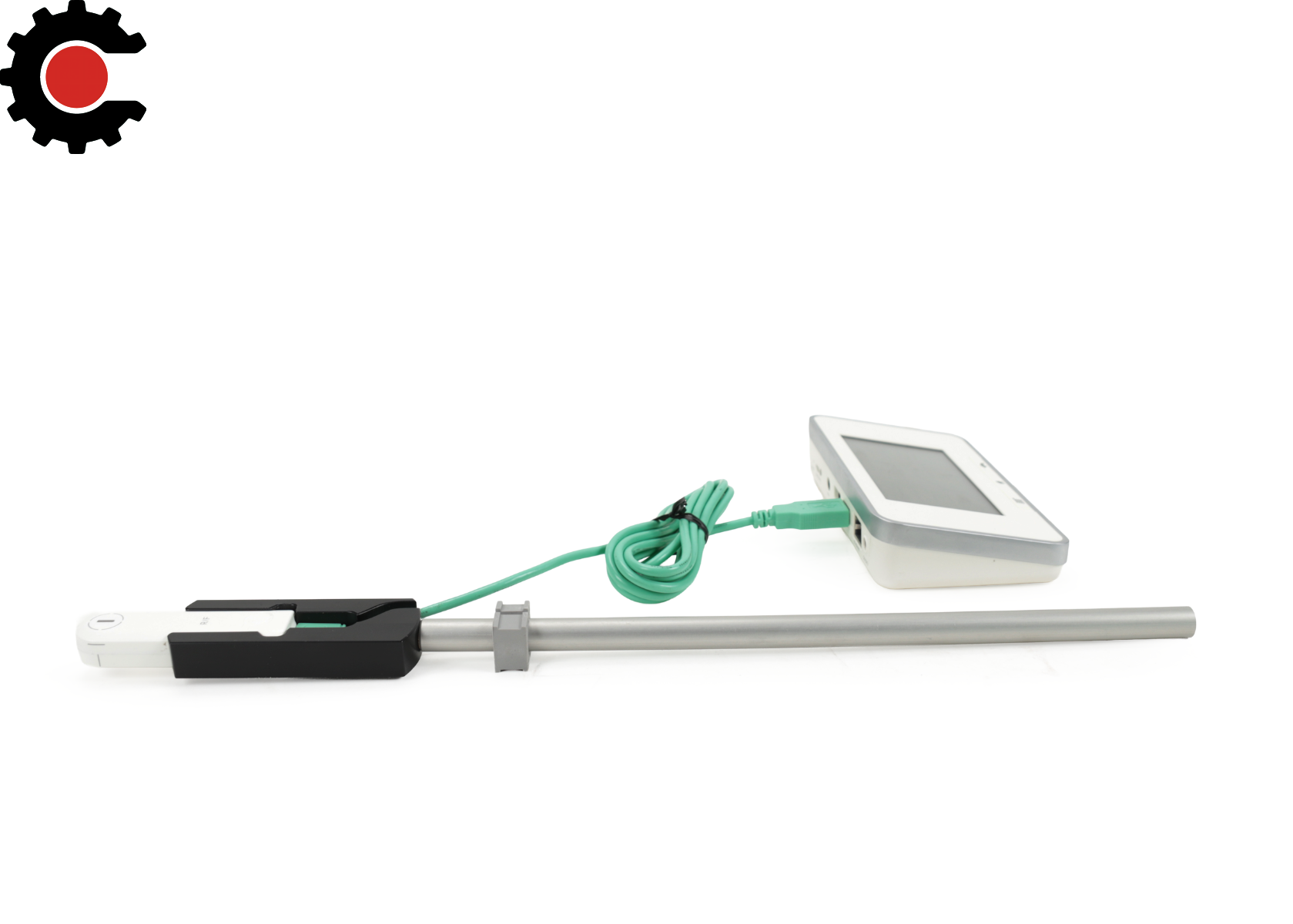

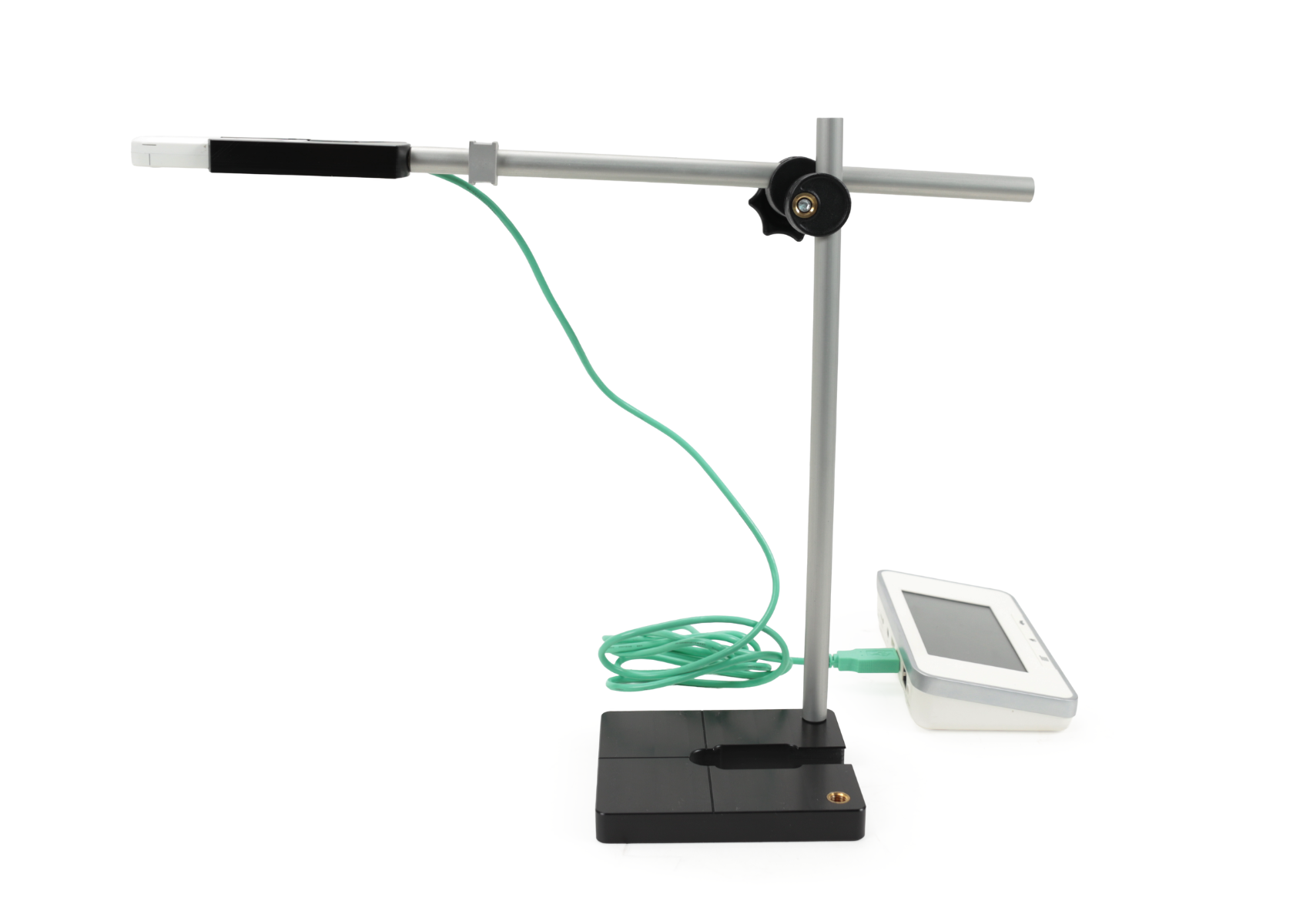

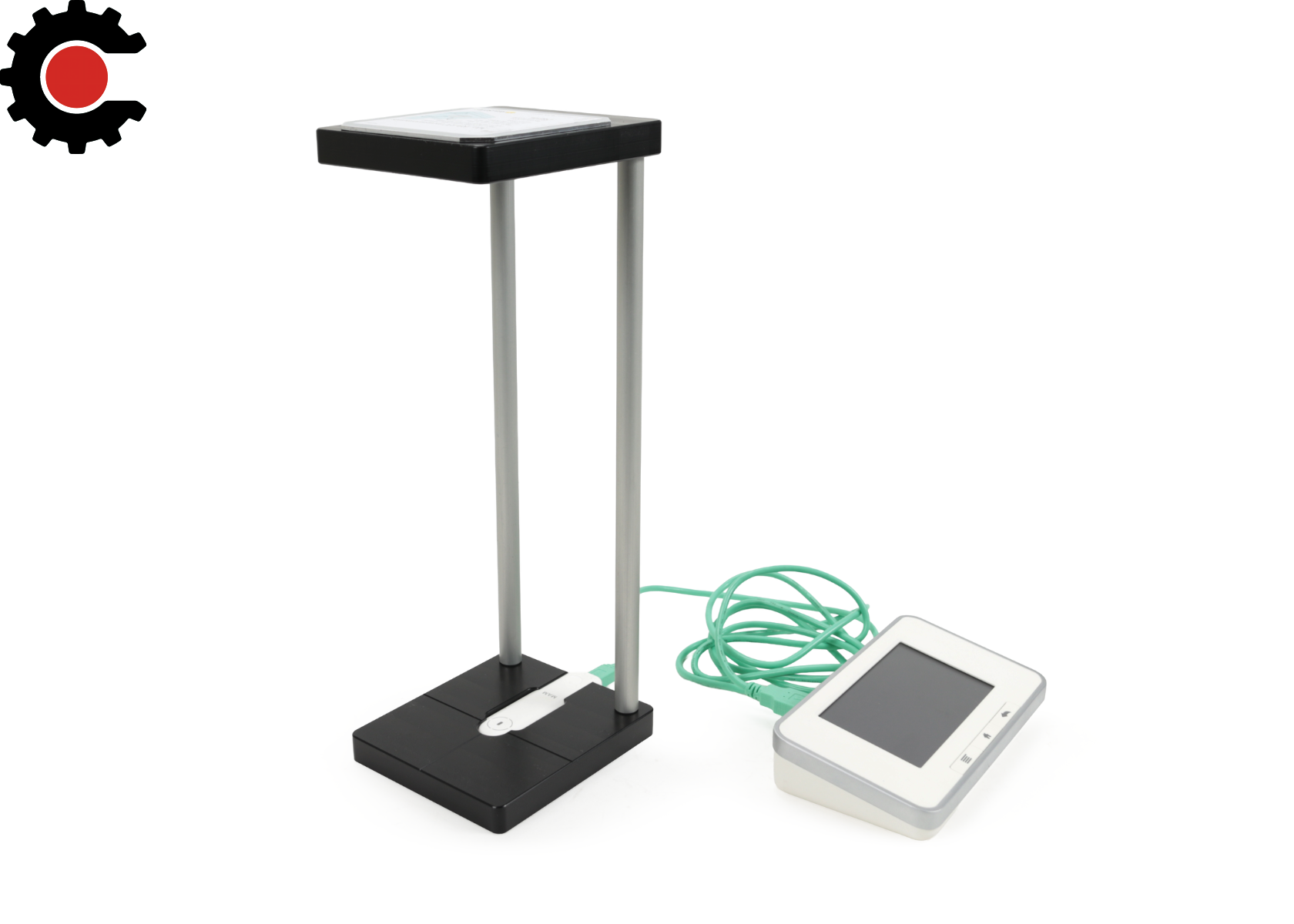

- RaySafe flexi stand and mounting hardware support sensor placement during X-ray measurement workflows
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery

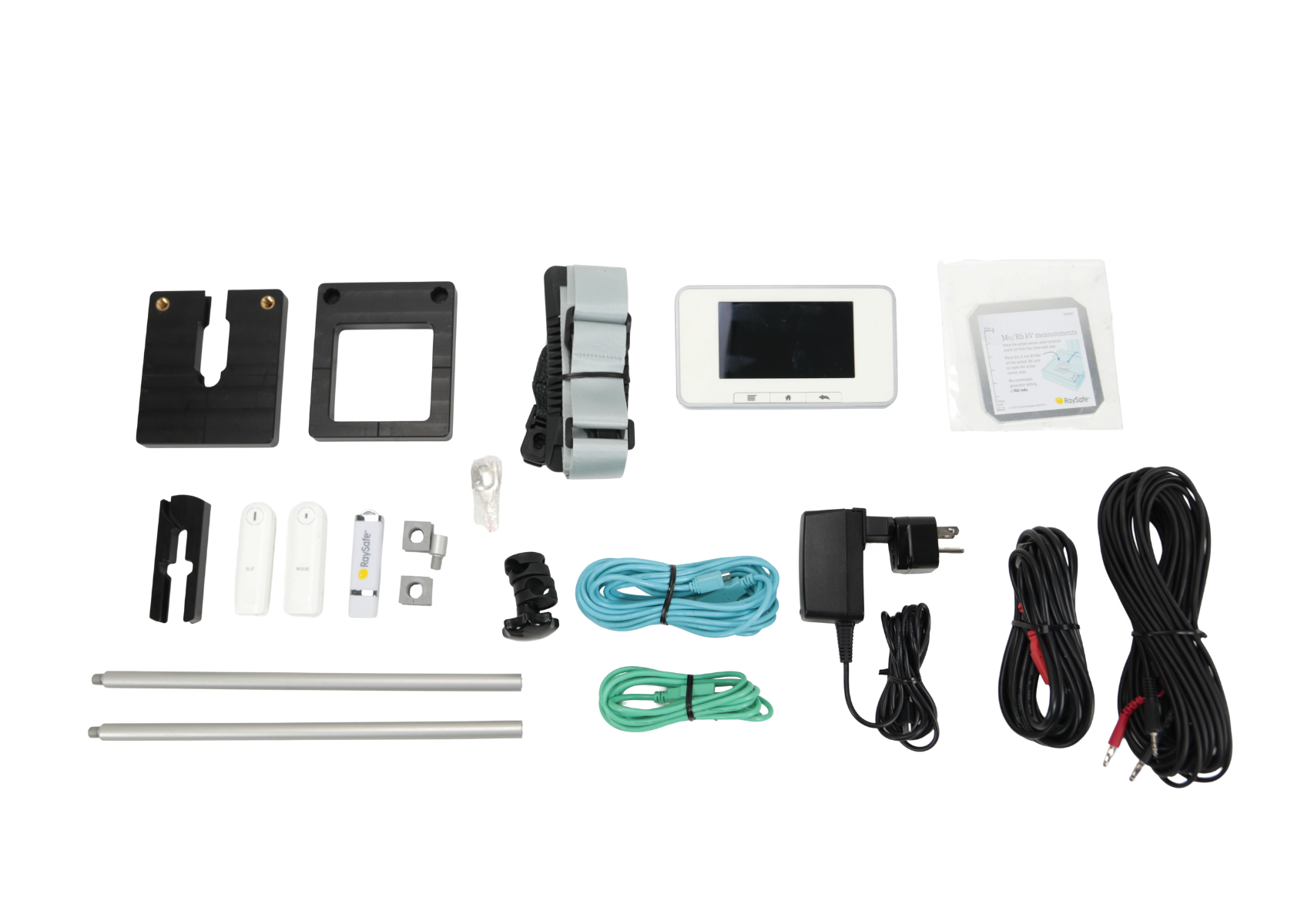

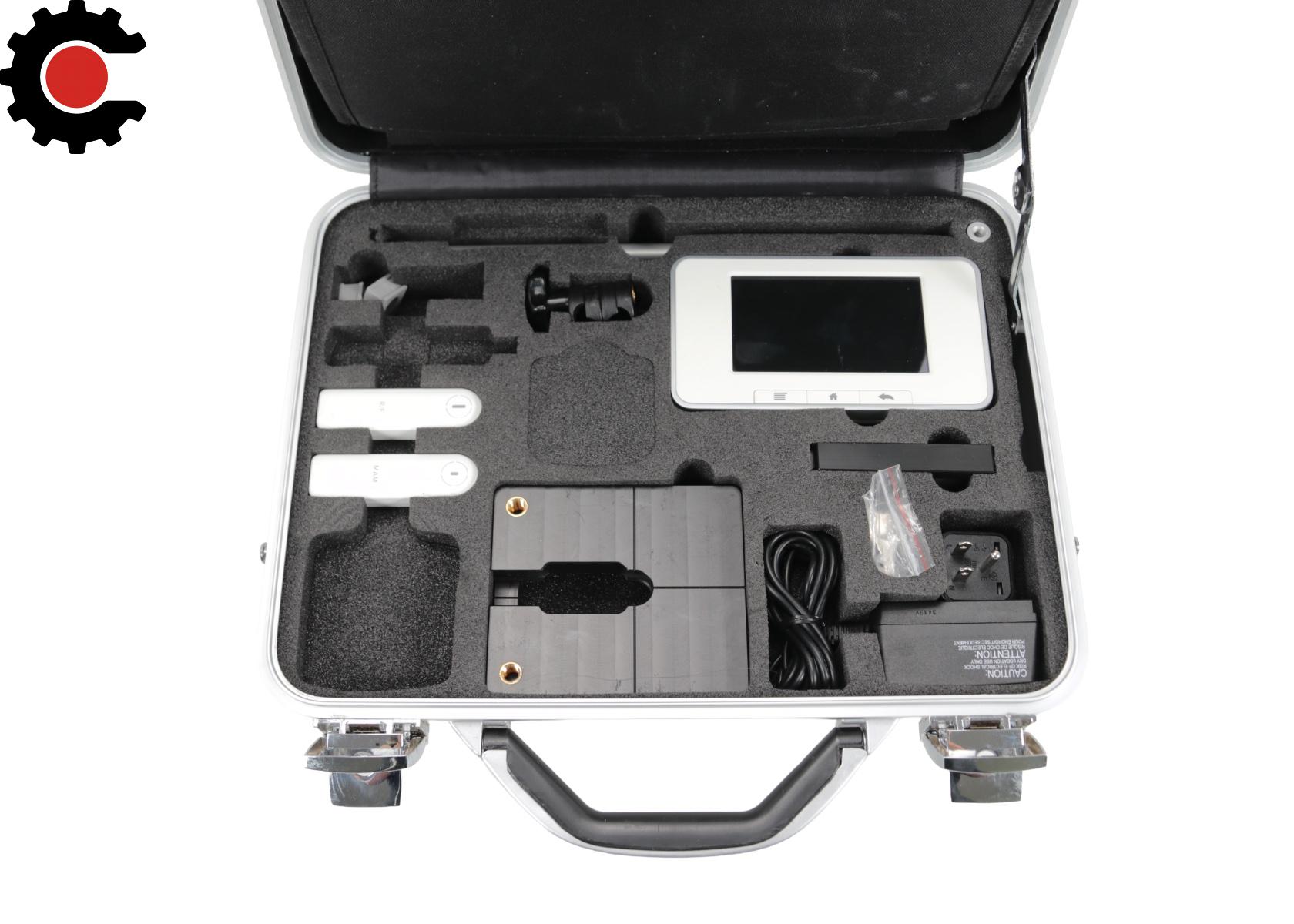

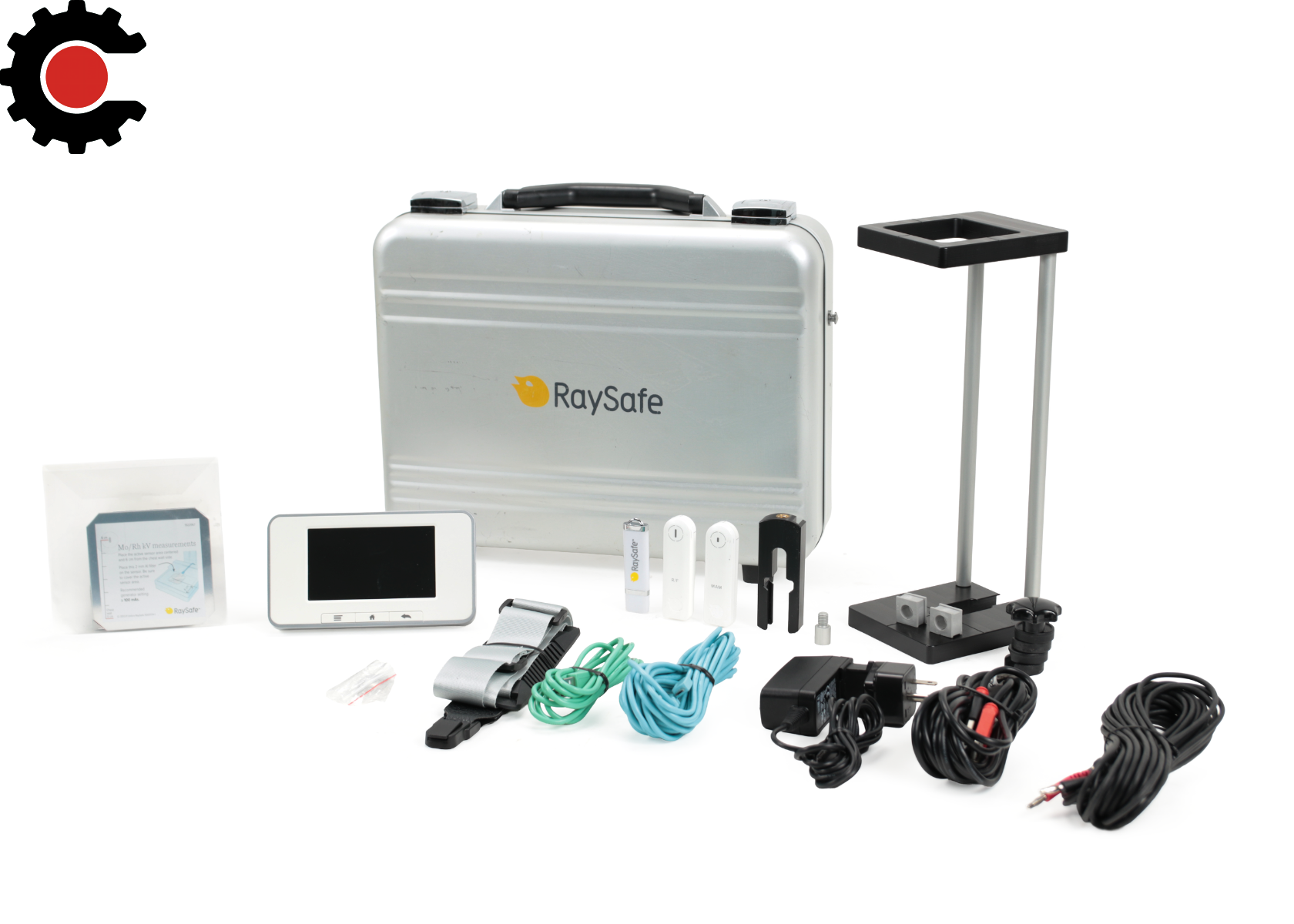

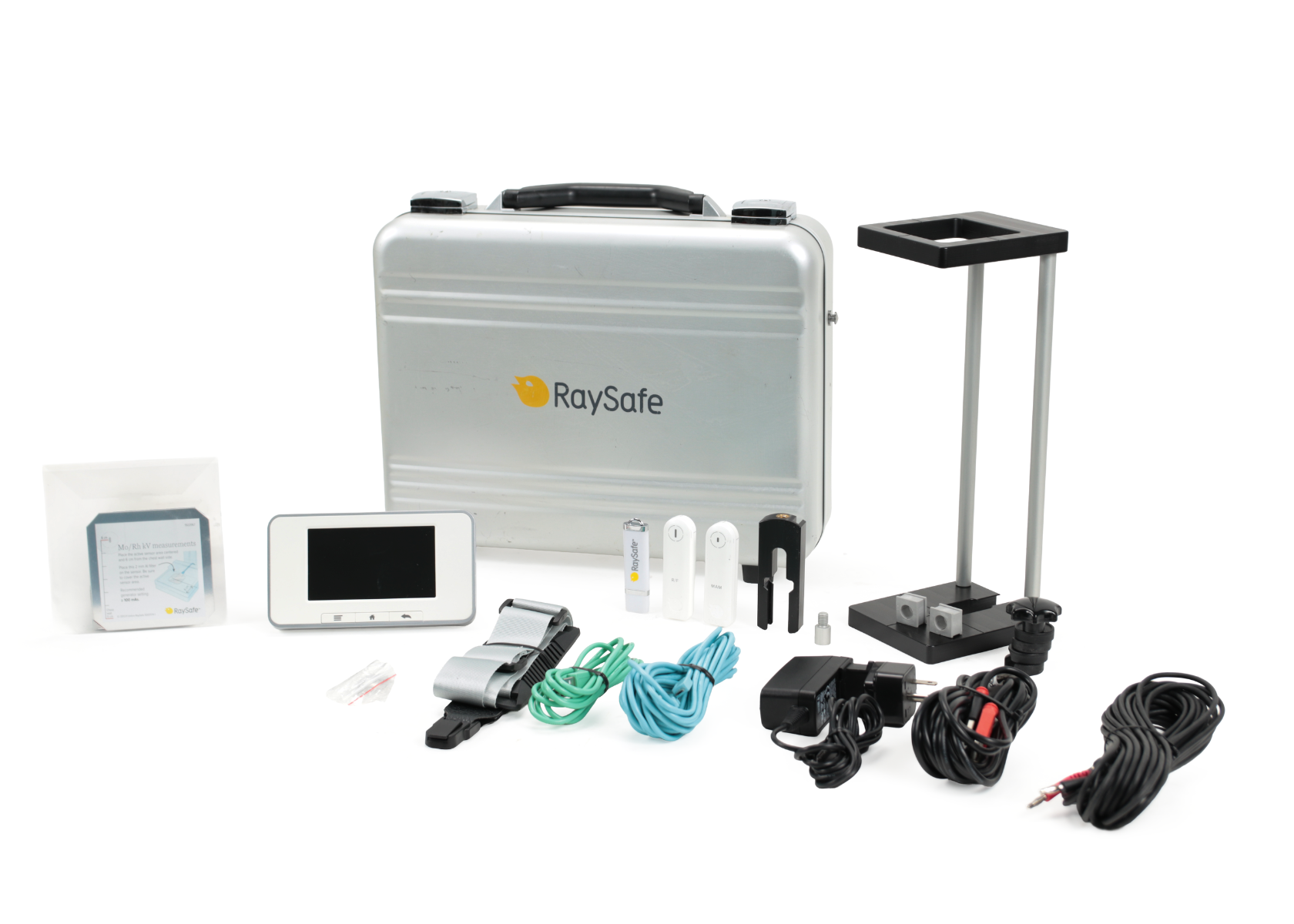

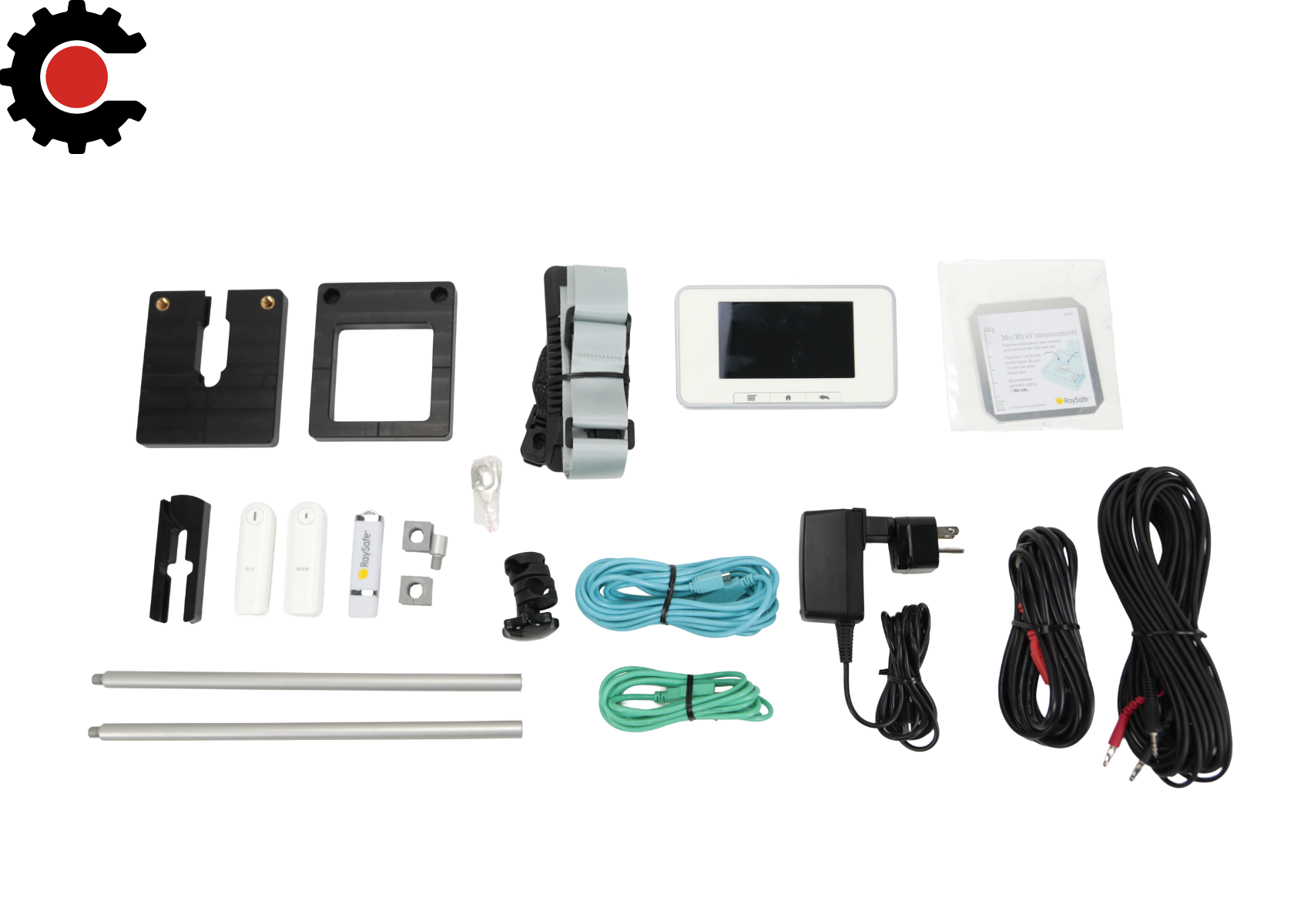

What's in the Box
- 1 x RaySafe X2 Base Unit, REF 8251010-6
- 1 x RaySafe X2 MAM Sensor, REF 8252020-6
- 1 x RaySafe X2 R/F Sensor, REF 8252010-6

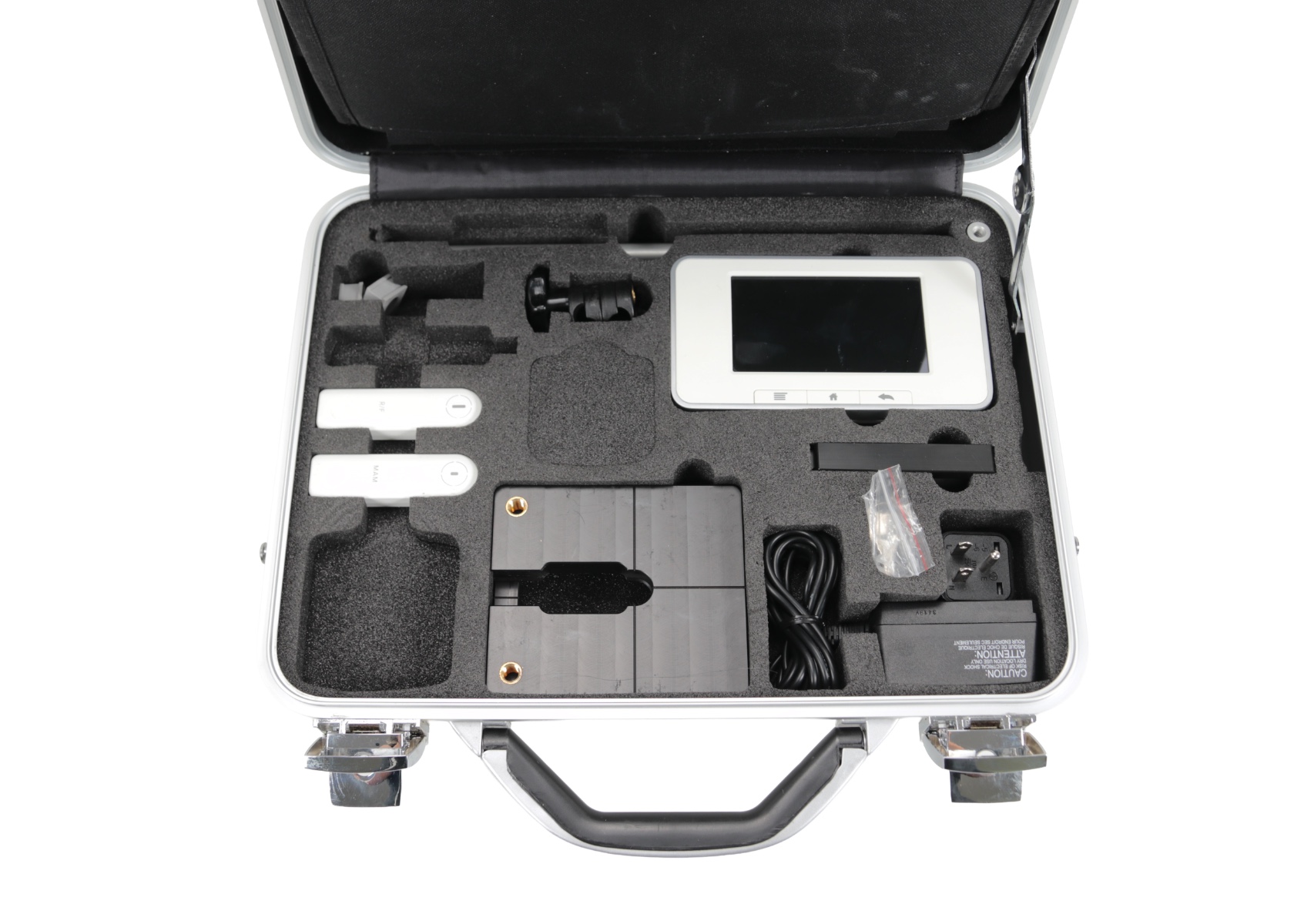

- 1 x Hard Carrying Case with Foam Insert
- 1 x X2 Flexi Stand
- 2 x Rods
- 1 x Detector Holder
- 1 x Flexi Coupling
- 2 x Rubber Squares
- 1 x 1/4" Camera Adapter
- 1 x X2 MAM Sensor Holder
- 1 x 2 mm Al Filter for Mo/Rh kV Measurements
- 1 x RaySafe USB Drive
- 1 x RaySafe X2 Quick Guide
- 1 x RaySafe Microfiber Cleaning Cloth
- 1 x X2 Power Supply with Plug Adapter
- 1 x USB Cable Set
- 1 x RaySafe X2/Xi/Solo mAs Cable
- 1 x Calibration Certificate Paperwork
Technical Specifications
| X2 General | |
|---|---|
| Series | X2 |
| Model | RaySafe X2 |
| Instrument Class | Diagnostic X-ray Test System |
| Configured Sensors | X2 R/F Sensor and X2 MAM Sensor |
| EMC | According to IEC 61326-1 |
| Safety | According to IEC 61010-1 |
| X-ray Meter Standard | Complies with IEC 61674 |
| Exposures Needed | One |
| Base Unit Size | 1.3 x 3.3 x 6.1 in |
| Base Unit Weight | 18.4 oz |
| Operating Temperature | 59 to 95°F |
| Storage Temperature | -13 to 158°F |
| Power Source | Rechargeable Li-ion battery |
| Battery Time | Approximately 10 hours intensive usage |
| Display | 4.3 in LCD with capacitive touch |
| Memory | Approximately 10,000 latest exposures |
| Software | RaySafe View for data handling and analysis; exports data to Microsoft Excel |

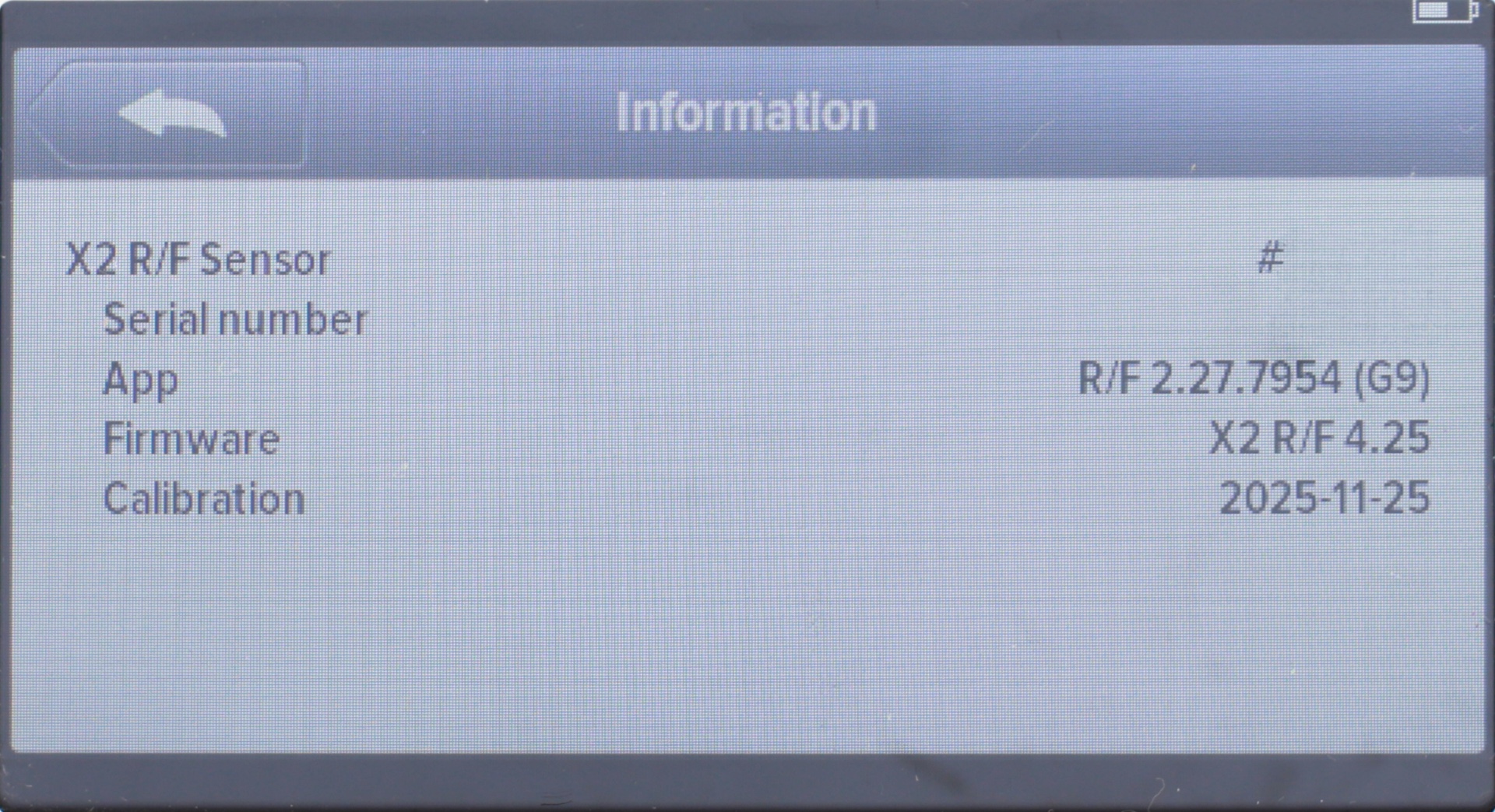

| X2 R/F Sensor Capability | |
| Sensor Type | R/F Sensor |
| Sensor Size | 0.5 x 0.9 x 3.1 in |
| Sensor Weight | 1.5 oz |
| Active Compensation | Beam-quality independent for dose/dose rate, kVp, and total filtration across specified ranges |
| Measurement Scope | Dose, dose rate, kVp, HVL, total filtration, time, pulses, pulse rate, dose per pulse, and waveforms |
| Dose Range | 1 nGy to 9999 Gy; uncertainty 5% or 5 nGy |
| Dose Rate Range | 1 nGy/s to 500 mGy/s; resolution 1 nGy/s; trigger level 50 nGy/s |
| kVp Range | 40 to 150 kVp; minimum dose 50 µGy; uncertainty 2% |
| HVL Range | 1 to 14 mm Al; minimum dose 1 µGy; uncertainty 10% |
| Total Filtration Range | 1.5 to 35 mm Al; uncertainty 10% or 0.3 mm Al |
| Time Range | 1 ms to 999 s; resolution 0.1 ms; uncertainty 0.5% |
| Pulse Range | 1 to 9999 pulses |
| Pulse Rate Range | 0.1 to 200 pulses/s |
| Dose Per Pulse Range | 1 nGy/pulse to 999 Gy/pulse |
| Waveforms | 62.5 µs resolution; kV bandwidth 0.1 to 0.4 kHz; dose rate bandwidth 4 Hz to 4 kHz |

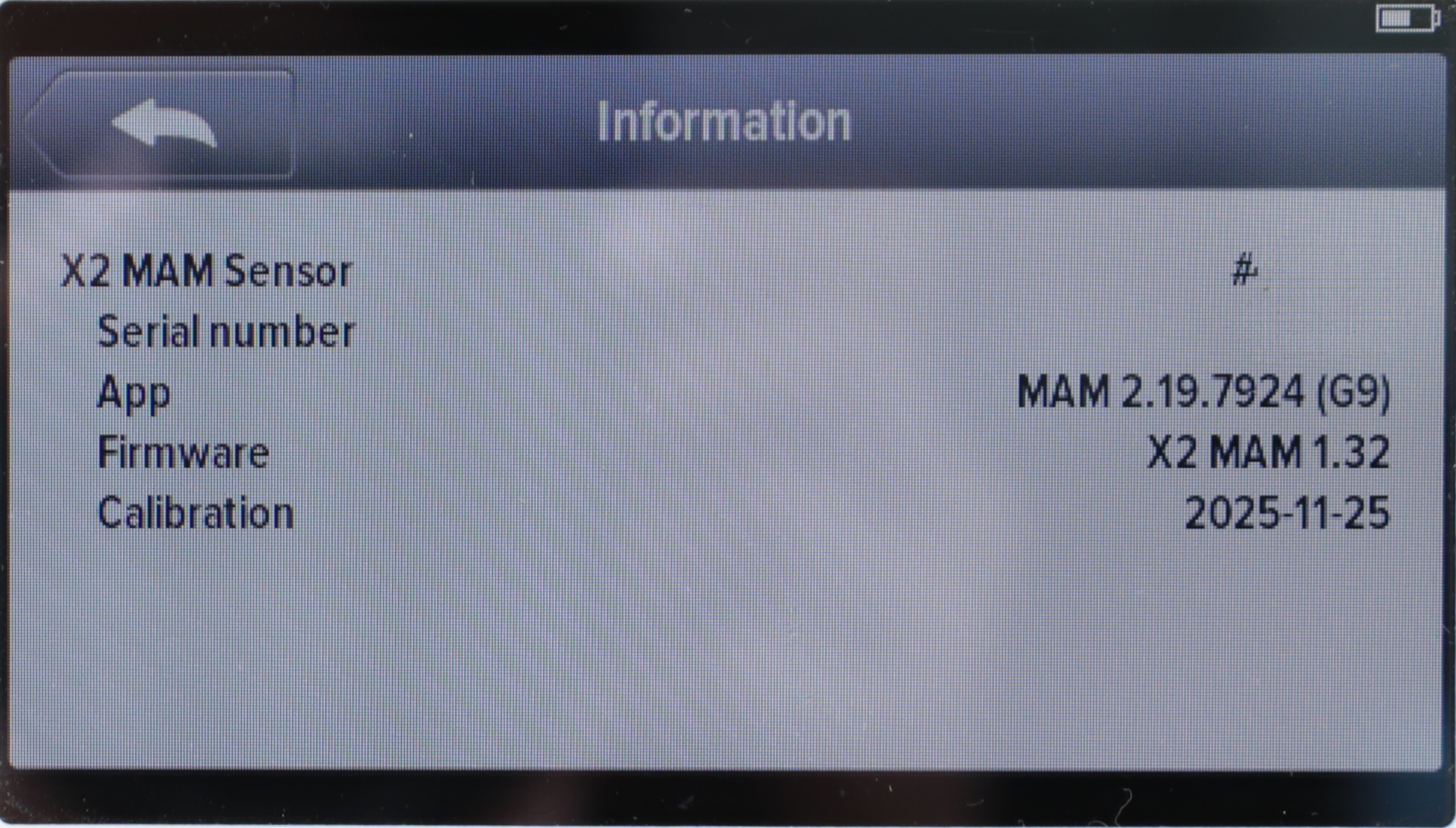

| X2 MAM Sensor Capability | |
| Sensor Type | MAM Sensor |
| Sensor Size | 0.5 x 0.9 x 3.1 in |
| Sensor Weight | 1.5 oz |
| Active Compensation | Dose, dose rate, and HVL measurement without beam-quality selections for specified mammography beam qualities |
| Measurement Scope | Dose, dose rate, kVp, HVL, time, pulses, pulse rate, dose per pulse, and waveforms |
| Beam Qualities | Mo/Mo, Mo/Rh, Rh/Ag, Mo/Al, W/Rh, W/Ag, W/Al, Rh/Rh, Rh/Al, Mo/Cu, Rh/Cu, W/Cu, and W/Ti within specified kVp ranges |

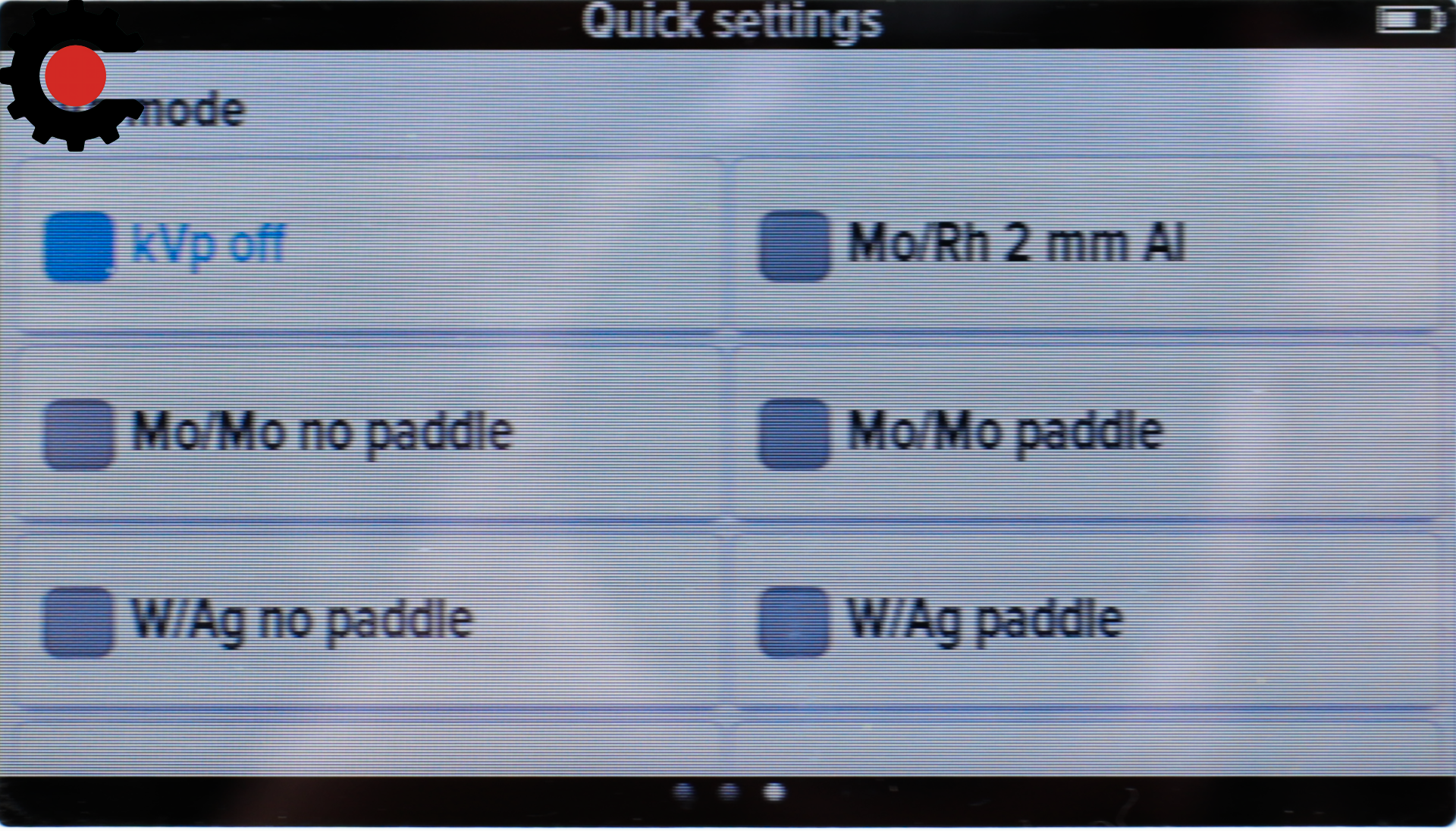

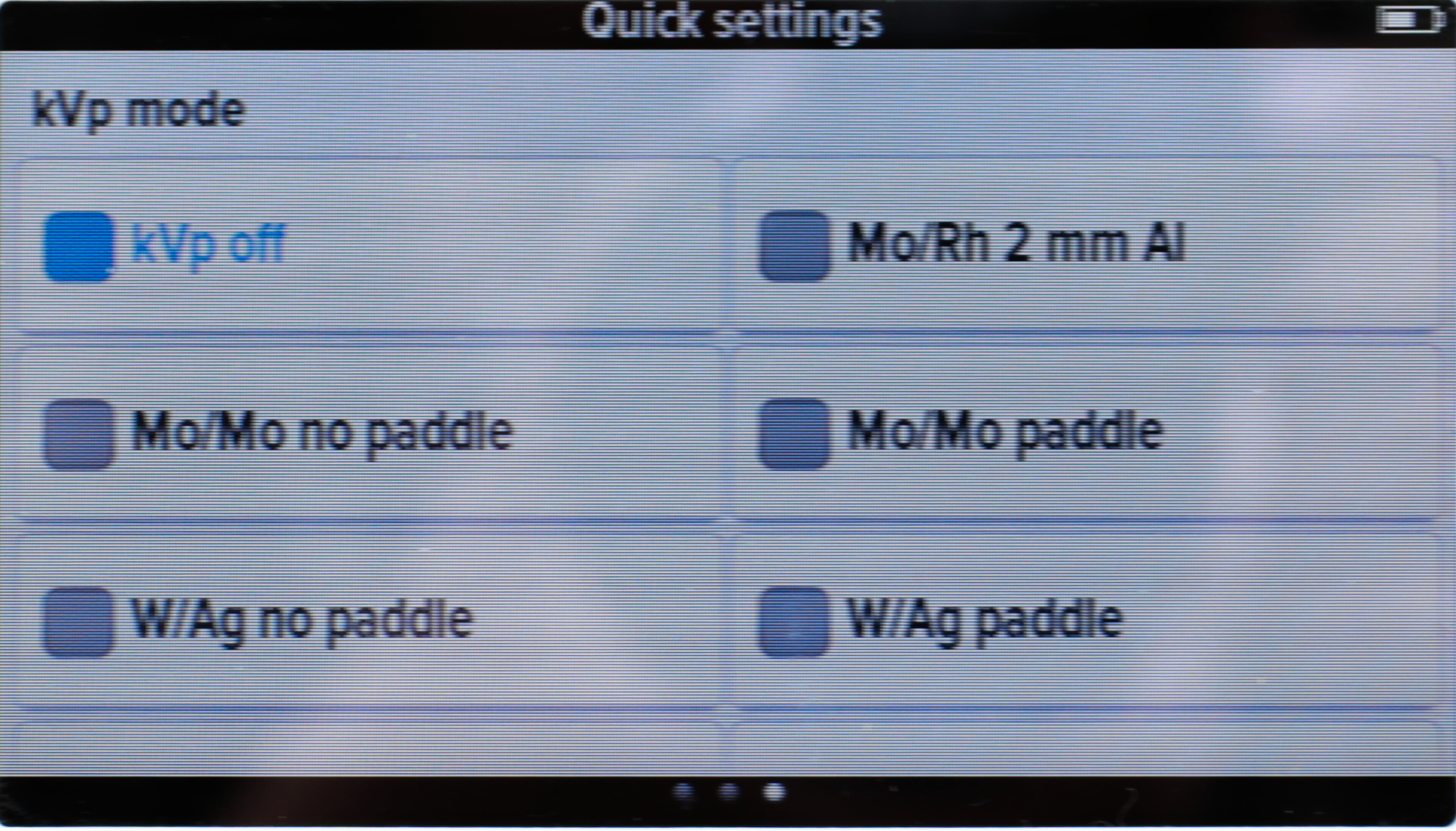

| kVp Beam Quality Selection | User-selectable beam qualities with paddle compensation available when relevant |
| Dose Range | 1 µGy to 9999 Gy; uncertainty 5% |
| Dose Rate Range | 10 µGy/s to 300 mGy/s; uncertainty 5% |
| kVp Range | 18 to 50 kVp depending on beam quality; uncertainty 2% or 0.5 kV without paddle, 2% or 0.7 kV with paddle |
| HVL Range | 0.2 to 3.6 mm Al; uncertainty 5% above 25 kV, 10% below 25 kV |
| Time Range | 1 ms to 999 s; resolution 0.1 ms; uncertainty 0.5% |
| Pulse Range | 1 to 9999 pulses |
| Pulse Rate Range | 0.1 to 200 pulses/s |
| Dose Per Pulse Range | 1 µGy/pulse to 999 Gy/pulse |
| Waveforms | 62.5 µs resolution; 400 Hz bandwidth |
