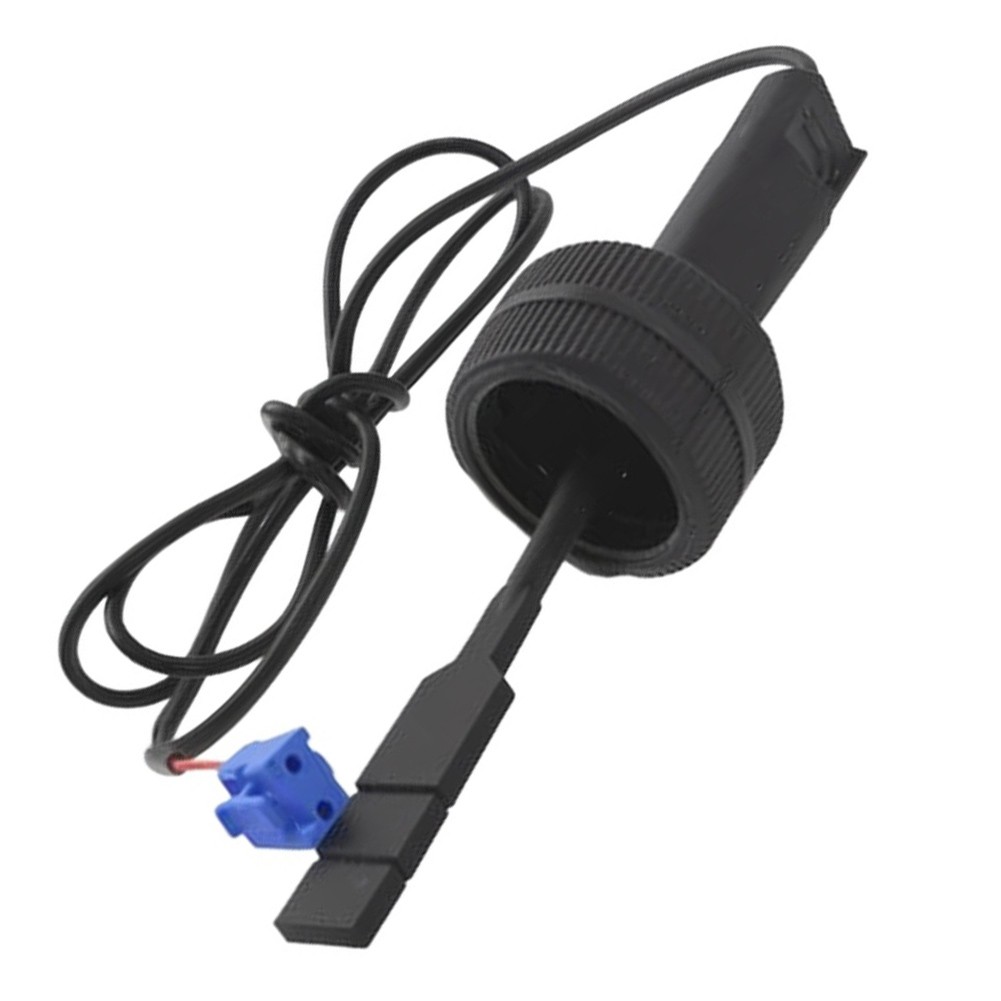

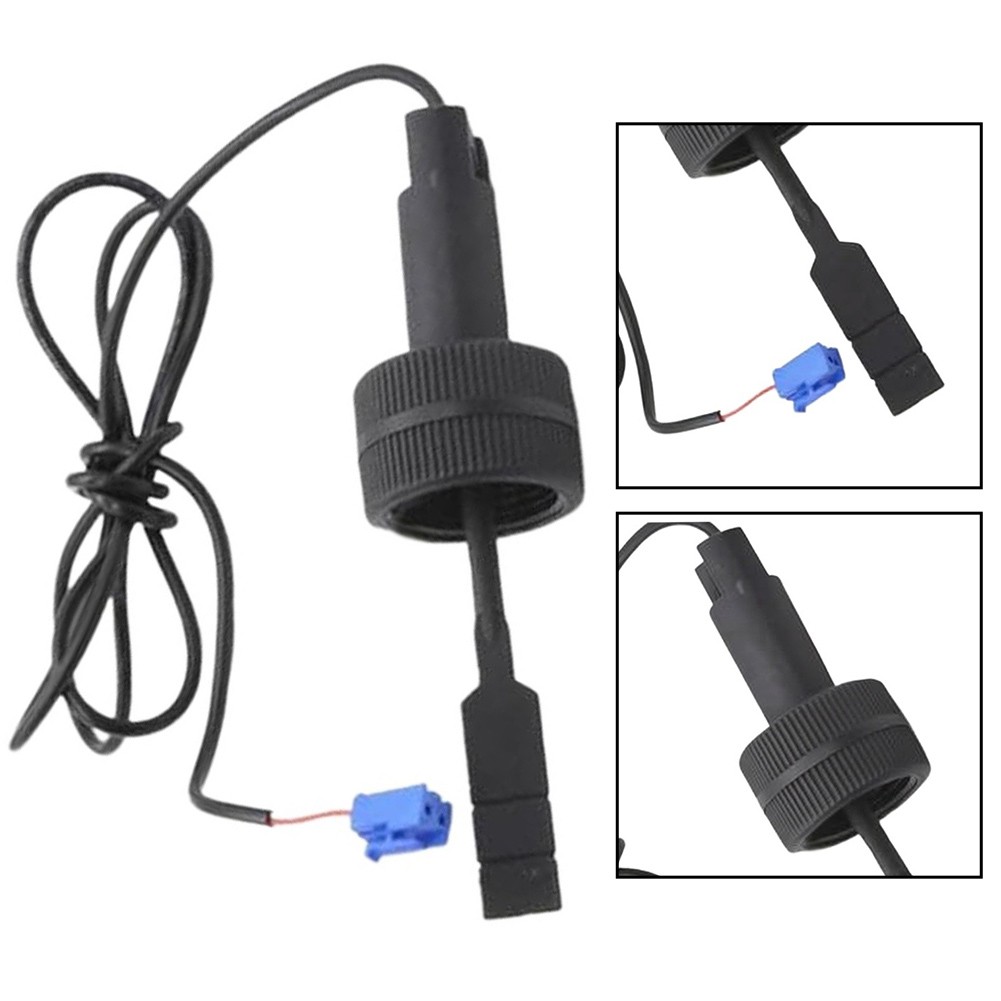

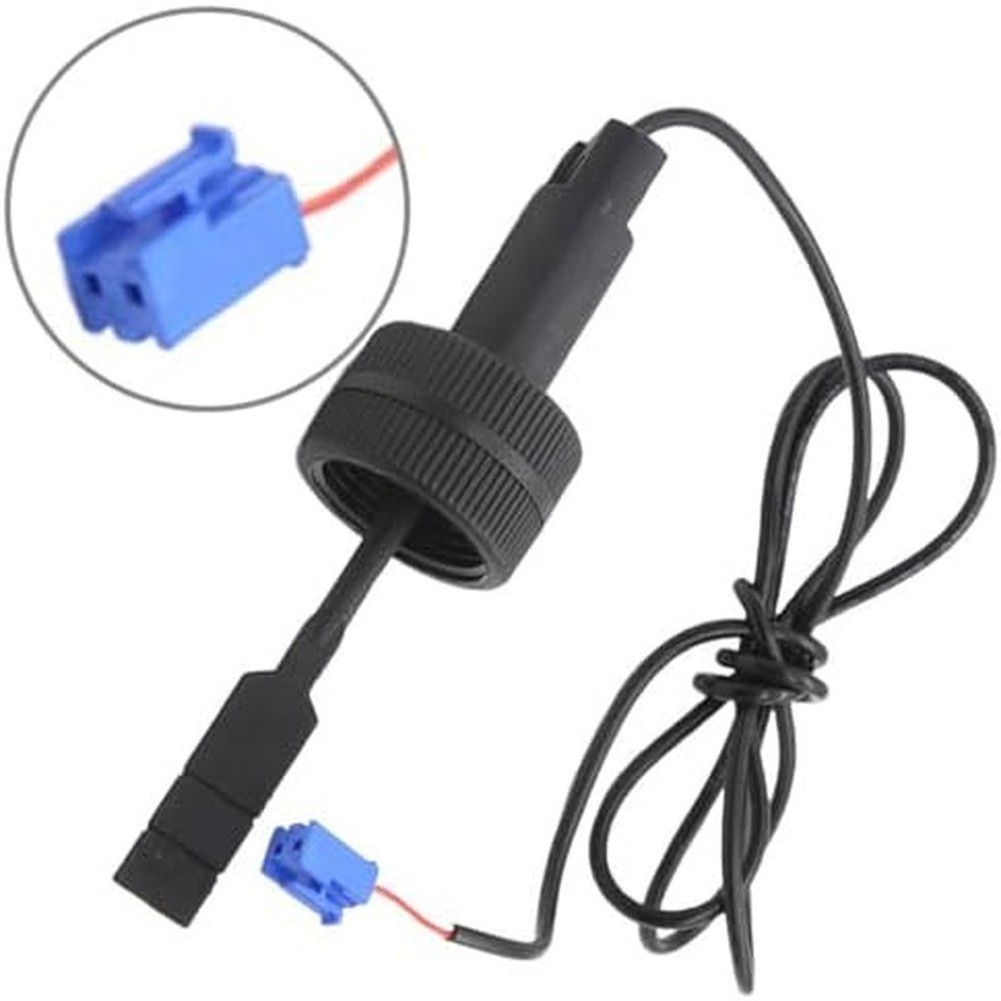

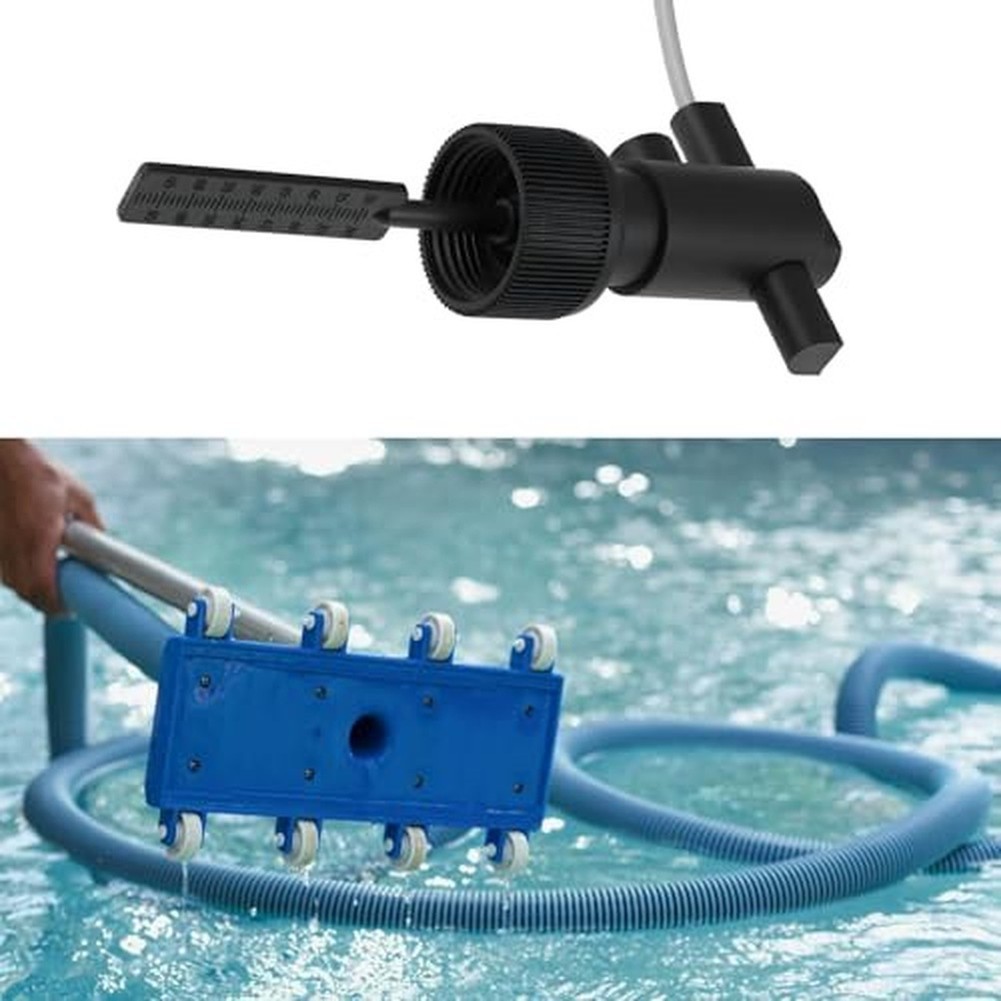

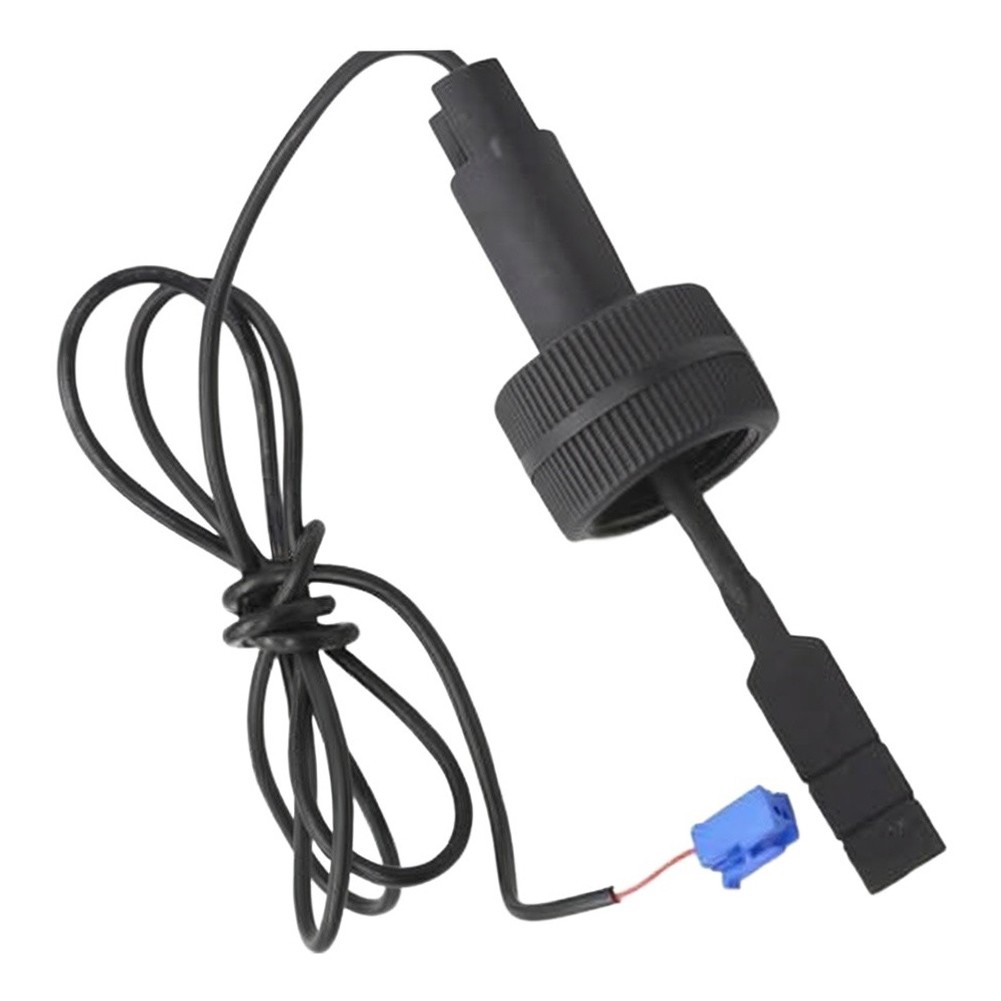

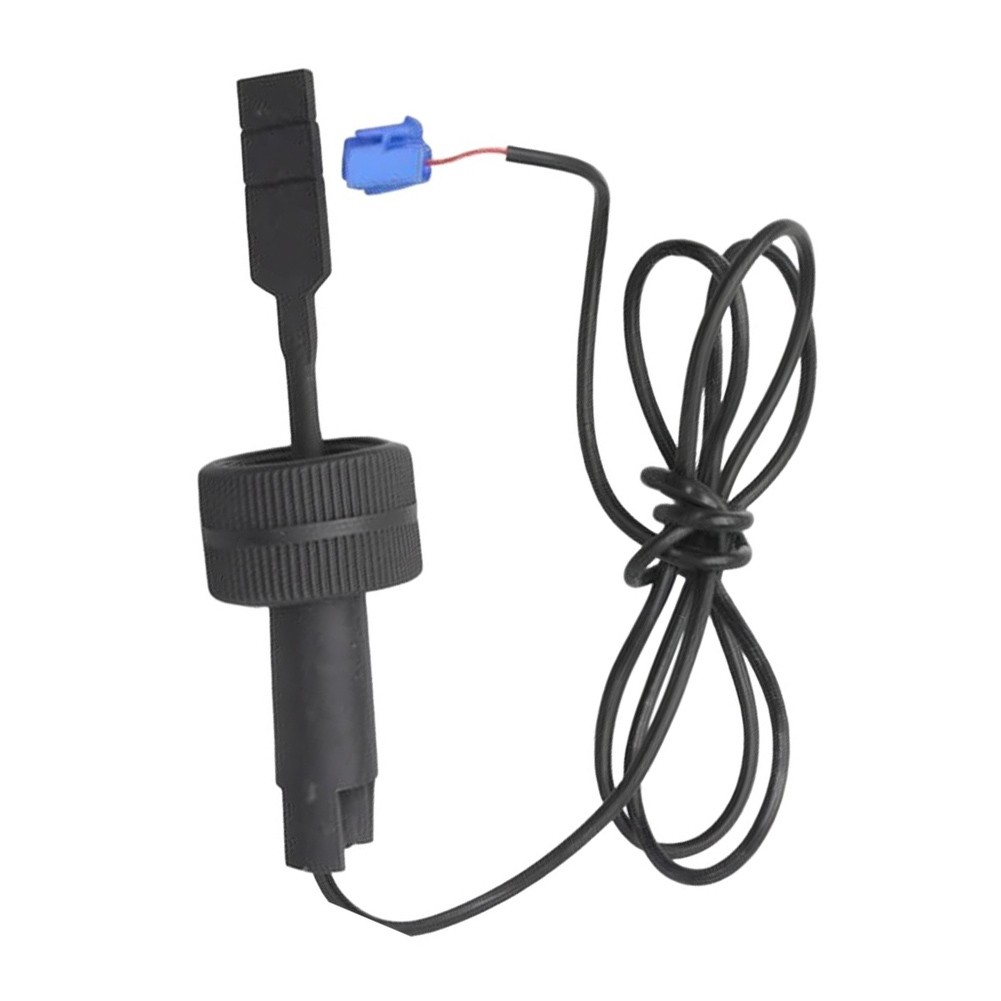

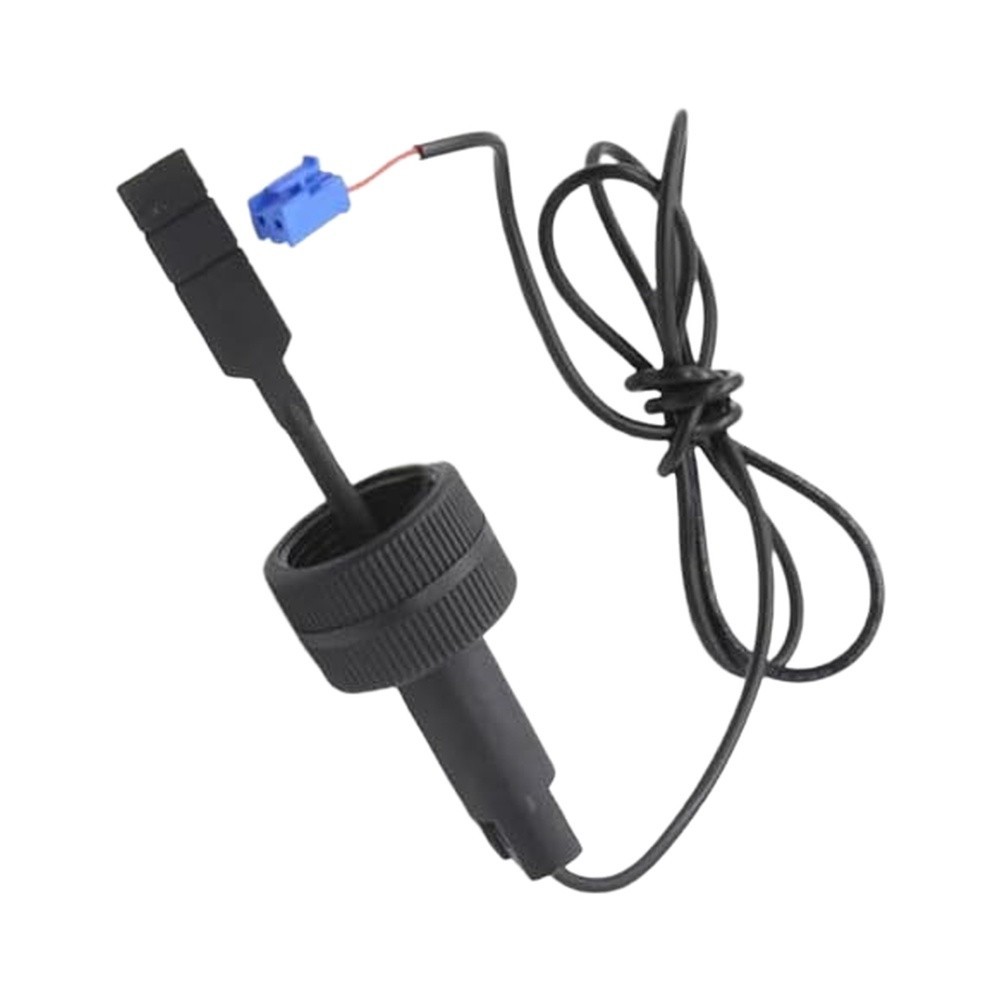

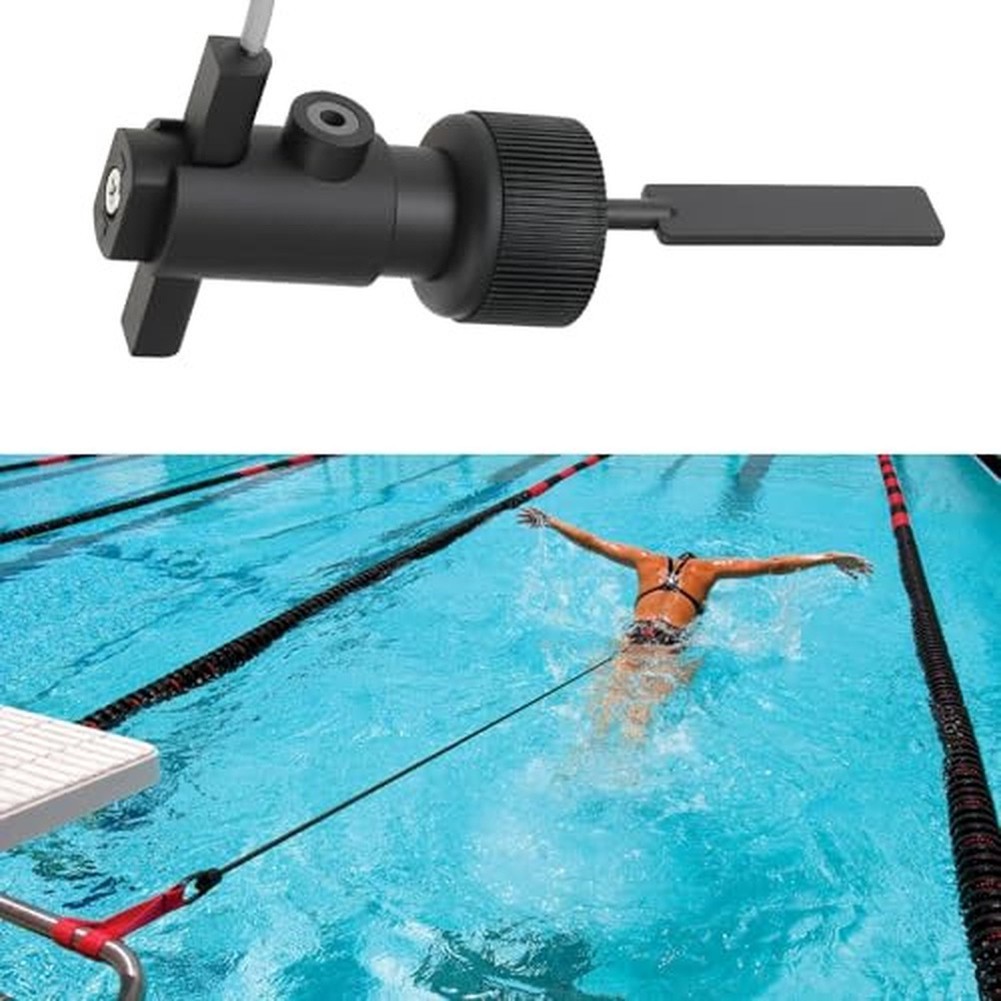

SPST Paddle Flow Switch for Pool Filtration Systems and Heat Pump Units
DESCRIPTION


Features:

*Wide flow Detection Range: This flowswitch Sensor accurately measures flow rates between 0.75 to 15 Lmin, making it for ideal for applications like air for source heat pumps and swimming pools that require precise water flow monitoring.

*Flexible Installation: Designed for adaptable mounting options, this Sensor for supports both vertical and horizontal installations, easy integration into a variety of piping systems for both residential and commercial use.

*High output Integrity: It provides stable output signals with a high output level of ≥4.7V and a low output level of ≤0.5V, precise performance and reliable operation in your water flow monitoring systems.

*Leak resistant Construction: Constructed from ABS material, this detector is tested to withstand up to 1.75MPa water pressure, offering leak resistant functionality and long-lasting reliability under demanding conditions.

*Resistant to Extreme Conditions: Capable of operating efficiently in ambient for temperatures ranging from -20°C to 80°C, it is designed to resist condensation, thermal shocks, and vibrations (35-500Hz), making it suitable for harsh environments.


Specifications:

Part Name:Paddle flow Switch

Material:Plastic Nylon or PBT

Size：Cable Length: 300mm

Color:black

Mounting Thread: G3/4(6 points)
Wire: AWG22, 300mm
for Contact Type: S.P.S.T.
Load Current: 1.5A
Switching Current: 0.5A
Switching : 100Vdc
Power: 10VA
Set flow Rate: 0.75~3L/min
Set flow Rate Accuracy: ±10%
highest flow Rate: 5~15L/min (Pressure Drop 10PIS)
Operating Pressure: 300PSI
Vibration: 35~500Hz
Operating for Temperature Range: 0~80℃


Package Content:

1*Paddle flow Switch Sensor


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
