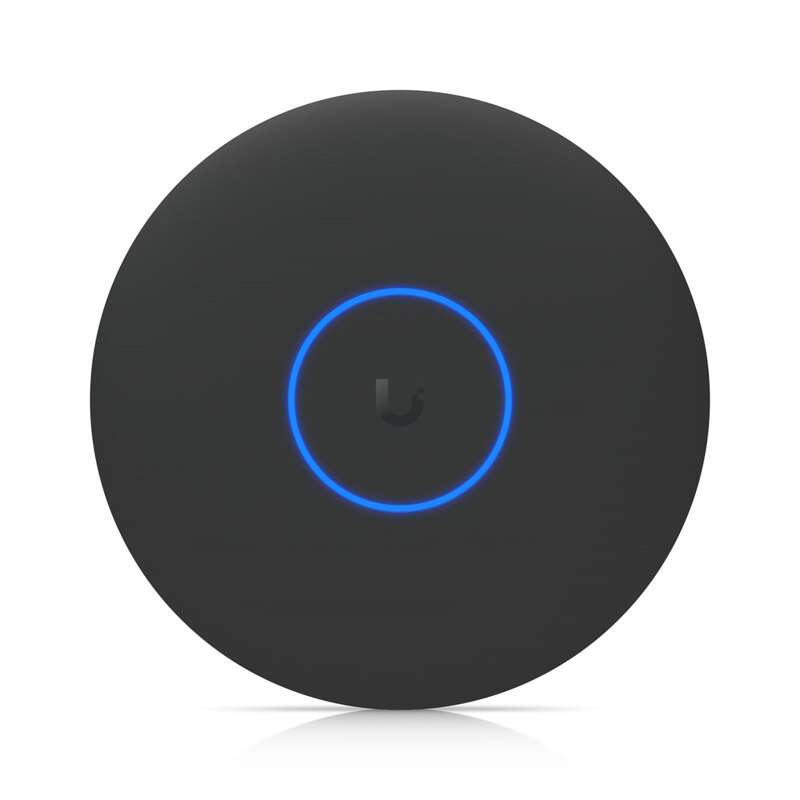

Ubiquiti U7-PRO-XGS UniFi 7Pro XGS 8 Stream WiFi 7 6GHz 10GbE Access Point Black

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.WiFi 7 with 6 GHz support8 spatial streamsReal-time spectral analysis for enhanced channel selection160 m2 (1,750 ft2) coverage500+ connected devicesPowered using PoE++10 GbE uplinkDimensionsd215 x 32.5 mm (d8.5 x 1.3")WiFi StandardWiFi 7Spatial Streams8Coverage Area160 m2 (1,750 ft2)Max. Client Count500+Uplink10 GbEMountingCeiling, Wall(Lite Mount Included)Power MethodPoE++MIMO6 GHz2 x 2 (DL/UL MU-MIMO)5 GHz4 x 4 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO)Max. Data Rate6 GHz5.8 Gbps (BW320)5 GHz8.6 Gbps (BW240)2.4 GHz688 Mbps (BW40)Antenna Gain6 GHz6 dBi5 GHz6 dBi2.4 GHz4 dBiMax. TX Power6 GHz24 dBm5 GHz29 dBm2.4 GHz23 dBmMax. BSSIDs8 per RadioSupported Data Rates802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)Wireless MeshingYesBand SteeringYes802.11v BSS Transition ManagementYes802.11r Fast RoamingYes802.11k Radio Resource Management (RRM)YesZero-Wait DFSYesAdvanced Radio ManagementYesReal-Time Spectral AnalysisYesPasspoint (Hotspot 2.0)YesCaptive Hotspot PortalYesPrivate Pre-Shared Key (PPSK)YesWiFi Speed LimitingYesClient Device IsolationYesWiFi SchedulesYesRADIUS over TLS (RadSec)YesDynamic RADIUS-assigned VLANYesMax. Power Consumption29WSupported Voltage Range42.5 - 57V DCNetworking Interface(1) 10 GbE RJ45 portWeight800 g (1.8 lb)ManagementEthernetEnclosure MaterialUV-stabilized polycarbonate, aluminum alloyMount MaterialStainless steel (SUS304), galvanized steel (SGCC)LEDsSystemChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)CertificationsCE, FCC, IC

Ubiquiti U7-PRO-XGS UniFi 7Pro XGS 8 Stream WiFi 7 6GHz 10GbE Access Point Black

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection
160 m2 (1,750 ft2) coverage
500+ connected devices
Powered using PoE++
10 GbE uplink

Dimensions
d215 x 32.5 mm
(d8.5 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m2 (1,750 ft2)

Max. Client Count
500+

Uplink
10 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
PoE++

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
4 x 4 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)

5 GHz
8.6 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm

5 GHz
29 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Zero-Wait DFS
Yes

Advanced Radio Management
Yes

Real-Time Spectral Analysis
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
29W

Supported Voltage Range
42.5 - 57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
800 g (1.8 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications
CE, FCC, IC
