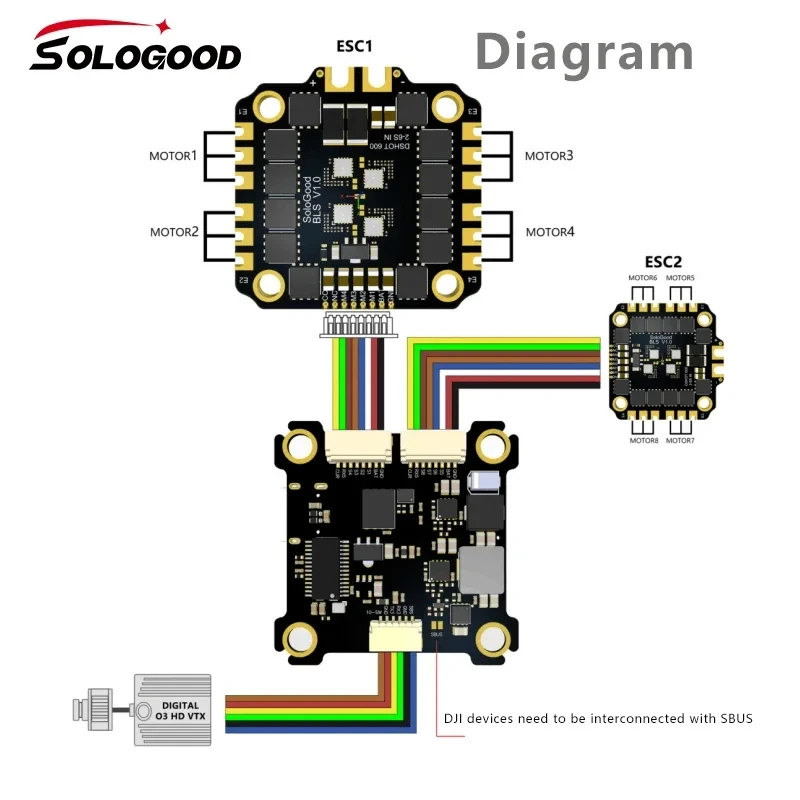

Support up to 8 motor outputs to easily build X8 drones.
Integrated 5V/10V dual BEC ensures stable operation
Four LED status indicators display the working status under different states.

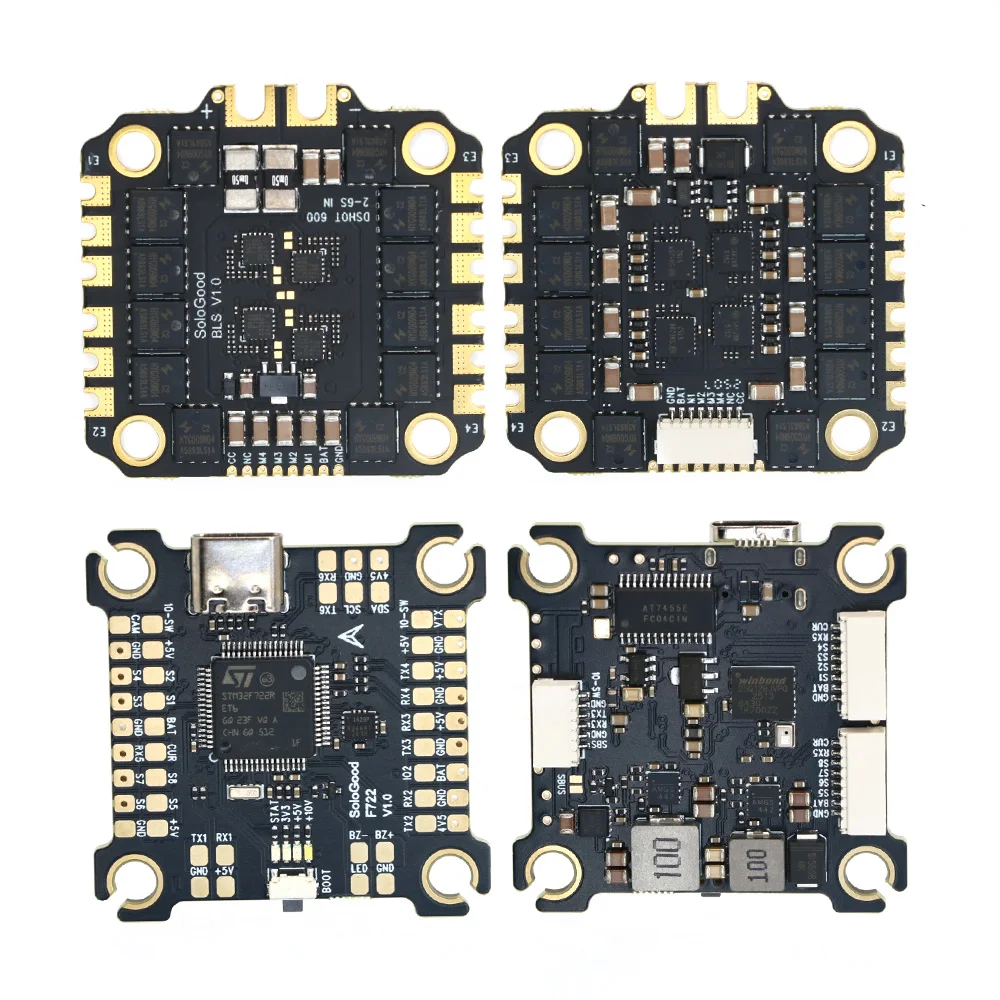

Although the flight control is small, it has all five internal components. The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip.
The use of large pads ensures that the pads are kept away from components to ensure perfect soldering for beginners.

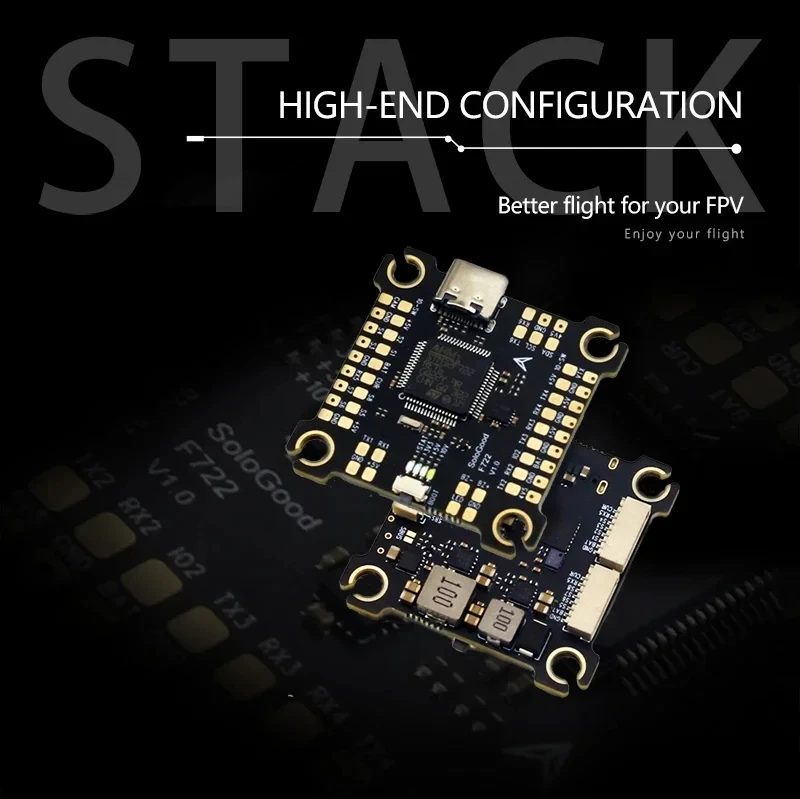

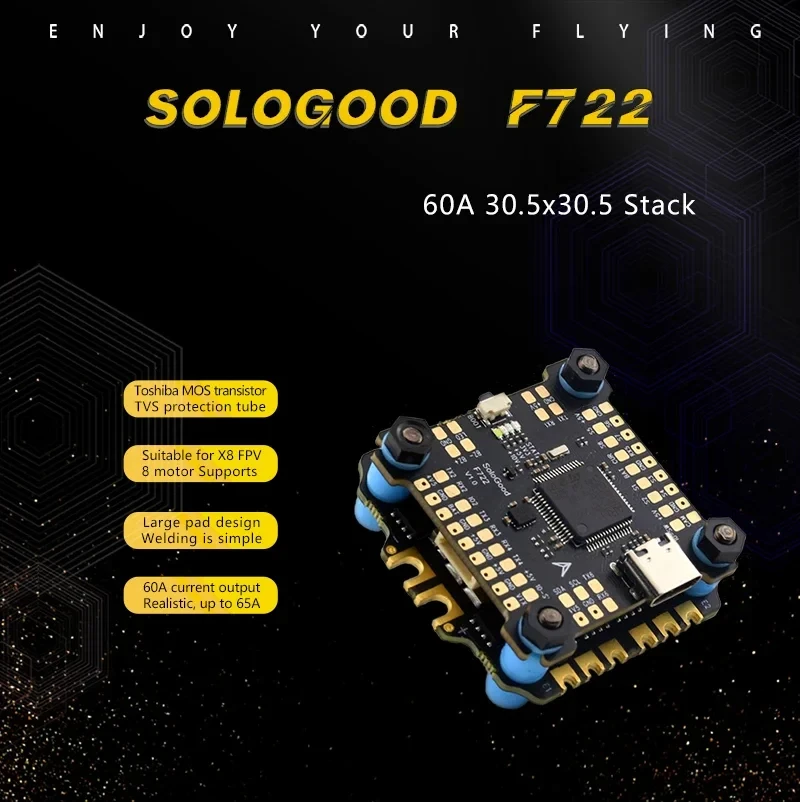

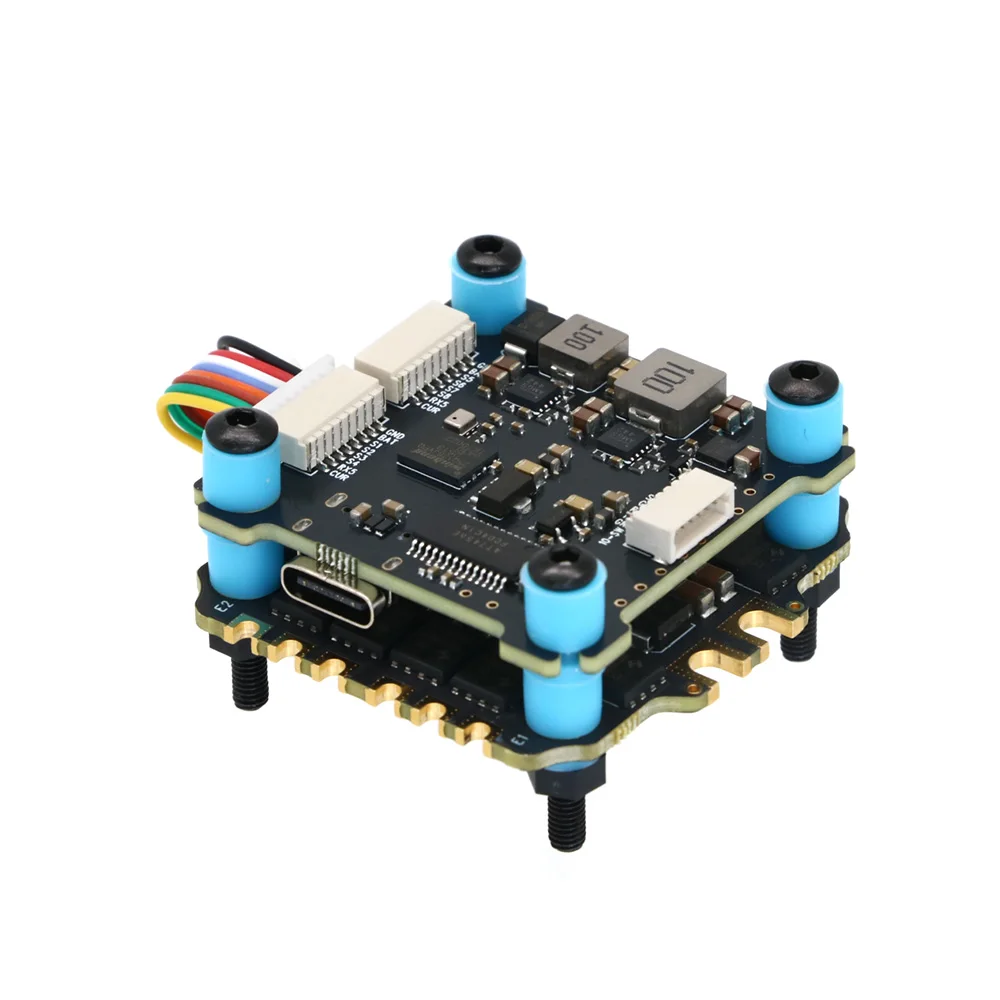

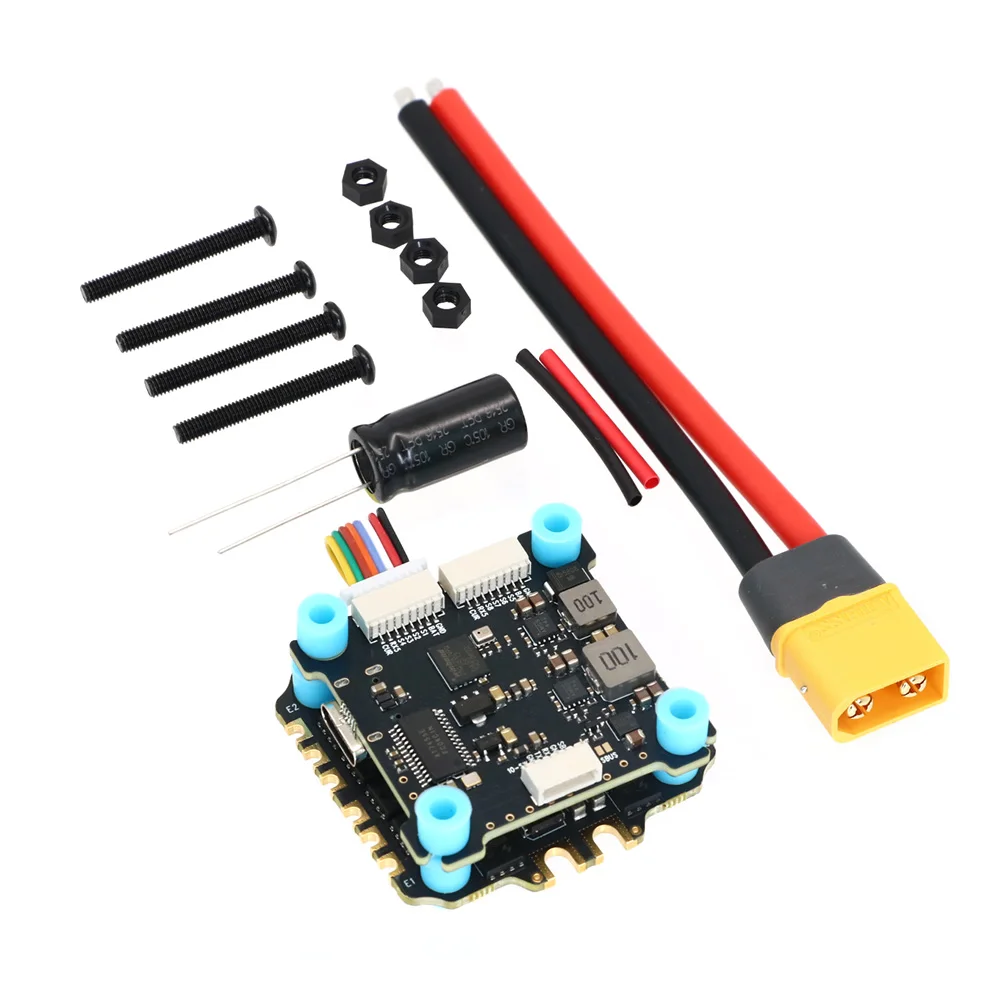

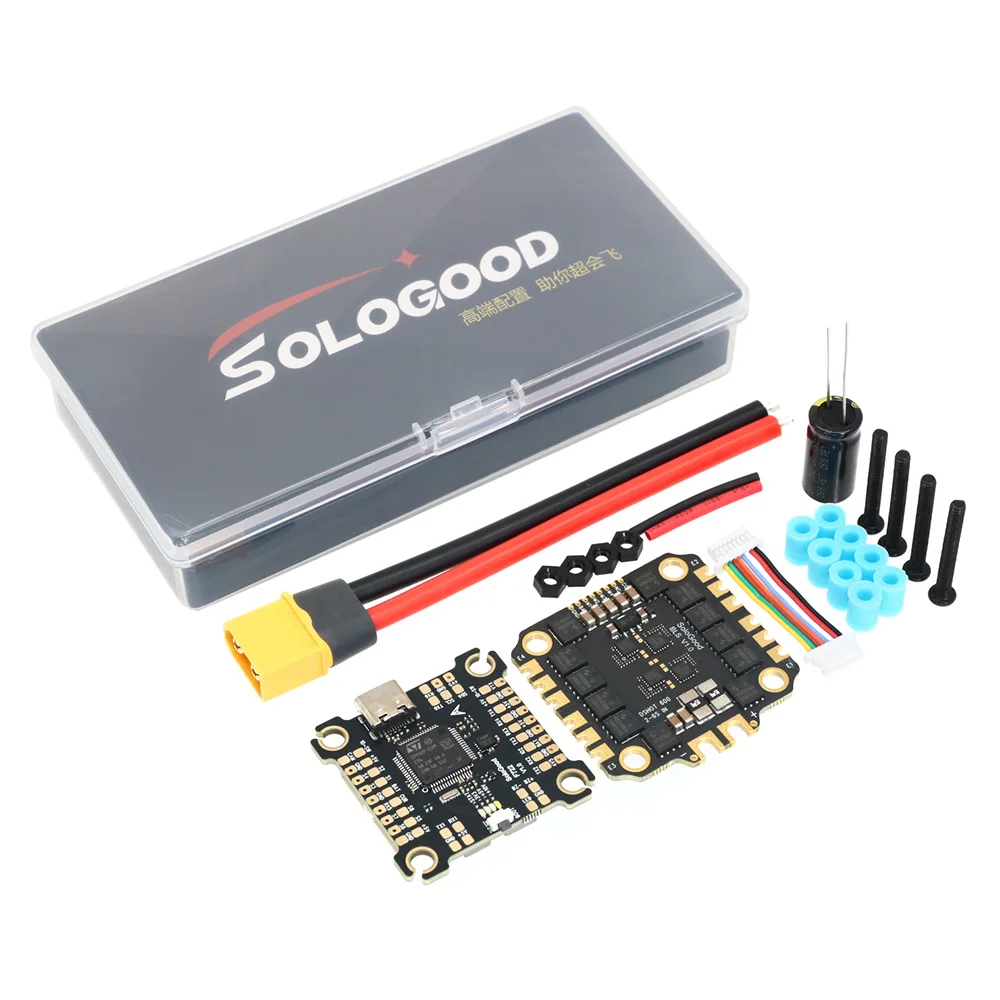

SoloGood F722 Stack
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300

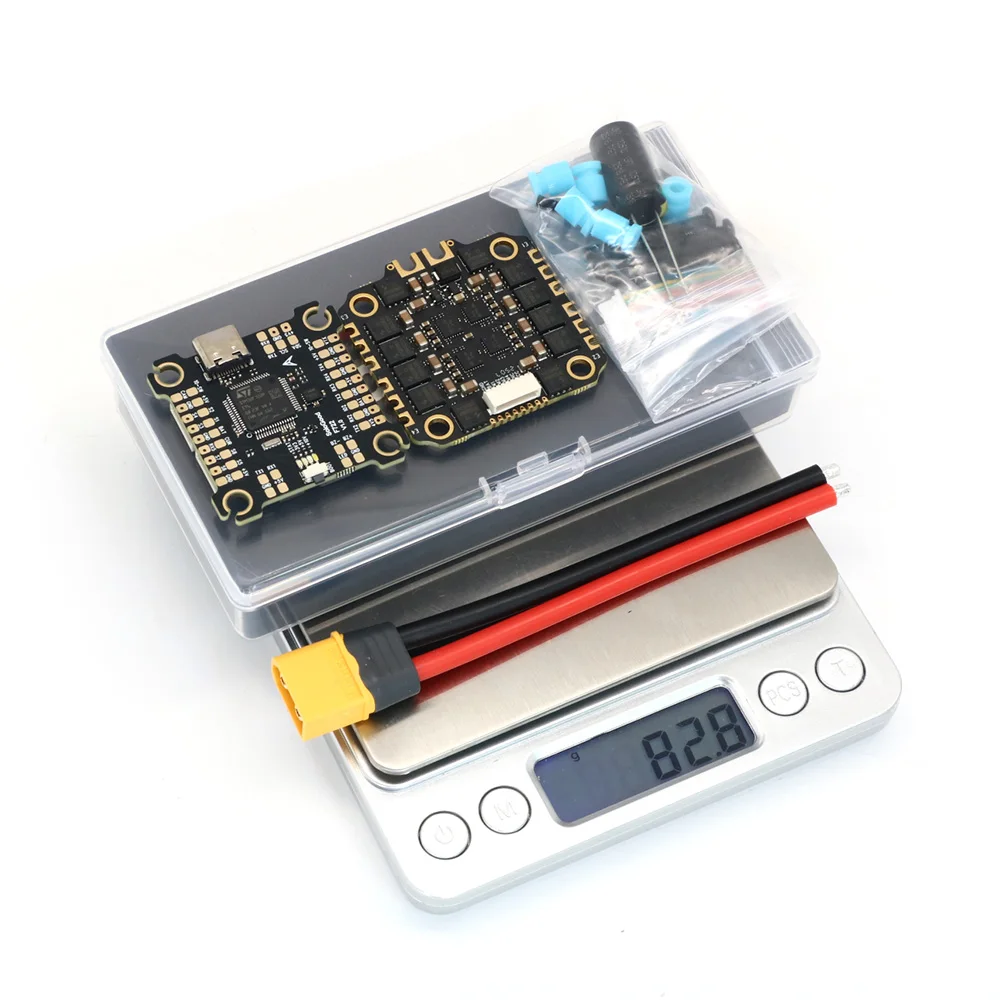

Weight: 23g

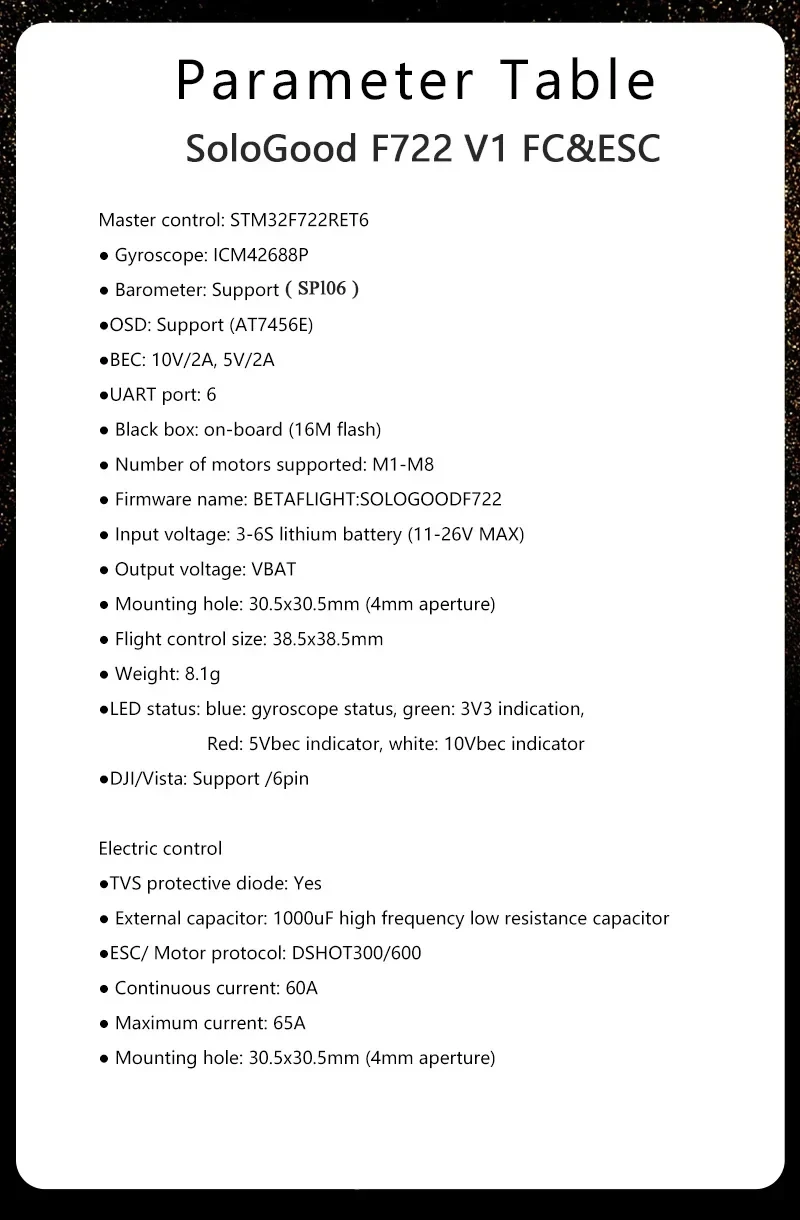

FC Specifications
Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Support ( SPl06 )
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8

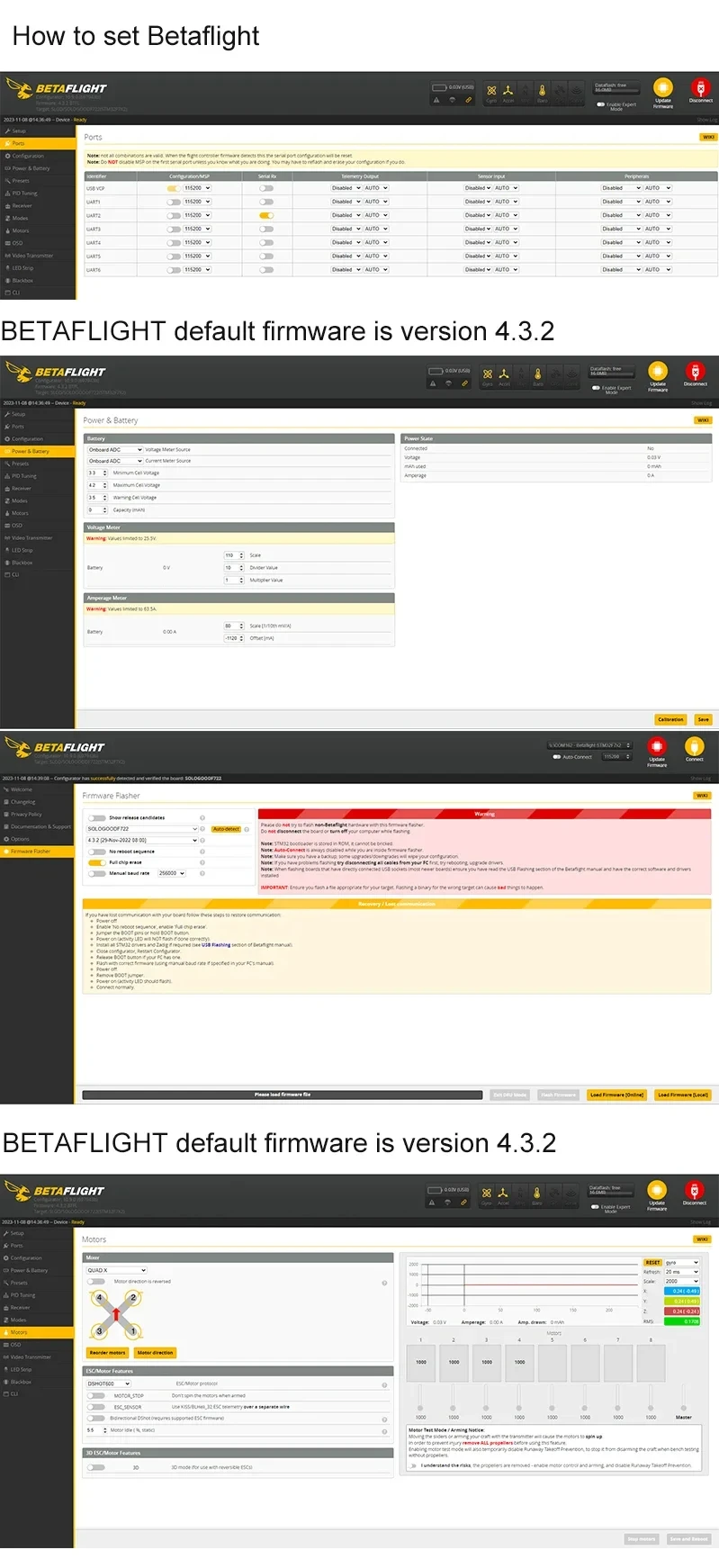

Firmware name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)

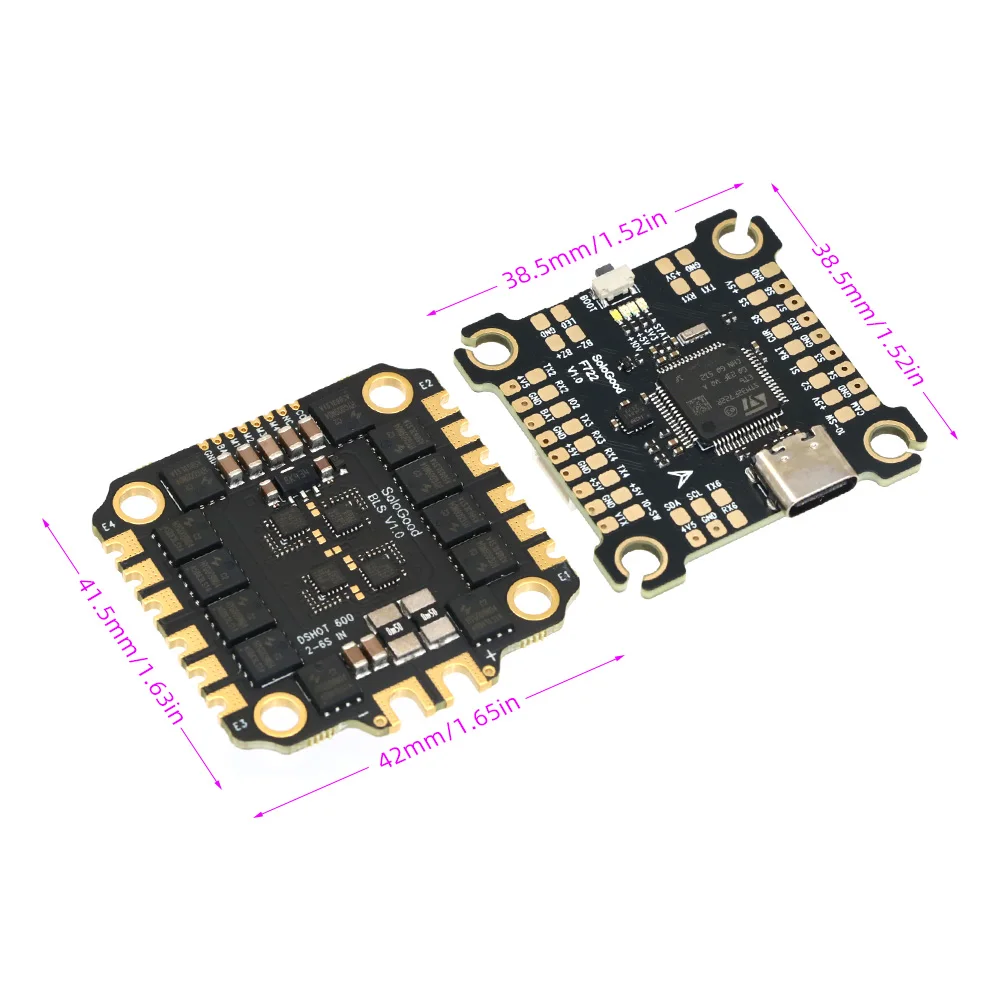

Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes

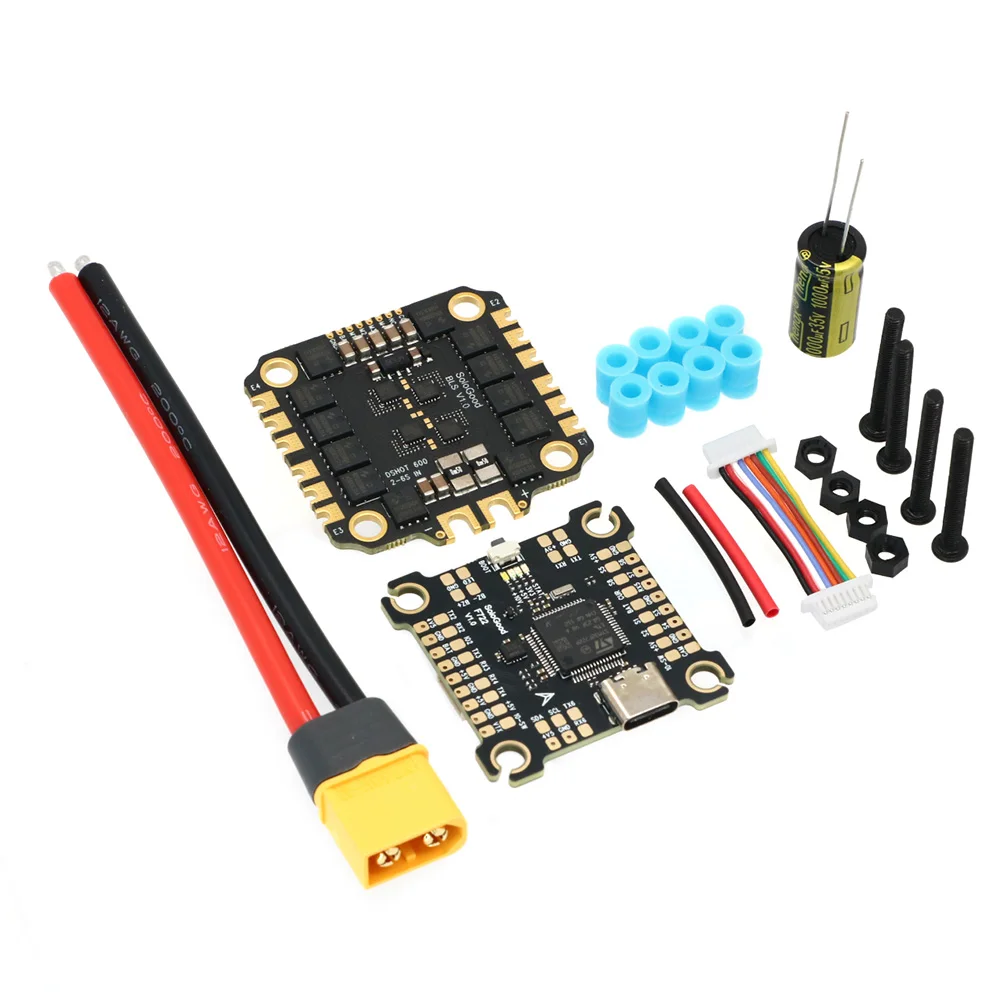

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 60A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)

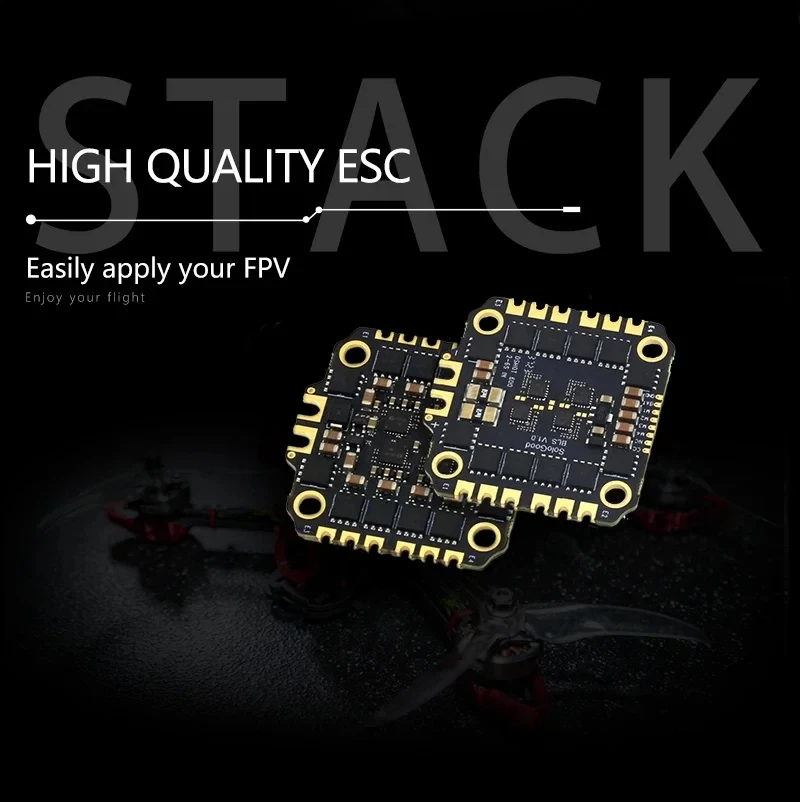

Sologood BLS60A 4in1 ESC SPEC:
Firmware: BLHELI-S: J-H-30-16.7
Continuous current 60A
Maximum current 65A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
Installation hole position 30.5x30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
