eBike 48V/52V Light Kits with Waterproof Cable for Bafang BBSHD BBS0102 CAN or UART Mid Drive Motor

Attention:

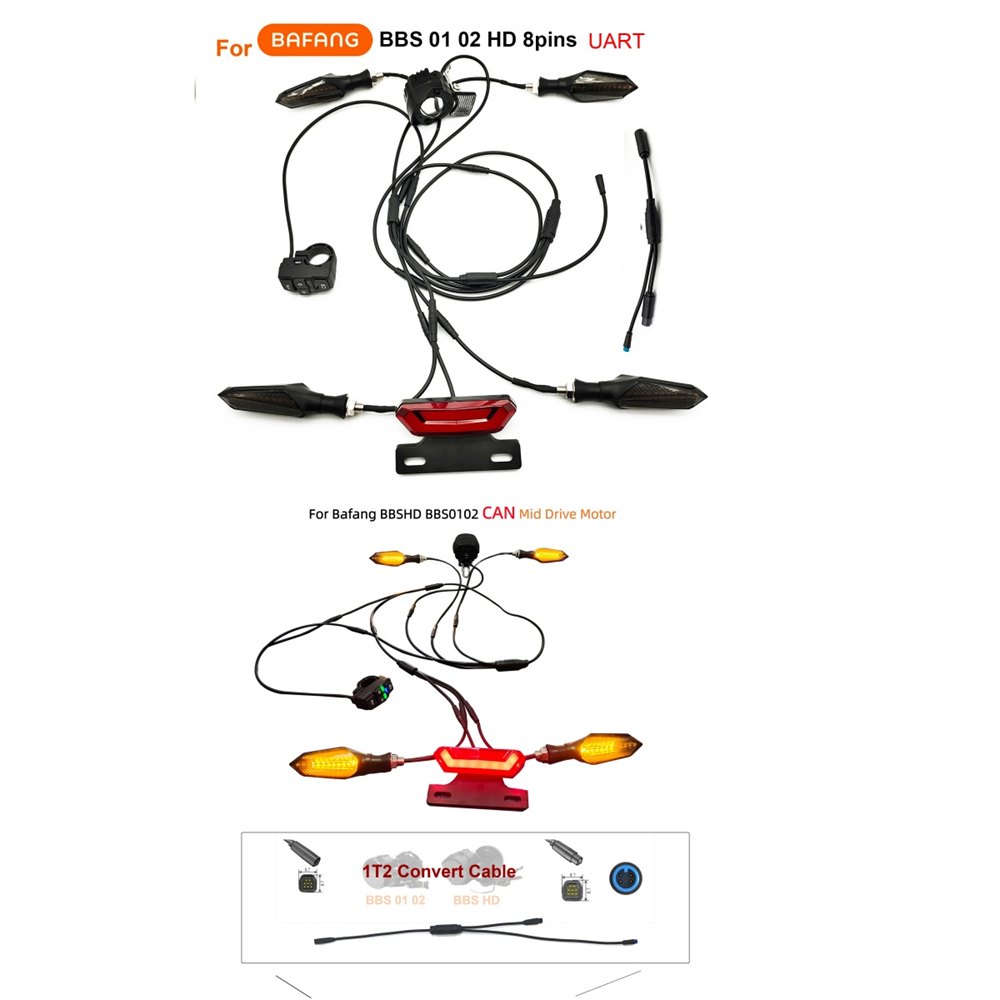

This light Kits is suitable for Bafang UART and CAN Mid Drive Motor. Please select the correct light Kits

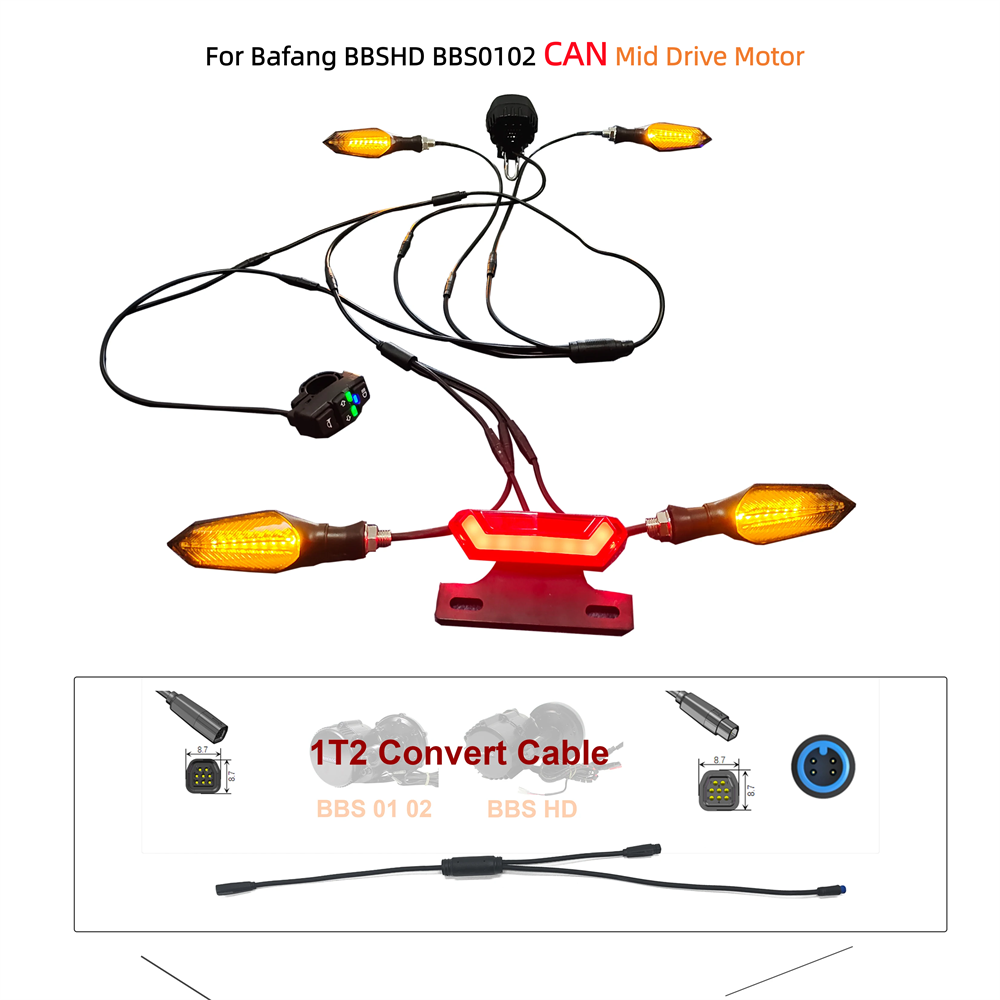

- Bafang CAN Mid Drive Motor , select CAN light Kits

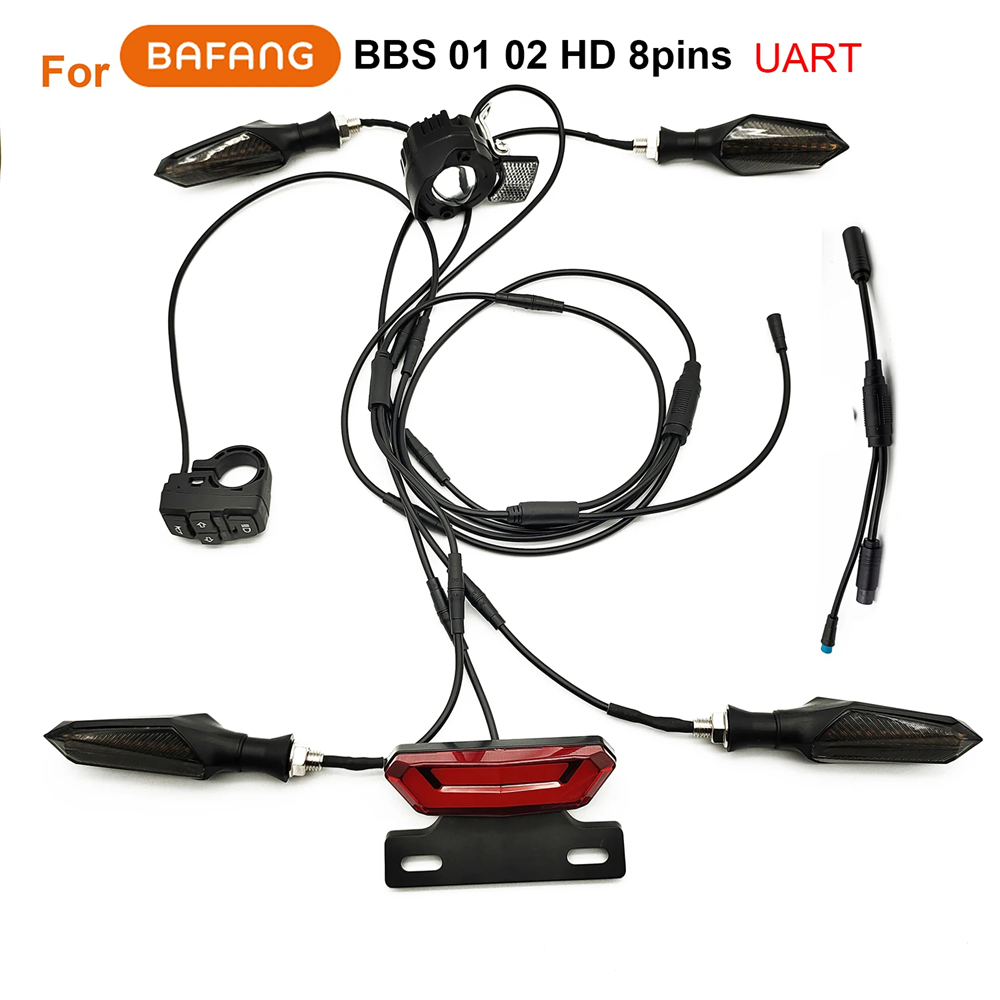

- Bafang UART Mid Drive Motor , select UART light Kits

Packing List:
1. headlight *1 piece
2. Turn signal *4 pieces
3. rear light *1 piece
4. switch *1 piece
5. mounting bracket *1 piece

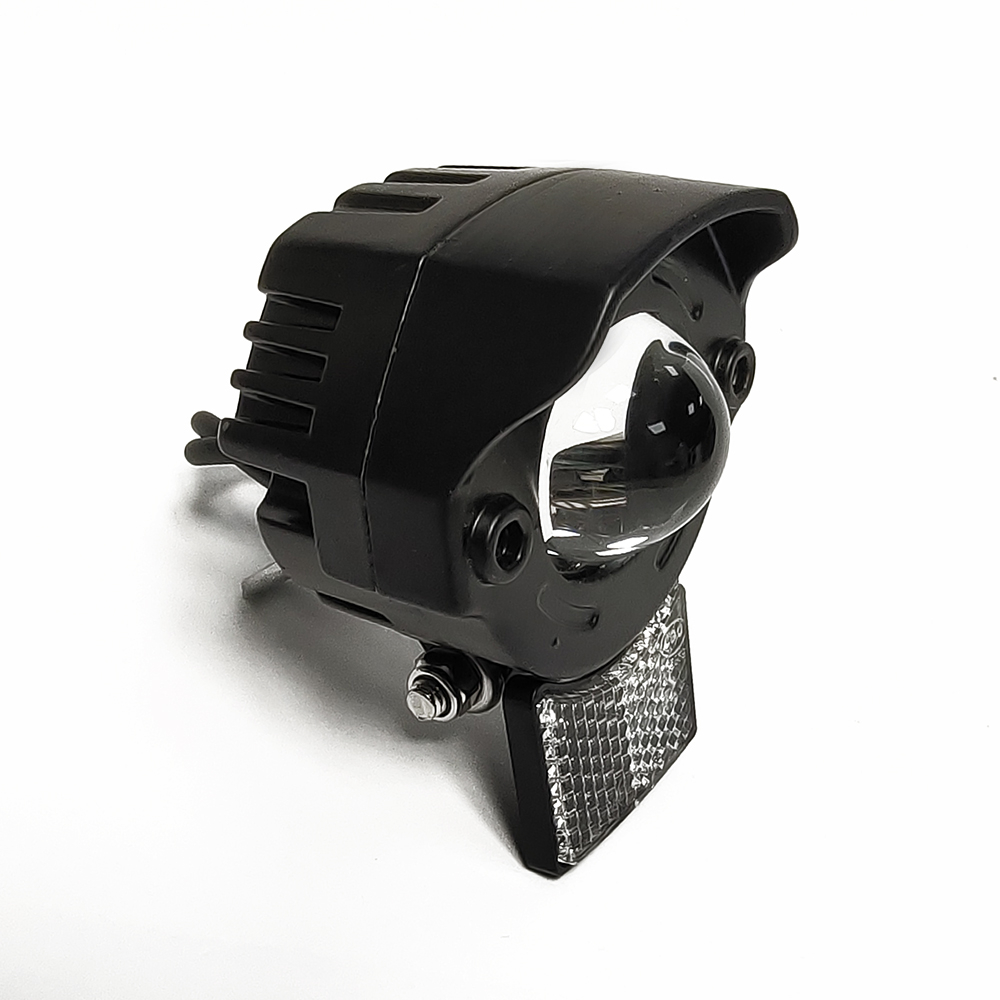

Specification of Headlight:
L-030 (Aluminum alloy)
Applicable voltage: 24V/36V/48V/52V/60V
Light current: 48V/190mA, 36V/250mA
Power: 9W
Function: near-light lamp, horn
Light brightness: 650 LM
Loudspeaker volume: 75-100 dB
Outlet: three-core wire
Product appearance (50*62*73)
Line length: 15 cm

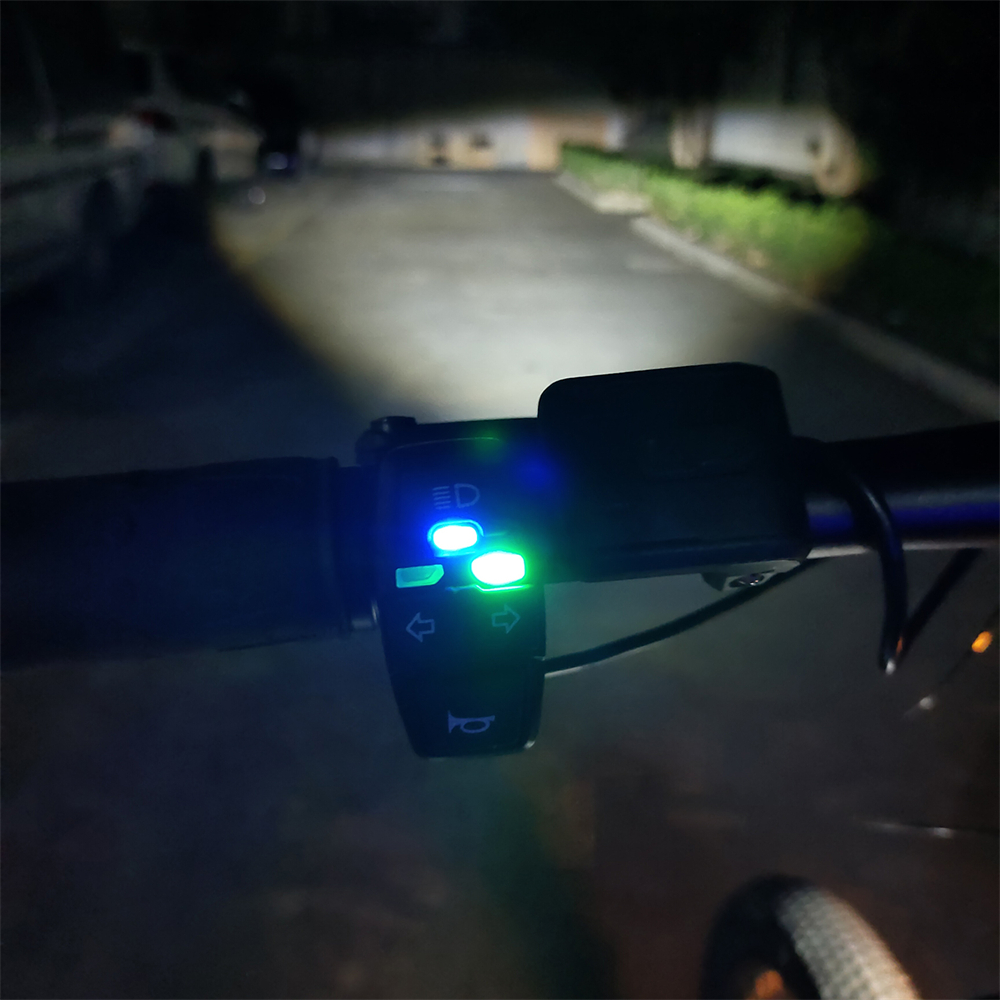

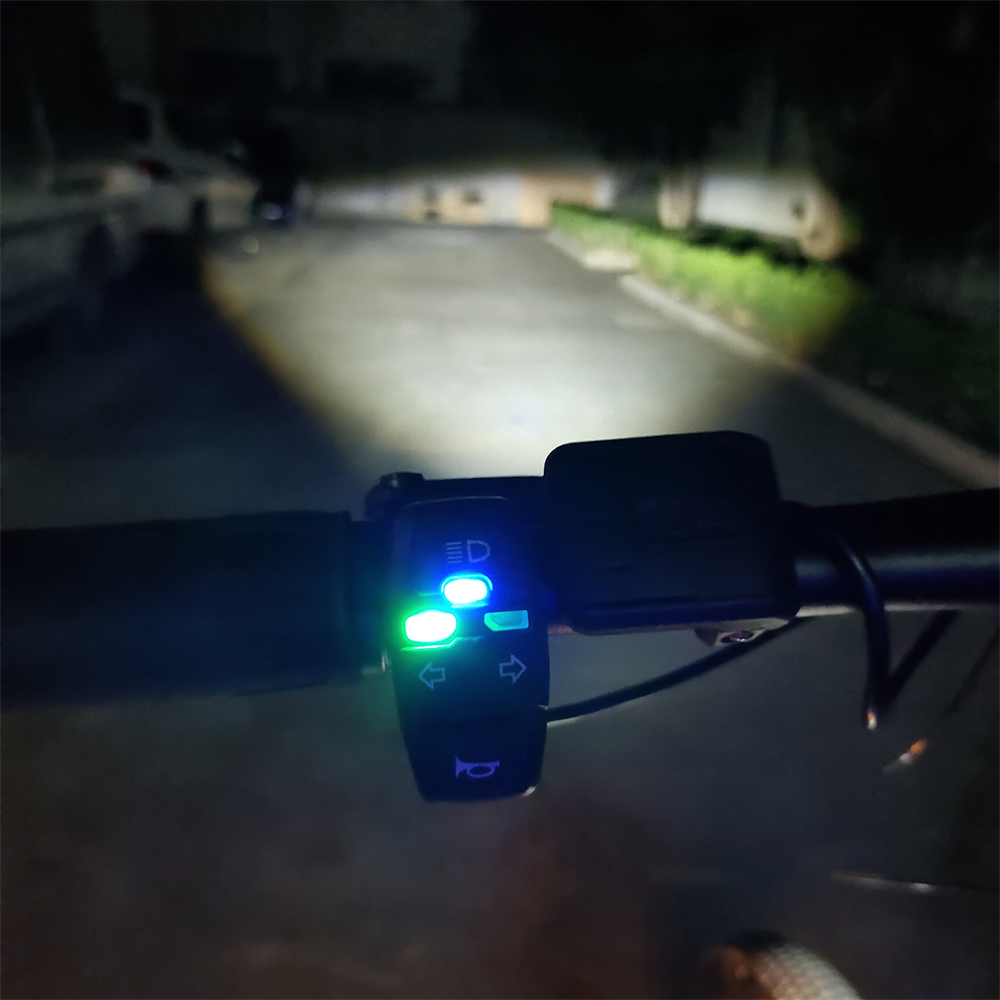

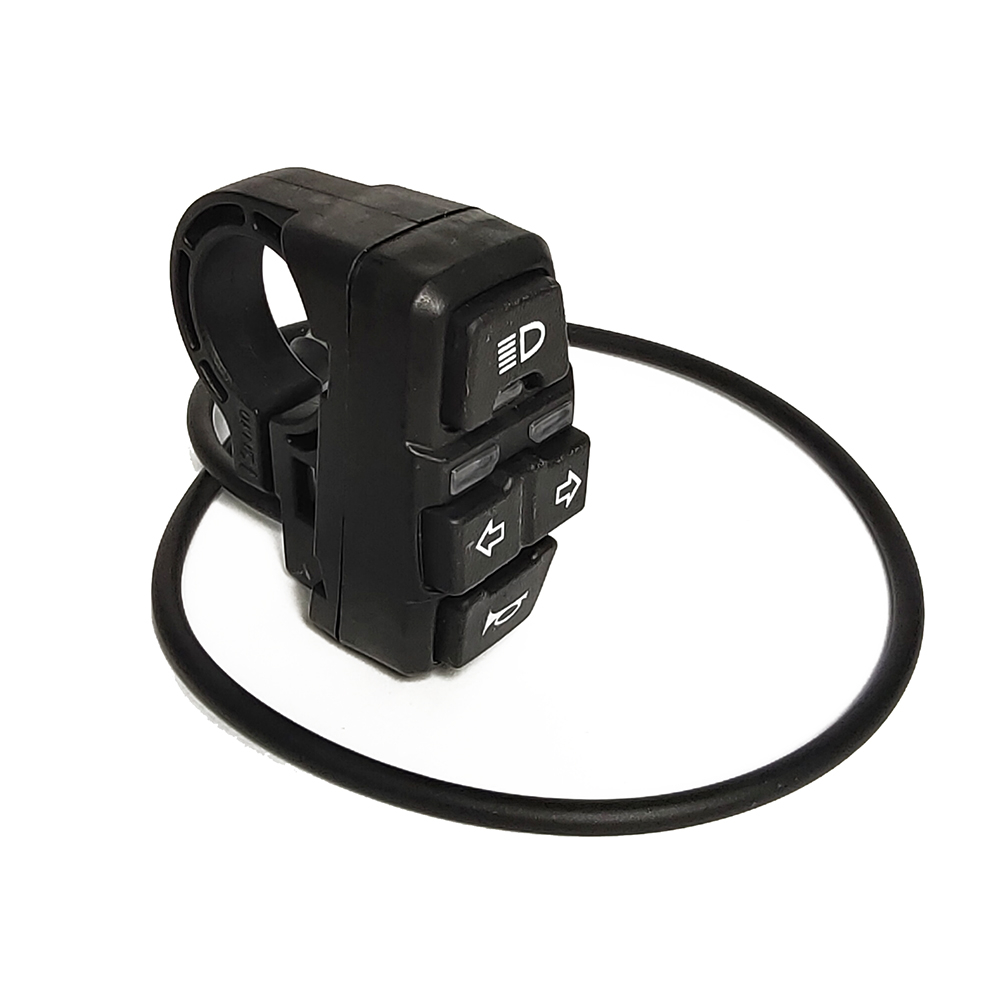

Switch parameters:
Code: PT0362
WUXING 336/2 waterproof IP4
Size: L 26mm W 54mm H 54mm
Weight: 41 g
Waterproof: IPX4
Material: PA6+20GF TPR
Wiring: 6/8 Pins
Current: 0.5A/12V-60V DC
Operating temperature: -20℃ ~ 60℃

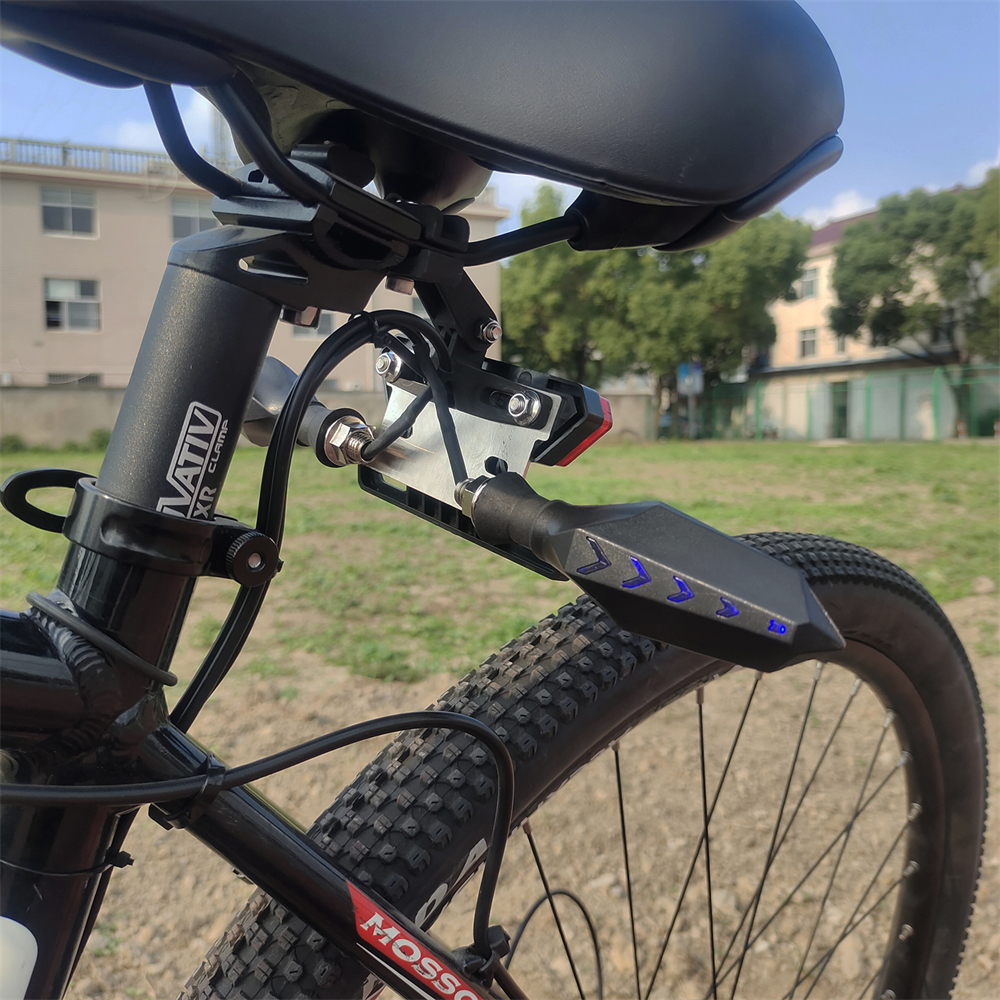

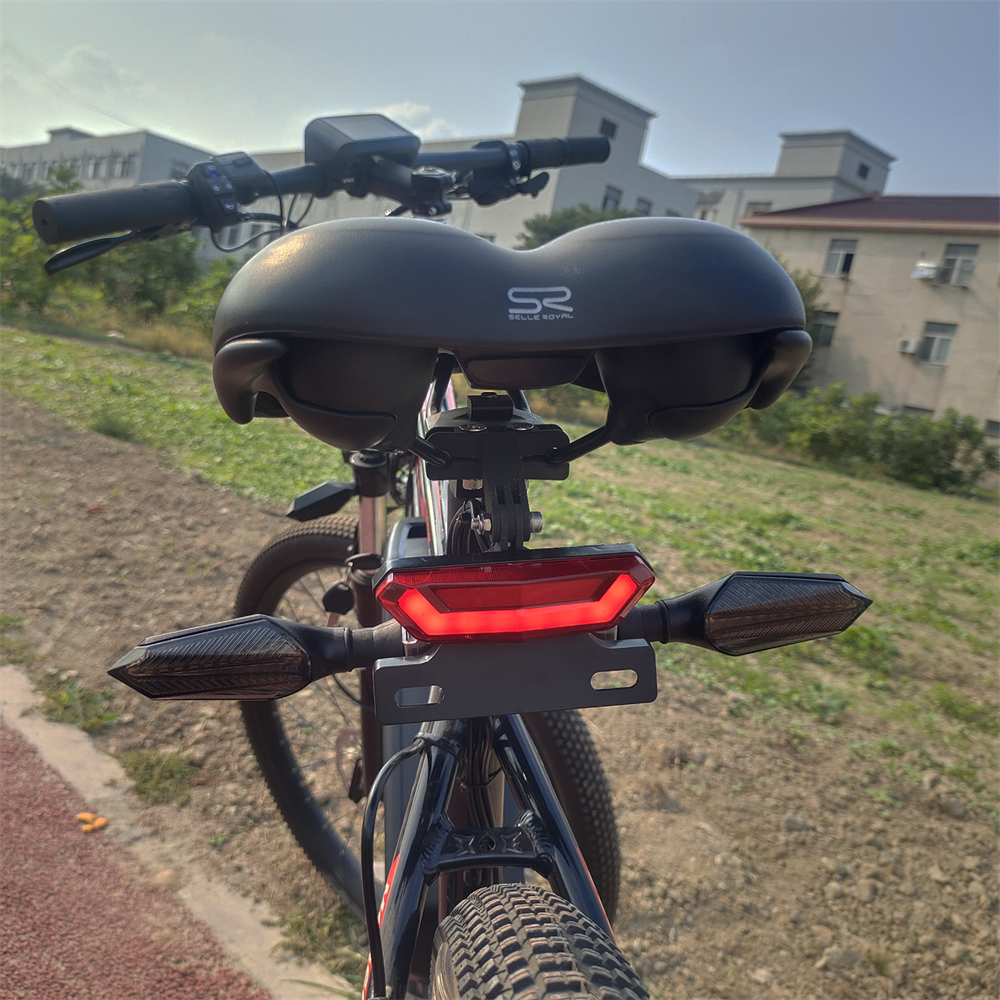

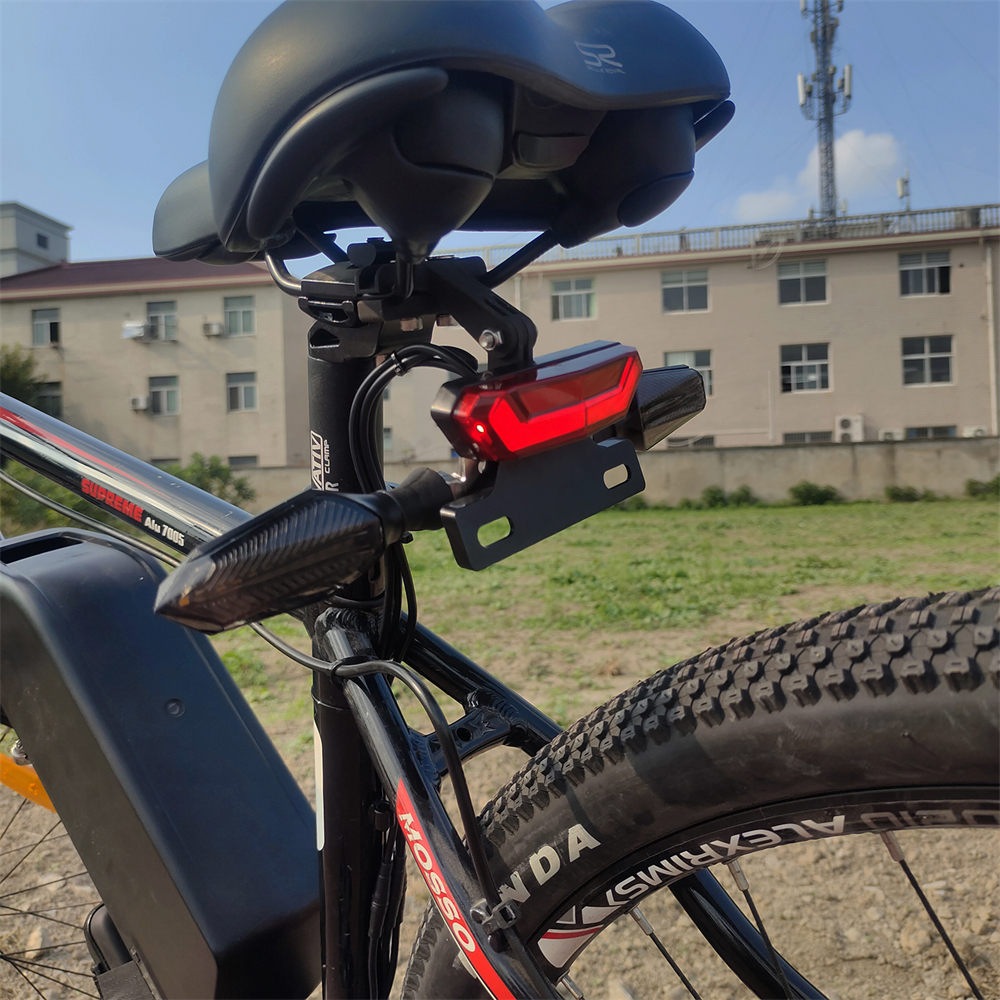

Specification of Rearlight:
Model: WD-10c/019
Applicable voltage: 24V-60V
Rear lamp current: 48V/23mA, 36V/17mA
Power: 1.1 W
Function: Rear light, brake light
Light brightness: 30 LM
Outlet wire: four core wire

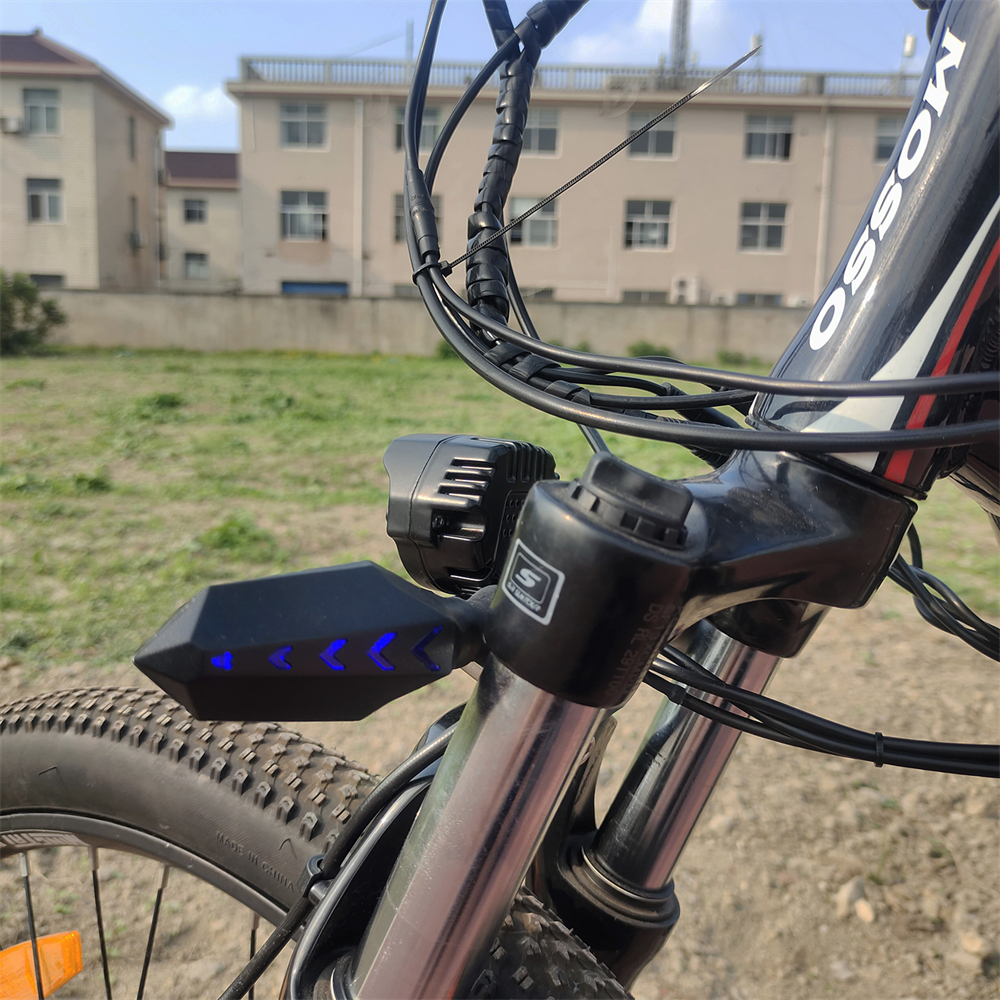

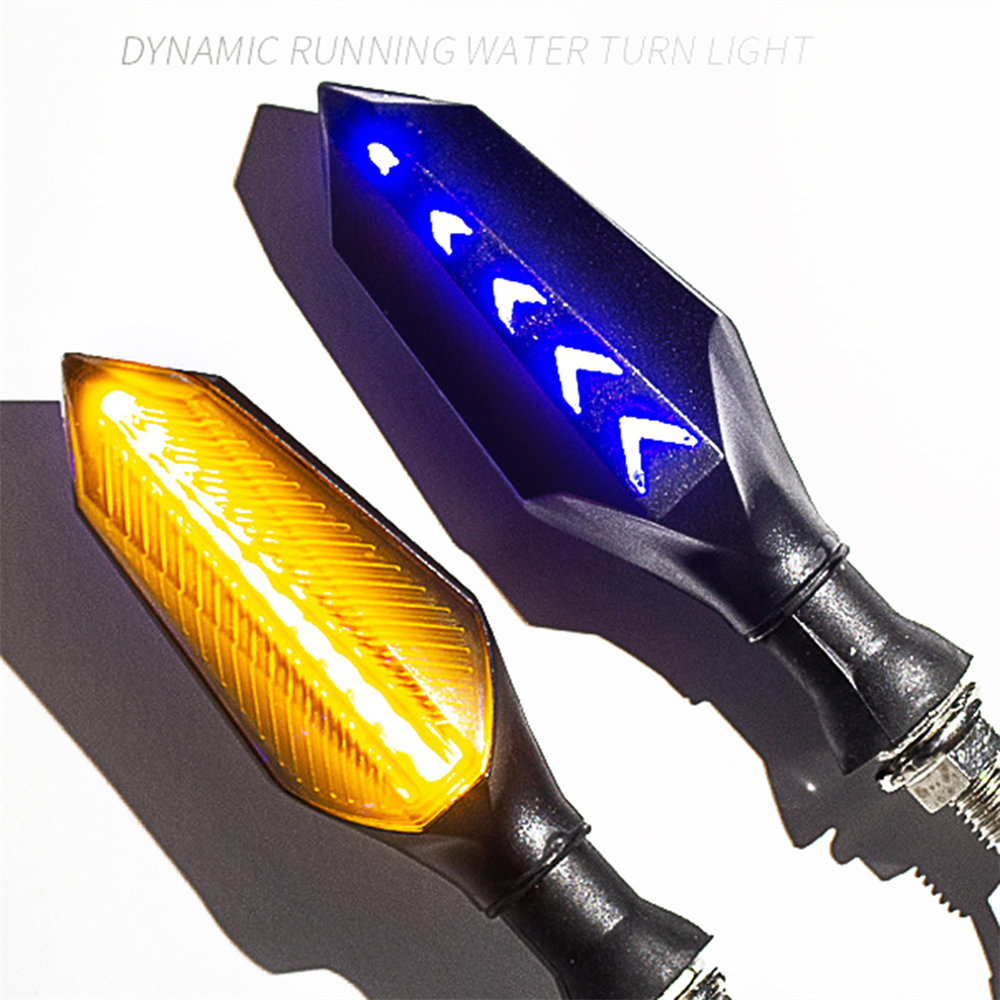

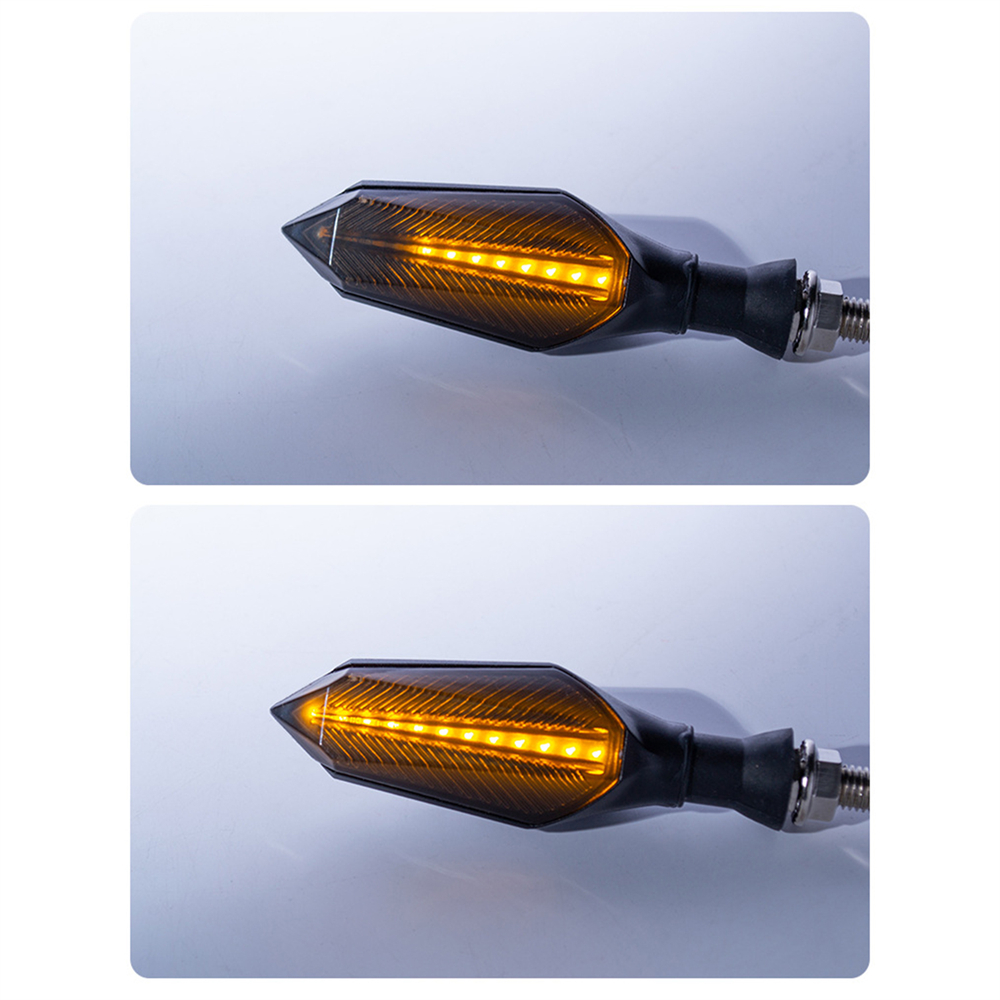

Turn signal:
Applicable voltage: 48V / 36V
Power: 3W
Light color: yellow / blue
Features: Cool flowing lights
