ABB SACE PR010/T Circuit Breaker Test Kit with TT1 and PR120/B
ABB SACE PR010/T Circuit Breaker Test Kit delivers fast ABB relay service with testing, programming, relay data reading, report downloads, TT1 trip-test support, PR120/B battery support, and Cable A, B, and C connection coverage.
Detailed Overview
ABB SACE Relay Testing, Programming, and Trip Verification

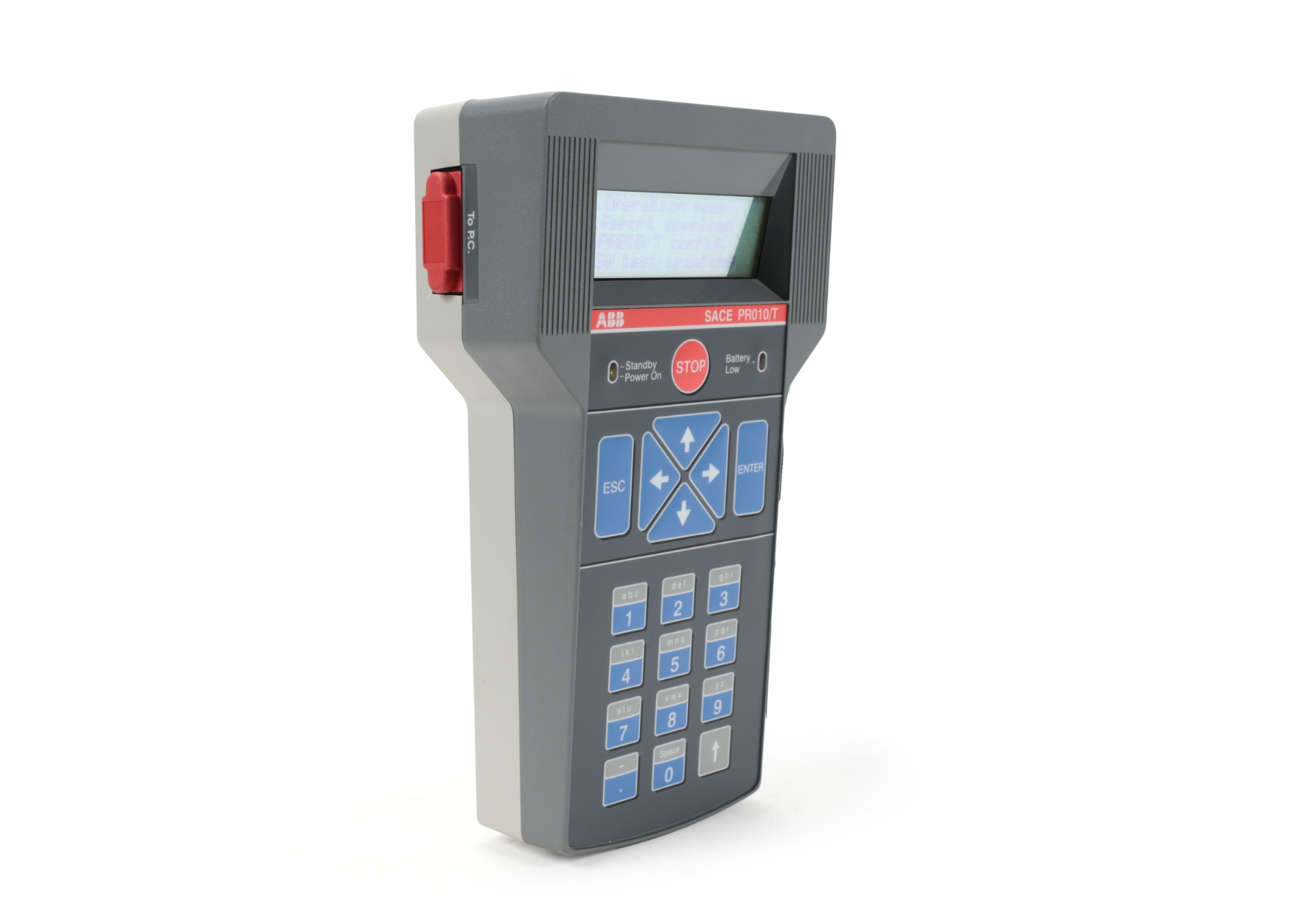

ABB SACE PR010/T Circuit Breaker Test Kit supports protection relay service by connecting to ABB SACE electronic relays for testing, parameter programming, and parameter reading. The kit configuration matters because the included Cable A, Cable C, relay interface adapters, TT1 Trip Test Unit, serial cable, software CD, power supply, and carrying case align the PR010/T with documented relay test-connector workflows and report download handling.
Relay Test Connector Access for ABB SACE Protection Units
ABB SACE PR010/T uses the relay front test connector with the required cable and adapter path, reducing setup uncertainty when working across compatible ABB SACE relay families. The included cable set supports documented Cable A, Cable B, and Cable C connection paths, while the PR010/T menu provides access to relay-specific functions and information.
- Cable A supports PR111, PR111/VF, and PR112 IEC relay connection paths
- Cable B supports PR112 relay connection paths where Cable B is required
- Cable C supports PR212 and PR212MP relays with a front test connector

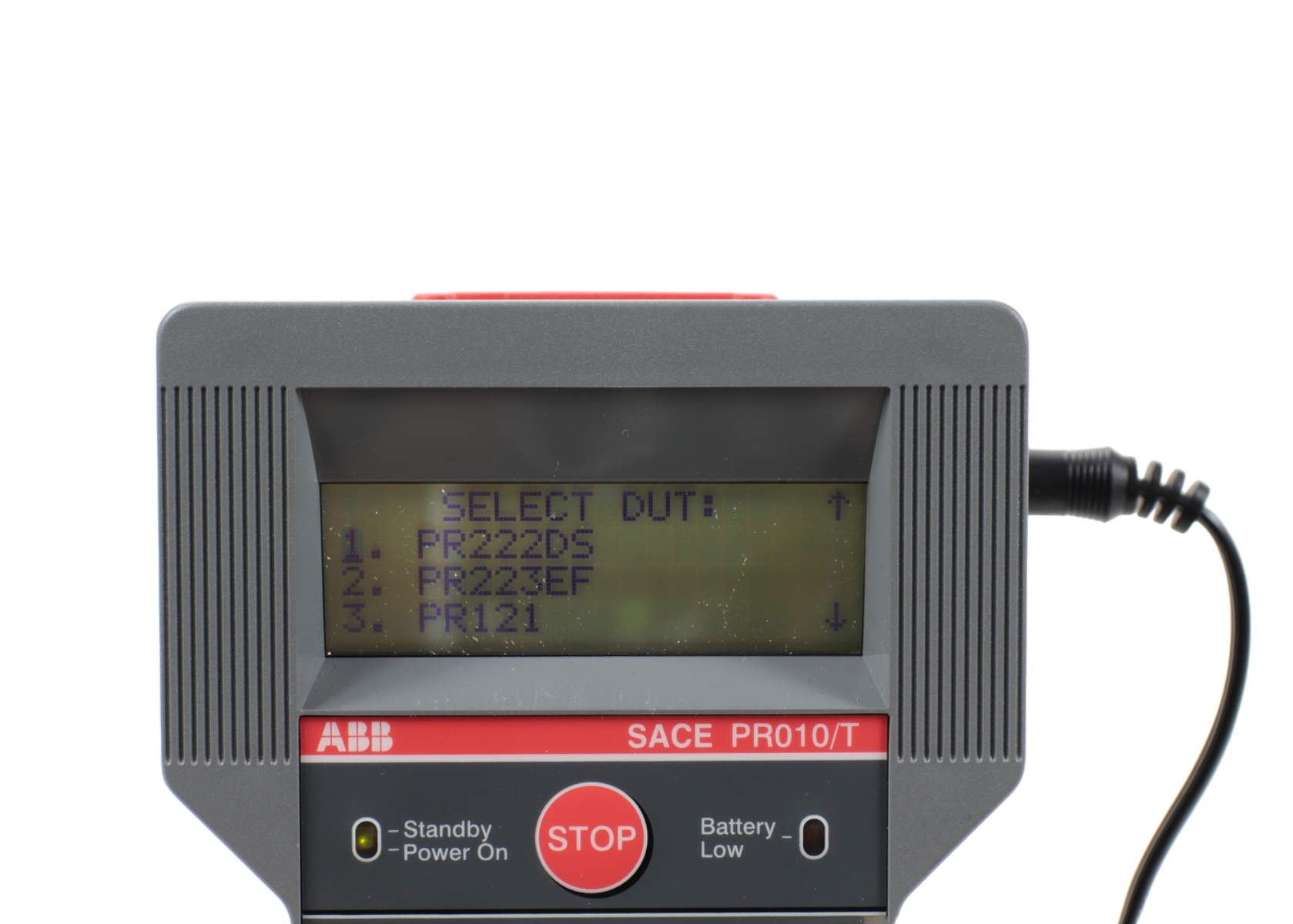

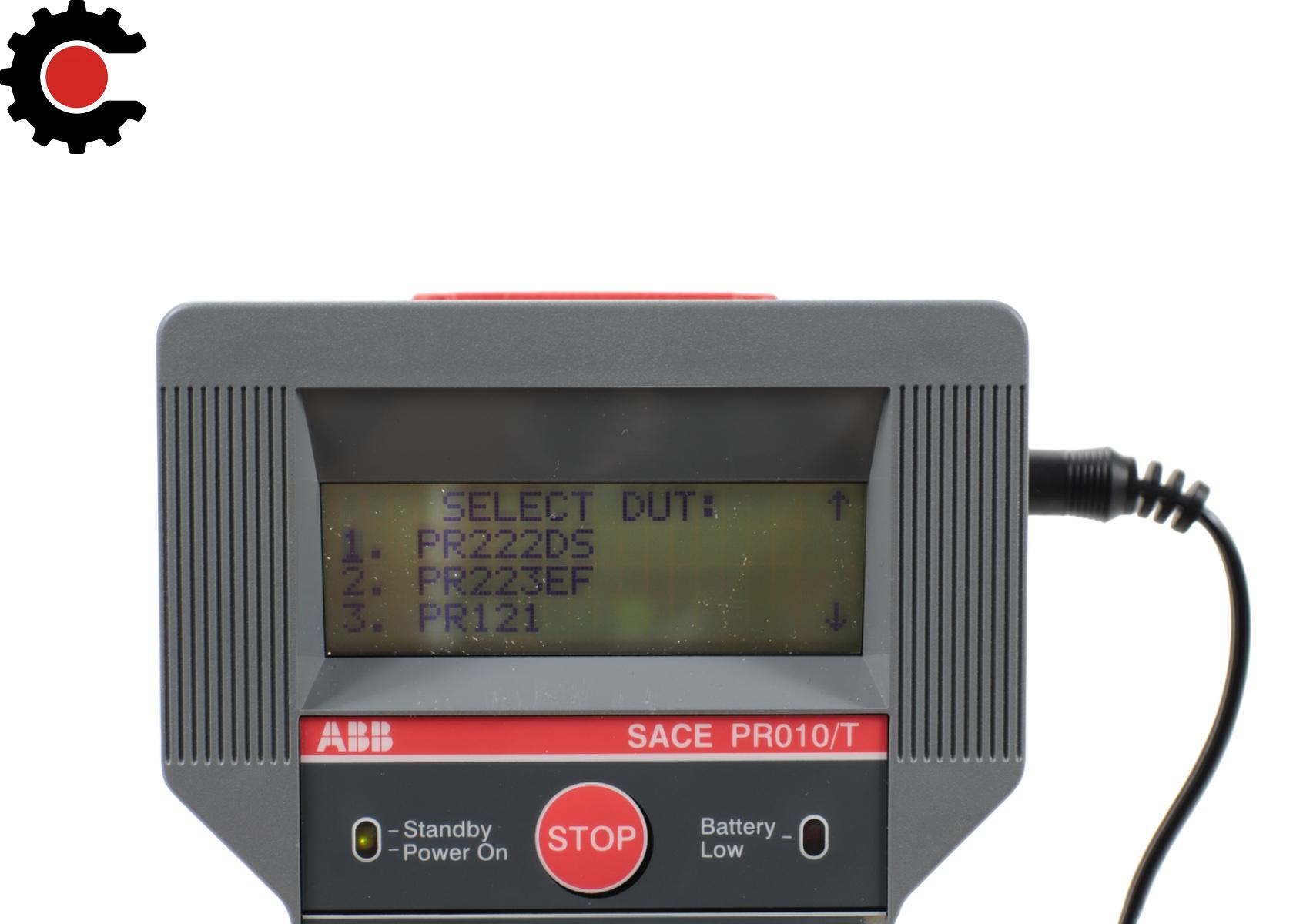

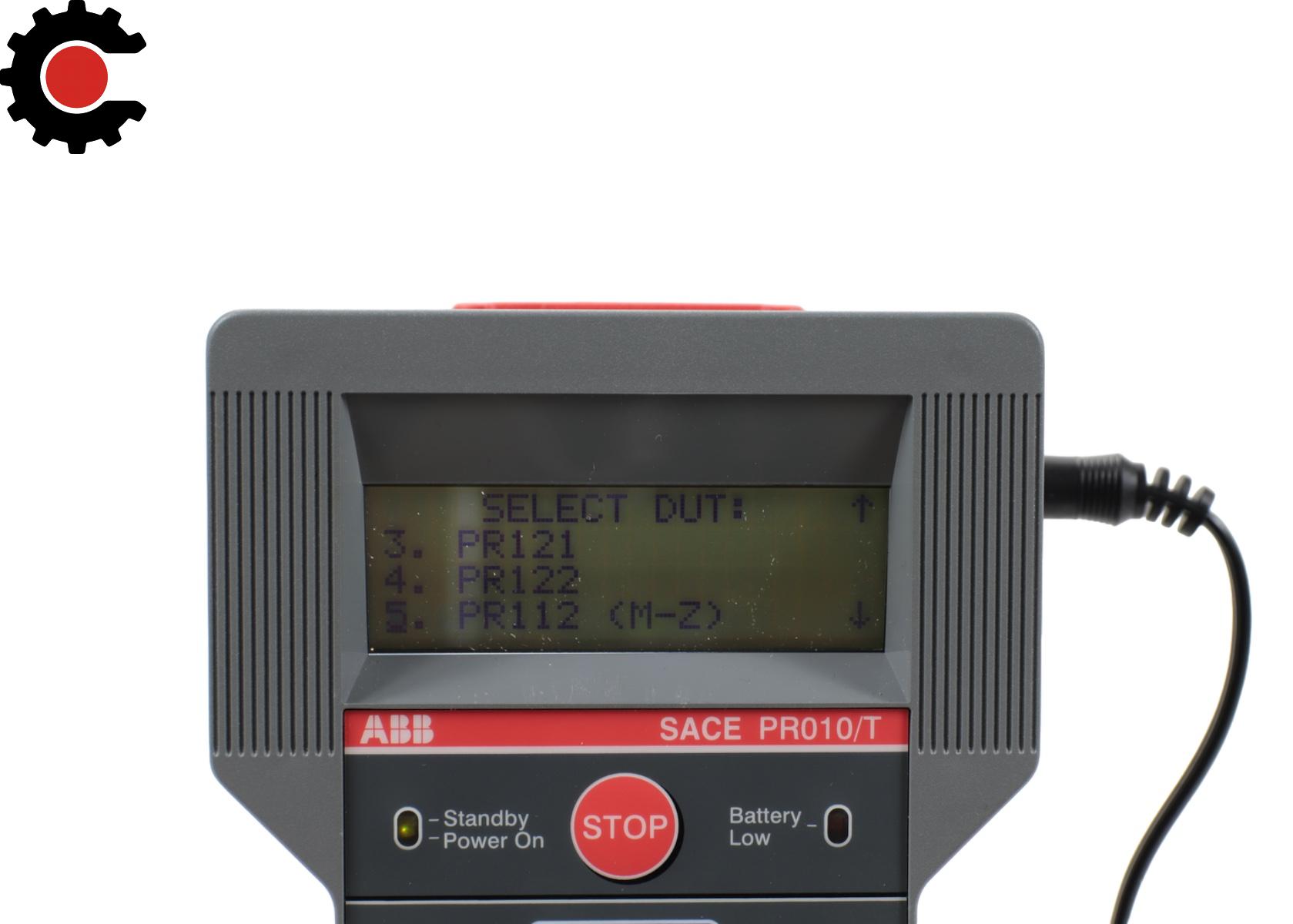

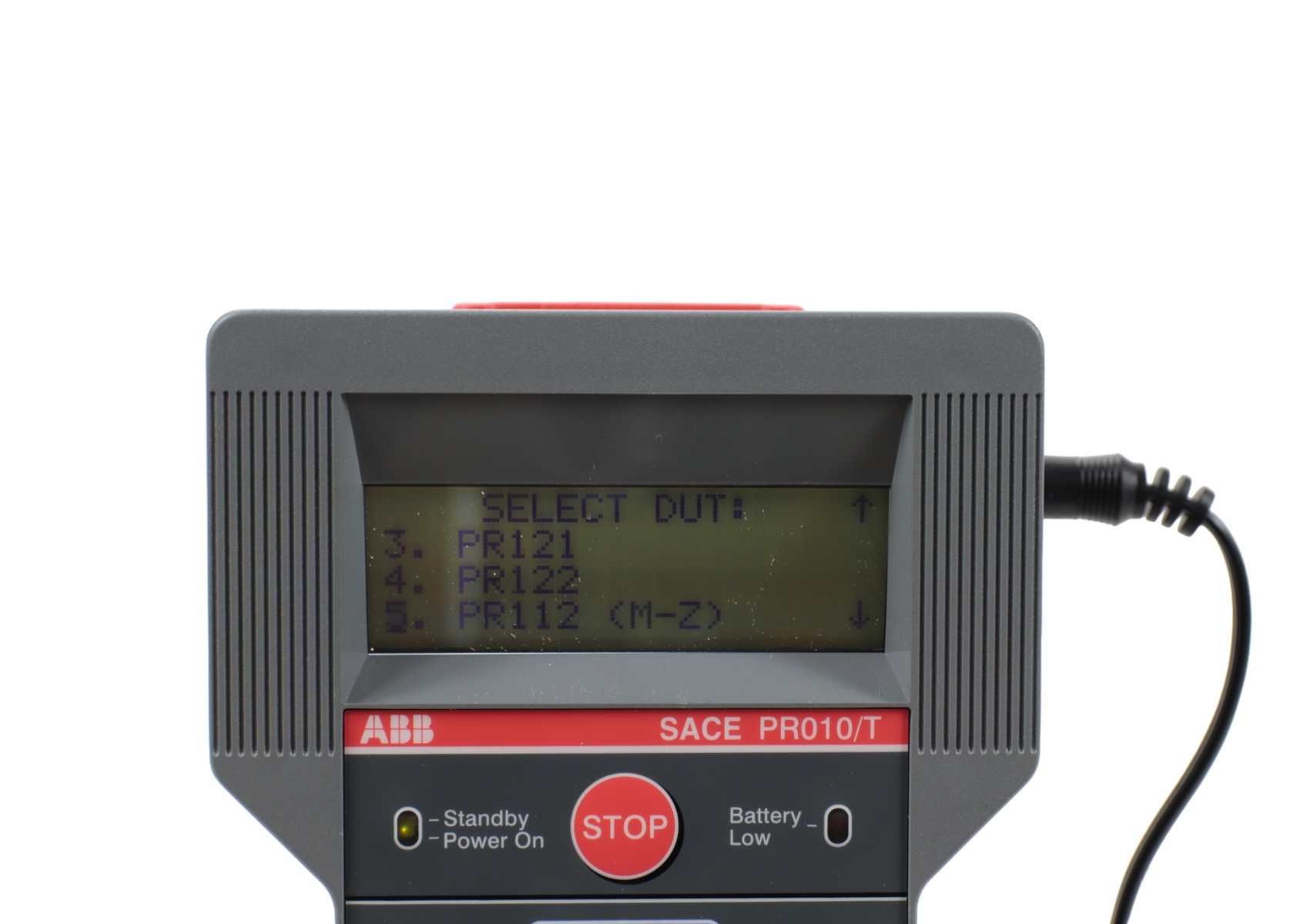

- Tree-menu operation provides access to available relay functions and information

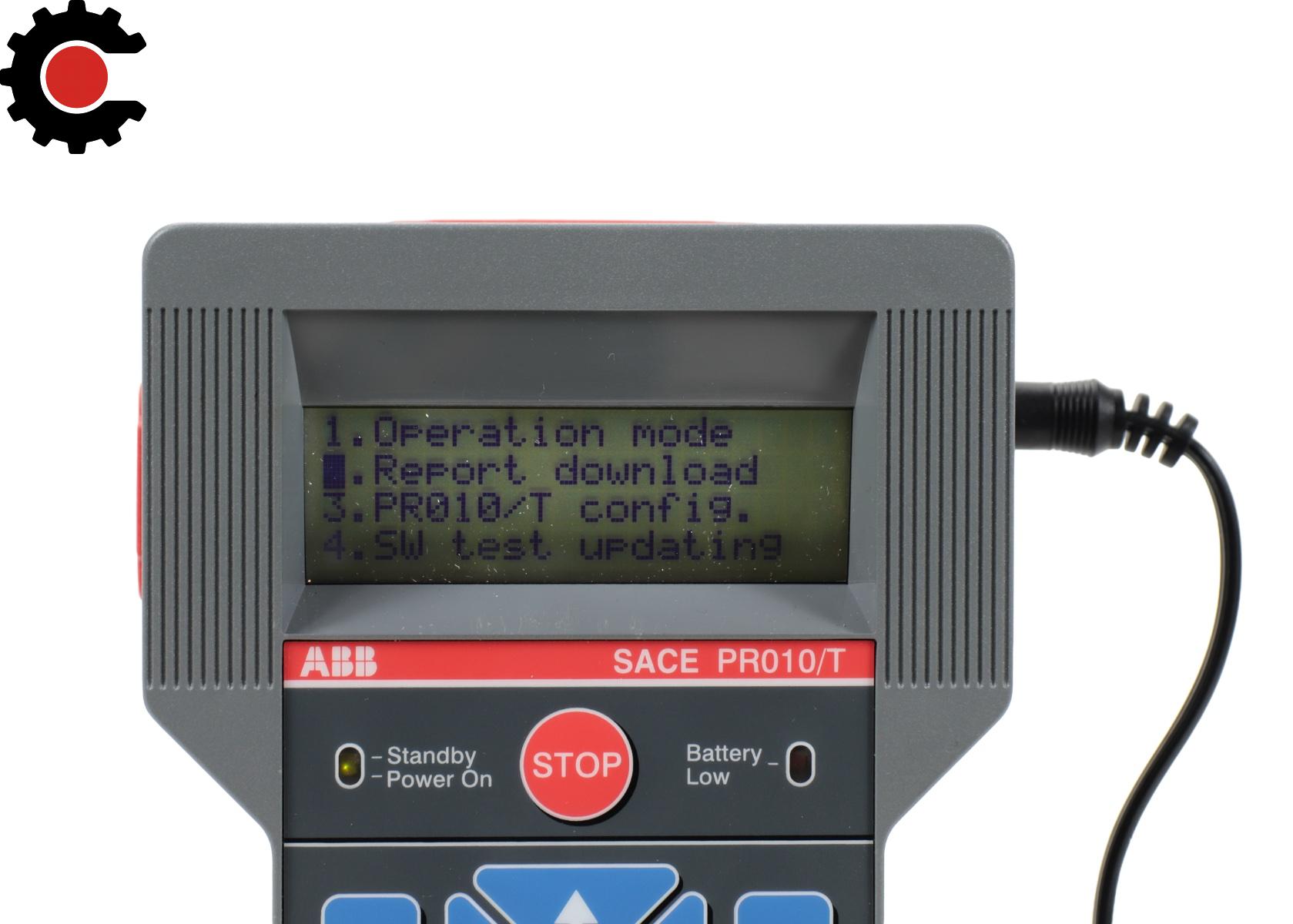

Report Downloads, Parameter Programming, and Relay Data Review
ABB SACE PR010/T supports service documentation and configuration work by recording supported test reports for download to a PC and by providing programming and reading functions for connected relays. The workflow covers protection settings, relay and circuit-breaker parameters, trip history, current values, and general relay information where available.
- Test reports can be recorded at the end of supported tests and downloaded to a PC
- Programming mode supports editing relay and circuit-breaker parameters, protection status, and configuration data
- Reading mode supports current values, parameters, protection settings, trip history, and general information
- Manual testing supports selected protection, threshold, time, fault current, and phase values
Electrical Maintenance and Circuit Breaker Service Applications
ABB SACE PR010/T supports practical field use wherever ABB SACE electronic protection relays and supported circuit breaker families are maintained, tested, or configured. The documented relay and breaker coverage aligns with electrical service workflows for EMAX, EMAX VF, ISOMAX, TMAX, New EMAX, and EMAX DC installations.
- Industrial electrical maintenance teams servicing ABB SACE protection relays and circuit breakers
- Commercial facility electrical teams performing relay testing, parameter review, and trip-history checks
- Power distribution service providers supporting molded-case and air circuit breaker protection workflows
- Electrical contractors and commissioning teams verifying relay settings,
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery

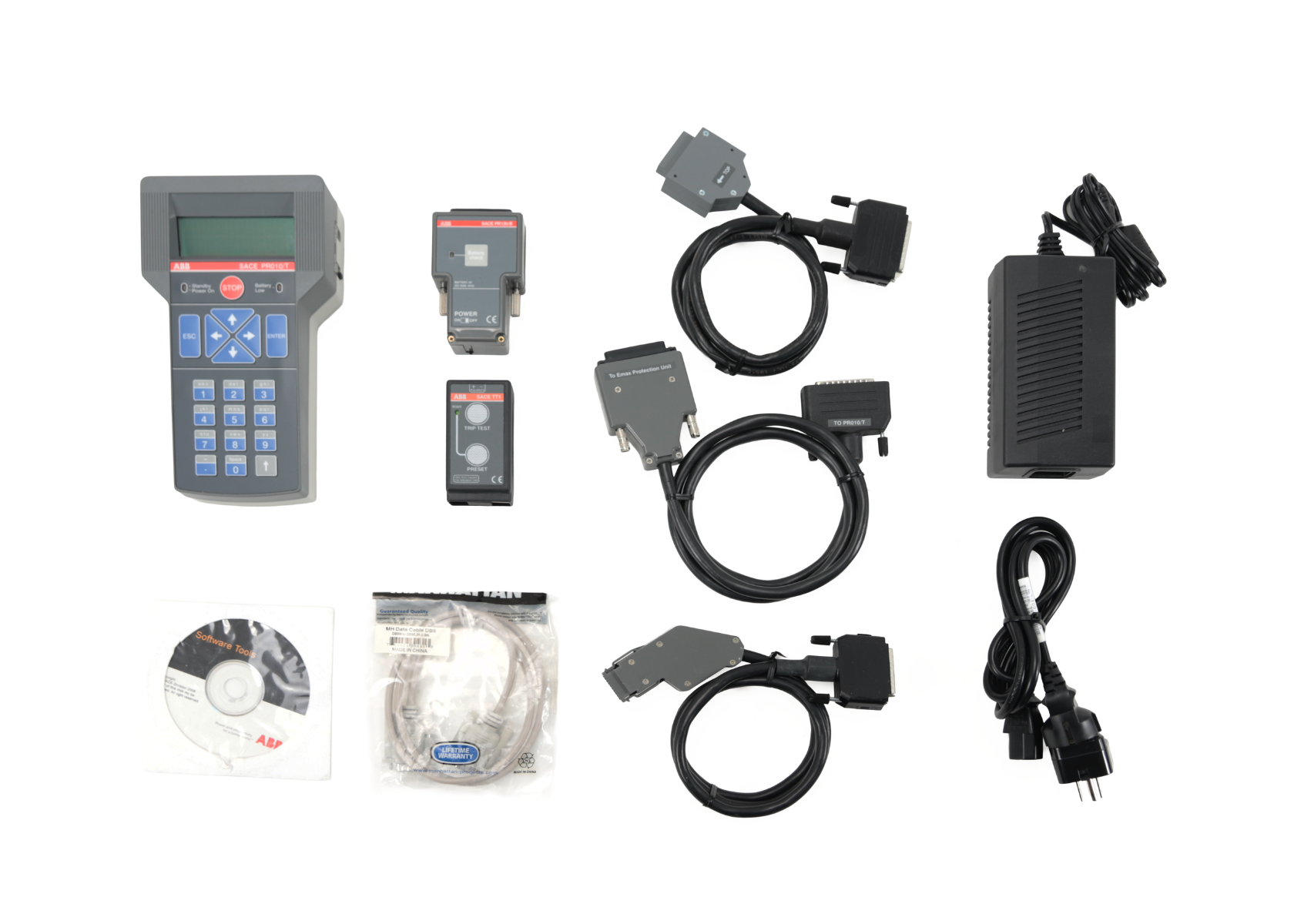

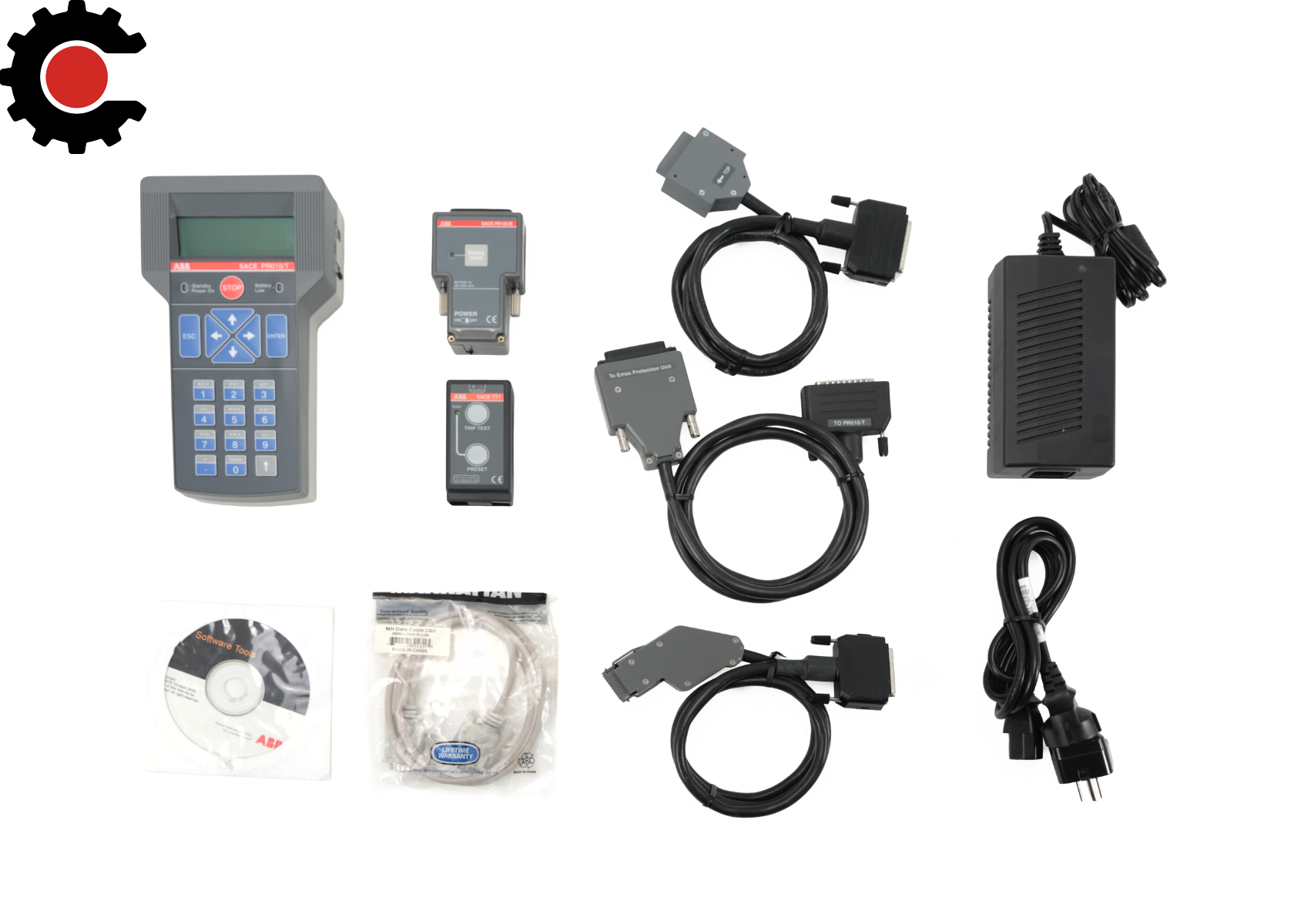

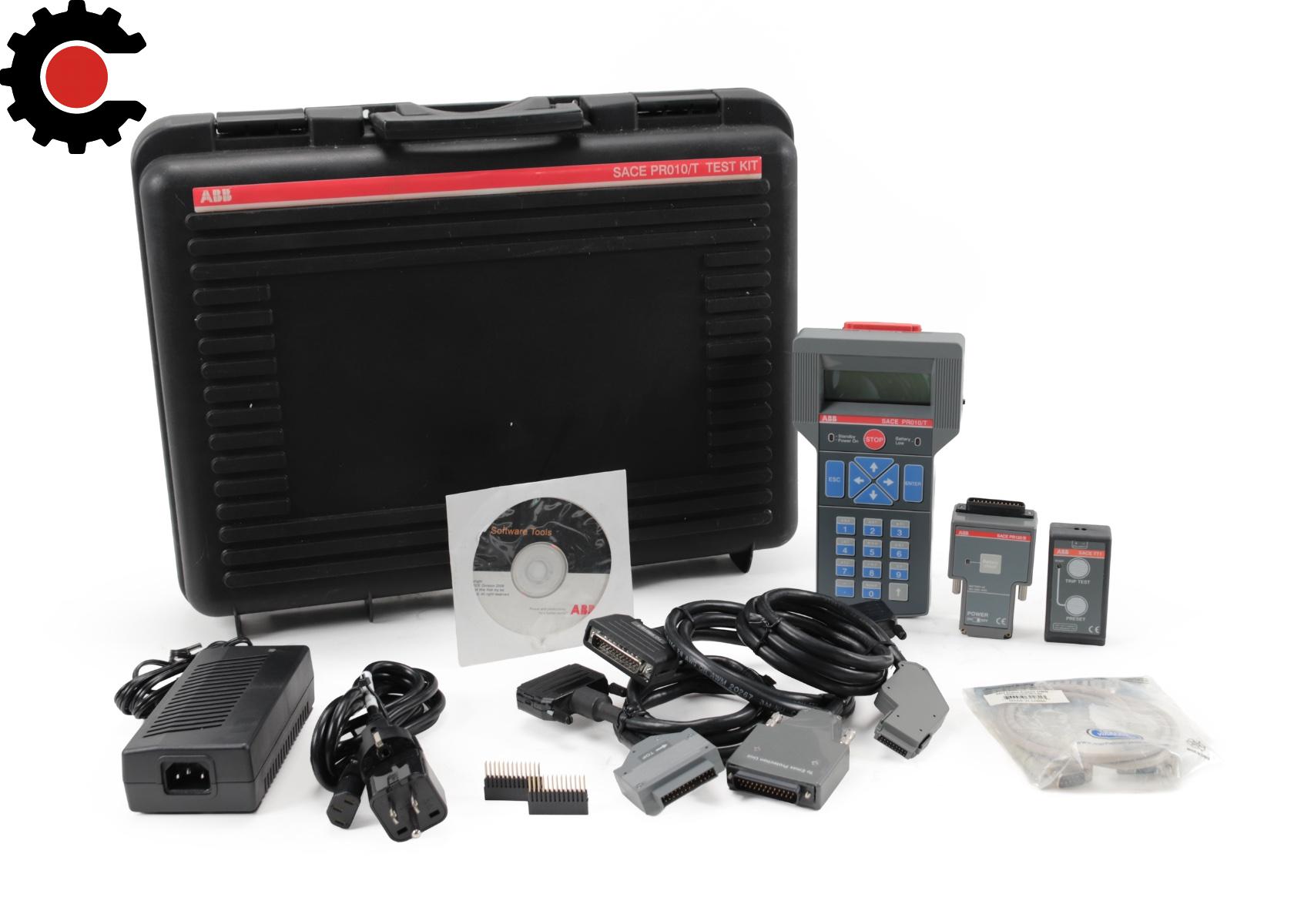

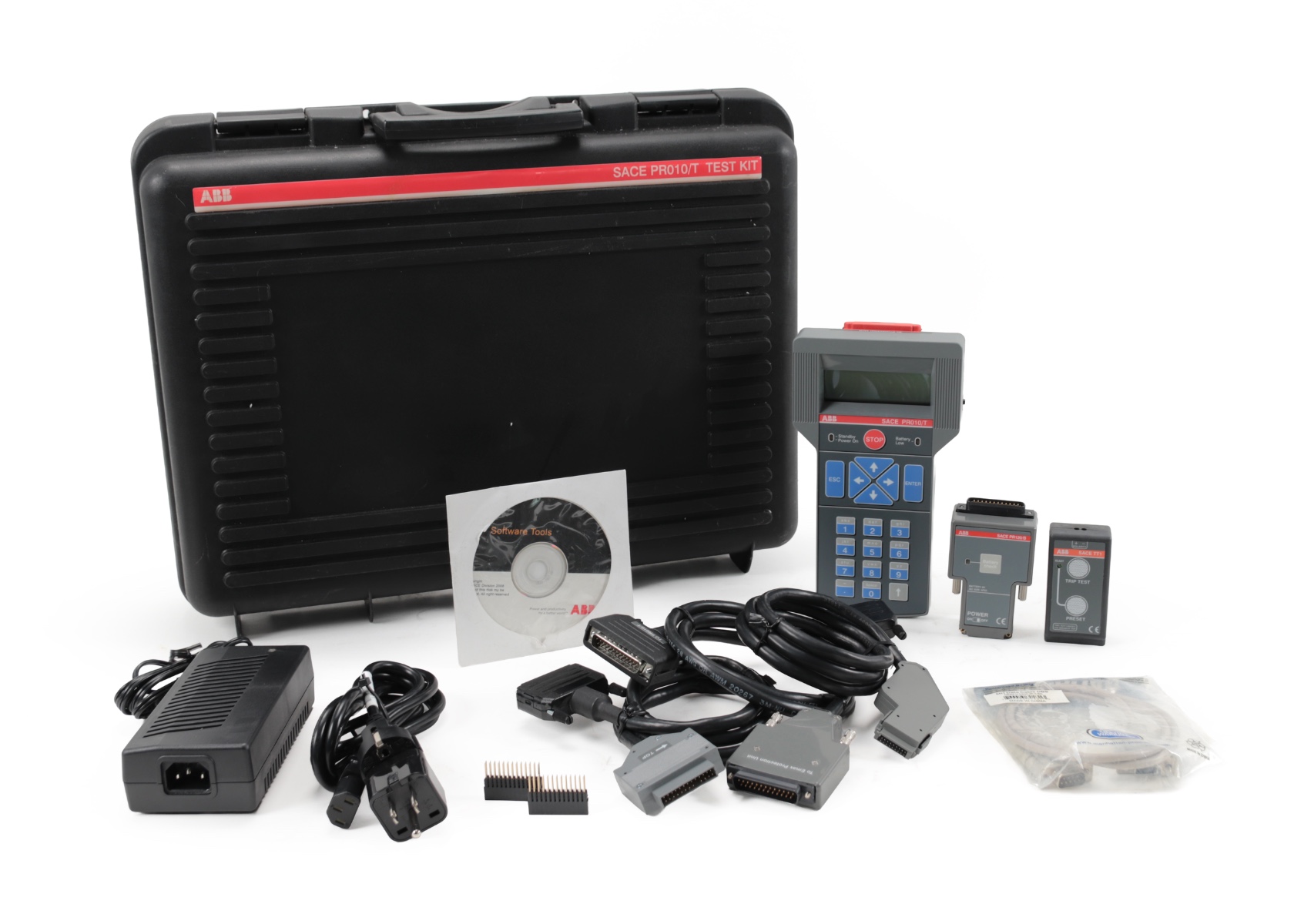

What's in the Box

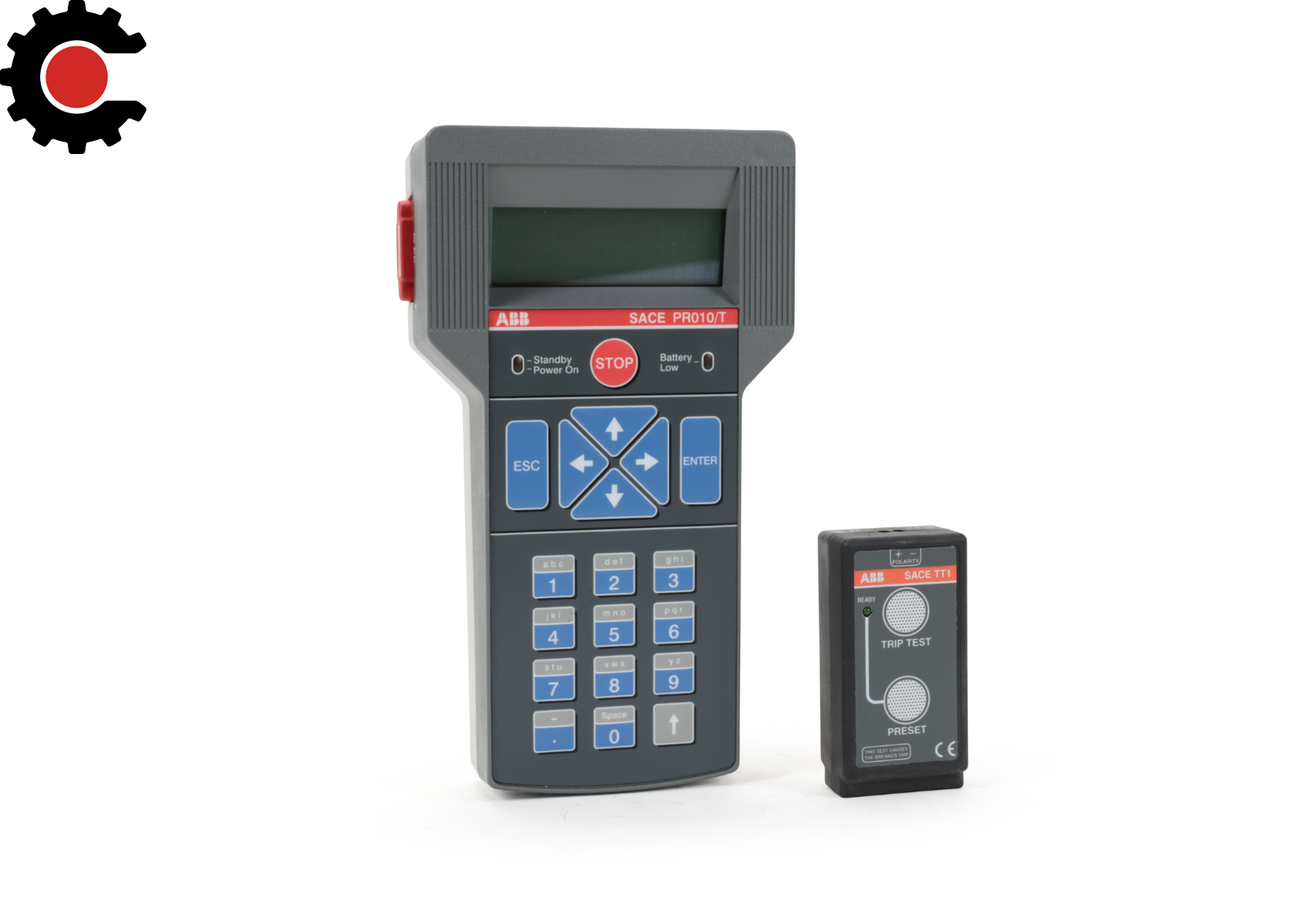

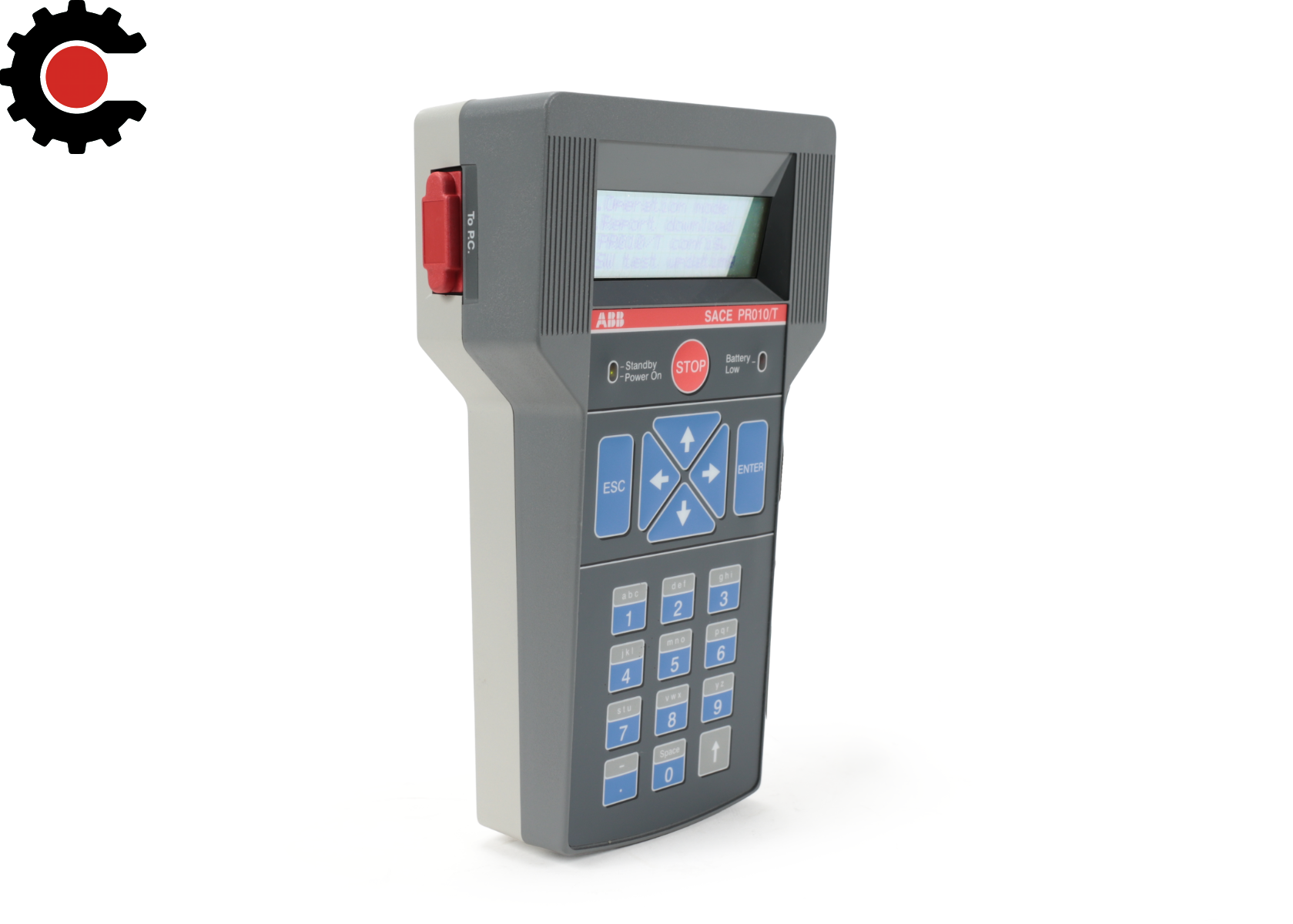

- 1 x ABB SACE PR010/T Test Unit

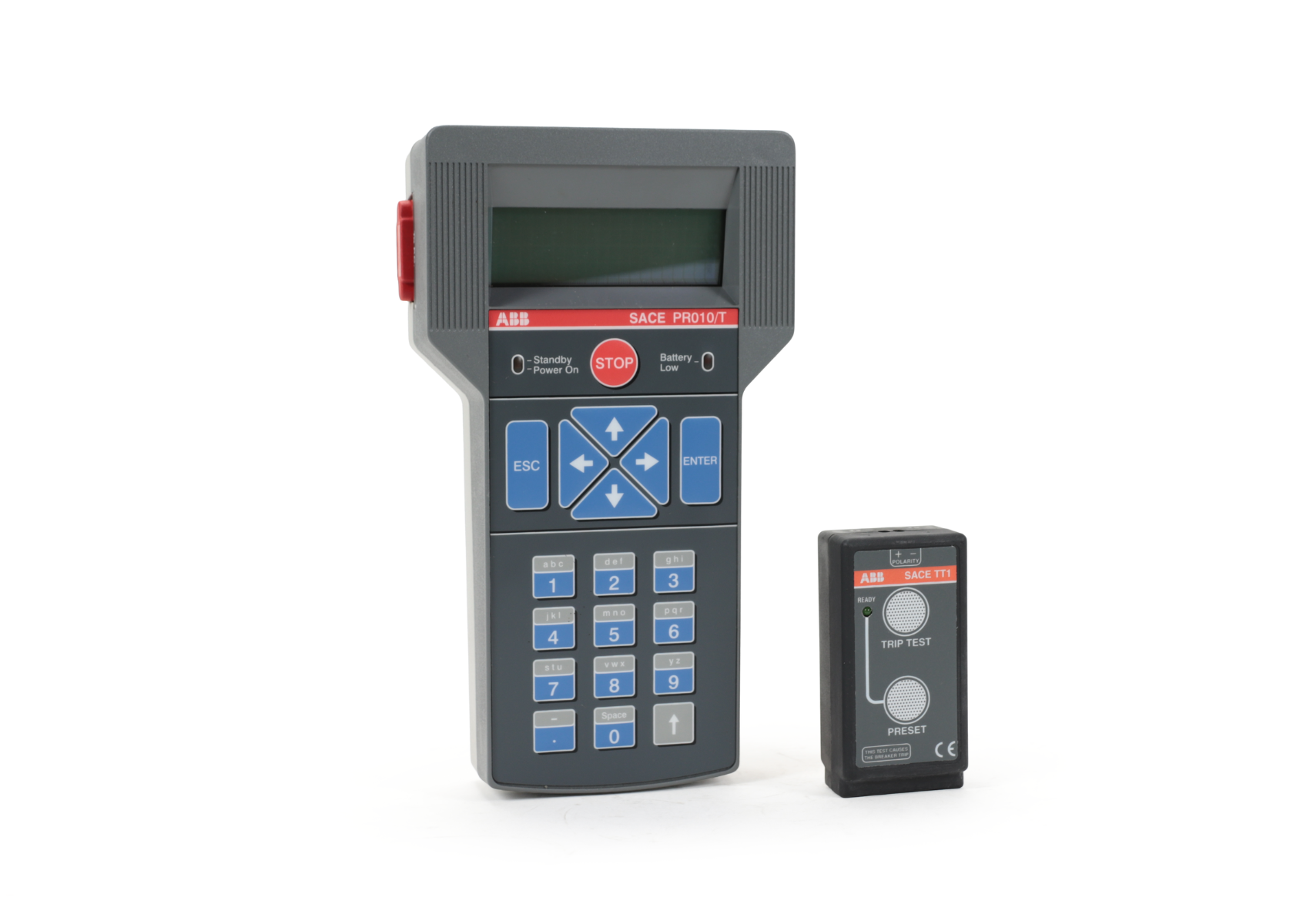

- 1 x ABB SACE TT1 Trip Test Unit

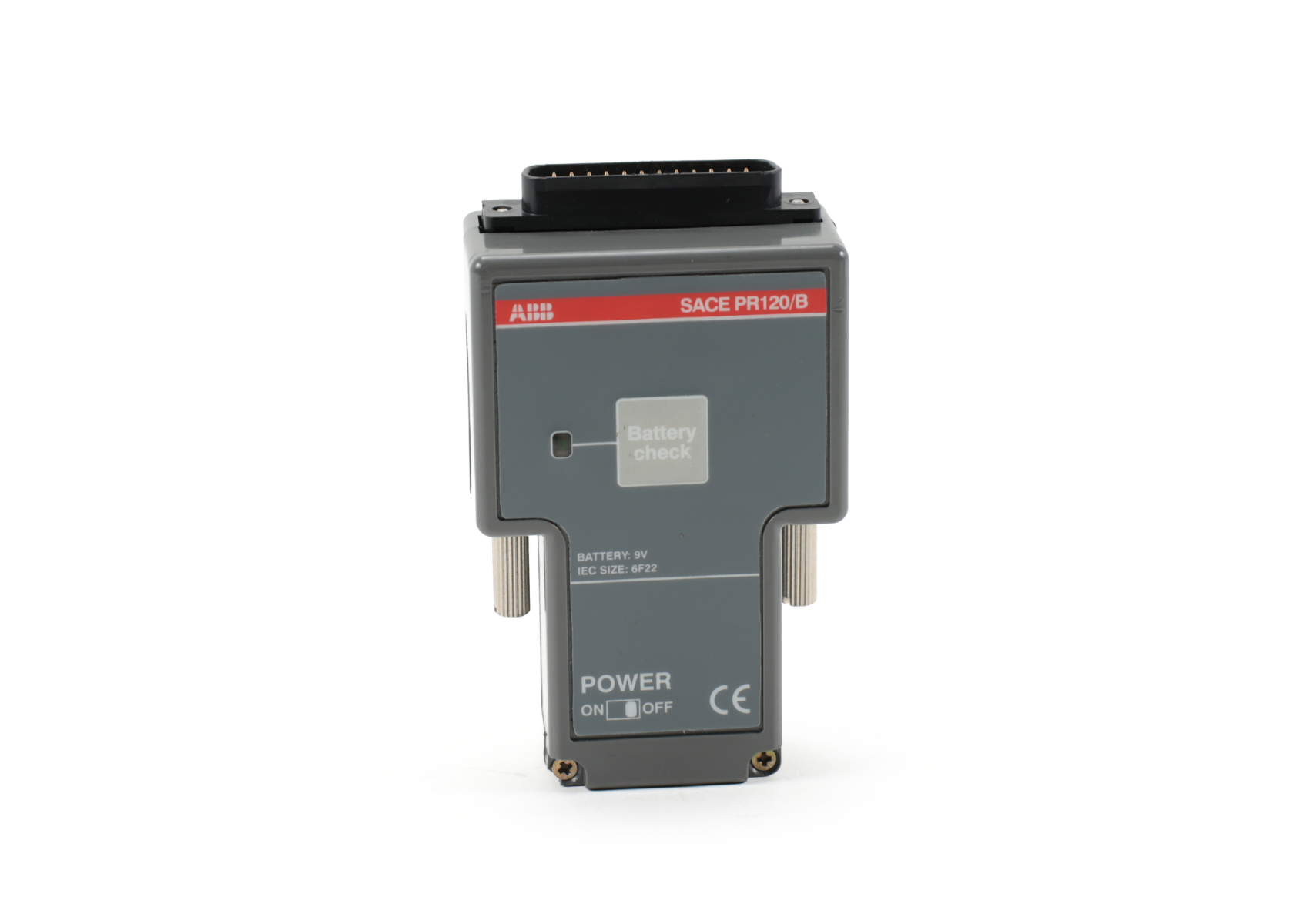

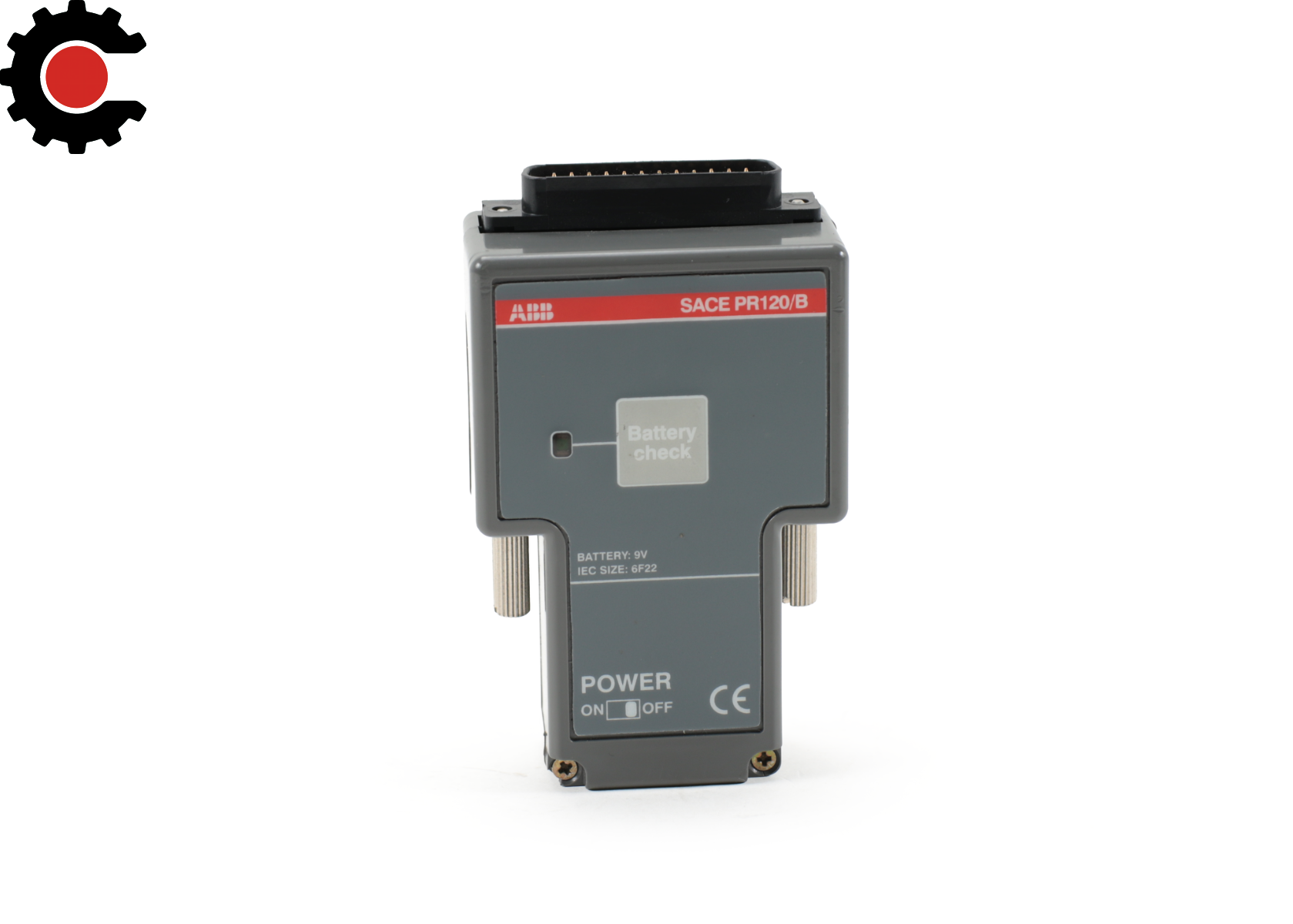

- 1 x ABB SACE PR120/B Battery Unit

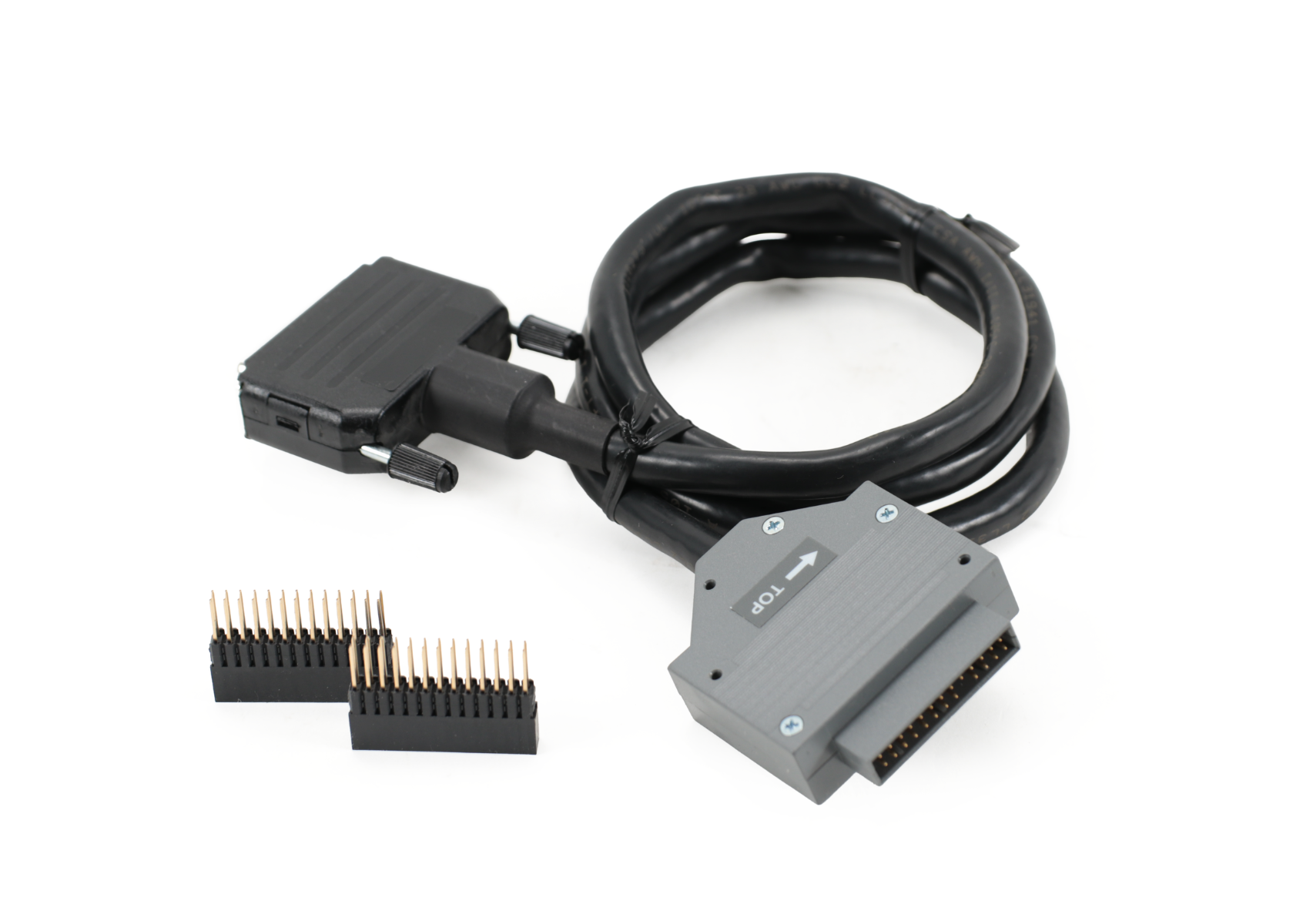

- 2 x Cable A

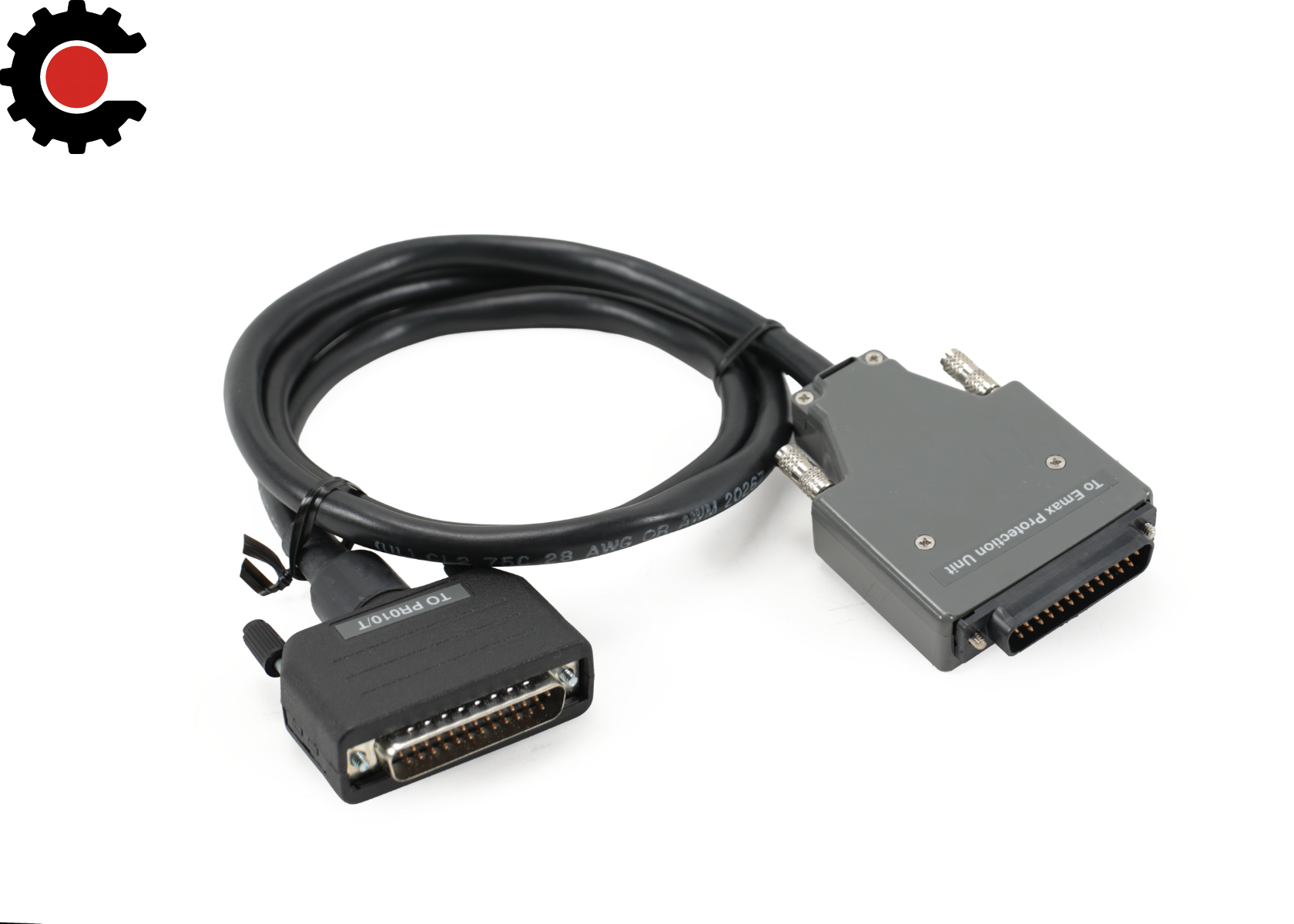

- 1 x Cable B

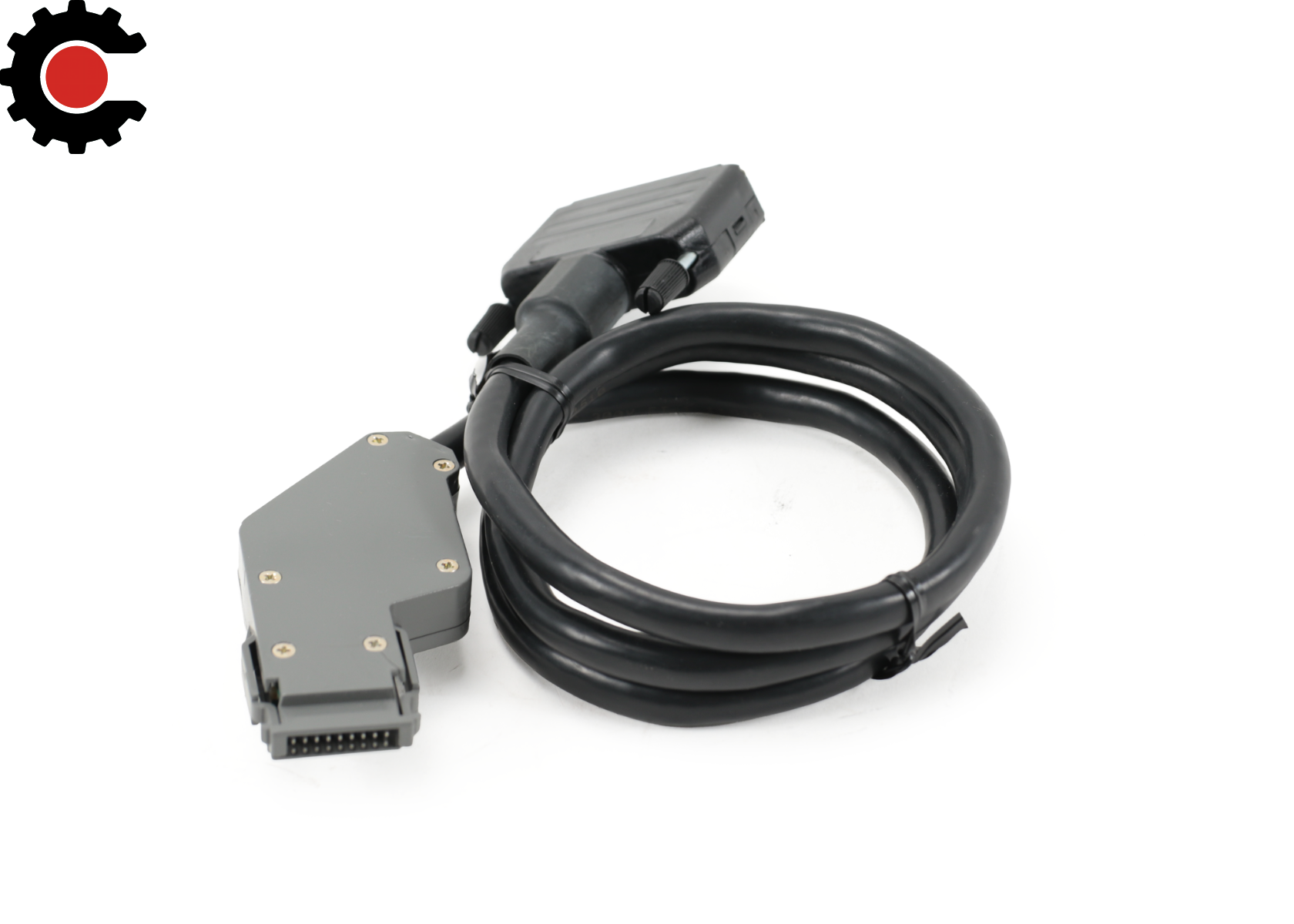

- 1 x Cable C
- 2 x ABB Protection Relay Interface Adapters
- 1 x AC Power Supply / Charger
- 1 x UK-to-US Plug Adapter
- 1 x DB9M to DB9F Serial Cable, 3 ft
- 1 x ABB Software CD

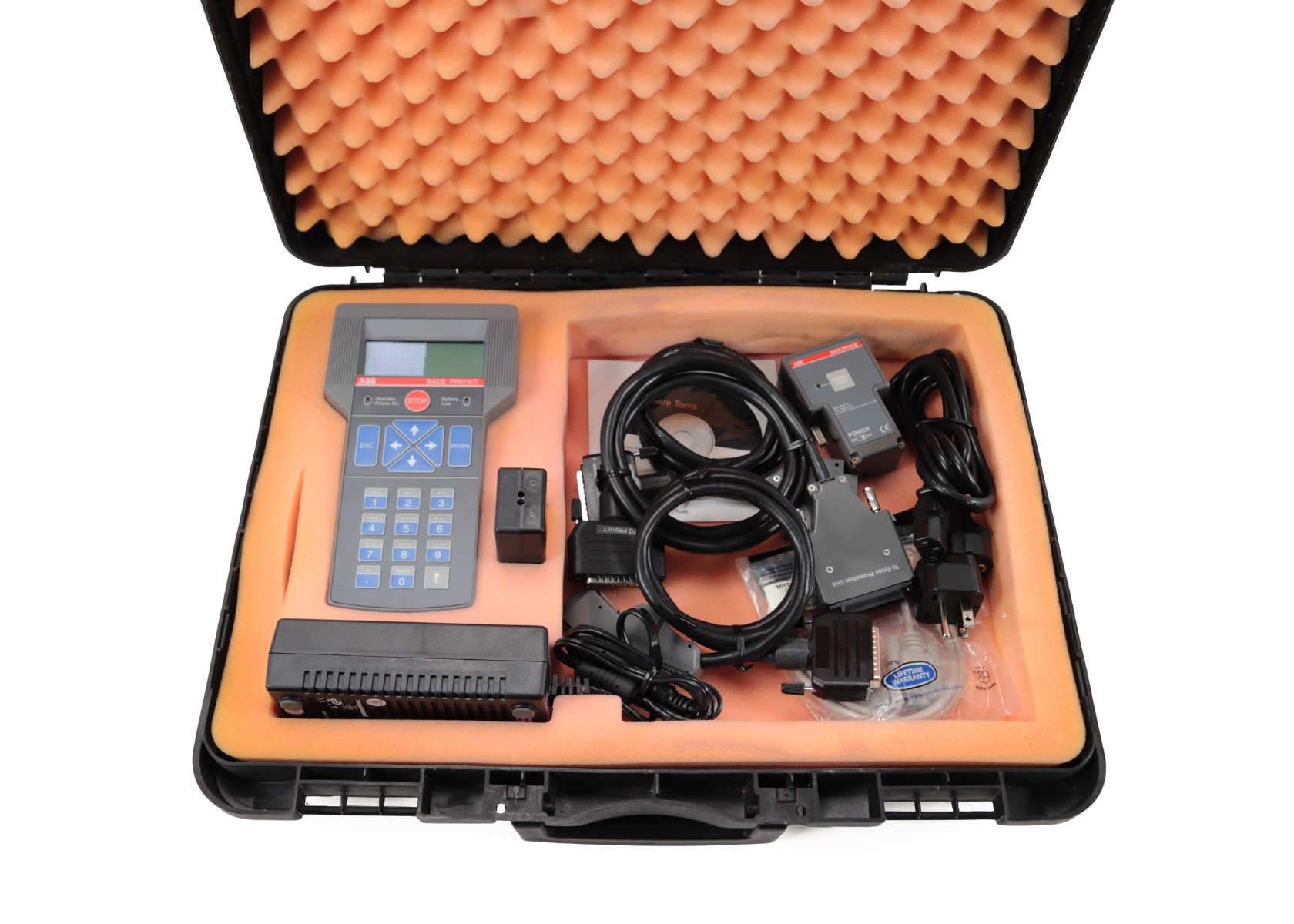

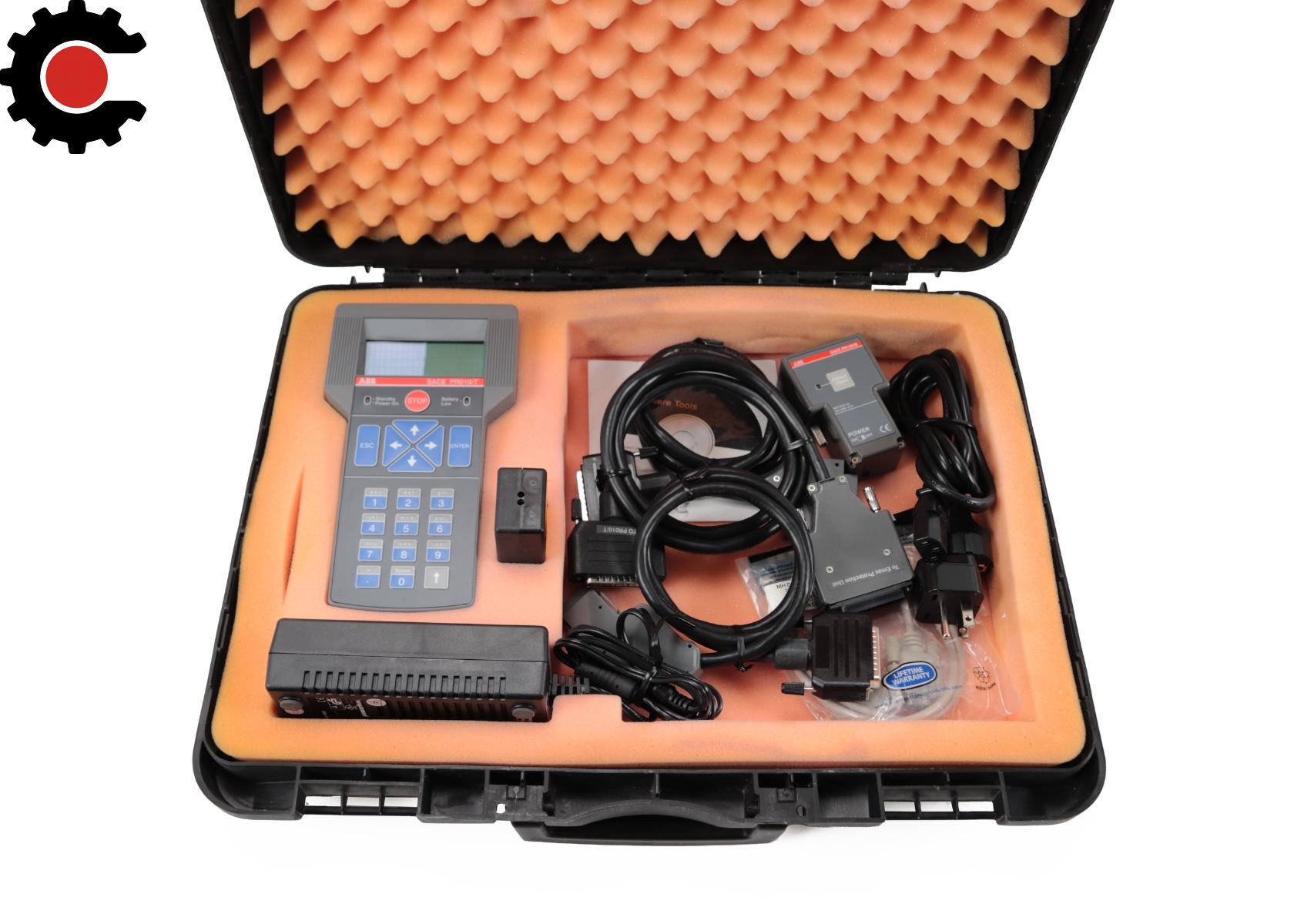

- 1 x Hard Carrying Case
Technical Specifications
| Model | SACE PR010/T |
|---|---|
| Function | Tests, programs, and reads parameters from ABB SACE electronic relays |
| Release Reference | Release 7.7 |
| Connection Method | Connects to the relay front test connector using the required cable and adapter configuration |

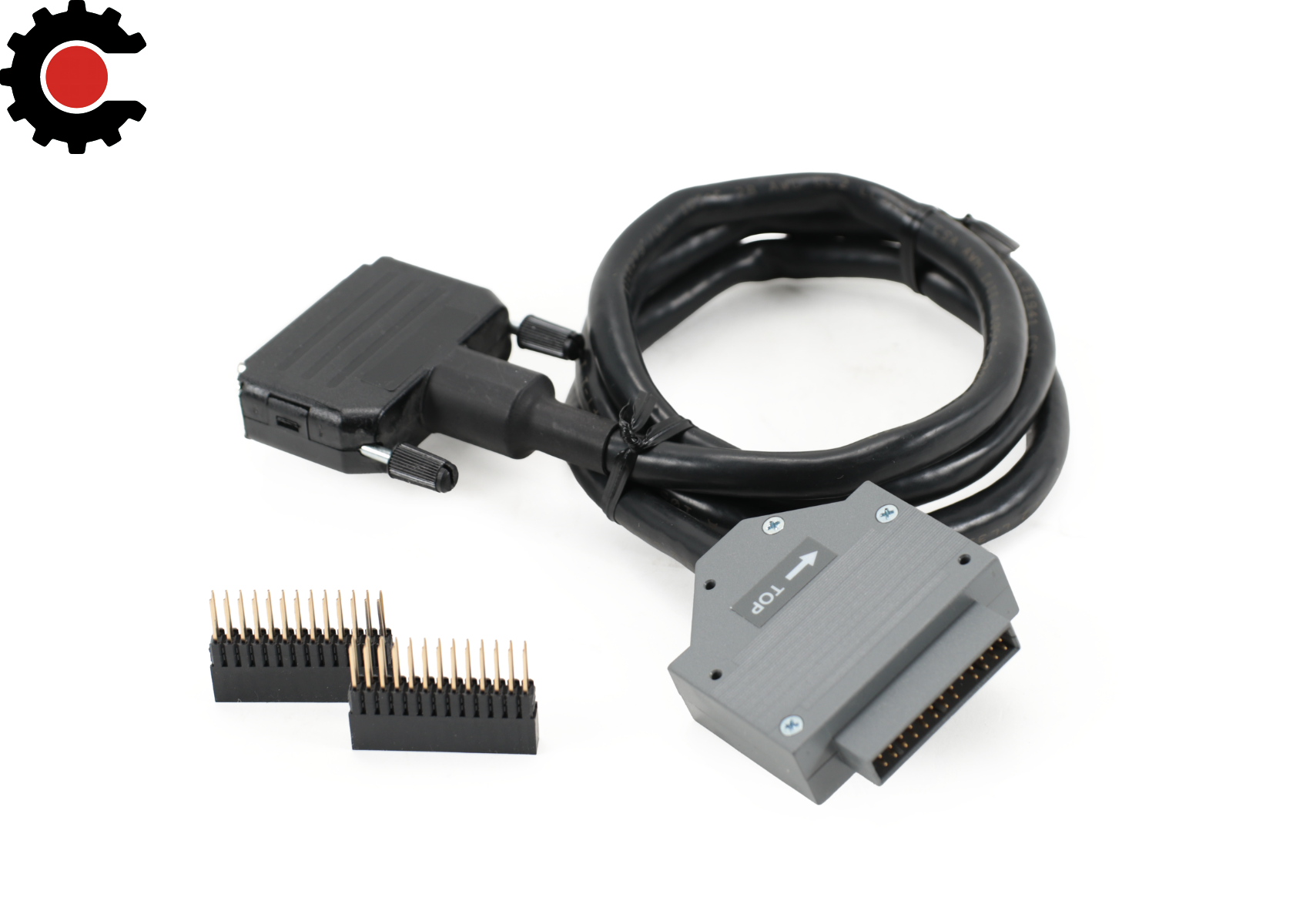

| Cable A Relay Use | PR111 with mechanical adapter; PR111/VF with mechanical adapter; PR112 IEC version with key |

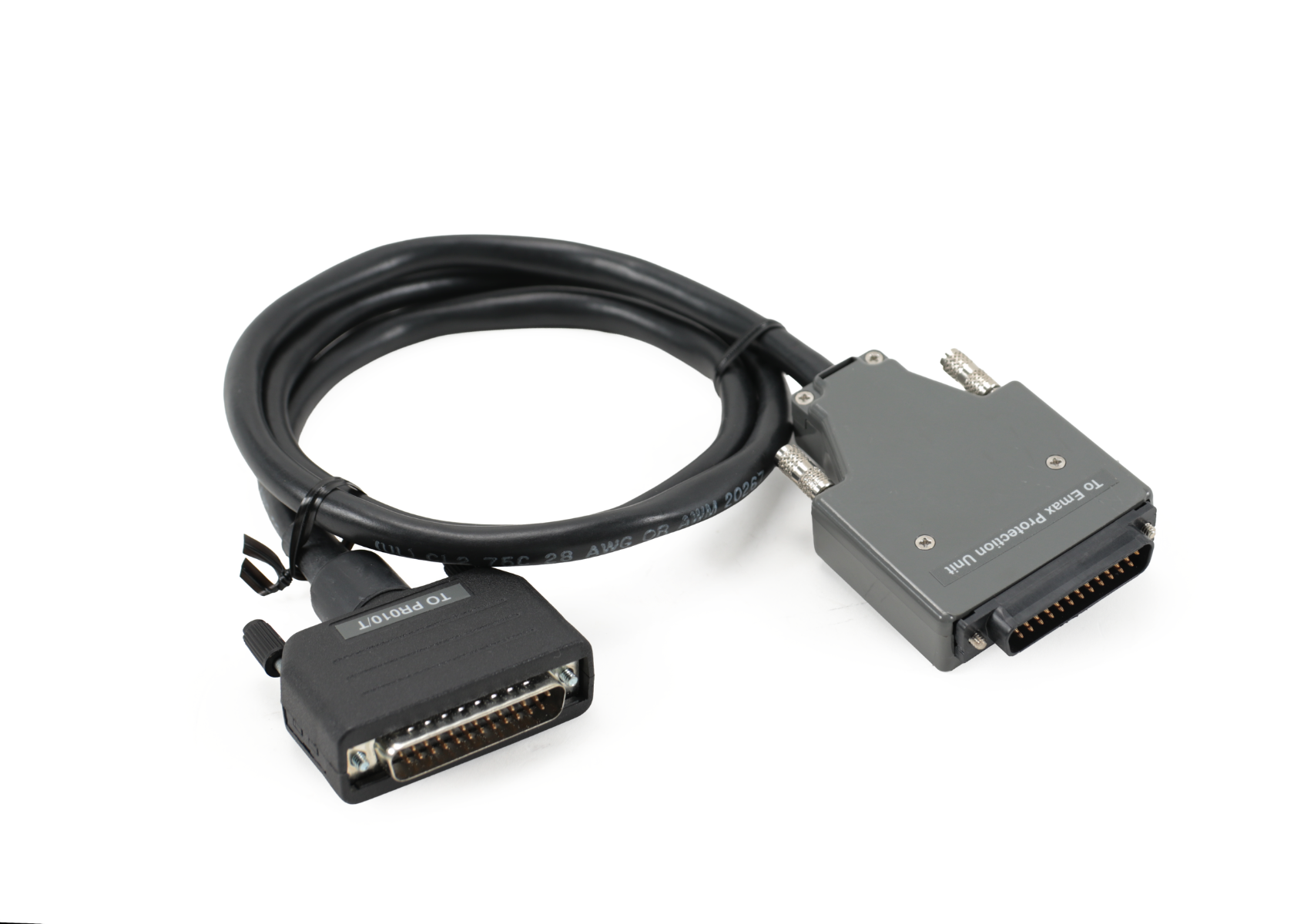

| Cable B Relay Use | PR112 IEC version without key; PR112 UL version |

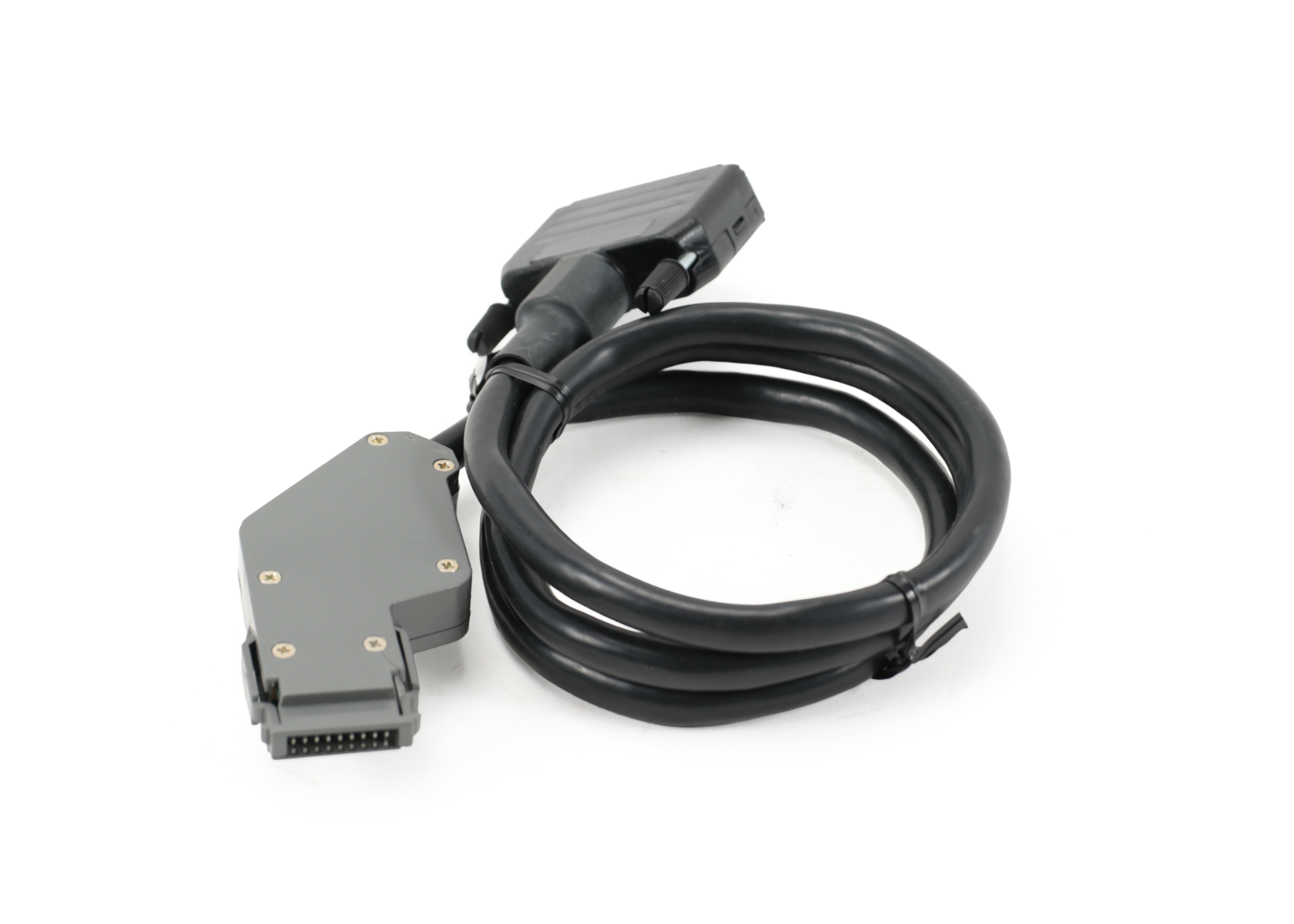

| Cable C Relay Use | PR212 and PR212MP versions with front test connector |
| Relay Coverage for Included Cable Paths | PR111, PR111/VF, PR112, PR212, PR212MP |
| Circuit-Breaker Coverage for Included Cable Paths | EMAX, EMAX VF, ISOMAX |

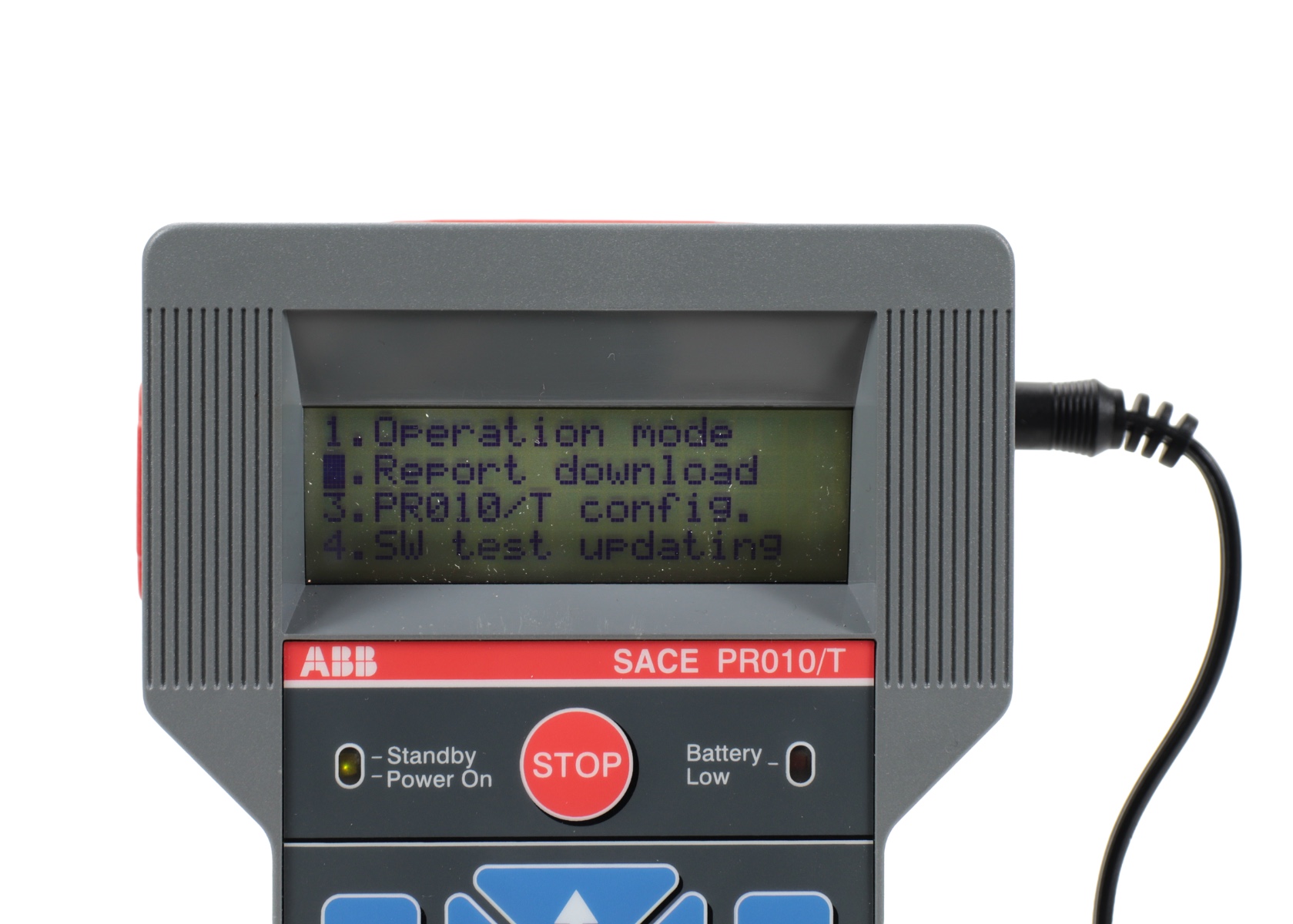

| Menu Structure | Tree menu for available relay functions and information |
| Operating Mode Menu | Test; Reading; Programming |
| Test Menu | Tests of protections, trip mechanism, and high signals |
| Reading Menu | Monitoring of current values, relay and circuit-breaker parameters, trip history, and general information |
| Programming Menu | Editing of relay and circuit-breaker parameters, protection status, and configuration data |
| Trip Test | Transmits a circuit-breaker trip command to check relay opening-system operation |
| Manual Test | Tests electronic relay tripping time with selected protection, threshold, time, fault current, and phase |
| Automatic Test | Tests data acquisition channels and main protections; displays protection threshold, protection time, and test result |
| Set/Reset Coil Test | Tests SET and RESET outputs for MP relay versions where supported |
| Iinst Test | Tests Iinst protection operation in PR11x series relays |
| Report Function | Supported test reports can be recorded and downloaded to a PC |
