Features

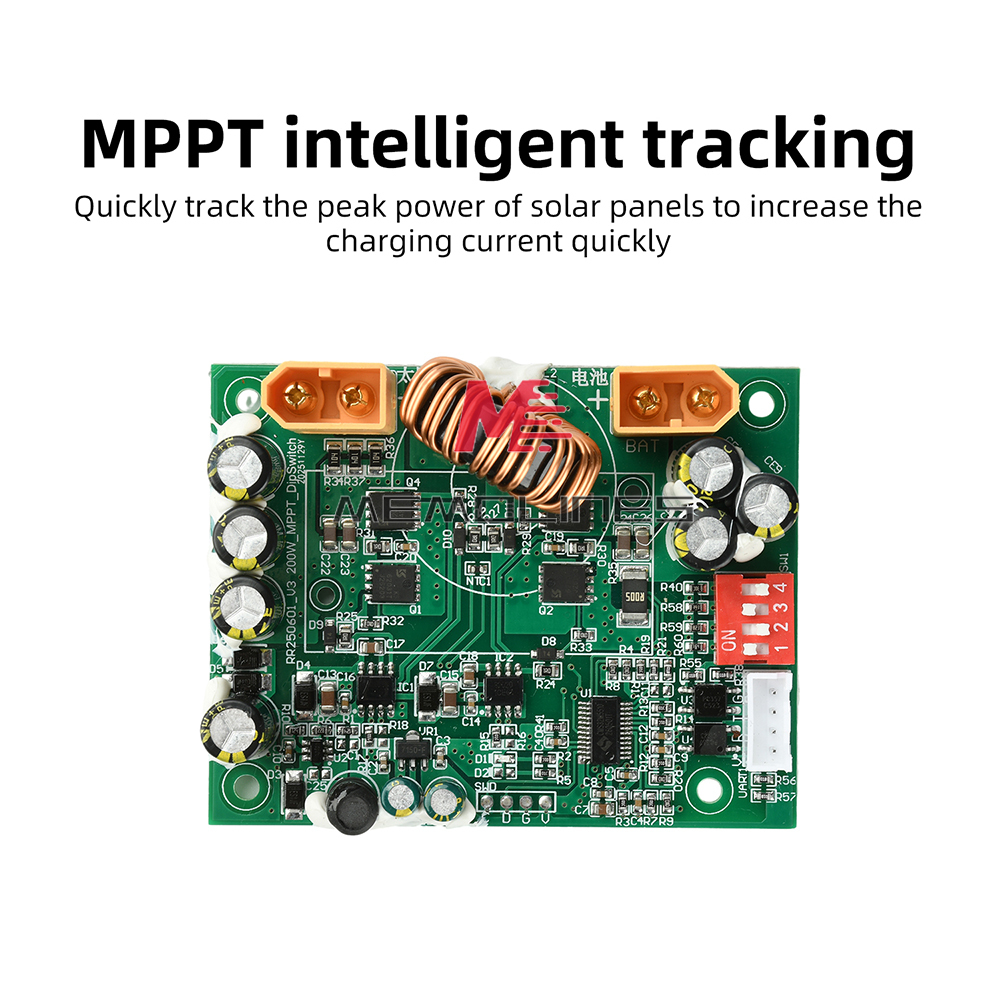

1. MPPT Smart Tracking: Rapidly tracks the peak power of solar panels to quickly increase the charging current

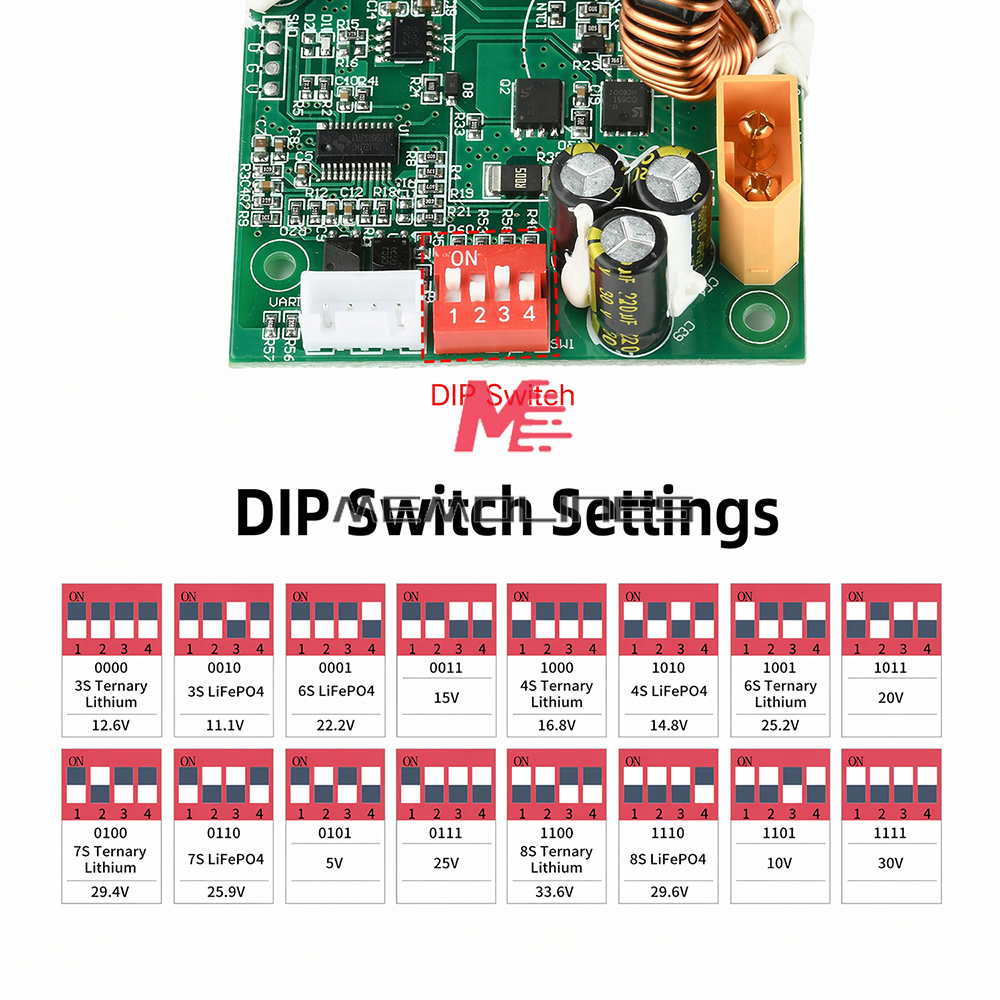

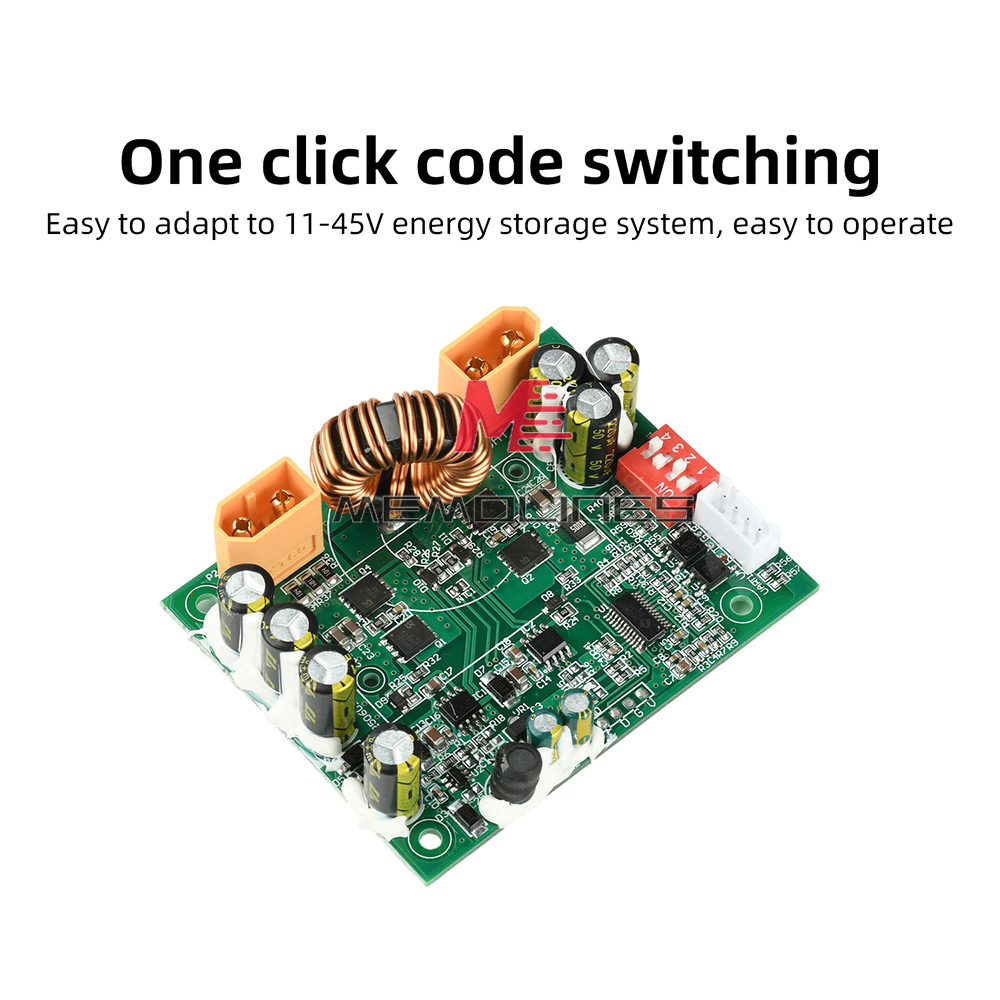

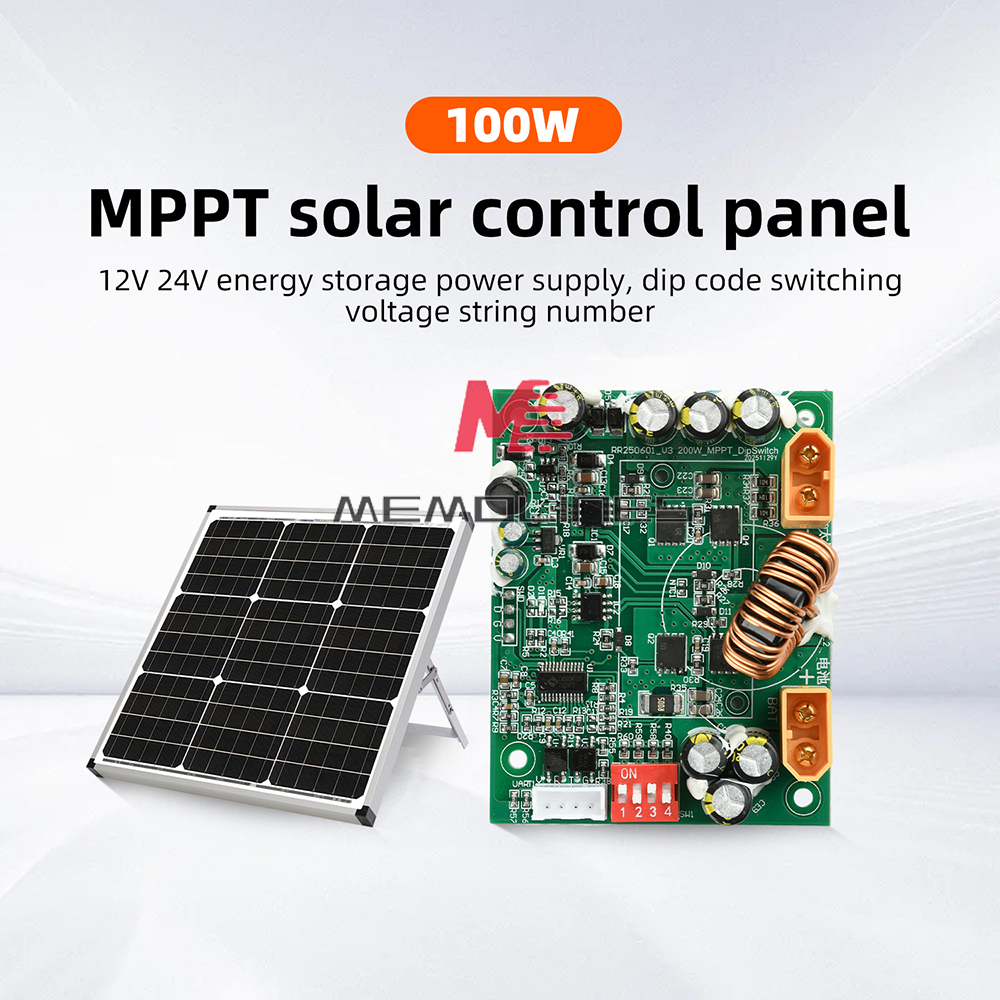

2. One-Touch DIP Switch: Easily adapts to 11–45V energy storage systems with simple operation

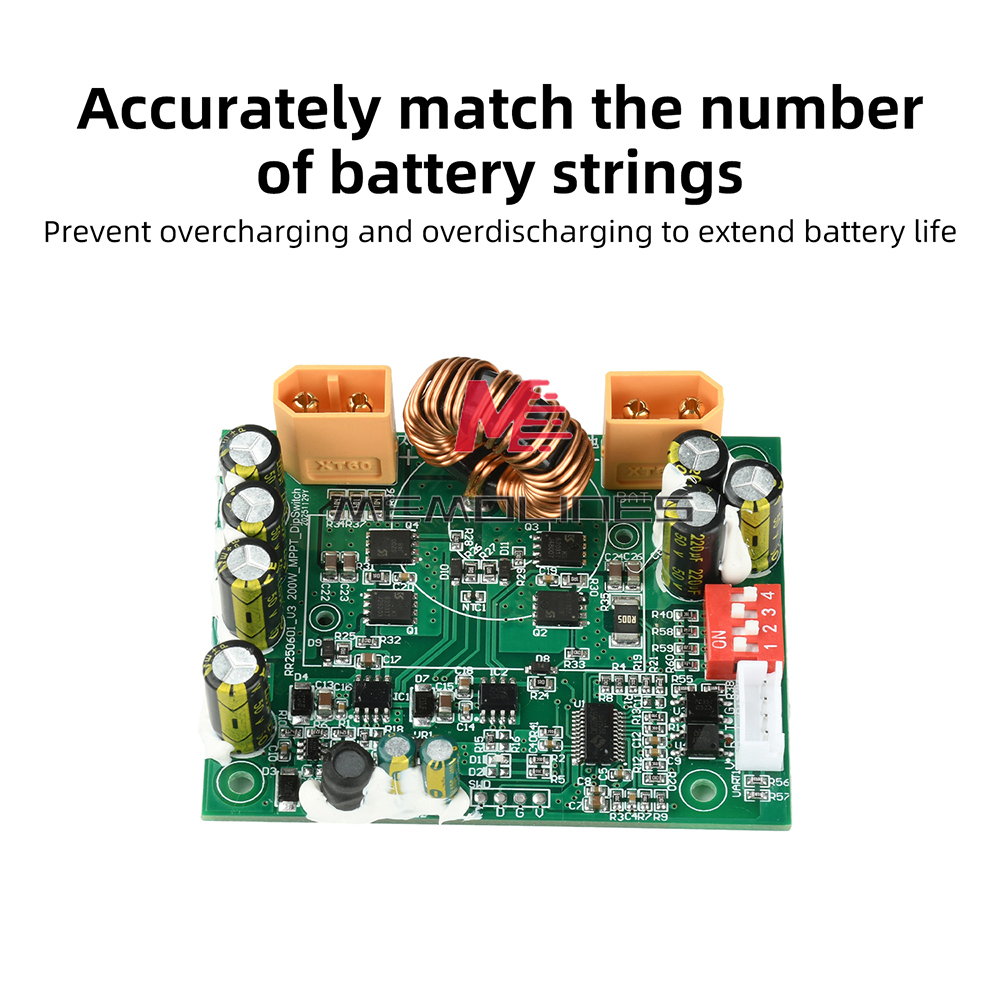

3. Precise Battery String Matching: Prevents overcharging and over-discharging, extending battery life

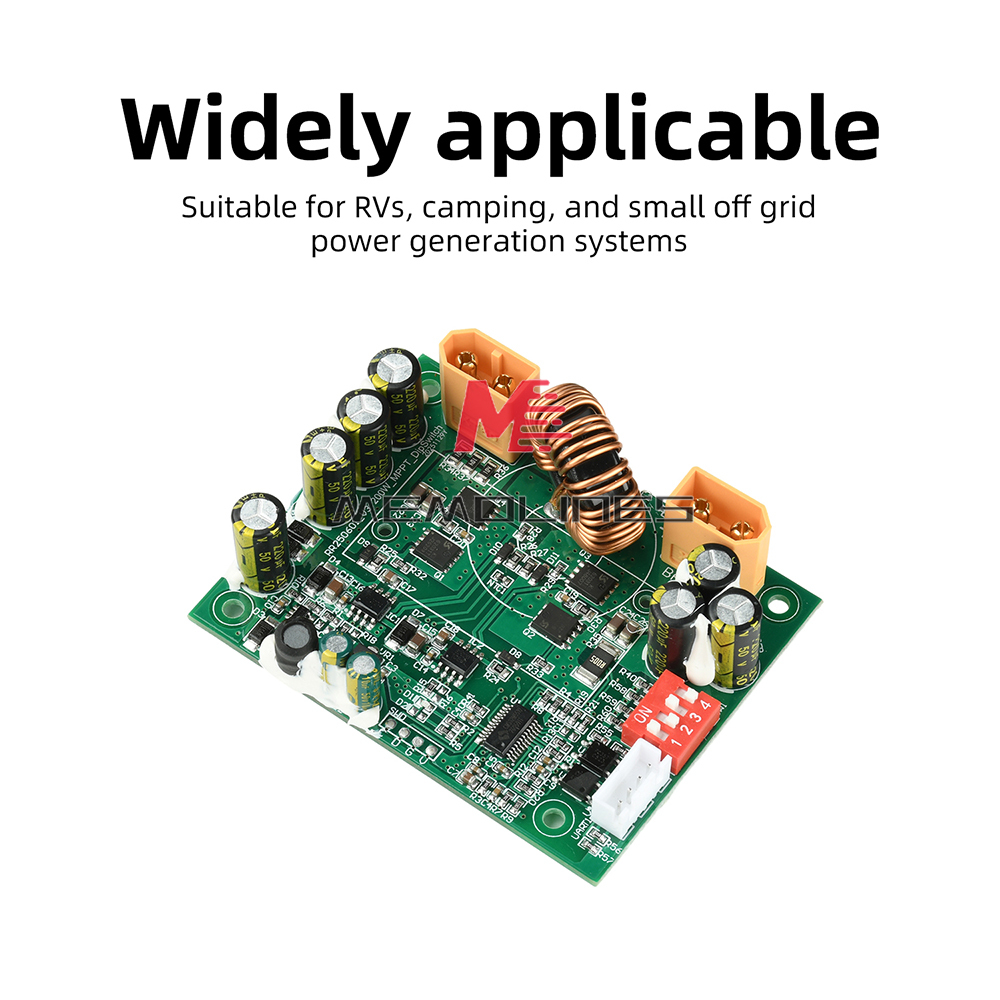

4. Wide Range of Applications: Suitable for RVs, camping, and small off-grid power systems

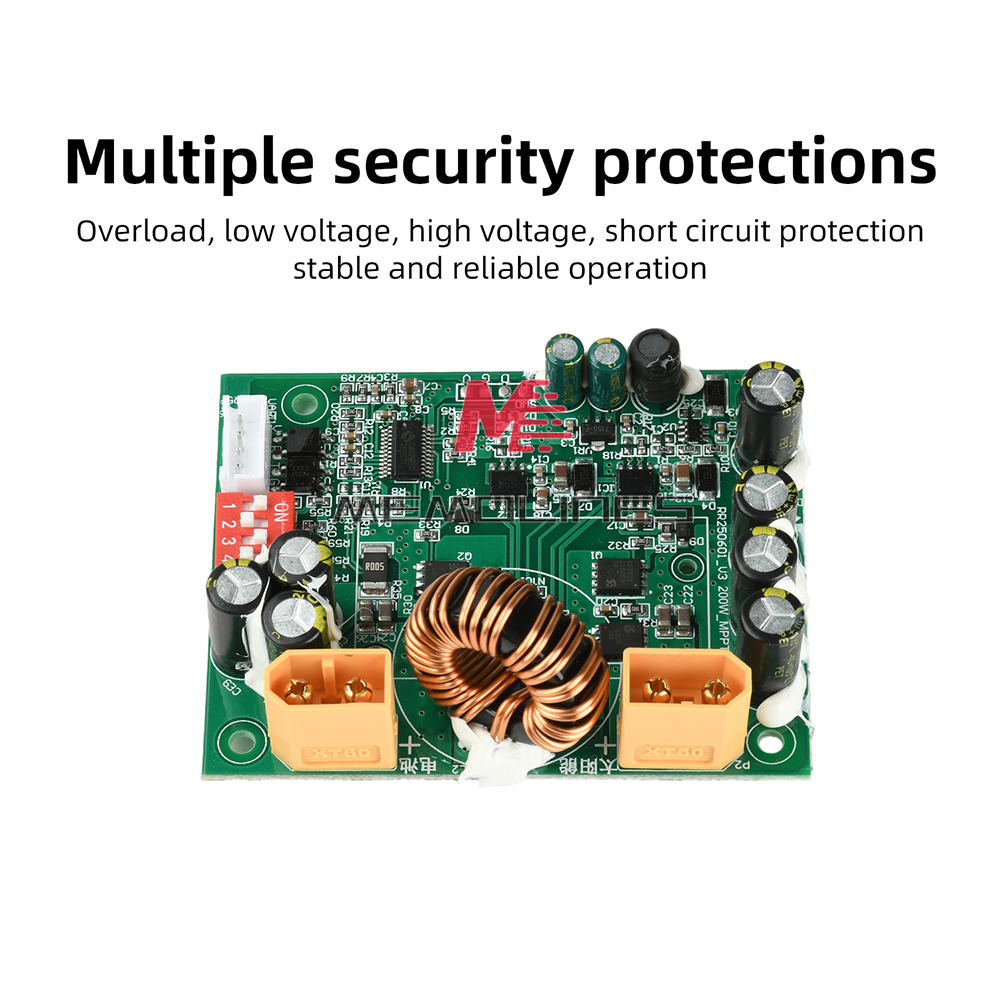

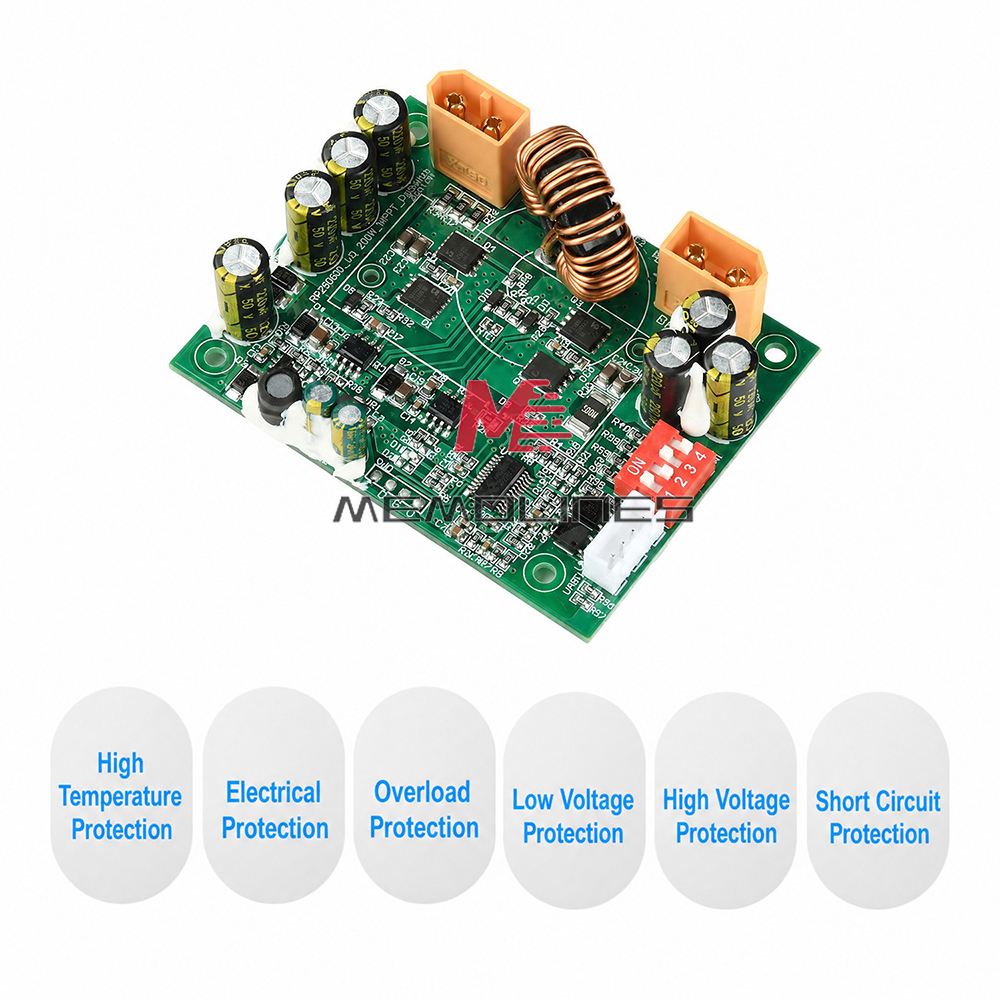

5. Multiple Safety Protections: Overload, low voltage, high voltage, and short circuit protection ensure stable and reliable operation

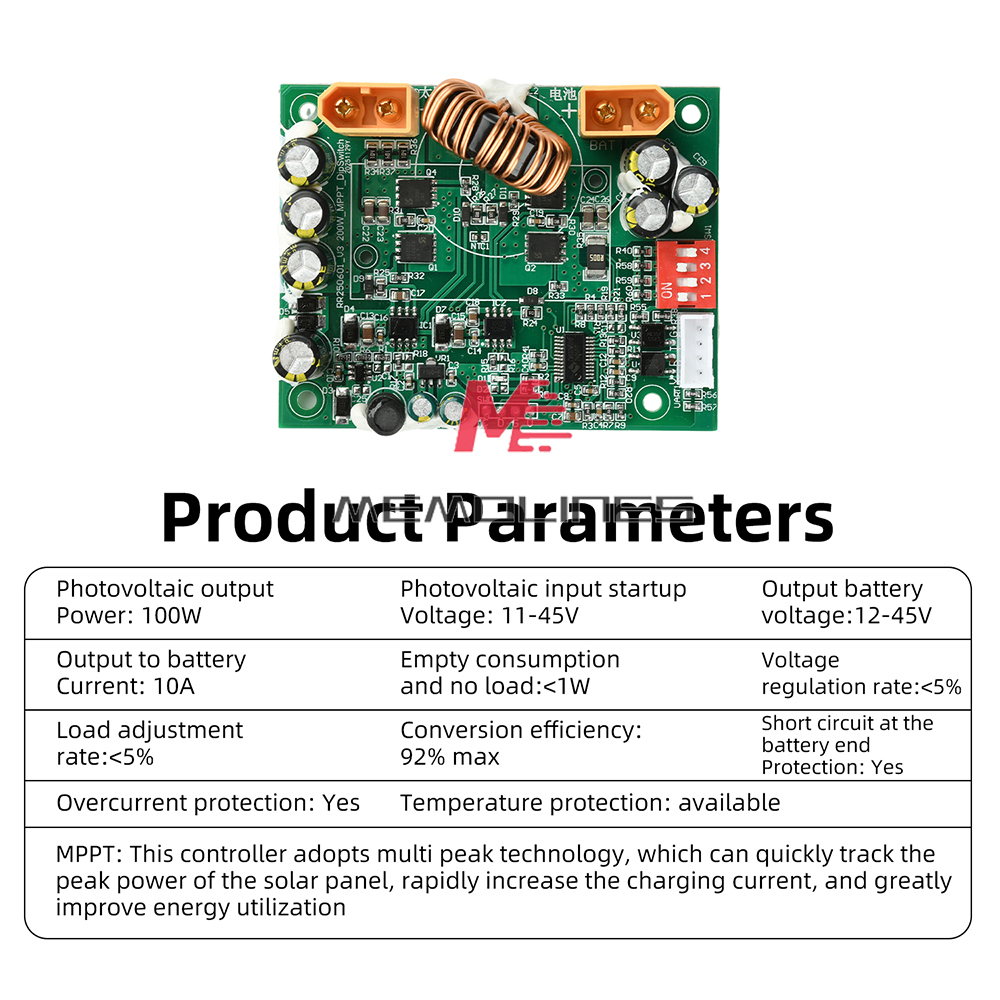

Parameter
PV Output Power: 100W
PV Input Start-up Voltage: 11-45V
Output Battery Voltage: 12-45V
Output Current to Battery: 10A
No-Load Power Consumption: <1W
Voltage Regulation: <5%
Load Regulation: <5%
Conversion Efficiency: 92% max
Battery Terminal Short-Circuit Protection: Yes
Overcurrent Protection: Yes
Temperature Protection: Yes

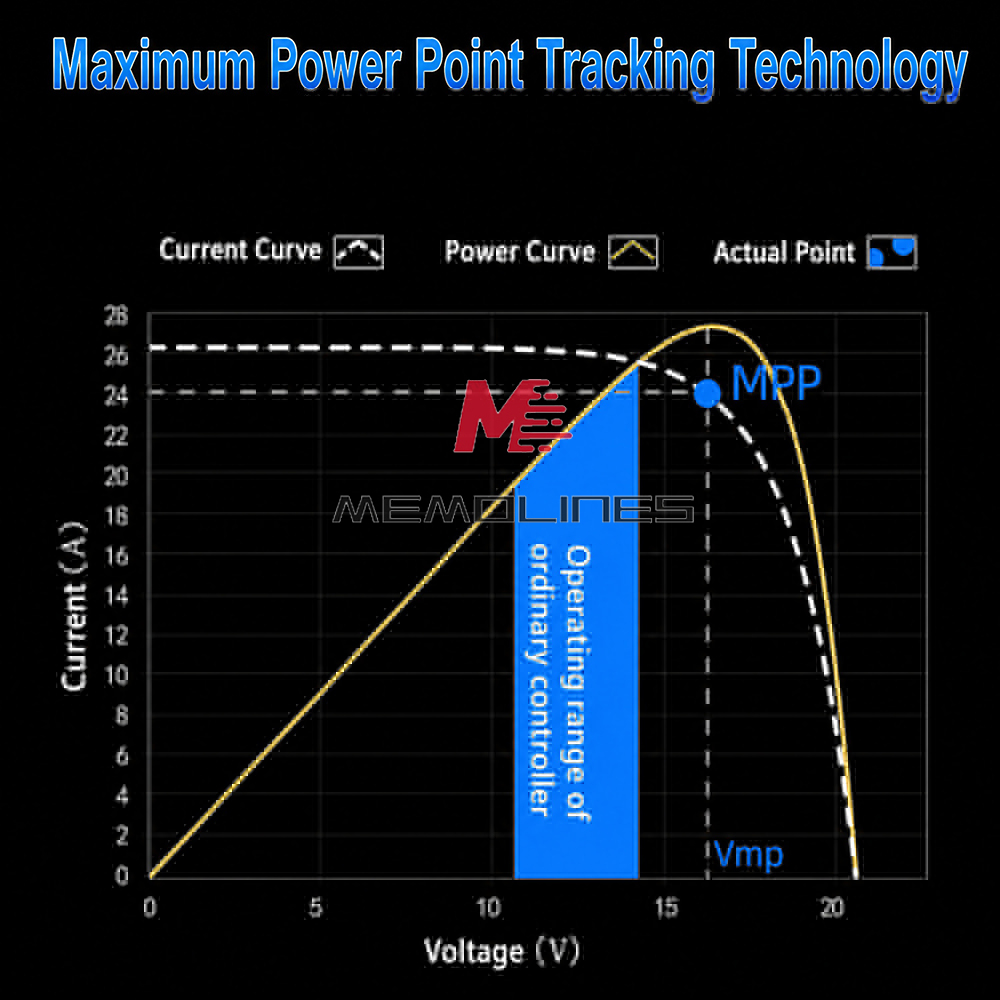

MPPT: This controller uses multi-peak technology to quickly track the peak power of solar panels, rapidly increasing the charging current and significantly improving energy utilization.
Precautions
1. Before first use, please set the battery type. The controller has a memory function; once set, it will continue to operate based on the configured battery type until changed again.
2. Install the controller as close to the battery as possible to avoid voltage drops caused by excessively long wires, which could affect voltage detection.
3. This controller is designed exclusively for use with photovoltaic modules as the charging source. Do not use DC batteries or other charging sources.
4. This controller generates heat during operation. Please pay attention to the installation environment and ensure adequate ventilation.
5. This controller is not waterproof. Do not submerge it in water or expose it to rain.
