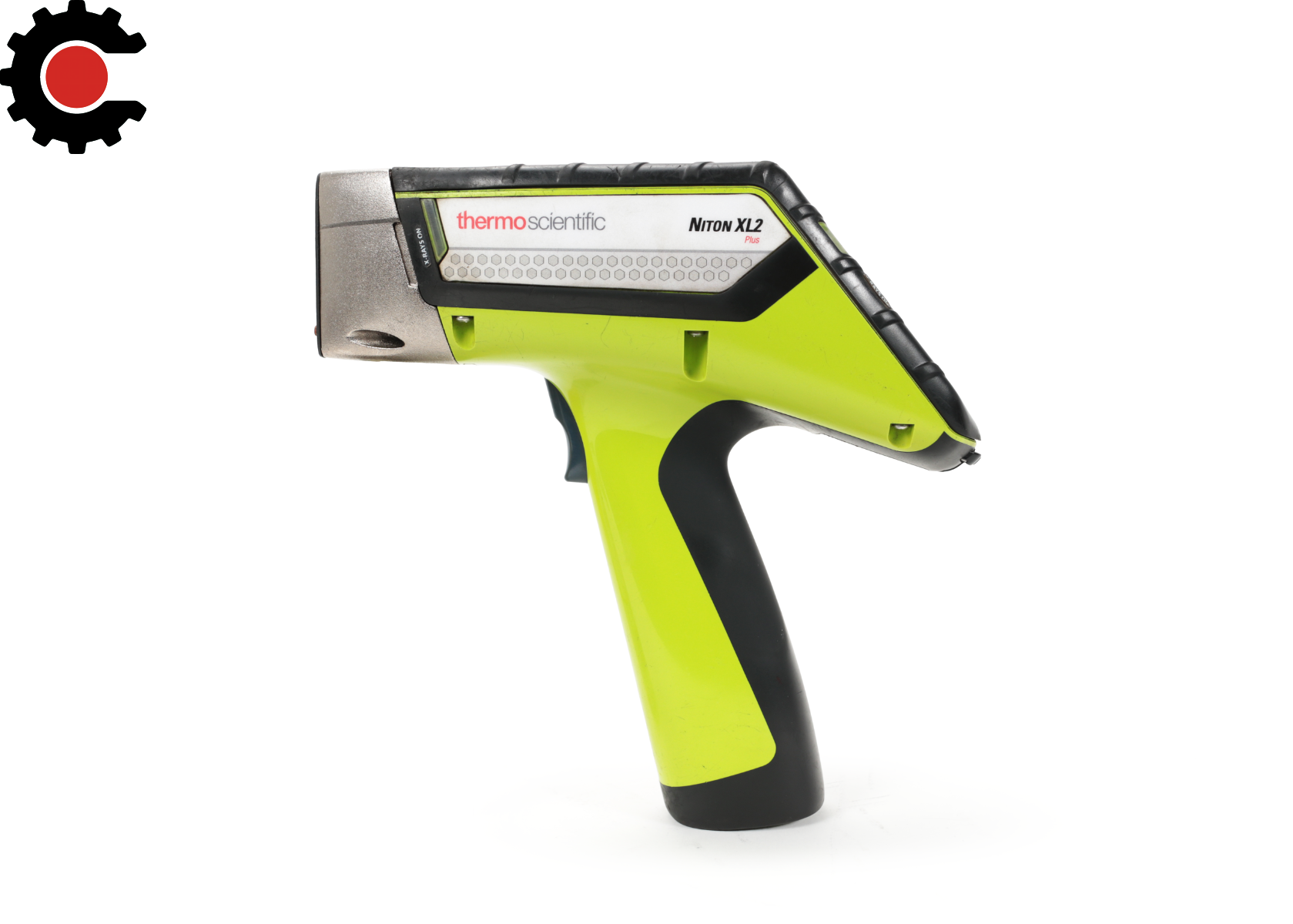

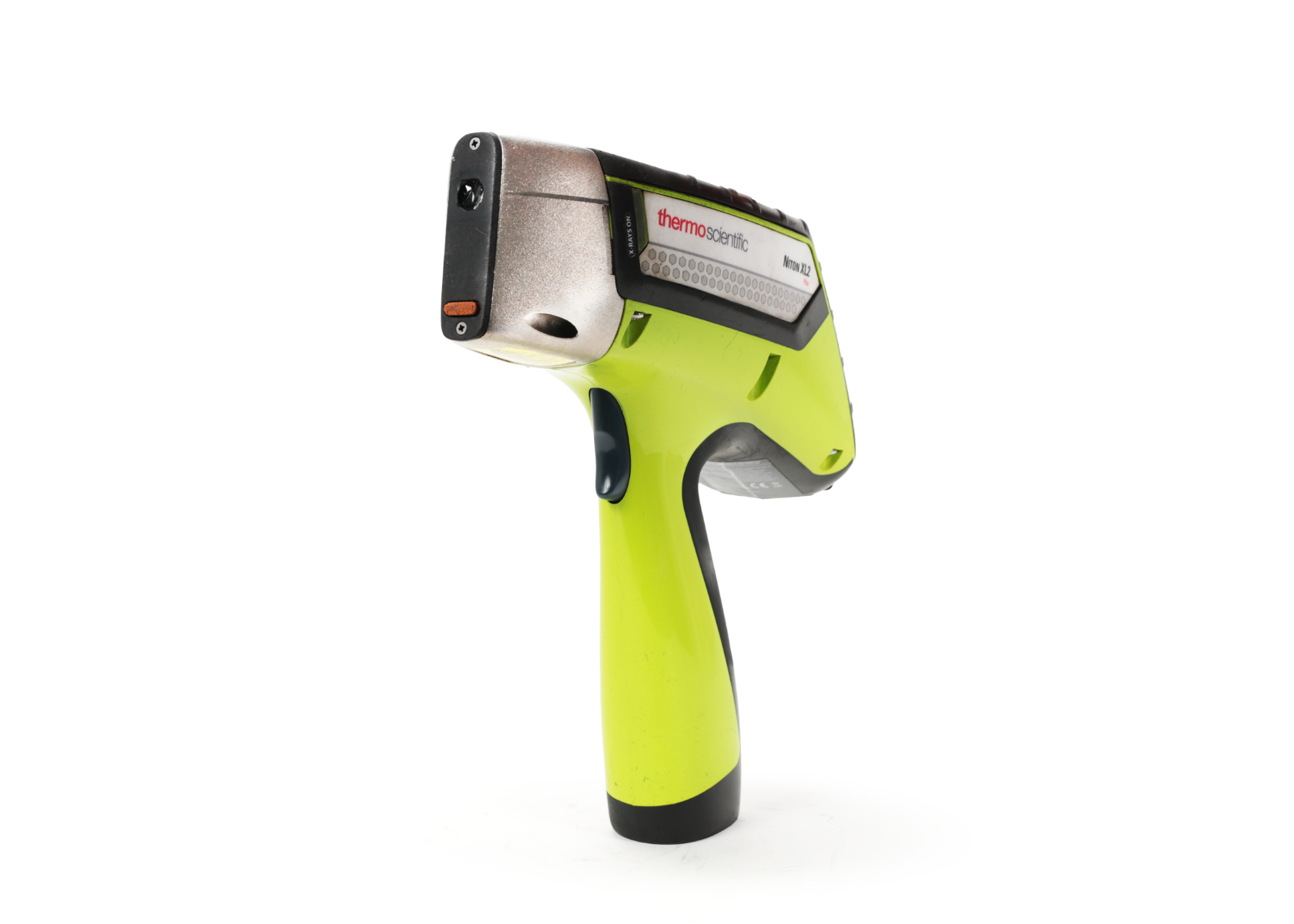

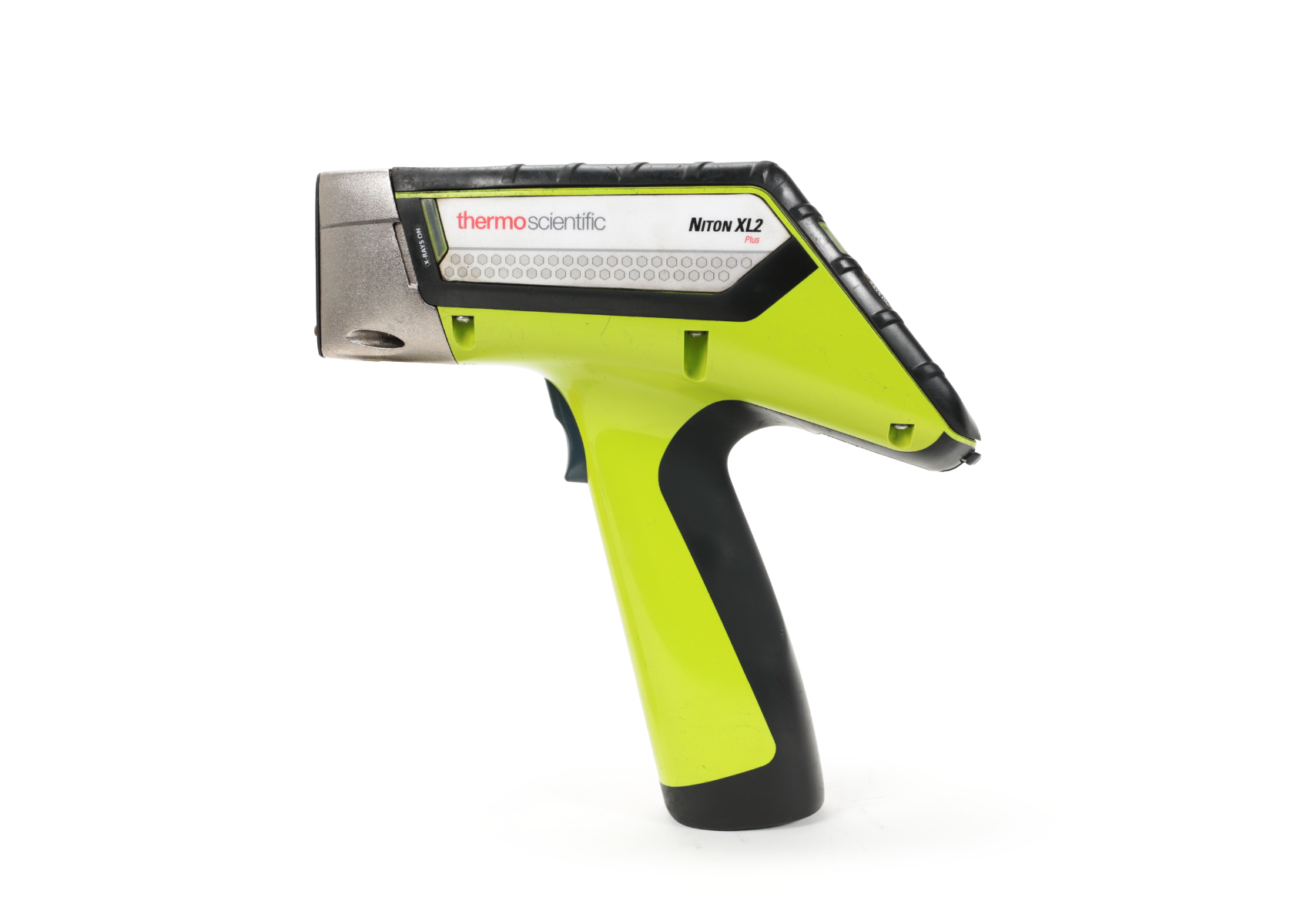

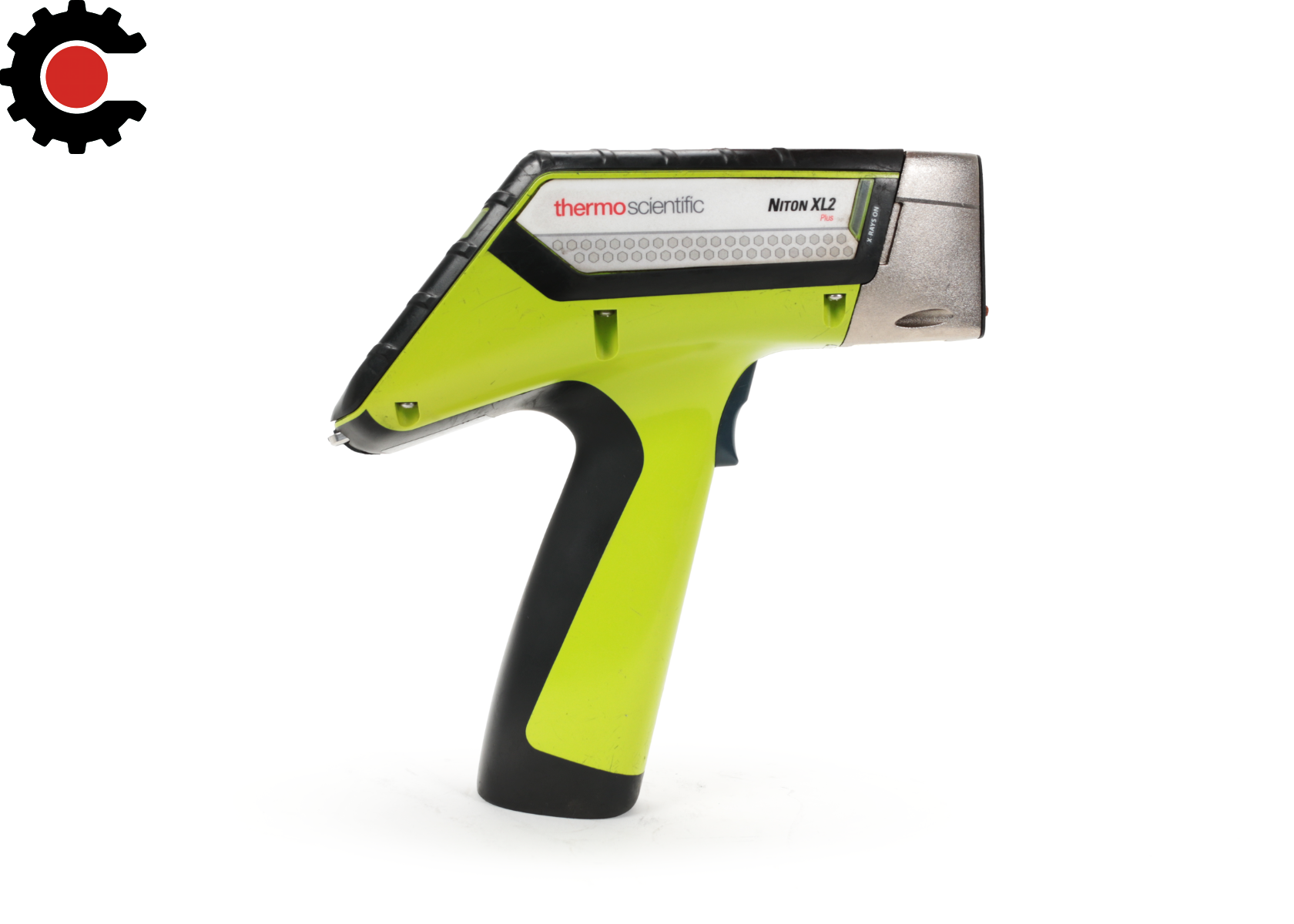

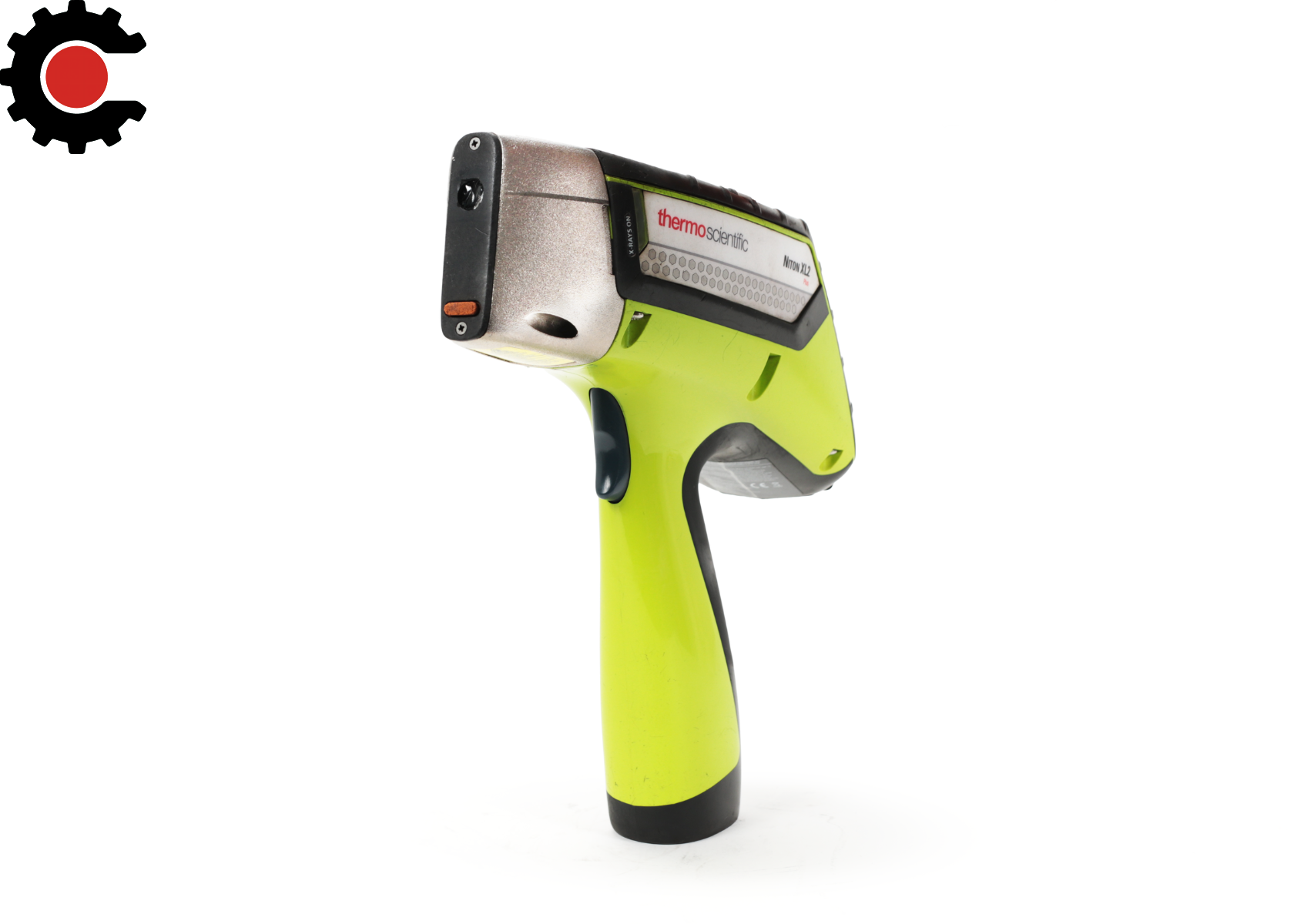

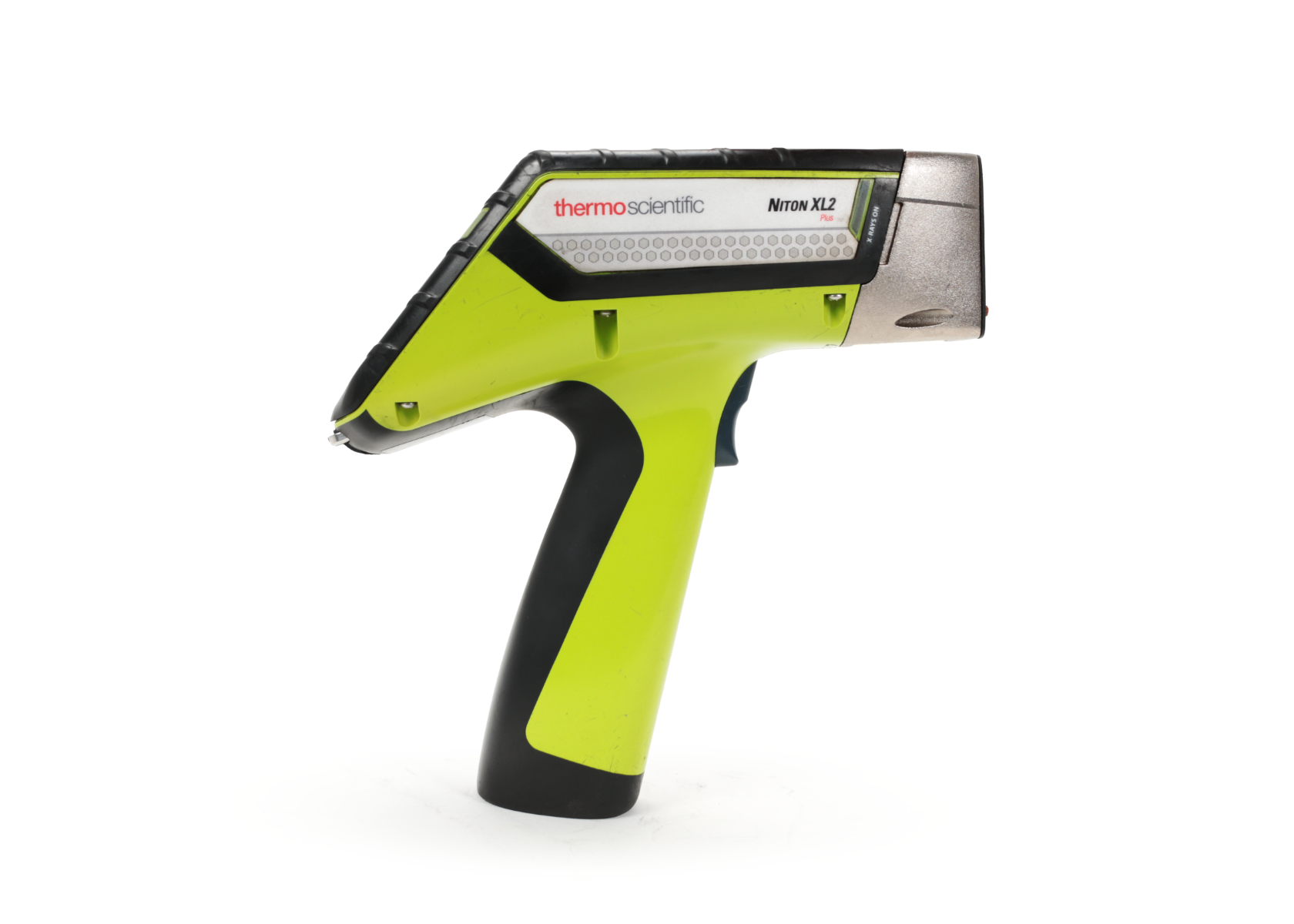

Thermo Scientific Niton XL2-980 Plus XRF Analyzer w/ General Metals

SPECIAL OFFER: $20,999.95

Thermo Scientific Niton XL2-980 Plus handheld XRF analyzer brings fast metals and alloy analysis to the field, featuring the General Metals option, SDD detection, 8 mm collimation, and point-and-shoot touchscreen operation.

Detailed Overview

Handheld XRF Material Analysis for Metals and Alloy Verification

The Thermo Scientific Niton XL2-980 Plus handheld XRF analyzer helps address material mix-ups, unknown alloy grades, and field sorting decisions when lab confirmation is not practical. Portable X-ray fluorescence measurement brings elemental analysis directly to metals, alloys, and material verification tasks. XRF analysis supports fast alloy identification, tramp element detection, and point-and-shoot workflows in manufacturing, quality assurance, and scrap sorting environments.



XRF Measurement with Dynamic Tube and Detector Response

  • A 2W Ag anode X-ray tube excites the sample surface, generating elemental fluorescence for analysis.
  • Dynamically adjustable current changes output during analysis to support sensitivity across varied material compositions.
  • A silicon drift detector receives XRF signals and enables elemental response from Mg to U.
  • Smart Fundamental Parameter calibration corrects for sample matrix effects during quantitative analysis.
  • Integrated CCD micro camera positioning helps locate and record measurement positions before analysis.

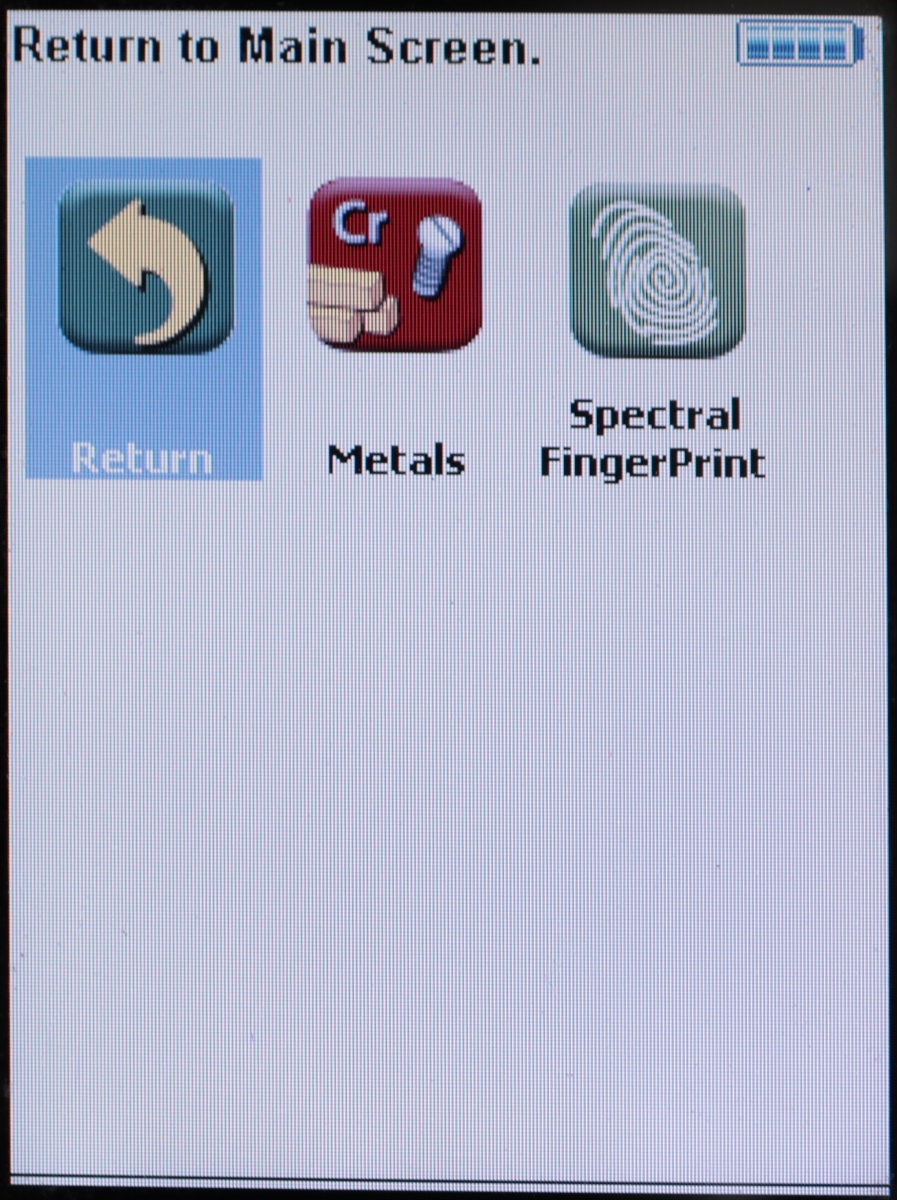

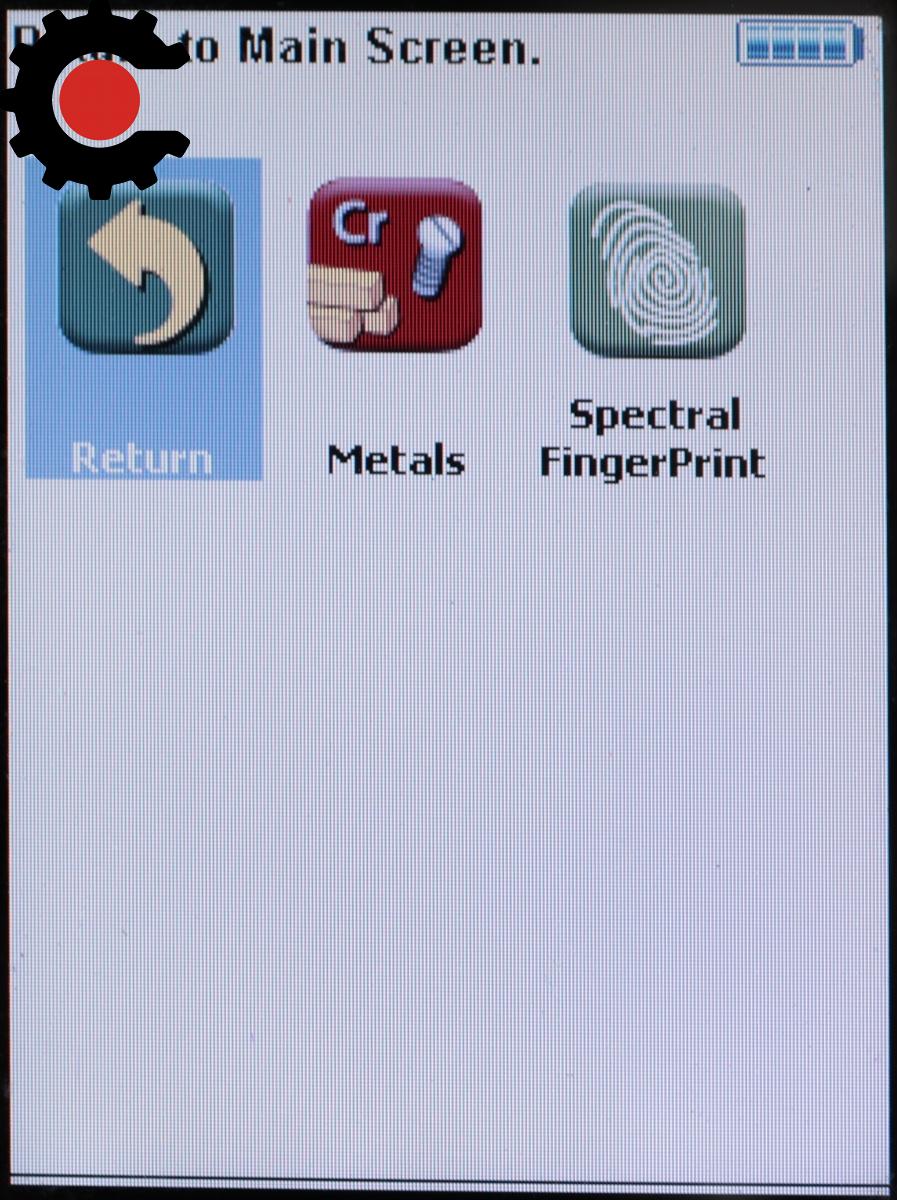

General Metals Option and Elemental Analysis Capabilities

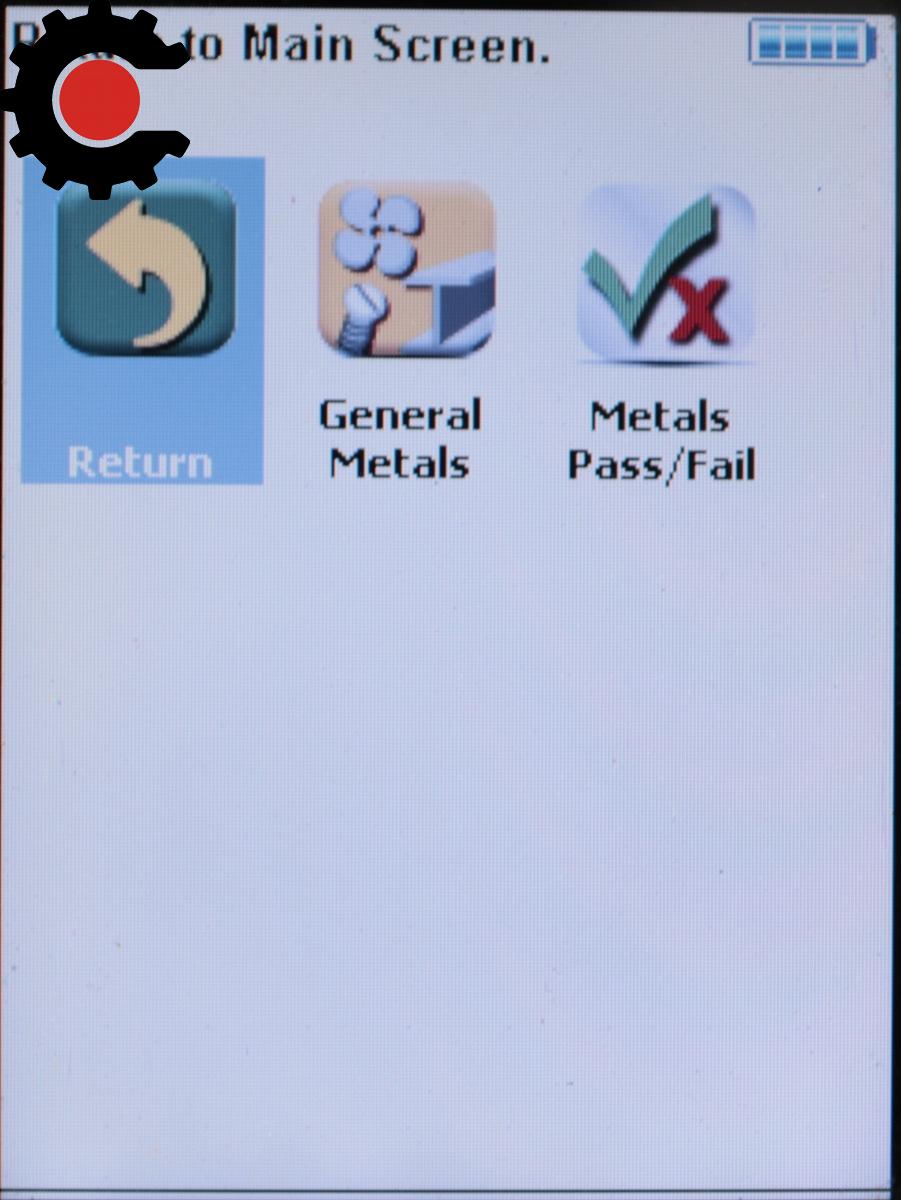

  • General Metals option supports metals and alloy analysis workflows.
  • Analytical range covers Mg to U.
  • 8 mm collimation defines the measurement spot size.
  • Default alloy libraries are based on SAE, AISI, ASTM, and AA standards.
  • Internal storage supports approximately 10,000 readings with spectra.

Metals Verification and Material Sorting Applications

  • Metals and alloy verification for manufacturing workflows.
  • Positive material identification quality assurance.
  • Scrap metal sorting using point-and-shoot handheld XRF analysis.

Key Benefits

  • ✓
    Fully Tested & Certified
  • ✓
    30-Day Risk-Free Returns
  • ✓
    1-Year Full Warranty
  • ✓
    Professional Calibration Services
  • ✓
    Trade-In Program Available
  • ✓
    Fast & Reliable Delivery

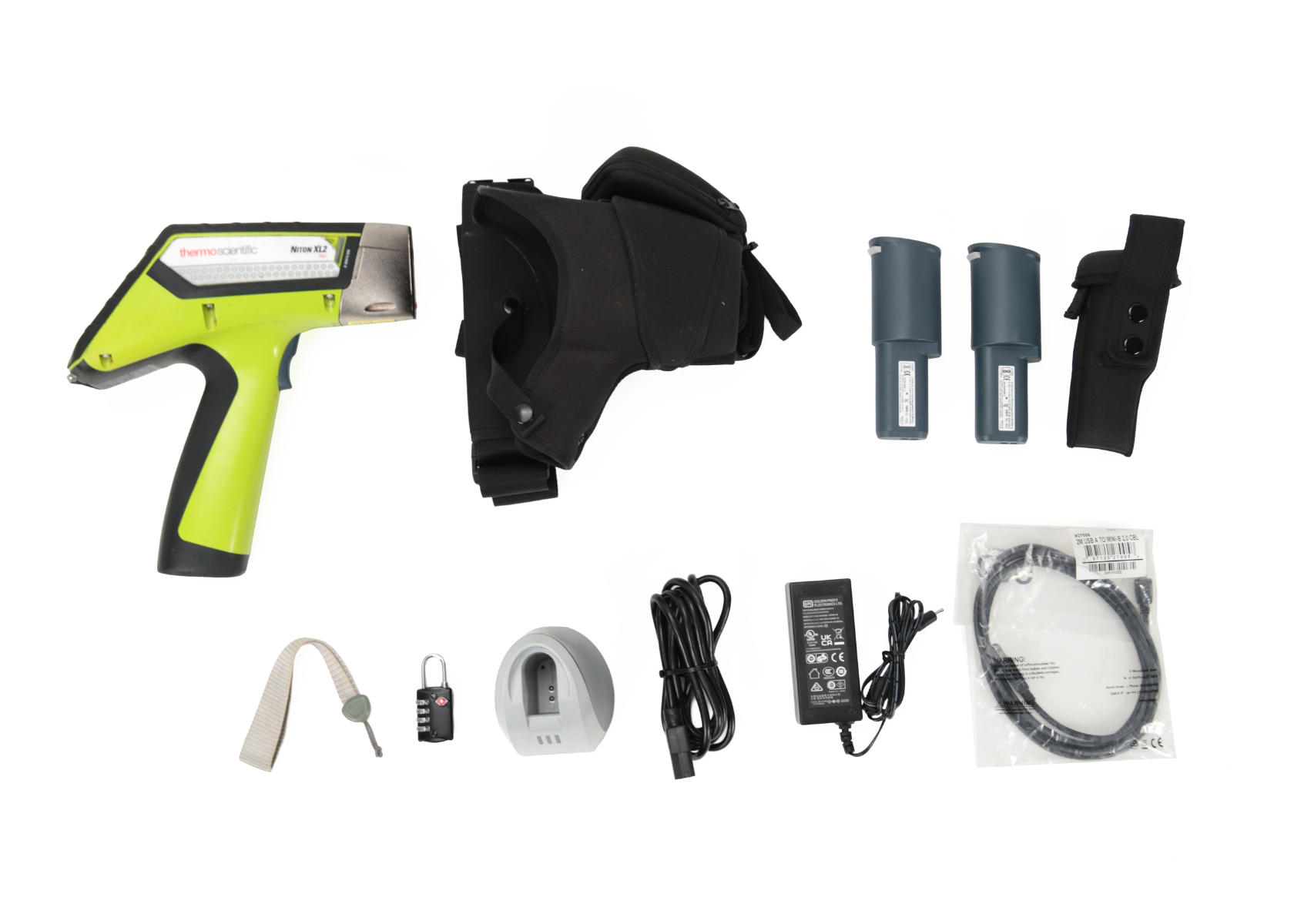

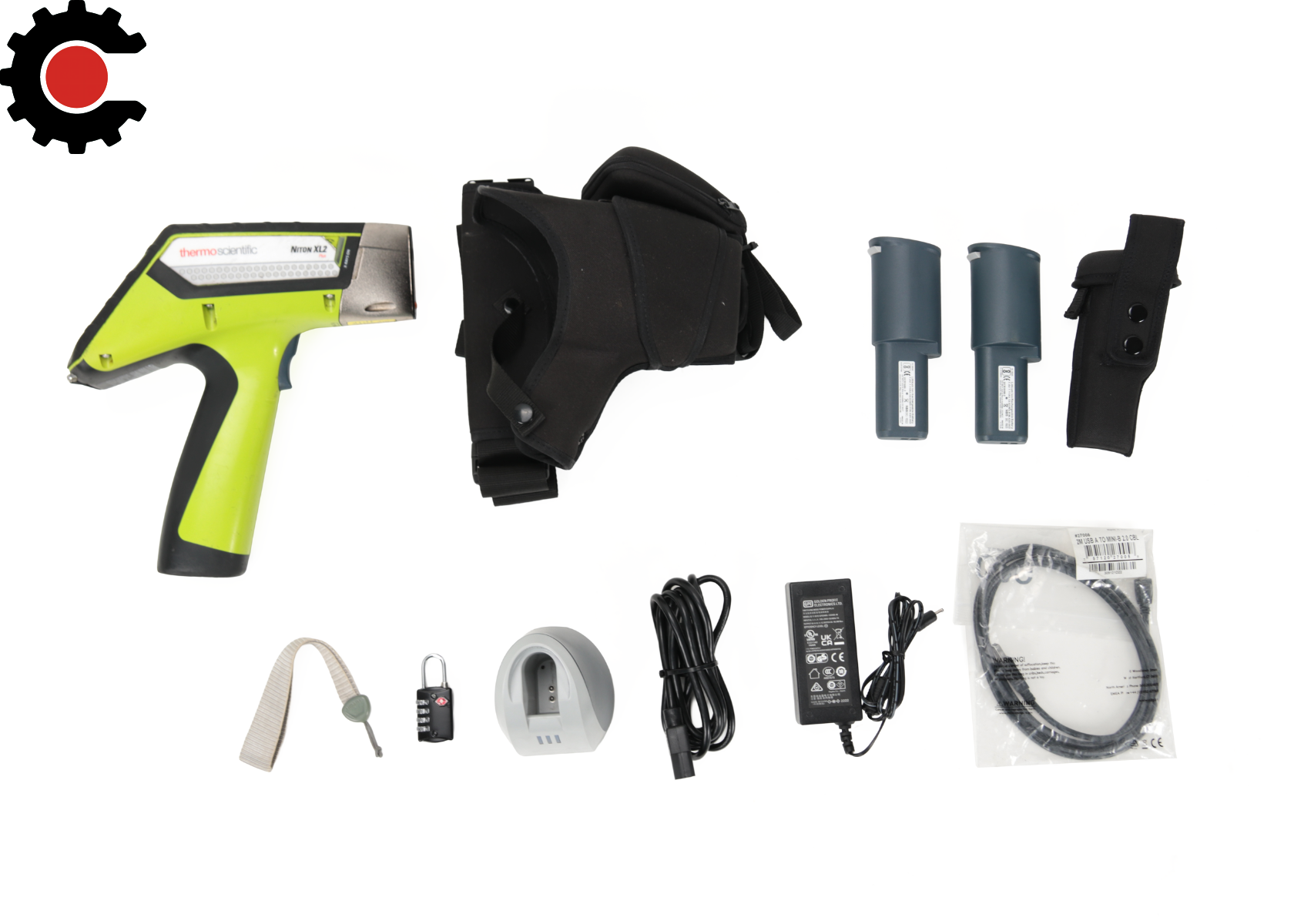

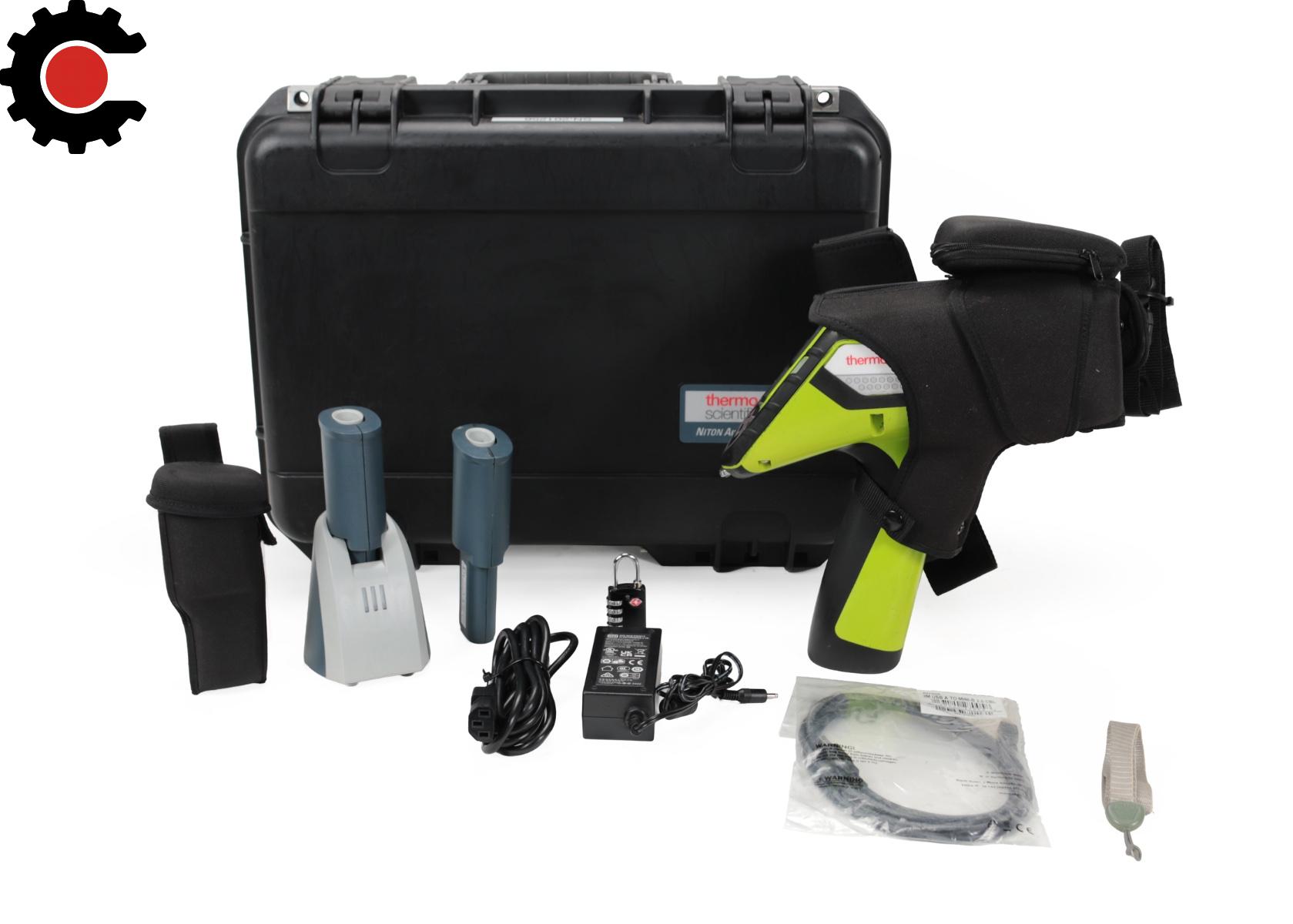

What's in the Box

  • 1 x Thermo Scientific Niton XL2-980 Plus Handheld XRF Analyzer

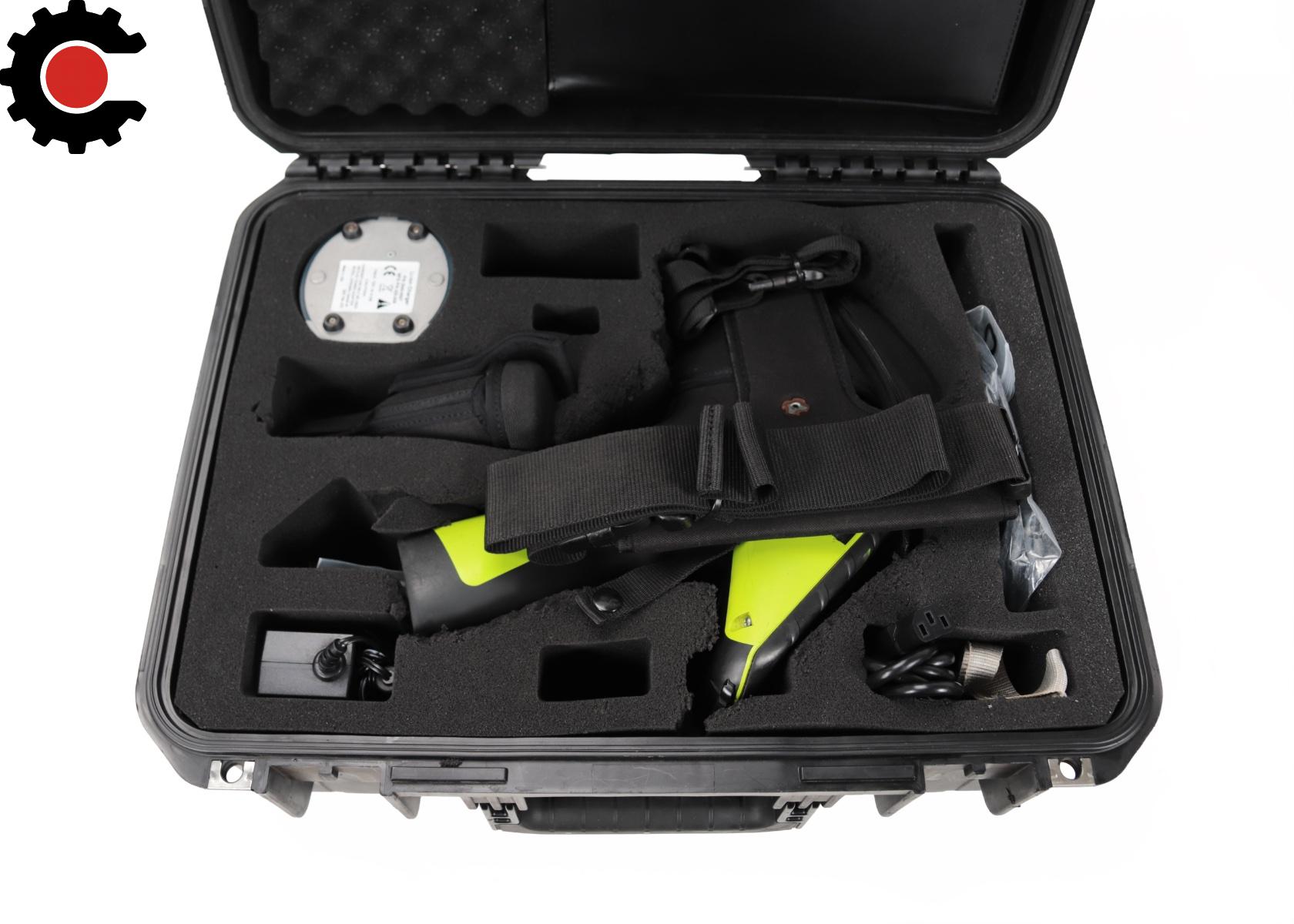

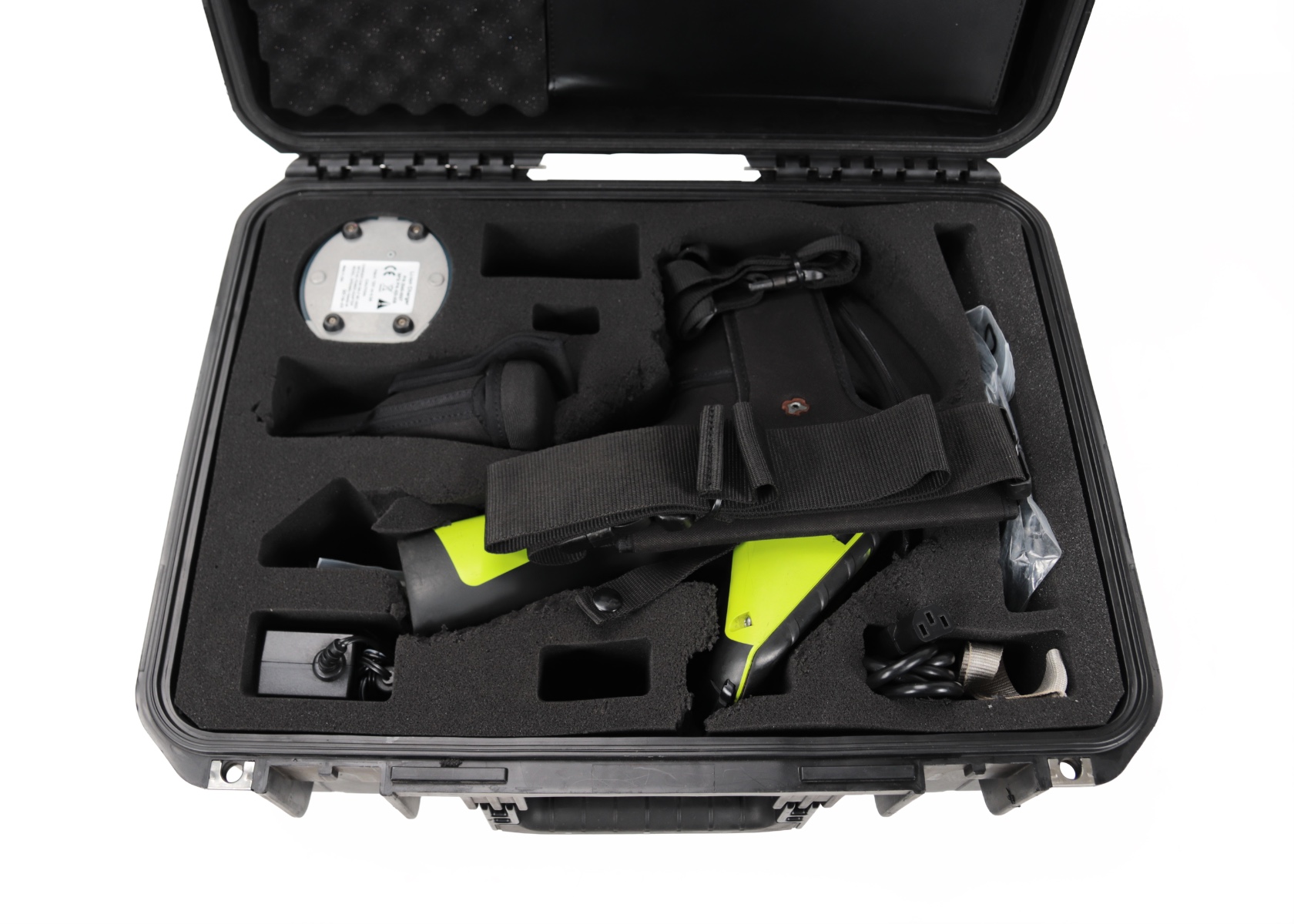

  • 1 x Hard Carrying Case
  • 1 x Battery Cradle
    • 1 x Set of 2 Rechargeable Batteries
    • 1 x AC Adapter / Battery Charger
  • 1 x USB-A to Mini-B USB 2.0 Cable, 2 m
  • 1 x XL2 Plus Quick Start Guide, Laminated
  • 1 x X-Ray Energy Reference / Periodic Table Reference, Laminated
  • 1 x EU Declaration of Conformity
  • 1 x ARMI / MBH Analytical IARM 35NN Reference
  • Standard
  • 1 x Laminated IARM 35NN Reference Card
  • 1 x Rocky Mountain Reference Material AA6061
  • Standard
  • 1 x Laminated AA6061 Reference Card
  • 1 x Battery Holster

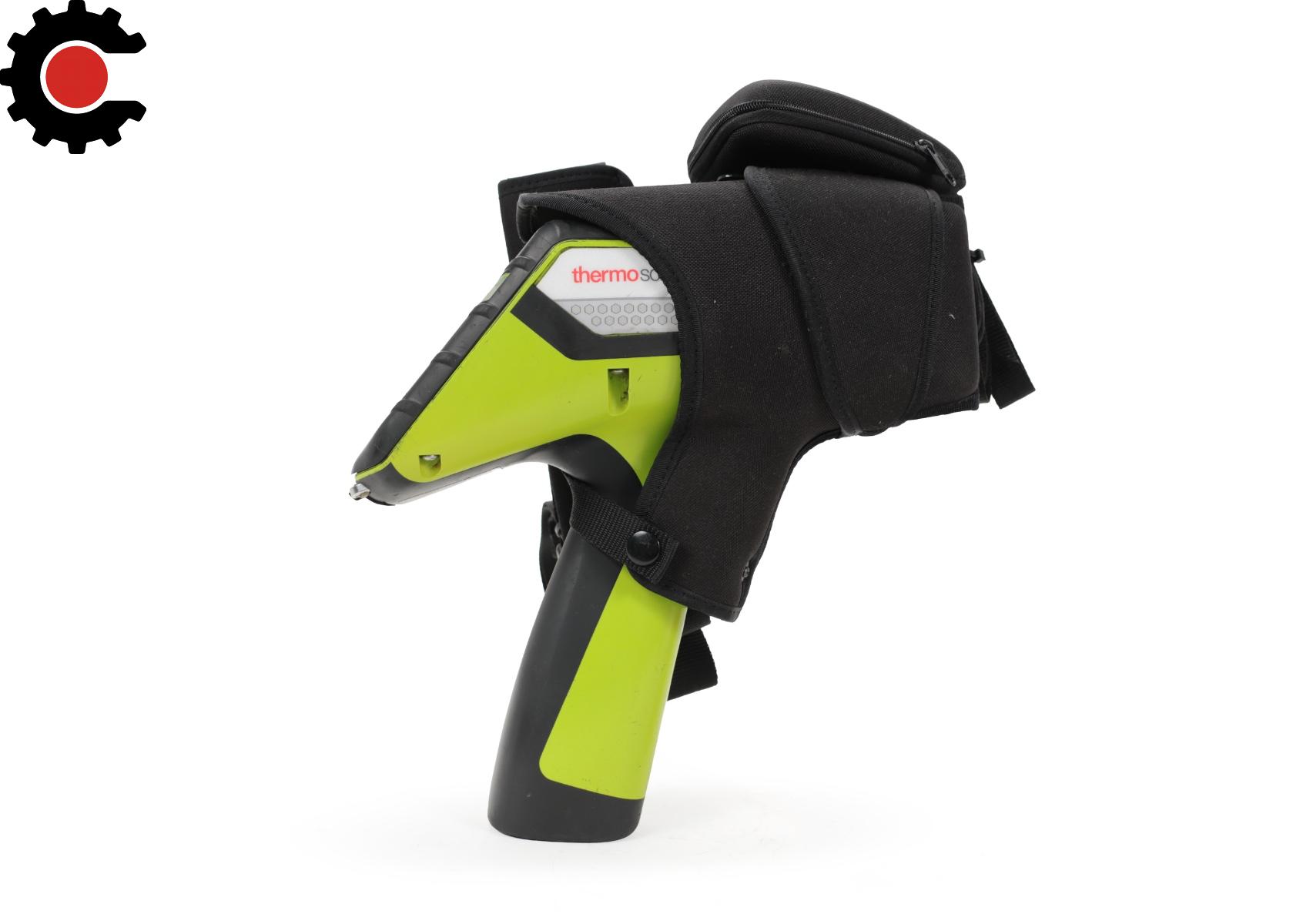

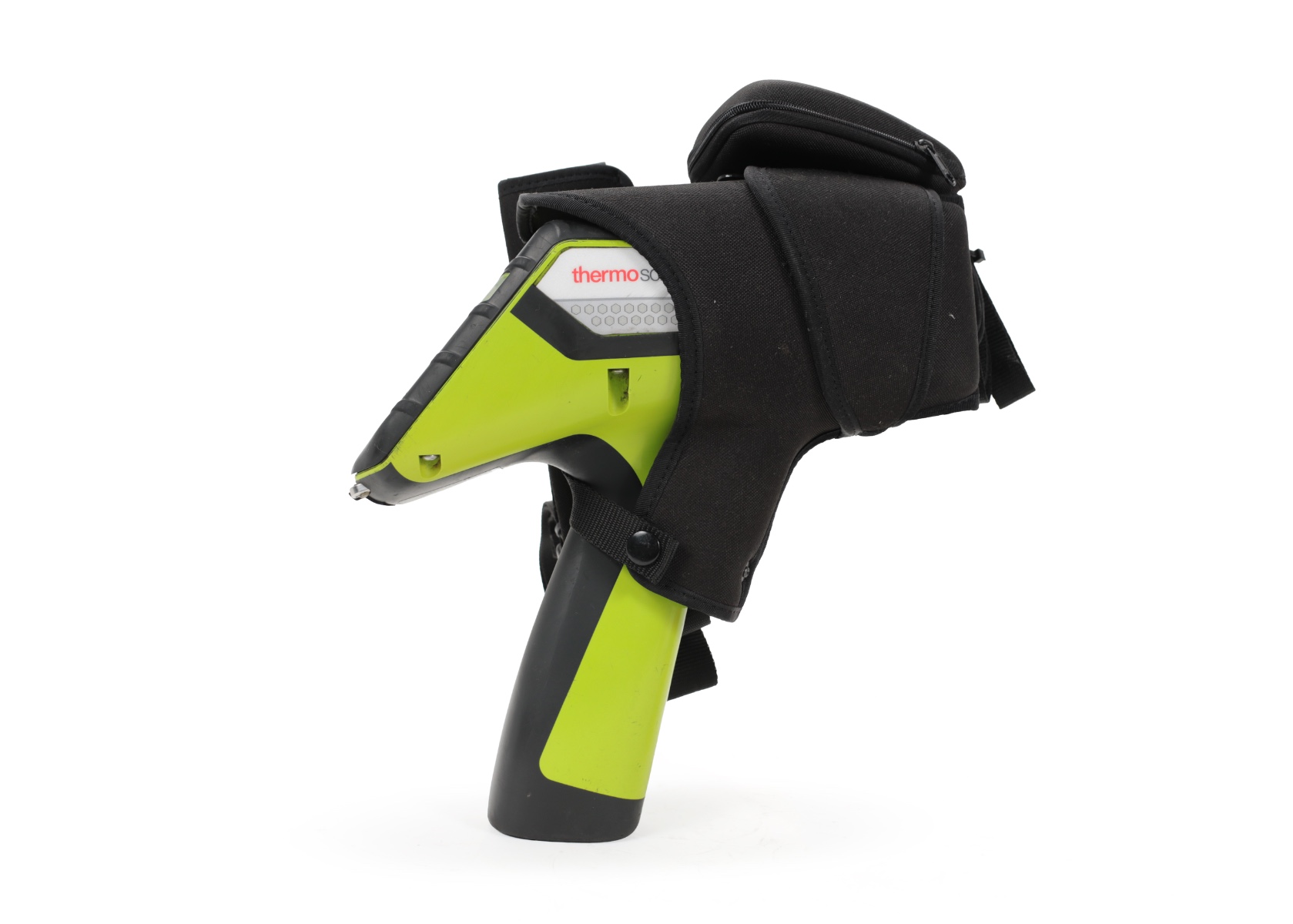

  • 1 x Lockable Analyzer Holster
  • 1 x Numbered Padlock

Technical Specifications

Weight 3.4 lb with battery
Dimensions 10 x 10.8 x 3.9 in
X-Ray Source X-Ray Tube: Ag anode, 6–45 kV, 1–200 µA, 2W max
X-Ray Source Current Dynamically adjustable current for optimal sensitivity on every analysis
Detector Silicon drift detector (SDD)
Detector Protection Detector ProGuard protection included
Spot Size 8 mm collimation
Analytical Range Mg–U

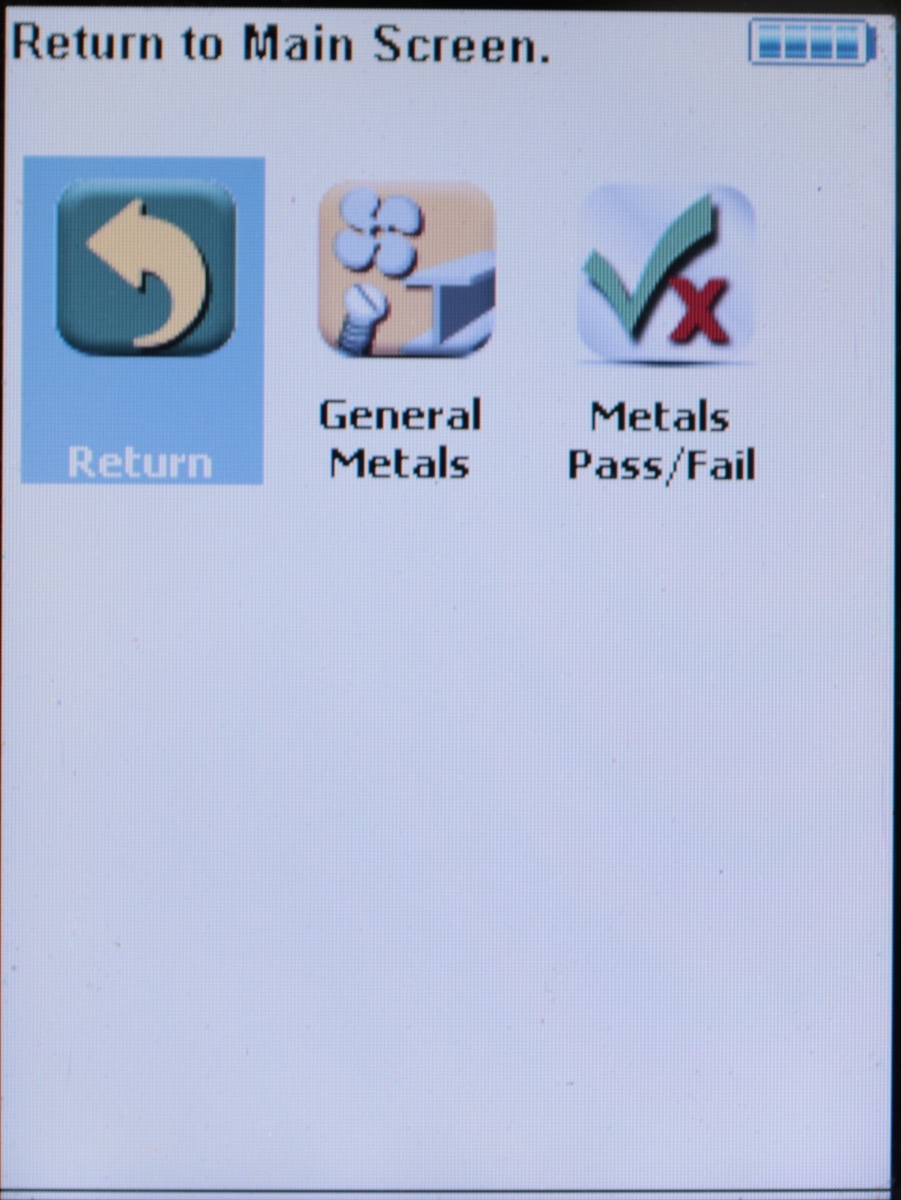

Calibration Modes General Metals
Libraries Default alloy libraries based on SAE, AISI, ASTM, AA standards; users may create and edit libraries
System Check Built-in standardization via automatic system check
IP Rating IP54, splash and dust proof
Operating Environment Temperature: -10°C to 50°C; humidity: 0% to 80% relative humidity, non-condensing

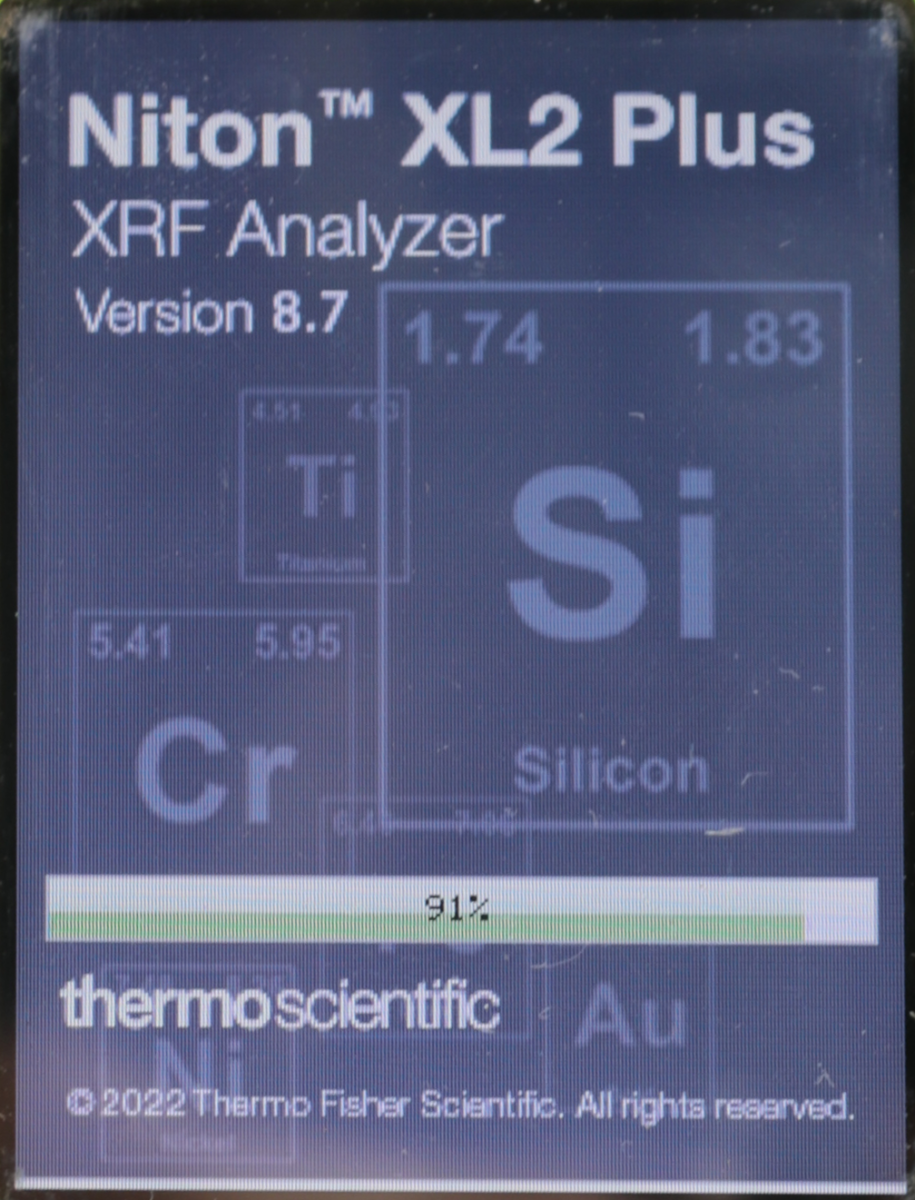

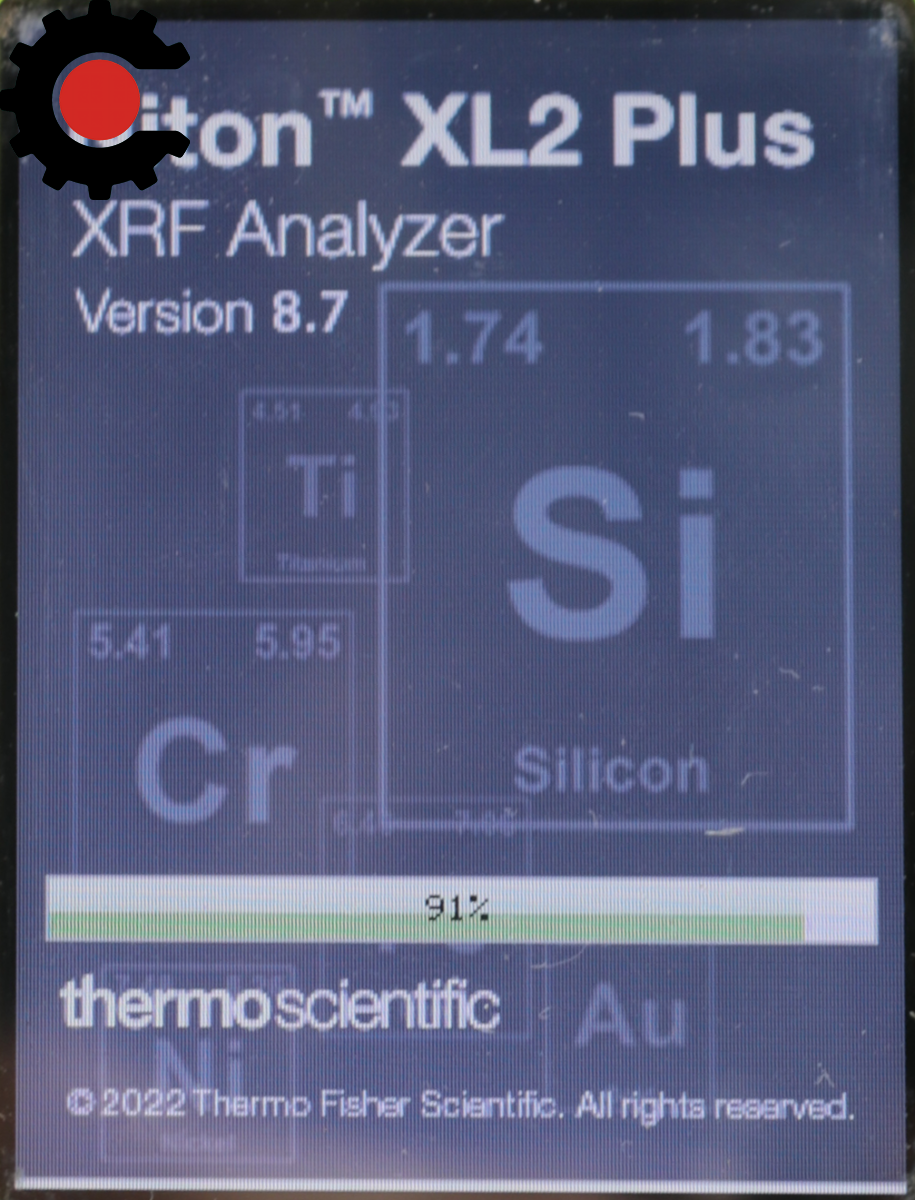

Display Fixed angle, color, resistive touchscreen display
Power 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply
Battery Functionality Hot swap functionality keeps analyzer powered during battery replacements
Camera Integrated CCD micro camera for locating and recording measurement positions
Bluetooth Supports print functionality, external GPS connectivity and barcode reader
Memory / Data Storage 64 MB internal system memory / 128 MB internal user storage
Reading Storage Stores approximately 10,000 readings with spectra; fewer if images are saved
Data Entry Touchscreen keyboard; user customizable data entry
Data Transfer USB, Bluetooth, and RS-232 serial communication
Operating System Proprietary
Support Software Niton Data Transfer (NDT) PC software
Security Password-protected user security
Languages English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech
Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1
