Product advantages
◆ Adopt 16 million pixel imported Panasonic CMOS image sensor;
◆Using a 1/2.33-inch image sensor, the viewing angle is wider than 1/3 inch;
◆ HDMI 1080P 30-frame image output;
◆USB2.0 driverless output 1080P 30 frame image output;
◆ 4K video recording;
◆ 16 million photos, JPG format, photo size 4608x3456;
◆ One button freeze/thaw function;
◆ 16 million pixel camera and 1080P video recording;
◆Electronic zoom function;
◆Support manual / automatic exposure, exposure compensation value adjustment;
◆ Support manual / automatic white balance, red, green, blue adjustable;
◆ Provide 8 drawing lines, line color, thickness, and adjustable position;
◆ Provide center cross line display/close;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, the camera does not shake the image more clearly;
◆Support Chinese and English menu language (default English);
◆ Support shutdown settings parameter saving;
◆Sturdy metal casing;

Specifications
Sensor: 1/2.33 inch Panasonic 16 megapixel CMOS sensor
Pixel size: 1.335μm × 1.335μm
HDMI output: 1920*1080 30 frames
USB output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: Auto / Manual
Exposure compensation: support
White balance: automatic / manual, support RGB adjustable
Storage: Maximum support 64GB (card not included)
Input voltage: DC 5V-12V

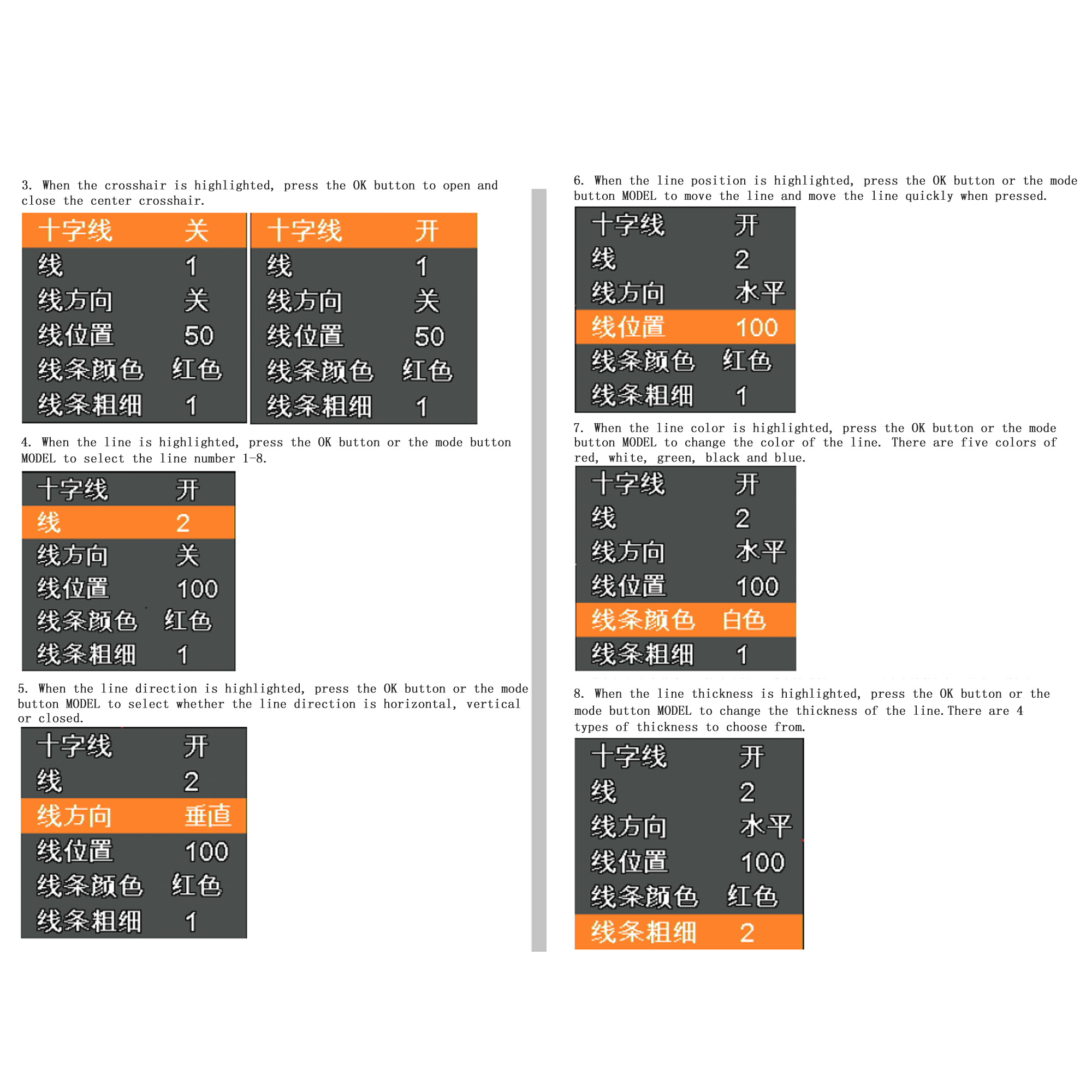

Cross-line: support 8 lines, color, thickness and position adjustable
Centerline: Support
Menu language: English / Chinese
Remote control: support remote control operation
Product size: 66*66*49mm
Packing size: 145*130*70mm

packing list:

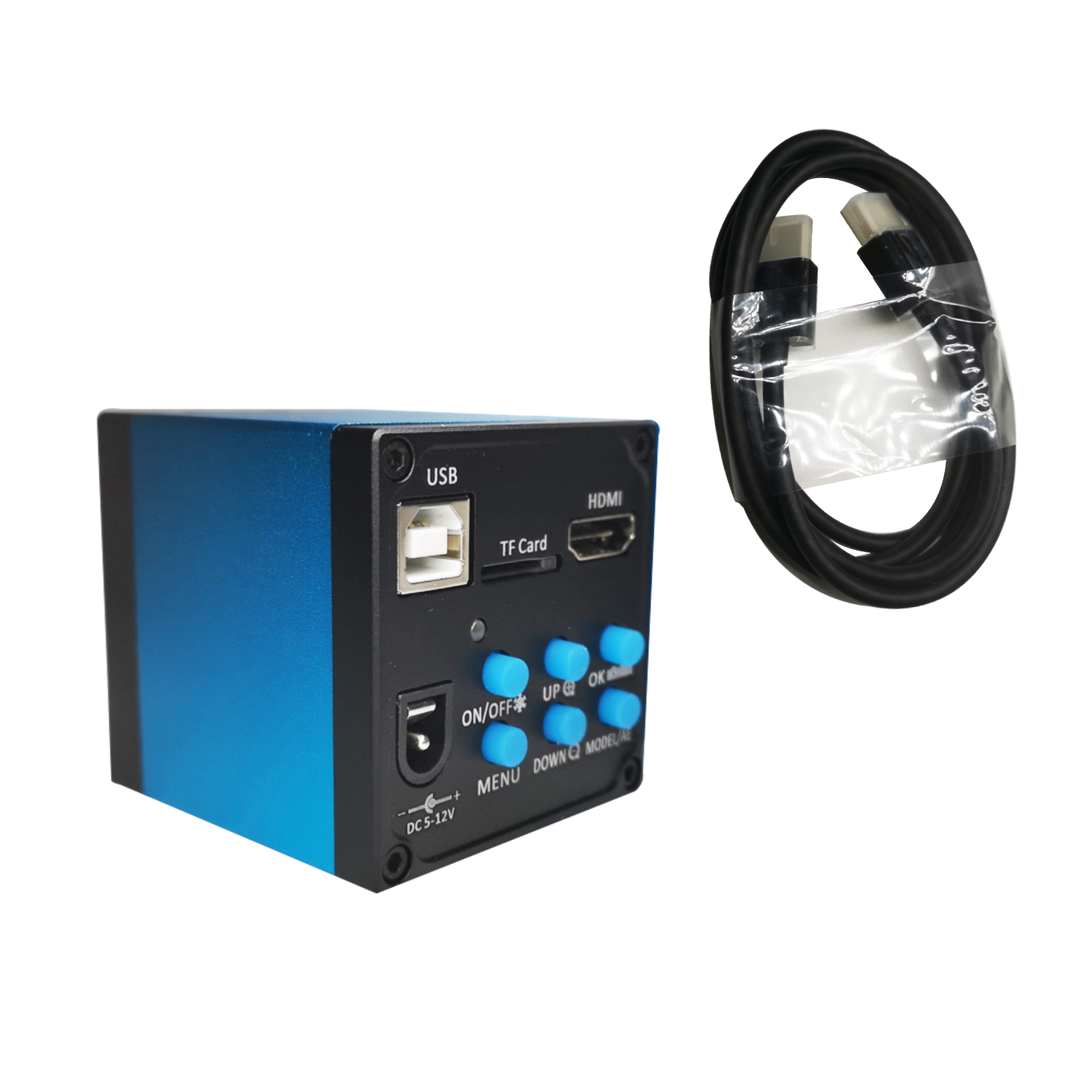

1 x 37MP industrial microscope camera

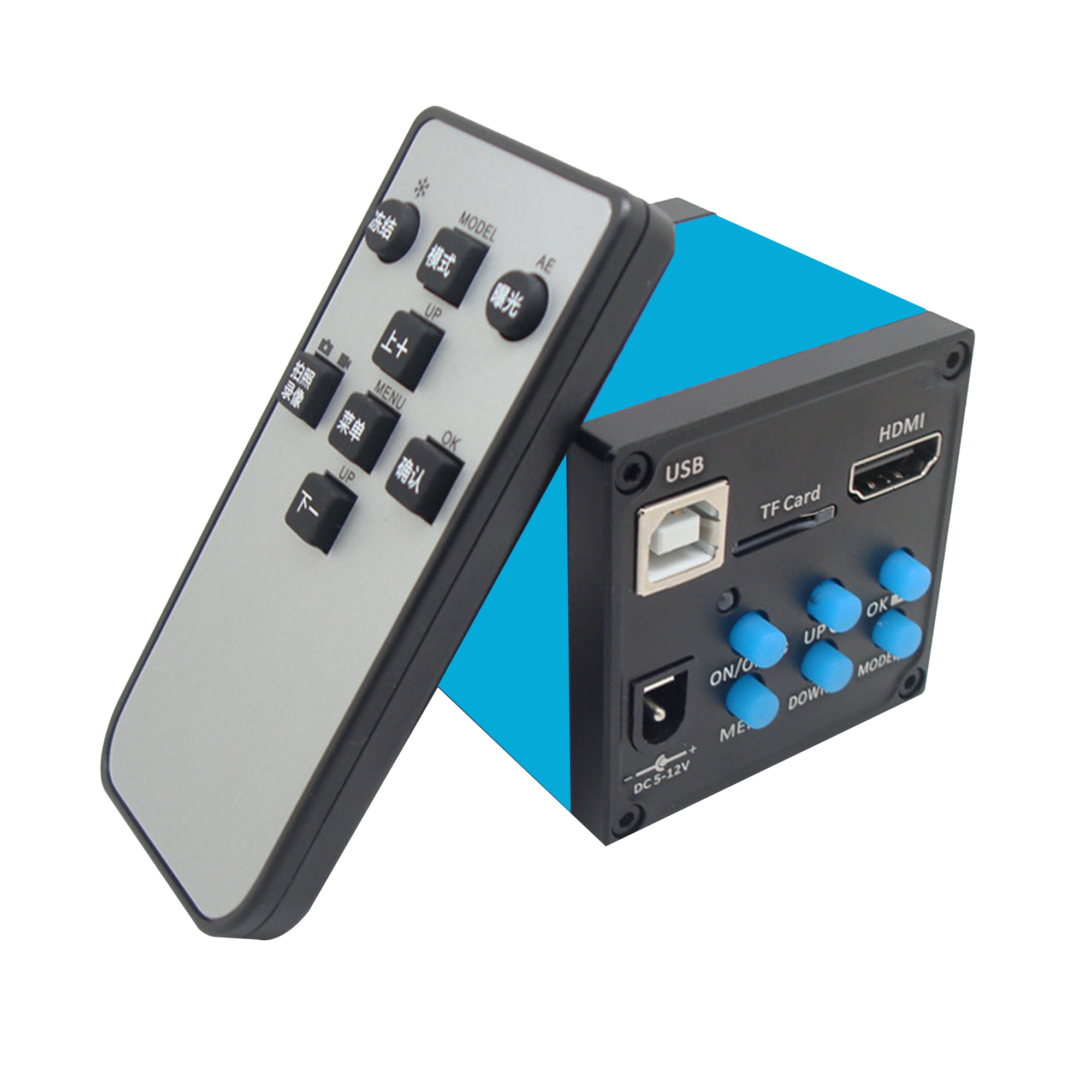

1 remote control

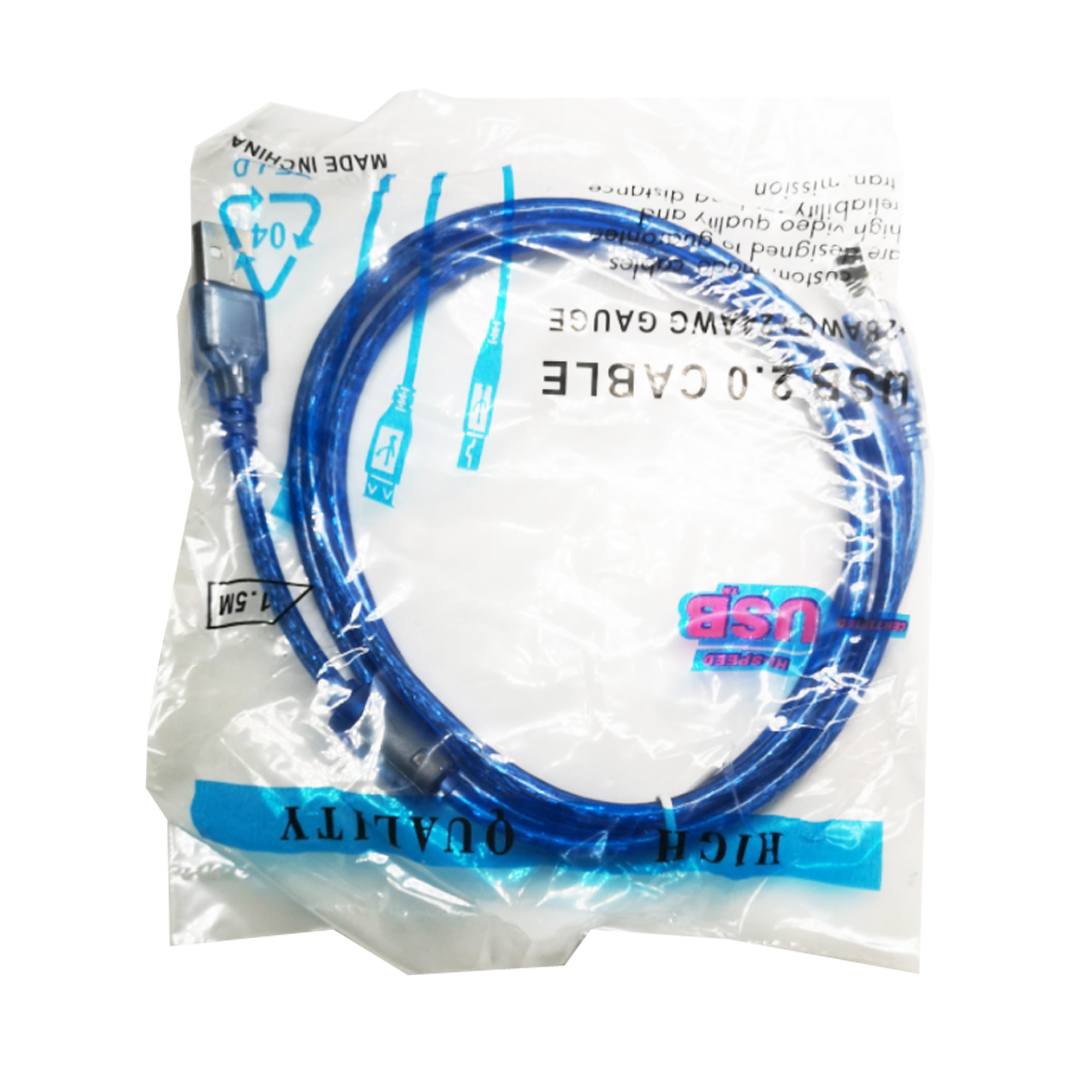

1 x USB cable
1 x Hdmi line

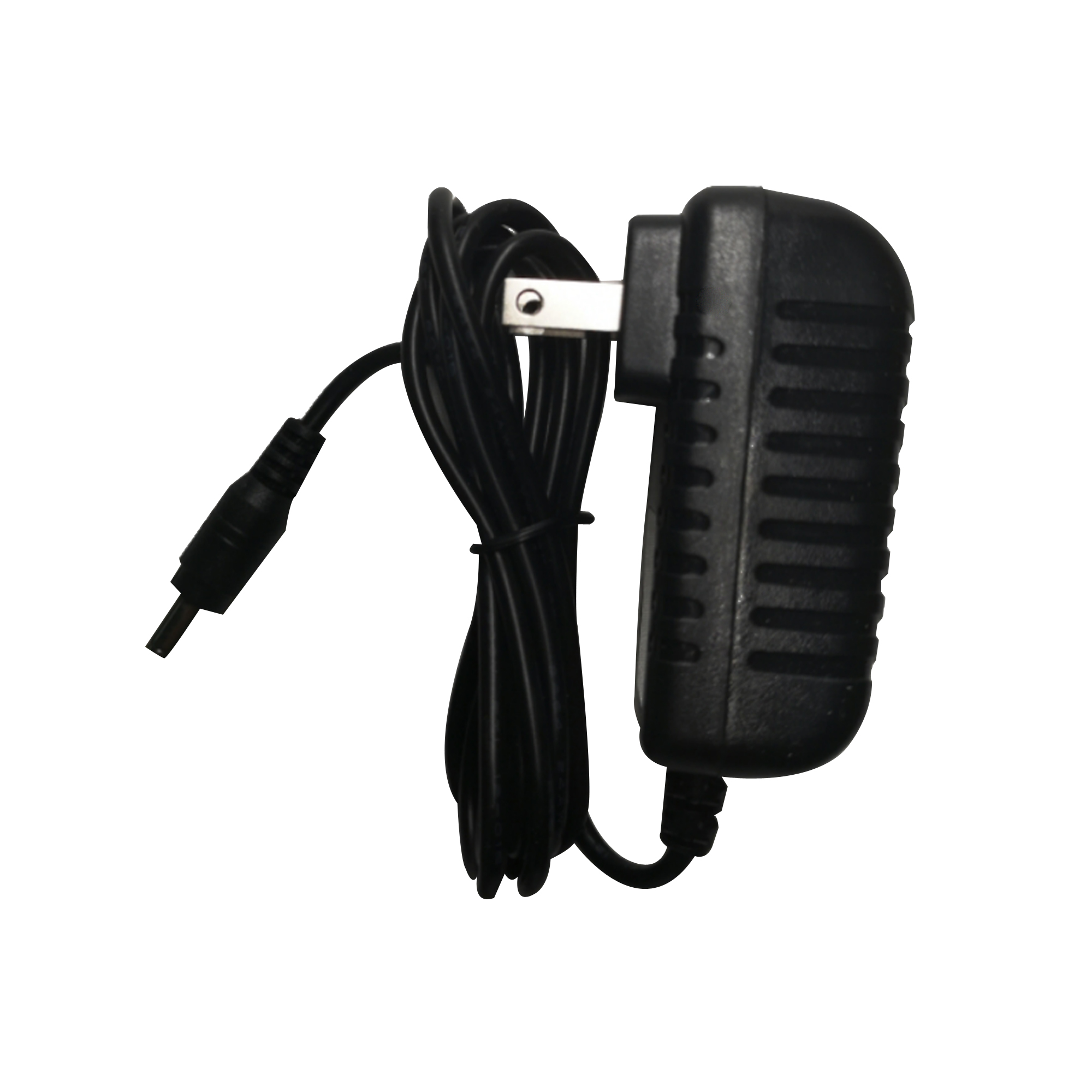

1 x power adapter (US plug)

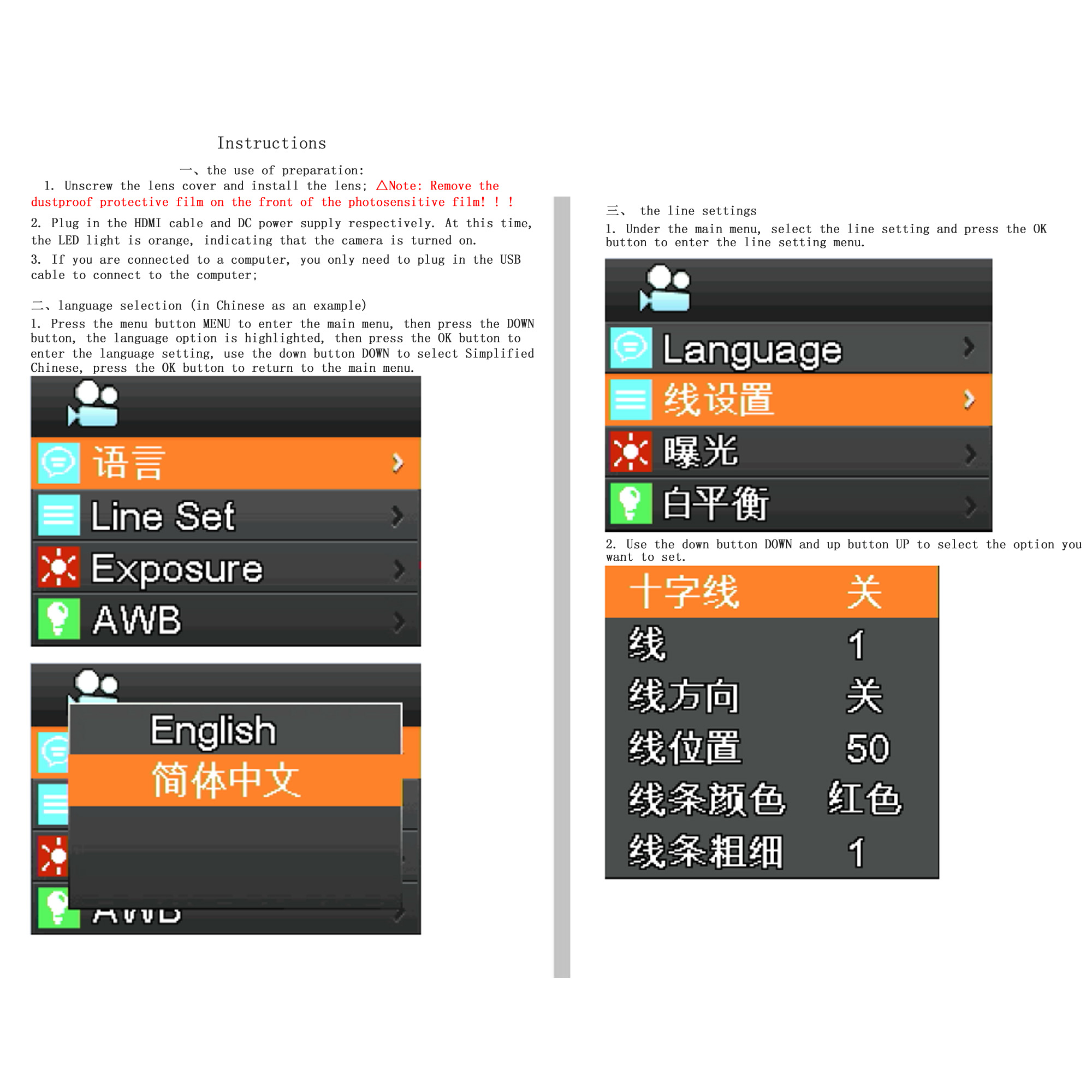

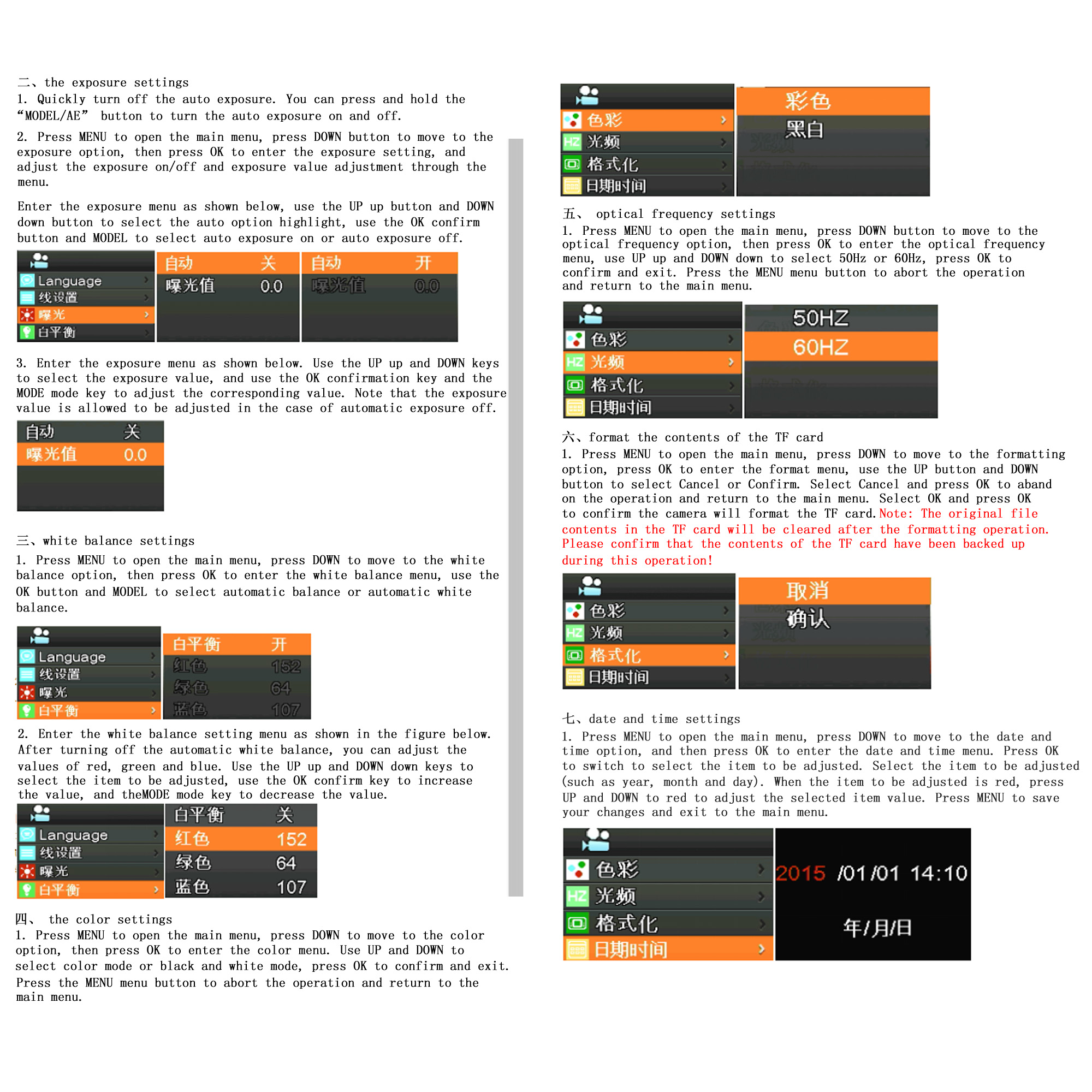

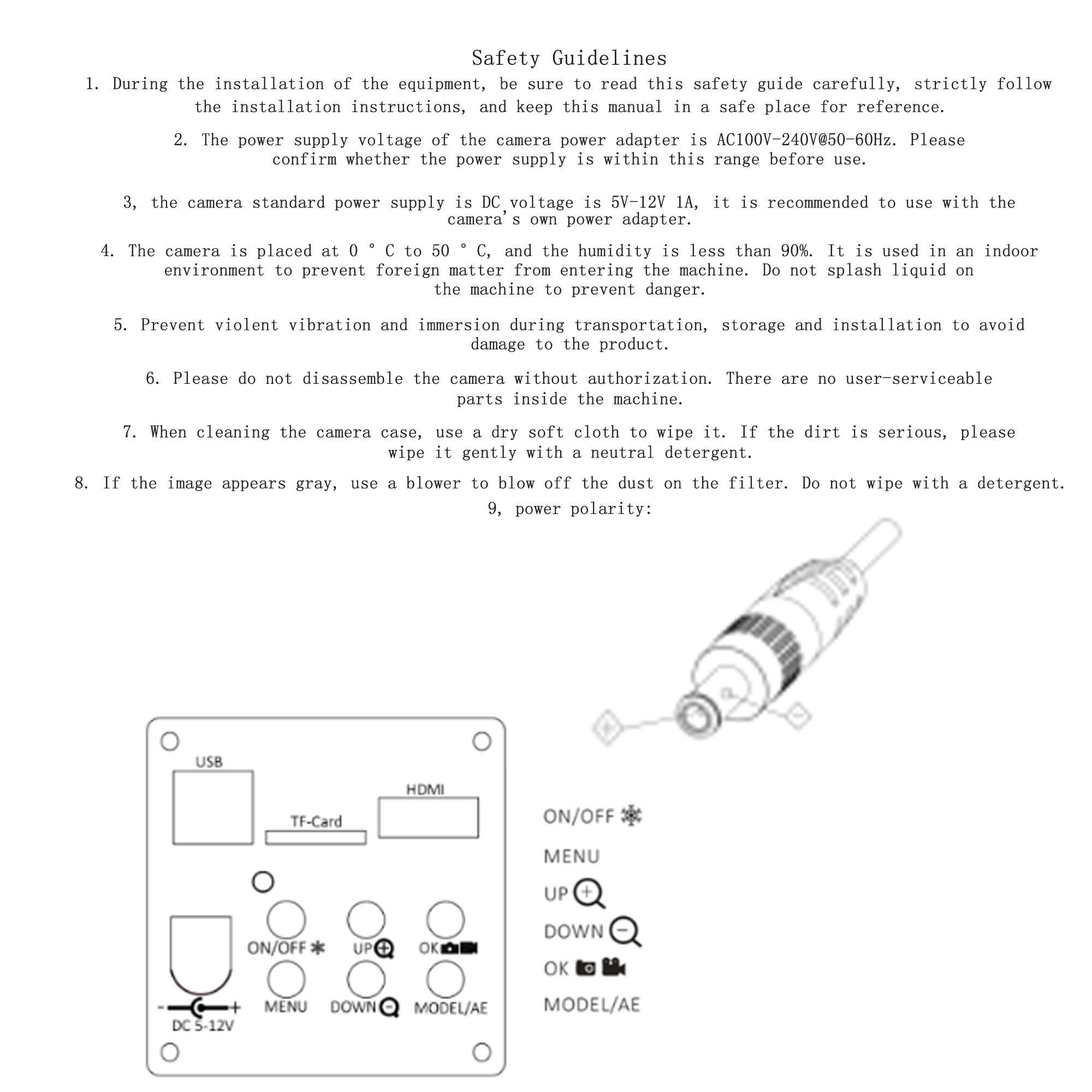

1 x user manual
