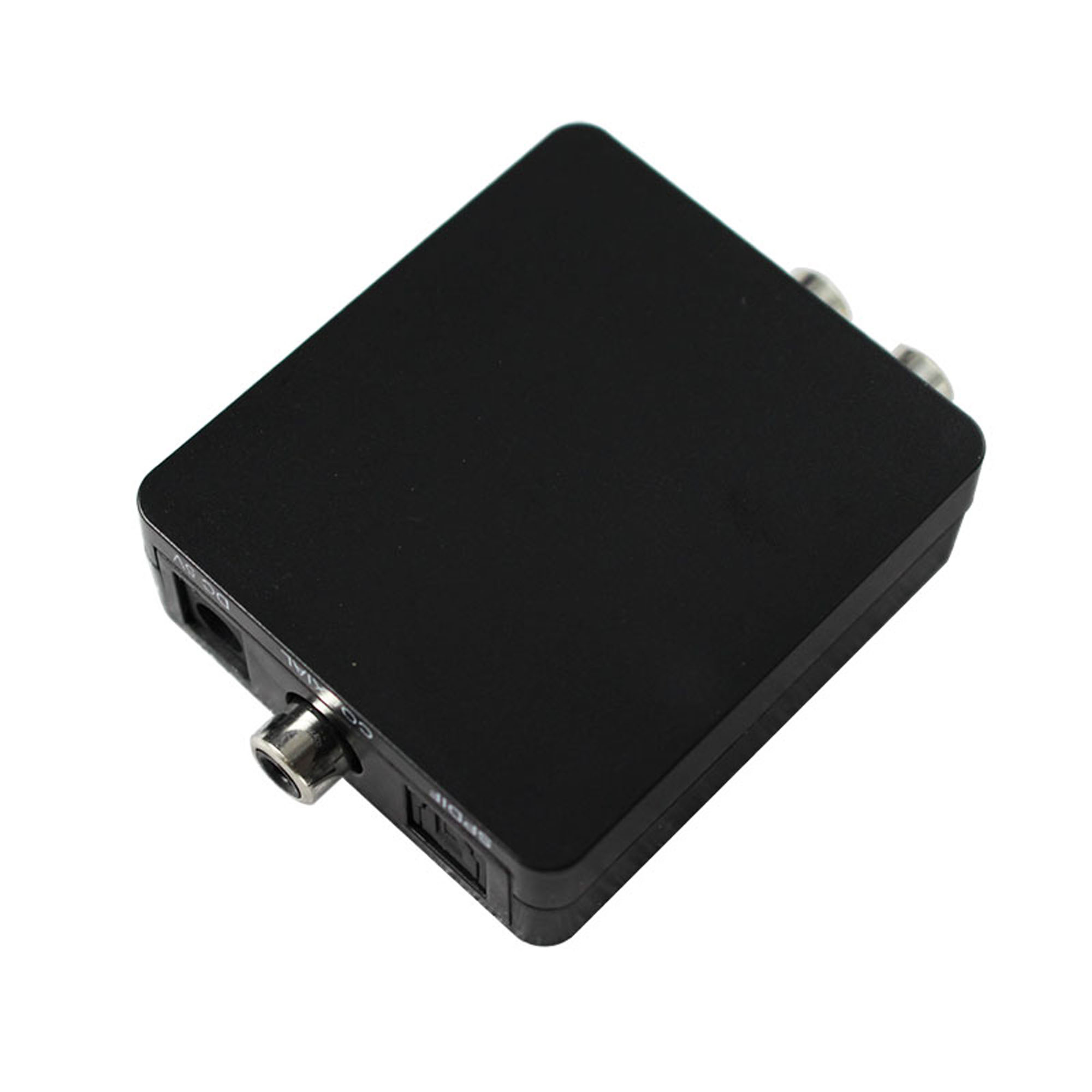

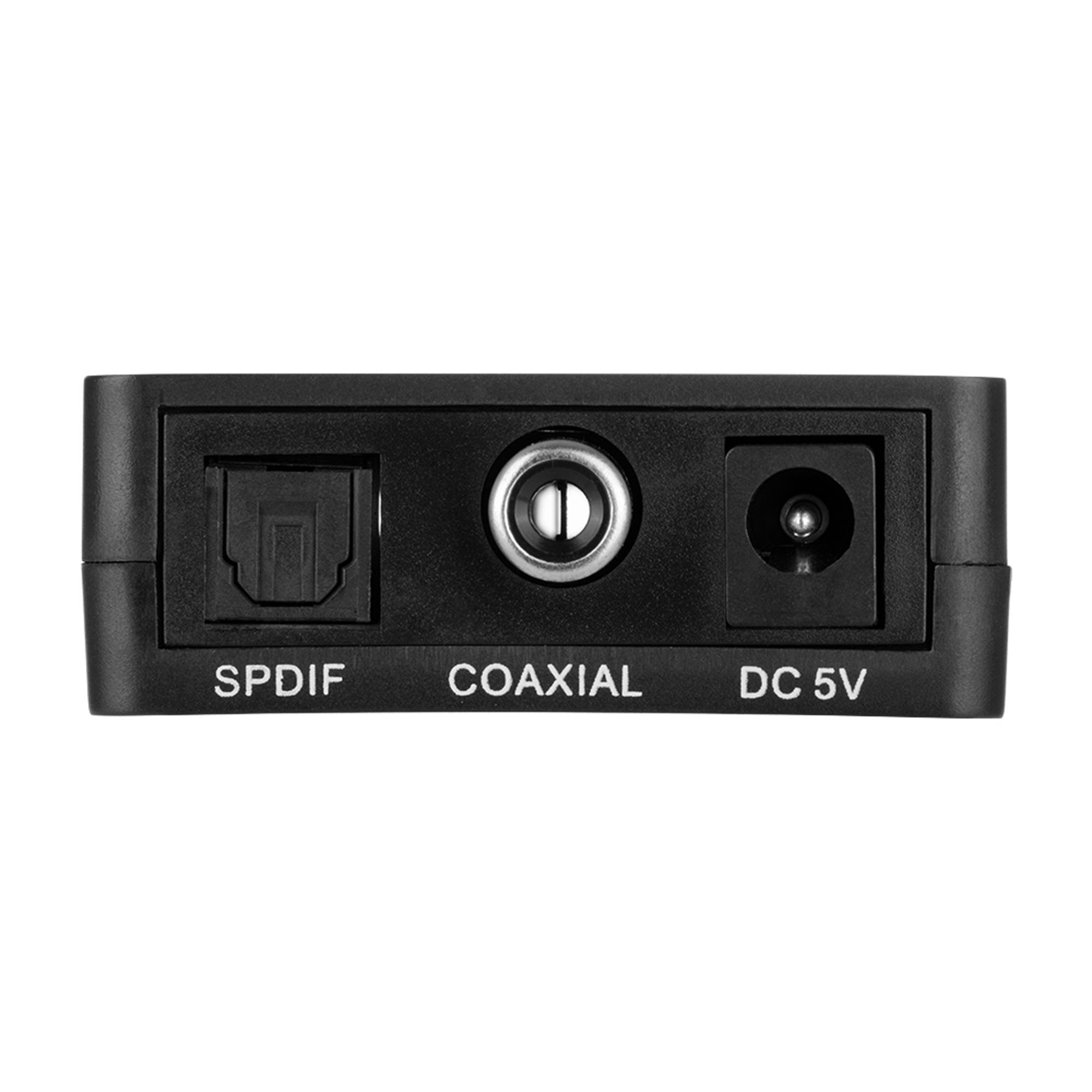

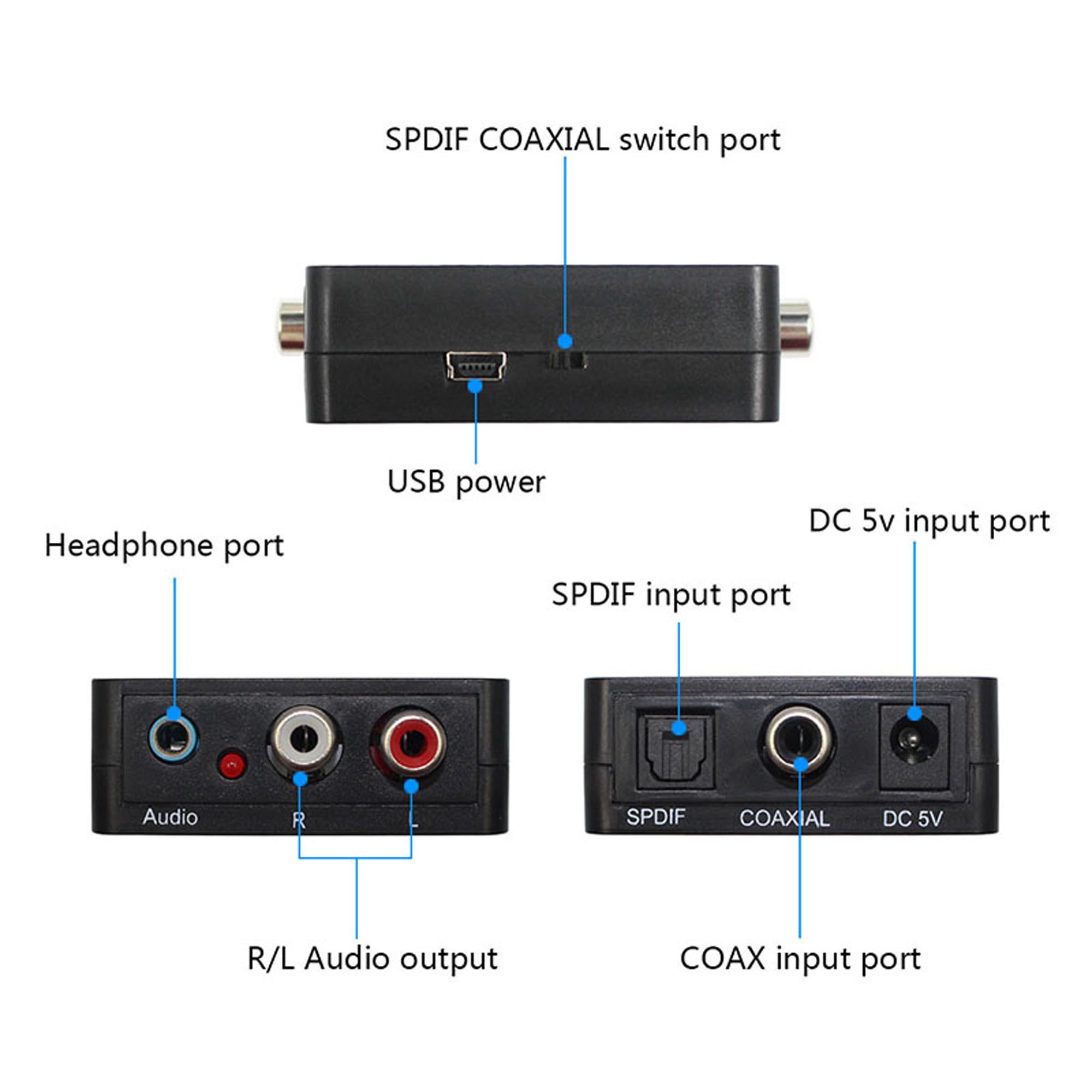

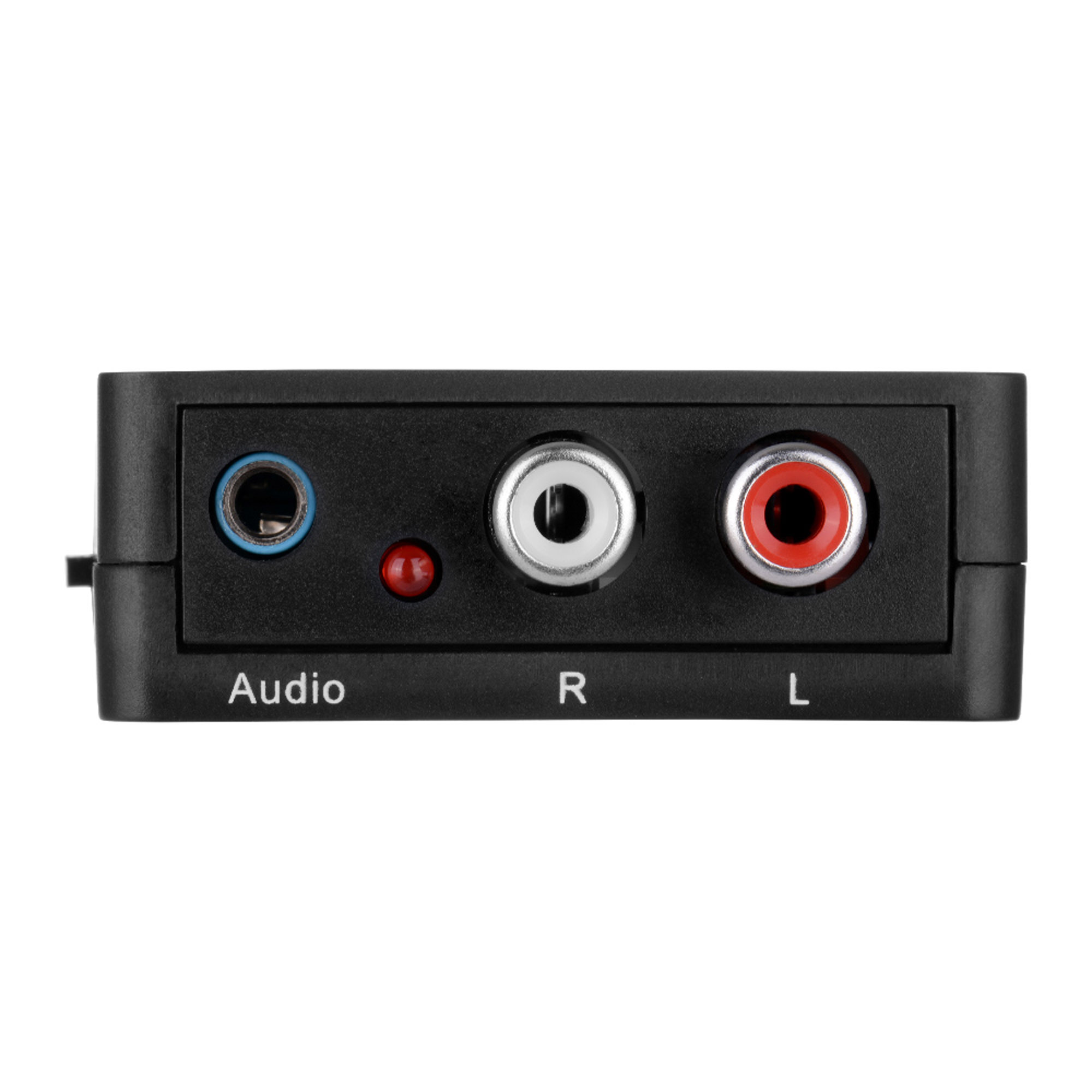

(RCA Audio Decoder（Plastic shell）)
Introduction:
Digital Optical Coax to Analog R/L RCA Audio Decoder is designed for either home or professional audio switching.It converts Coaxial or Toslink signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks,this Converter is small in size and quite easy to install.

FEATURES:
This converter has many features that enable it to perform in a supperior manner.
Among those features you will find:
-Supports DTS and Dolby double decoding.
-Converts Coaxial or Toslink digital audio signals to analog L/R audio.
-Supports sampling rate at 32,44,48 and 96KHZ.
-24-bit SPDIF incoming bit stream on left and right channels.
-Provides electrcomagnetic-noise-free trasmission.
-Easy to install and simple to operate.

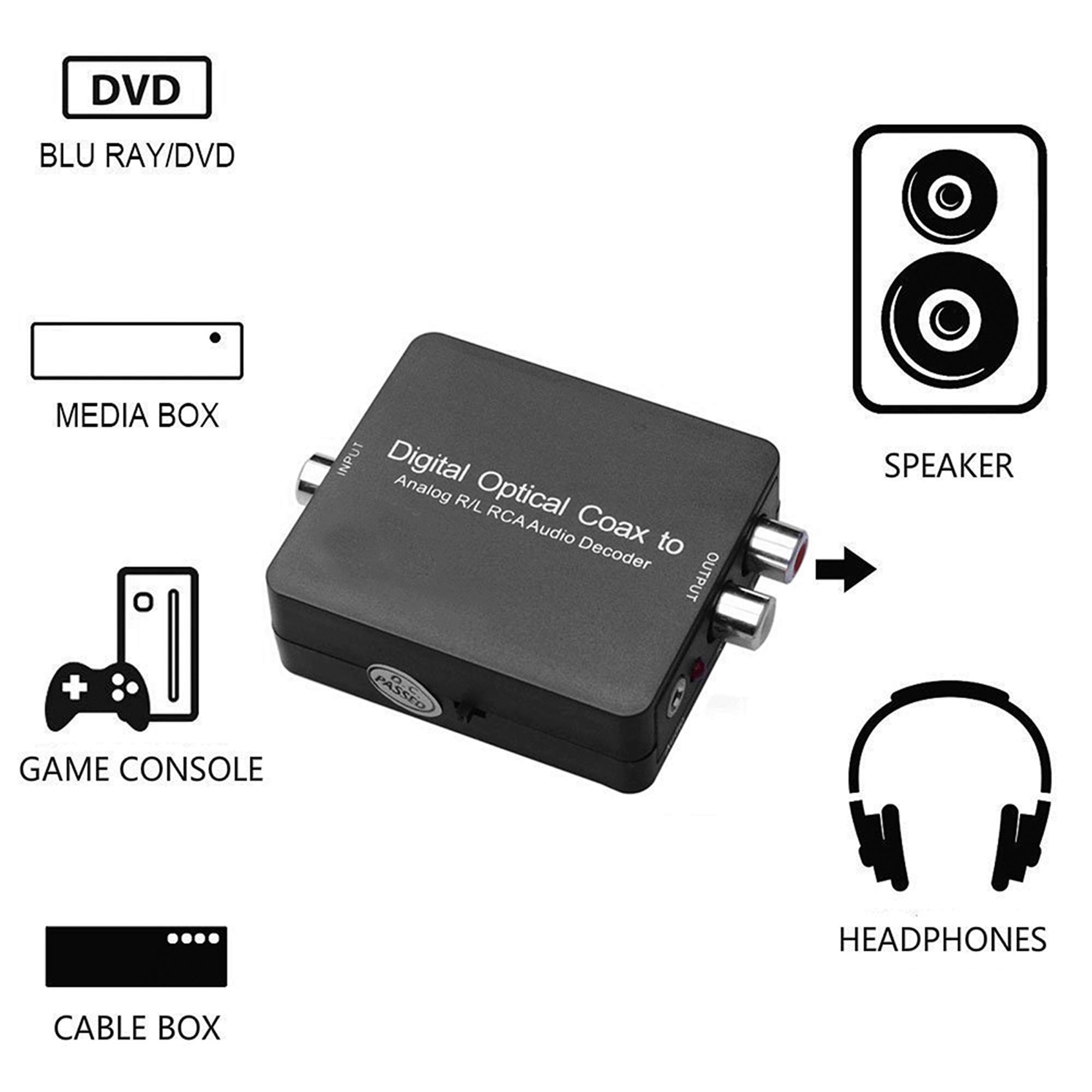

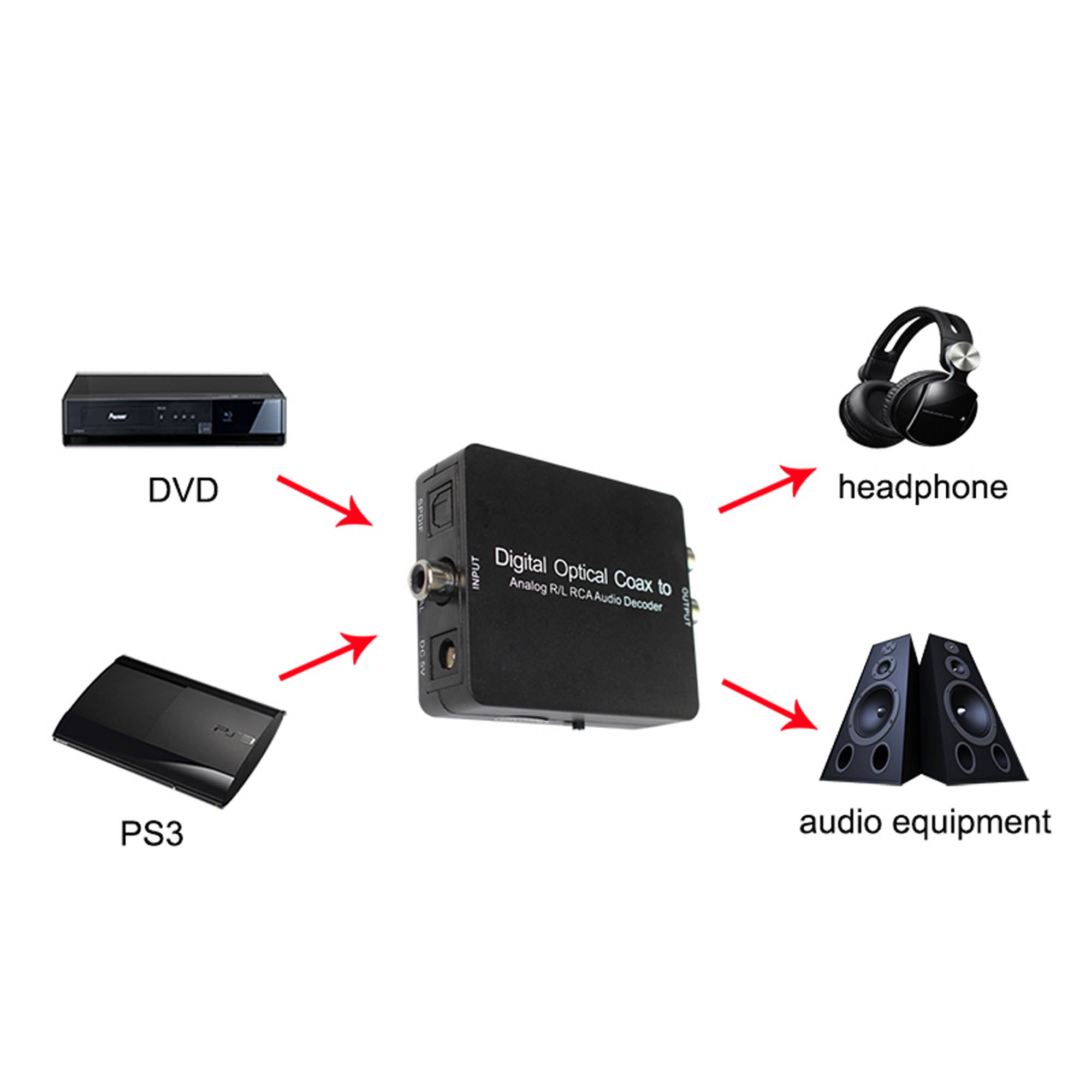

CONNECTION AND OPERATION:
Before installation,please make sure all decices you wish to connect have been turned off.
1)Connect the audio source device to the Converter using appropriate Toslink or Coaxial cables.
2)Connect the AV receivers or Amplifiers to the Converter using appropriate R/L cable.
3)Insert the DC side of 5V power supply into the converter and then connect the AC side of the power supply into the wall ourlet.
Note:When connected to theToslink and Coaxial cables at the same time,the product will give priority to Toslink input

PACKAGE CONTENTS:
1 x RCA Audio Decoder（Plastic shell）
1 x USB supply cable
1 x User’s manual

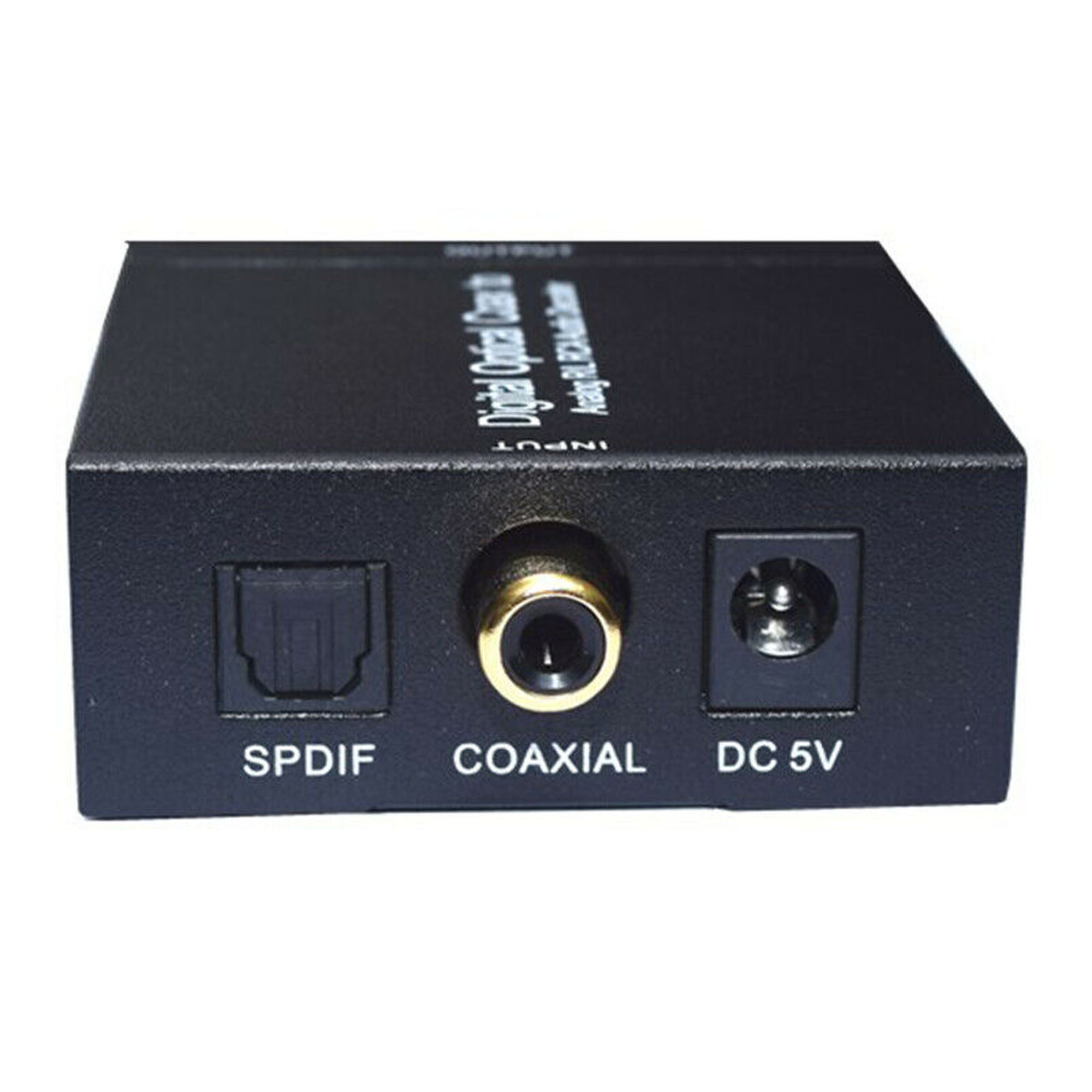

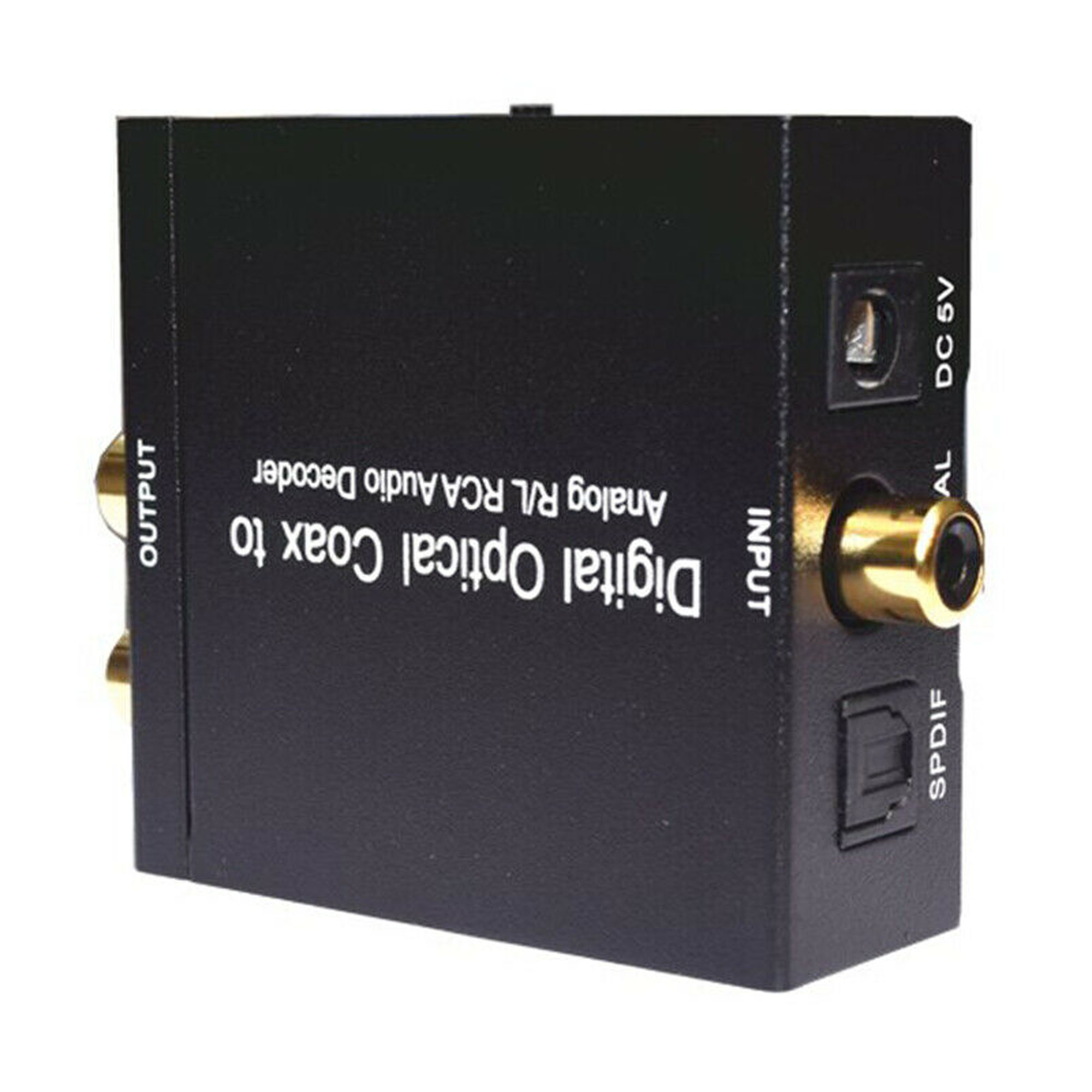

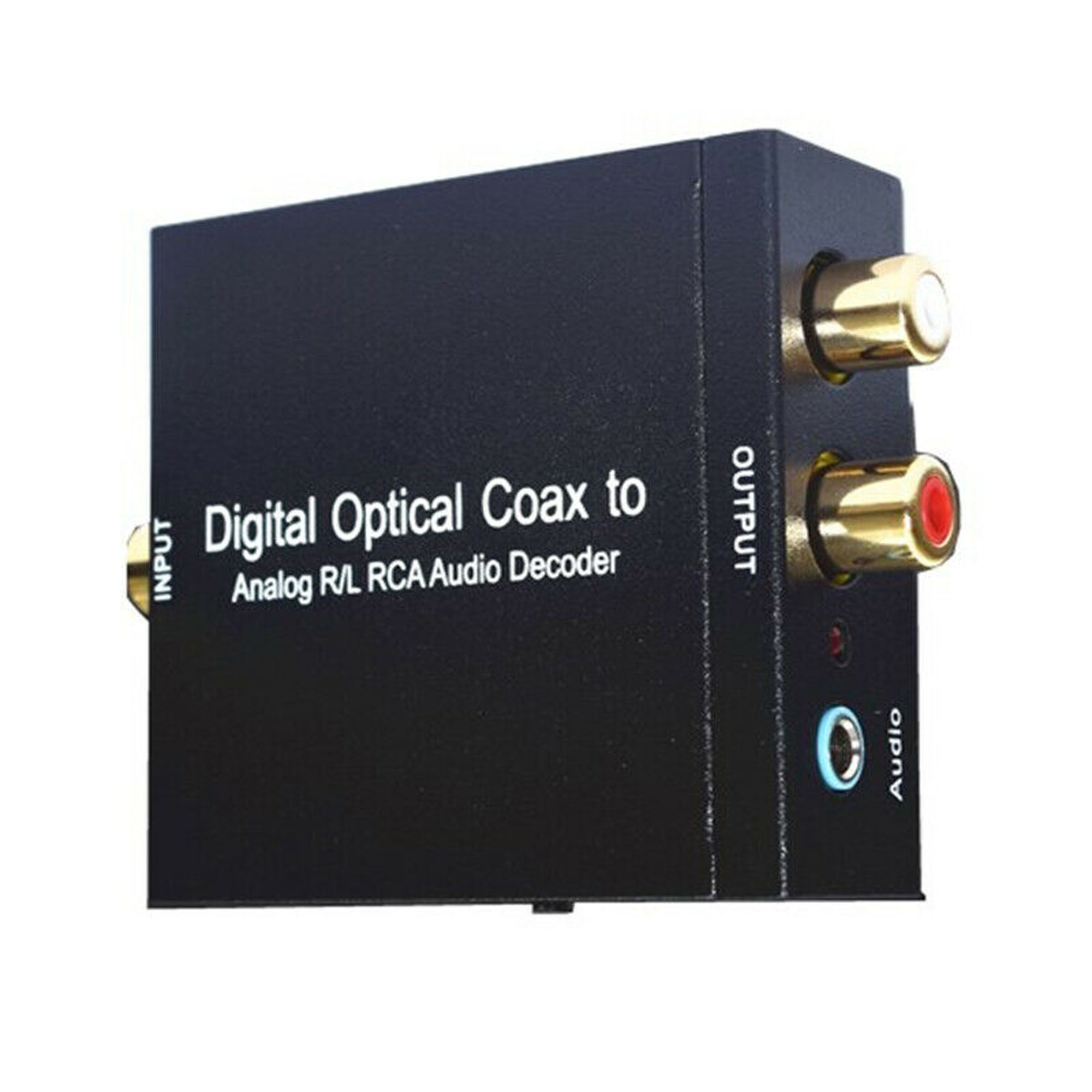

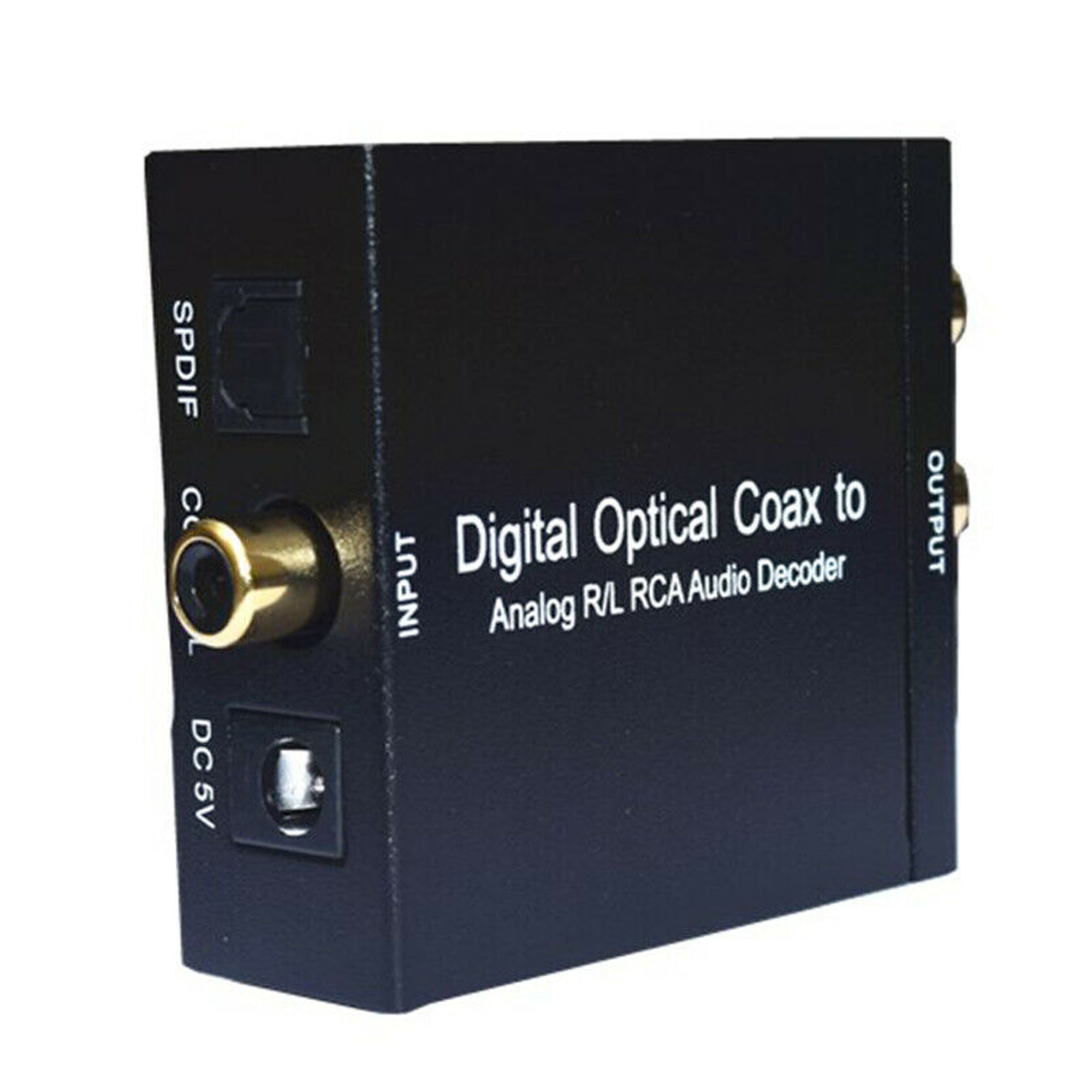

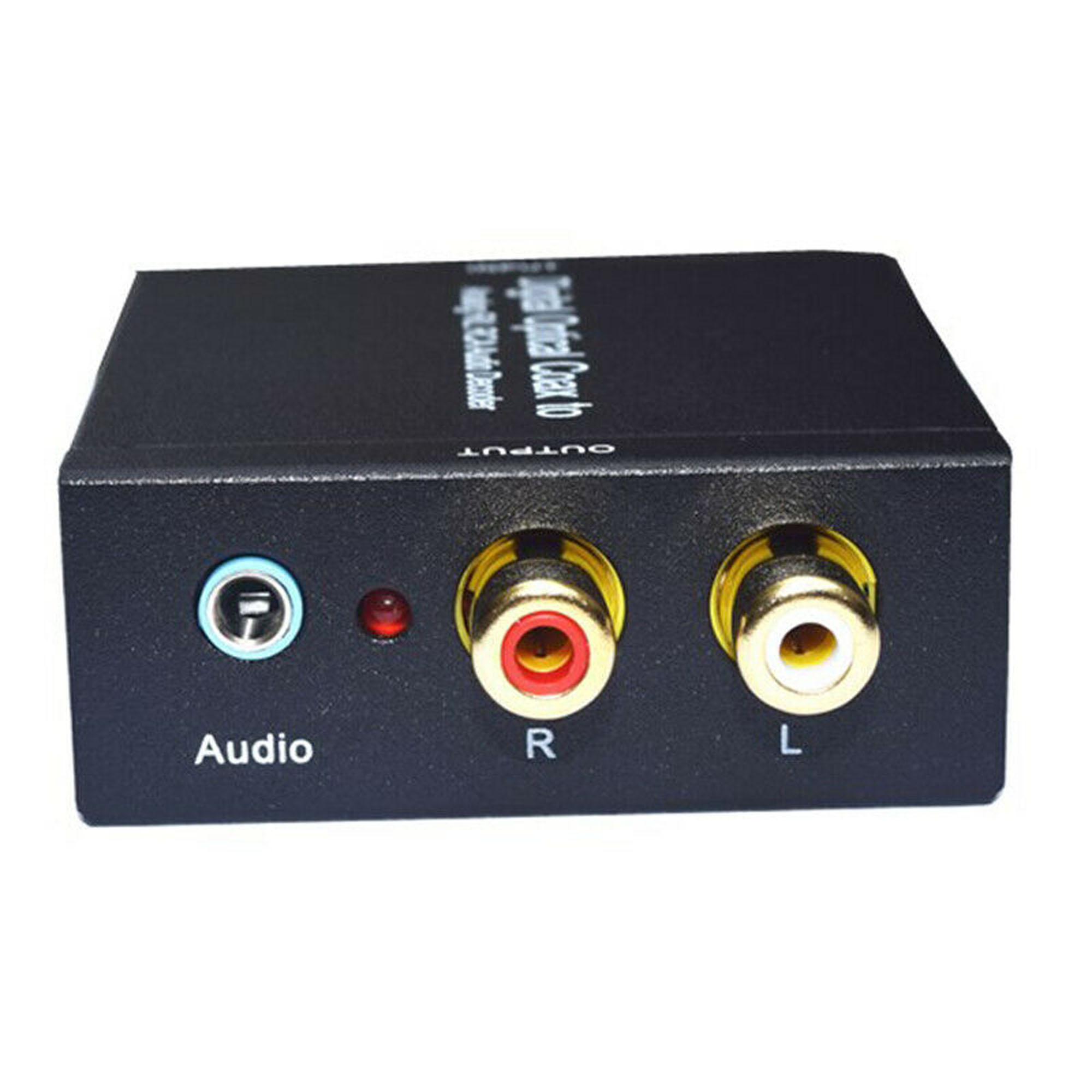

(RCA Audio Decoder（Iron shell）)
Introduction:
Digital Optical Coax to Analog R/L RCA Audio Decoder is designed for either home or professional audio switching.It converts Coaxial or Toslink signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks,this Converter is small in size and quite easy to install.

FEATURES:
This converter has many features that enable it to perform in a supperior manner.
Among those features you will find:
-SupportsDTSandDolby double decoding.
-Converts Coaxial or Toslink digital audio signals to analog L/R audio.
-Supports sampling rate at 32,44,48 and 96KHZ.
-24-bit SPDIF incoming bit stream on left and right channels.
-Provides electrcomagnetic-noise-free trasmission.
-Easy to install and simple to operate.

SPECIFICATIONS:
Input Audio:Coaxial or SPDIF
Output Audio:L/R audio
Input audio connector:Toslink, Coaxial
Output audio connector:2×RCA(R/L)
Sampling rate:32,44,48 and 96KHz
Size(L-W-H):73×55×22mm
Weight(Net): 92g
Operating Tempermenture: 0℃to +70℃
Operating Humidity:10% to 85%RH(no condensation)
External Power Supply:5V DC@2A
Power Consumption: 0.5 watts(max)

CONNECTION AND OPERATION:
Before installation,please make sure all decices you wish to connect have been turned off.
1)Connect the audio source device to the Converter using appropriate Toslink or Coaxial cables.
2)Connect the AV receivers or Amplifiers to the Converter using appropriate R/L cable.
3)Insert the DC side of 5V power supply into the converter and then connect the AC side of the power supply into the wall ourlet.
Note:When connected to theToslink and Coaxial cables at the same time,the product will give priority to Toslink input

PACKAGE CONTENTS:
1 x RCA Audio Decoder（Iron shell）
1 x USB supply cable
1 x User’s manual

(2M Optical Audio Cable)
Features:
Product Name: Digital Audio Optical Cable
Length: 2 meters
Colour: Black
Size: OD2.2MM
Interface type: party to the other port interface
Plug type: pure copper and gold-plated plug with great texture
Wire: The wire body is soft and not easy to oxidize
Product use: Through this line, the audio signal applied to communication audio playback equipment such as video recorders, power amplifiers, digital TVs, set-top boxes, etc. is output to the speakers
Scope of application: audio socket equipment such as televisions, computers, video recorders, set-top boxes, digital cameras, etc.
Product advantages: super wear-resistant gold-plated connectors, shocking sound quality, perfect fidelity, environmentally friendly PVC outer layer, perfect lossless signal, plug and play, convenient and fast, perfect transmission

Package included:
1 x 2M Optical Audio Cable
