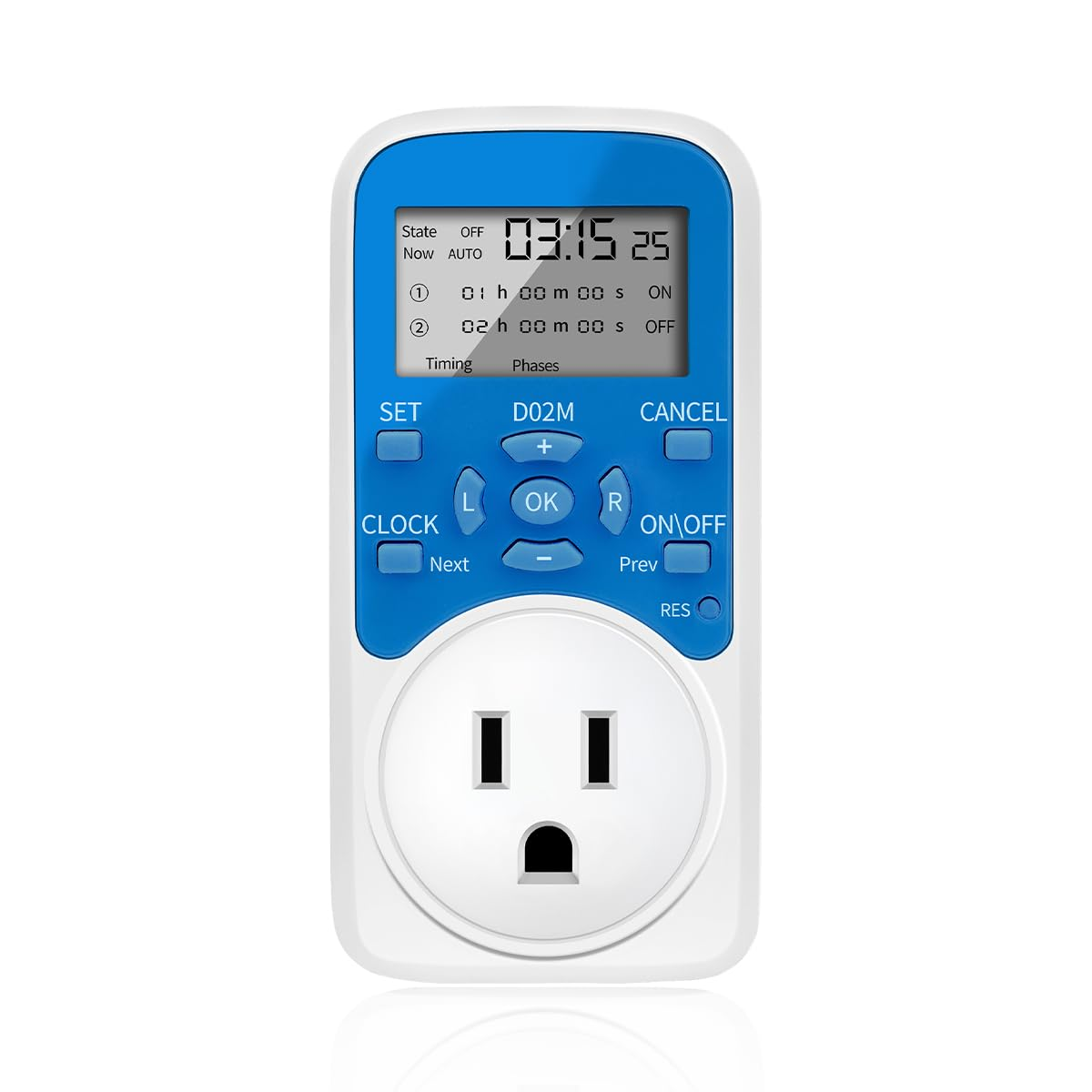

Timer Outlet, Programmable 110V/220V Pump Timer Switch, Minimum Setting by Seconds, Timing Socket Converter, Power Timing Automatic Control Outlets
Description
| Unit Count | 1 Count |
| Brand Name | knntrooler |
| Color | White and Blue |
| Product Dimensions | 2.17"D x 4.33"W x 1.73"H |
| Material | Polycarbonate |
| Material Type | Polycarbonate |
| Manufacturer Part Number | D02M |
| Model Number | D02M |
| Number of settings | 8 |
| Item Weight | 4.8 ounces |
| Brand | knntrooler |
| Item Type Name | timer |
| Screen Size | 2.5 Inches |
| Item Dimensions D x W x H | 2.17"D x 4.33"W x 1.73"H |
| Manufacturer | knntrooler |
- Daily clock timing switch function：This programmable timer allows the user to set 8 groups of switches, once complete the settings, it will automatically on and off each day as per the settings.
- The on-time and off-time are displayed on the screen at the same time, this outlet timer is very easy to understand.
- This outlet timer uses the cursor operating system, "L/R" button to move the cursor position, "+/-" button to control number changes, the operation is very simple.
- When using this outlet timer, the minimum can be set to seconds, which can meet the equipment that needs precise time such as spraying and watering
- This timing outlet uses a 30A high-power relay, can withstand high-power electrical appliances and without current overload.
- This timing socket uses the mature circuit design, stable and reliable operation, low failure rate
- The switch status is displayed intuitively. If the timer jack has electrical output, the current status of the screen is displayed as "ON" and the indicator light is on. If there is no electrical output in the jack, the current status of the screen is displayed as "OFF" and the indicator light is off.
- The internal rechargeable battery does not need to be replaced. If the screen does not display due to long periods of non-use, plug the timer into the power supply and charge for 30 minutes, and then press the "RES" button to restore the display.
- After setting the timing, clock or switch state, you need to press the "OK" button to execute, so the "OK" button can also prevent misoperation caused by accidentally touching the button
Product description
The indicator light corresponds to the current state of the screen, if the timer jack has electrical output, the current status of the screen is displayed as "ON" and the indicator light is on. If there is no electrical output in the jack, the current status of the screen is displayed as "OFF" and the indicator light is off.
Because of the cursor operating system, the timer is very easy to use. For example: power on at 1:00 and power off at 2:30
1：Press “SET” button, then cursor appears and “01” is shown on top ,indicating the entry into the 1st group of timer setting screen
2：Press “Left/Right” button to move the cursor
3：Press “+/-” button to change the value
4：Press “OK” button to complete the setting
Product Parameters
| Working Voltage | AC85V-265V |
| Maximum Putout | 20A |
| Inherent Loss | ≤2W |
| Battery | Built-in Rechargeable Batteries, no need to replace |
Product use steps:
First enter the clock setting screen through the "CLOCK" button, and adjust the timer clock to the current actual time through the "R/L" and "+/-" button (press the OK key after setting).Then enter the timing setting screen through the "SET" button, and set the timing time required by the user through the ''R/L" and "+/-" button. After setting a group, you can press "Next" button to enter the setting screen of the next group (you cannot press the "OK" button at this time), up to 8 groups of timing, after setting all timing time, press the "OK" button to start timing, very simple.
The function of the "ON/OFF" button is to change the current output state of the timer jack. For example, the current jack of the timer is on, if the user wants to change the current output state to off, you need to press the "ON/OFF" button continuously to change the current state, after it becomes "OFF", then press the "OK" button. At this time, the timer's timing function will not be affected, and it will continue to execute as planned.
