Please note: Currently available display types can only use ebike’s original configuration, other displays are uncertain of compatibility.

Open function (via display Settings)

1, adjustable wheel diameter 20-29 inch

2, the voltage is selected 36V/48V/52V

3, the number of speed measuring magnets set 1-6

4, the maximum speed limit is set up to 100 (the maximum speed cannot exceed the rated speed of the motor)

5, PAS magnet number selection (5/8/12)

6, 3 operating modes are available: Only throttle/Only PAS/ Both throttle and PAS are allowed to run at the same time

7, cruise function: the speed is greater than 15KMH 8 seconds after automatic cruise, brake or turn the accelerator to cancel cruise

8, 6KM boost function (long press the downward button of the display to start, release and cancel)

9, increase the external speed detection plug (for some motor without speed measurement line users)

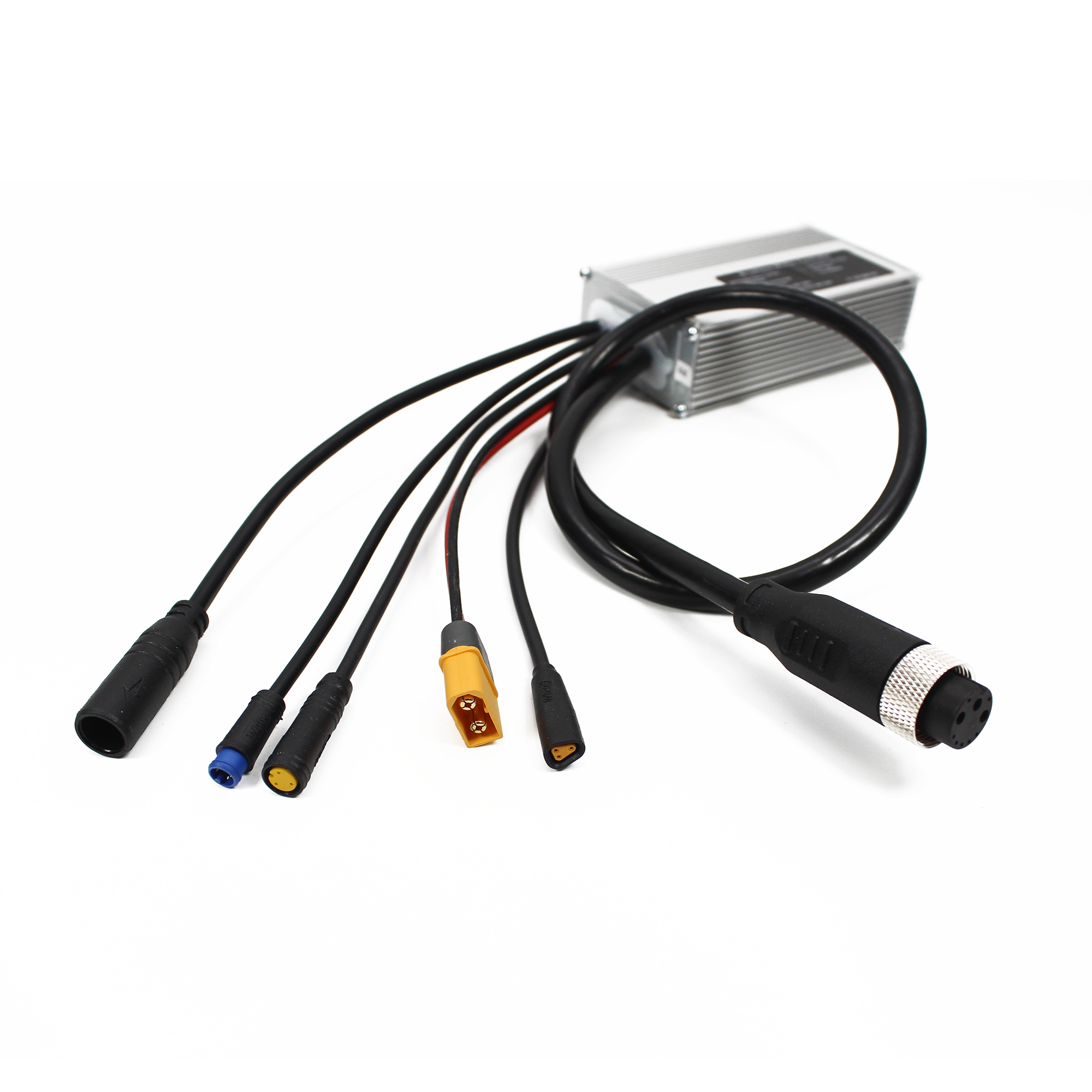

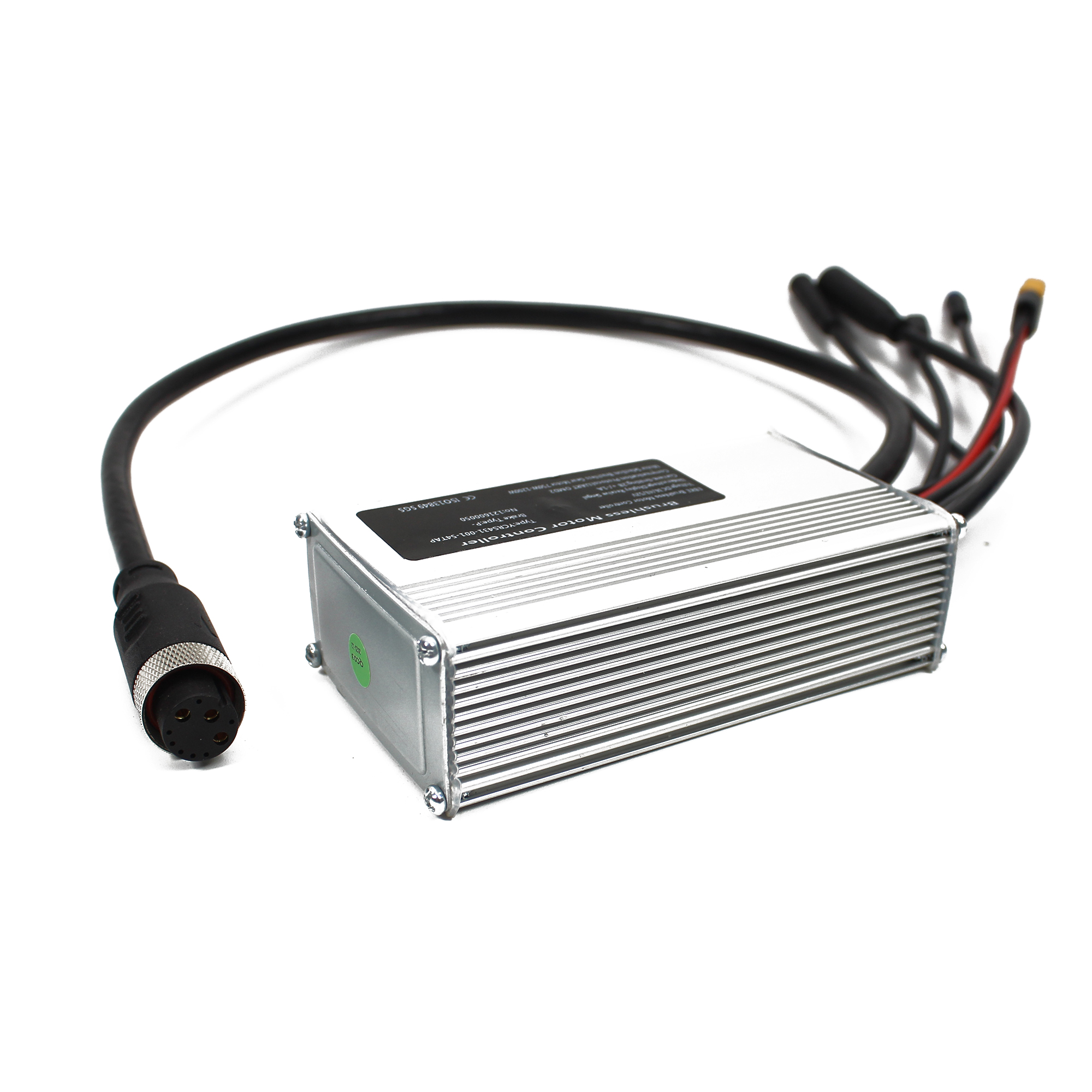

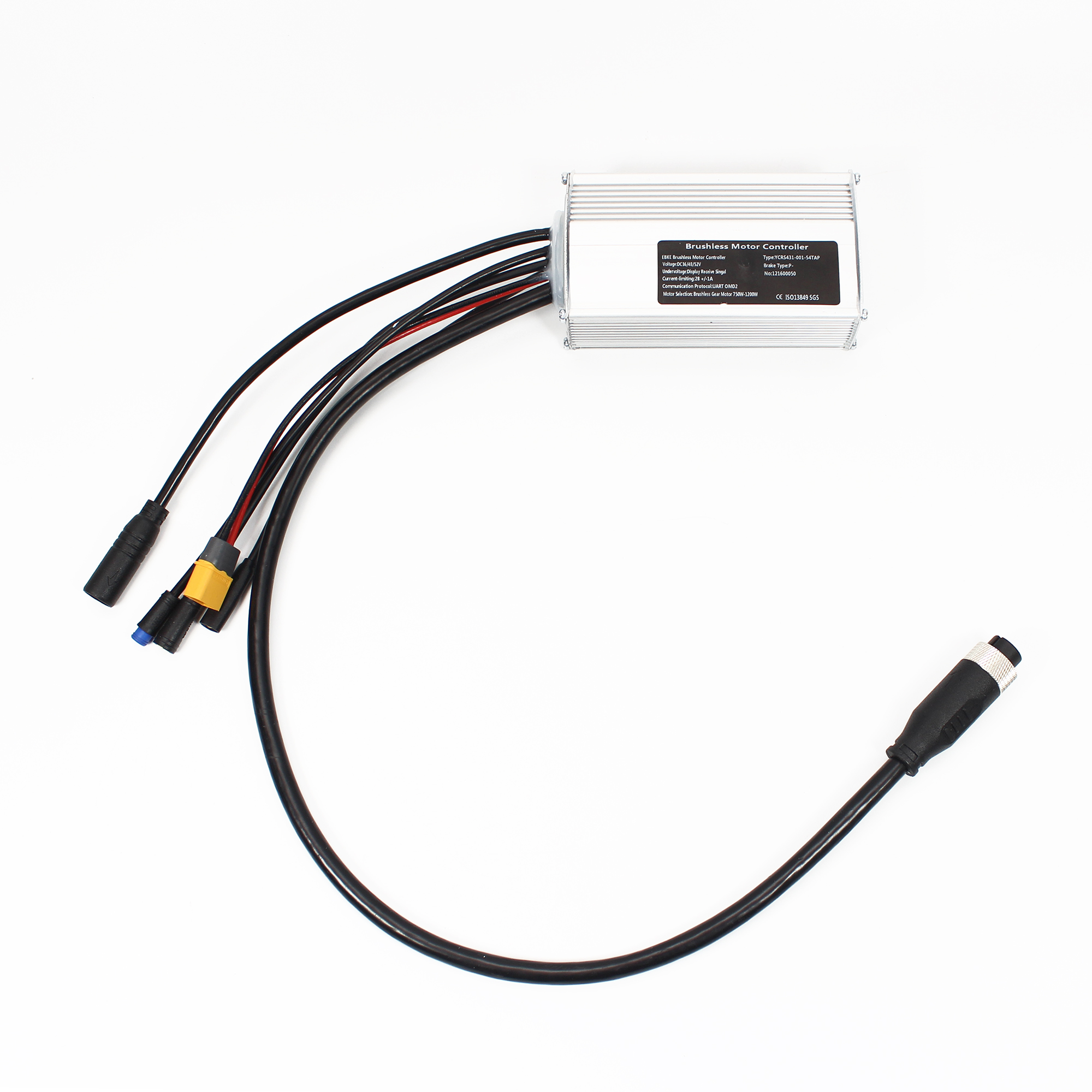

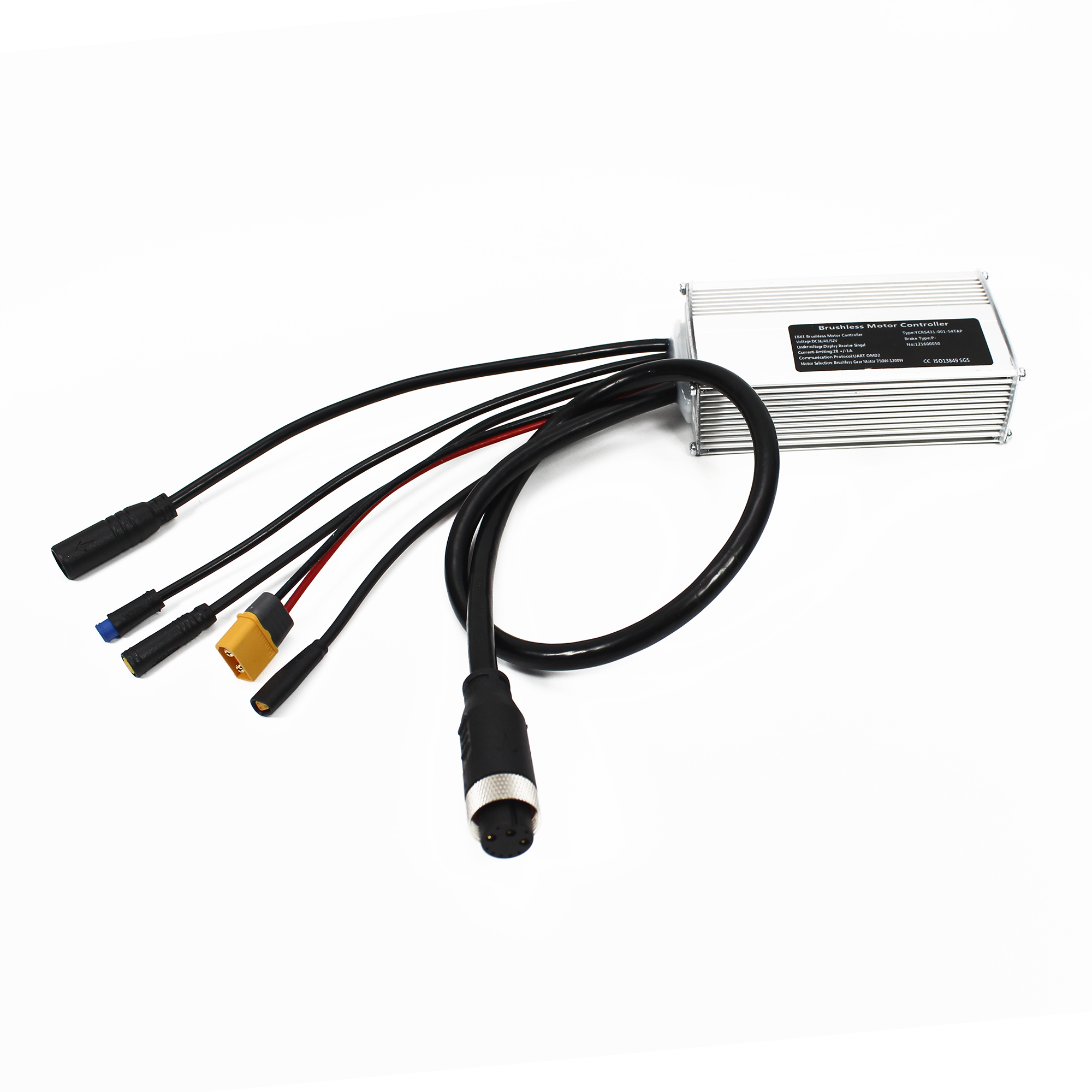

Controller plug description:

1, XT60 power plug

2, 1T5 cable plug

3, PAS waterproof 3pin female plug

4, external speed plug shaped 3pin

5, headlight plug 4pin blue

6, motor plug (default model 1019, compatible with some models of BAFANG G062)

Description:

*Made of high quality material, more durable

*Sine wave controller can effectively reduce noise and avoid sudden changes in current

*Waterproof Joint, to avoid burning circuit when using

*It's compact, light and easy to carry

Specification:

*Communication protocol：OMD2

*Maximum current: 28±1A

*Power: 500-1200W

*Rated voltage: DC36V/48V/52V

*Speed setting: 1-4.2V

*Rated current: 22A

*Brake input: low level

*Low voltage protection: DC30/40/42±0.5V

*Material: Aluminum + Plastic

*Color: As picture shown

*Controller size: 12*6.3*3.3cm (Approx.)

*Weight: 480g

*Model: Sine wave vector controller

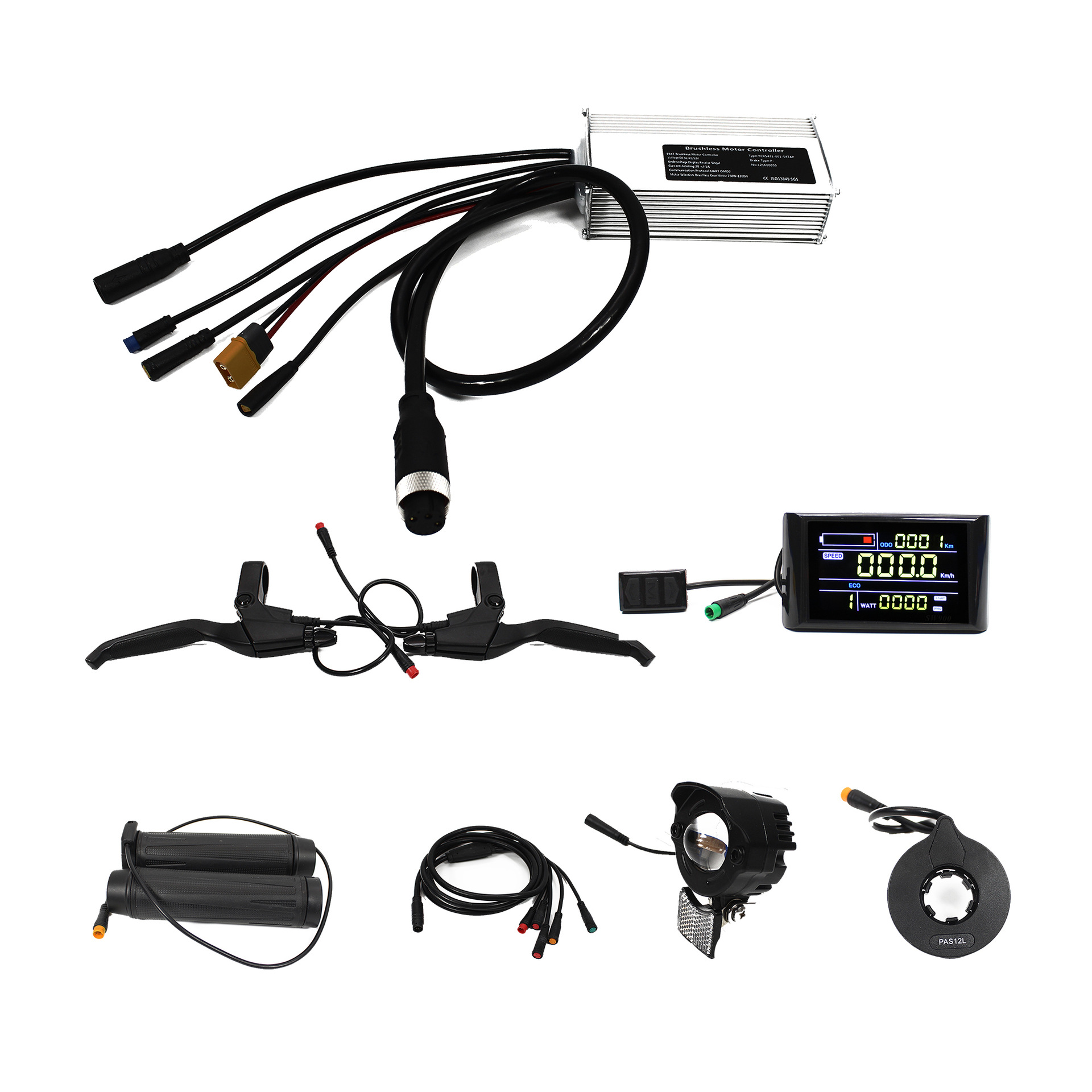

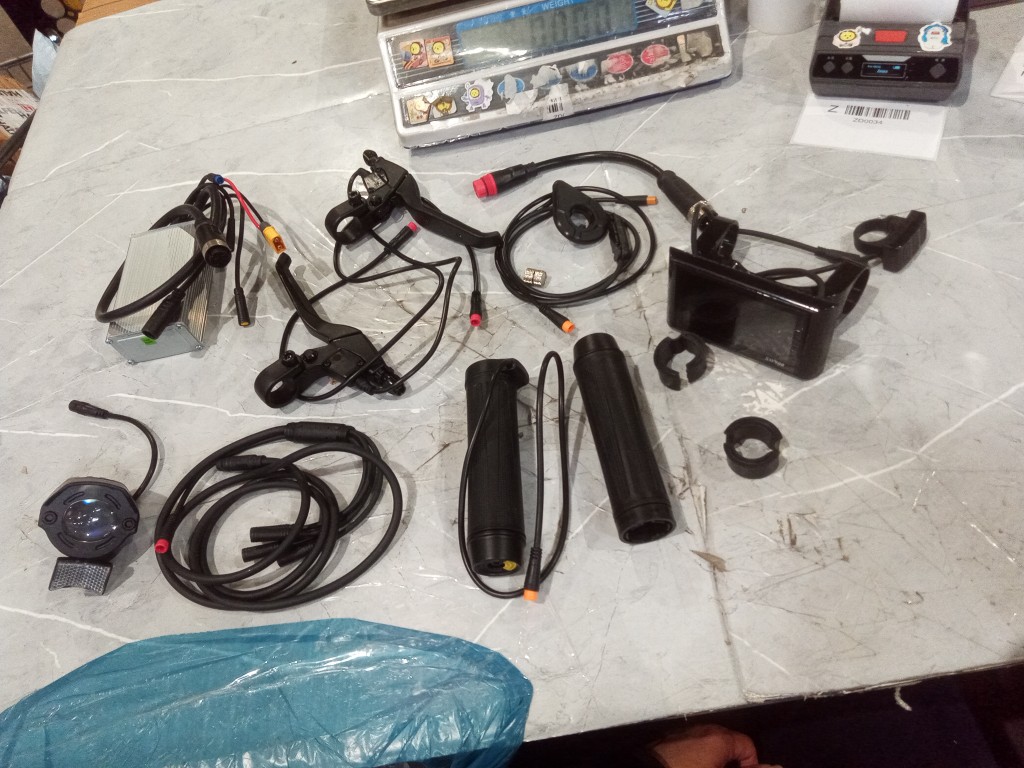

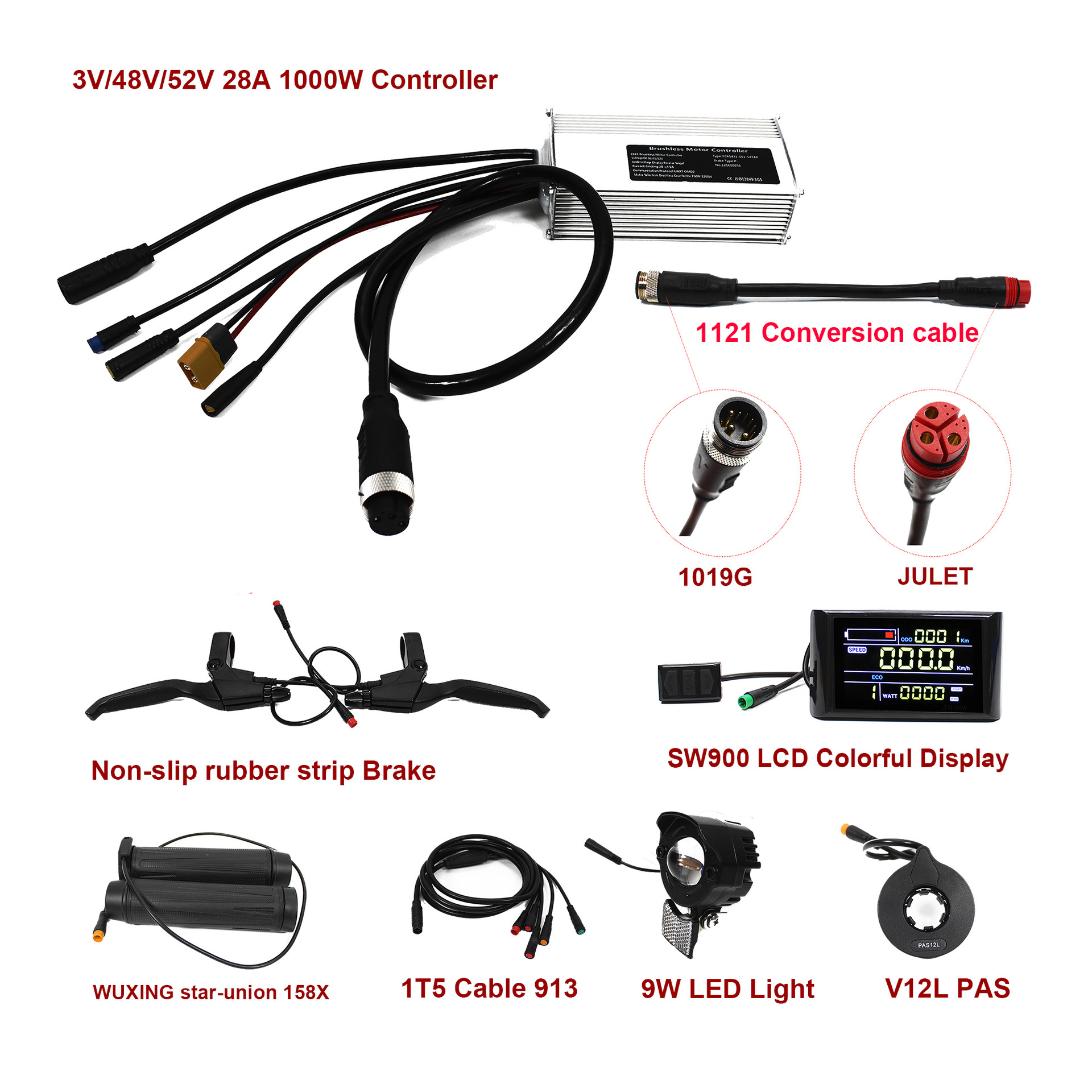

Packing list:

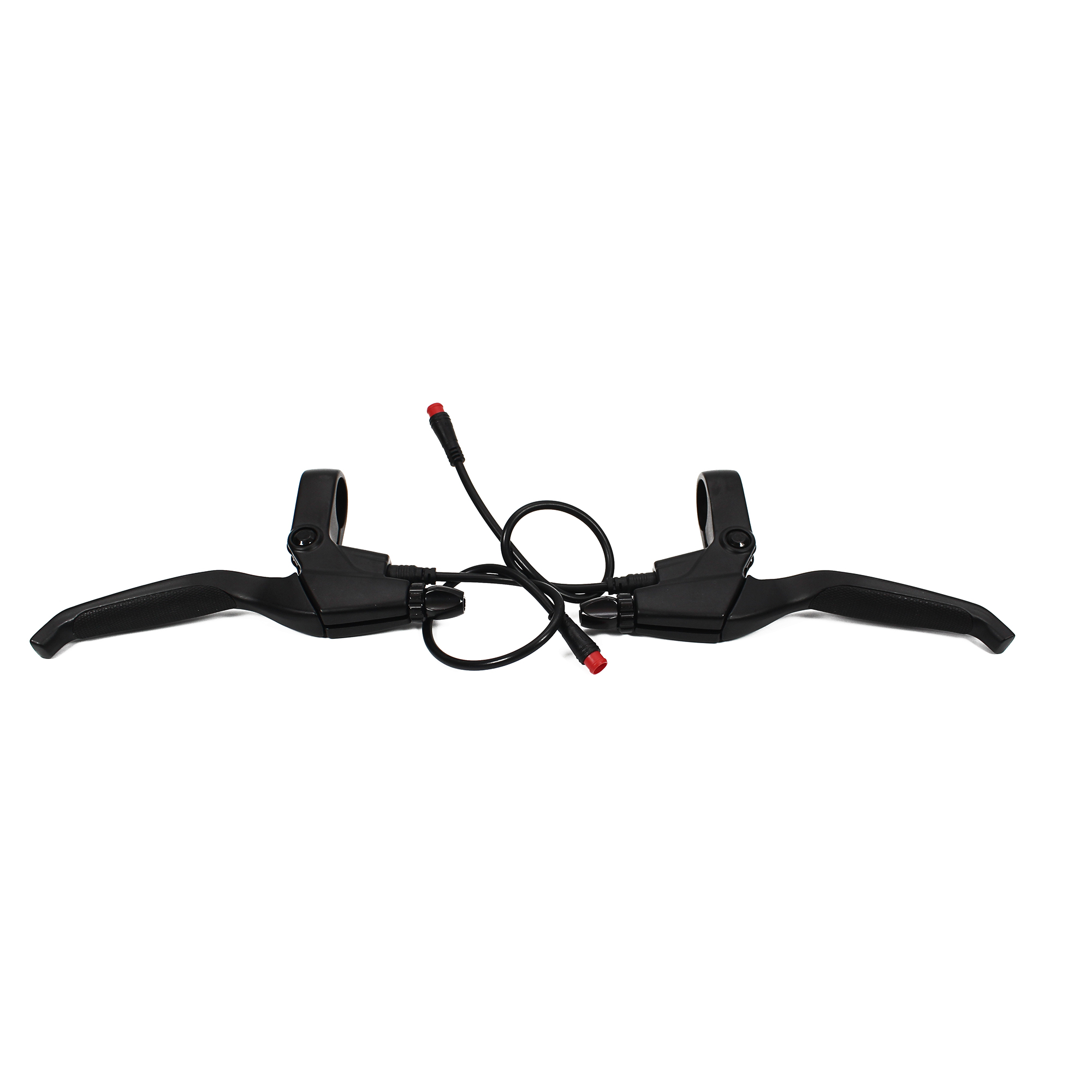

1*Brake handle

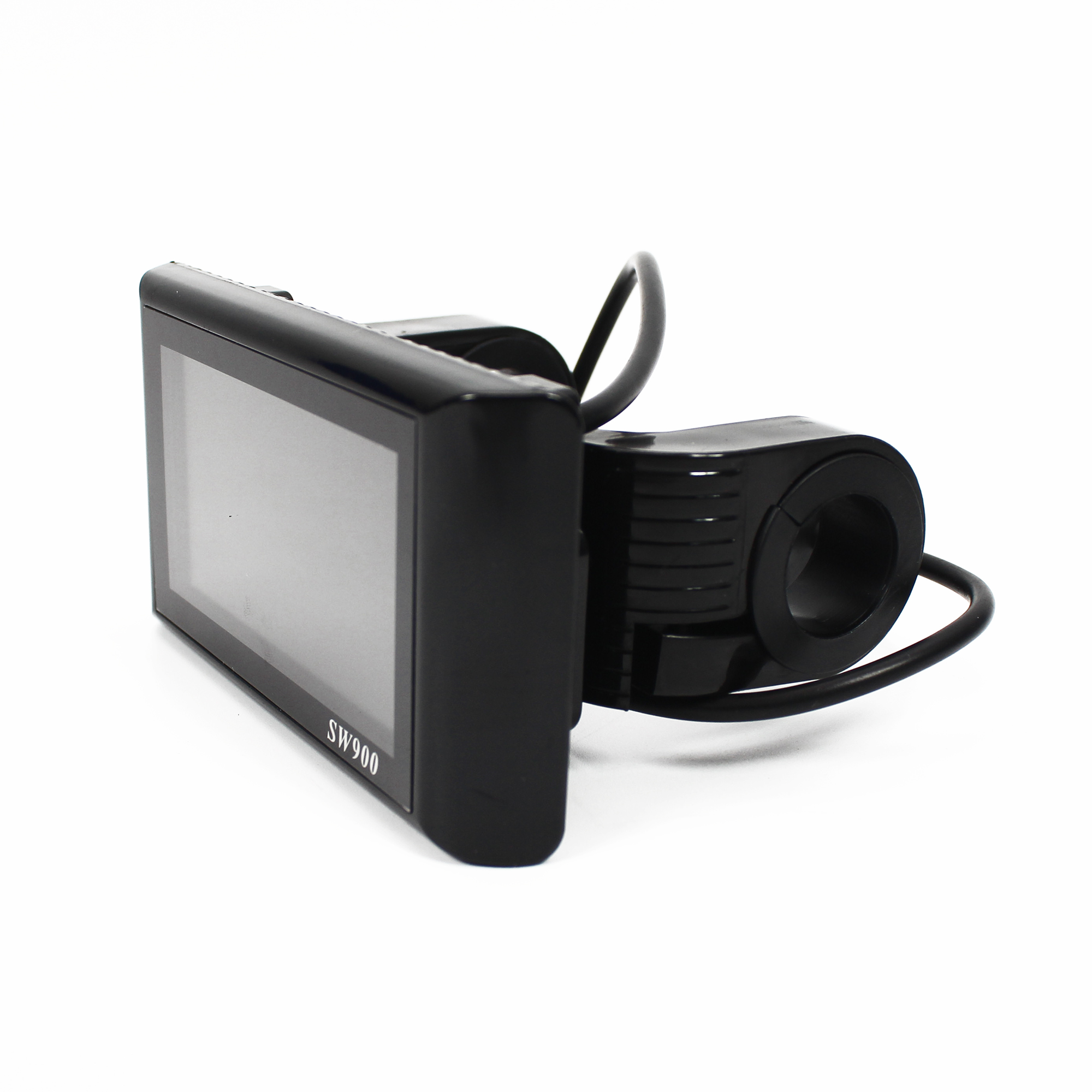

1* Display

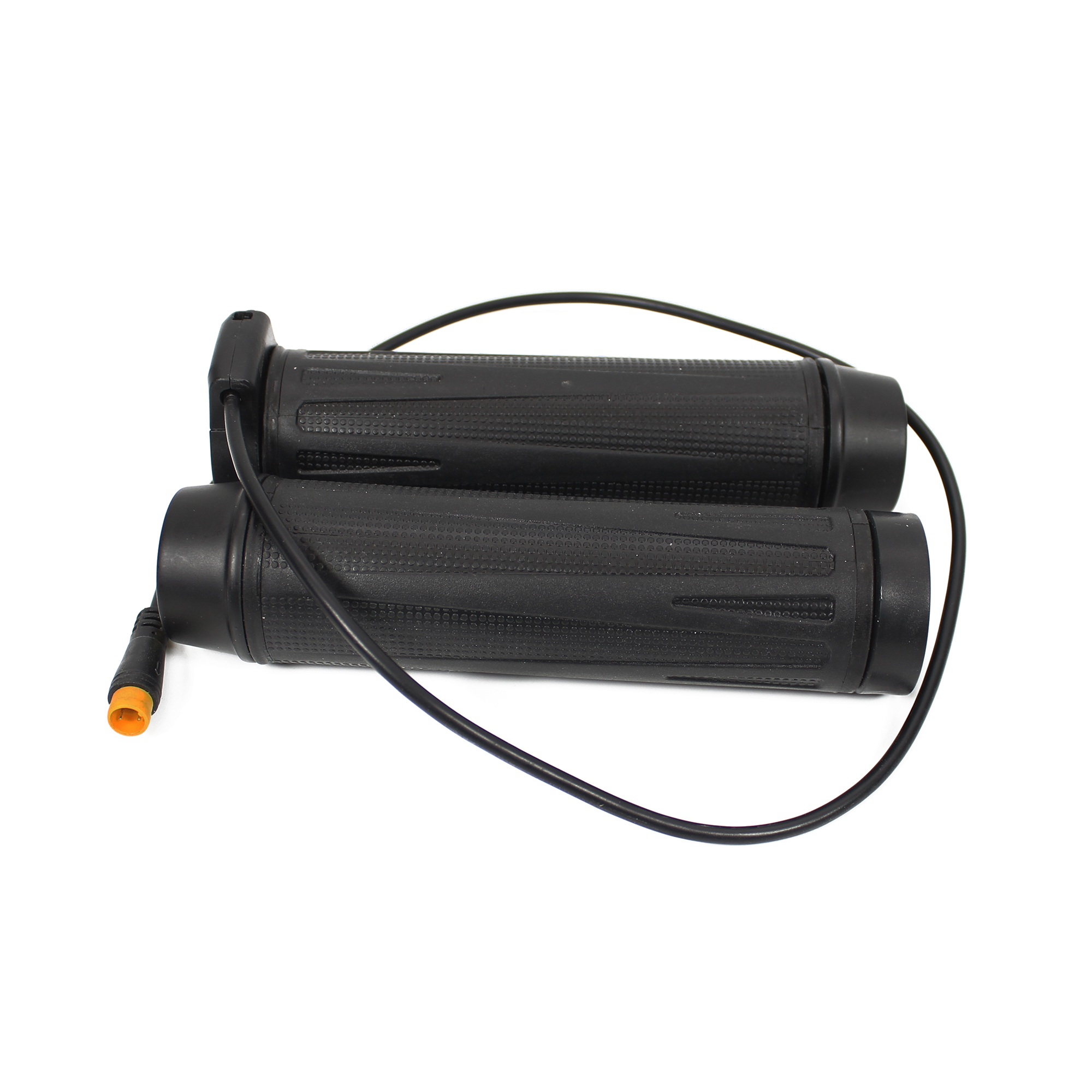

1*throttle

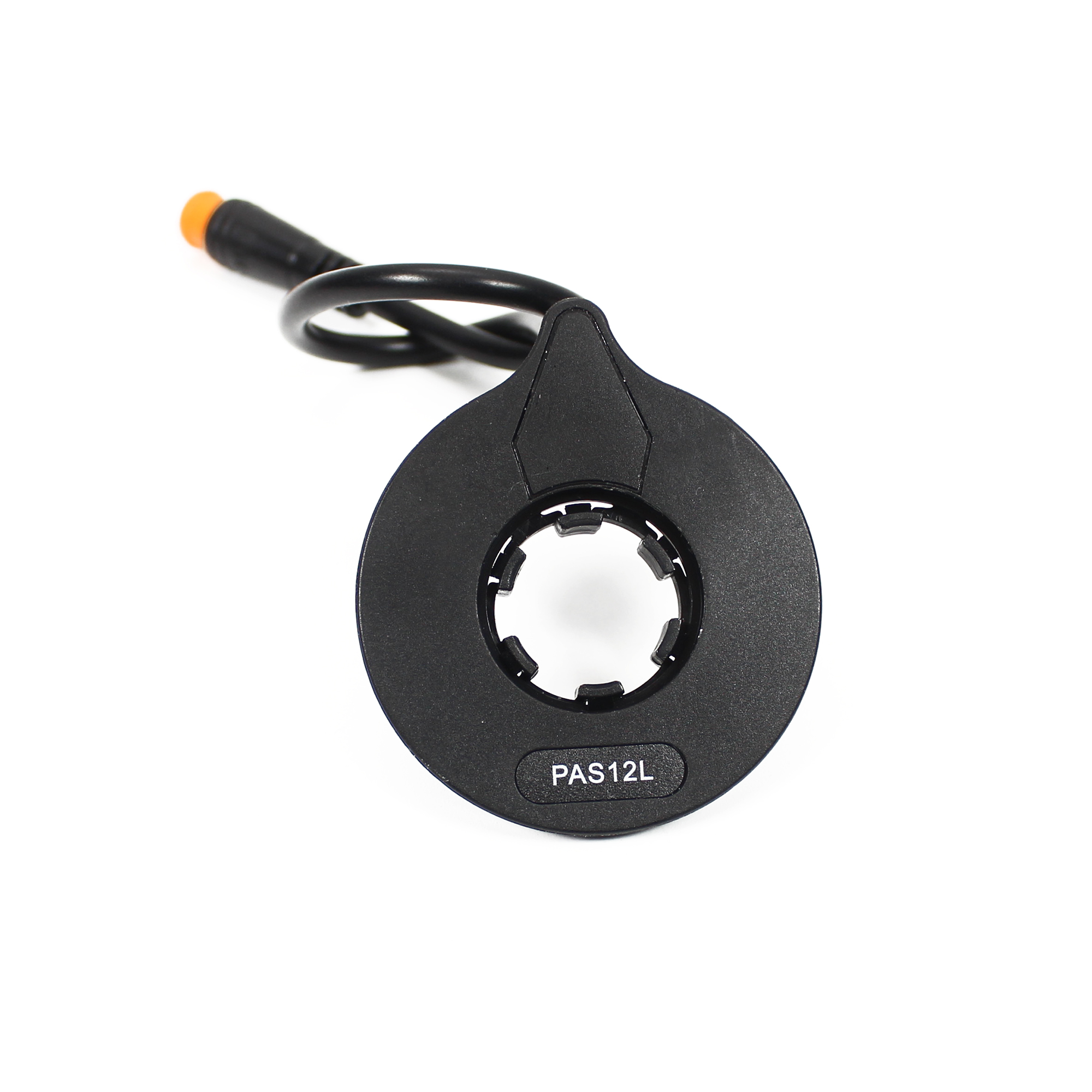

1*PAS

1*1T5 cable

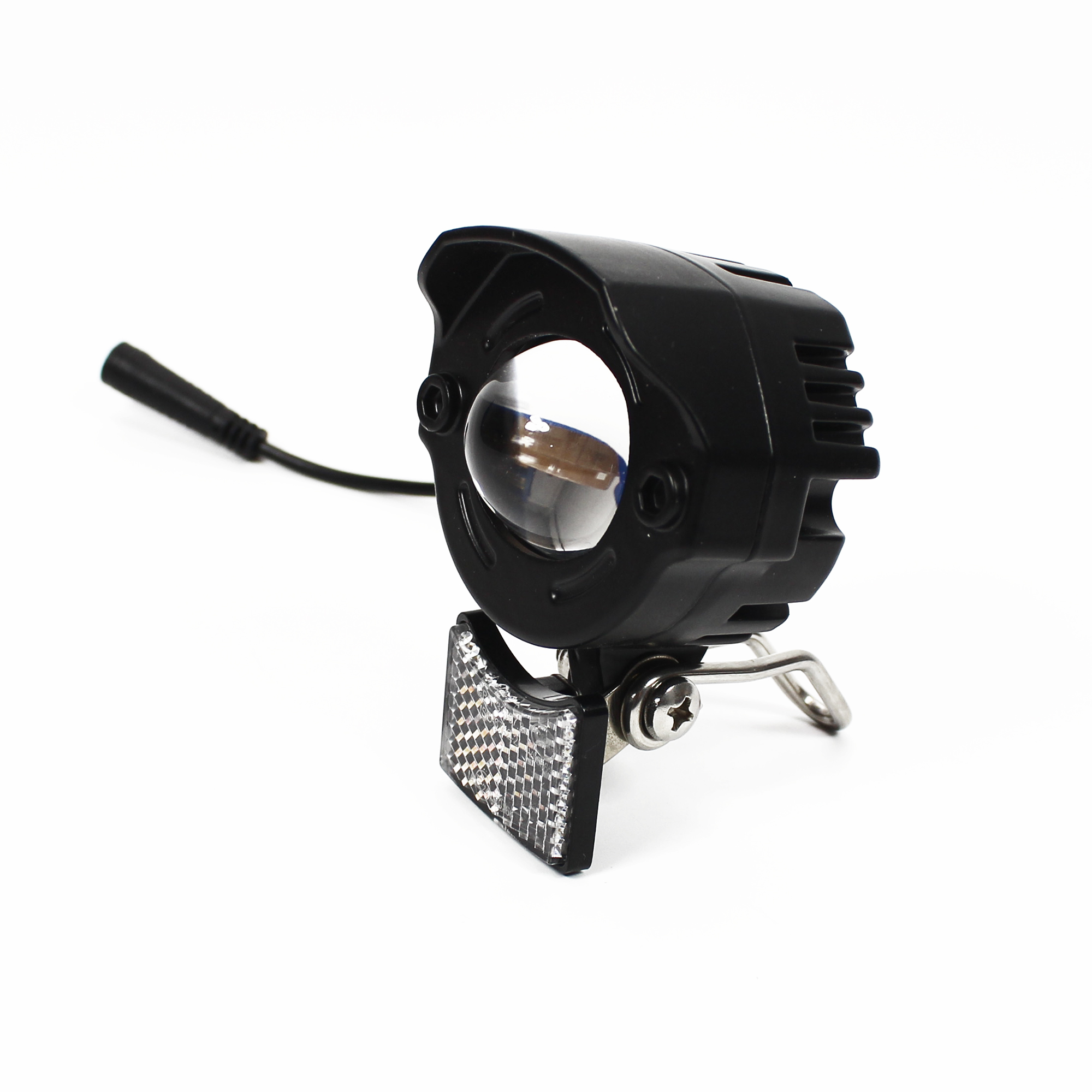

1*Headlight

Compliance Statement
This product complies with CE relevant safety standards.
