Vehicle Fitment
69-68 Chevrolet Camaro (V8 4.9L);
69 Chevrolet Camaro (V8 5.0L);
69-67 Chevrolet Camaro (V8 5.3L);
69-68 Chevrolet Camaro (V8 5.4L);
69-67 Chevrolet Camaro (V8 5.7L);
67 Pontiac Firebird (L6 3.8L);
69-68 Pontiac Firebird (L6 4.1L)
Parts Fit: Please check compatibility. (ONLY FIT ENGINES USING 20 3/4" WIDE CORES)
Fan Specification:
16" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.95"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps
Features：
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Billet Aluminum CNC machined fill neck rugged and durable
5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment
6.OEM style brass petcock drain much better than other plastic one on eBay
7.Carefully crafted to exceptional OE standards for precise fit.
DESCRIPTION:
Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More
than 90% of aftermarket manufacturers use the T-3303 series Aluminum,
because it is cheaper and easier to get the material. However, T-3303
aluminum has many disadvantages, such as poor polishing effect,
softness, easiness to scratch and corrode, poor heat dissipation effect.
If the T-3303 aluminum radiator is operated in high pressure and high
temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum
is an Al-Mg alloy with good corrosion resistance, excellent reliability
and cold workability and strength. The main alloying element of AA5052 is
magnesium, which has good forming and processing properties. It is
widely used in the manufacture of aircraft fuel tanks, oil pipes, and
sheet metal parts of transportation vehicles and ships, hardware
products, and electrical-appliance casings.

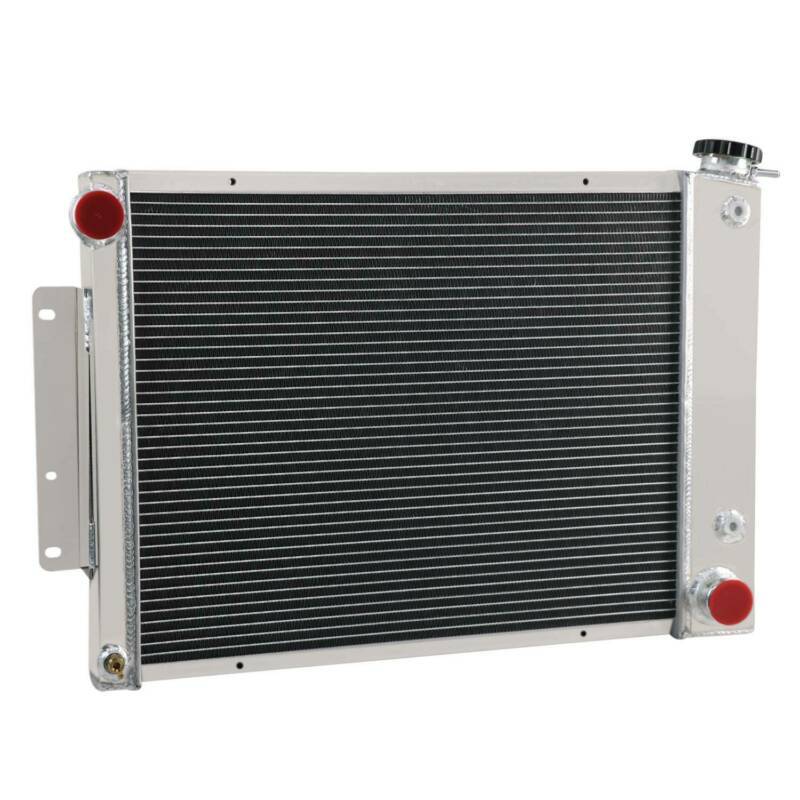

This AA5052 Aluminum
Radiator is designed to provide maximum cooling efficiency to prevent
premature engine failure. Its light-weight, and high-heat transferring
aluminum features a tube and fin design that, dramatically increases
surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum
Radiator is at least 30%-45% more efficient than stock ones. Most
importantly, it has a much higher capacity for coolant than stock ones,
which means that your cooling system will be more efficient and will be
more resistant to temperature surges in racing applications.
Thermostat Kit:
Universal
fit for any automotive vehicle and electric fan.Activates by grounding
electric fans at preset temperature. 180'F turn-on temperature, 165'F
turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan
shroud effectively drive the heat over and out the engine compartment
rather than thrusting it into the front of the engine. The fan shroud
basically houses the fan blades securing it in place and keeping it from
damaging the other engine components that may disturb the smooth and
even operation of the engine. With excellent operating temperature
management, allowable levels of engine temperature are stabilized.
Investing in proper maintenance though will considerably benefit the
ride and driving quality in maintaining the ideal working conditions of
the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
