Product description:

《High precision Current detection》：accurate Battery SOC%

《High and low voltage programmable alarm》：backlight and voltage value will flash Simultaneously

《Data storage 》：designed to automatically store the last testing data when system shuts off

《Large backlit LCD displays multiple electronic parameters 》：voltage, current, consumed power and battery capacity

《Universal Battery Monitor》：voltage range 10v-120v and UP TO 500A.

Using:

1. Measures the rate of energy going in or out of your batteries so you can check your charging systems & see how much energy your appliances use.
2. Compatible with 12V Lithium Sealed, Gel, Flooded Batteries.

3. Maximizing your battery life.

4. Voltage, current, consumed power & battery capacity are all accuratelymeasured & displayed on the LCD screen in real-time.
 

Product Features:

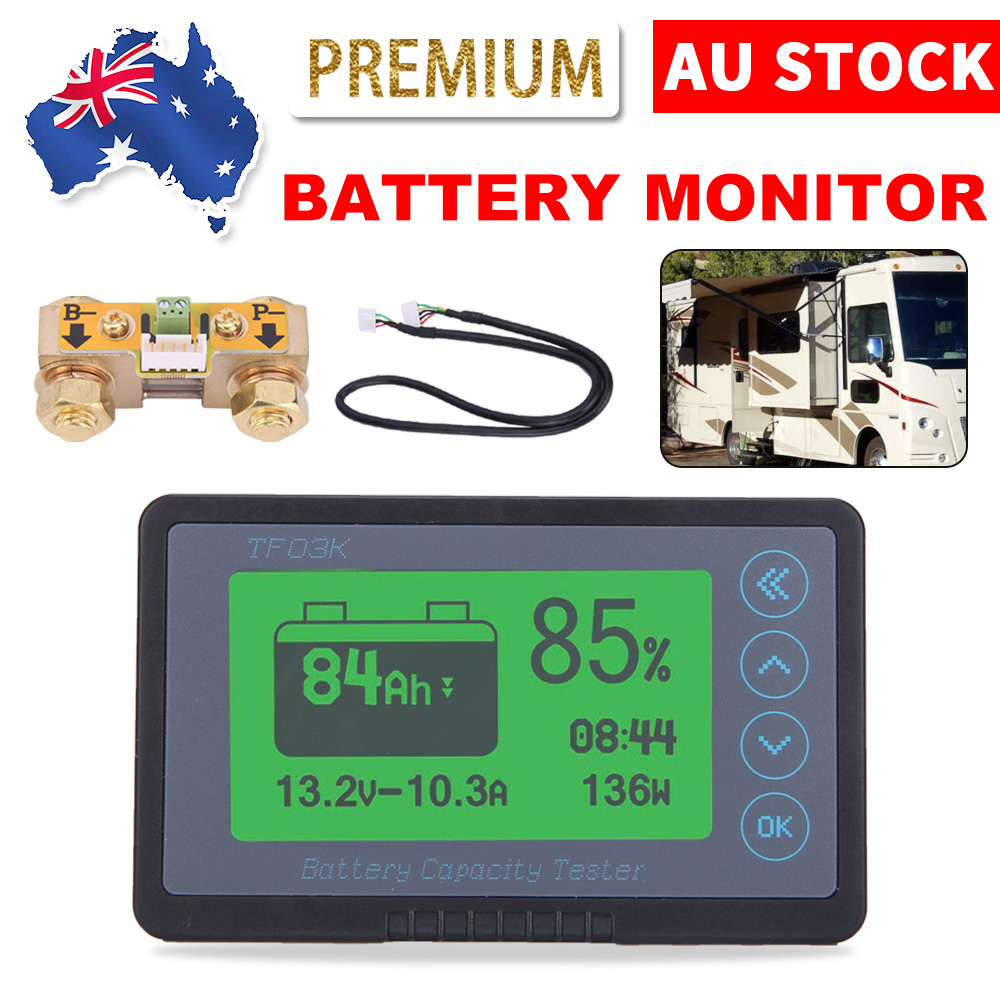

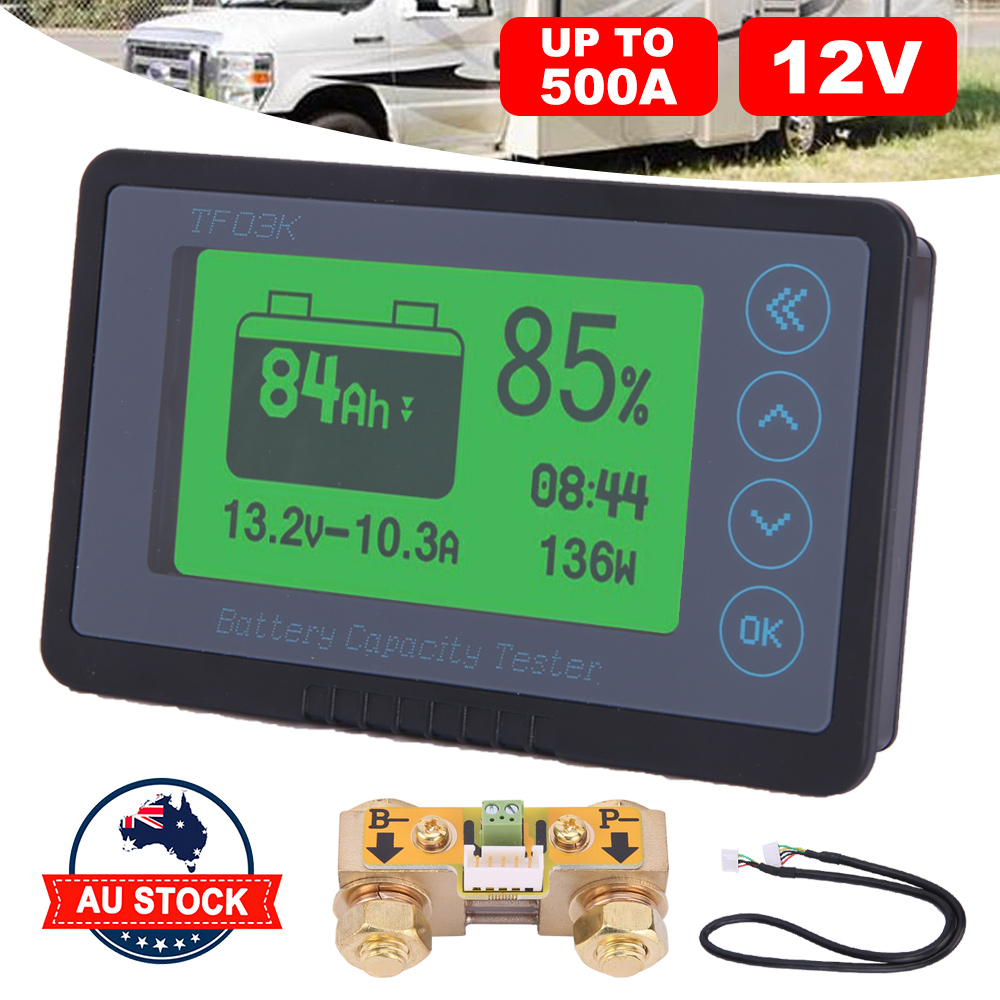

350A (0-UP TO 500A) Battery Monitor

350A (0-up to 500A)Battery Monitor is able to monitor the amperage flowing out of the battery

bank & Measure currents up to 500 amps. Voltage, current, consumed power &

battery capacity are all accurately measured & displayed on the LCD screen in

real- time. The Battery Monitor is intended to help maintain battery systems for

12V deep cycle batteries, such as ones found in RV, boats or off grid homes,

which are regularly charged & discharged

High precision Current detection; accurate Battery SOC%

High and low voltage programmable alarm - backlight and voltage value will flash

Simultaneously

Data storage - designed to automatically store the last testing data when system

shuts off

Large backlit LCD displays multiple electronic parameters (voltage, current,

consumed power and battery capacity

Universal Battery Monitor- voltage range 10v-120v and up to 500A

 Working Voltage: 10-120V, 350A(0-UP TO 500A)

Working Dissipation: 10-15mA

Standby Dissipation: 1-2mA

Temperature range: 0-35°C

Weight: 2.6 oz / 75 g

Size: 3.9 x 2.4 x 0.7 in / 100 x 61 x 17 mm

Pacakge Includes:

1 * Battery Monitor 350A(0-UP TO 500A)

1* 0.5M wire

Notes:

1.Please allow 1-2mm differs due to manual measurement.

2. Due to the difference between different displays, the picture may not reflect the actual color of the item. thank you very much!
