Helix Amplify 206 DSP 6 Channel Amplifier with 8 Channel Digital Sound Processor

Item Description

  • Power RMS  ? 1% THD+N @ 14.4 V
  • - @ 4 Ohms 6 x 100 Watts
  • - @ 2 Ohms 6 x 190 Watts
  • - @ 1 Ohm -
  • - bridged @ 4 Ohms 3 x 380 Watts
  • - bridged @ 2 Ohms -
  • Max. output power per channel* Up to 240 Watts RMS @ 2 Ohms
  • Up to 480 Watts RMS @ 4 Ohms bridged
  • Amplifier technology Class D
  • Inputs 6 x RCA / Cinch
  • or
  • 6 x Highlevel speaker input
  • 1 x Optical SPDIF (12 - 96 kHz)
  • 2 x Remote In
  • Input sensitivity RCA / Cinch:1 - 8 Volts
  • Highlevel: 2 - 16 Volts
  • Input impedance RCA / Cinch 4,8 kOhms
  • Highlevel 9 - 33 Ohms or 20 kOhms with ADEP.3
  • Outputs 6 x Speaker output
  • 2 x RCA / Cinch
  • 1 x Remote Out
  • Output voltage RCA / Cinch 8 Volts
  • Frequency response 20 Hz - 22,000 Hz
  • DSP resolution 64 Bit
  • DSP power 1 x 295 MHz (1.2 billion MAC operations/second)
  • Sampling rate 48 kHz
  • DSP type 1 x Audio signal processor
  • Signal converters A/D: BurrBrown 24 Bit
  • D/A: AKM 24 Bit
  • Signal-to-noise ratio (A-weighted) Analog input: 99 dB @ full power
  • Digital input: 102 dB @ full power
  • Distortion (THD @ 1 kHz, 1 W into 4 Ohms) < 0.005 %
  • Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) < 0.02 %
  • Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -
  • Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -
  • Damping factor 70
  • Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
  • Power rating DC 12 V ? 93 A max.
  • Idle current 1,100 mA
  • Max. remote output current 500 mA
  • Operating temperature range -40 °C to +70 °C
  • Fuse 3 x 25 A LP-Mini-fuse (APS)
  • Additional features ADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor
  • Dimensions (H x W x D) 40 x 263 x 114 mm / 1.58 x 10.35 x 4.49”
  • * One channel driven (? 10 % THD+N @ 14.4 V)

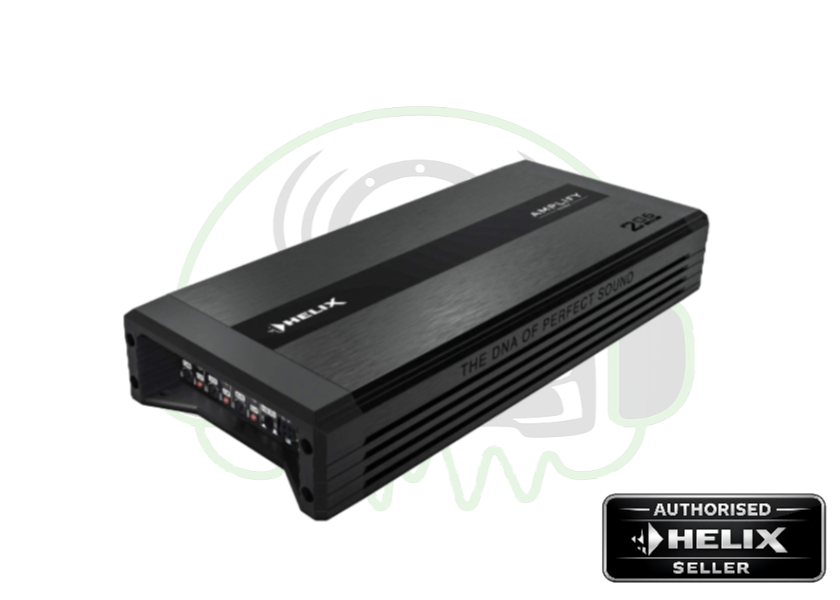

HELIX AMPLIFY 206 DSP

Very compact 5/6-channel amplifier with 8-channel DSP & ACO platform

The AMPLIFY 206 DSP expands the 2-Series with a highly versatile 6-channel option that covers a wide range of applications in modern vehicles. Thanks to their fully bridgeable architecture, the amplifiers can be configured flexibly in 3-, 4-, 5- or 6-channel operation. Its high output power and compact Class-D design make it suitable for fully active 3-way front systems in 6-channel mode as well as classic 5-channel layouts, where channels 1–4 drive the front and rear speakers while the bridged channels 5/6 deliver up to 380 Watts RMS at 4 ? to a dedicated subwoofer. Altogether, the 206 DSP provides ample performance reserves with 6 x 100 Watts RMS at 4 ?, 6 x 190 Watts RMS at 2 ? or 3 x 380 Watts RMS bridged at 4 ?, making it ideal for everything from refined multi-way concepts to dynamic front/rear/subwoofer configurations.

With its integrated 8-channel signal processor, the 206 DSP offers a level of flexibility that is rarely found in its class. The AMPLIFY 206 DSP combines compact dimensions with impressive dynamics, clean headroom and excellent controllability – ideal for powerful front systems, complex OEM multi-channel architectures and setups where a single device is expected to handle as many tasks as possible.

  • Highly efficient amplifier with high output power of up to 240 Watts RMS @ 2 Ohms per channel for impressive dynamics and powerful sound
  • Integrated 8-channel DSP with precise adjustment options such as equalizer, time alignment, and filters for optimal adaptation to the vehicle
  • Modern 64 Bit fixed-point DSP architecture and high-quality AD/DA converters for clean signal processing and detailed reproduction
  • Flexible routing of DSP channels for configuring 2- or 3-way front systems, rear speakers, or subwoofer setups
  • Bridgeable amplifier channels for driving powerful woofer or subwoofer
  • Smart 6-channel highlevel input with ADEP.3 for trouble-free integration into OEM sound systems
  • VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems
  • ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
    AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
    DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
    Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
    SFX Sound Effects – Augmented Bass Processing, RealCenter & Co.
  • Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
  • Optical digital input in SPDIF format and two processed line outputs with max. 8 Volts output voltage
  • Very compact design for space-saving installation
  • Start-stop capability down to 6V supply voltage for uninterrupted performance
  • Auto Remote switch for amplifier activation without the need for an external remote signal
  • Advanced Class D concept for high efficiency and low heat dissipation
  • Maximum control with DSP PC-Tool 6 – professional software for precise amplifier configuration and accurate sound tuning in the vehicle

AMPLIFY 206DSP – Full-fledged HELIX DSP power in a compact 6-channel amplifier

The AMPLIFY 206 DSP combines a powerful 6-channel Class D amplifier with a full-featured 8-channel HELIX DSP – bringing more than 15 years of HELIX DSP expertise into the compact AMPLIFY 2-Series. At its core sits a 64 Bit fixed-point audio DSP, complemented by high-quality AD/DA converters and the fast, stable ACO platform. Together, these elements form the same technological foundation uséd in our larger HELIX DSP systems: precise signal processing, high computing performance and a consistently reliable architecture. This gives the AMPLIFY 206 DSP a level of audio performance and functionality that is rarely achieved in this form factor – positioning it as a particularly powerful and highly efficient price-performance solution within the HELIX DSP amplifier lineup.

Sound and power – above the standard

The AMPLIFY 2-Series is more than just a range of application-specific solutions – it's a clear commitment to a very specific mission: to outperform expectations in each of those applications – both in sound quality and power delivery. All amplifiers in the series offer brilliant sound performance, minimal distortion, and an outstanding signal-to-noise ratio – combined with fully bridgeable multi-channel outputs for maximum output and installation flexibility. The result: a lineup that doesn’t define itself by its class, but sets new benchmarks within it – making AMPLIFY the first choice for those seeking application-focuséd performance without compromise.

Form follows performance

The design of the HELIX AMPLIFY 2-Series blends modern functionality with a refined, technical aesthetic. Its compact dimensions allow for flexible installation, even in tight spaces. A removable top cover conceals all connections and controls, offering additional protection as well as a clean and streamlined appearance that highlights the amplifier’s high-quality character. Matte surfaces, sharp contours, and a minimalist design language create a sleek, exclusive look that integrates seamlessly into any modern vehicle interior.

Augmented Bass Processing

Audiotec Fischer’s proprietary “Augmented Bass Processing”, consisting of the two revolutionary sound features “Dynamic Bass Enhancement” and “SubXpander”, has been especially developed to dramatically improve the bass reproduction of subwoofers.
