Description:

Material: Aluminum Alloy
Color: Green
Display: 160*128 TFT Color LCD Display
Input Voltage: DC 12-60V
Output Current: 0-10A Adjustable
Output Power: 20-600W

Working Modes: MPPT and DC-DC
Item Size(approx.): 131 * 96 * 54mm / 5.2 * 3.8 * 2.2inch
Output Voltage: DC 15-90V, Adjustable to accommodate 24V/36V/48V/60V/72V Battery
Applicable to 24V/36V/48V/60V/72V battery pack system, user can set the output voltage and current according to actual need.
Working modes: MPPT and DC-DC selectable, MPPT for photovoltaic panels application and DC-DC for boost power supply.
Built-in 20 groups of data for user to set and store, support for multi-purpose.
Max. output power is 600W, best suitable for 100W-600W solar panel; the greater the power, the MPPT effect is more obvious.
Reverse connecting protection: MOS reverse protection circuit for input and output end to effectively protect the controller and battery.

MPPT means Maximum Power Point Tracking (MPPT), MPPT solar charge controller is the upgrade of traditional product. MPPT voltage generating real-time detection of solar panels to track the highest voltage and current (vi) adjusting the electrical module through extension work state, so that the maximum power output of the system to charge the battery. MPPT controller used in solar photovoltaic systems, coordination of solar panels to charge the battery, is the brain of the PV system.
The controller uses advanced software active algorithm for quickly and accurately tracking the maximum power point of photovoltaic panels module voltage, active tracking work at the maximum power point of the solar cell module in order to get more solar energy. Enhance the charging current and power generation.

Package includes:

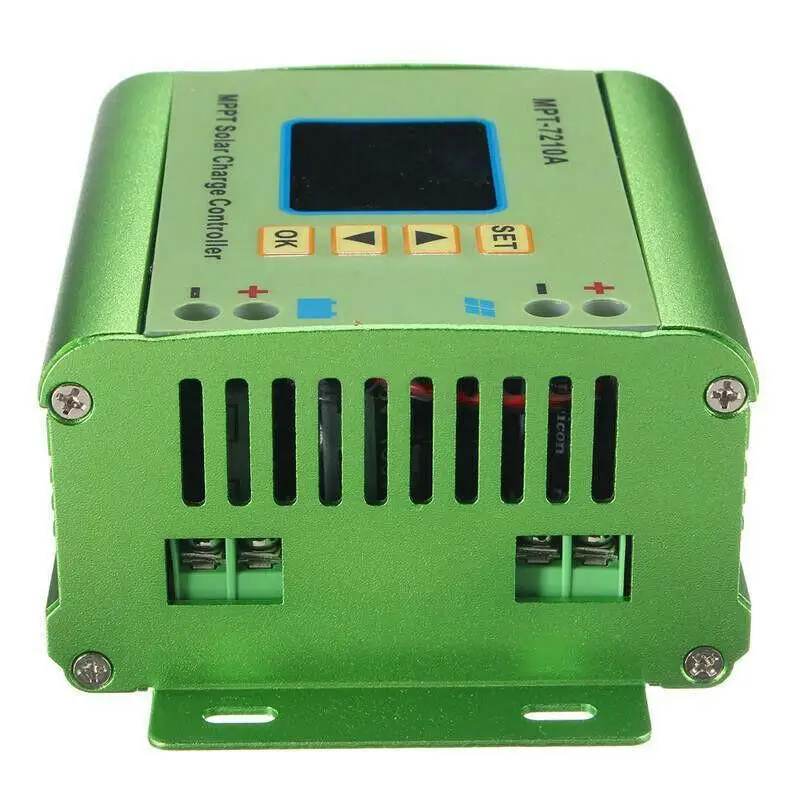

1 * MPPT Solar Charge Controller
1 * User Manual (English)
