Compliance Statement
This product complies with CE relevant safety standards.

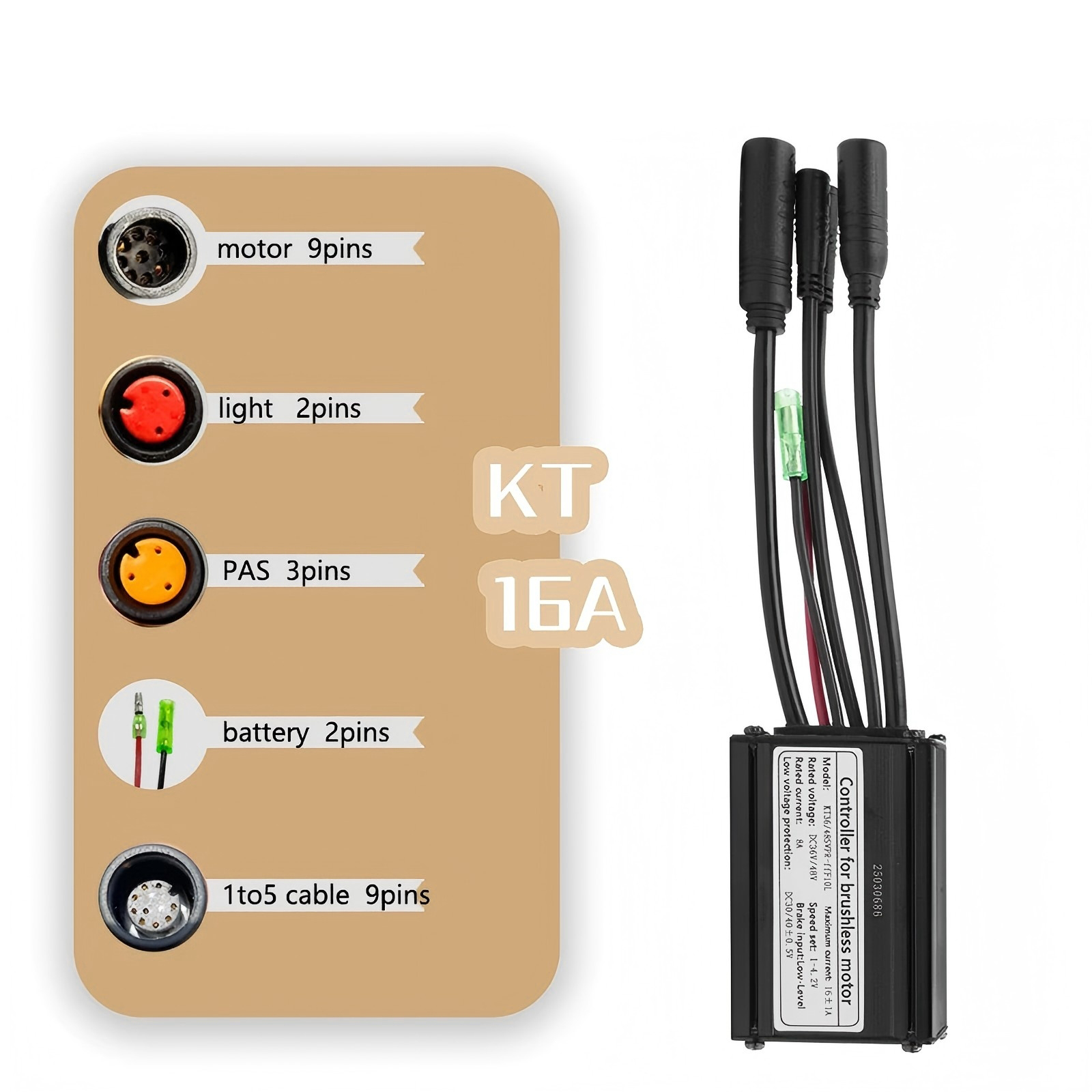

KT-16A Controller
Specification:

Size:80*51*30mm

Mosfet:6 mosfets

Maximum current:16±1A

Rated current:8A

Rated voltage:DC36V/48V

Speed set:1-4.2V

Brake input :Low-Level

Low voltage protection:DC30/40±0.5V

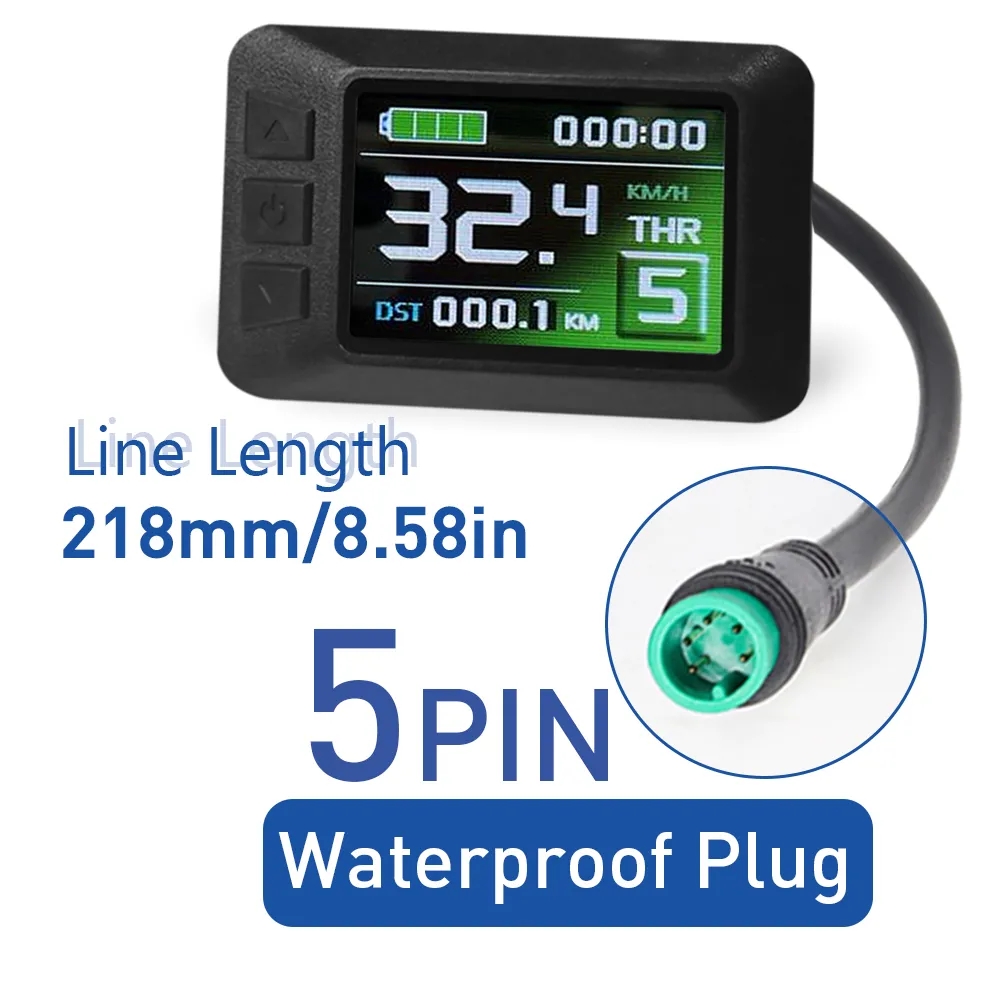

KT-LCD7C display
1.Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling

2.Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;

3.Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;

4.Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameter.

5.Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;

6.Cruise and constant speed:With the setting and display of the cruise,  so that the vehicle drives at a constant speed;

7.Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

8.Password setting:With three-bit of power-on password setting;

9.Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle.

10.Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;

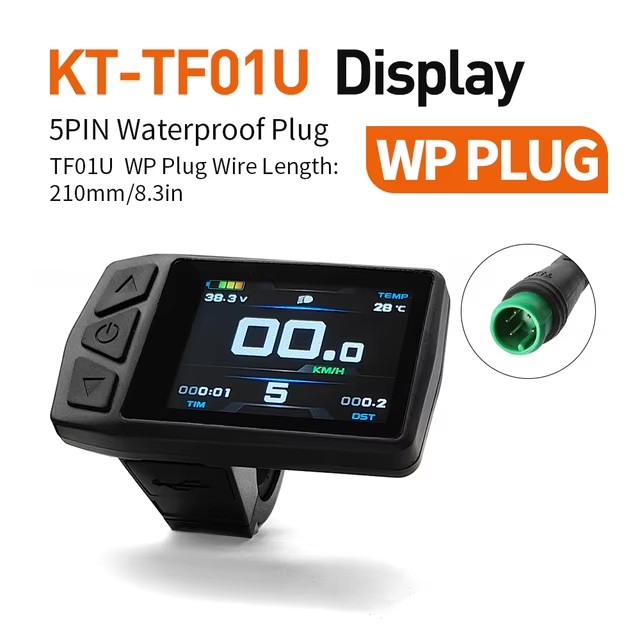

KT-TF01U display
1.Visual acceleration bar: You can immediately see the intuitive feedback of acceleration on the screen by simply operating the throttle.

2.Supports a universal voltage range of 24V to 48V, which can adapt to most electric bicycle battery systems

3. Equipped with a built-in USB interface, it can directly charge mobile devices such as phones,

keeping communication devices fully charged at all times.

4.The TF01U electric bicycle display panel has multiple parameter setting options built-in, adjusting

display brightness, speed units (such as kilometers per hour or miles per hour), etc., to achieve

personalized riding experience.

Specification:

Product Model: TF01U Colour display

Colour: Shell black、 Colour display

Applicable voltage: 24V/36V/48V

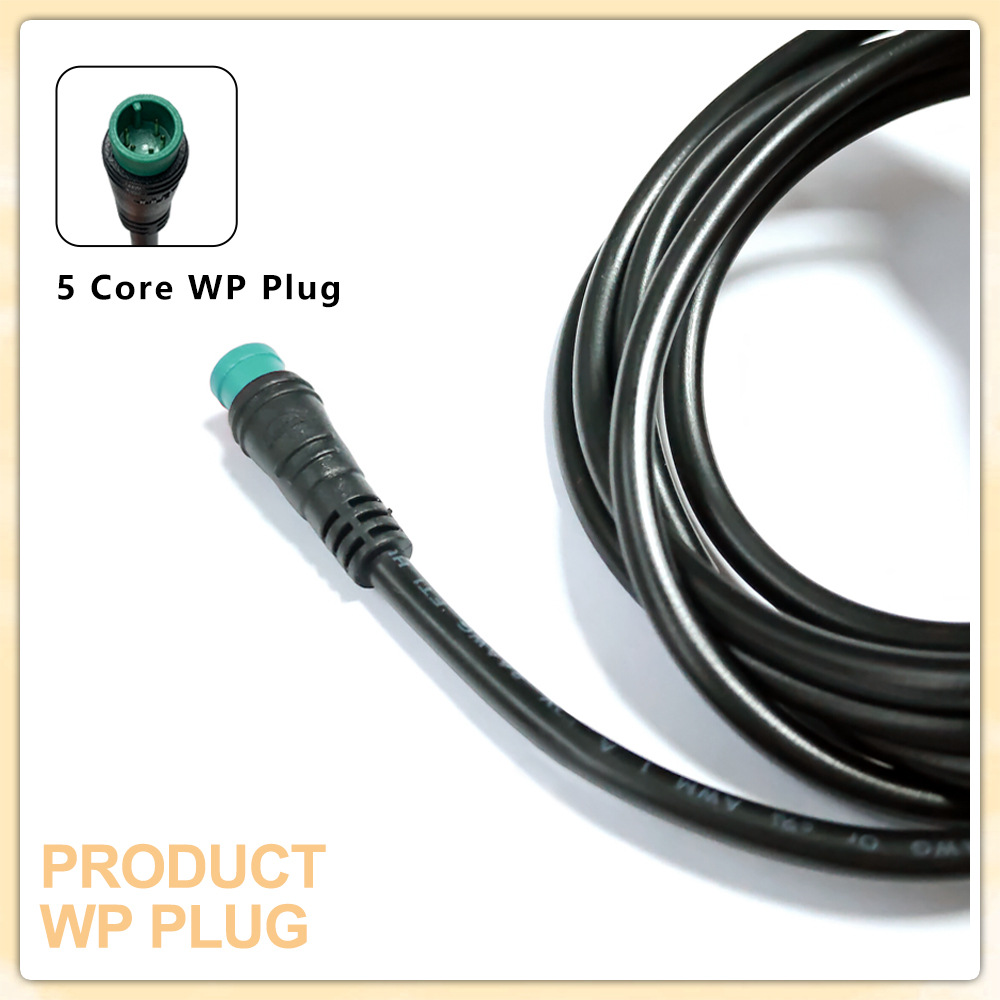

Plug specification: 5PIN WP

Cable length: 210mm (WP Plug)

Applicable handlebar diameter: ≤22mm

USB Charging: 5V 500MA

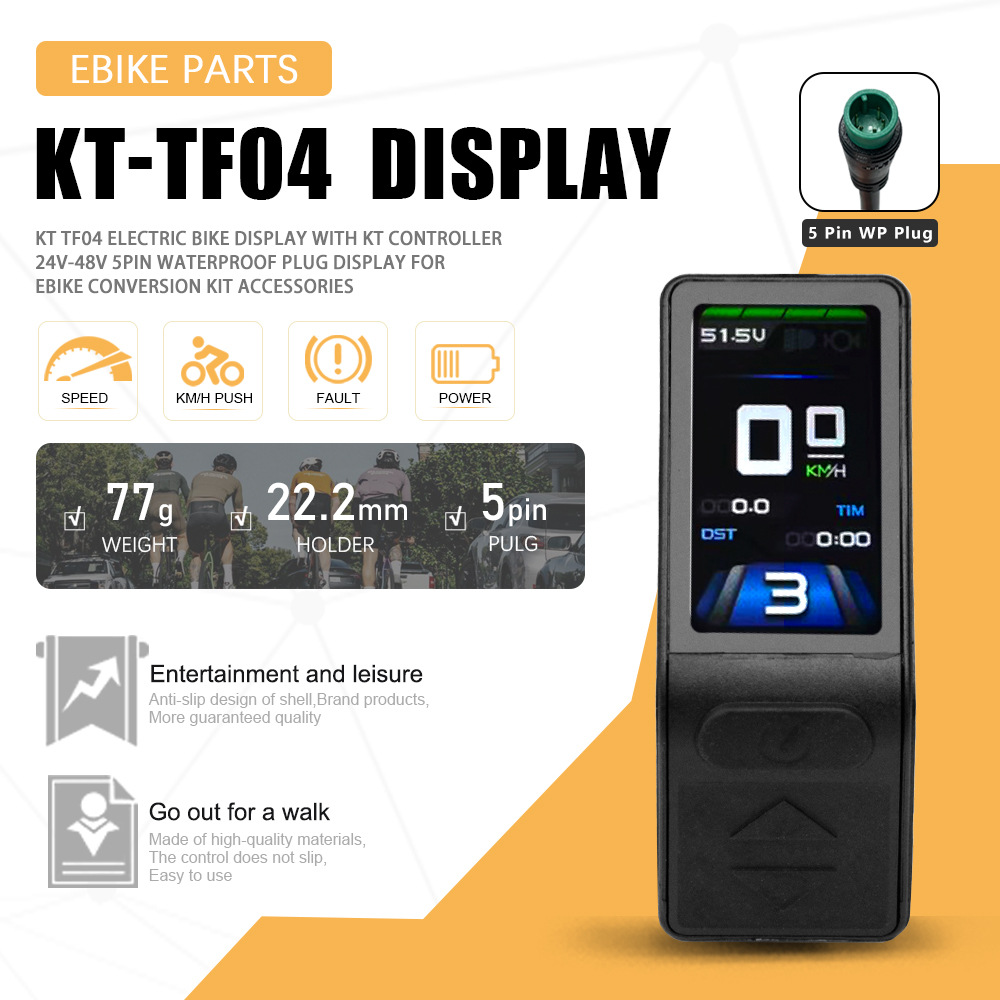

KT-TF04

Specifications：

1. Type: KT-TF04 display

2. Voltage: 24V, 36V, 48V

3. Colour: Black

4. Weight: about 200g

5--Grip size: Φ22.2mm

6. Display line length: WP connector, about 45cm

7. The display can show the speed, single range and accumulated range, time, PAS level, power, temp, battery voltage and capacity.

8. You can set speed, PAS level, protection voltage and current for the controller etc;

9. You can view the history speed, range and riding time etc;

10. Turn on password can be set.

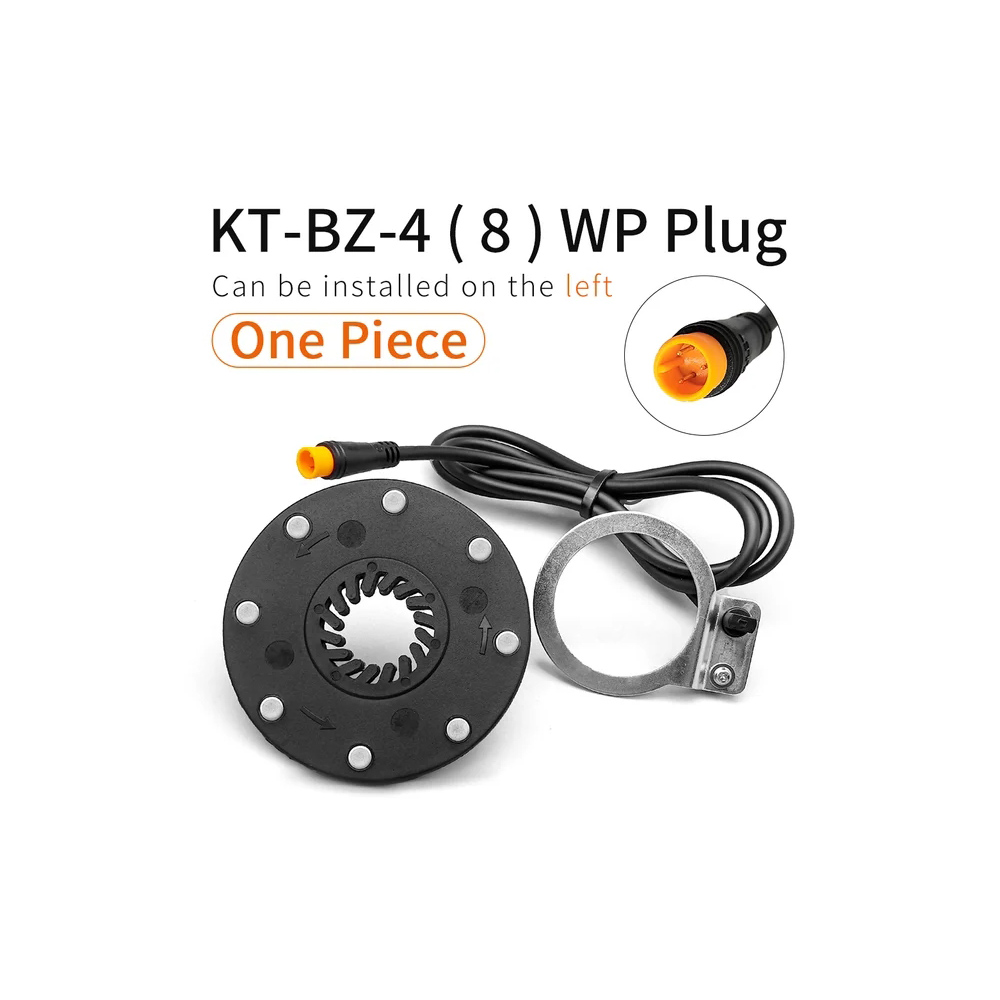

8 magnetic PAS

Parameter

Type :BZ-4(8) 8 magnent PAS

Installation :Left

Voltage :36V,48V

Color :Black

Weight :50G

Magnet :8 Magnets

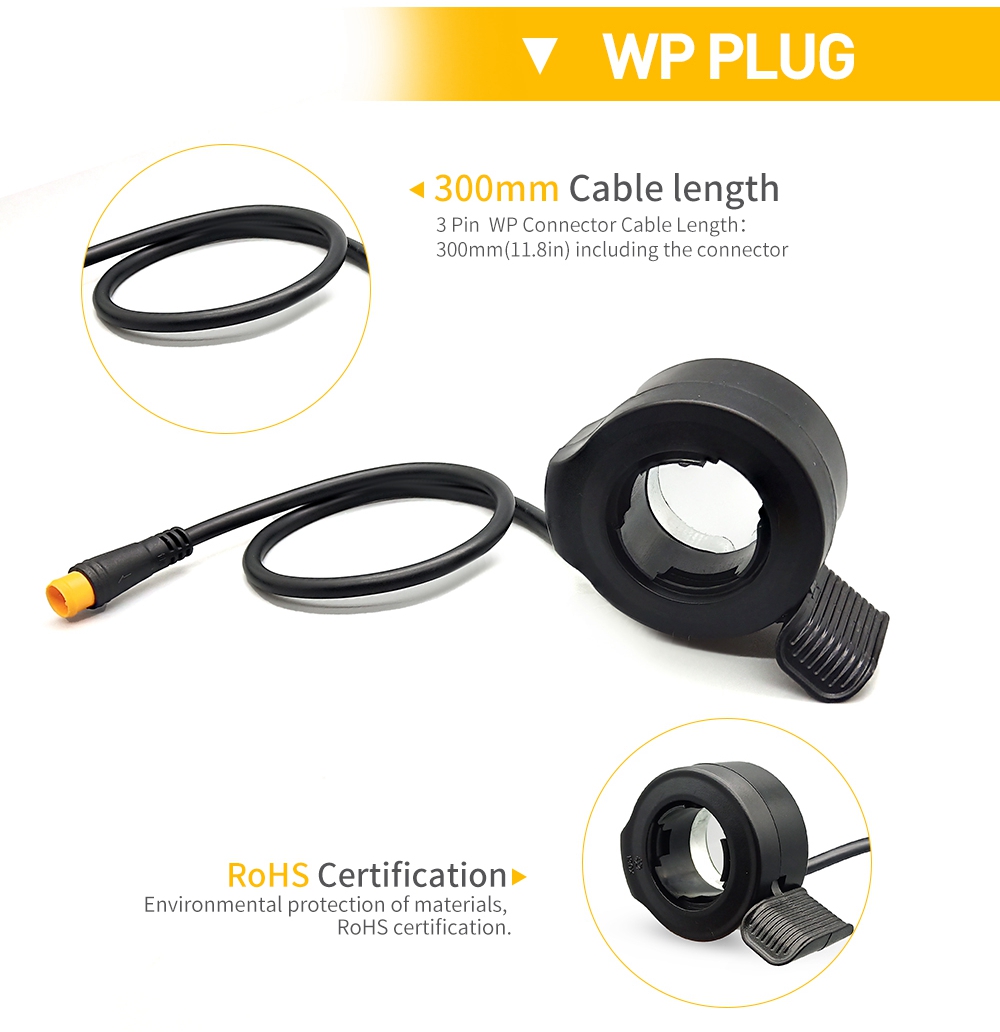

130X Thumb Throttle
Parameter

1.Type:130X Thumb Throttle

2.Voltage:24V,36V,48V,52V,60V,72V

3.Color:Black

4.Wire length:25cm(Waterproof)

5.Plug:3 Pin Connector

6.Installation:Right and Left

7.Weight:100G

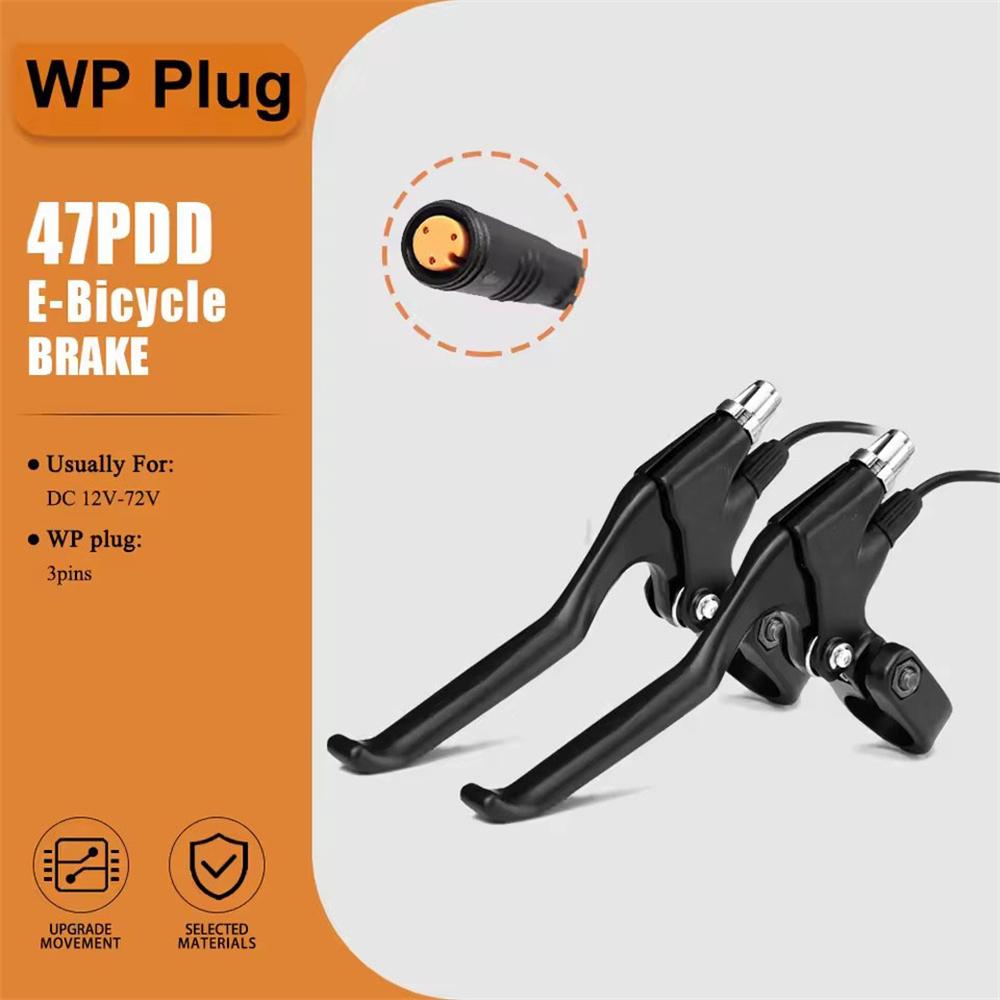

47PDD Brake Lever
Parameter:

1.Type: WUXING 47PDD

2.Colour: Black

3.Cable length: 35cm/13.7in (waterproof)

4.Waterproof:IPX4

5.Material: Aluminum Alloy

Note：

KT controller only compatible with KT display .Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order .
