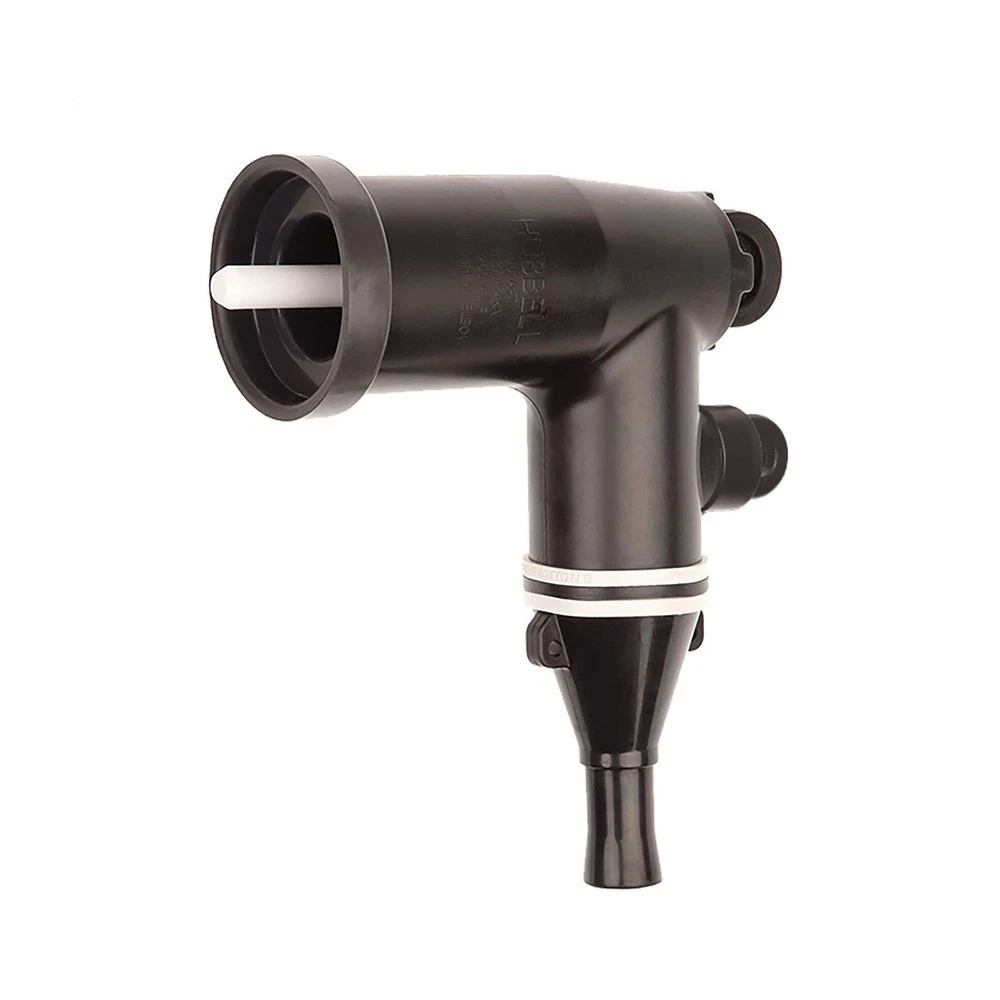

Hubbell 215LE30T 200 Amp 15kV Load Break Elbow with Test Point (Size 3)
Click Thumbnails to Enlarge
DESCRIPTION
• Hubbell 215LE30T 200 Amp 15kV Load Break Elbow with Test Point
FEATURES
• Meets or Exceeds IEEE Std. 386 and IEEE Std. 592 requirements
• Interchangeable with other products meeting the same requirements
• Fully shielded, insulated and submersible
ELECTRICAL RATINGS
• AC Withstand Voltage (1 min): 34 kV
• Basic Impulse Level: 95 kV
• Corona Extinction (3pC): 11 kV
• Current Rating: 200 A
• kV Class: 15 kV
PRODUCT SPECIFICATIONS
| Part Number | 215LE30T |
|---|---|
| Integral Seal | No |
| ProbeLok Connectors | No |
| Type | 200Amp Load Break Elbow |
| Cable Insulation Diameter Minimum (inch) | 0.495 |
| Cable Insulation Diameter Maximum (inch) | 0.730 |
| Height (inch) | 9.00 |
| Length (inch) | 8.25 |
| Width (inch) | 2.87 |
| Weight (lb) | 2.75 |
