Four Types of Plugs For Option
（We will automatically equip the corresponding power cord according to your country, Please don't worry）

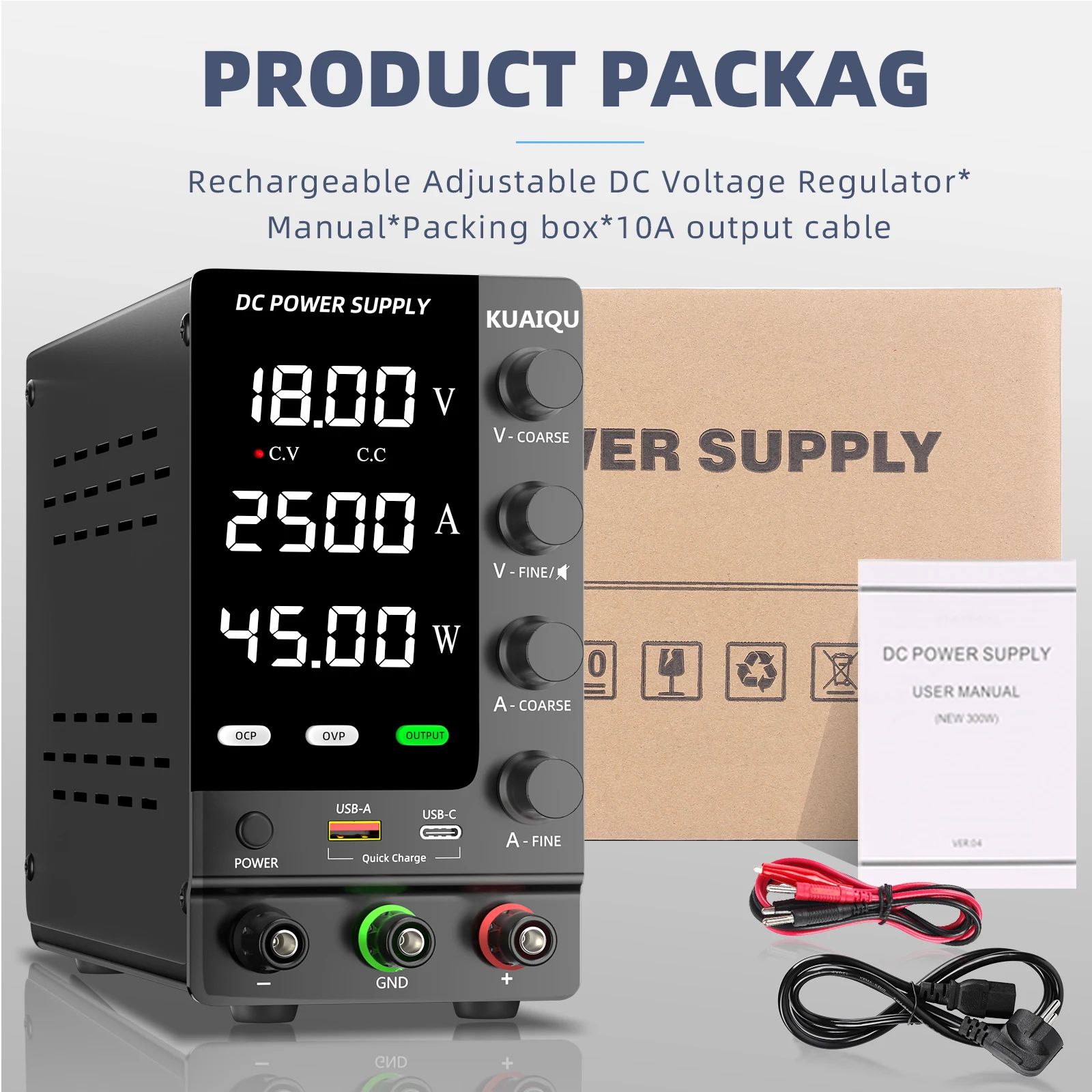

Your Packing List include:
1X DC Power Supply
1X Black Output Line
1X Red Output Line
1X Instruction Book (English)
1X Pakcgae Box(Hard)
2X Protective Sponge
1X Certificate of Conformity(1 Year)
Smart Charging Series
Smart Charging Series As Below: One click Charging function OVP protection OUTPUT switch TYPE-C/ USB-A Port Buzzer alarm Encoder knob
Which voltage and current should I choose？
The higher the charging voltage, the more types of batteries you can charge
The higher the charging current, the faster the charging speed

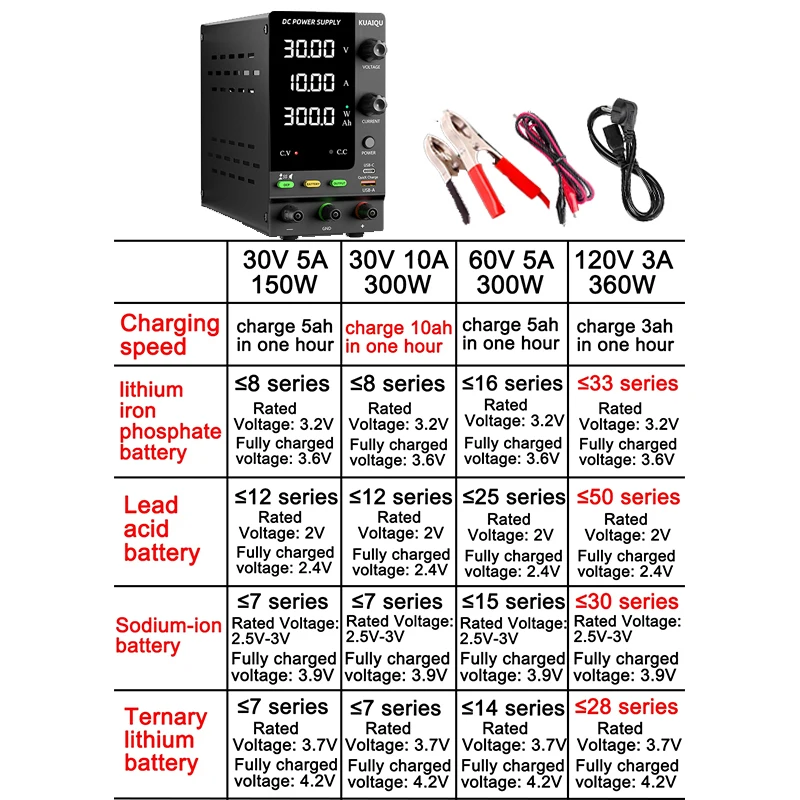

Therefore, the differences between the four models in our link are as follows
30V 5A 150W, Suitable for batteries: 8 series lithium iron phosphate battery/12 series Lead-acid battery/7 series sodium-ion batteries/7 series Ternary lithium battery, can charge 5ah in one hour
30V 10A 300W, Suitable for batteries: 8 series lithium iron phosphate battery/12 series Lead-acid battery/7 series sodium-ion batteries/7 series Ternary lithium battery, capable of charging up to 10ah per hour
60V 5A 300W, Suitable for batteries: 16 series lithium iron phosphate battery/25 series Lead-acid battery/15 series sodium-ion batteries/14 series Ternary lithium battery, can be charged for 5ah in one hour
120V 3A 360W, Suitable for batteries: 33 series lithium iron phosphate battery/50 series Lead-acid battery/30 series sodium-ion batteries/28 series Ternary lithium battery, can charge 3ah in one hour
Common Battery Charge Current and Charge Voltage:
Charging voltage = 1.15 * battery rated voltage.
Charging current = 0.1C~1C ("C" is the battery capacity).
”BATTERY“ Function Description
Charging precautions:
1. It is necessary to set the charging voltage and charging current according to the original battery manufacturer's recommendations. The charging voltage is generally 1.15 times the rated voltage of the battery, and the charging current is set to 0.2C (C=total battery capacity, unit: Ah, for example)
5000mAh battery, charging current should be set to 1A, the higher the current, the faster the charging speed
2. Please make sure to work in battery charging mode (press the battery button to turn on the light)
3. Connect the battery correctly, with red corresponding to the positive pole and black corresponding to the negative pole. After confirming that everything is correct, press the OUTPUT button to start charging
4. This product is not a professional charging device. If used for a long time, please purchase the corresponding dedicated charger
5. Non professionals or untrained personnel are prohibited from using
6. Please ensure that someone is on duty during the charging process and prohibit charging when leaving
7. Minors are prohibited from using。
Activate battery function:
1> TicNe charging: Used for severely discharged batteries (such as those that have not been used for a long time) that require recharging. During the charging process, set
The charging current loss exceeds 0.1C (C=capacity in Ah), for example, for a 5Ah battery, the charging current should be set to 0.5A. After the battery is fully charged
Reach the Qatar valve and switch to standard charging with 0.2c.
2>Connect the positive and negative terminals of the power supply to the positive and negative terminals of the rechargeable battery using an output cable. After connection, the "battery" light remains yellow, press the "output" button to start charging (the Ah indicator light on the panel lights up, and the screen displays the charging amount)
Charging function operation description:
Turn on the "BATTERY" function, the orange light flashes
When the battery is charging normally, the orange light "BATTERY" stays on
The "BATTERY" light flashes orange, indicating a wiring error or battery damage
After the battery is fully charged, the "BATTERY" light turns green and the output is disconnected
Firstly, you will press the "Battery" button (the "Battery" light will start flashing yellow), and adjust the voltage and current adjustment knobs to the desired values.
If the connection is incorrect (polarity heating or disconnection), or if there is a problem with the battery and charging cannot start, the "battery" light will remain on
twinkle. Confirm correct connection or check if the battery is damaged.
If there is an abnormal situation such as cable disconnection during the charging process, the power supply will stop charging, and the "battery" light will start flashing again.
Please solve the problem before pressing the 'OUTPUT' button to continue charging.
After charging is completed, the green light on the "battery" indicates that the battery is fully charged.
About this item

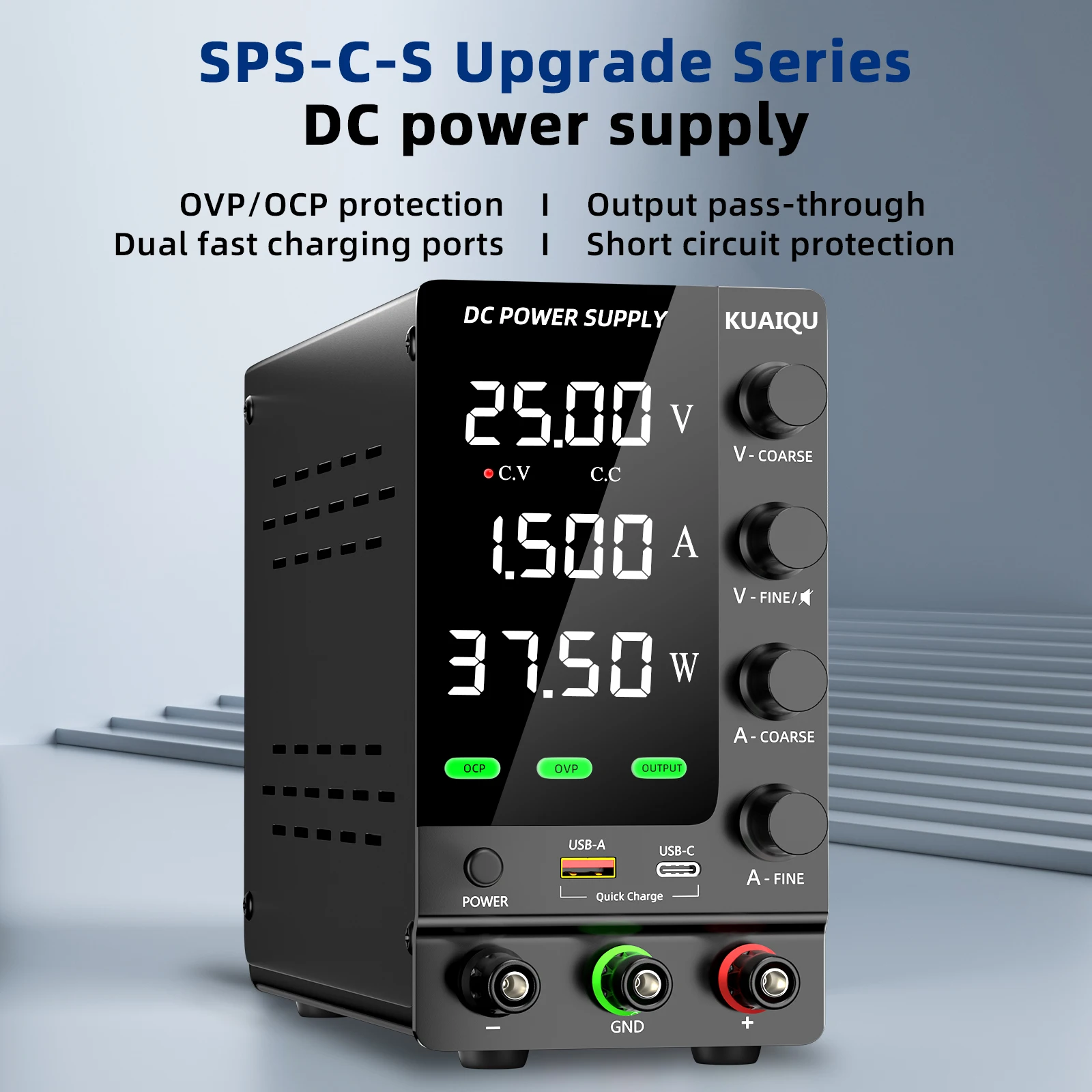

Precise 4-digit LED Display, Auto Power Calculation: The KUAIQU DC power supply variable is a professional switching power supply regulation device with a high resolution of 0.01V and 0.001A. The variable power supply features a big bright 4-digit LED display that shows the adjustable power supply output values of Voltage (V) / Current (A) / Power (W) in real-time. The high-definition backlit 4-digit LED display provides an accurate and clear readout for the voltage, current and power values even if you are in low-light condition

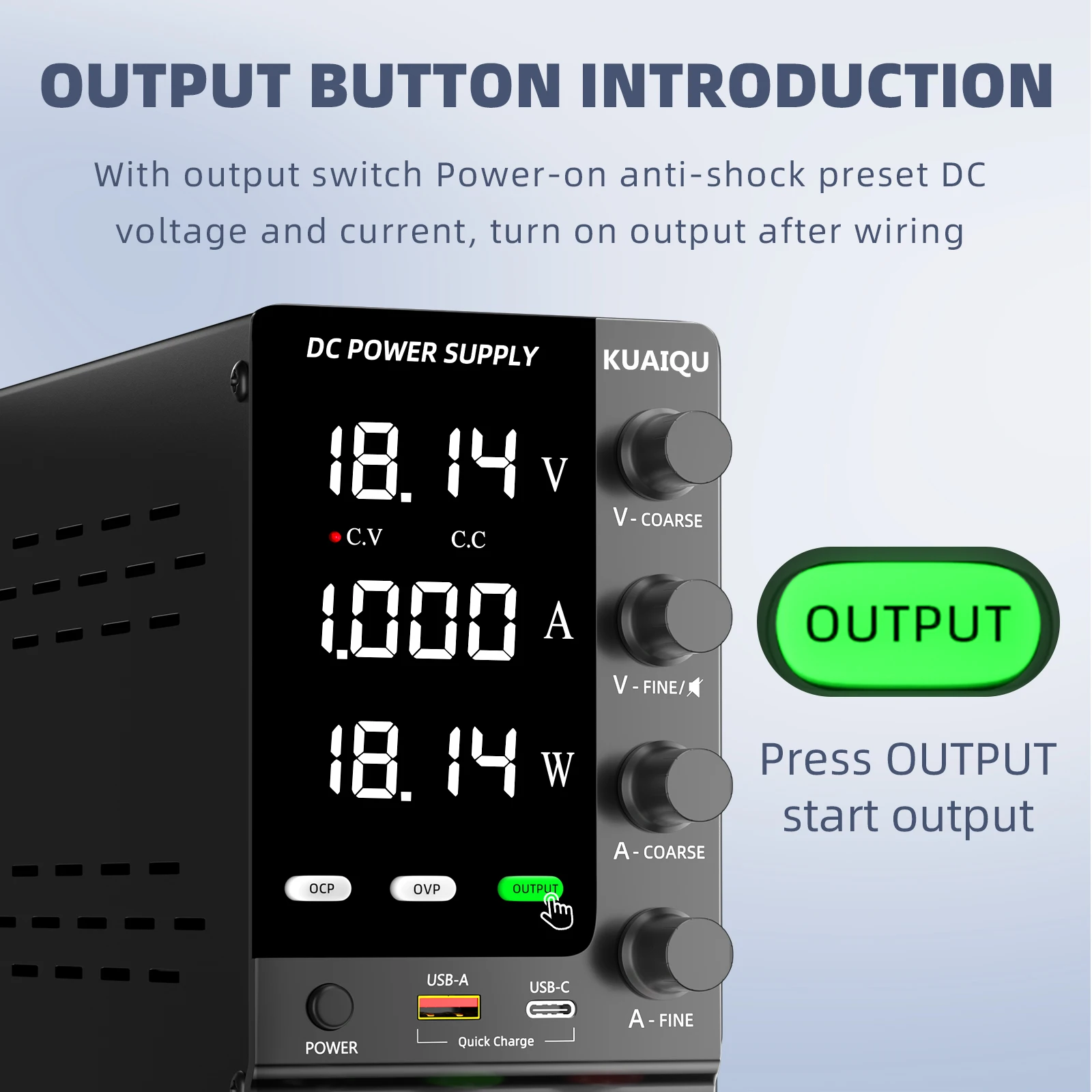

Output Switch Control: Sometimes we need to switch between different voltage or current outputs in experiments or work, but we often forget to turn off the output and causing damage to the load. The adjustable DC power supply OUTPUT (ON/OFF) key is designed to solve this problem, just with a single press of the added OUTPUT (ON/OFF) key, you can easily turn the output on or off. The required voltage and current can be adjusted without actual output power, which makes this benchtop DC power supply more secure and more energy saving. Also, you don't need to remove the load or turn off the power each time, making the variable DC power supply more convenient and efficient to use
Reliability and Safety: Safety is our priority, all lab power supplies are CE & FCC certified. The adjustable switching regulated power supply is built with premium electronic components and reliable circuit designs that include multiple protection functions, such as leakage, grounding terminal, over-voltage, over-current, over-power, over-load, over-temperature, short-circuit protection to ensure stable working performance and prolong the life of the adjustable DC power supply effectively. Kindly Remind -For safety considerations, the DC power supply comes with 110V/220V input WIth EU/US/AU/UK Plug.

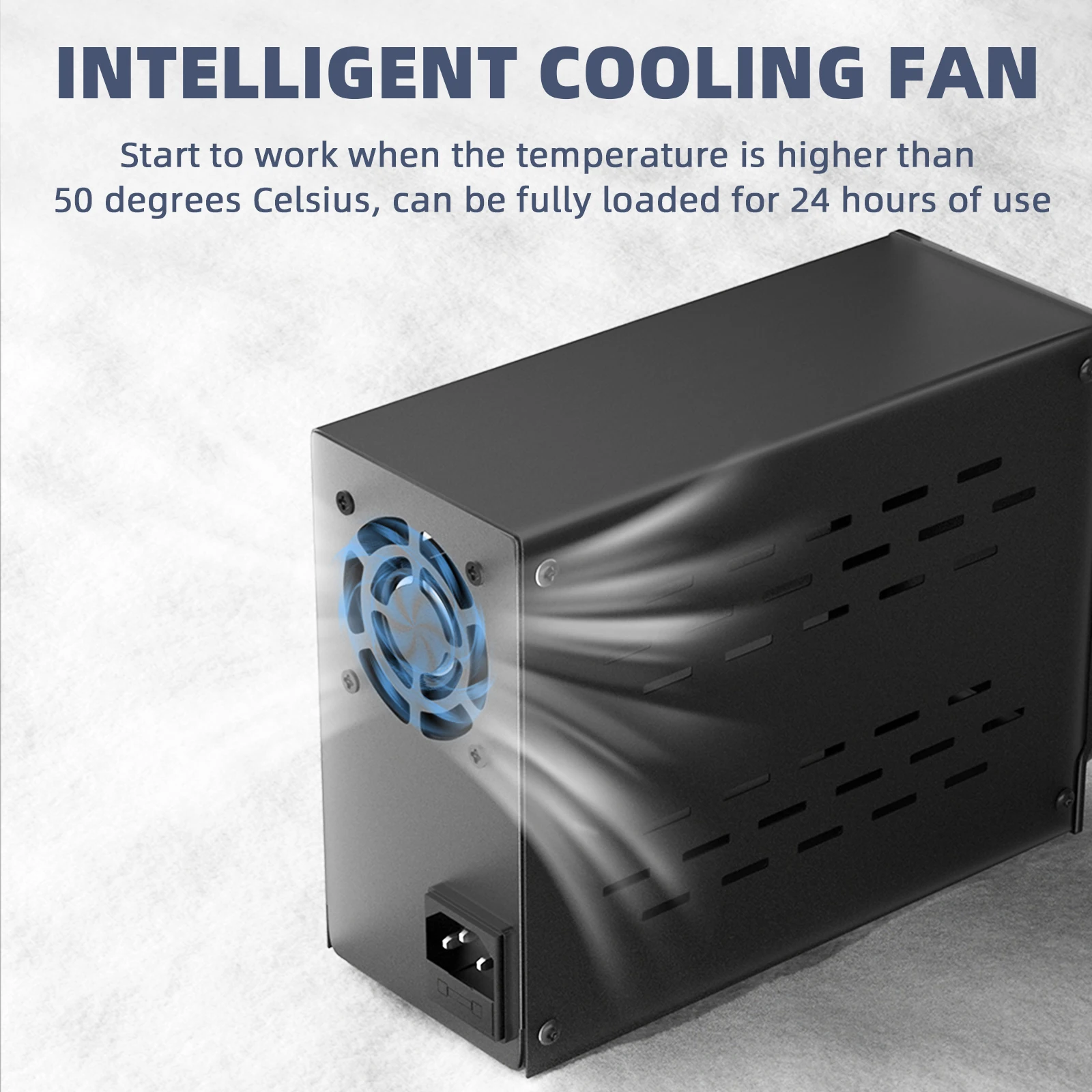

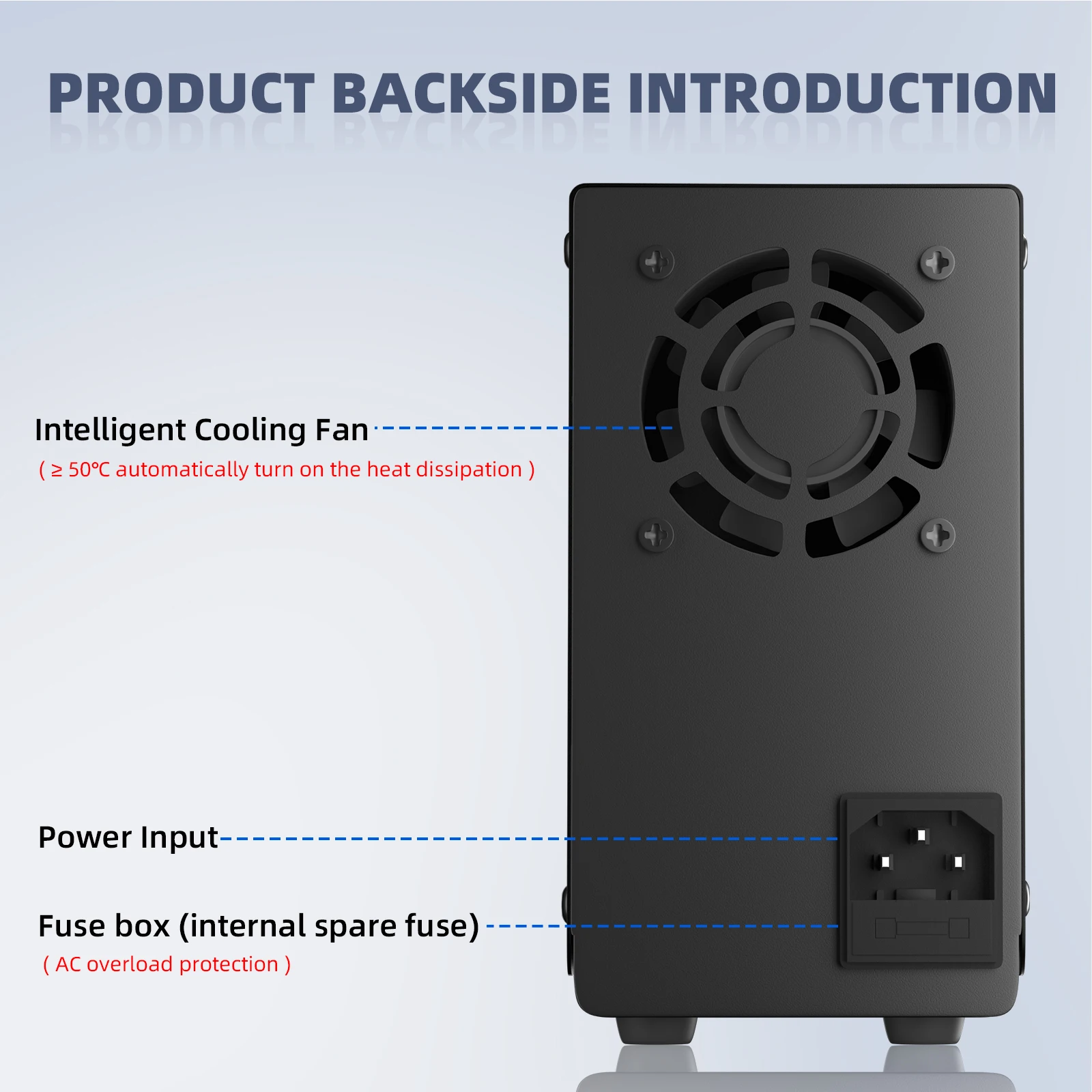

5V 2A USB Port, Intelligent Cooling Fan: Complaining about mobile phones or repaired devices not being charged in time? The NICE-POWER adjustable DC power supply allows you to avoid this dilemma. The variable power supply has built-in 5V 2A USB charging interface which can quickly charge any USB devices anytime. The adjustable power supply features with intelligent temperature-controlled fan and heat sink for excellent heat dissipation when the working temperature of the switching power supply exceeds 122℉/50℃, greatly reduce working noise and improving the DC regulated power supplies working efficiency and lifespan
Compact Design, Lightweight and Portable: The DC voltage stabilized power supplies adopt stable vertical design with the shock-absorbing rubber feet on the bottom of bench supply, making it safer and more stable when using. The size of adjustable DC power supply is 8.4*3.3*5.5 inches and the lab power supply weighs only 2.6 lbs, which is very light and portable. You can carry your bench supply in and out of various workplaces
Various Applications: This benchtop power supply is suitable for battery charging ( LiFePO4, lead acid batteries, etc.), electronics repair, communication equipment maintenance, electrolysis, electroplating, brush plating, lamp test, aging test, burn-in test, production line test, DIY, labs, schools, laboratories scientific research and teaching etc. The KUAIQU DC power supply is a nice choice for beginners or professional electricians and DIY electronics hobbyist
Stable Output, C.V./C.C. Automatic Conversion: This variable DC power supply is a low noise, low ripple adjustable continuous output power supply that can work at full load for a long period of time. The bench power supply can be used as a constant-voltage (C.V.) power supply and constant-current (C.C.) power supply even when the load is changed. The constant voltage/current mode can automatically switch with load changes, you can check the working status indicator on the LED display

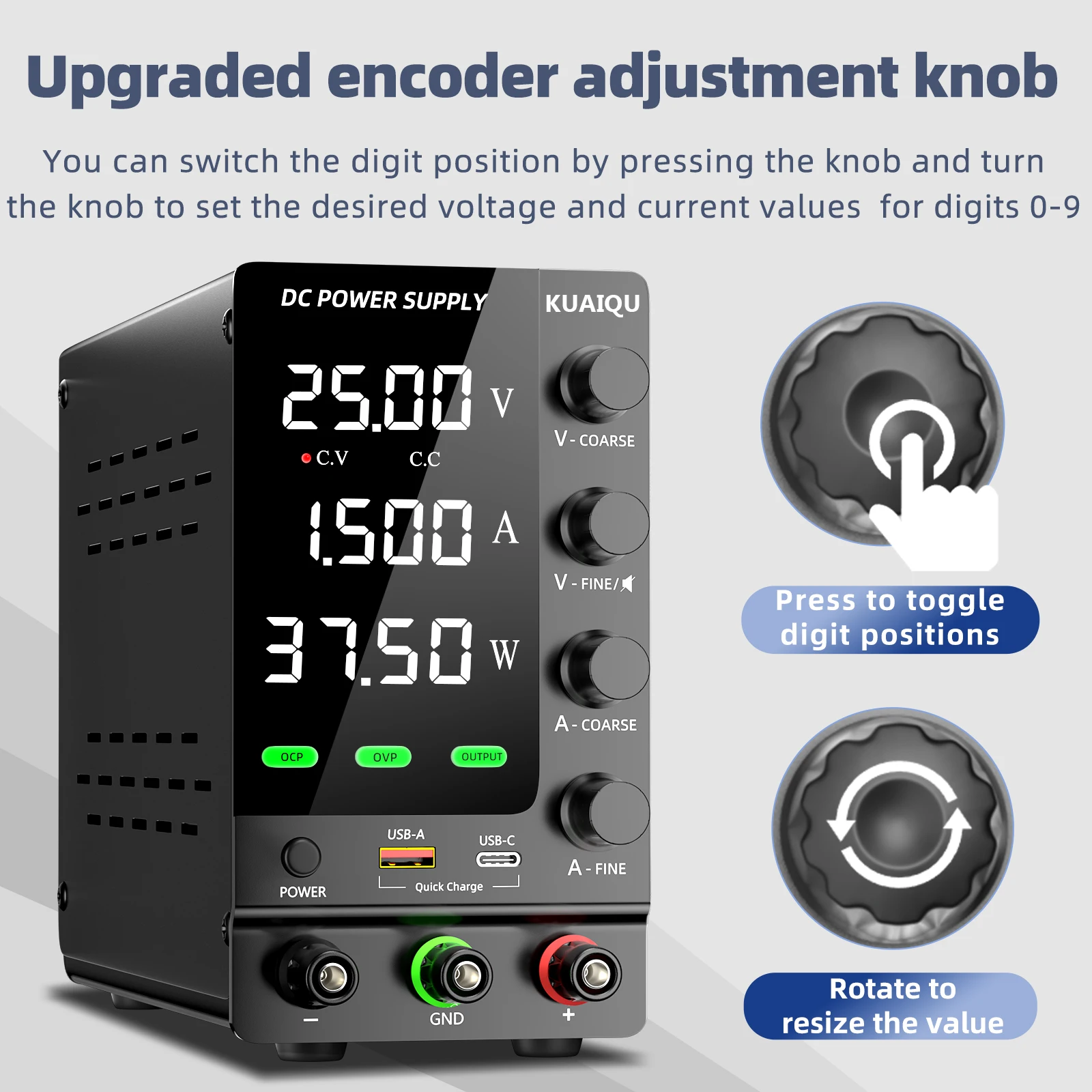

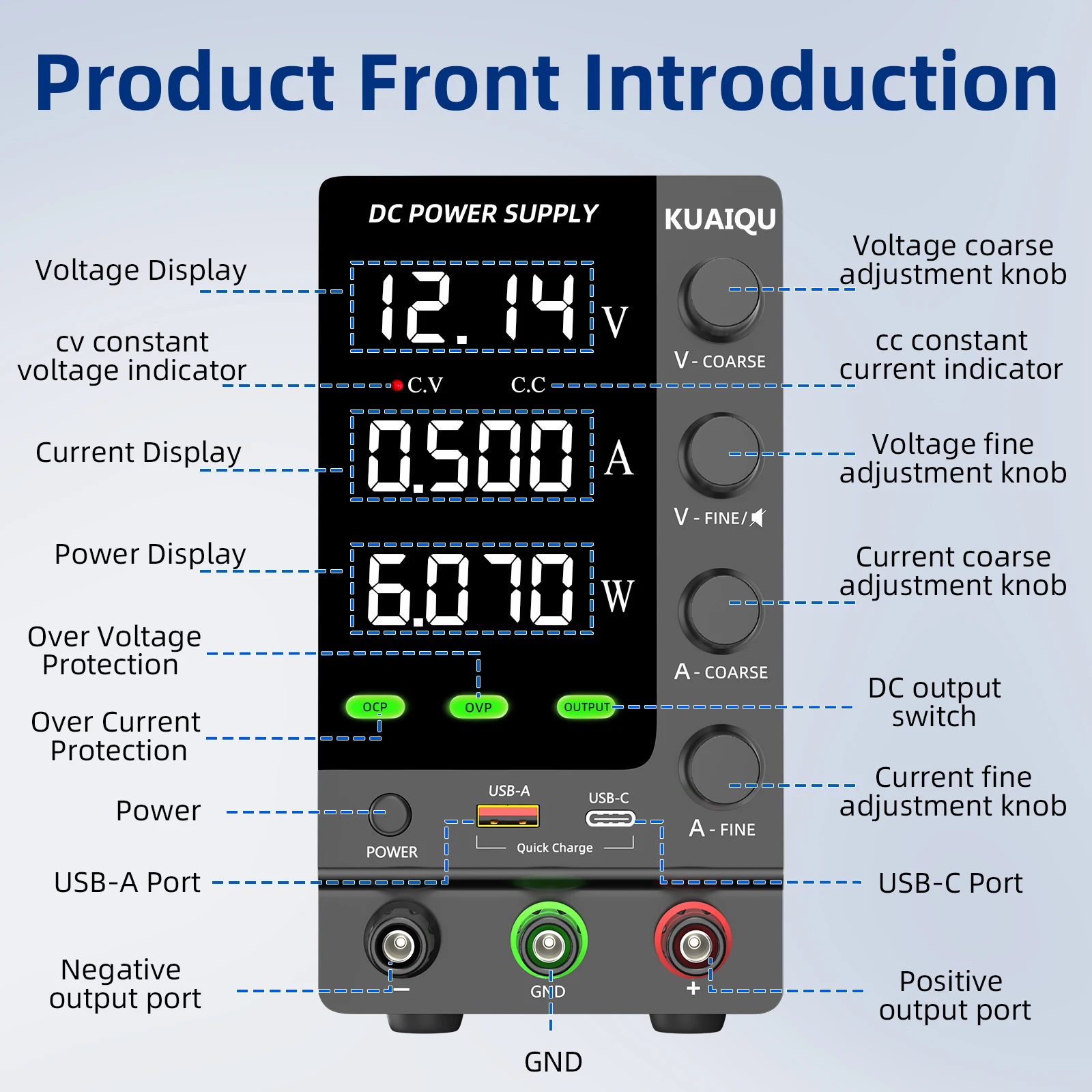

Front Power Switch, Precise Coarse & Fine Adjustment Knobs: Upgrade from the old-fashion switching power supply, the brand new version power switch is on the front of DC regulated power supplies, you do not need to turn to the back to turn on/off the adjustable switching regulated power supply, easy and convenient to use. The adjustable switching DC regulated bench power supply features with precise coarse and fine voltage/current adjustment knobs, you can set the desired voltage and current on KUAIQU bench supply effortlessly.
Quality Assurance, Customer Service: , efficient after-sales service, technical support. We will inspect all lab power supplies and accessories before shipment to ensure that the quality of the adjustable switching DC regulated bench power supply received by each customer is good. If you have any questions about our variable power supply, please let us know without hesitation, we will response back within 24 hours
DC Power Supply Variable Specification
Application range:
Adjustable battery charging power supply, can charge the batteries of various machinery and equipment, such as electric vehicles, golf carts, sweepers, cars, drones, and so on.
1. For teaching experiments, research
2. Testing and aging for electronic production line products
3. For the repair of communication equipment
4. Other areas that require DC regulated power supply
Technical Parameters
Input voltage: AC220V±10% 50Hz or AC110V±10% 60Hz
Working temperature: -10 ° C -40 ° C Relative humidity <90%
Storage temperature: -10 ° C -70 ° C Relative humidity <80%
Regulated state: Voltage stability ≤ 0.01% + 3mV
Load stability ≤ 0.01% + 5mV
Recovery time ≤100us
Temperature coefficient ≤300PPM/°C
Steady flow state: Current stability ≤ 0.2% + 3mA
Load stability ≤ 0.2% + 3mA

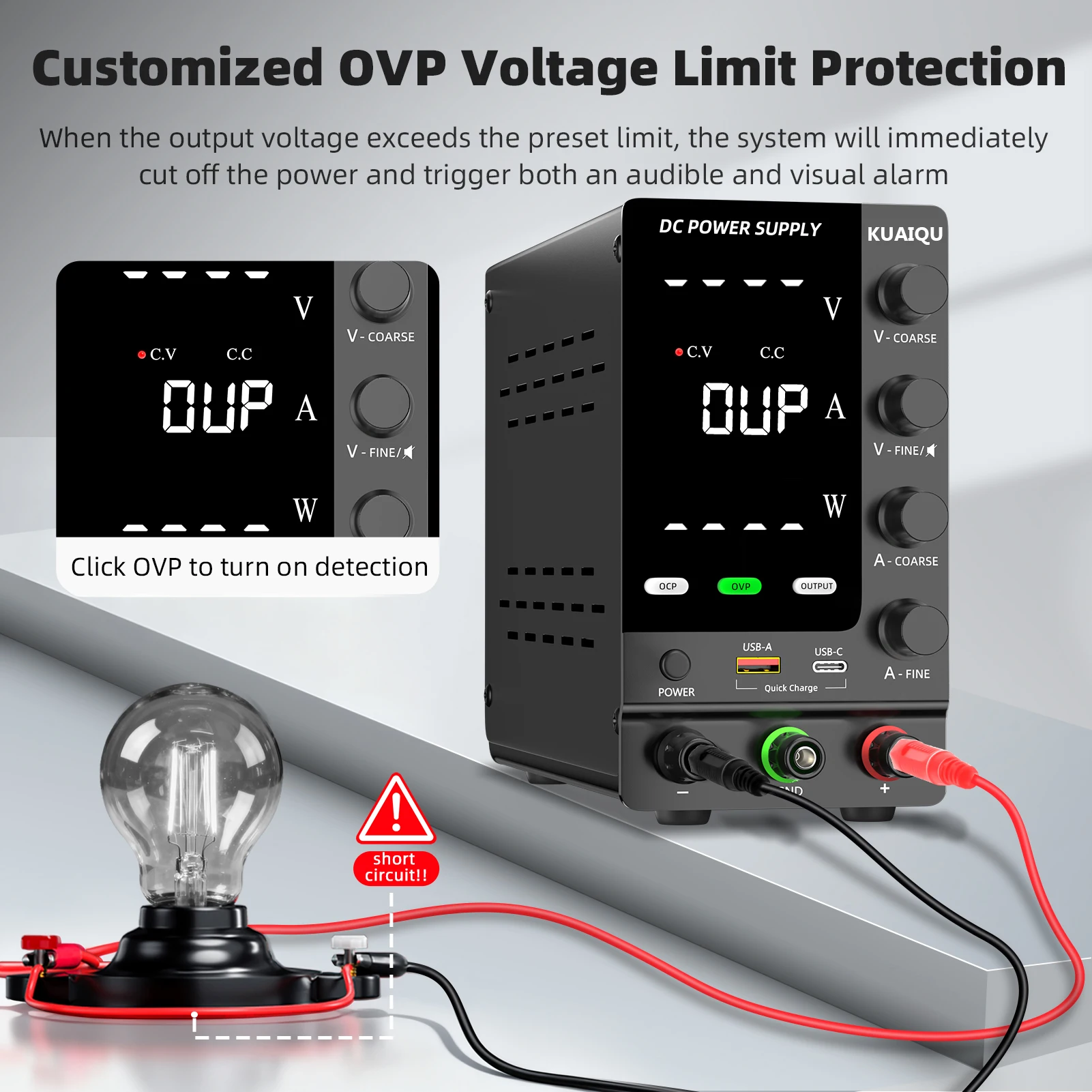

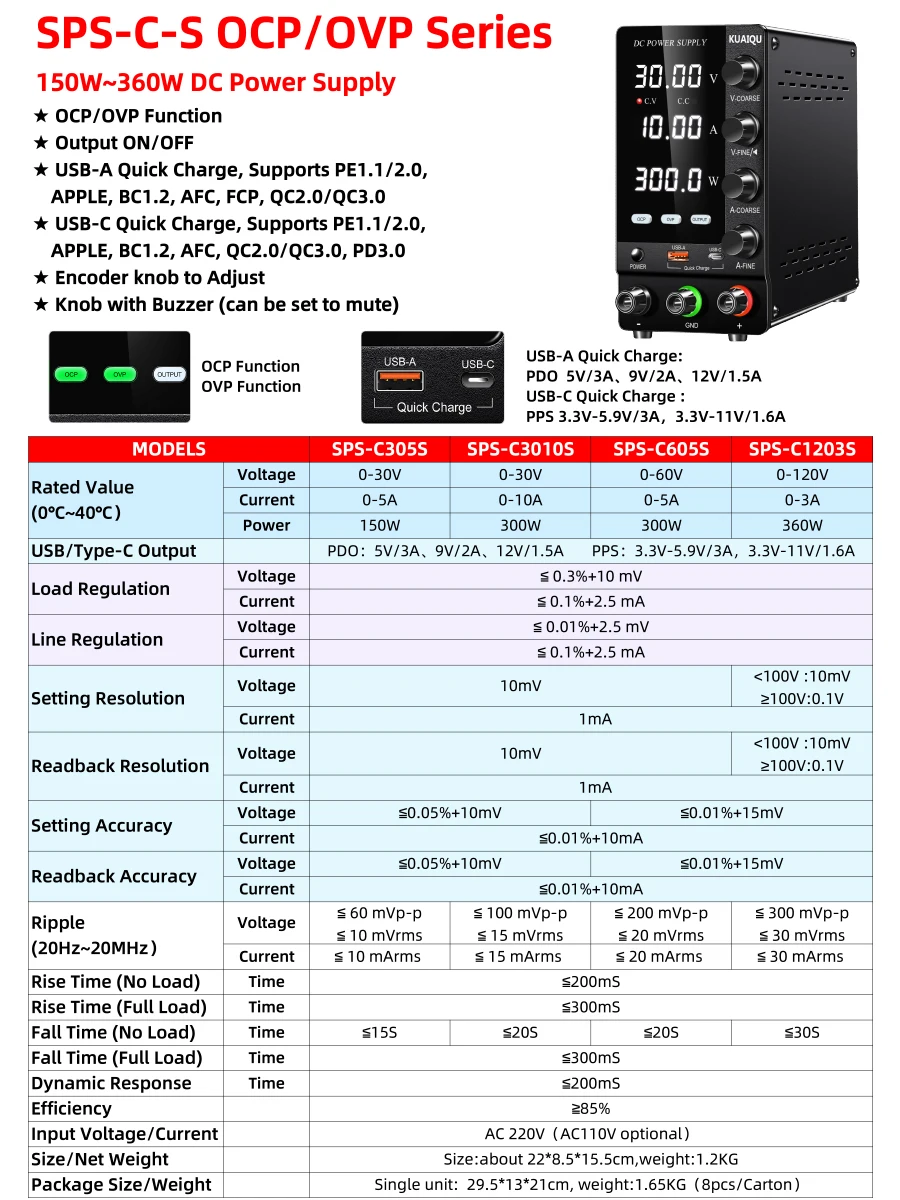

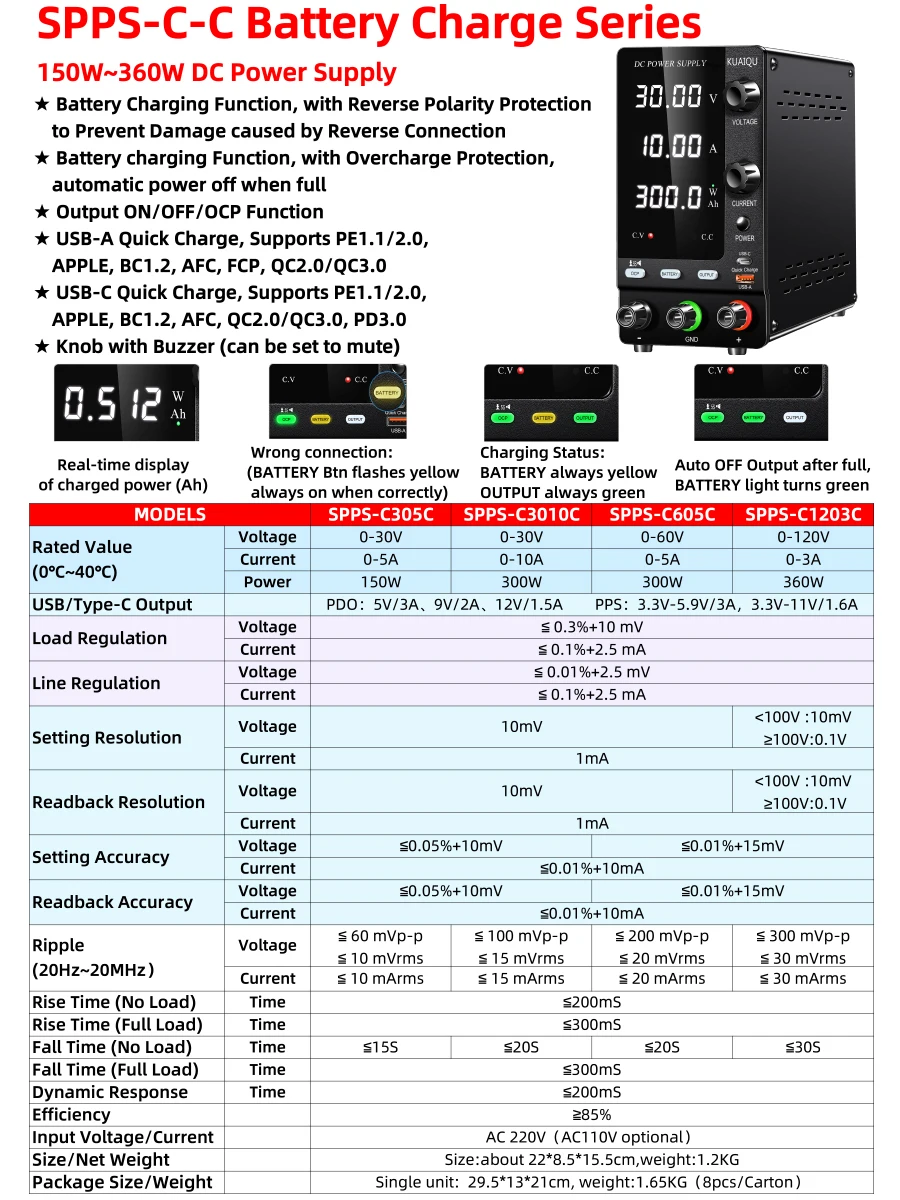

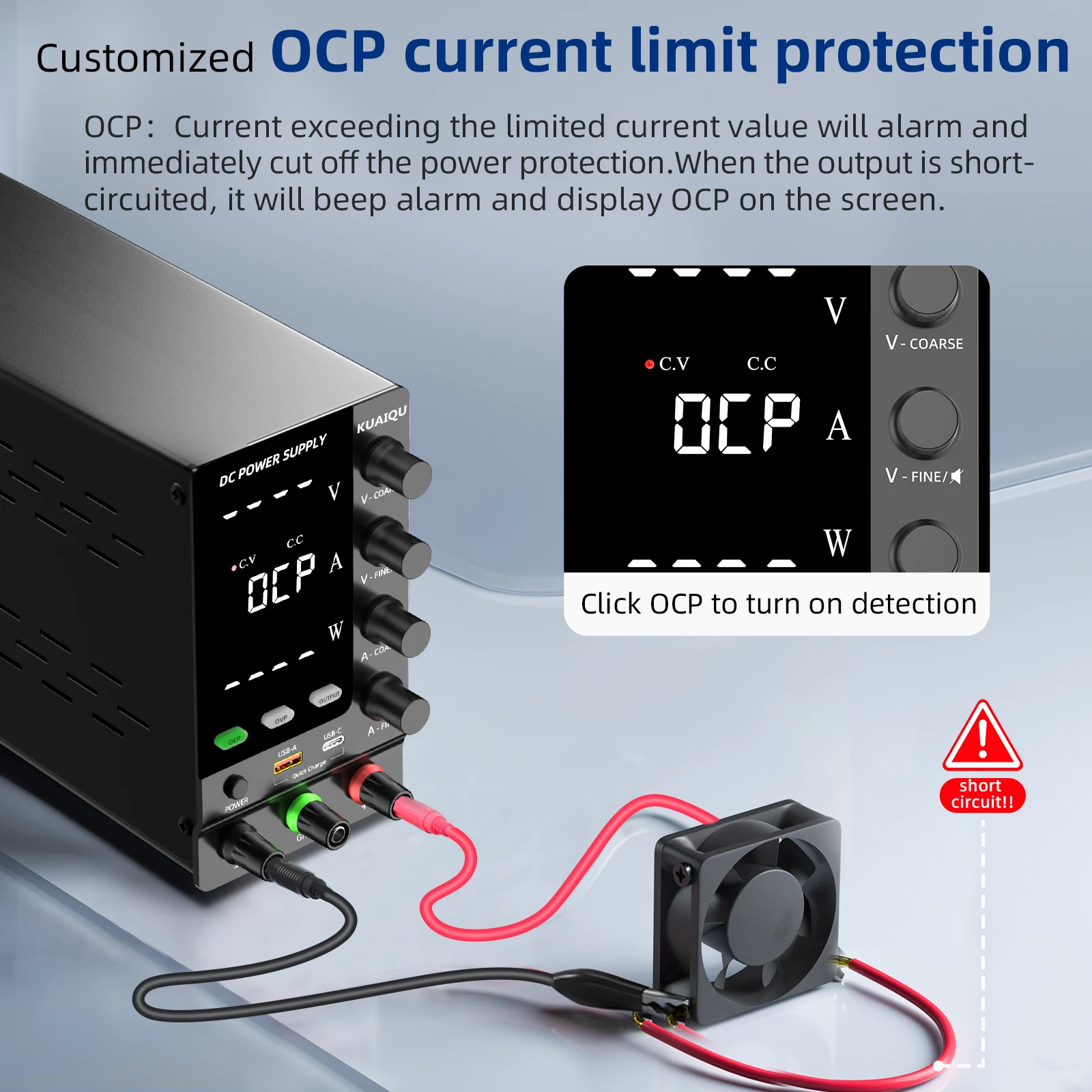

OCP OVP Series As Below: OCP protection, OVP protection, OUTPUT switch ,TYPE-C/ USB-A Port, Buzzer alarm, Encoder knob
SPS-C305S : 0-30V 0-5A 150W
SPS-C3010S : 0-30V 0-10A 300W
SPS-C605S : 0-60V 0-5A 300W
SPS-C1203S : 0-120V 0-3A 360W
