ANCEL S100 Smoke Machine

    🔥【FIND ALL SYSTEMS OF LEAKS】Most 0.8-1 air pressure automotive smoke machine are not diagnostics with E-VAP system, but the ANCEL S100 is quipped with the standard low air pressure will not damage the E-VAP system is a most recommended smoke tester can adapt of E-VAP Systems, Vacuum Leaks, Low Pressure Turbo Leaks, Intake Manifolds, Cooling/EGR/Exhaust Systems diagnostics and solve these troubles quickly!
    💨【BUILT-IN HEATING ROD】Equipped with ANCEL's forefront technology -- isolated heating transfer device, which ensures to protect the internal parts from heat, which greatly extends the service life. When the operating temperature of the machine exceeds 75°C, it will shut down automatically. After many tests, please rest assured to use. This effectively ensures the safety of each car owner.
    💦【POWERFUL ADJUSTABLE SMOKE】The S100 smoke machine tester is environmentally friendly and harmless, the adjustment screw on the side is a flow meter that controls the amount of smoke, ensuring that the output of the smoke can detect even the smallest leaks and helps you diagnose faults quickly and accurately. Significantly improves the efficiency of diagnosis.
    💥【SMALL SIZE DESIGN】Most smoking machines are bulky and heavy, which is not conducive to the transportation and storage of the equipment, and is only suitable for repair shops. That's why ANCEL designed this machine, weighing only 3 pounds, to be small and light, not only for easy storage, but also for ease of use. It is an indispensable tool for all car owner.

---

ANCEL S200 Smoke Leak Detector Automotive Built-in Air Pump, Evap Smoke Machine Leak Tester with Pressure Gauge & Dual Mode, Vacuum Leak Smoke Machine, Smoke Diagnostic Tester for Car/Motorcycle/Truck

💨[99% System Leak Detect]: ANCEL S200 automotive smoke machine is a professional automotive pipe system leak detector, which can accurately locate more than 99% of pipe leakage point within a few minutes by outputting thick and consistent smoke. It’s suitable for E-VAP systems, vacuum leaks, low pressure turbo leaks, intake manifolds, cooling/EGR/exhaust systems, worn rubber, gaskets, seals, connectors and more. Get ANCEL S200 smoke tester saves your time and money

💨[Handy and Effective]: Equipped with built-in air pump, S200 E-VAP smoke machine is convenient for you to perform leak detection anytime and anywhere without needing an additional air pump. Pour 20ml of test oil into the detector, connect the car intake pipe and DC12V battery to start working, you can quickly detect leaks in a few minutes, easy and fast. The smoke is thick and consistent, making it easy to pinpoint leaks in even the most hard-to-reach areas

💨[Dual Modes And Visual Pressure Gauges]: ANCEL S200 smoke tester automotive is equipped with two working modes: gas mode for quick detection of leaks without oil, and smoke mode for accurate detection of leaks with testing oil. Equipped with visual pressure gauge, you can easily judge the extent of leakage, the more serious it leak, the more pressure drops

👍[Abundant Accessories]: Unlike other smoke leak detectors that can only be used on limited pipes, ANCEL S200 smoke leak detector automotive comes with accessories worth 50USD+, including adapter cones with different sizes, inflatable intake bladders and E-VAP adapter, allowing you to detect various size and shape of pipe leak, and the intake bladders is great for sealing up larger areas, like half of a throttle body and etc

💨[More Stable Quality]: S200 E-VAP smoke machine leak tester is made of premium metal, which is resistant to high temperature, rust and has been tested for many times to achieving a longer service life. More importantly, our car smoke machine has a built-in intelligent protection configuration, which will automatically turn off when the working limit is exceeded, ensuring the safety of operators and equipment



---

ANCEL S300 Smoke Machine Automotive Built in Air Pump, EVAP Smoke Machine Leak Tester with Pressure Gauge Flow Meter, Odorless Automotive Smoke Machine Leak Detector, Vacuum Smoke Tester Automotive

 Features

  【ALL NEW Isolated Heat Conduction】Experience the latest in smoke generation technology. Unlike traditional evap smoke machine leak tester that burn a wick to produce an unpleasant smell, ANCEL S-300 smoke tester uses a safer method of vaporizing the smoke liquid at high temperatures to produce a less smelly smoke. Safer, more efficient, more durable, and can be used for a long time

    【Built-in Air Pump – Save Time and Space】No need for a separate air supply! With a pressure output range of 0.8-14.5 Psi and a smoke output of 6 L/Min, the ANCEL S-300 automotive smoke machine quickly produces dense smoke, significantly reducing the time it takes to locate leakages. Its integrated design makes it the top choice for smoke tester automotive.

    【Dual Modes for Maximum Savings】ANCEL S-300 smoke machine is the best way to save money. The air mode not only doesn't consume smoke oil, but also effectively detects minimal EVAP leaks and vacuum leaks. Switch between air mode for non-consumable testing and smoke mode for pinpointing leaks. The ANCEL S-300 smoke machine leak detector helps prevent costly repairs by catching issues early.

    【Diagnose All Leak Types with Ease】Meet all your car smoke leak tests. Including EVAP systems, Vacuum leaks, Turbo leaks, Intake Manifolds, Cooling/EGR/Exhaust Systems, from worn gaskets to tiny cracks! Powerful smoke leak detection makes the ANCEL S-300 car smoke leak tester one of your essential repair tools

    【Ideal Smoke Leak Test Gift Package】Out of the box. Contains adapter cone, Intake Bladder, EVAP adapter, full size cap plugs (23 Pcs) and more, allowing you to inject smoke into various openings and clog points! These practical and durable accessories enable you to test different vehicle types such as cars, motorcycles, light pickups, off-road vehicle, snowmobile, boats, ATVs, RVs, vans and more. Now INCLUDED with the ANCEL smoke machine

    【Real-Time Leak Detection with Adjustable Controls】Monitor pressure and flow rate with precision. The ANCEL S-300 evap smoke machine can fix very small EVAP system issues (P0442/P0456) to improve fuel efficiency and vehicle performance. At the same time, the speed of smoke generation can be controlled by the flow knob to achieve the purpose of rapid diagnosis

    【Professional But Easy to Use】Start smoke leak detection in just 3 simple steps: 1, Pour smoke fluid (not included) into the machine. 2, Connect to a power source. 3, Start testing! Even beginners can use it to detect leaks quickly and effortlessly. Weighing just 1.8 kg, the ANCEL car smoke machine is compact and easy to store and transport, making it a must-have tool for every car owner and shop

---

ANCEL S3000 Smoke Machine Automotive with Built-in Air Compressor, Pressure Gauge & Adjustable Flow Meter, Automotive Smoke Machine Leak Detector for EVAP, Fuel, Vacuum System & More

Professional Automotive Smoke Machine ANCEL S3000



 🚨 【All-in-One Pro-Level Leak Detection】: Fuel efficiency plummeting? Engine power fading? Can’t trace those maddening leaks and strange noises? The ANCEL S3000 smoke machine automotive visualizes 0.5mm micro-leaks with precision smoke trails—no guesswork, no costly shop visits! Pinpoint leaks across 12+ critical systems: EVAP, intake & exhaust, fuel tank, EGR/cooling, turbo, engine block, crankcase, and more.

👍【 Built-In Smart Pump】: Bye-bye to bulky external pumps! Automotive smoke machine leak detector features a compact design with a built-in air compressor, offering the ultimate convenience for mobile testing. Smoke leak detector operates within a pressure range of 0.8-14.5 psi, quickly delivering smoke into the system for efficient leak detection, saving you valuable time and effort

📌【Visual Pressure Gauge & Adjustable Smoke】: Get real-time insights with the pressure gauge, allowing you to detect even the smallest leaks. The flow meter allows for accurately adjusting smoke output, making it easy to adapt to various testing conditions, tiny gaps or full vehicle sealing, simply monitor the gauge and smoke flow to spot leaks at a glance—no expertise needed

💸【Dual Mode & Fuel Savings】: ANCEL S3000 vacuum leak smoke machine features dual modes to help you save fuel while catching every leak. Air mode allows for oil-free testing to quickly confirm leaks, while smoke mode delivers a thick, visible plume to reveal even the trickiest leaks. ✅Exciting part? Smoke tester automotive is a good helper for multi-vehicle families, supporting all 12V DC battery vehicles, including cars, ATVs, light trucks, even motorcycles and speedboats

🤩【Professional But Beginner-Friendly】: ACNEL S3000 smoke machine automotive can find hidden leaks IN 3 EASY STEPS: 1) Add tobacco oil (mineral oil/baby oil, not included). 2) Connect the smoke delivery hose & power source(12V DC car battery). 3) Connect the car to start testing. Its rugged design and intuitive operation allow professionals and even those who drive like they're in a video game will master this evap smoke leak tester

🥇【Safe, Clean & No Residue】: Smoke machine for cars use clean baby oil to provide low-odor, mess-free smoke, no unexpected residue on your clothes or car! In addition, the smart protection mechanism automatically shuts off when the limit is exceeded to ensure the safety of the user and the machine

📢Pro Tip: Always keep at least ✅4ml✅ of smoke oil in the smoke leak detector automotive—this is key to preventing dry heating and keeping things running smoothly. What's more? If the core hits 105°C (outer shell 55–65°C), the smart temperature protection will pause operation after 5–10 minutes. Don’t stress! Once it cools to 85°C (outer shell 45°C), it'll be back up and running in about 10–15 minutes. 📢If you need to test a low-pressure system like EVAP, we recommend you prepare an extra low-pressure regulator



Functions

E-VAP SYSTEM TEST: Leakage in the fuel E-VAP oration system causes fuel vapour to escape into the atmosphere, resulting in waste and pollution or unstable engine idling.

FUEL TANK SYSTEM TEST: If there are gaps in the fuel tank and pipes caused by improper installation or insufficient sealing of the fuel tank cap, it may cause leaks in the fuel tank system.

TEST OF VARIOUS PIPE CONNECTIONS: Smoke test of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and Ex-haust system hoses, etc.

CAR SEALING TEST: Poor sealing of the car can lead to many inconveniences, such as it is not warm and dusty, not soundproof, not waterproof, etc.

CRANKCASE SYSTEM TEST: Excessive pressure or corrosion of the crankcase is the main reason why the crankcase seal is damaged and oil leaks.

INTAKE SYSTEM TEST: A leak in the intake system will result in inadequate intake of the car engine, leading to low engine performance.

TURBO TEST: The leakage of coolant would cause the engine to indicate a high water temperature.



---

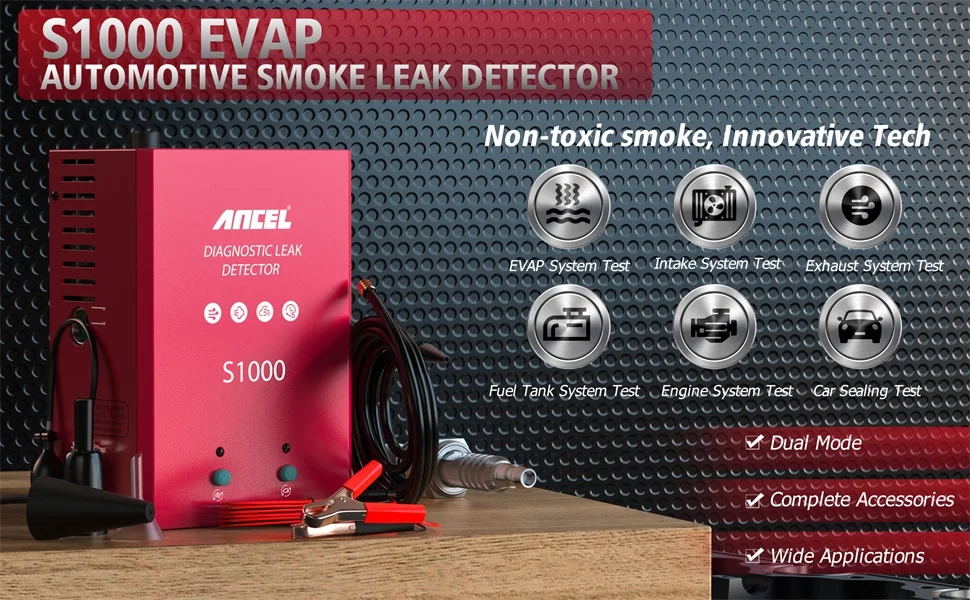

ANCEL S1000 Smoke Machine

【Why You Need】The E-VAP smoke machine troubleshoot 60% of car failures before car repairs. Getting involved with crankcase system test, intake/exhaust system test, sealing test, fuel tank system test, turbo test, E-VAP system test, EGR system test, vacuum leaks test, various pipe fittings test。

【How We Do】Professional automobile smoke leak detection tool, using visible smoke to quickly locate the leak hole, built-in smoke generator with smoke output value: 0-6L/min, power supply: 12V automobile baterry 6Amp, output pressure: 0.5-8Bar, heating material: mineral oil or baby oil (oil not included).When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off. The device can also work normally at -20℃.

【2 Working Modes】Air mode and smoke mode, the air mode can help you test whether there is a leak in the pipe by injecting air into the pipe, and judge by the sound made when the air leaks. The smoke mode is to accurately determine the location of the leak through the visible smoke after detecting the leakage of the car, so as to solve the problem of car failure. Do not need to buy additional air machine or air pump, affordable ancel S1000 is the best choice for saving money.
High Capacity: Size: 13.38*8.68*4.33 inches, in addition to the above large testing equipment, you can also put everything else in it for easy sorting and space saving.

---

ANCEL (Upgrade S3000 Version L3000 Automotive Smoke Machine with Built-in Air Pump and Digital Pressure Gauge. Upgraded EVAP Smoke Machine Leak Tester for Leaks Test in Vacuum,Fuel, etc.

 ANCEL L3000 Feature

    VERSATILE LEAK DETECTION: This automotive smoke machine offers comprehensive leak detection capabilities with a range of adapters, hoses, and caps. Easily inspect vacuum, fuel, engine, and intake systems hassle-free

    SIMPLE & PORTABLE: Begin leak detection in just 4 simple steps with this user-friendly automotive smoke tester. Lightweight, portable, and equipped with a built-in air pump, it's perfect for on-the-go jobs, empowering you to detect leaks effortlessly

    SAFETY-FIRST DESIGN: Crafted from thick solid metal, this smoke tester ensures durability and safety. Featuring an intelligent protector, it automatically powers off if the temperature exceeds limits, ensuring operator and machine safety. Harmless baby oil is used to produce smoke, making it safe for all vehicles

    PRECISE DETECTION：Equipped with an adjustable flow meter and pressure gauge, this smoke tester accurately detects even the smallest leaks, providing precise diagnoses every time. Additionally, it supports pressure decay tests, perfect for identifying hard-to-spot leaks

    ACCURATE LEAK DETECTION and PRESSURE DECAY TEST：with built-in adjustable flow meter and pressure gauge, our smoke tester for vacuum leaks can quickly and accurately detect even the smallest leaks, ensuring precise diagnoses every time. It also supports pressure decay test, identifying tiny leaks by applying specific pressure and monitoring the gauge, especially useful for hard-to-spot leaks



---

ANCEL L8000 Automotive Smoke Machine | Dual Mode Diagnostic Leak Tester for EVAP & Turbo Systems | Built-in Air Pump & Color LCD | Adjustable Pressure & Run Time | Compatible with Multiple Vehicles

ANCEL L8000 Feature

DUAL MODE: Does what NO other automotive smoke machine has done. Perform all types of diagnostic leak detection with one machine. Safely test both low-pressure evaporative emissions and high-pressure boosted systems using air or smoke mode. Quickly locate and repair leaks in various automotive systems, including turbos, intakes, exhausts, vacuum lines, cooling systems, manifolds, brake boosters, passenger compartments, and more. Save valuable service hours and boost efficiency.

    BUILT-IN AIR PUMP: Mobile repairs are now possible as L8000 includes an internal compressor, no longer needing shop air. Its compact design ensures total portability and quick setup, making it perfect for both fieldwork and workshop use. Enjoy quick and precise leak detection with stable pressure and low-noise operation. This versatile, cost-effective tool enhances work efficiency and reduces overall costs, ideal for car owners of all skill levels.

    INNOVATIVE TECHNOLOGY: Introducing a new standard in leak detection with an advanced LCD display and integrated protective case. This device provides real-time monitoring and user-friendly operation, designed for durability and efficiency. Its all-in-one design eliminates the need for separate packaging, offering a cost-effective solution for professional technicians and automotive enthusiasts. Upgrade now to experience the latest in automotive diagnostics.

    FLEXIBILITY AT YOUR FINGERTIPS: Set the exact duration and pressure for thorough leak detection with our advanced smoke leak detector, ensuring every leak is detected accurately. The adjustable settings provide precise diagnostics, reducing false positives. The multilingual interface allows technicians worldwide to switch languages easily for efficient use in any workshop, enhancing overall diagnostic flexibility and accuracy.

    INCLUDES ALL ACCESSORIES: Comes with a complete set of rubber cone adapters and various-sized connectors, ensuring a perfect fit and tight seal for different vehicle systems. The variety of plugs allows you to seal open ports, focusing smoke for accurate leak detection. All components are organized in a robust storage case for easy transport and access.

    FRIENDLY REMINDER: Please note that the LCD display of your ANCEL L8000 is protected by a thin film to prevent scratches during shipping. If you notice any bubbles or imperfections on the screen, this is likely due to the protective film. Simply peel off the film gently to reveal the flawless screen underneath. This does not indicate a defect in the product






---

Operation

1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF.
2. Dismantle the air filter and the throttle connections.
3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake Adapter into the opening.
4. Connect the Power Cord to 12V vehicle battery.
5. Now the Power LED would be ON, if else check the power supply.
6. Introduce the smoke nozzle into the system via the Adapter Cone.
7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter.
8. Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle.
9. The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist.
10. After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air.
11. Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.

Caution：

1.When you use this S3000 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

Warning
1. Only Authorized operator could use this equipment.
2. Always confirm Fluid level before use, if the fluid level is low enough to the bottom of the filler port, it will need a refill.
3. Do NOT use the unit on smoke sensitive parts. Eg. Lamp housing.
4. Avoid using the equipment on windy environment.

Safety
1. Do not use the equipment while the engine’s running.
2. Wear Protection Glass.
3. It is always best to test in a draft free area. Always use a bright halogen lamp to enhance the visibility of the smoke exiting the leak.



Questions & Answers

3.2.1 Why is there test oil spraying out of the smoke outlet?

--Please check if there is too much test oil injected. Then pour out the oil and run the appliance for 5 minutes. Re-add about two thirds of the test oil (please do not fill up the test oil).

3.2.2 Why does my device heat up slowly and produce little or no smoke?

-- Please check if you are using pure mineral oil or high content mineral oil. Then pour out the oil and run the appliance for 5 minutes. Then run the device for 5 minutes and add the right amount of test oil again.

3.2.3 Why doesn't the power indicator light light up when I connect my device after receiving it? Or it works for a while and then goes out?

--- Note: The product itself requires a full 12V healthy car battery power supply, 60W power consumption is not too big or small, the battery is still a requirement.

2.1 The power indicator light is on, indicating that the circuit is OK, but does not mean that the power supply is normal, the voltage is not less than 12V is considered normal power supply. When confirming the power supply, especially pay attention.
2.2 Power indicator does not light: check the power supply, including the power cord.
2.3 Reverse power supply can also cause the indicator light does not light.

**** If all the above checks are normal and it still does not work, it may have been damaged during transportation. Don't hesitate to contact us for a refund or exchange.
