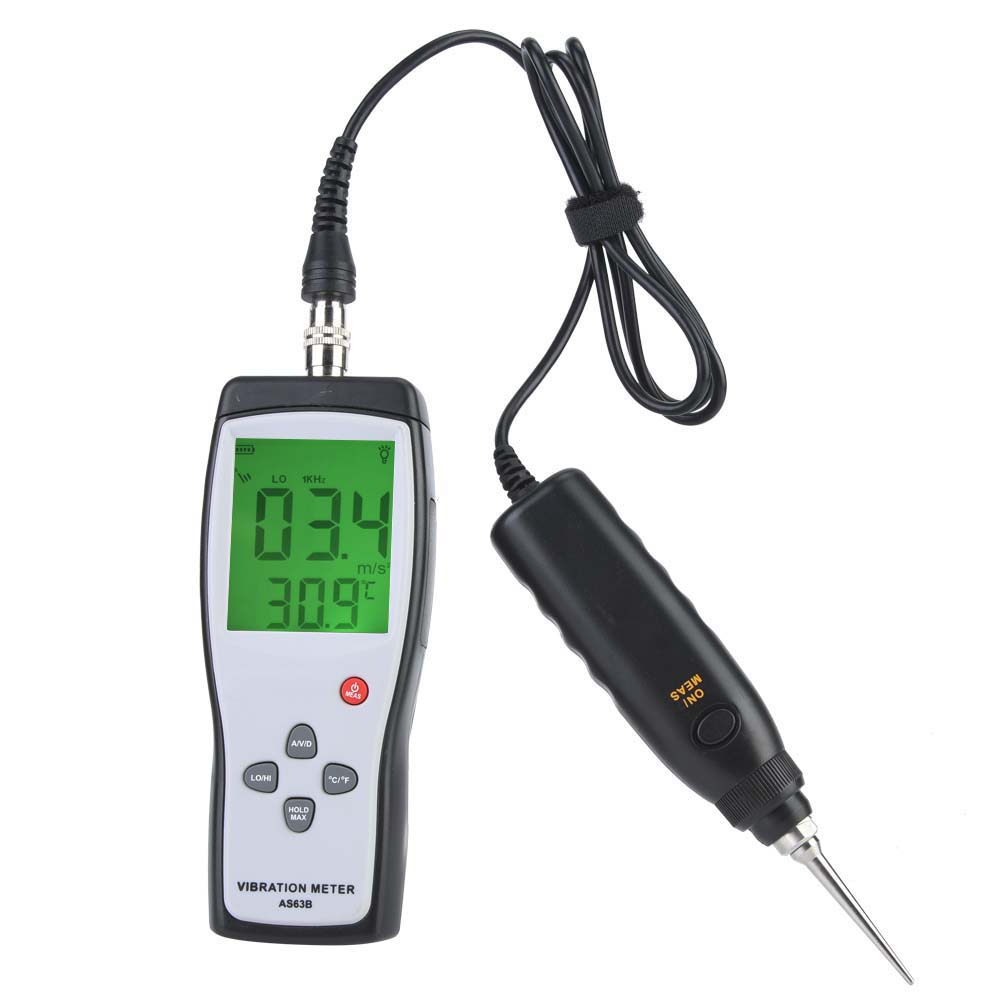

Features:

• Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal into electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration.
• It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
• Vibration Pickup Piezoelectric Ceramic Accelerometer is shear-type
• Simple to use, the structure is compact, portable

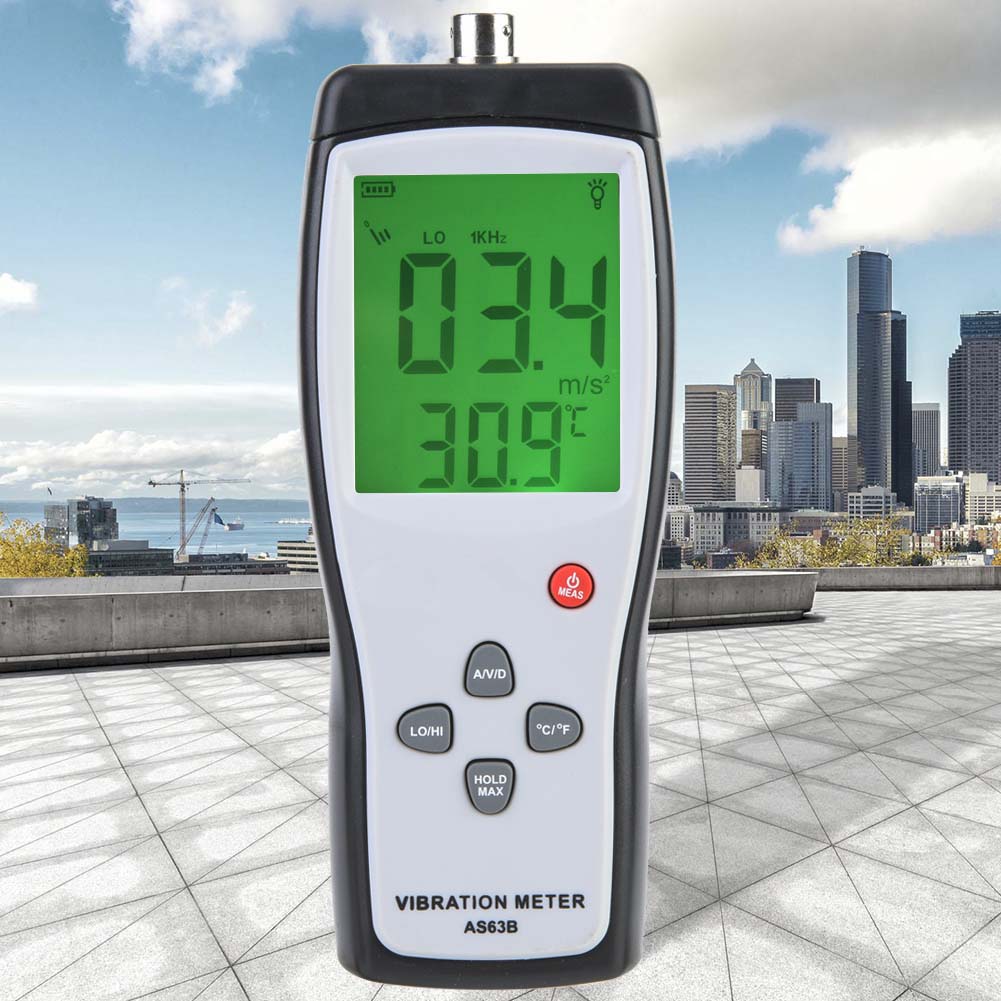

• Digital LCD display is intuitive and clear

Specification:

Acceleration: 0.1~199.9m/s²
Velocity: 0.1~199.9m/s
Displacement: 0.001~1.999mm
Acceleration Frequency Range: 10HZ~1KHZ(LO)
1KHZ~15KHZ(HI)
Velocity Frequency Range: 10HZ~1KHZ
Displacement Frequency Range: 10HZ~1KHZ
Accuracy: ±10%H±2digits
Maximum Locking *
Temperature Measurement *
CF Selection *
Power: 9V battery(not included)
Size:170 * 66 * 33mm

Weight: 785 g / 27.7 oz(approx.)

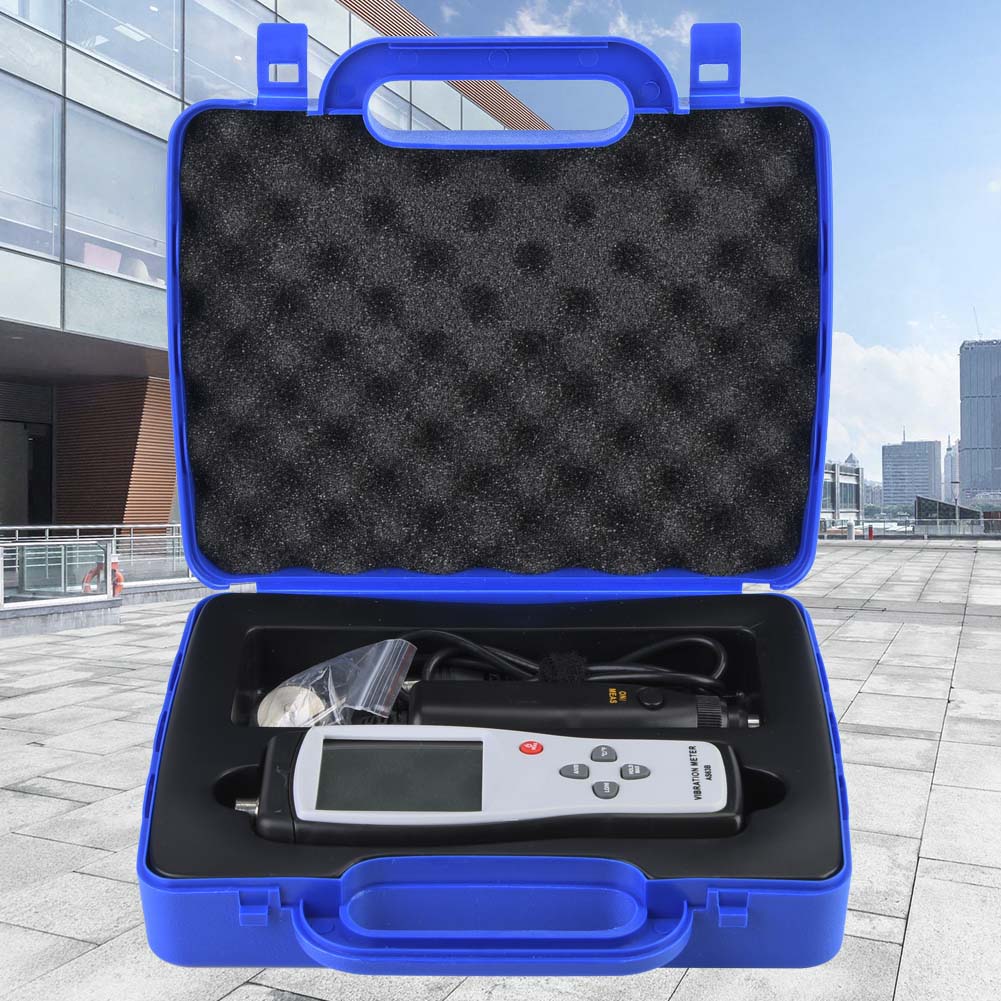

Package list:

1 x Vibration meter (battery not included)

1 x  instructions

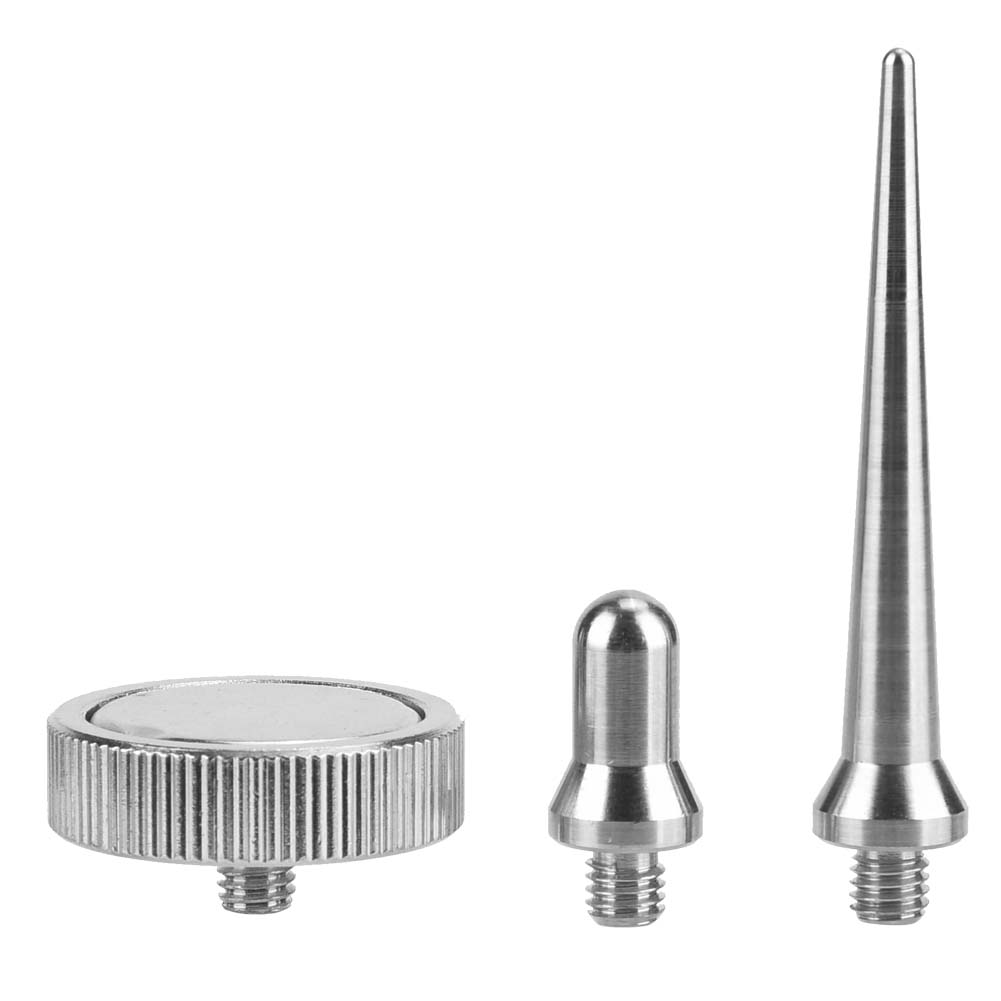

3 x  probe

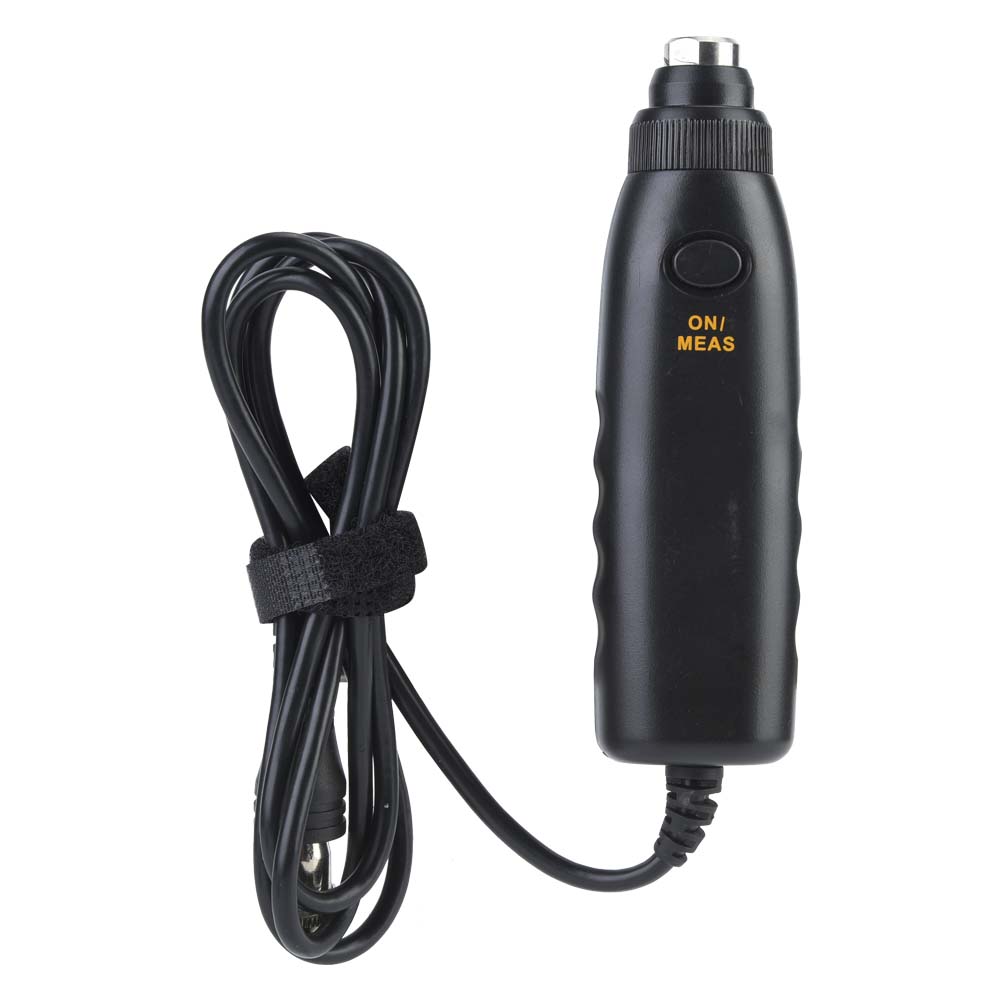

1 x Split probe

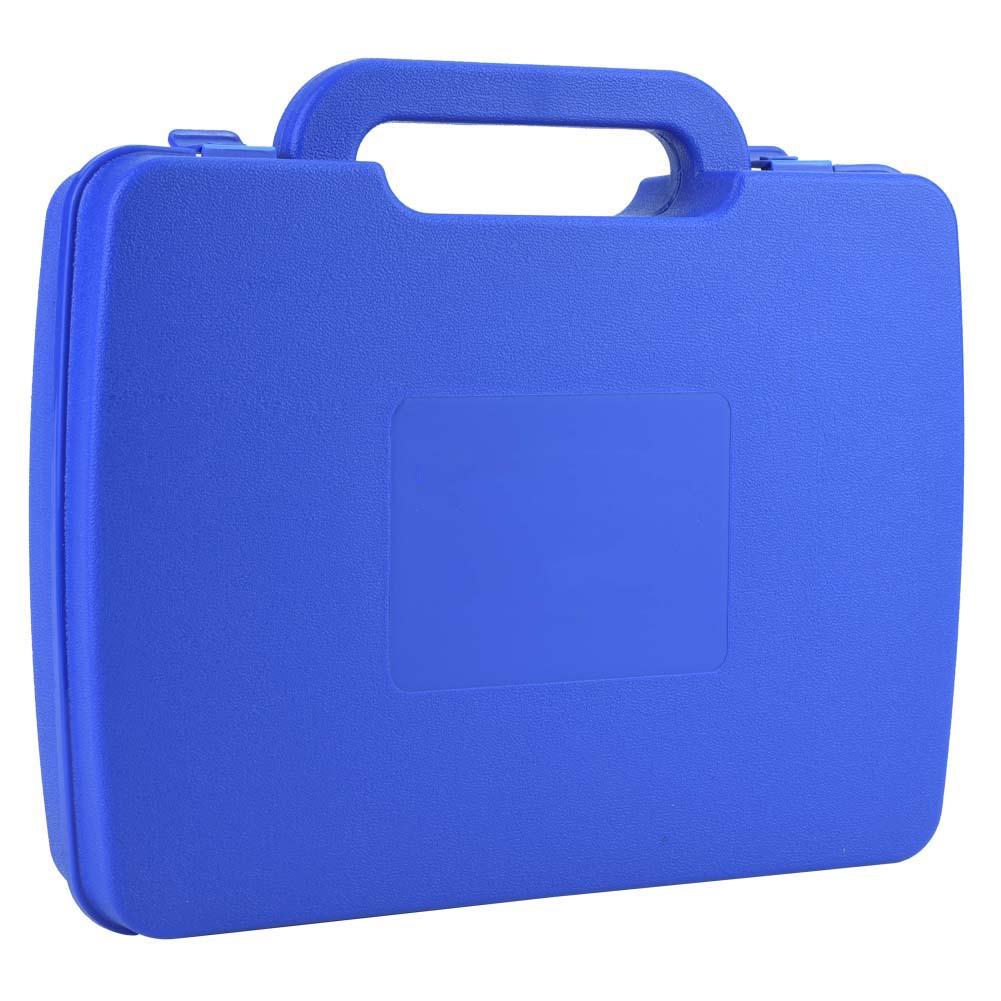

1 x Plastic case
