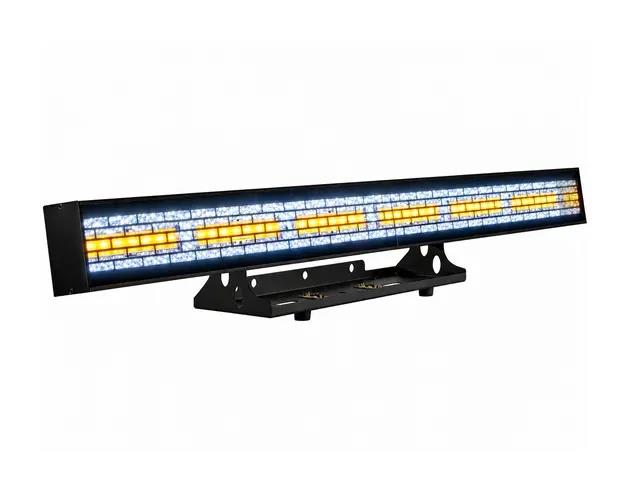

EUROLITE LED RETRO 6 Bar ABL Vintage Style Batten RGB Amber COB LED

Product Description

Description

The EUROLITE LED RETRO 6 Bar ABL combines vintage-inspired styling with modern LED lighting technology to create a powerful atmospheric blinder and effect fixture for stages, clubs, theatres, events, and rental applications. Featuring six independently controllable amber COB LED sections paired with segmented RGB LED accent lighting, the fixture produces a warm retro-style glow alongside vibrant colour effects for dynamic visual displays.

The six 60 W amber COB LEDs generate an exceptionally warm 1800 K output with a classic tungsten-style appearance, while 120 RGB SMD LEDs positioned between the reflector sections add colourful ambient and chase effects. Both the amber and RGB sections can be controlled individually, allowing users to create highly detailed lighting effects, pixel-mapped animations, blinder effects, and dynamic colour sequences.

Designed for flexible professional use, the RETRO 6 Bar ABL supports multiple DMX modes ranging from simplified operation to full individual segment control. Flicker-free output, silent operation, integrated show programs, and compatibility with optional wireless DMX systems make it suitable for live events, theatre productions, broadcast work, and mobile entertainment applications.

Features

Retro-style LED blinder and effect bar
6 x 60 W amber COB LEDs
Warm 1800 K tungsten-style light output
120 x RGB SMD LEDs for atmospheric colour effects
Individually controllable amber LED sections
10 individually controllable RGB segments
Blinder and strobe effects
120° wide beam angle
Flicker-free operation for video and broadcast use
Silent operation with temperature-controlled cooling
Electronic dimming control
3 integrated automatic show programs
Multiple DMX modes for simplified or advanced control
Stand-alone, sound-to-light, and DMX operation
Compatible with QuickDMX, W-DMX, and CRMX via optional USB adapters
Power linking for up to 8 fixtures
Suitable for floor-standing or suspended installation
Bracket for floor positioning included
Omega bracket mounting support
Compatible with Light Captain
Built with SEETRONIC power connectors

Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 200 W
Protection class: Class I
Power input: P-Con (blue) connector
Power output: P-Con (grey) connector
Light source:
6 x 60 W COB amber LEDs
120 x 0.1 W SMD 5050 RGB LEDs
Colour temperature: 1800 K
Beam angle: 120°
Flash rate: 0.8 – 20 Hz
DMX channels: 12, 16, or 43 selectable
DMX input connections:
3-pin XLR
5-pin XLR
DMX output connections:
3-pin XLR
5-pin XLR
Control modes:
Stand-alone
Sound-to-light via microphone
DMX
QuickDMX via USB (optional)
W-DMX via USB (optional)
CRMX via USB (optional)
Cooling: 2 x temperature-controlled fans
Projection: Flicker-free
PWM frequency: 4000 Hz
Display: 4-digit 7-segment LED display
USB port: Type A
Mounting options:
Floor-standing bracket
Omega bracket
Housing material: Metal
Housing colour: Black
Dimensions (W x D x H): 1000 x 140 x 150 mm
Weight: 5.10 kg
Noise classification: Class 0 (silent operation)

Legal specifications

Special product: Not designed for household room illumination
Intended use: Show effect lighting
