RadioLink RC Receiver R8FGH R8FG R8EF R8FM R8SM R8XM R7FG R6FG R6F R4FGM 2.4G 4/6/7/8CH Receiver for RC Transmitter RC8X/T8FB/T8S/RC6GS/RC4GS
Features:

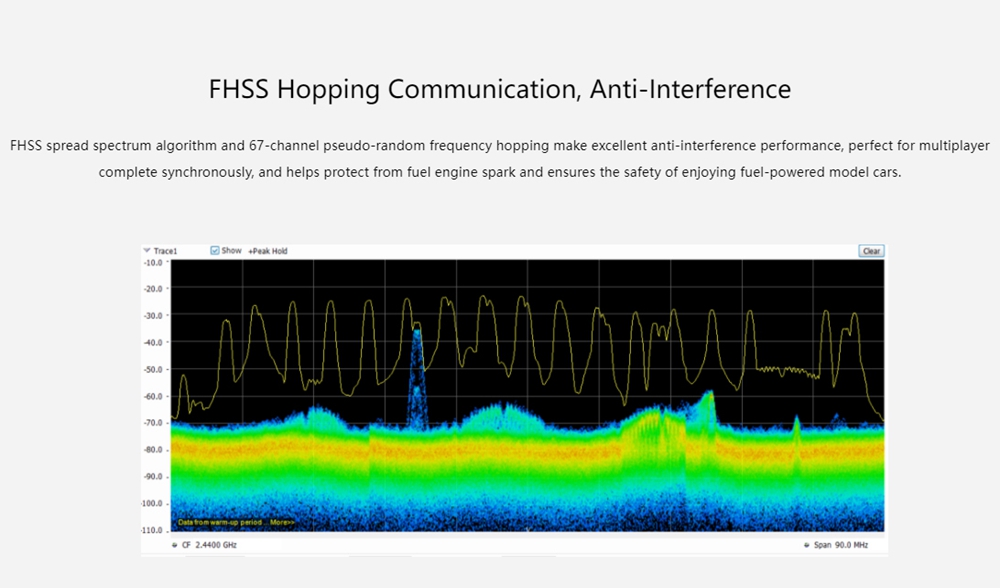

1. Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give receiver excellent anti-interference ability.
2. Fast Response: High resolution ratio of 4096, the stability of 0.25us, to provide a quicker, low-latency connection for the driver.
3. Long Range Control: Outstanding control range up to 400/600/2000/4000miles in the air. (Actually control range depends on the using environment).
4. Quick to Bind: Just press bind button over 1 second, no need any setting on transmitter when they are binding.

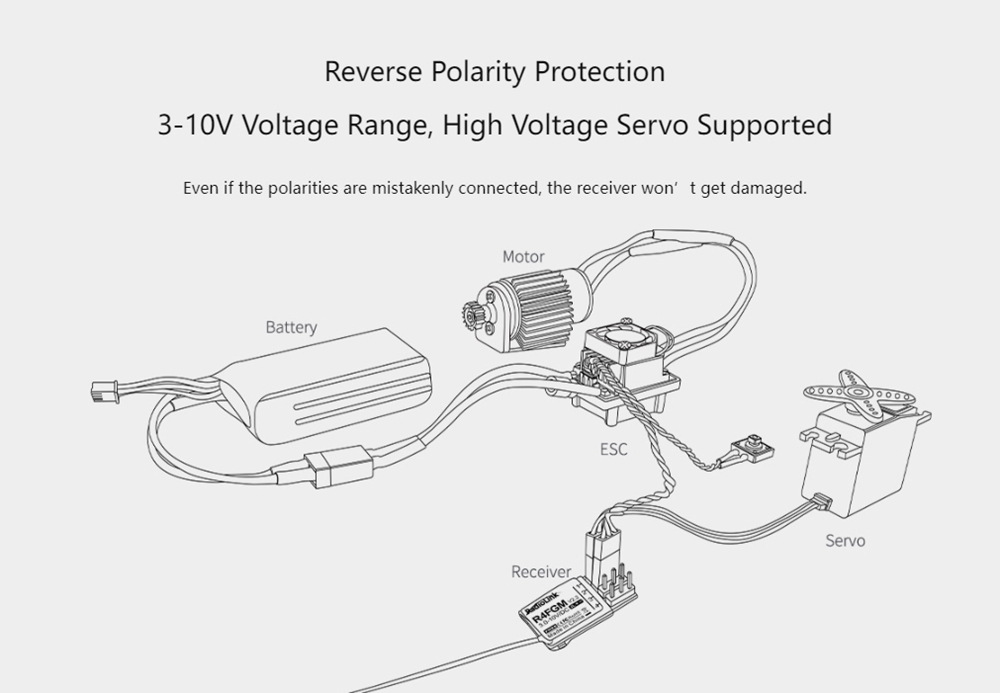

5. Anti-polarity Protection: With reverse polarity protection circuit, won't damage the receiver even you plug wrong polarity.
6. 4/6/7/8 Channels:Support PWM/PPM/SBUS signal output, ideal for most aircraft,compatible with RC8X/T8FB/T8S/RC6GS/RC4GS.
Description:
RadioLink RC Receiver R8FGH R8FG R8EF R8FM R8SM R8XM R7FG R6FG R6F R4FGM 2.4GHz work,Fast Response. 4ch/6ch/7ch/8ch Receiver compatible with RC8X/T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S
(OTG)/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS,it is the best choice for racing drone.
Specifications:

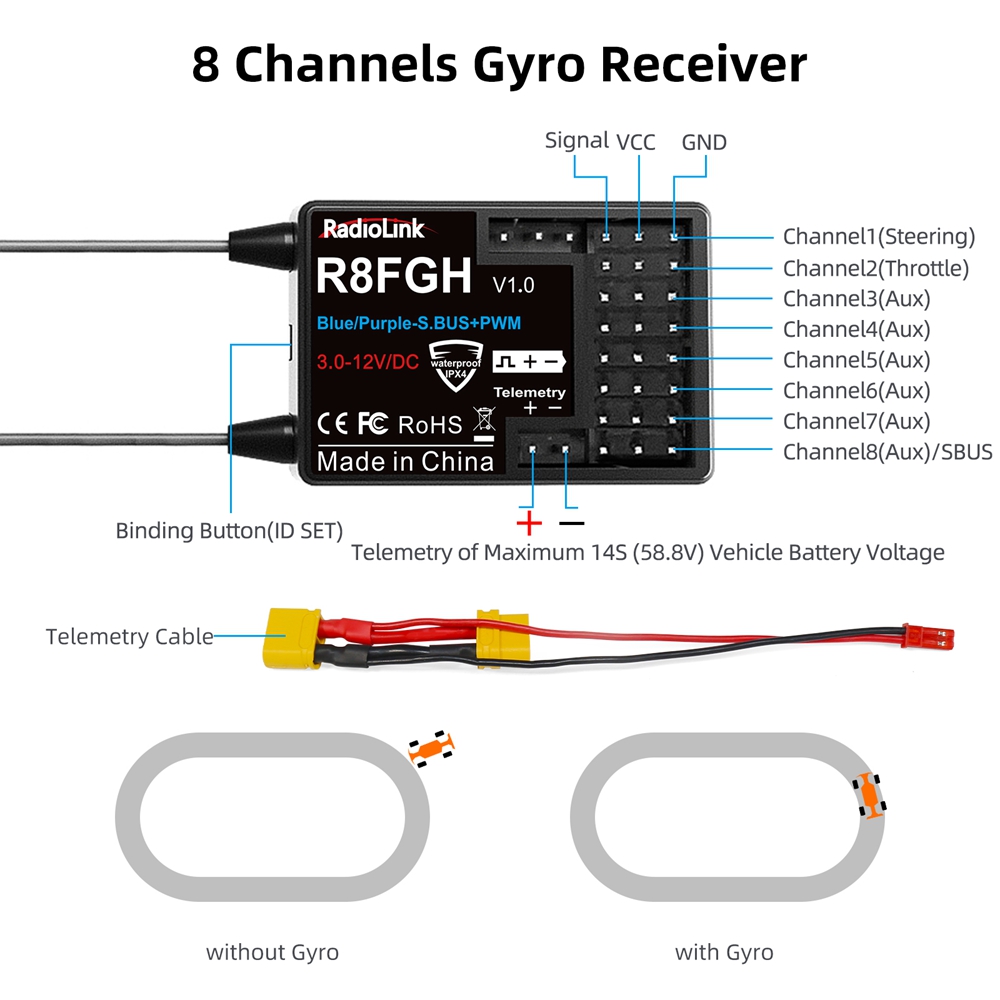

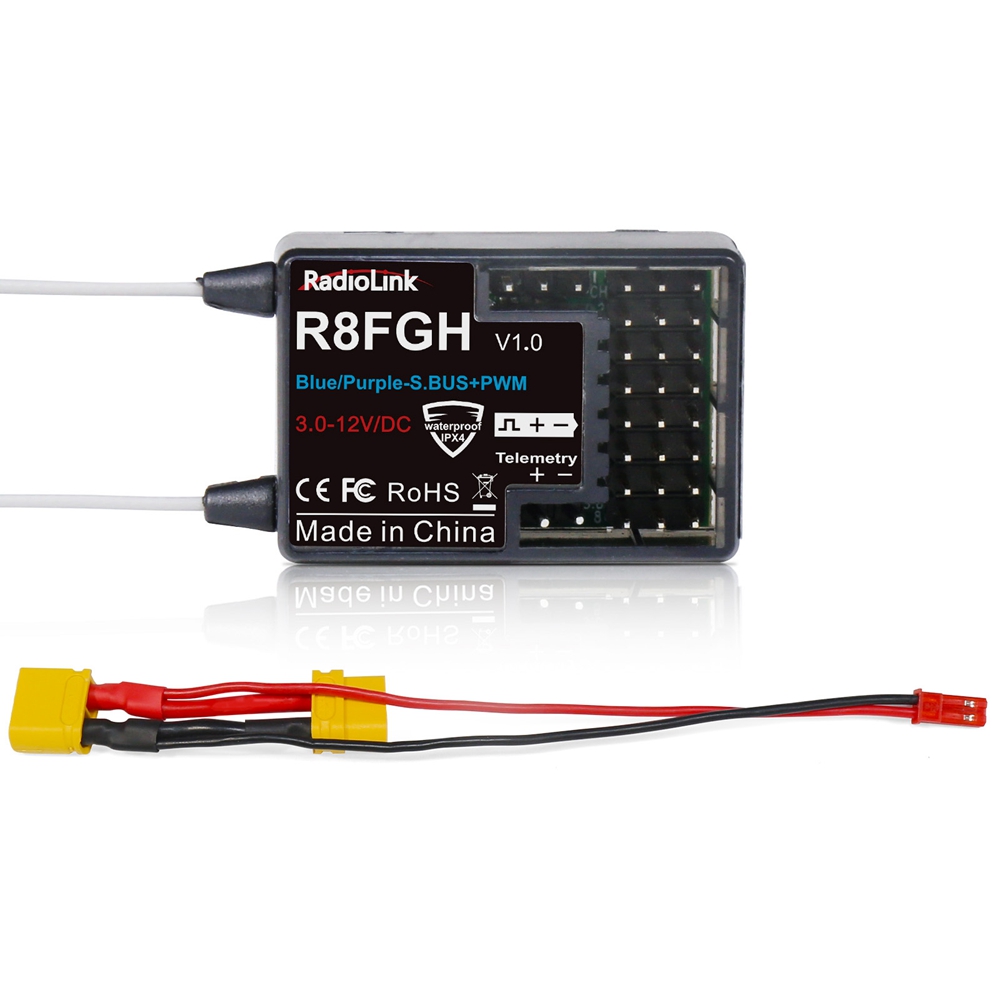

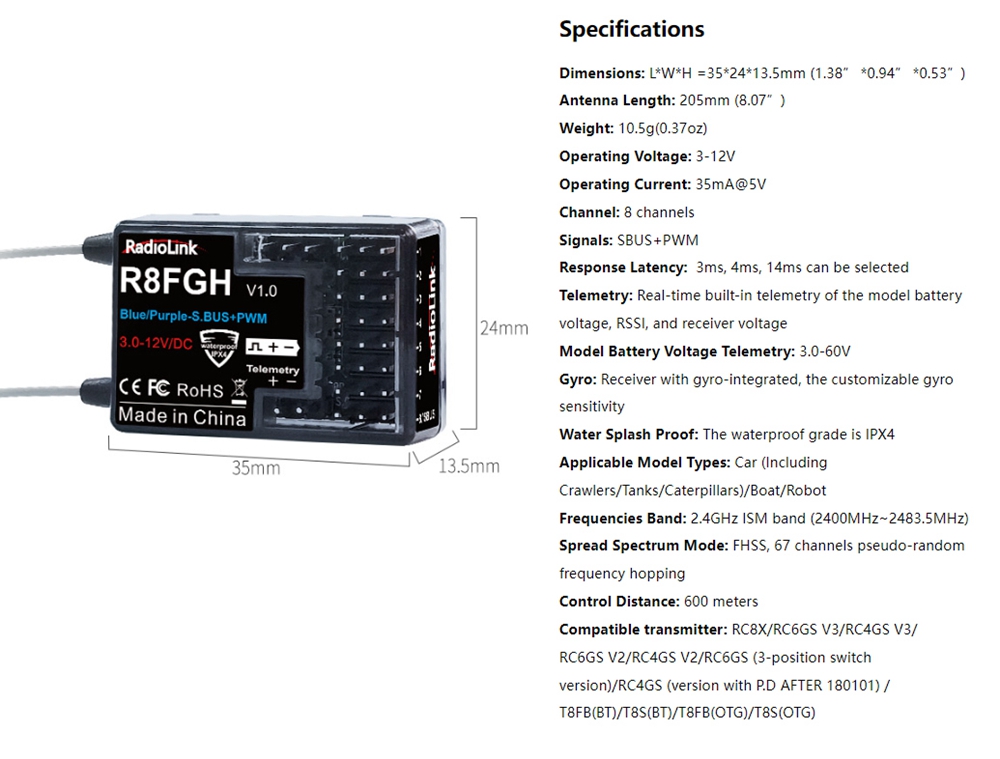

R8FGH:
Operating Voltage: 3-12V
Operating Current: 35mA@5V
Channel: 8 channels
Signals: SBUS+PWM

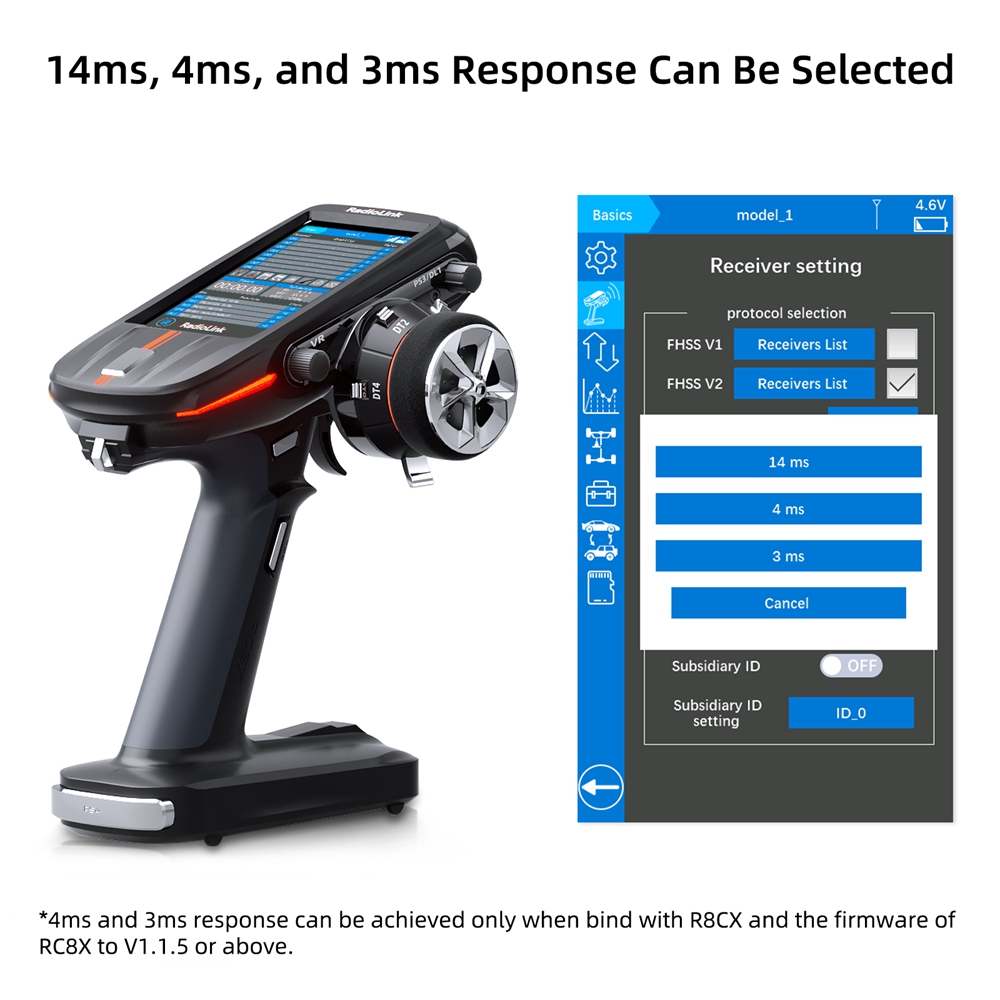

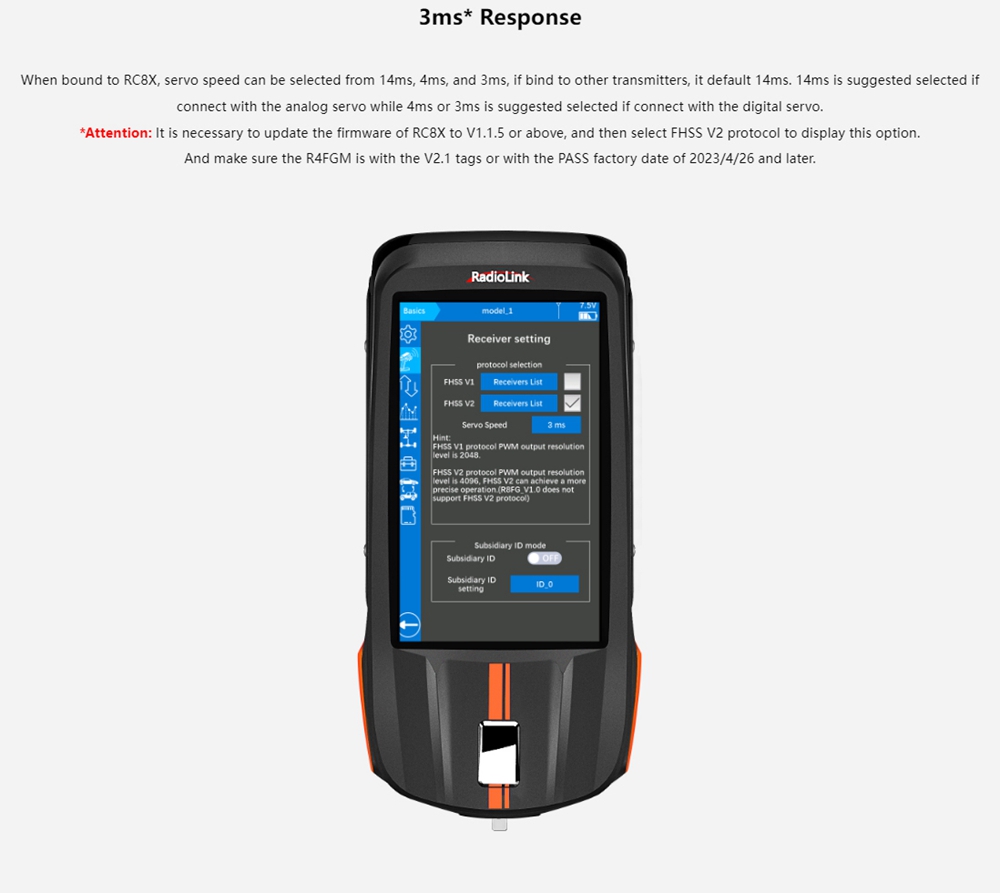

Response Latency: 3ms, 4ms, 14ms can be selected

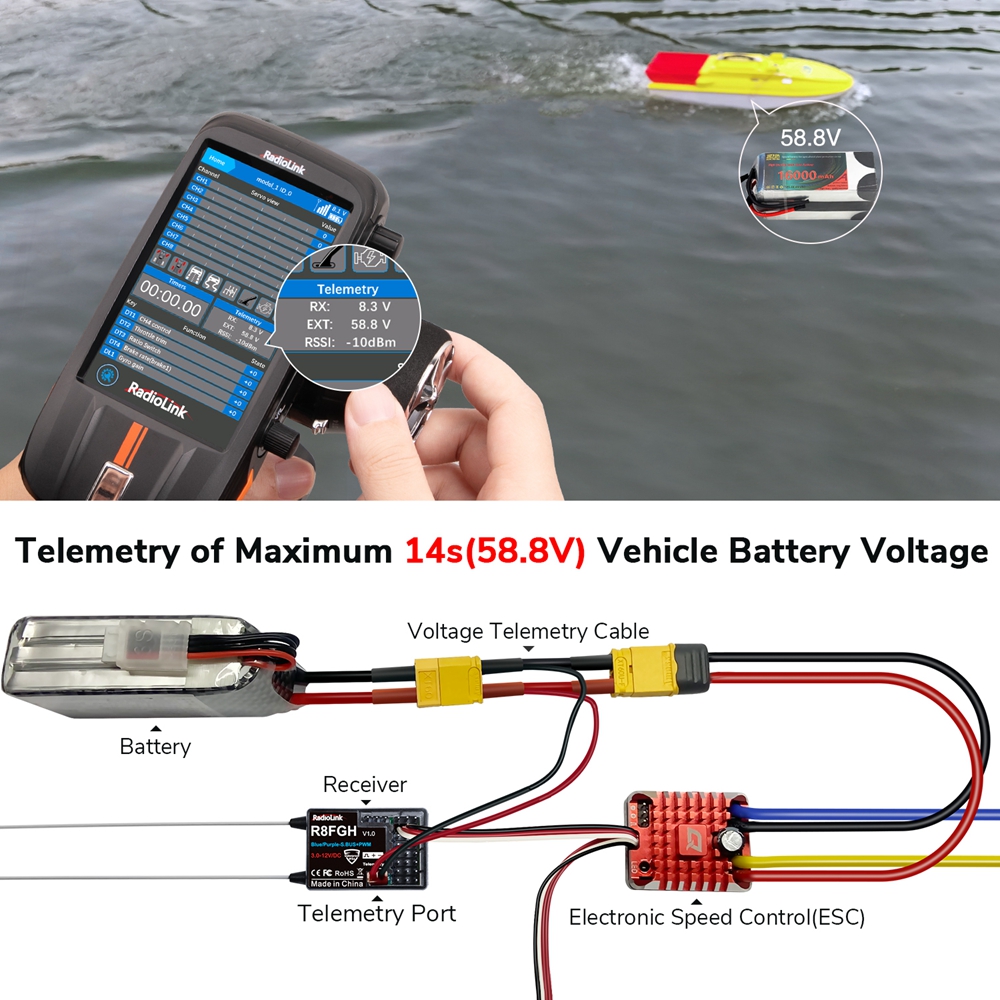

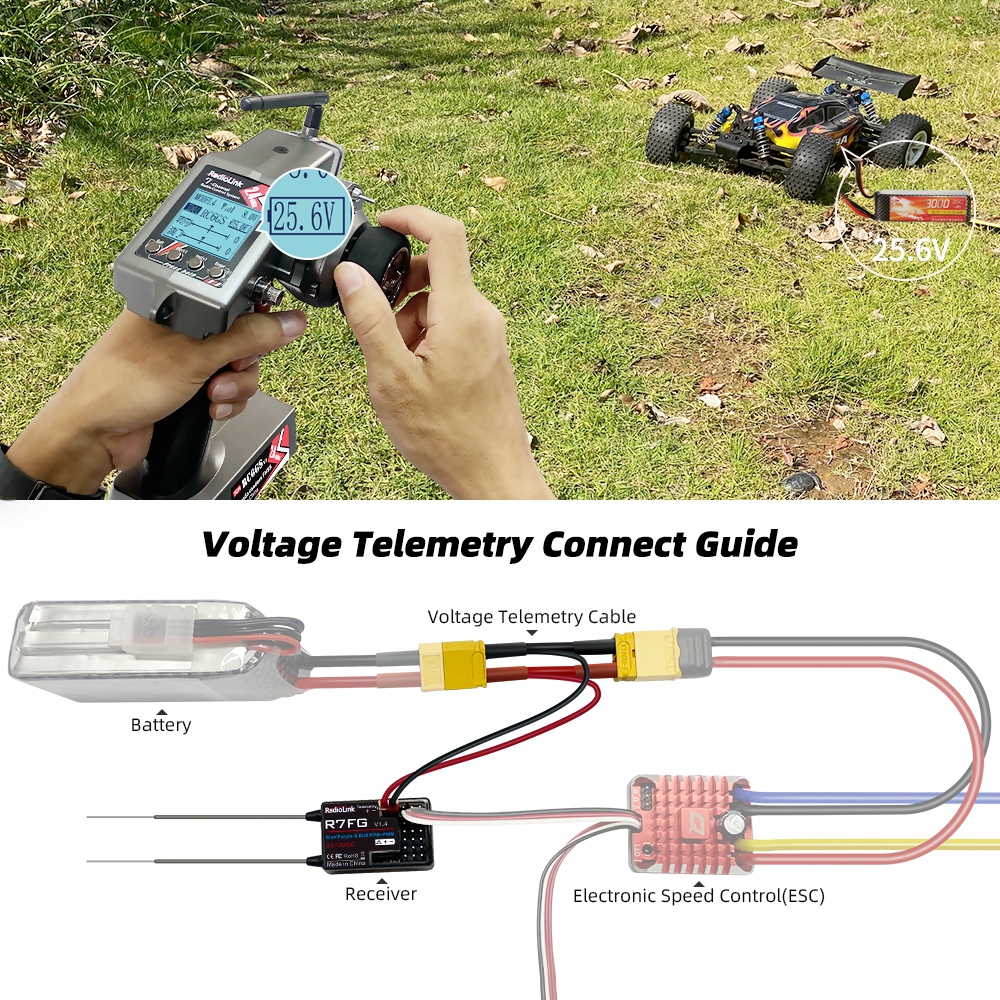

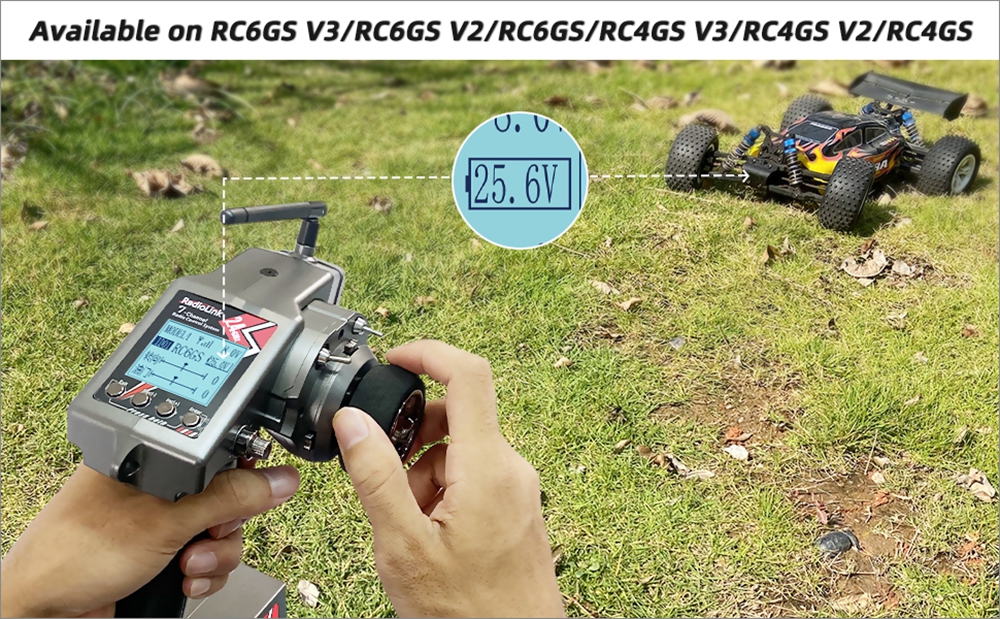

Telemetry: Real-time built-in telemetry of the model battery voltage, RSSI, and receiver voltage
Model Battery Voltage Telemetry: 3.0-60V
Gyro: Receiver with gyro-integrated, the customizable gyro sensitivity
Water Splash Proof: The waterproof grade is IPX4
Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot
Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
Spread Spectrum Mode: FHSS, 67 channels pseudo-random frequency hopping
Control Distance: 600 meters
Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

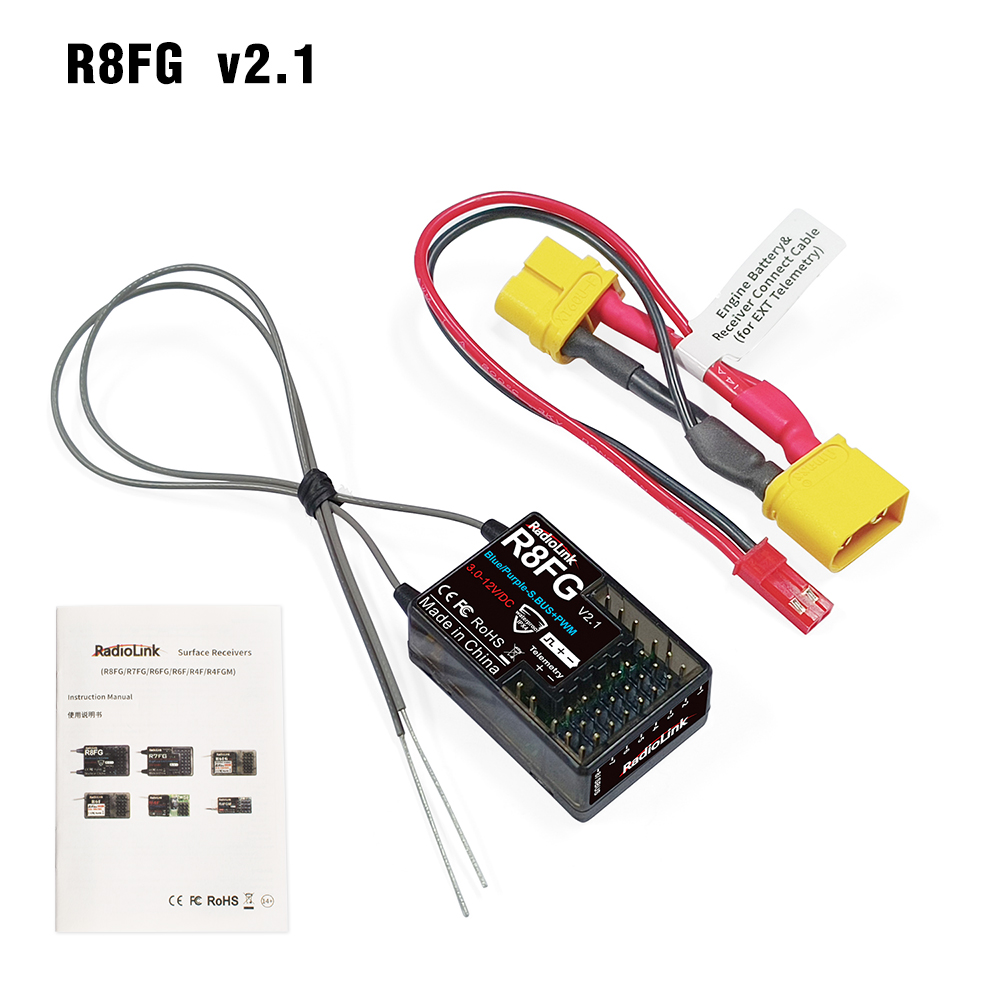

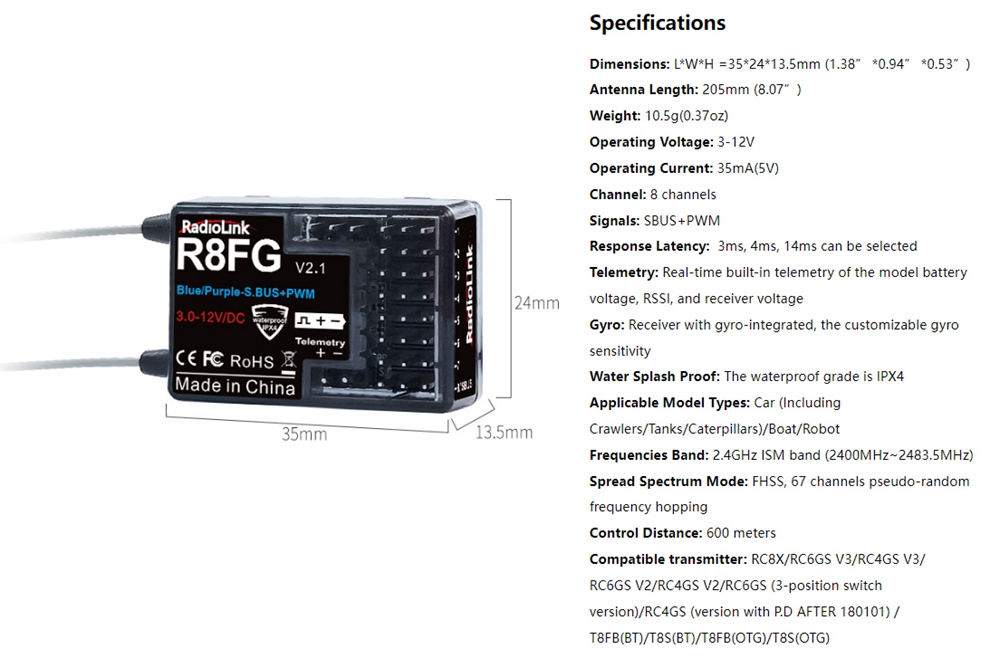

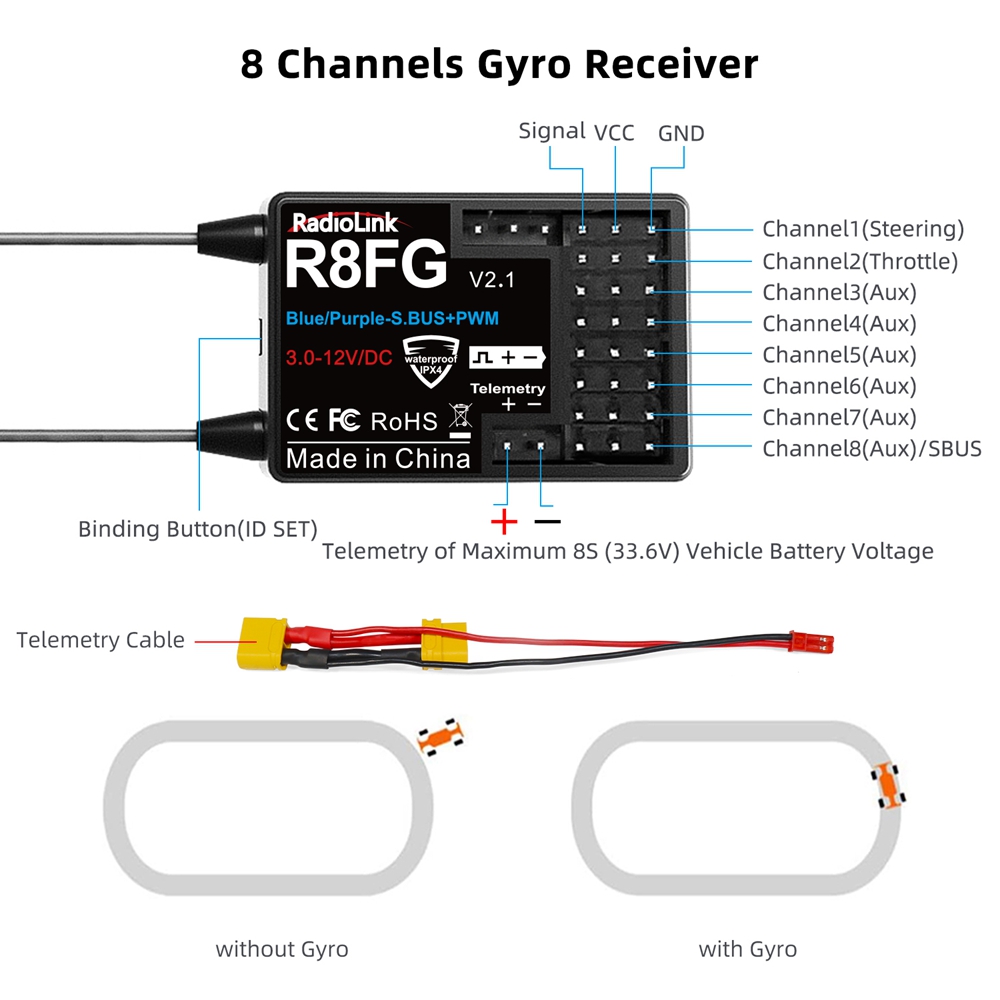

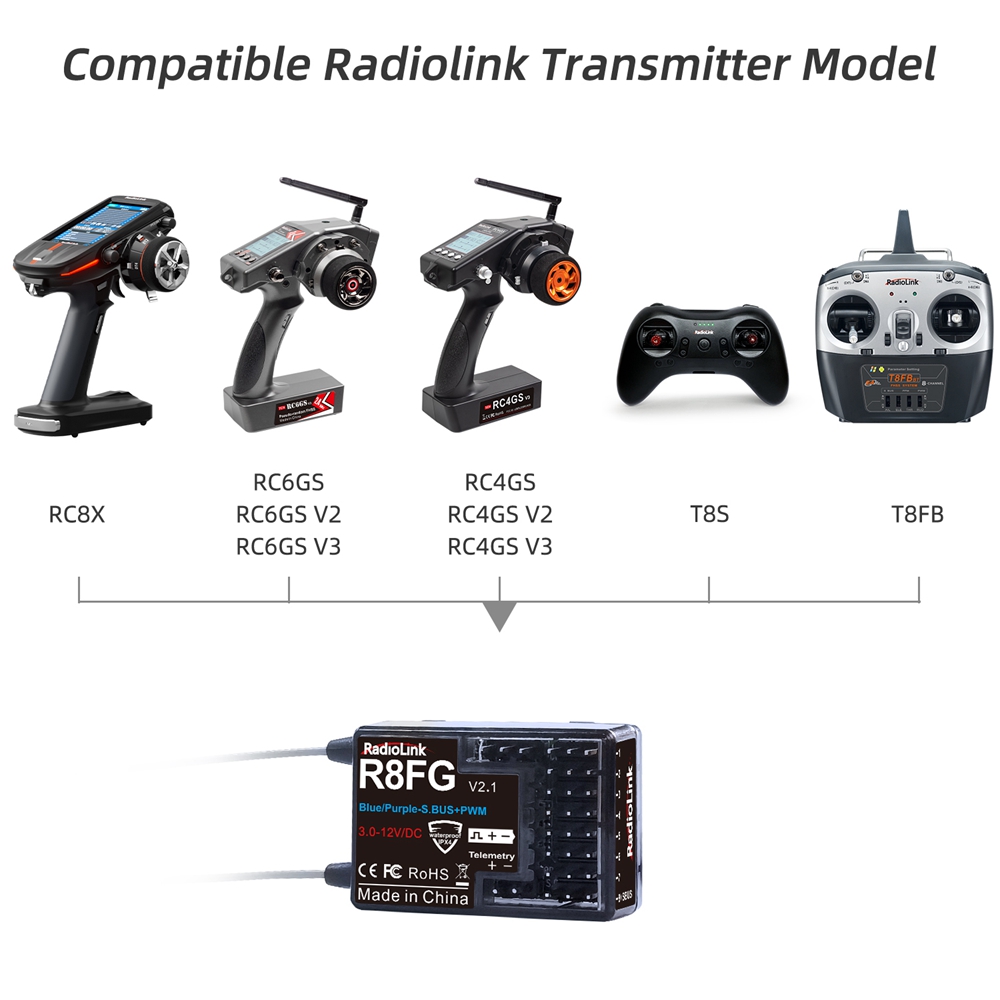

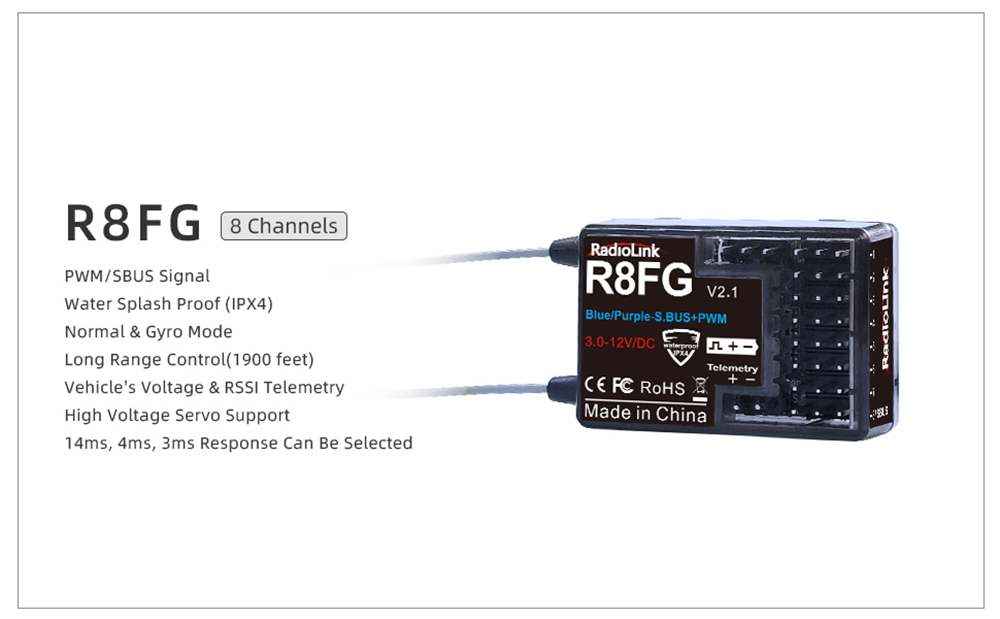

R8FG:
Operating Voltage: 3-12V
Operating Current: 35mA(5V)
Channel: 8 channels
Signals: SBUS+PWM
Response Latency: 3ms, 4ms, 14ms can be selected

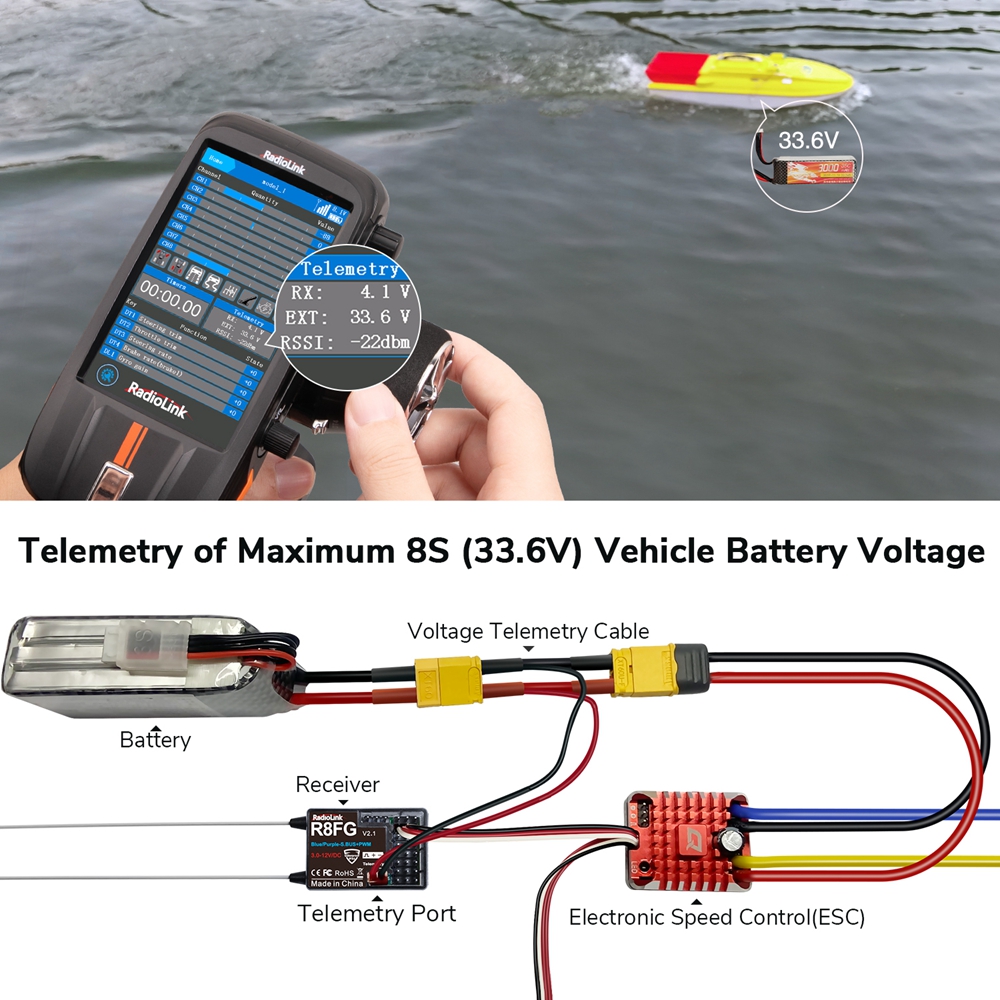

Telemetry: Real-time built-in telemetry of the model battery voltage, RSSI, and receiver voltage
Gyro: Receiver with gyro-integrated, the customizable gyro sensitivity

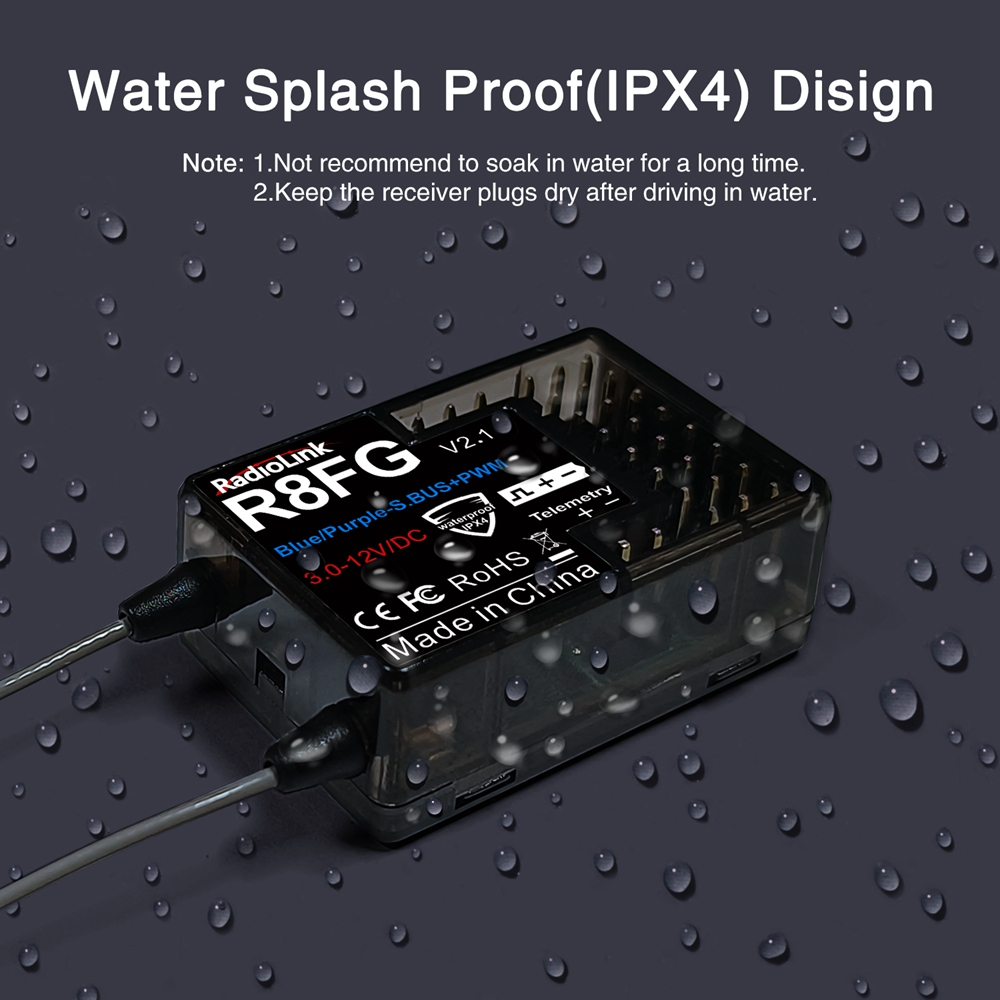

Water Splash Proof: The waterproof grade is IPX4
Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot
Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
Spread Spectrum Mode: FHSS, 67 channels pseudo-random frequency hopping
Control Distance: 600 meters
Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

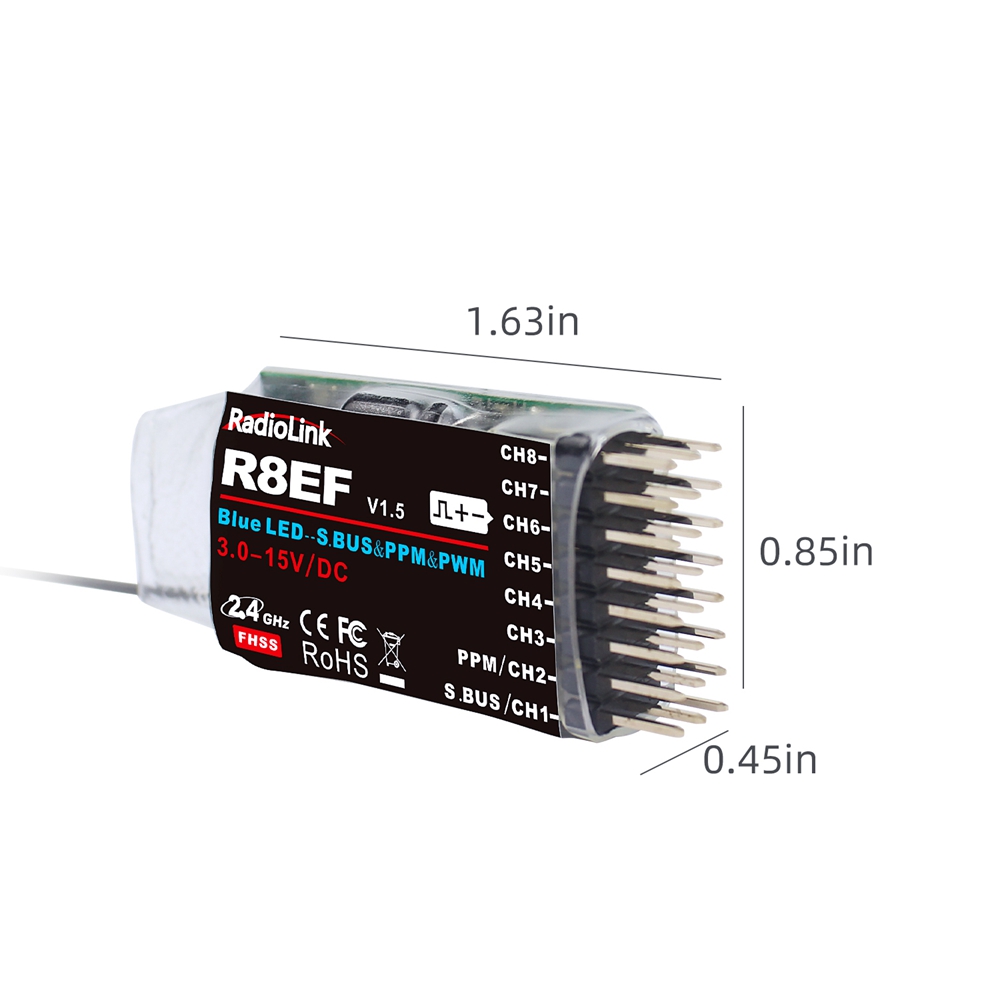

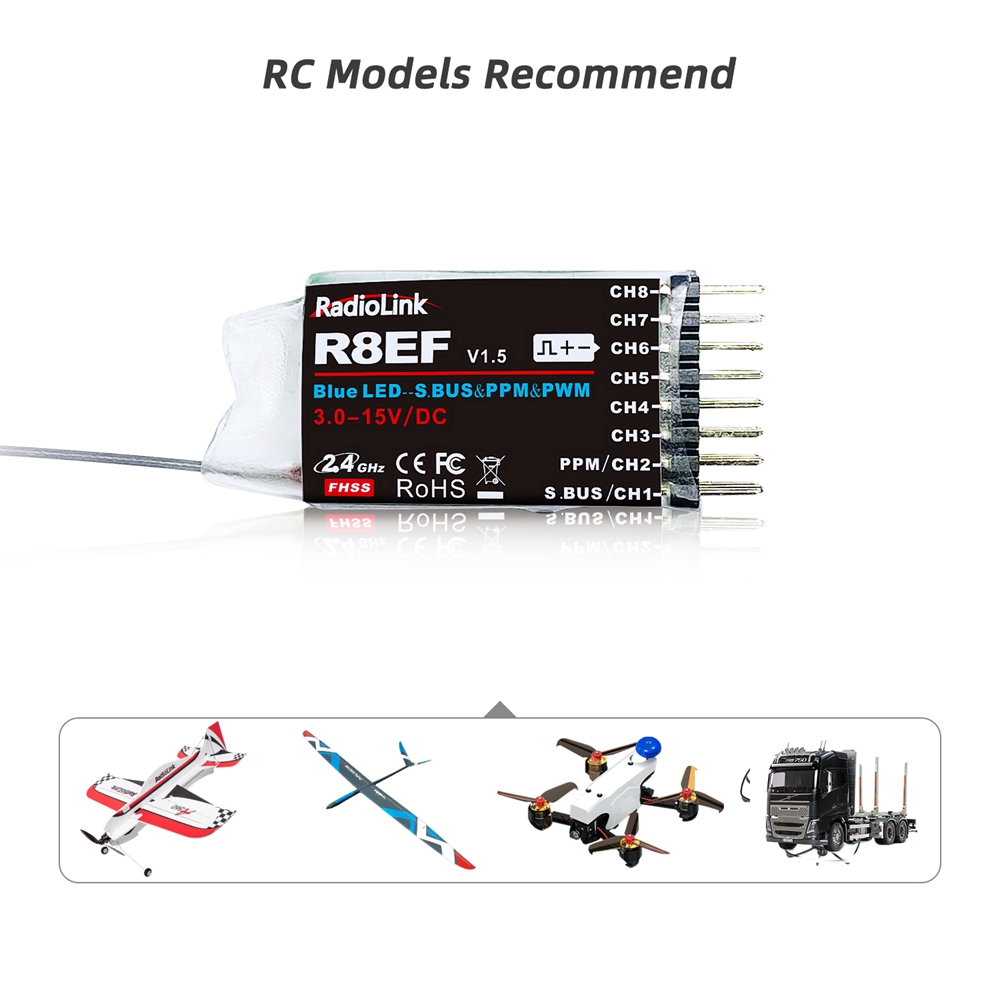

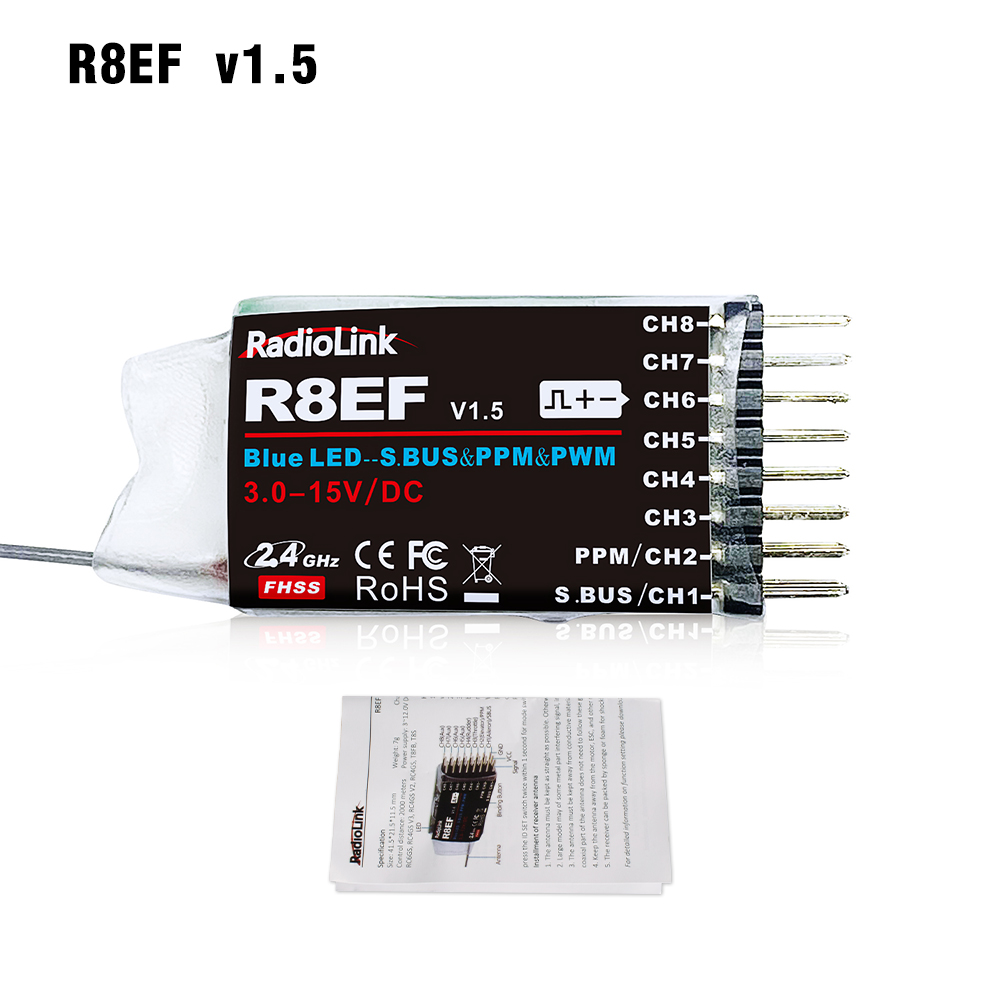

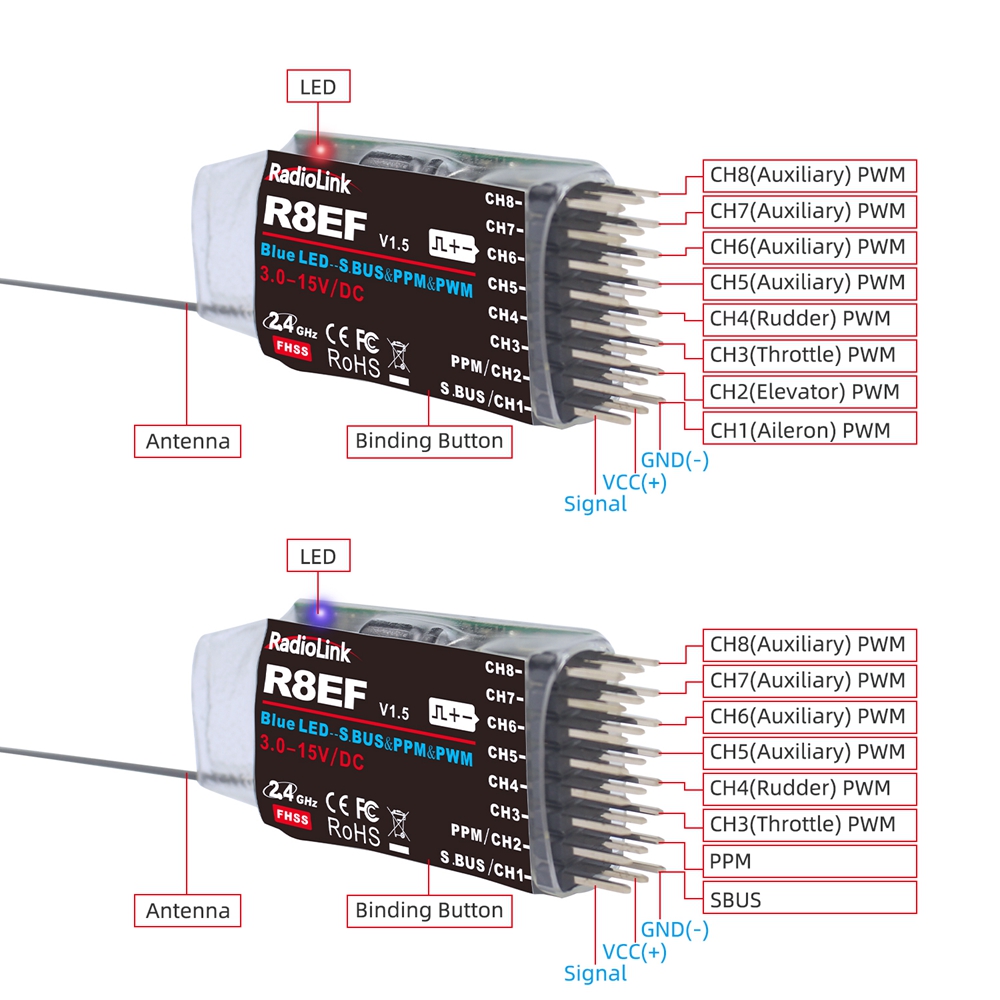

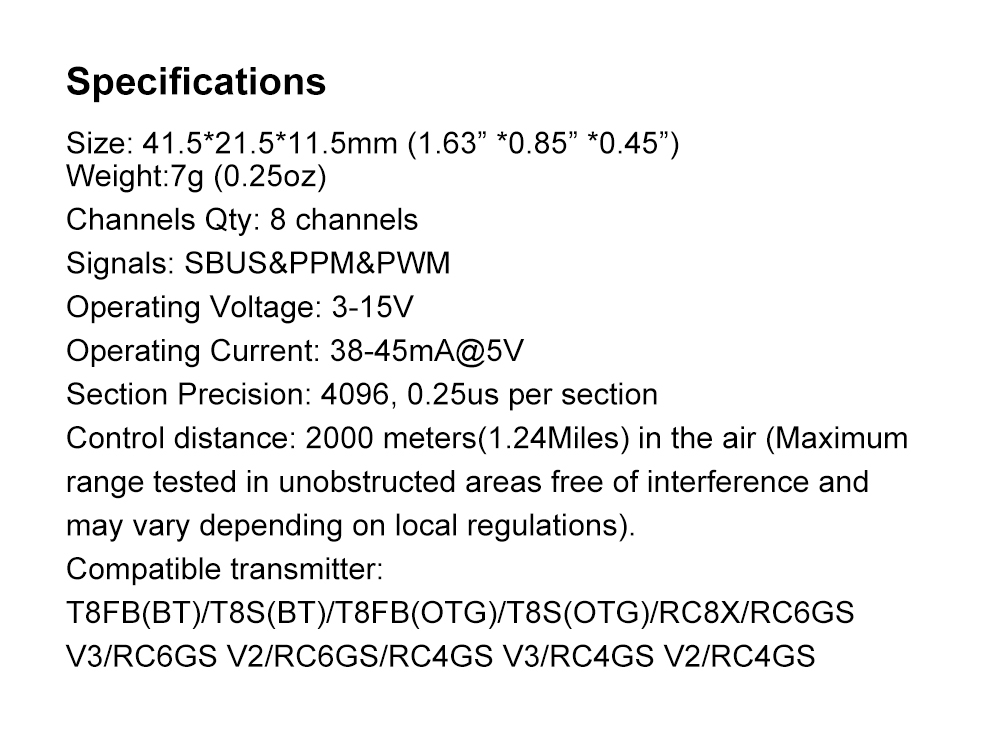

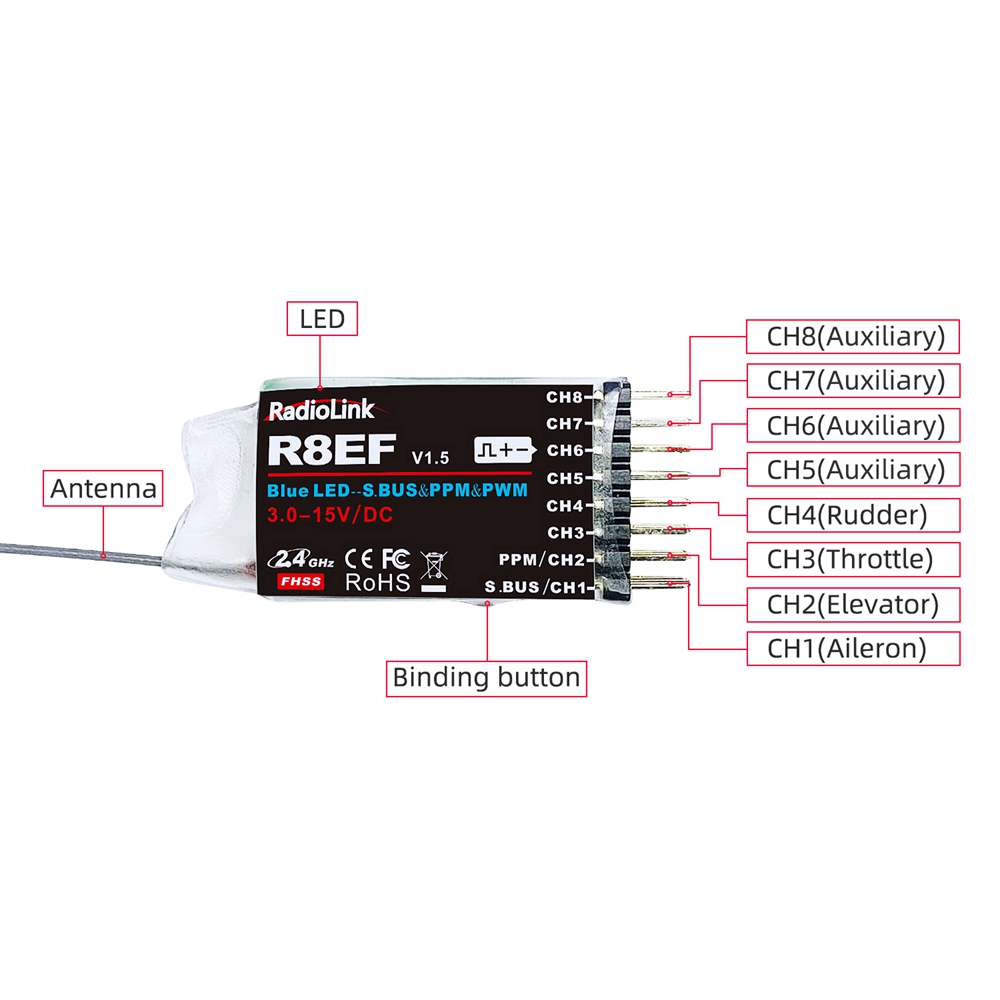

R8EF:
Channels Qty: 8 channels
Signals: SBUS&PPM&PWM
Operating Voltage: 3-15V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 2000 meters(1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

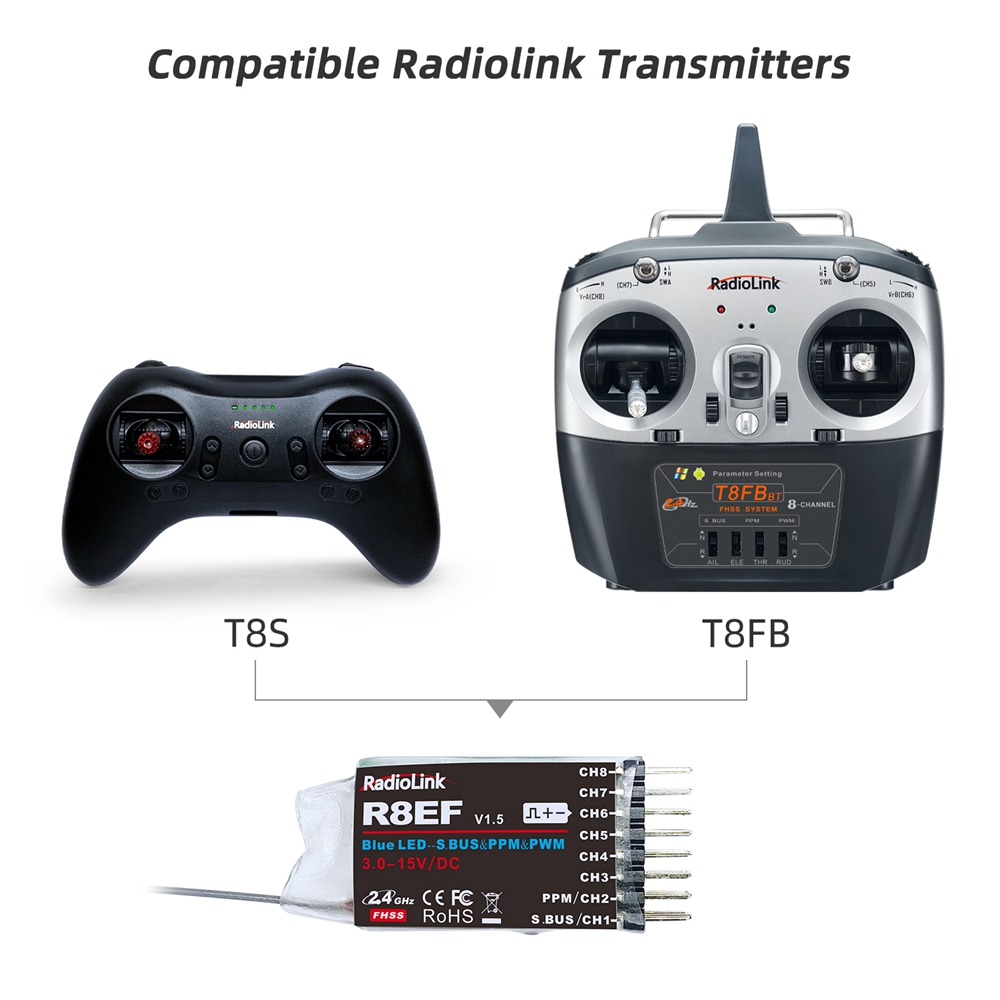

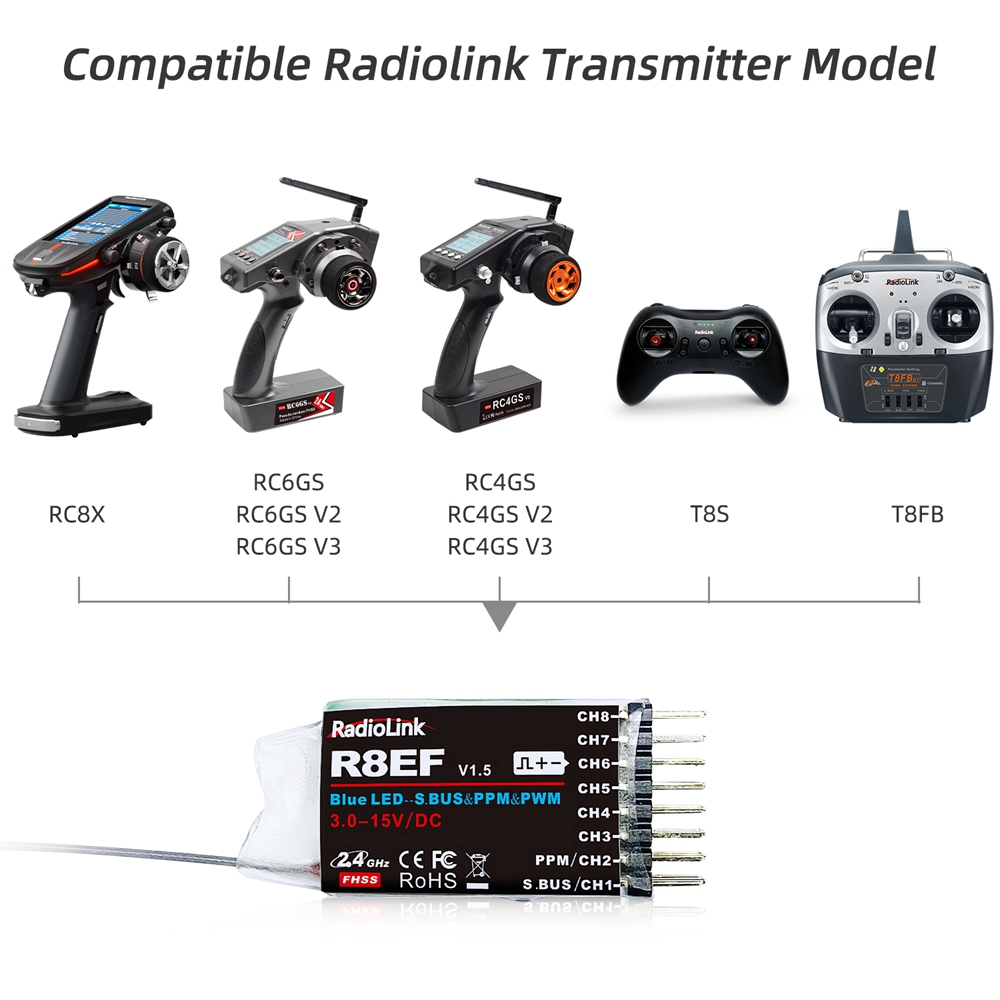

Compatible transmitter: T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS

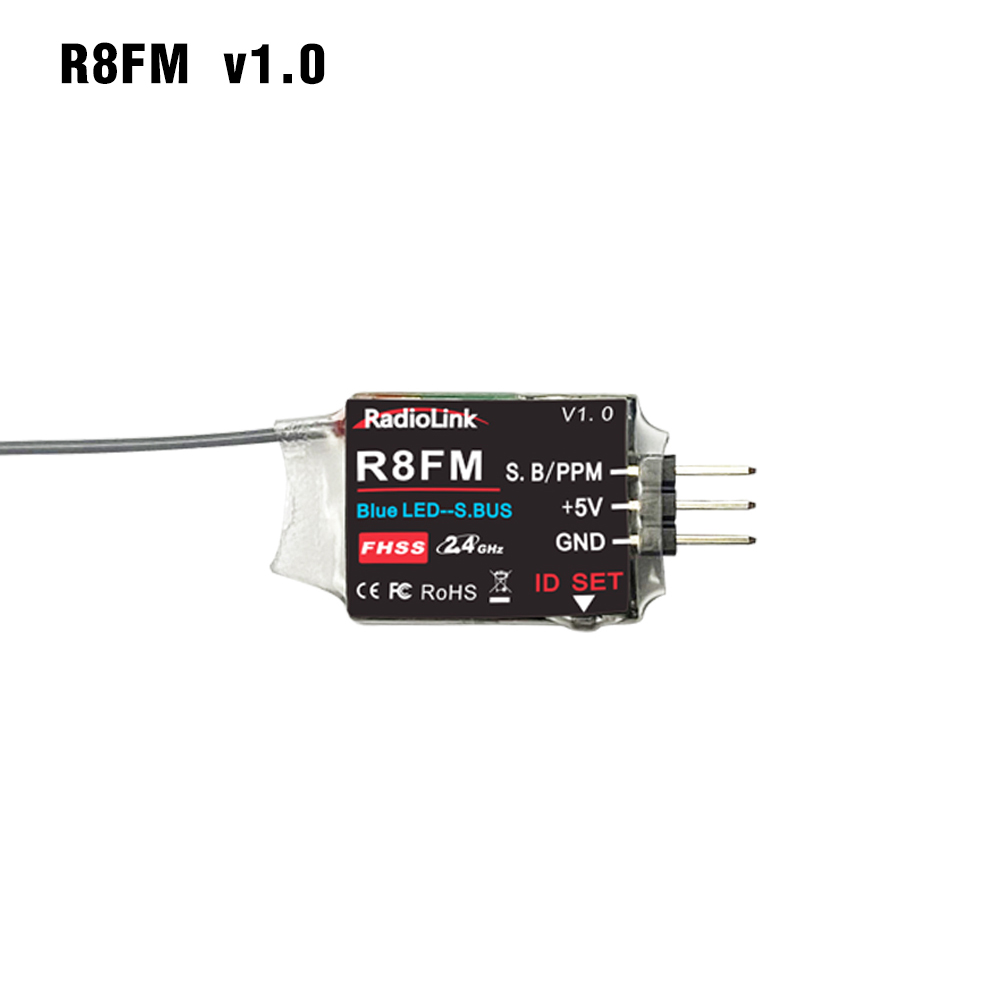

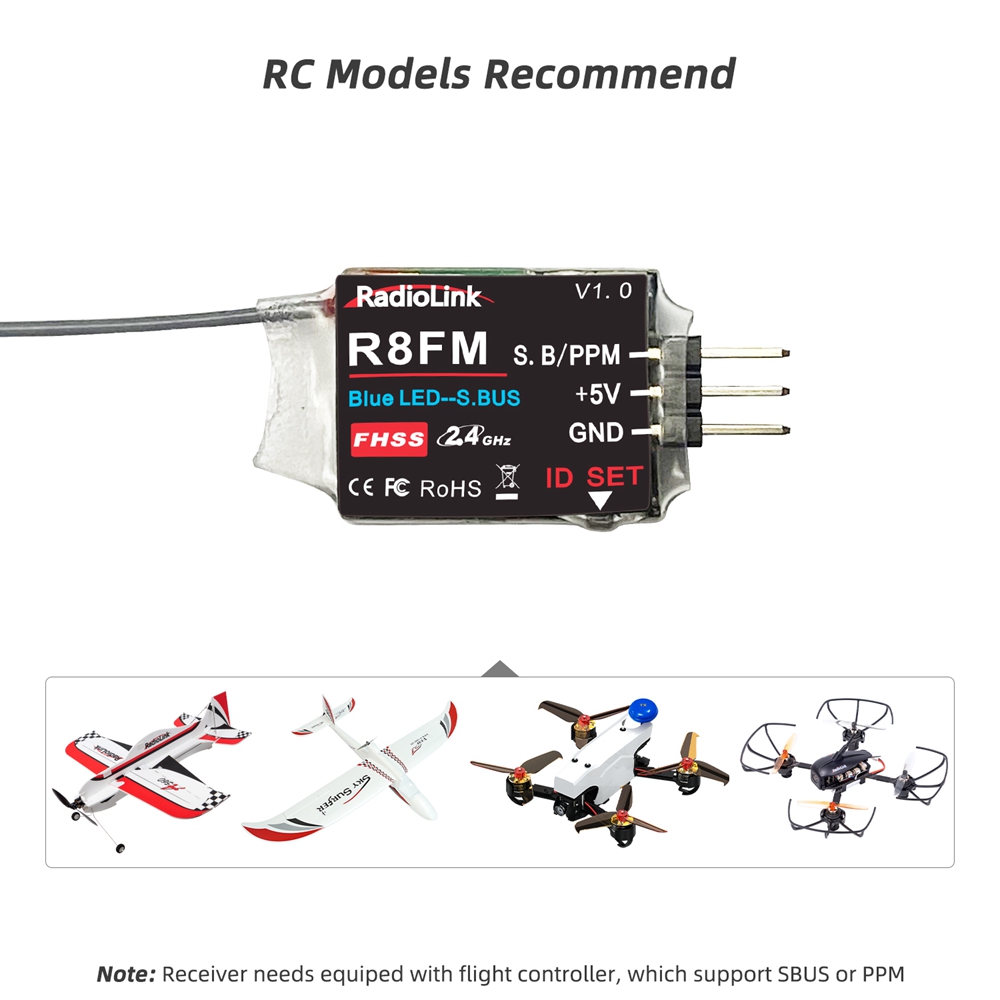

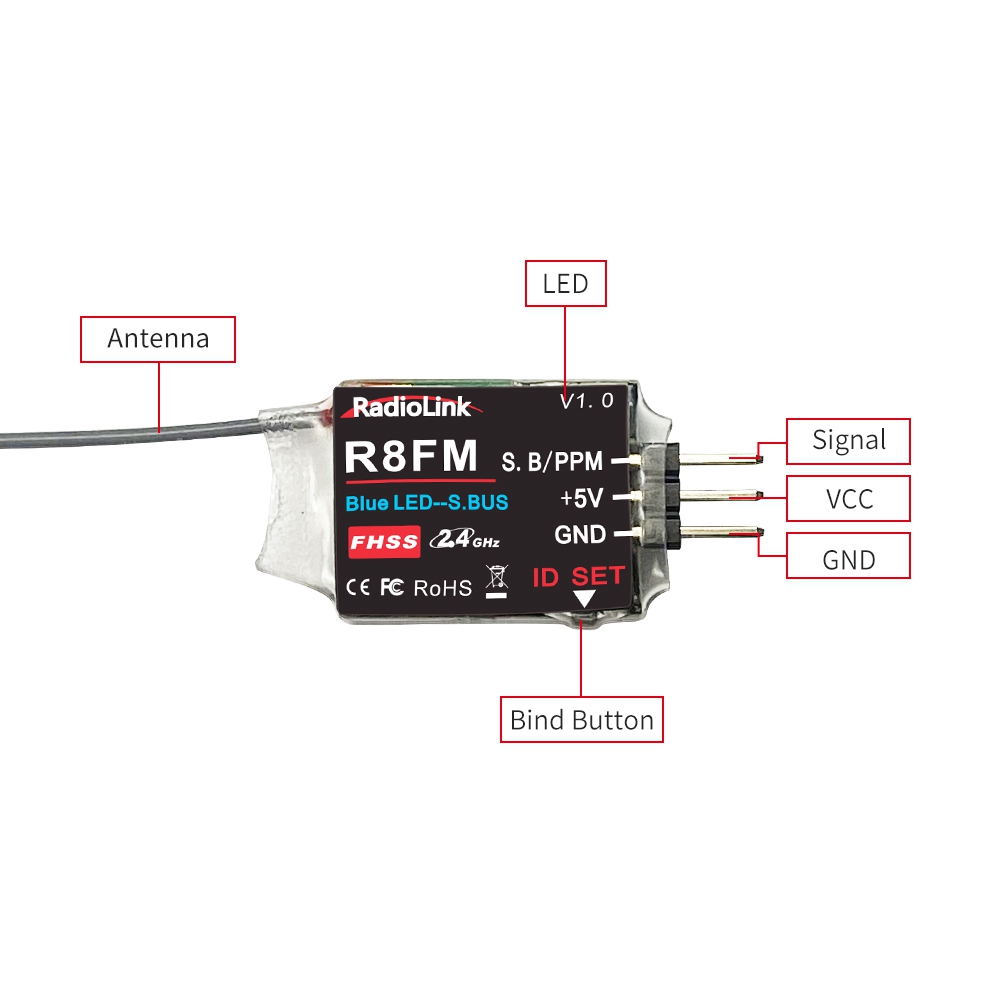

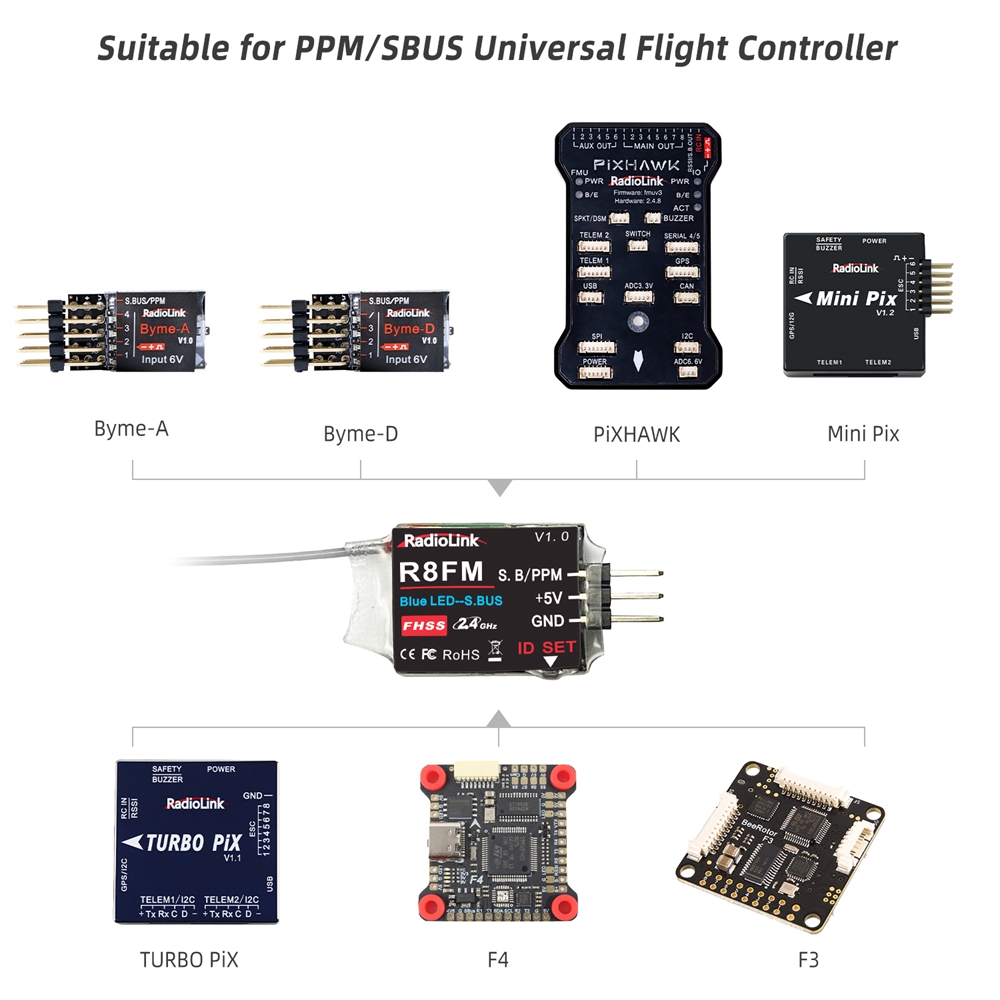

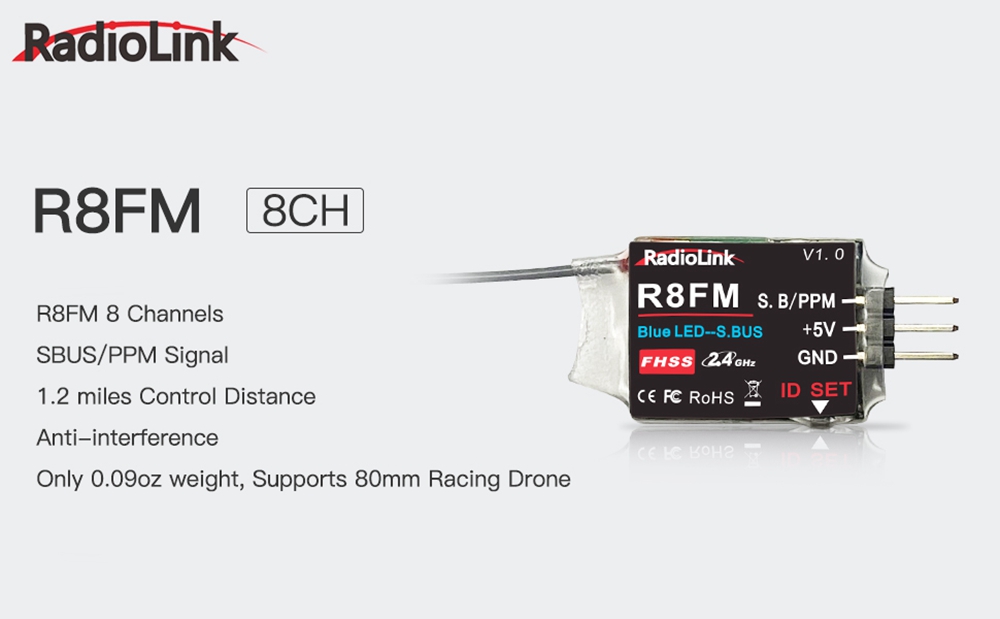

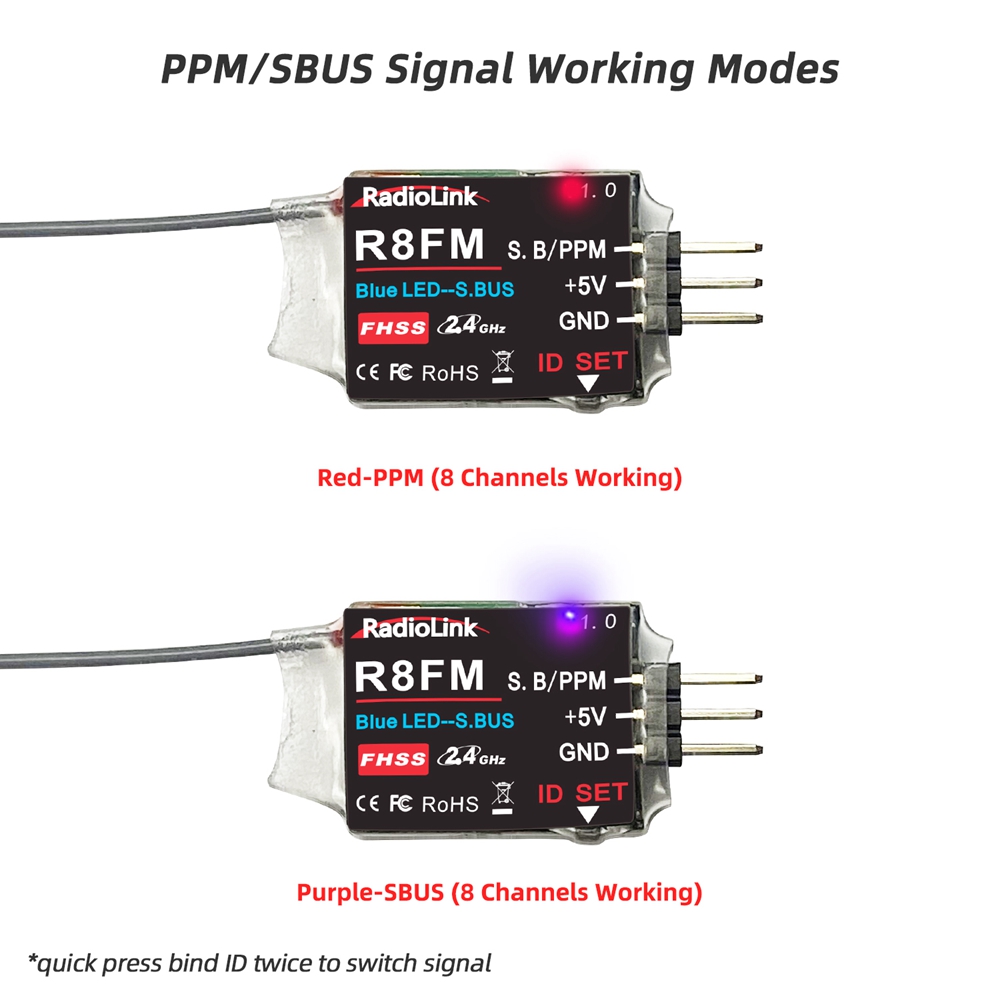

R8FM:
Channels Qty: 8 channels
Signals: SBUS/PPM
Operating Voltage: 3~6V
Operating Current: 38-45mA@5V
Antenna Length: 85mm
Section Precision: 4096, 0.25us per section
Control distance: 2000 meters (1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible transmitter:T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS(must work with flight controller)

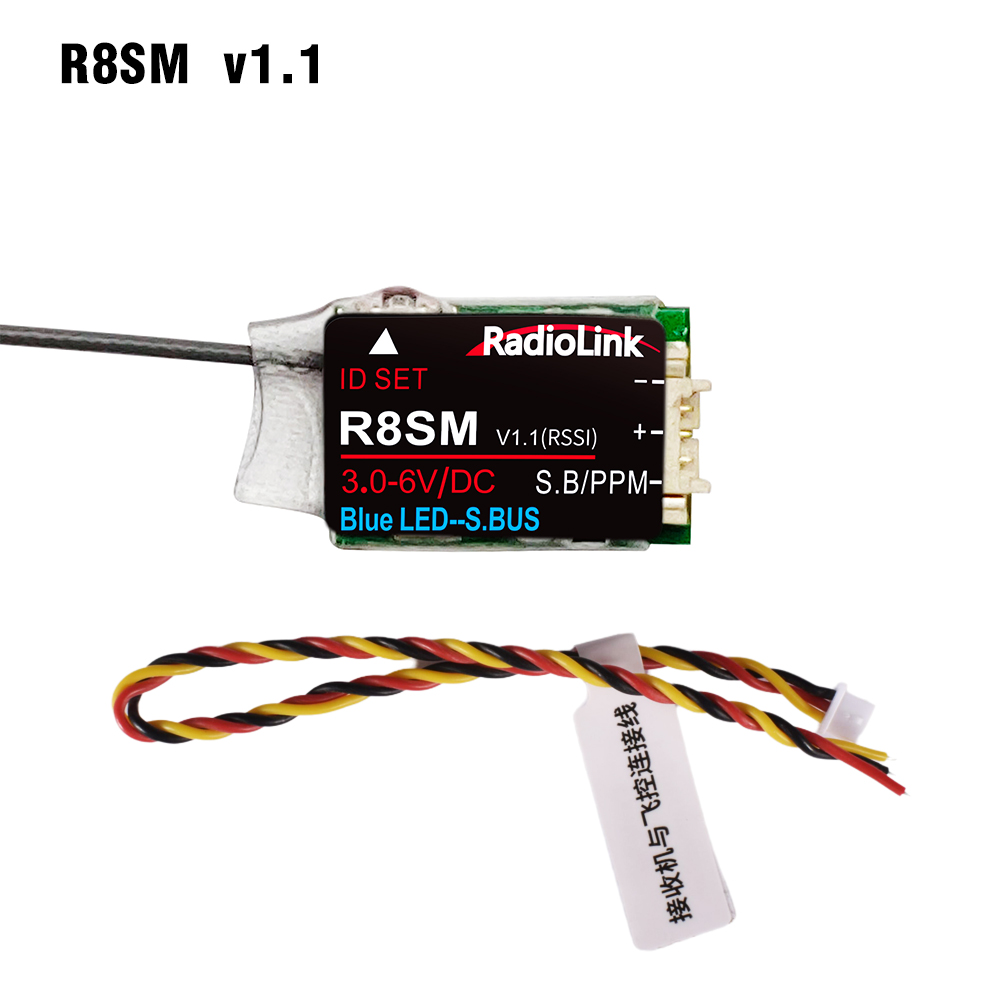

R8SM:
Channels Qty: 8 channels
Signals: SBUS/PPM
Operating Voltage: 3-6V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 2000 meters (1.24 miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible transmitter:T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS(must work with flight controller)

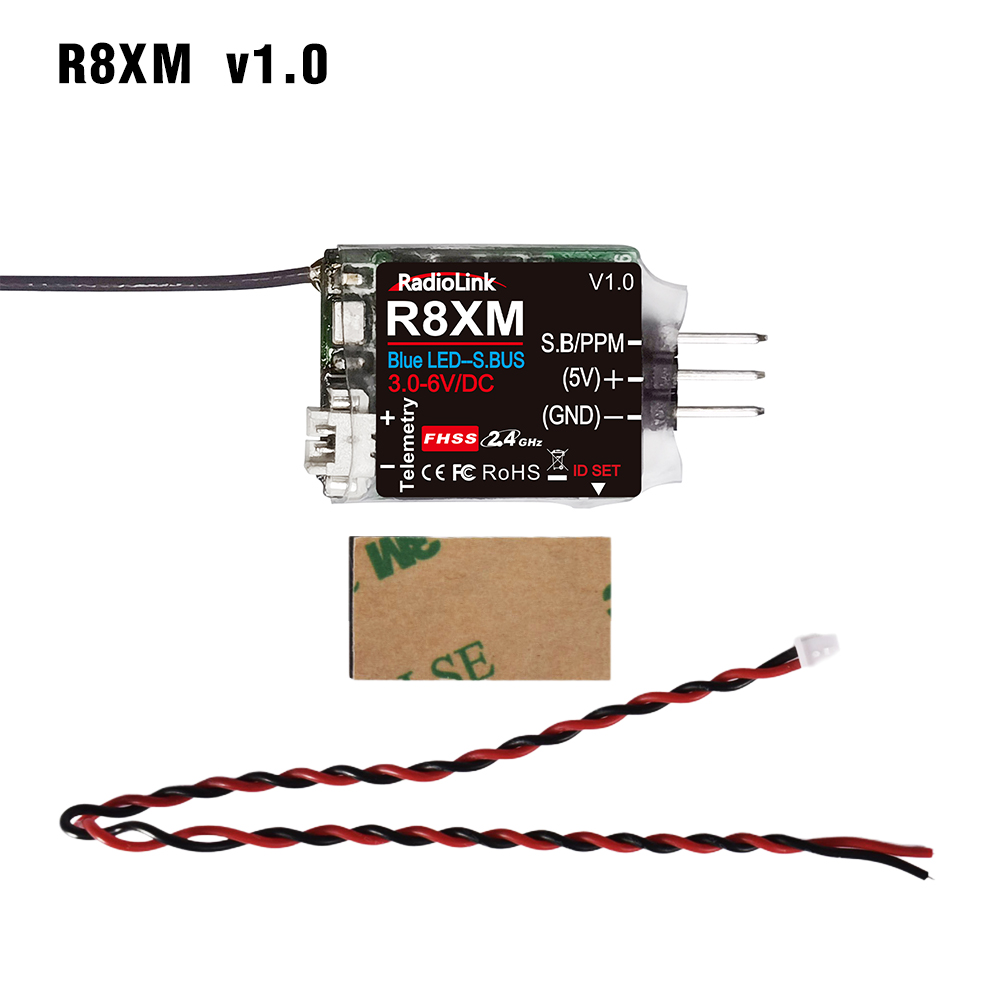

R8XM:
Antenna Length: 90mm
Channel Quantity: 8 channels
Operating Voltage: 3-6V DC
Operating Current: 40mA±5mA@5V
Signals: SBUS/PPM
Output Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）
Spread Spectrum: FHSS, 67 channels pseudo-random frequency hopping
Adaptable Models: Racing drone/Rotary Wing/Fixed wing/Glider/Multicopter/Car/Boat/Robot (must work with flight controller)
Control Distance: 4000 meters (2.49Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Transmission: Return of signal, RSSI, receiver voltage
Model Voltage Telemetry: 2S-6S LiPo battery(7.4V-25.2V)
Compatible Transmitter(must work with flight controller): T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS

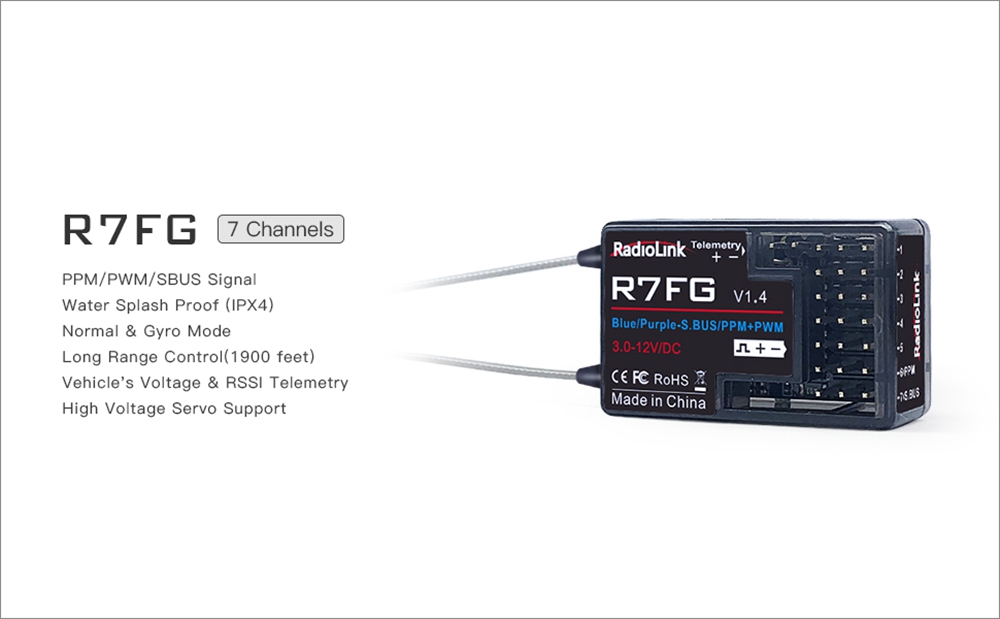

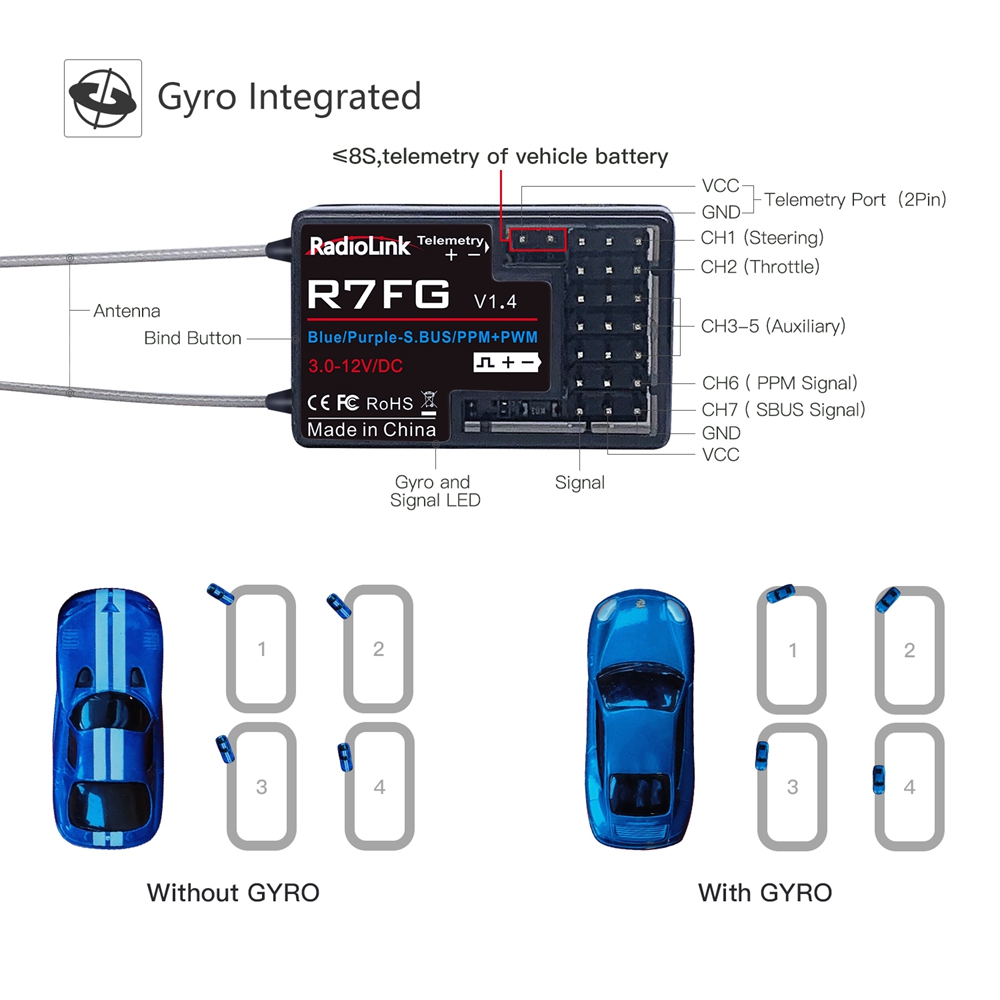

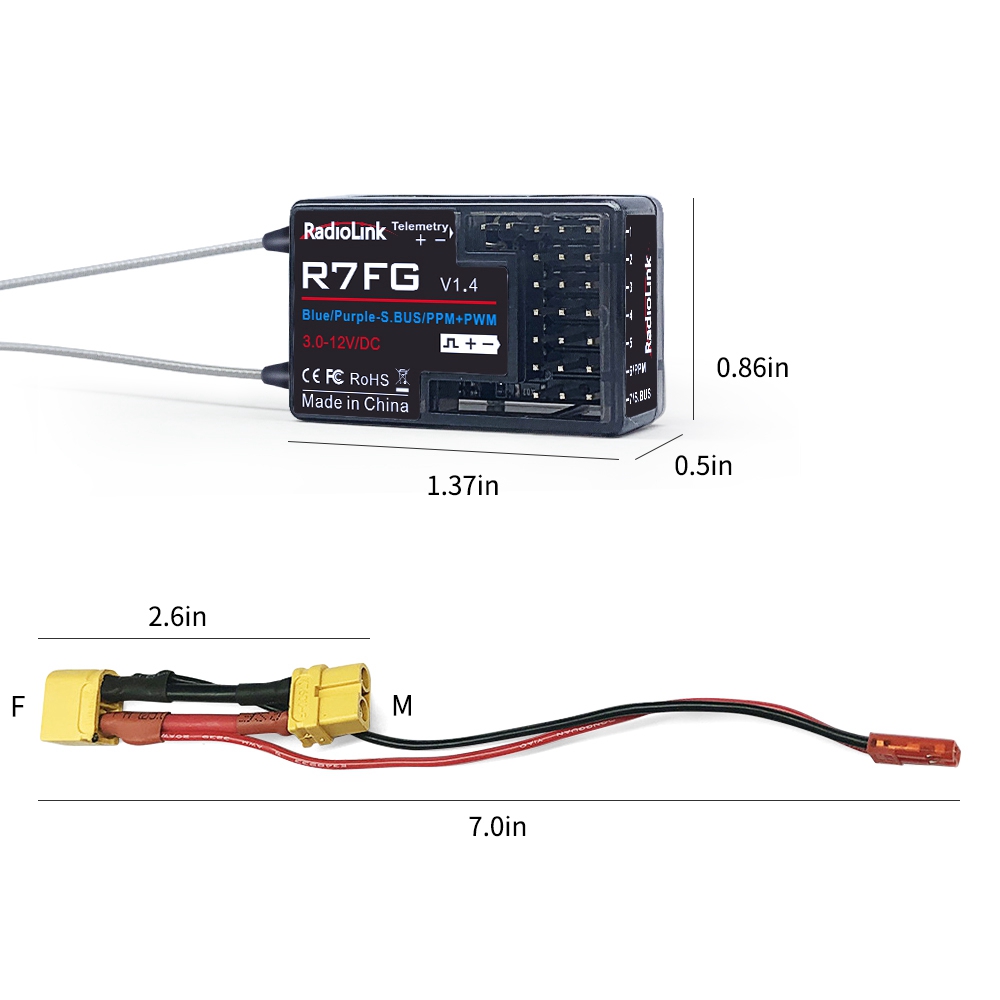

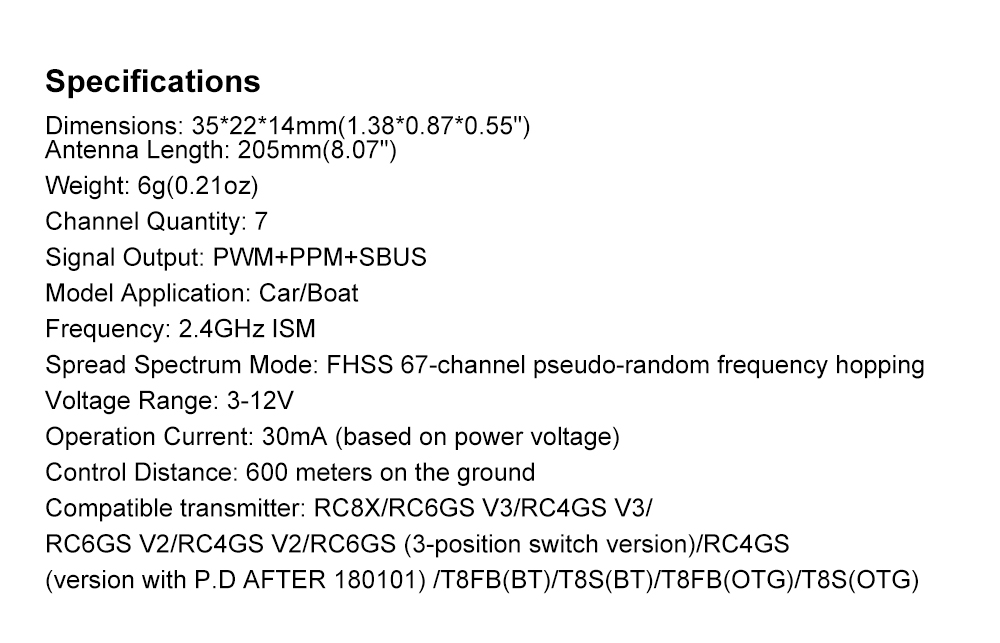

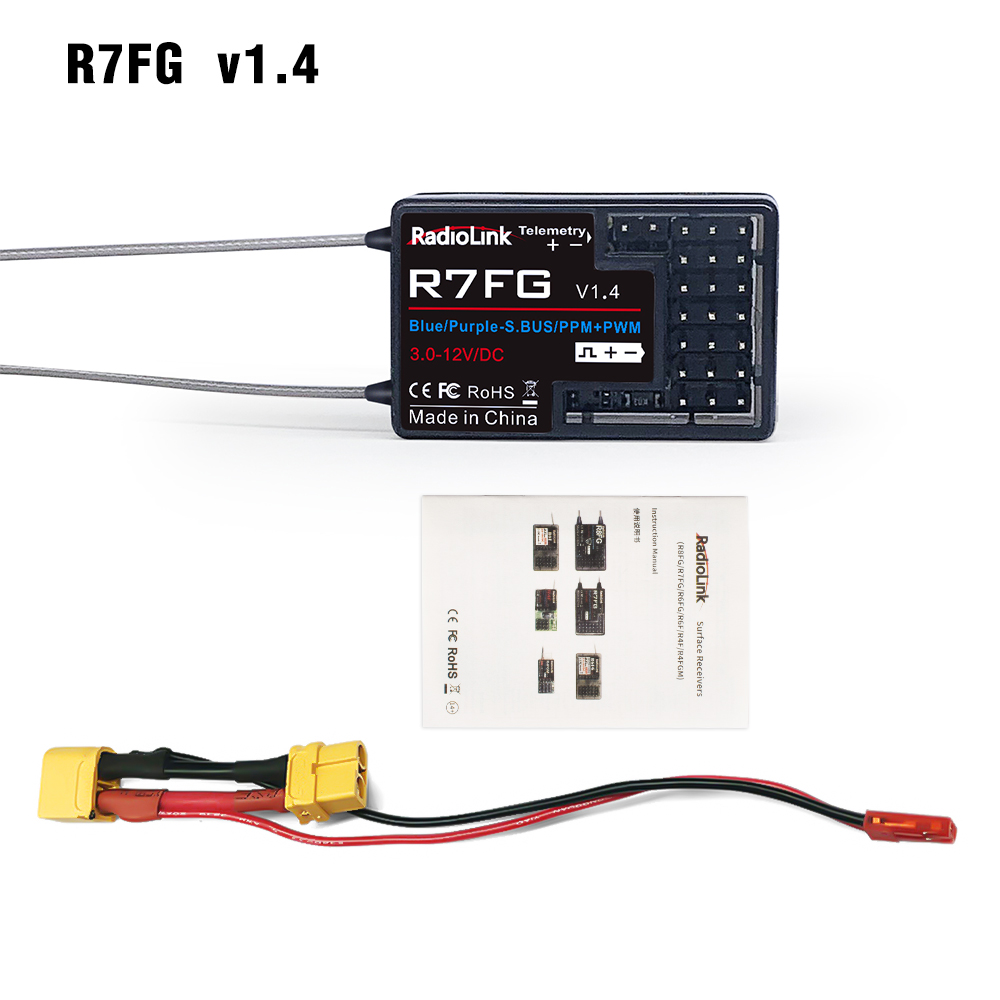

R7FG:
Antenna Length: 205mm(8.07")
Channel Quantity: 7
Signal Output: PWM+PPM+SBUS
Model Application: Car/Boat
Frequency: 2.4GHz ISM
Spread Spectrum Mode: FHSS 67-channel pseudo-random frequency hopping
Voltage Range: 3-12V
Operation Current: 30mA (based on power voltage)
Control Distance: 600 meters on the ground
Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

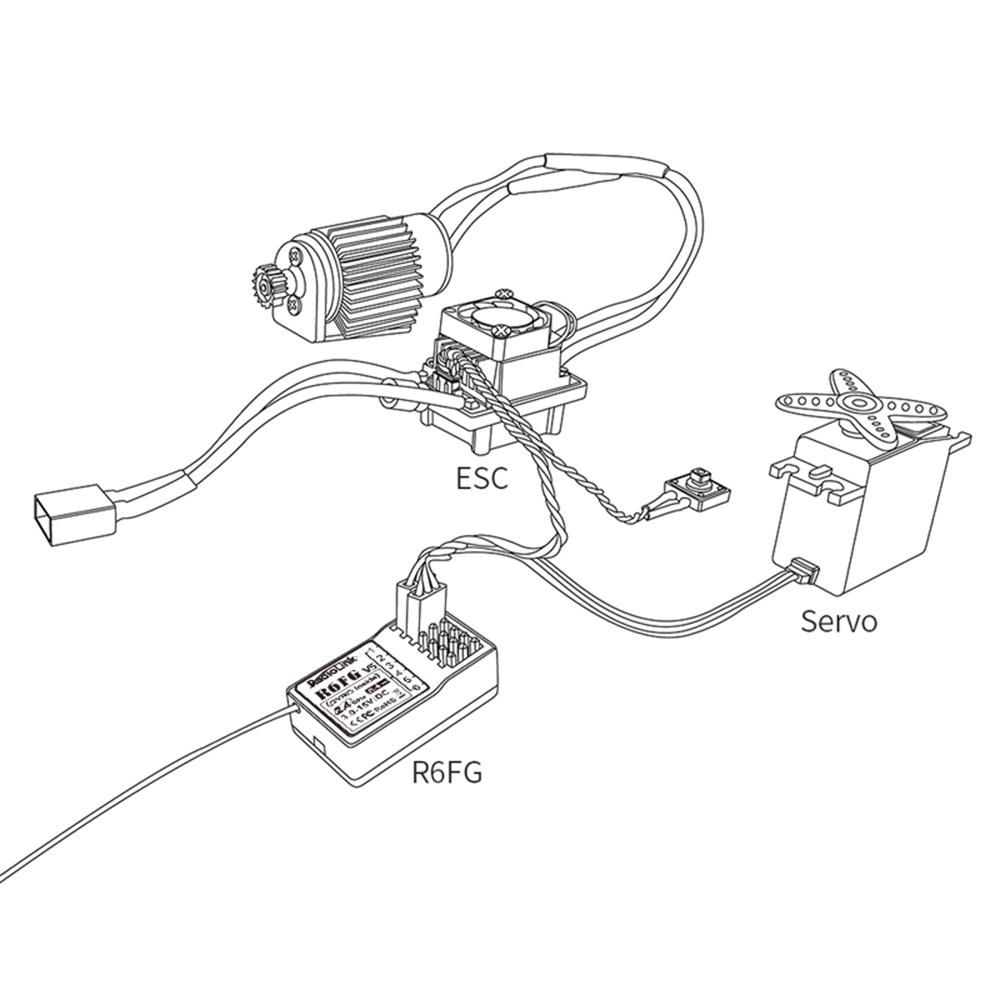

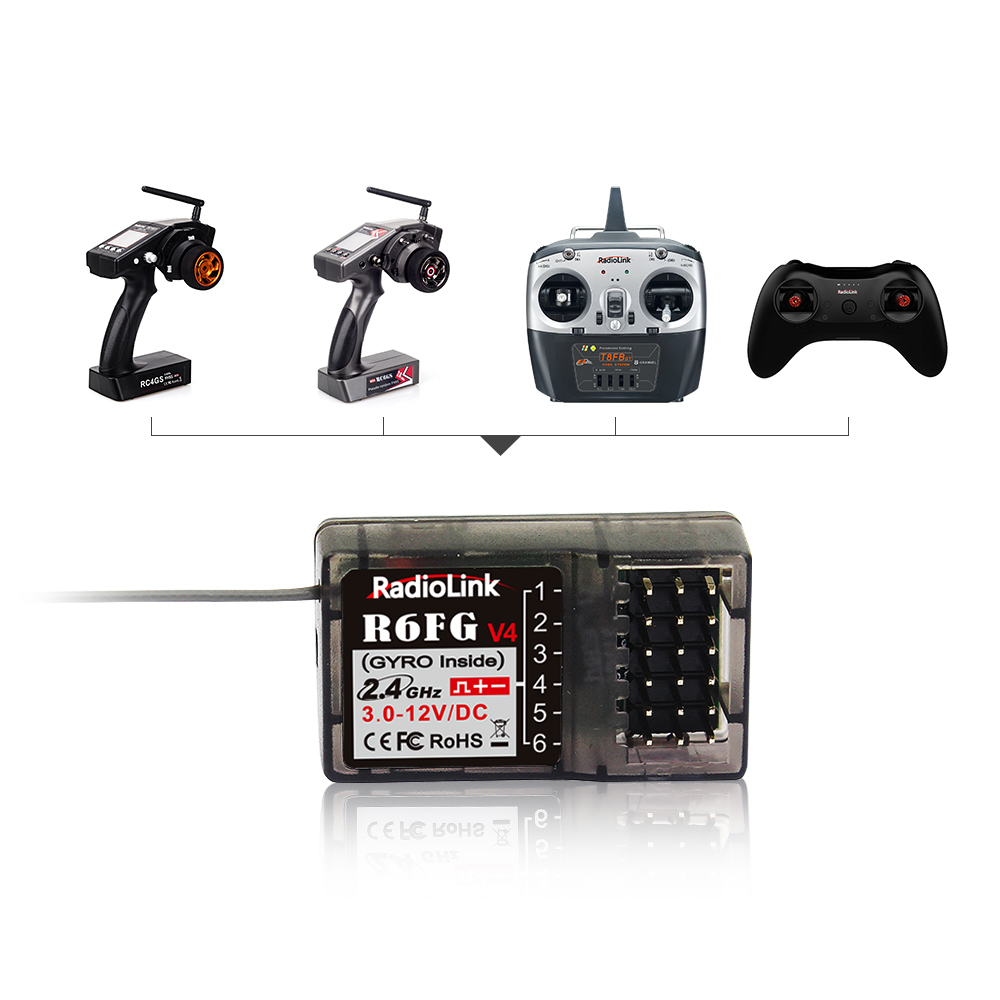

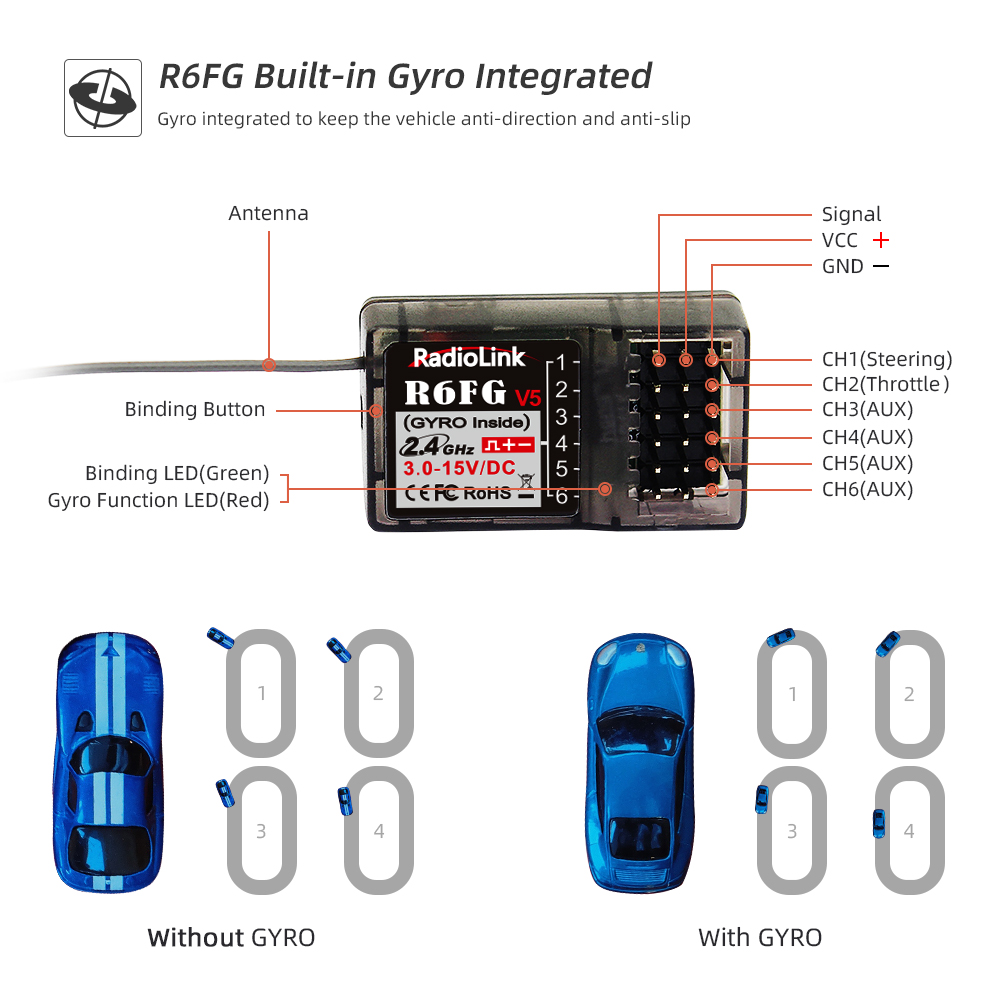

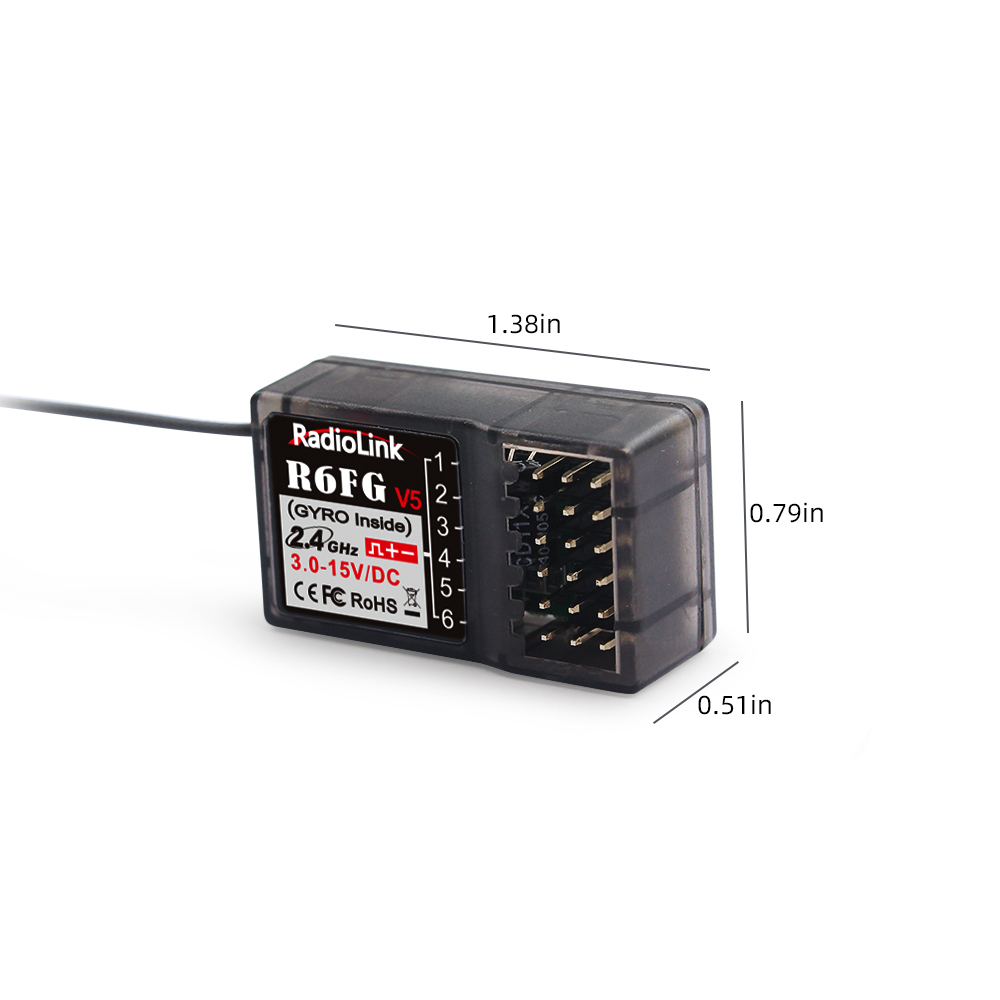

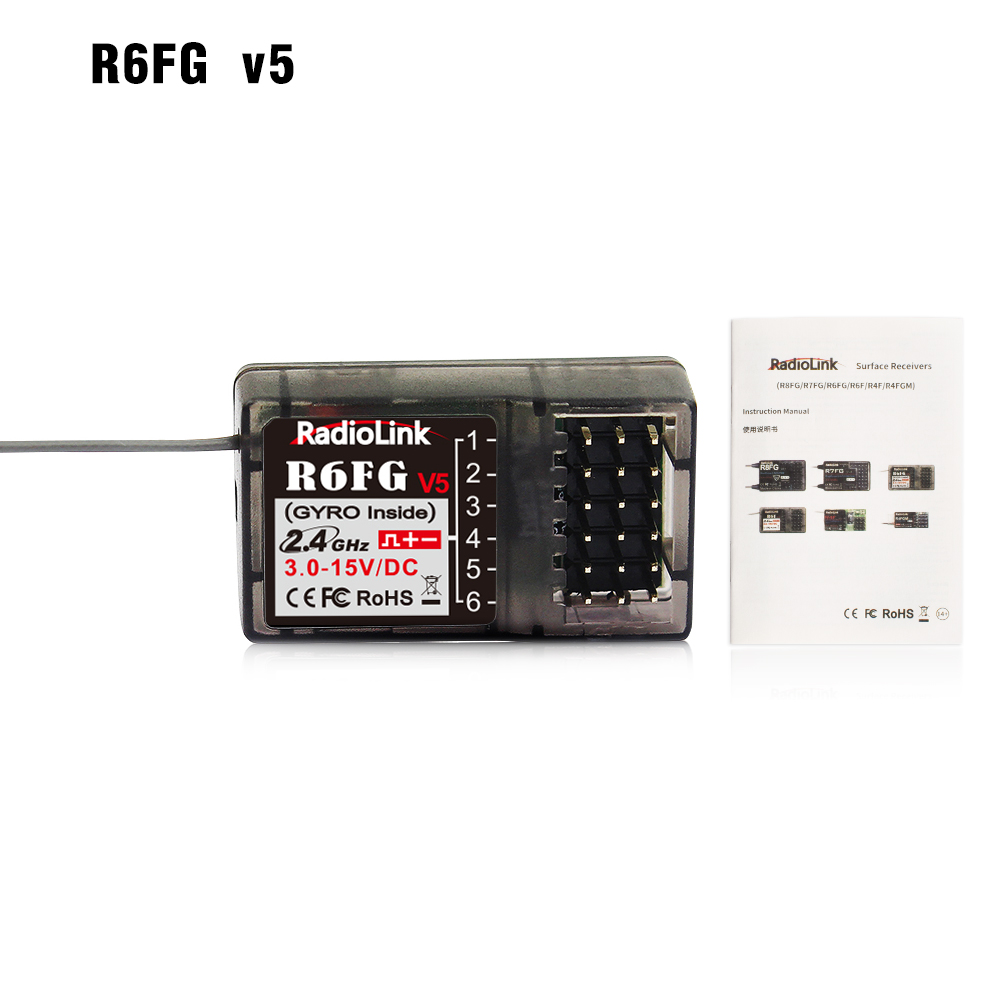

R6FG:
Channel Qty: 6 channels
Model: cars/boats
Spread Spectrum: FHSS & 67 signal channel pseudorandom frequency sequence hopping
Antenna Length: 205mm (8.07")
Power Supply: 3-15V DC
Channel Resolution: 4096
Operating Current: 30mA
Control Range: 400 meters(1312ft)

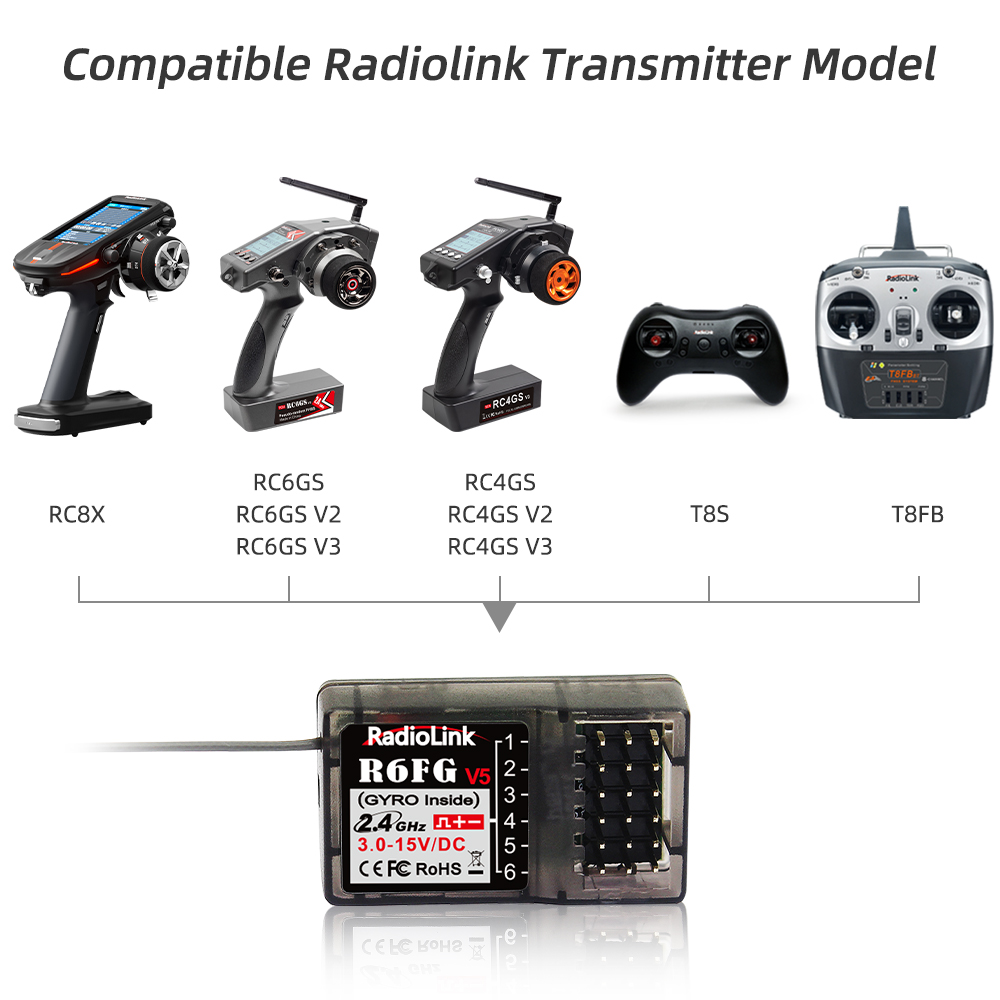

Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

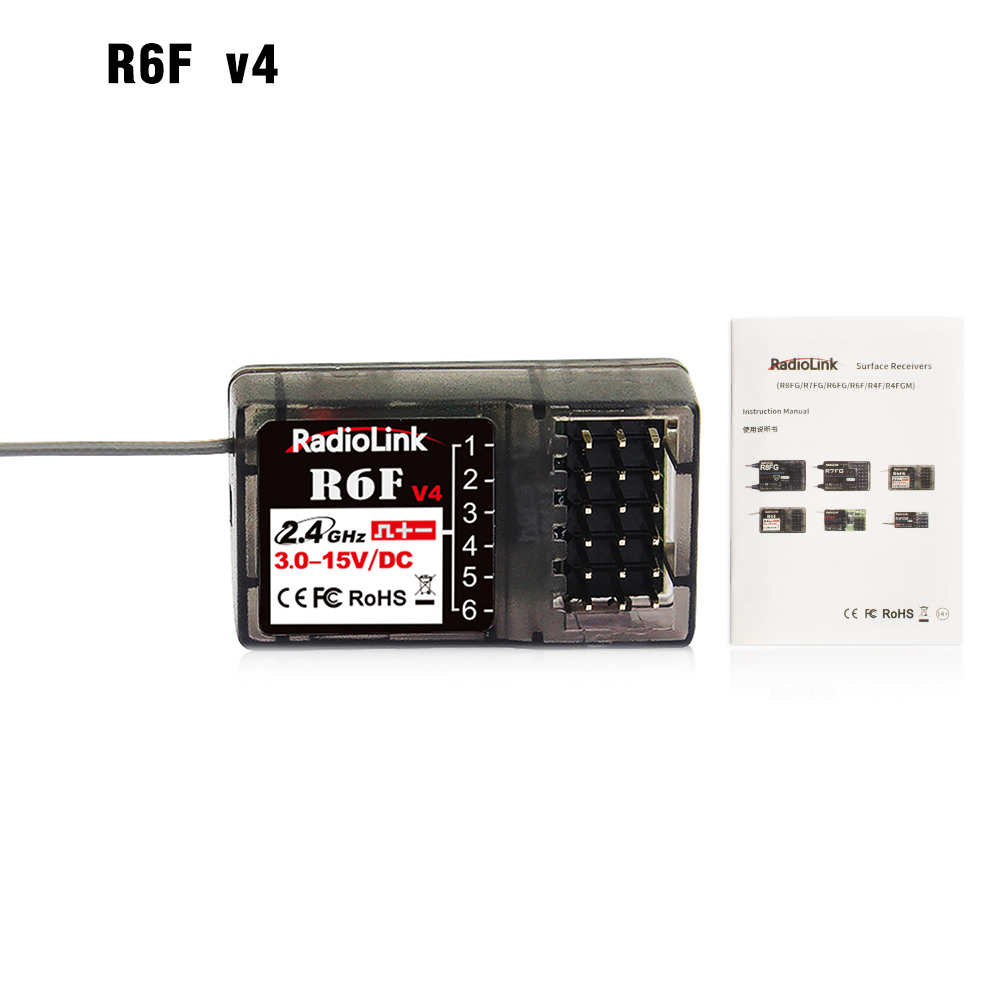

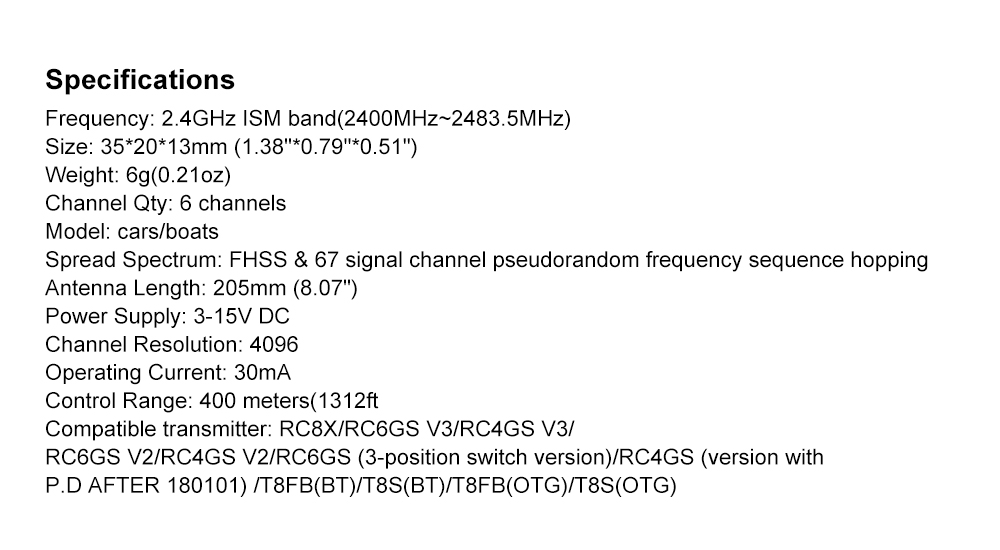

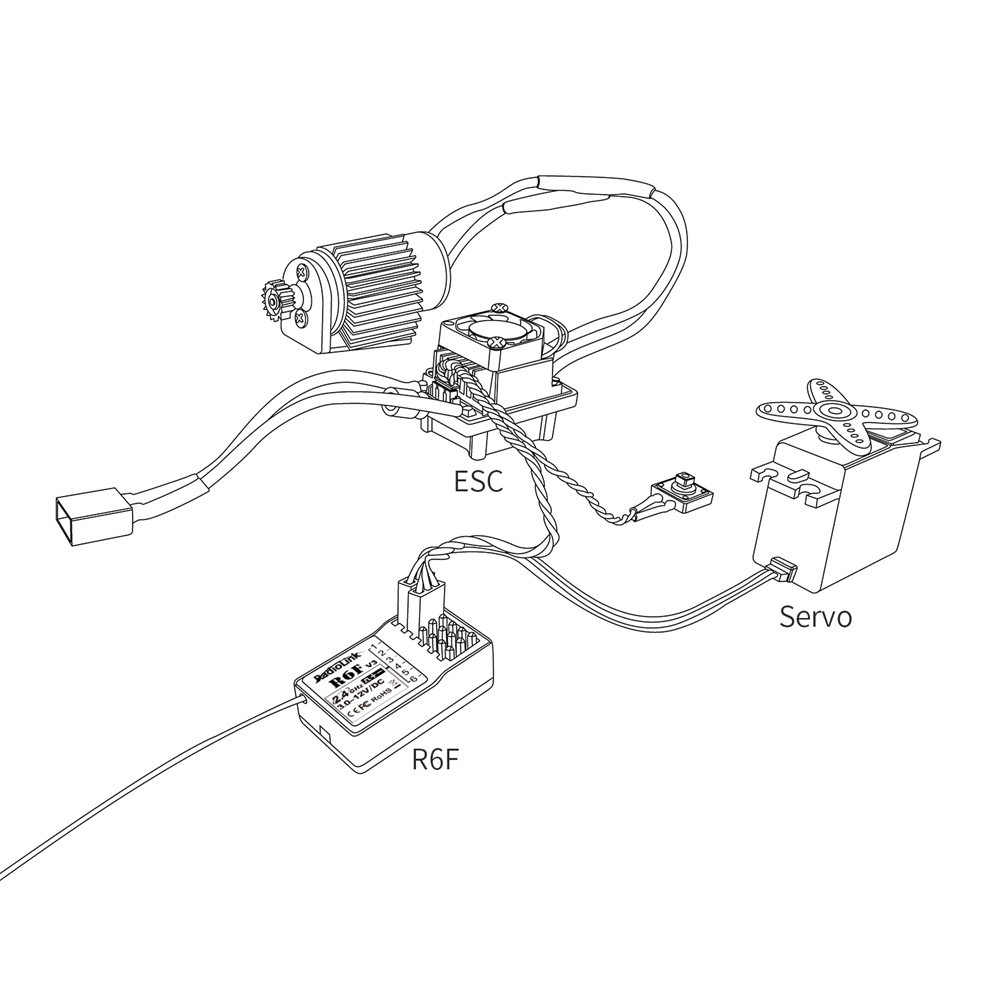

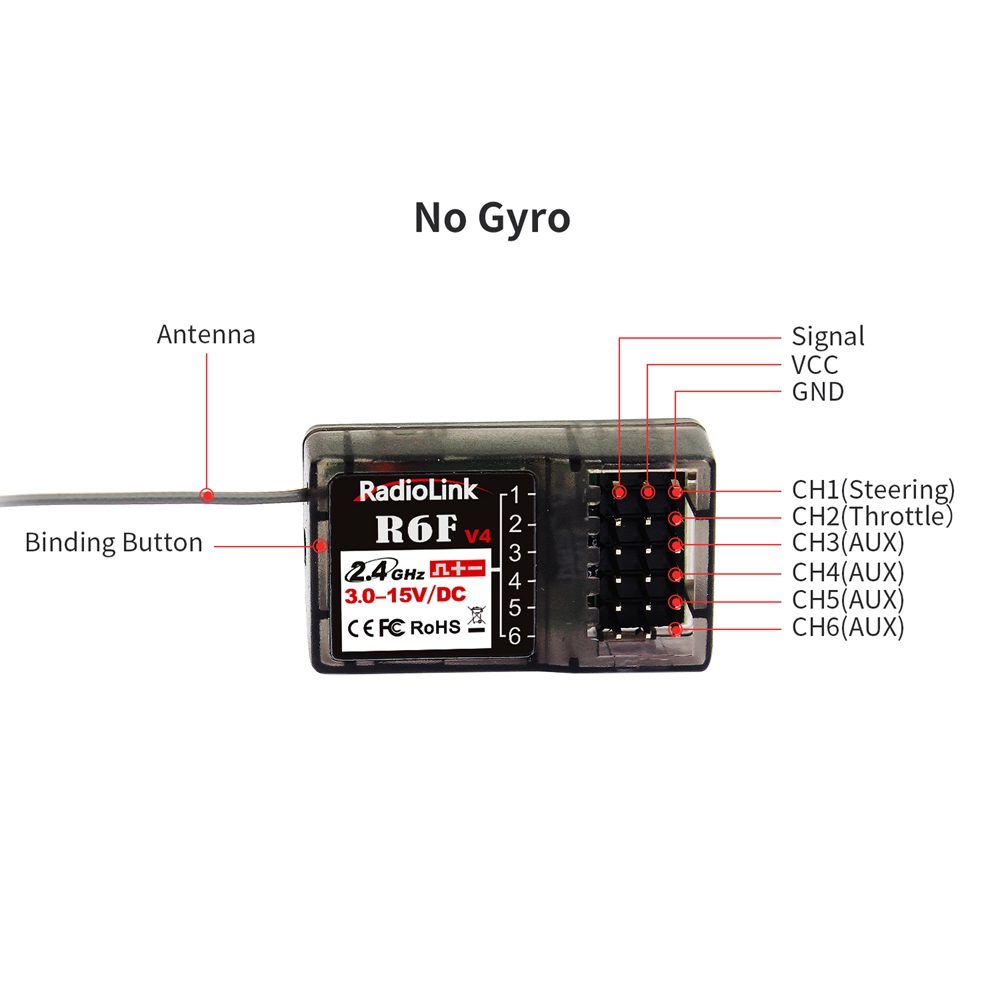

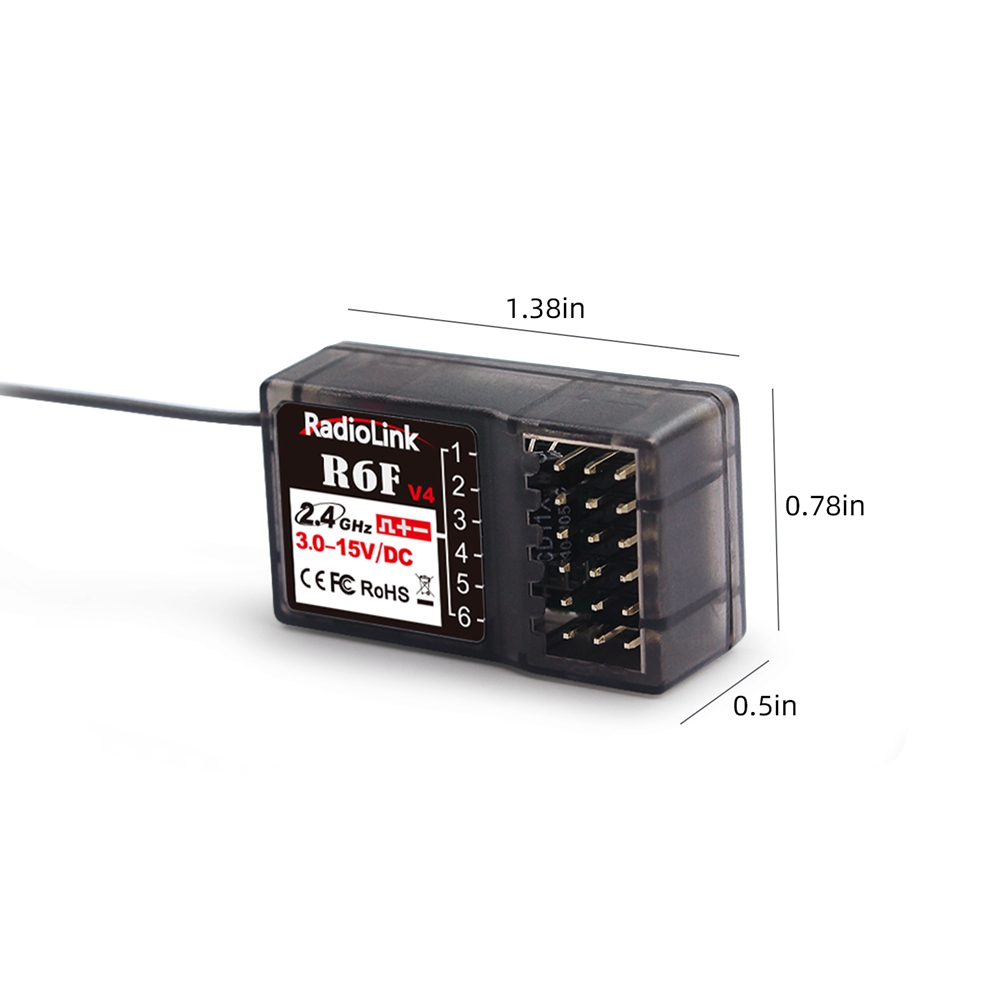

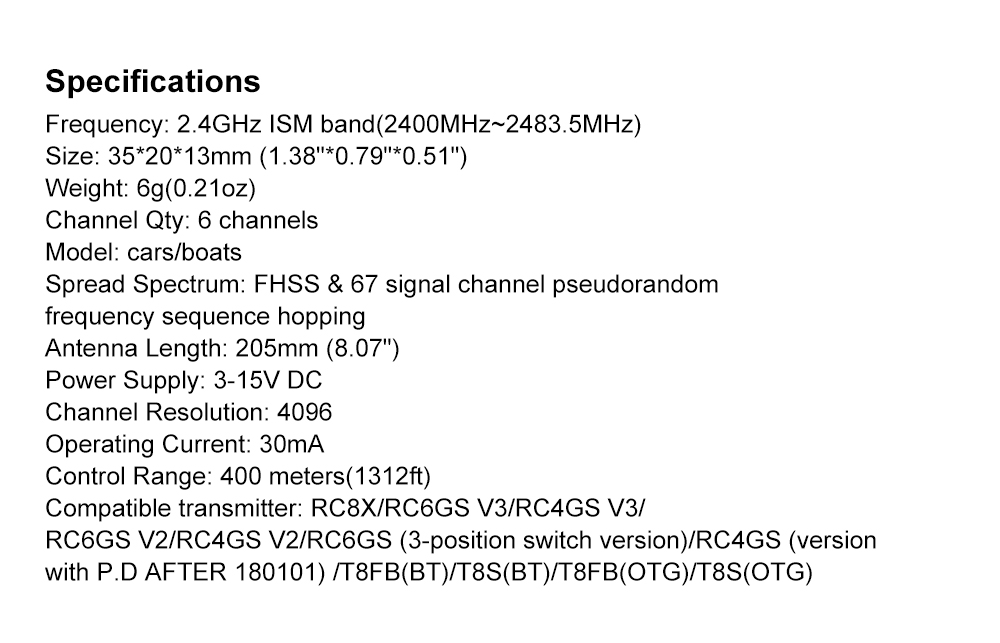

R6F:
Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
Channel Qty: 6 channels
Model: cars/boats
Spread Spectrum: FHSS & 67 signal channel pseudorandom frequency sequence hopping
Antenna Length: 205mm (8.07")
Power Supply: 3-15V DC
Channel Resolution: 4096
Operating Current: 30mA
Control Range: 400 meters(1312ft)

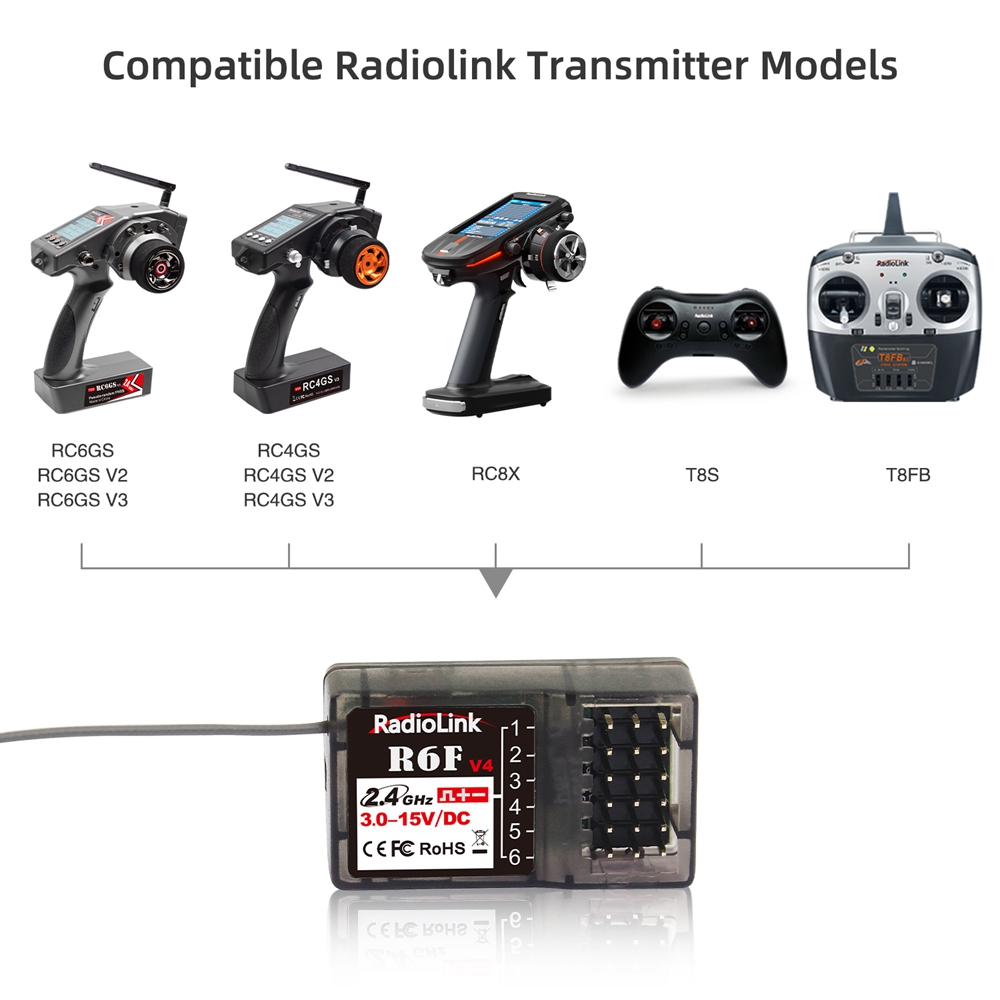

Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

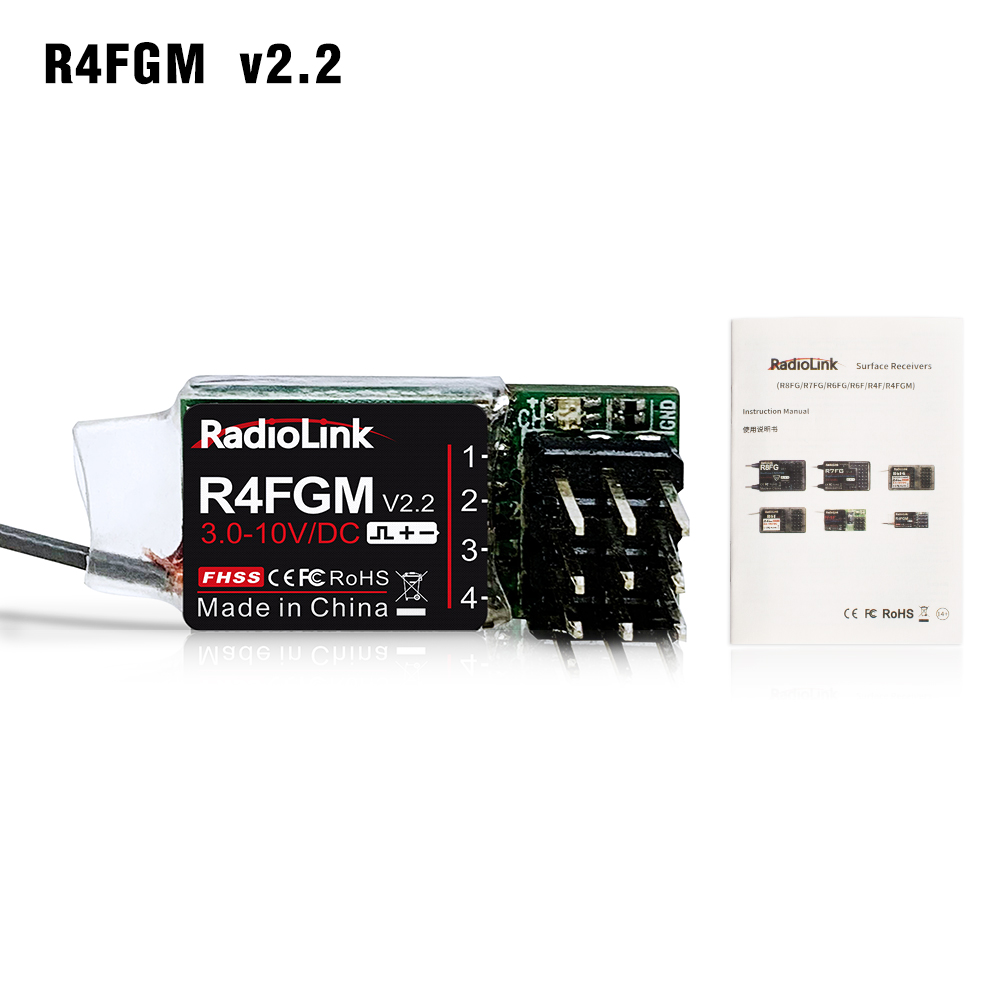

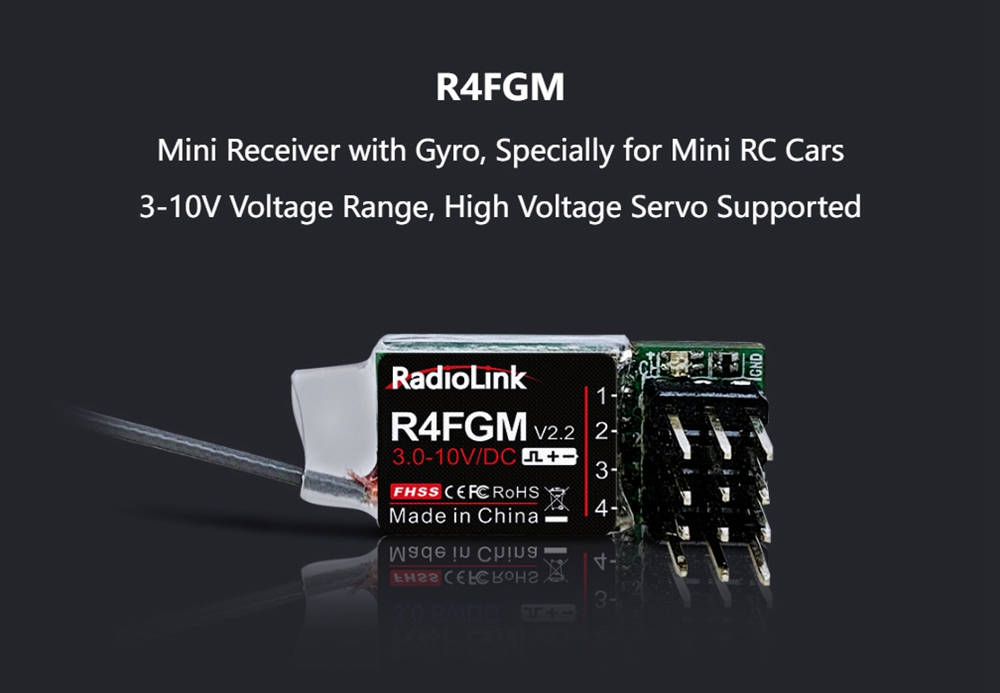

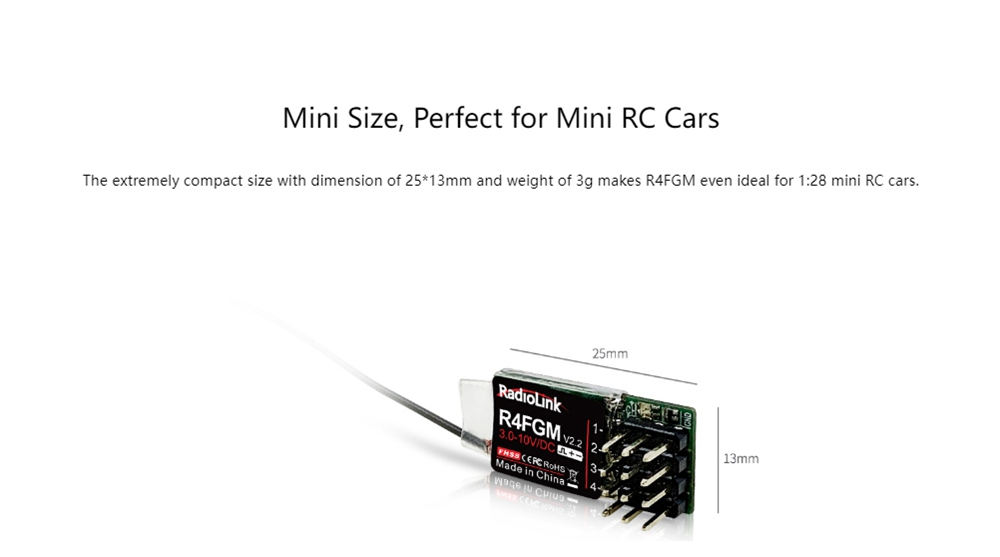

R4FGM:
Antenna Length:90mm(3.54")
Channel Quantity:4 channels
Signal Output:PWM
Model Application: Cars/Boats/Micro Airplane/Glider
Frequency:2.4GHz ISM
Spread Spectrum Mode:
FHSS 67-channel pseudo-random frequency hopping
Voltage Range:3-10V
Operation Current:30mA@5V
Control Distance:400 meters on the ground
Compatible transmitter:RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS/T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)
Package Included:
1 x RC Receiver
