Ceiling mounted 12V 24V 110V 220V Pir Motion Sensor Light Switch

time delay adjustable ambient light adjustable

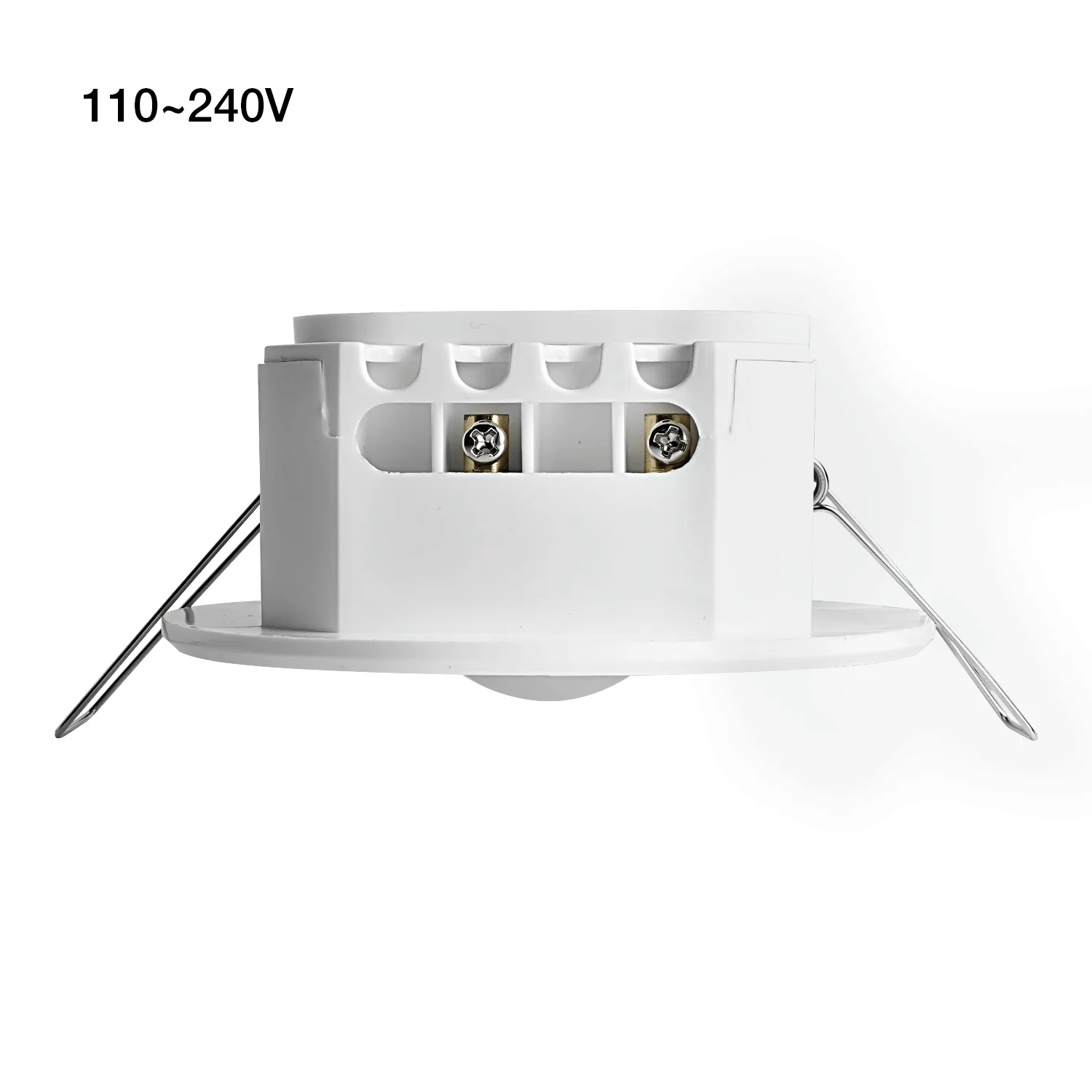

Please note : that the high-voltage option (110–240V) only has two wiring terminals,

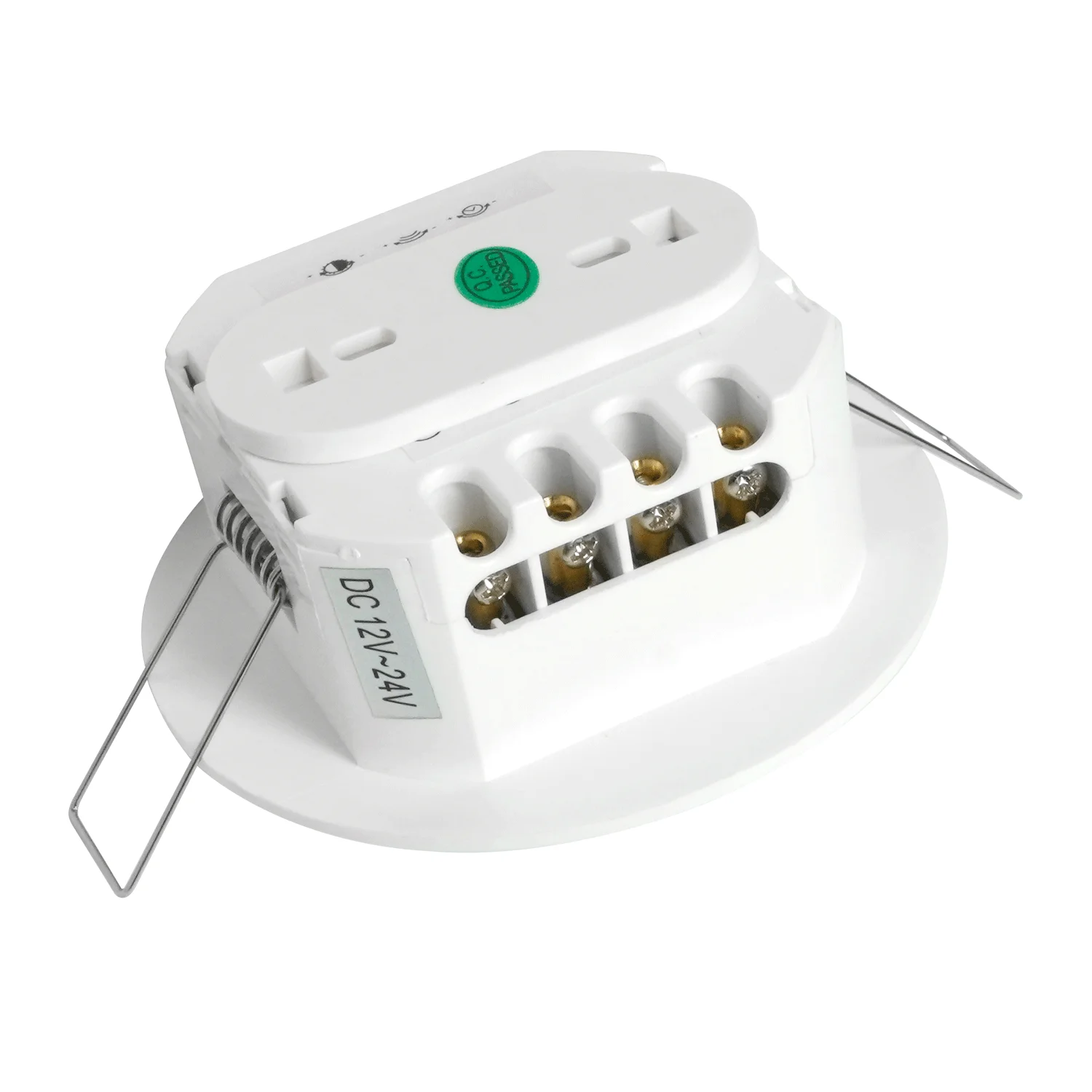

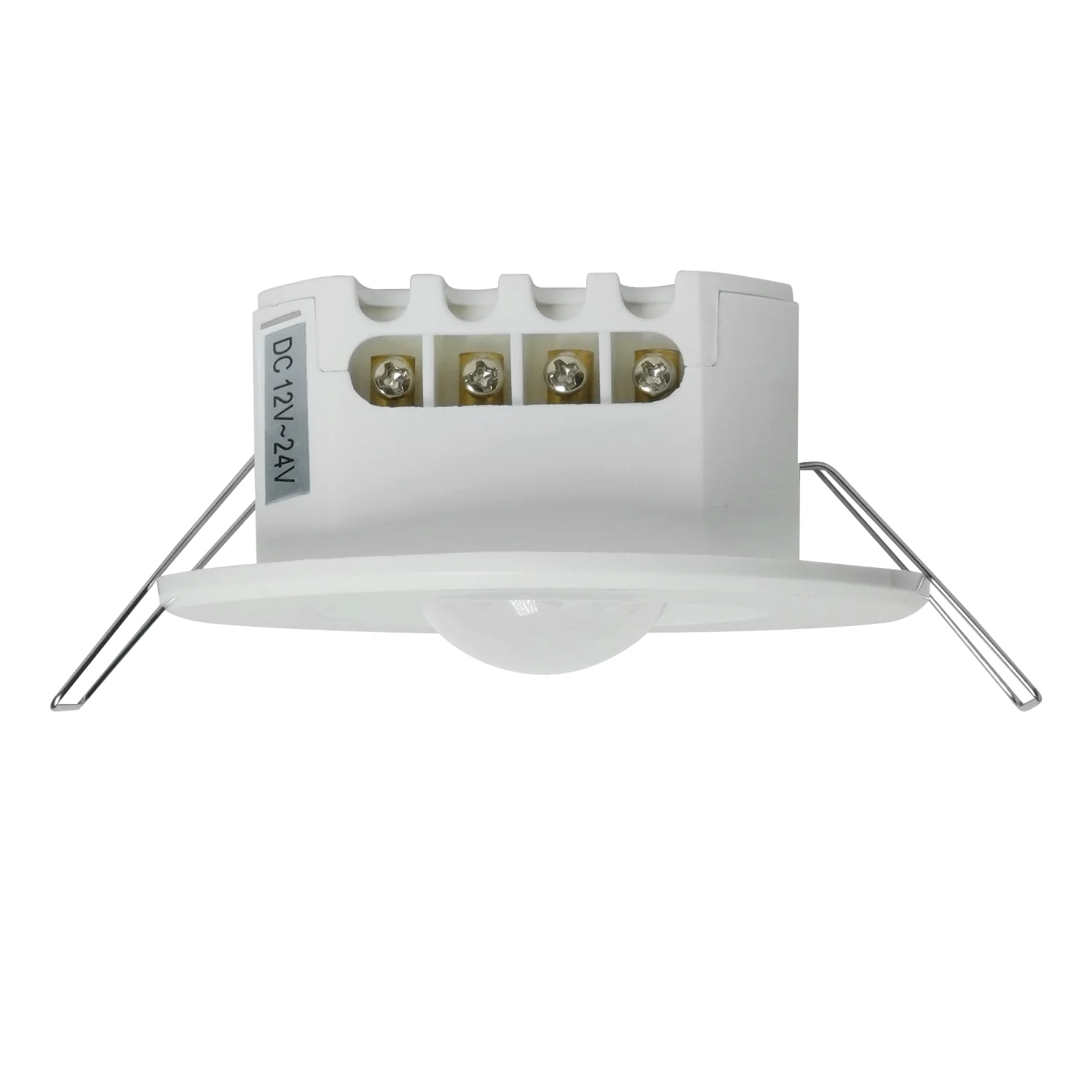

while the low-voltage option (12–24VDC) comes with four wiring terminals.

Description:

The PIR Sensor Switch detects PIR body heat and automatically switches the light ON and turning it OFF again ,

PIR sensor switch Combined intelligent control and energy saving, it wildly used in aisles, basements, restrooms, etc.

Performance Characteristics:

1. Main supply live line connect LIN, Null line connect between LOUT and N, without any accessories, internal without batteries.
2. The switch suitable for various types of load (all kind of Incandescent lamp, energy saving lamps , fluorescent lamps LED fluorescent lamp), load power≤200W.
3. Adopted specific integrated circuit, stable work, strong anti-interference capability.
4. Reliable quality, switch life can reach more than 20 million times.

Specification:

1.


2. 100%Brand New

3. Operating voltage: 12~24VDC, 90VAC~270VAC 50/60Hz

4. Power consumption: <0.02W

5. Load power: 1~200W

6. Sensitivity : Default 5lux,5~5000LUX adjustable

7. Delay time: Default 20s,15~300s adjustable

8. Induction distance:Default 5~8m,2~12m adjustable

9. Induction angle: about 120 °

10. Sensing method:passive

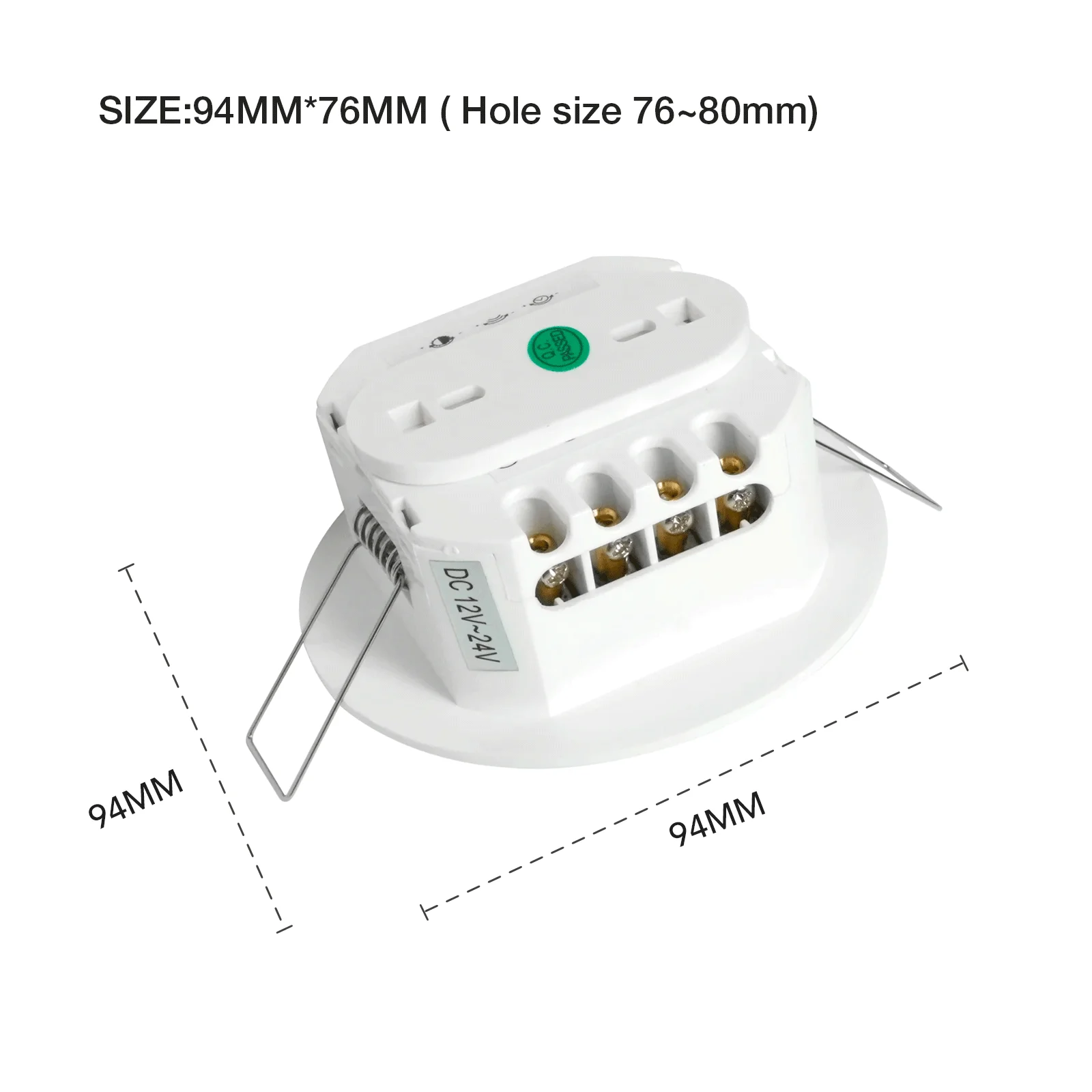

11. Size:94MM*76MM ( Hole size 80mm)
