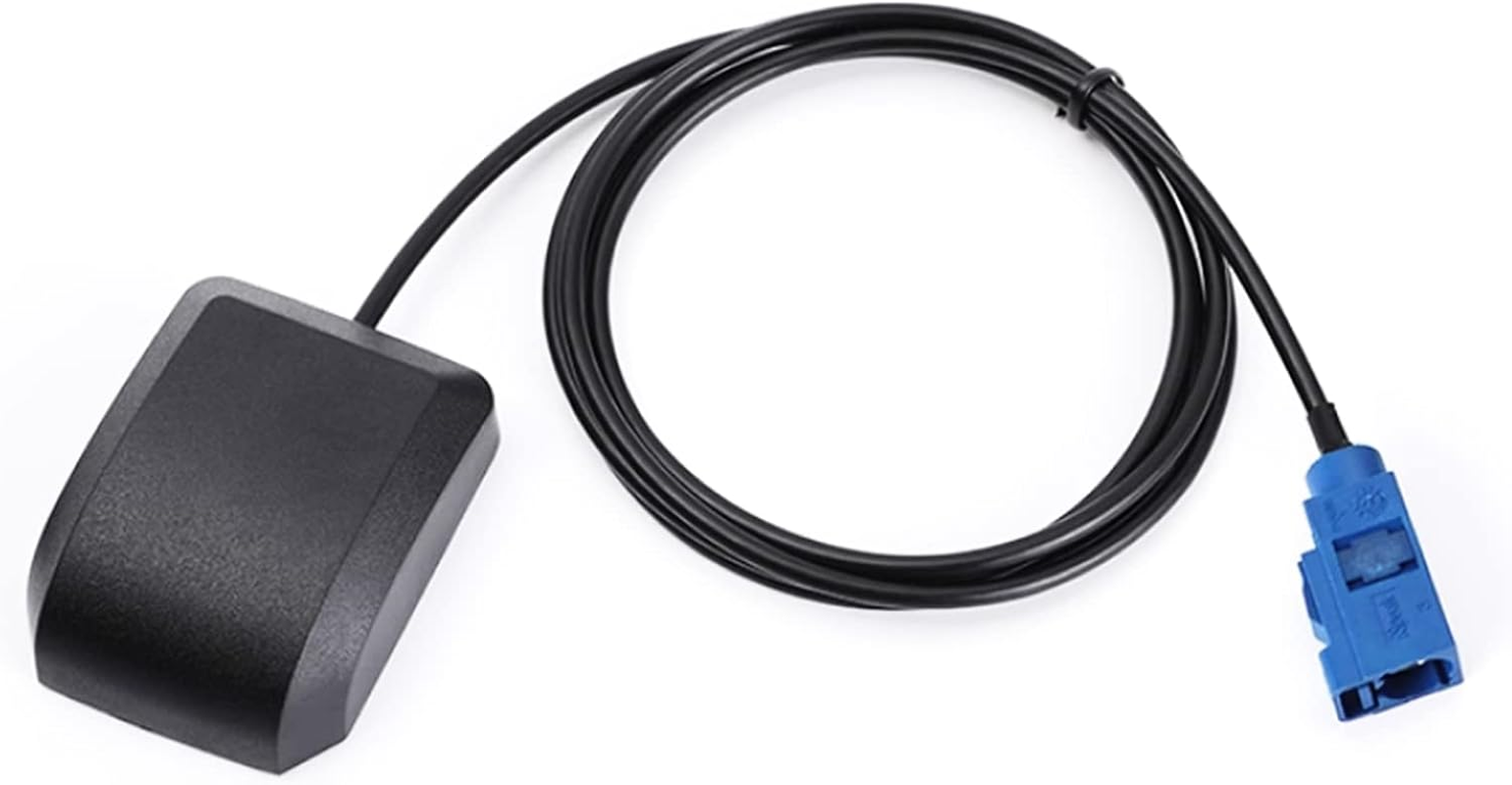

Waterproof Active GPS Antenna Vehicle GPS Navigation with Fakra C Blue Connector for Car GPS Navigation Receiver System
Description
| Unit Count | 1.0 Count |
| Warranty Description | Six months |
| Number of Items | 1 |
| Antenna | Satellite |
| Number of Packs | 1 |
| Color | Blue |
| Brand | Geekstory |
| Item Dimensions L x W x H | 1.5"W x 0.67"H |
| Maximum Range | 10 Feet |
| Number of Channels | 1 |
| Impedance | 50 Ohms |
| Manufacturer | Geekstory |
| Product Dimensions | 1.5"W x 0.67"H |
| AntennaDescription | Satellite |
- The antenna has a frequency range of 1575.42 MHz, which is the standard frequency used by GPS satellites for navigation and tracking. LNA Gain: 28dB; Cable Length: 3m / 10 feet; Cable Connector: Fakra C Connector.
- IP67 Waterproof Design: The GPS Antenna is designed to be waterproof, which means that it can be used in harsh weather conditions without being easily damaged. This makes it suitable for use in outdoor environments.
- This GPS antennas with Fakra C connectors are commonly used in vehicles for navigation and tracking purposes. Fakra C connectors are designed to be easy to install and connect. They use a simple snap-on mechanism, which allows them to be securely connected and disconnected quickly.
- Wide Compatibility: The GPS Antenna is compatible with a wide range of GPS navigation systems and devices. This makes it a versatile accessory that can be used in different vehicles and applications in the market.
- The product documentation link cannot be displayed. If you need technical documentation, please click “Geekstory”to em-ail us.
Description:
The role of GPS receiving antenna is to transform the electromagnetic wave energy of the radio signal coming from the satellite into a power source that can be ingested by the receiver electronics. the GPS antenna is composed of ceramic antenna body and active amplifier. It is encapsulated with plastic shell, which is waterproof and moisture-proof, and the product is compact in size, with magnet at the bottom of the antenna, which is easy to install and use.
Product appearance:
Size: 50*38*17mm
Connector: FAKRA-blue head
Mounting: Magnet
Cable Length: 3m
Color: Black
Cable (64 braids): RG174
Antenna Characteristics:
1.Range of Receiving Frequency (MHz): 1575.042±1.023/1561.096±2.046
2.Center Frequency (MHz): 1570±2
Band Width(MHz) (Retum Loss<=-10dB): >=12
V.S.W.R(in Center Frequency): <=1.5
Gain(Zenith) (dBi): >=4
Axial Ratio(dB): <=4.0
7.Polarization: Right-Handed Circular
Impedance(Ω): 50Ω
L.NA Characteristics:
Gain (without feeder): 28±2dB
Noise figure: <1.5dB
Output VSWR: <2
Output impedence: 50Ω
1dB compressionpoint output: >-10dBm
Out of band rejection: F0±100MHz: 35dBc min
Prime power: 3±0.3V
Operating current: <=15mA(DC3V)
Product Included:
1 x GPS Antenna with FAKAR-C Connector
