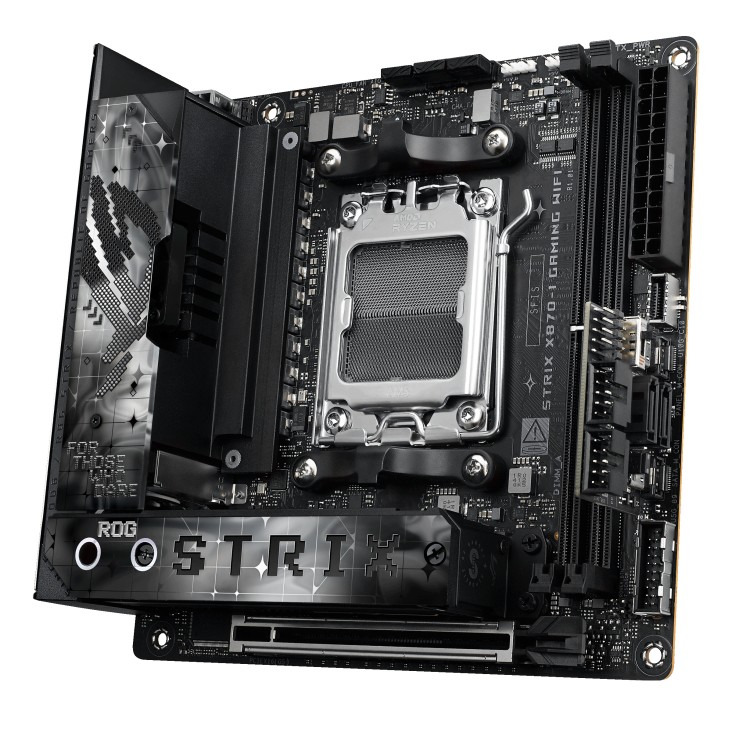

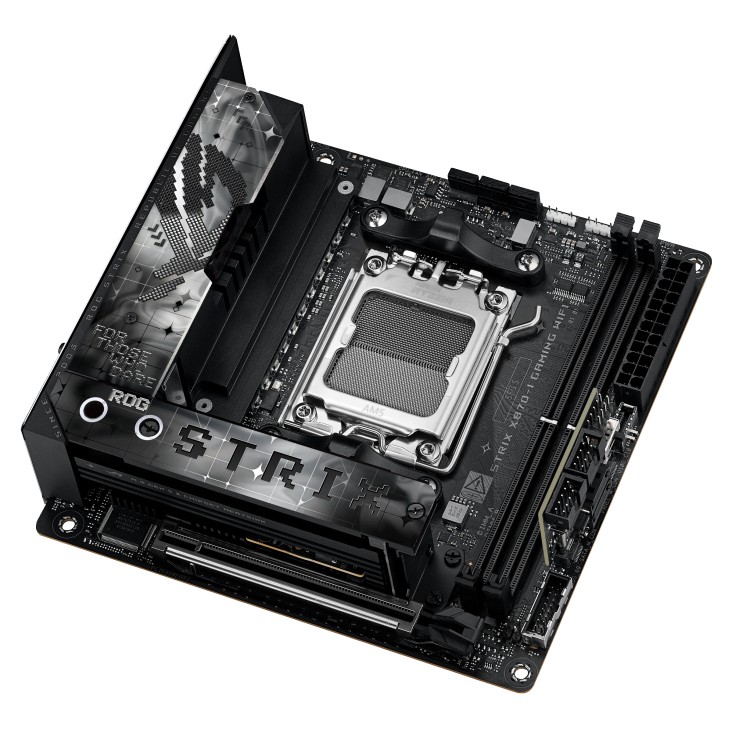

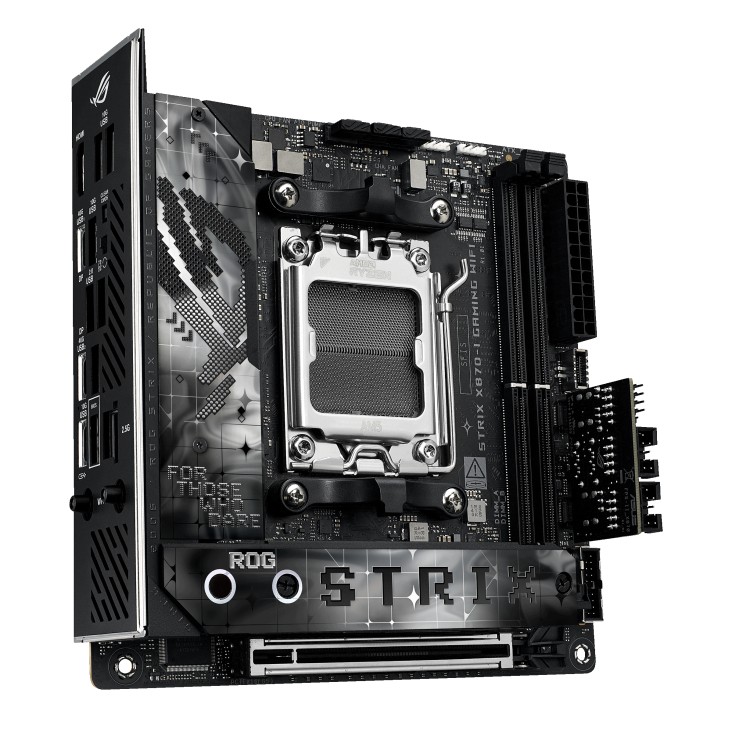

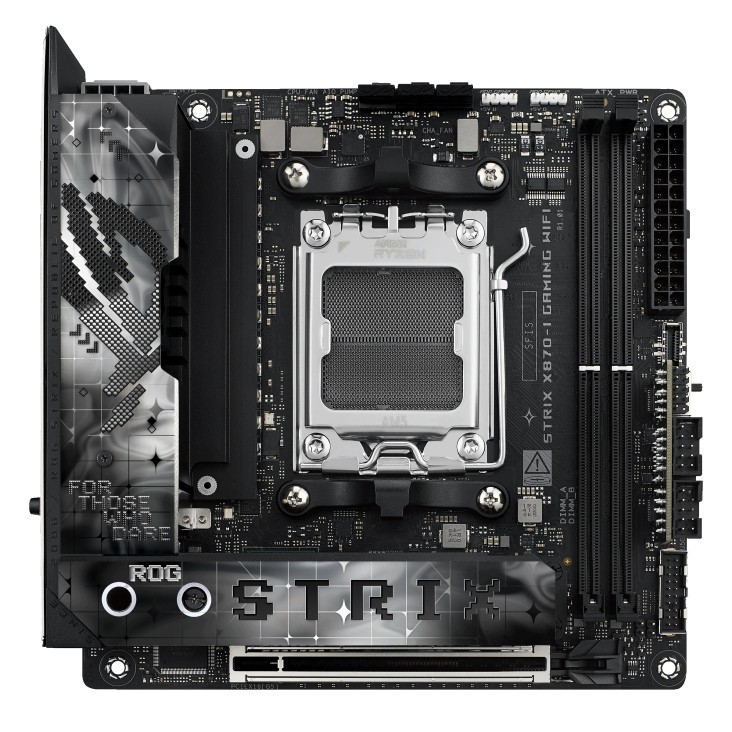

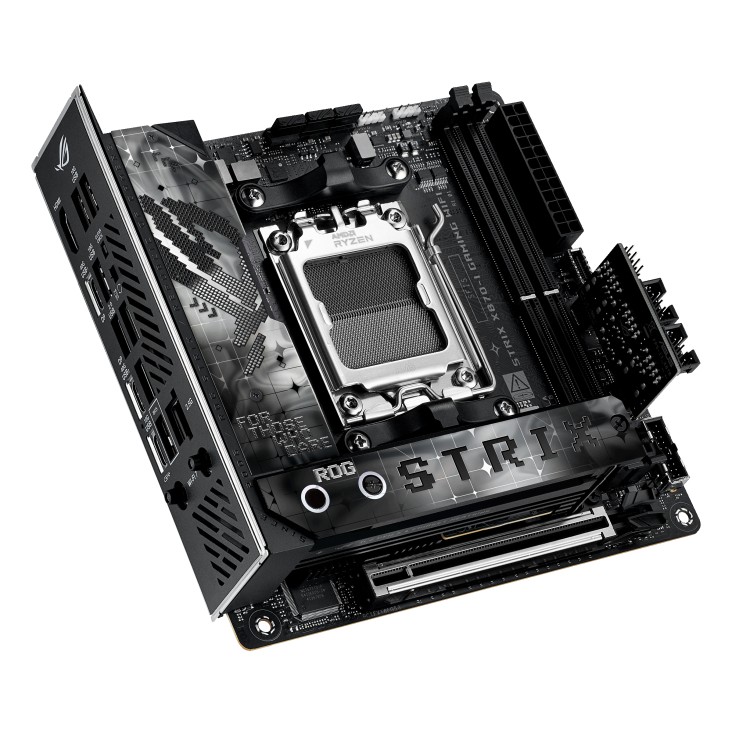

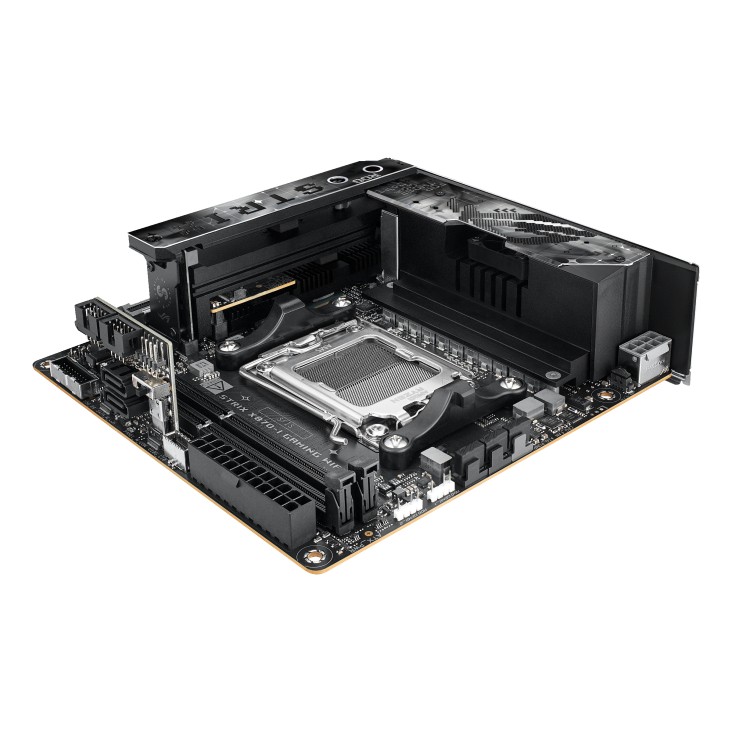

ROG STRIX X870-I GAMING WIFI
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
- Model: ROG STRIX X870-I GAMING WIFI
- CPU socket: Socket AM5
- Processor family: AMD Ryzen
- Integrated CPU: No
- Chipset manufacturer: AMD
- Chipset type: AMD X870
- Memory type : DDR5
- Number of DDR5 slots: 2
- Memory bus frequency: 8600 MHz
- Expansion slots: 1 x PCIe 4.0 x 16
- Expansion slots : 1 x PCIe 5.0 x 16
- RAID: Yes
- Detailed data on disk/drive interfaces: Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) AMD X870 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)2 x SATA 6Gb/s ports
- Graphics: 1 x HDMI port, 2 x USB4 (40Gbps) ports support USB Type-C display outputs
- Sound card: ROG Strix Hive II Audio Features ROG Hyper-Grounding Technology, ESS SABRE9260Q DAC, Silver-plated audio jacks, Dedicated audio PCB layers
- Network interface: 1 x 10/100/1000/2500 Mbit/s
- Network interface : Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface : Bluetooth
- Network interface : Ethenet: Wireless: 1 x Intel 2.5Gb Ethernet, ASUS LANGuard, Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate., Bluetooth v5.4
- FireWire (IEEE 1394): No
- COM connector / port: No
- LPT connector / port: No
- External connectors: 1 x Flash BIOS Button
- External connectors : 1 x HDMI
- External connectors : 1 x USB 3.1 Type-C
- External connectors : 2 x USB4 Type-C
- External connectors : 2 x SMA
- External connectors : 1 x Przycisk Clear CMOS
- External connectors : 3 x USB 2.0
- External connectors : 4 x USB 3.1
- External connectors : 1 x RJ-45
- Onboard connectors: 1 x 4pin CPU fan
- Onboard connectors : 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors : 1 x 4pin Chassis fan
- Onboard connectors : 1 x 8pin 12V power
- Onboard connectors : 1 x 24pin ATX zasilanie
- Onboard connectors : 2 x M.2
- Onboard connectors : 2 x SATA III 6Gb/s
- Onboard connectors : 3 x USB 2.0/1.1 header
- Onboard connectors : 2 x USB 3.0 header
- Onboard connectors : 1 x USB C
- Onboard connectors : 1 x System panel header
- Onboard connectors : 1 x Power button
- Onboard connectors : 1 x OC PCIe switch
- Onboard connectors : 2 x Addressable LED
- Onboard connectors : 1 x Thermal sensor connector
- Onboard connectors : 1x CPU/DRAM overvoltage jumper
- Special functions: ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync ROG STRIX HIVE II M.2 Q-Latch, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, M.2 heatsink, Aluminum backplate, BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM, -Addressable Gen 2 header(s), 1 x USB Type-C connects to motherboard, 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C), 1 x Headphone jack with mic in, 1 x Power button, 1 x FlexKey button, 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor: mini ITX
- Dimensions: 17 x 17 cm
- Accessories included: Cables ROG FPS Card ROG STRIX HIVE II Miscellaneous Documentation Panel cable, ROG USB2.0 splitter cable, 2 x SATA 6Gb/s cables, ROG FPS Card, ROG STRIX HIVE II, USB Type-C power connection cable, ASUS WiFi Q-Antenna, Cable ties package, M.2 Q-Latch package(s), ROG key chain, OG Strix stickers, M.2 rubber package(s), Quick start guide
- Supported operating systems: Windows 11
- Software: WOL by PME, PXE
- EAN: 4711387740309
- Manufacturer: Asus
