Features:

The FNAC-28 USB Tester is a multifunctional USB voltage and current meter, as well as a quick charge trigger device for mobile communication terminals.

It features a full-color, ultra-wide viewing angle TFT LCD display and integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.

Utilizing an external 16-bit ADC chip, it offers high measurement accuracy.

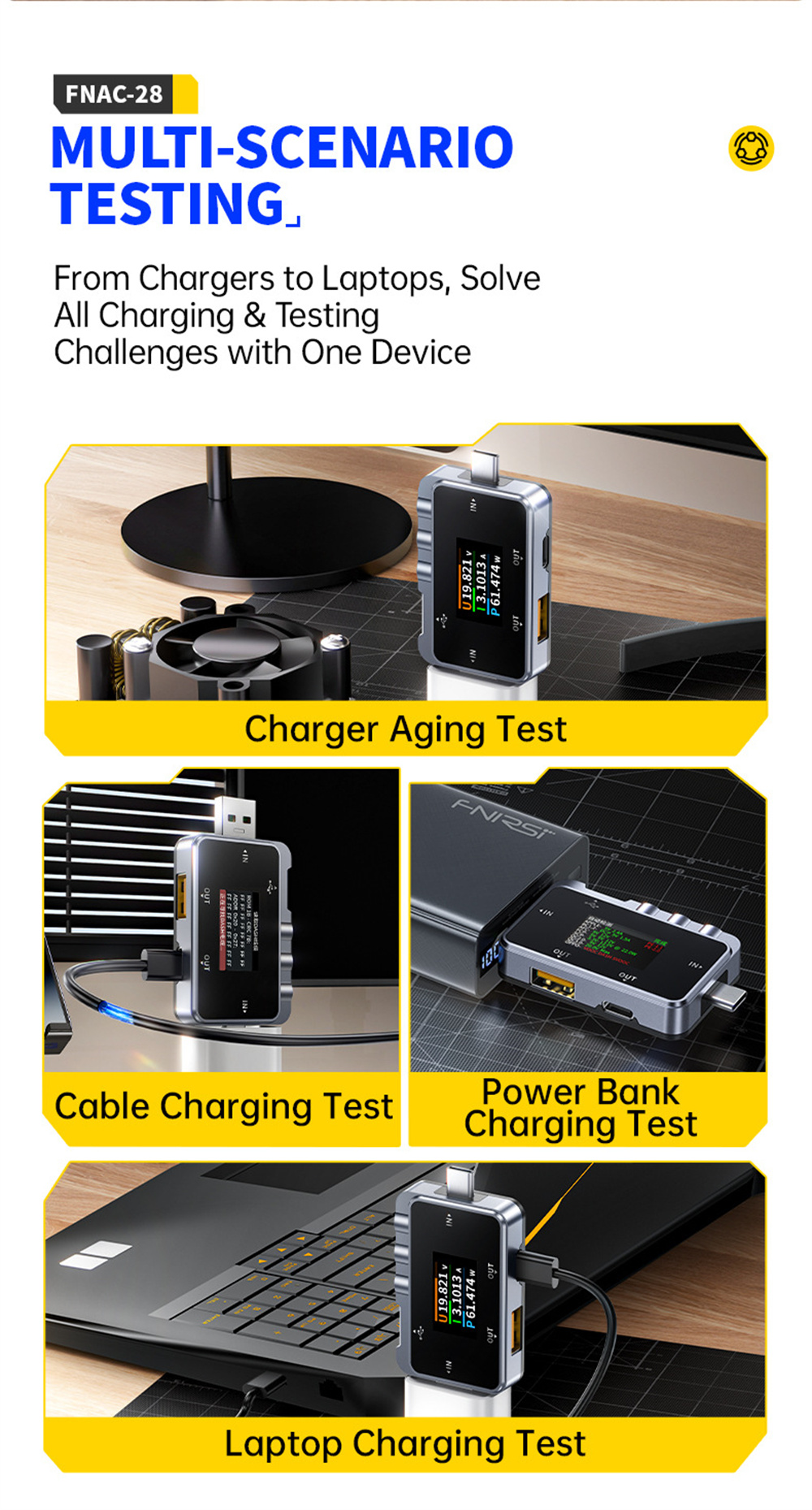

This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.

It can also measure phone charging power, and the input and output conditions of power banks, and perform quick charge protocol testing for chargers.

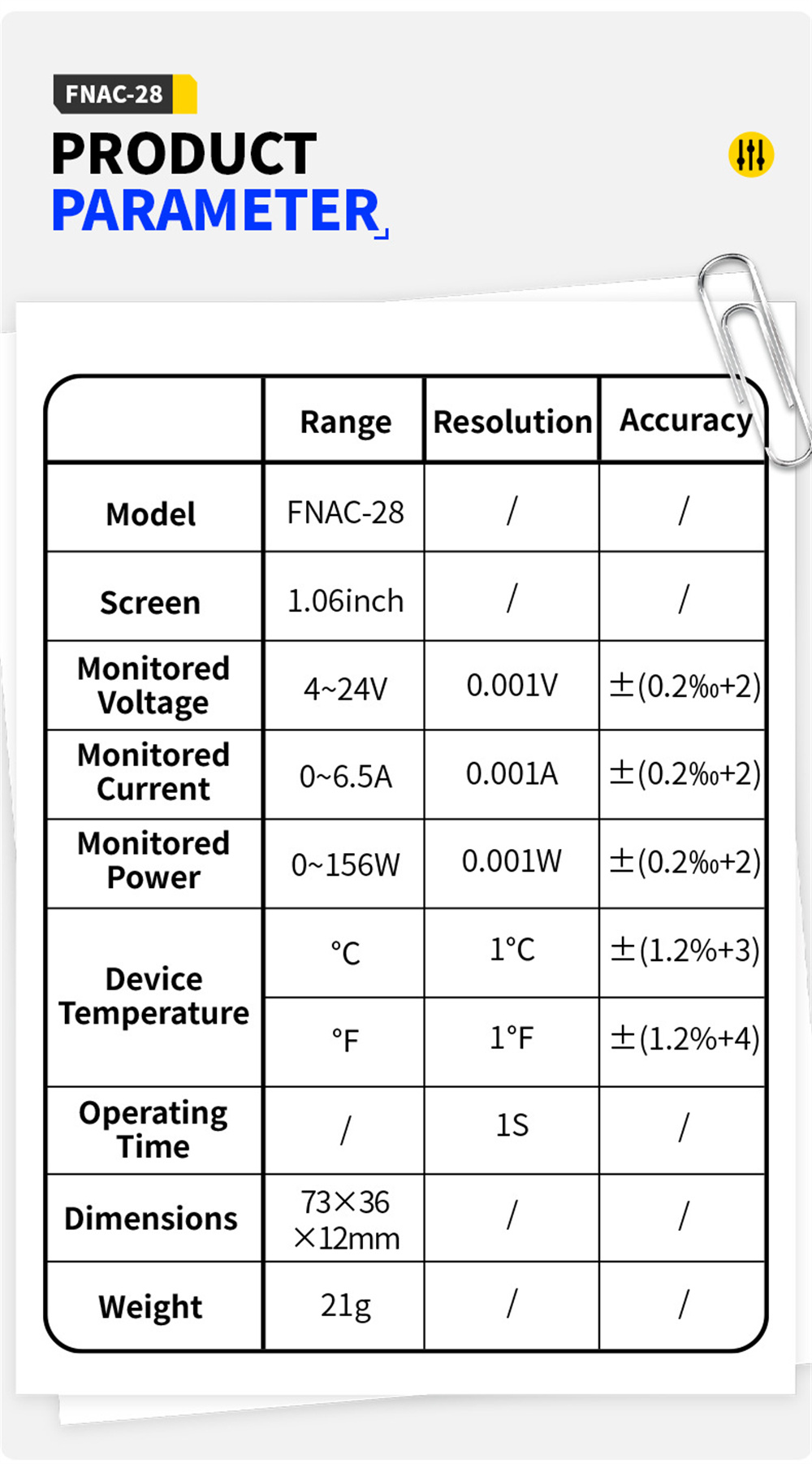

Specification:

Model：FNAC-28

Screen：1.06 inch color screen

Monitored Voltage：4~24V

Monitored Current：0~6.5A

Monitored Power：0~156W

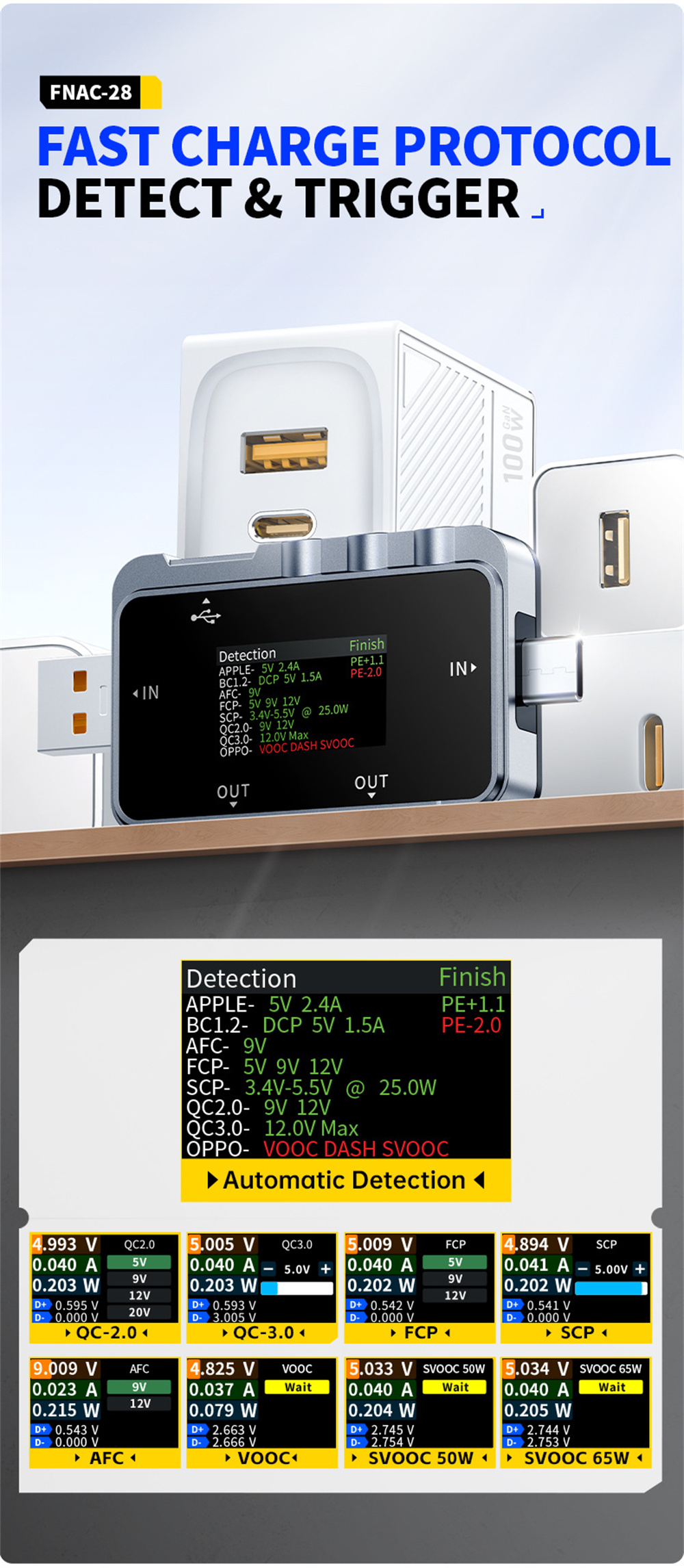

Protocol Detection：①QC2.0 5V 9V 12V 20V；②QC3.0 3.4-20V；③FCP 9V 12V 20V ；④SCP 5.5-6.0V；⑤AFC 9V 12V；⑥VOOC/WARP；20V；⑦SVOOC 1.0；⑧SVOOC 2.0

Cable Resistance：Support

Detect DASH Cable：Support

Soft DASH Cable：Support

Soft APPLE 2.4A：Support

Brightness adjustment: Support

Standby time setting: Support

Temperature symbol: ℃ and ℉ switch

Language: Chinese and English

Firmware upgrade: Support

Dimensions：73×36×12mm

Weight：21g

Packaging list:

1*FNAC-28 USB Tester

1*User Manual
