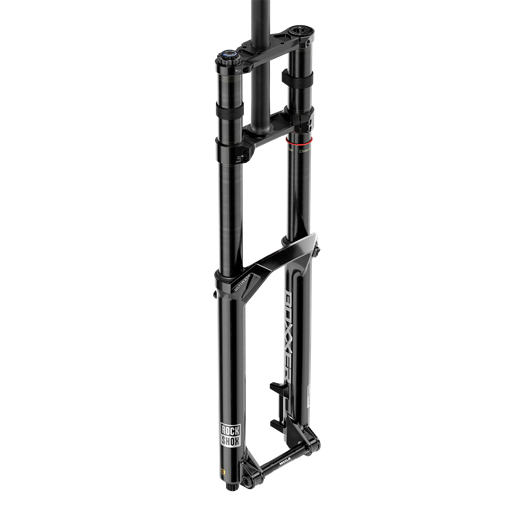

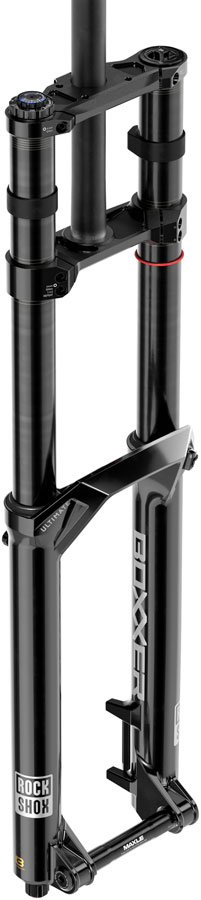

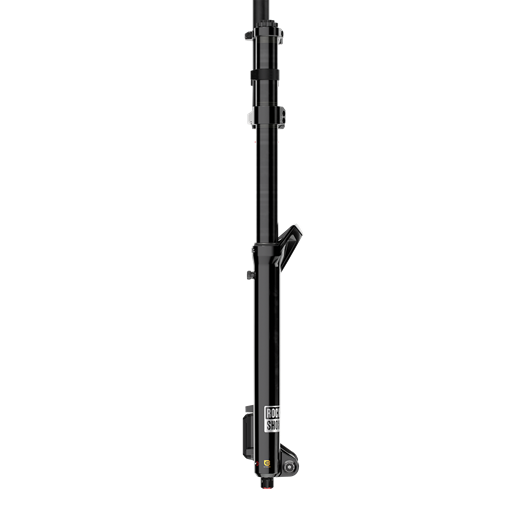

RockShox BoXXer Ultimate D2 Suspension Fork 29in 200mm 15x110 Boost Straight 52mm Gloss Black
Reference Number: DCVFZN
Experience Unmatched Control and Performance with the RockShox BoXXer Ultimate D2 Suspension Fork - the Ultimate Choice for Downhill and Enduro Riders
Built Specifically for Demanding Mountain Trails, the RockShox BoXXer Ultimate D2 29" Suspension Fork combines race-proven engineering, innovative materials, and cutting-edge technology to elevate your riding experience. Perfect for aggressive downhill, enduro, and e-mountain biking, this high-performance fork delivers exceptional durability, precise adjustability, and superior ride quality.
Materials & Construction:
- Heavy-duty aluminum crown and steerer tube provide strength and rigidity, optimized for high-impact riding
- Magnesium lower tubes reduce weight without sacrificing durability
- Aluminum stanchions with 38mm diameter ensure maximum stiffness and precise steering response
- Black gloss finishes offer a sleek, aggressive aesthetic suitable for modern mountain bikes
Performance & Engineering:

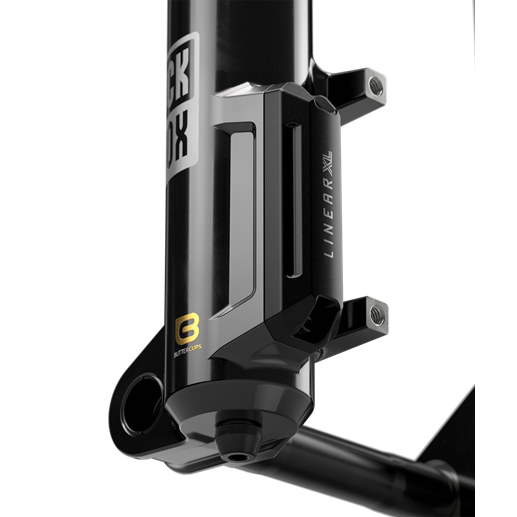

- Linear XL air spring offers coil-like sensitivity, providing a consistent and predictable ride feel-supplies supple off the top, supportive mid-stroke, and confident bottom-out protection with a jounce bumper
- ButterWagonTech lubrication system maintains a constant oil supply to bushings, minimizing friction and extending service intervals for long-lasting smooth performance

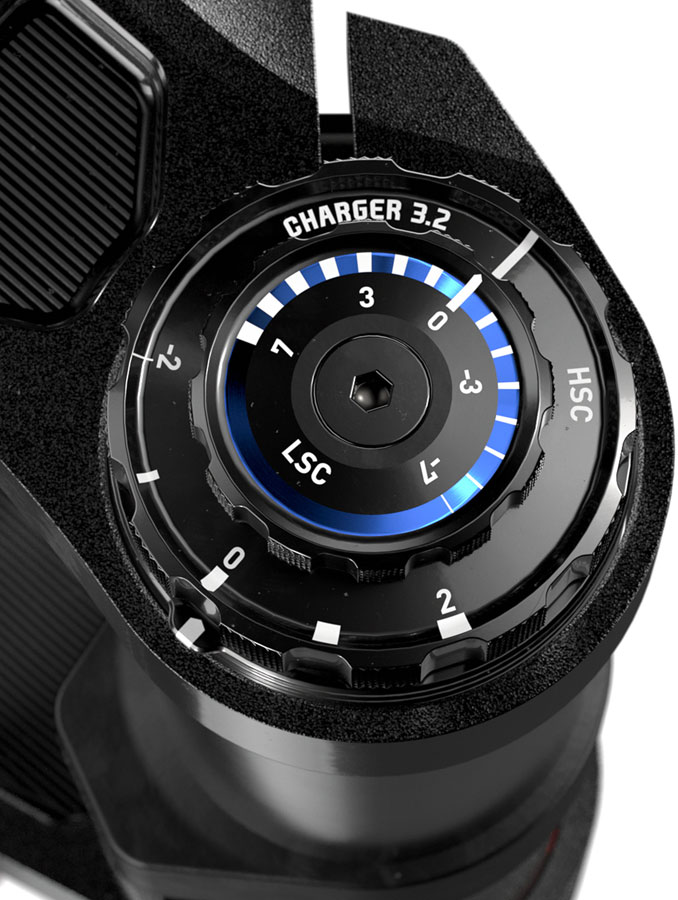

- Charger 3.2 damping with ButterCups technology reduces high-frequency trail chatter by up to 20%, diminishing hand and arm fatigue for increased control on rough terrains
- External Low-Speed and High-Speed Compression, plus Rebound adjustments, enable fine-tuned damping settings tailored to your riding style
Components & Technology:
- 29" wheel compatibility with Boost 20x110mm axle spacing ensures optimal stiffness and clearance
- Designed for wheel widths up to 81mm and tire sizes compatible with 220mm rotors
- Crown race diameter of 30mm and a 52mm offset provide ideal trail handling and stability
- Capable of handling e-bike specifications, making it a versatile choice for all-mountain e-riders
- External air pressure and Bottomless Tokens adjustments offer customizable spring rate tuning
Style & Use Case:
- The aggressive Black gloss finish complements any downhill or enduro build
- Equipped with a bolt-on fender mount (sold separately) for added trail protection
- Ideal for downhill racing, enduro riding, and e-MTB applications where control, durability, and performance are critical
Innovative & Differentiating Features:
- Exclusive ButterWagonTech lubrication system for consistently smooth fork operation
- ButterCups technology effectively reduces trail chatter, enhancing rider comfort and control
- Rebound and compression tuning with intuitive external controls for quick adjustment on the fly
- Built-in coil-like LinearXL air spring for reliable, plush compliance across varied terrain
Upgrade your mountain biking setup with the RockShox BoXXer Ultimate D2 Suspension Fork-engineered for riders who demand the highest level of control, durability, and performance. Whether tackling rugged downhill descents or technical enduro routes, this fork ensures you stay focused and confident at every turn.
Key Specifications:
- Travel: 200mm
- Wheel Size: 29"
- Axle Compatibility: 20mm Thru x 110mm Boost TA
- Steerer Tube: 1-1/8" aluminum, 268mm length
- Brake Mount: Post Mount 200mm
- Stanchion Diameter: 38mm
- Dropout Compatibility: 15x110mm Boost
- Color: Gloss Black
Maximize your riding potential with the RockShox BoXXer Ultimate D2-designed to dominate the most challenging trails with precision and reliability.
- Precision-engineered for downhill and enduro riders, the RockShox BoXXer Ultimate D2 Suspension Fork features a 29-inch wheel compatibility and a 200mm travel for aggressive terrains.
- Constructed with lightweight aluminum crown and stanchions paired with magnesium lower tubes, this fork offers optimal strength-to-weight ratio, ensuring durability and agility on demanding trails.
- Equipped with LinearXL air spring technology and ButterWagonTech lubrication system, it provides a coil-like ride with consistent performance, responsive support, and effective bottom-out control during high-impact rides.
- Advanced damping features include the Charger 3.2 damper with external high and low-speed compression adjustments, rebound tuning, and ButterCups technology, significantly reducing trail chatter and rider fatigue for enhanced control and confidence.
- Designed for versatility and style, this fork incorporates bolt-on fender compatibility, a sleek gloss black finish, and a 52mm offset to optimize steering and handling dynamics, making it ideal for aggressive riding styles on e-MTBs and downhill bikes.
| Item Specifications | |
|---|---|
| Steerer Type | Straight |
| Lockout Switch | Crown |
| Brake Type | Post Mount 200 |
| Negative Spring | Air |
| Travel (mm) | 200 |
| Offset | 52 |
| Axle to Crown Length | 605 |
| Front Axle | 20mm Thru x 110mm |
| Maximum Tire Width | 81 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Gloss Black |
| Crown Race | 30 |
| Wheel Size | 29" |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 38 |
| Steerer Tube Length (mm) | 268 |
| Brake Caliper Type | Disc |
| Damping | Charger 3.2 w/ ButterCups |
| Damping Adjustments | Extl begin stroke rebnd, low speed comp, high speed comp |
| Crown Material | Aluminum |
| Offset (mm) | 52mm |
| Rotor Size (Fork) | 220mm |
| Tire Width | 81mm |
| Defined Color | Black |
| External Adjustments | Air pressure, Bottomless tokens |
| Positive Spring | Linear XL W/ButterCup |
| eBay Steerer Tube Diameter | 1-1/8'' |
| Steerer Tube Material | Aluminum |
| Lower Tubes Material | Magnesium |
| Stanchions Material | Aluminum |
| Travel (mm) | 200mm |
| Wheel Size | 29'' |
| Stanchion Diameter | 38mm |
| Rear Axle Spacing | 20x110mm Boost TA |
| Designed for ebike | Yes |
| Travel | 200mm |
| Wheel Size | 29" |
| Steerer (Stem/Race) | Straight (28.6/30mm) |
| Color | Black |
| Model Name | BoXXer Ultimate D2 |
| Spring Type | Linear XL |
| Brake Mount | Disc Only (PM-200) |
| Weight | - |
| Offset | 52mm |
| Dropout | 15x110mm Boost |
