Alroc CMF2/NP High Voltage Cable Jointers Tool Kits

SPECIAL OFFER: $3,999.95

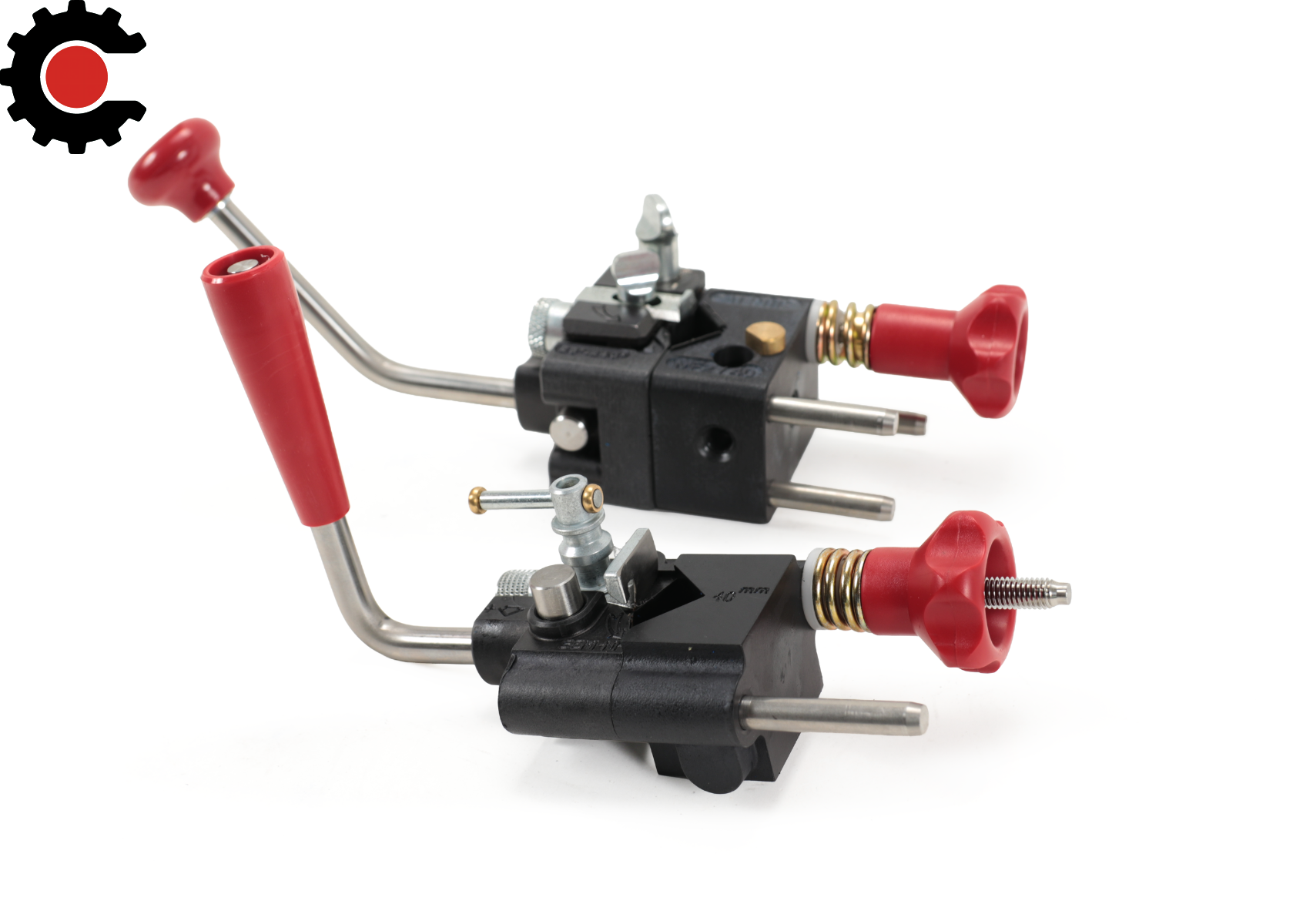

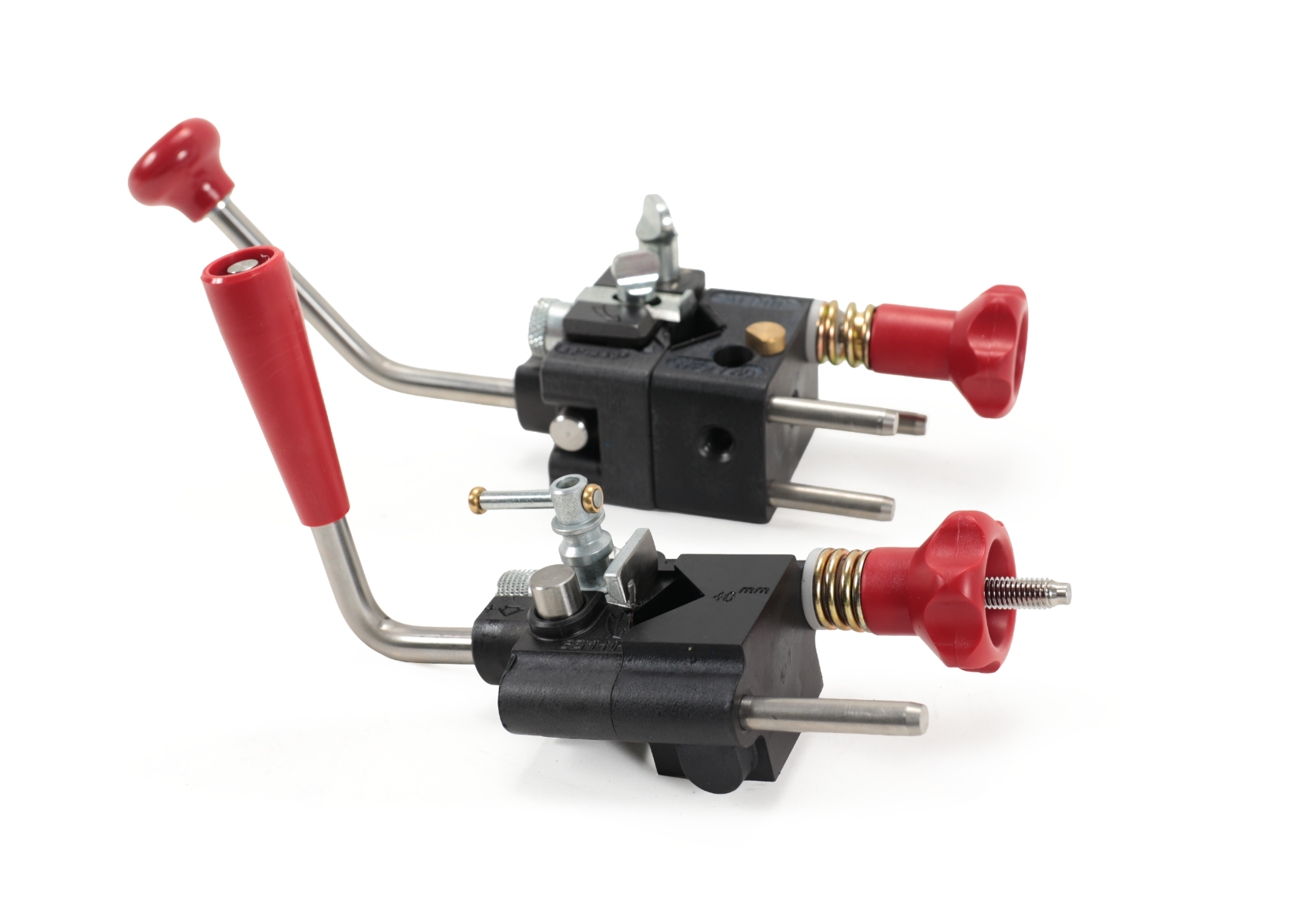

The PENTA ALROC CMF2/40 NP is a 14-40 mm cable preparation kit built for MV cable work, combining the MF2/40 multifunction tool with the ASC40R1 for outer sheath, insulation, and bonded semiconductor removal in one field-ready case.

Detailed Overview

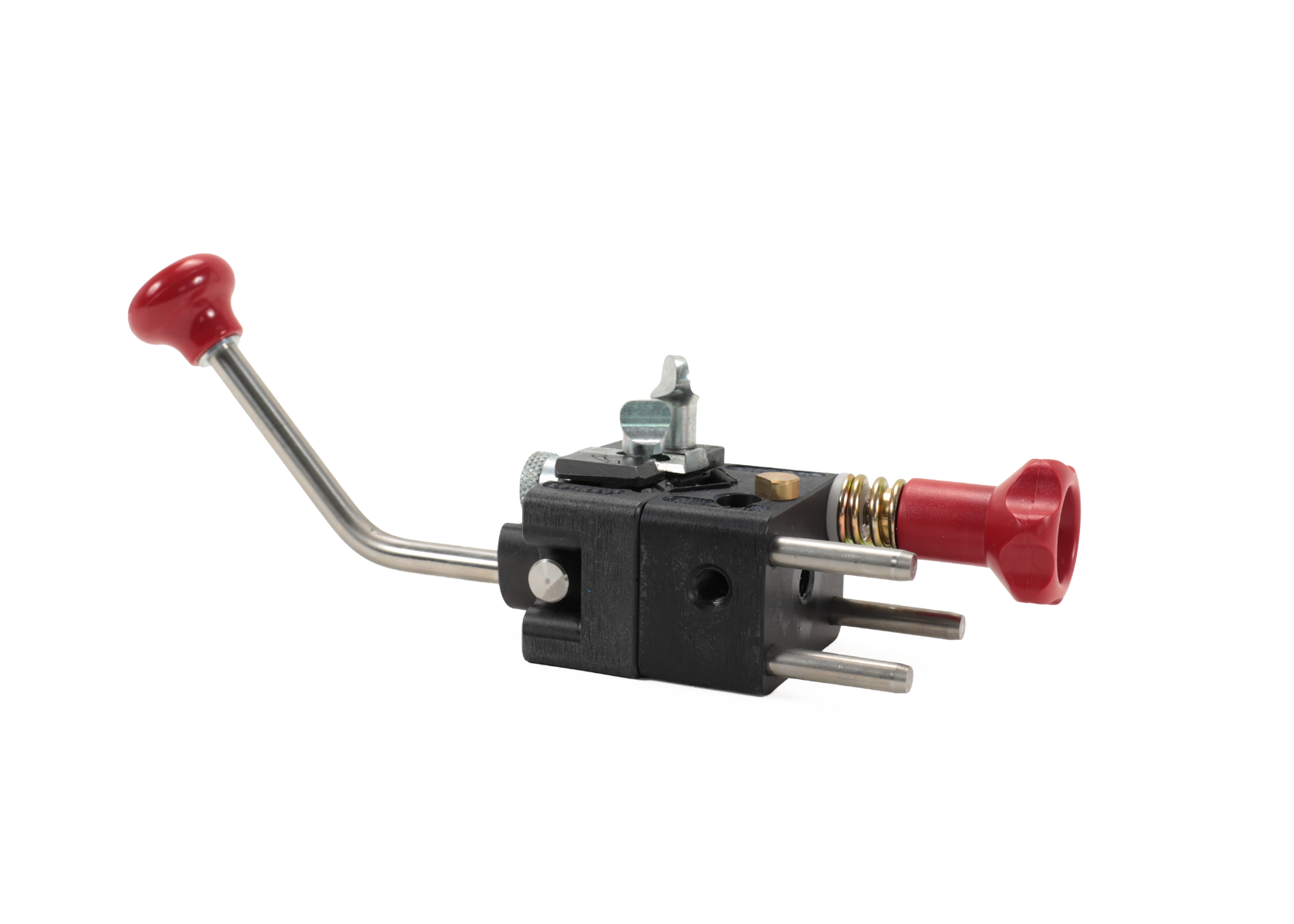

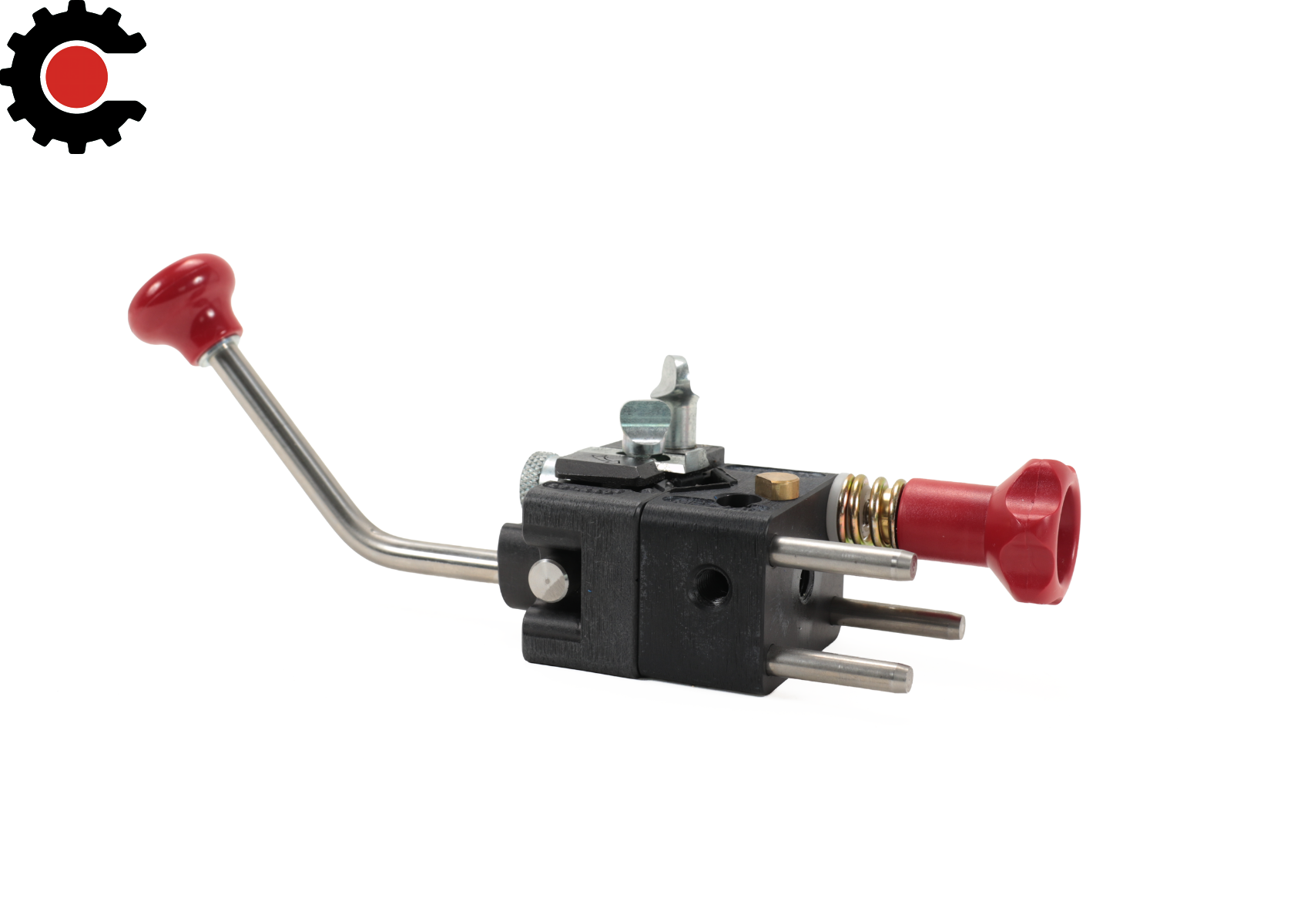

Cable Stripping and Insulation Removal with ALROC MF2/40

The Penta ALROC MF2/40 is a multifunction cable stripping tool for medium voltage cable preparation. It performs outer sheath removal and insulation stripping with defined length control, enabling consistent and repeatable cable preparation across MV cable systems.

Rotary Cutting and Cable Preparation Capacity

  • Adjustable pitch enables controlled circumferential cutting.
  • Produces straight removal of outer sheath materials.
  • Length stop defines insulation removal prior to cutting.
  • Cable diameter capacity: 16–40 mm.
  • Outer sheath and insulation thickness capacity: 7 mm.

Bonded Semiconductor Removal

  • Removes bonded semiconductor without damaging insulation.
  • Supports controlled MV cable termination preparation.
  • Extends stripping capability beyond sheath and insulation.

Field and Installation Workflows

  • Medium voltage cable preparation in field environments.
  • Cable termination and joint preparation workflows.
  • Utility and contractor cable installation work.

Key Benefits

  • ✓
    Fully Tested & Certified
  • ✓
    30-Day Risk-Free Returns
  • ✓
    1-Year Full Warranty
  • ✓
    Professional Calibration Services
  • ✓
    Trade-In Program Available
  • ✓
    Fast & Reliable Delivery

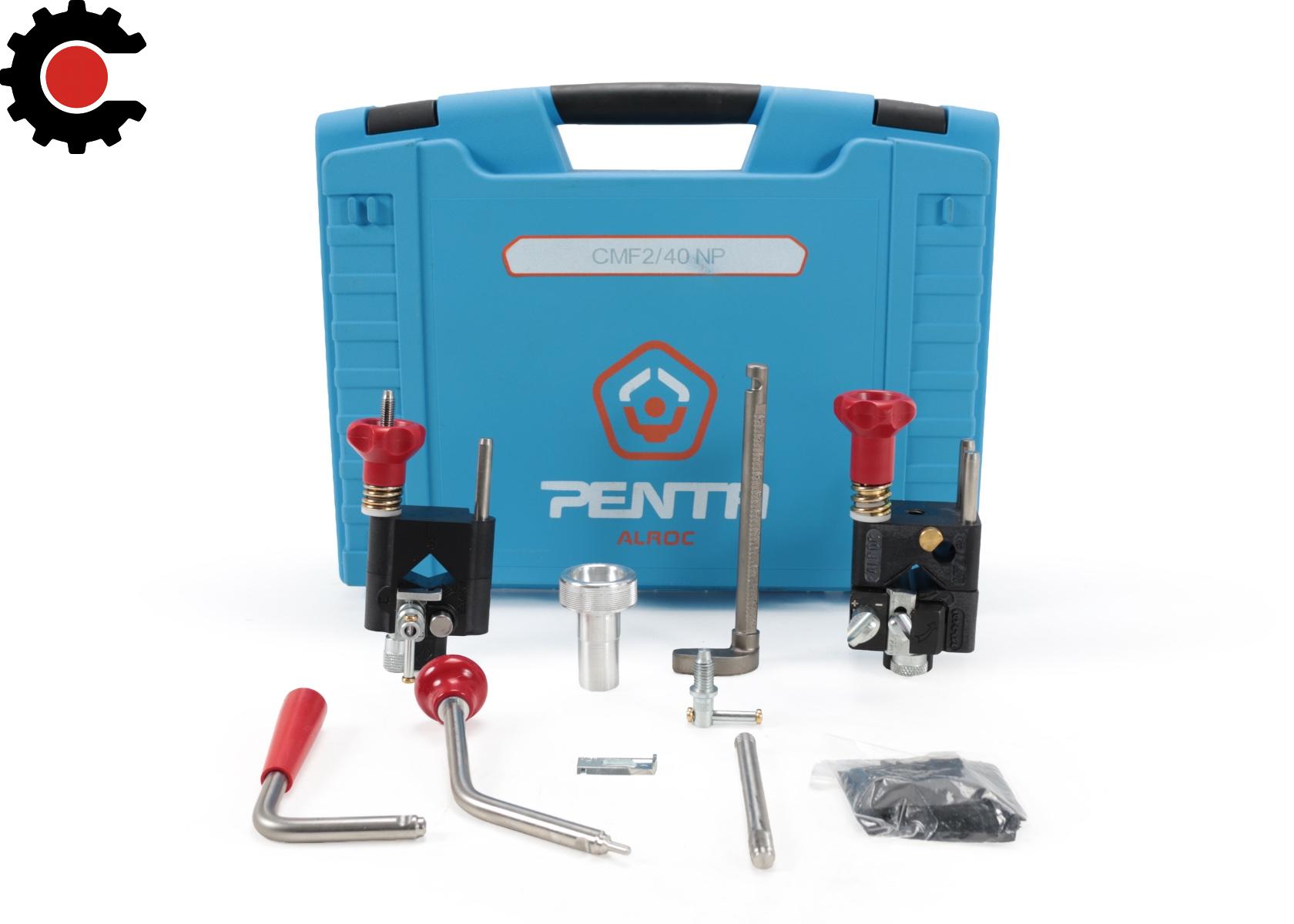

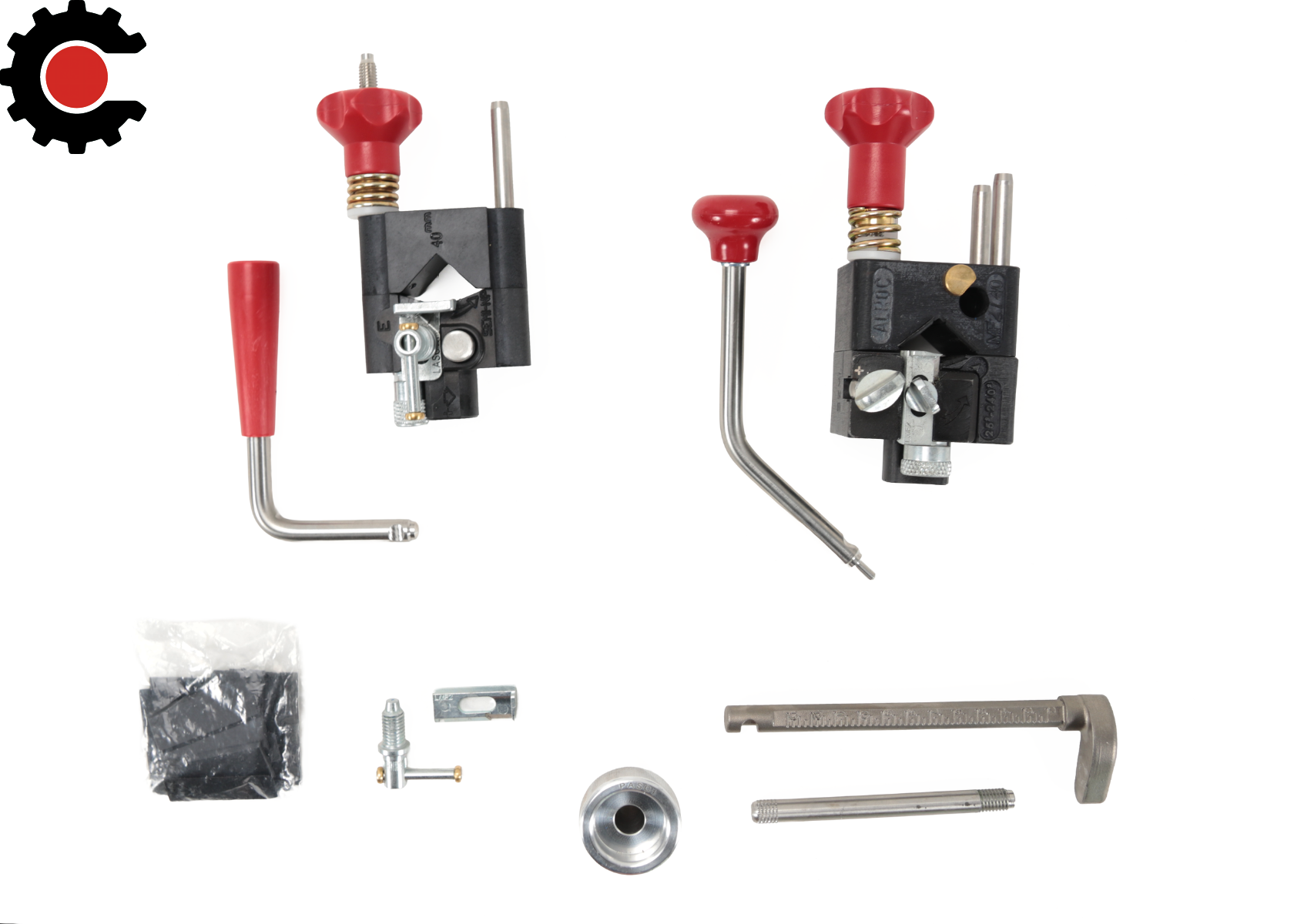

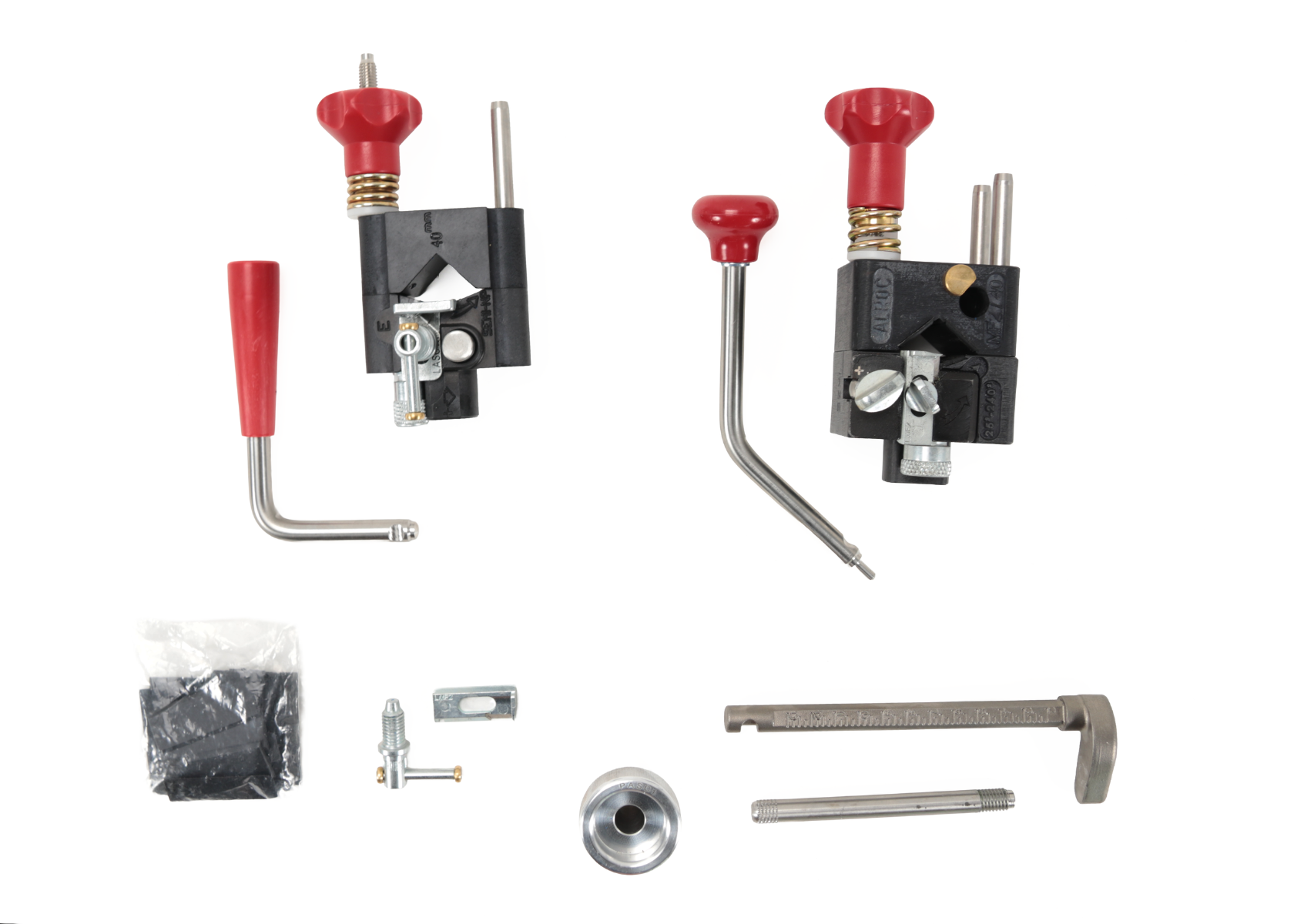

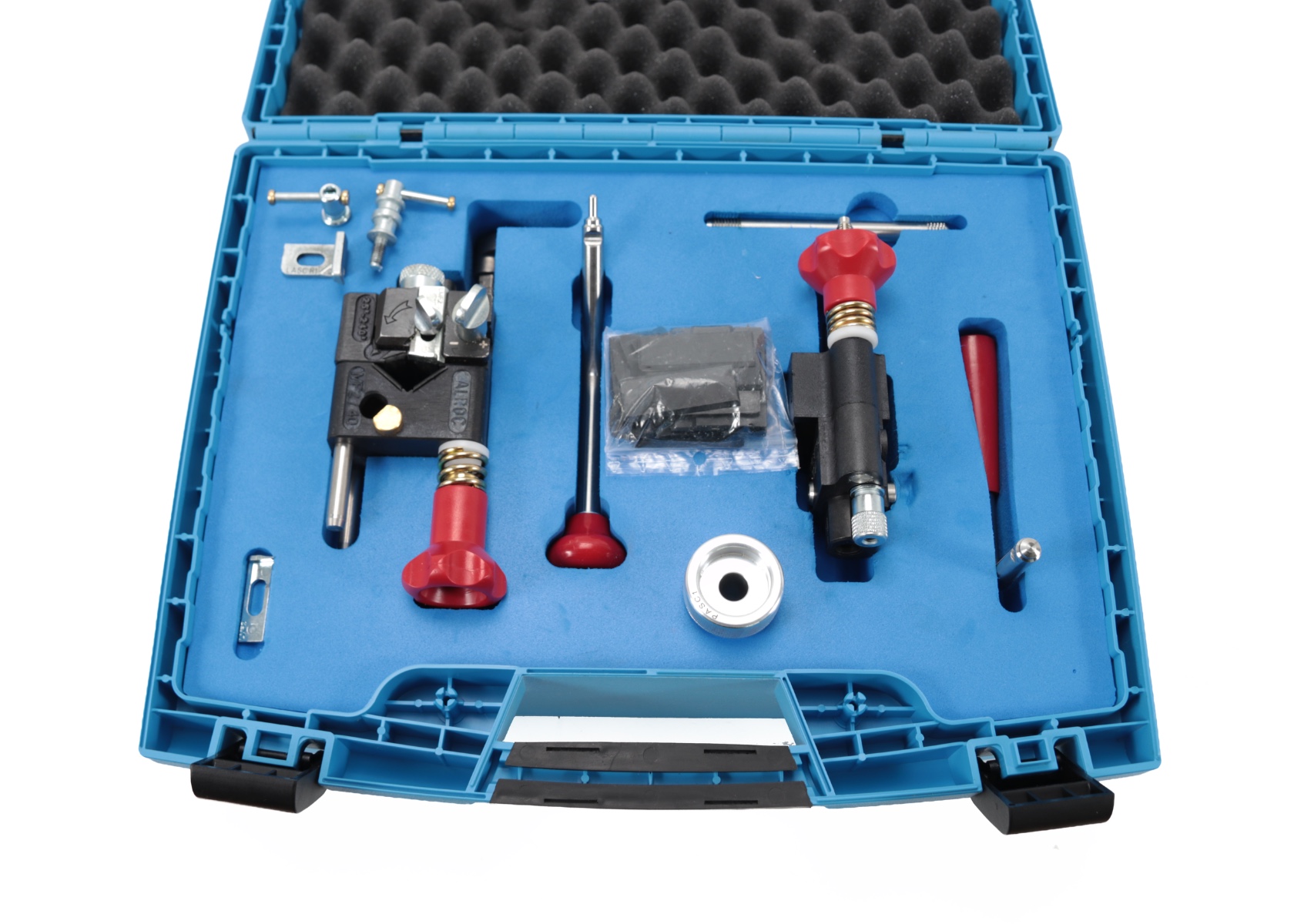

What's in the Box

  • 1 x ALROC MF2/40 Multifunction Cable Preparation Tool
  • 1 x ALROC ASC40R1 Bonded Semiconductor Removal Tool
  • 1 x Straight Handle (M10)
  • 2 x LMF2 Blade
  • 1 x LASC R1 Blade
  • 1 x Crank Handles (1 with rotating knob, 1 with grip)
  • 1 x PASC1 Cable Guide / Support Roller
  • 1 x Thrust (Insulation Length Stop Assembly)
  • 1 x Set of Protective Wear Pads

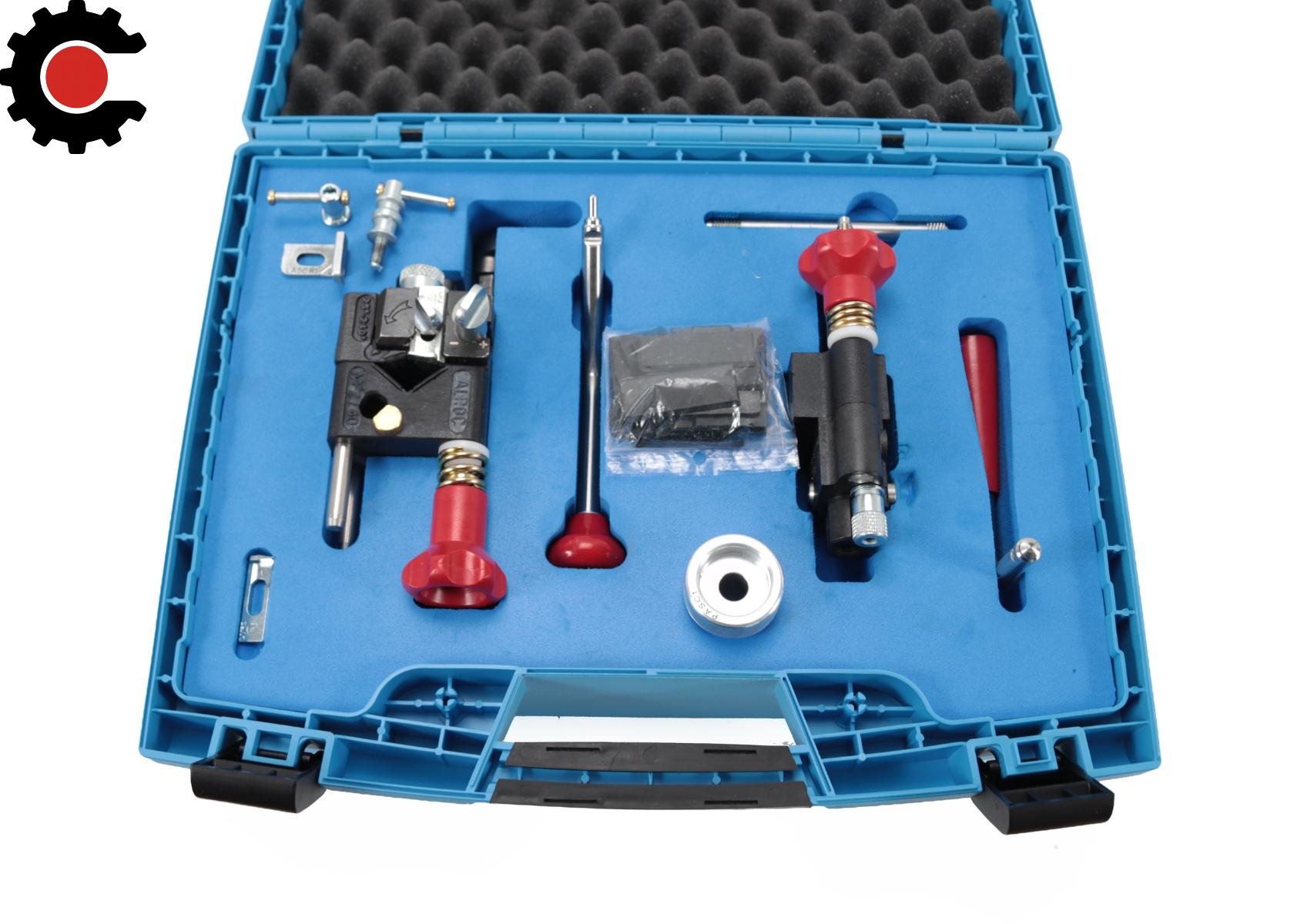

  • 1 x Hard Transport Case

Technical Specifications

Specification Details
Brand PENTA ALROC
Kit MPN CMF2/40 NP
Base Model MF2/40
Series MF2
Included Bonded Semiconductor Tool ASC40R1
Primary Application Outer sheath and insulation removal on MV cables
Bonded Semiconductor Removal Yes, via ASC40R1
MF2/40 Cable Diameter Capacity 16 - 40 mm
ASC40R1 Cable Diameter Capacity 14 - 40 mm
Outer Sheath / Insulation Thickness Capacity 7 mm
