⚡ IN STOCK

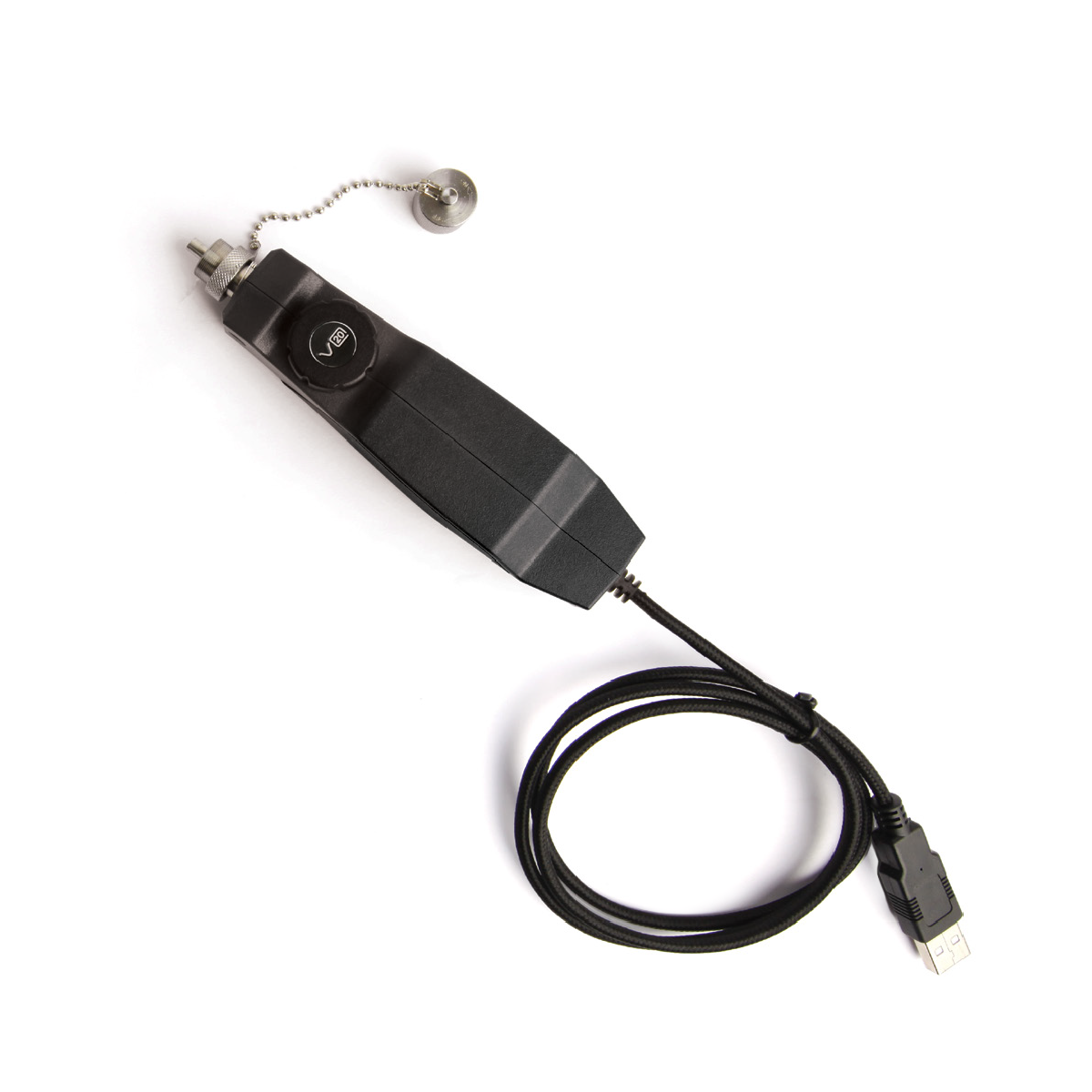

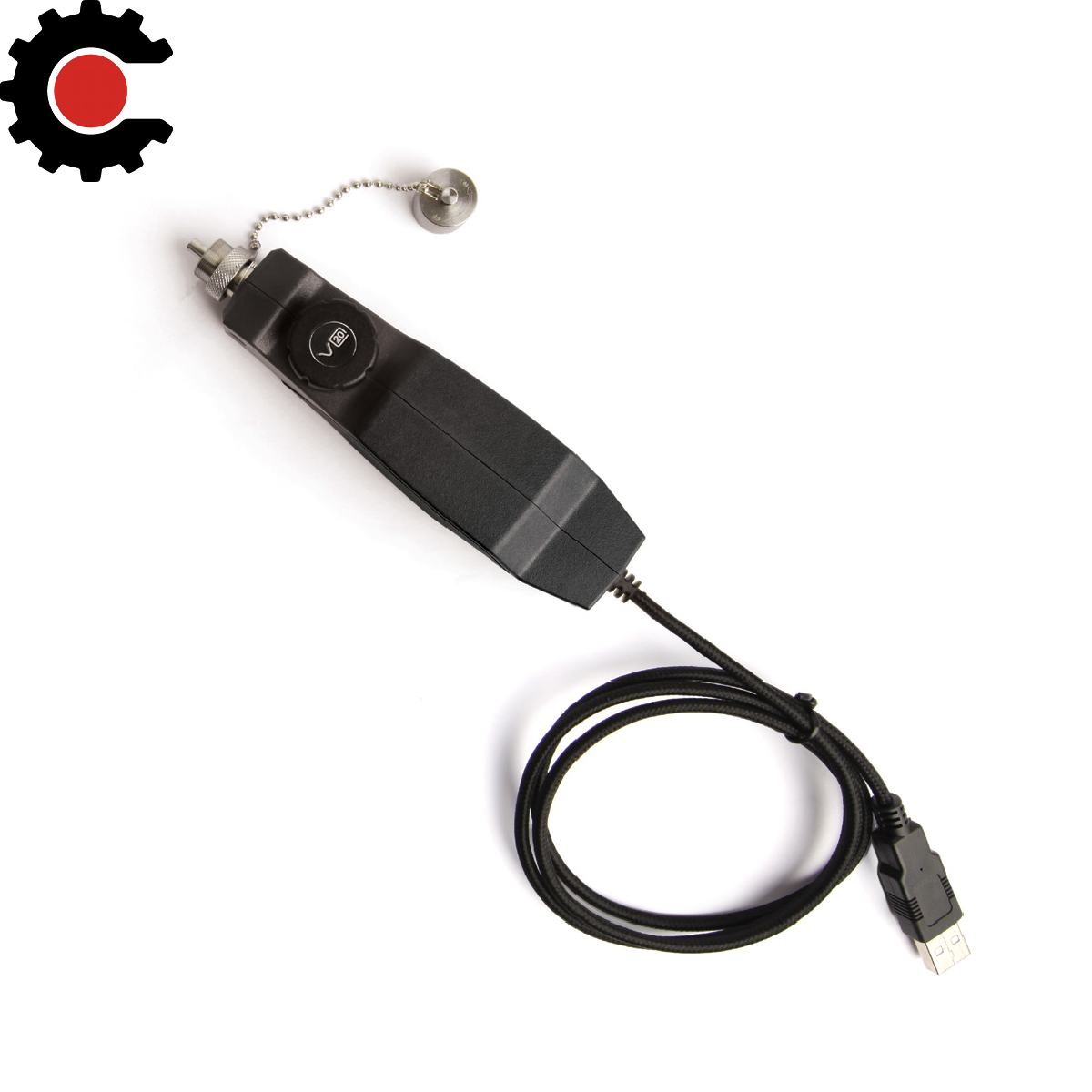

INNO Instrument V20 Fiber Optic Inspection Microscope 200x/360x USB

SPECIAL OFFER: $300.00
The INNO Instrument V20 Fiber Optic Inspection Microscope is a handheld USB inspection probe designed for evaluating optical connector end-faces during fiber installation and maintenance. The V20 microscope provides dual 200x and 360x magnification, integrated LED illumination, and a VGA imaging sensor for connector inspection and documentation.

Detailed Overview

INNO Instrument V20 Fiber Optic Inspection Microscope

The INNO Instrument V20 Fiber Optic Inspection Microscope is a handheld USB inspection probe designed for examining optical fiber connector end-faces during installation, testing, and maintenance workflows. The microscope integrates digital imaging, adjustable focus control, and coaxial LED illumination to support inspection of fiber connector cleanliness and surface condition.

Overview

  • Handheld USB inspection probe for optical fiber connector end-face inspection
  • Supports installation, testing, and maintenance workflows
  • Integrates digital imaging, adjustable focus control, and coaxial LED illumination
  • Designed to assess connector cleanliness and surface condition

Connectivity and Imaging

  • Connects through a USB interface to compatible software environments
  • Captured inspection images can be viewed, recorded, and evaluated on a connected computer or supported optical test instrument
  • Dual magnification modes: 200× and 360×
  • 640 × 480 digital imaging sensor for end-face visualization

Features and Applications

  • Blue LED coaxial illumination for connector surface visibility
  • Manual rotary focus adjustment for image clarity
  • USB interface for connection to compatible inspection software or OTDR platforms
  • Pass/fail results
  • Inspection of optical connector end-faces during fiber installation
  • Verification of connector cleanliness prior to network testing
  • Documentation of fiber connector condition during maintenance procedures

Key Benefits

  • ✓
    Fully Tested & Certified
  • ✓
    30-Day Risk-Free Returns
  • ✓
    1-Year Full Warranty
  • ✓
    Professional Calibration Services
  • ✓
    Trade-In Program Available
  • ✓
    Fast & Reliable Delivery

What's in the Box

  • 1 x V20 fiber inspection microscope
  • 2 x APC wire ferrules: 1.25 and 2.5mm
  • 2 x UPC wire ferrules: 1.25 and 2.5mm

Technical Specifications

Manufacturer INNO Instrument
Model V20
Instrument Type Fiber Optic Inspection Microscope
Magnification 200× / 360×
Image Sensor 640 × 480 (VGA)
Resolution 3.2 μm
Illumination Blue LED coaxial light source
Digital Zoom 3 levels
Field of View 200 μm × 200 μm (high magnification); 360 μm × 360 μm (low magnification)
Interface USB 2.0
Operating Temperature -10°C to 50°C
Storage Temperature -40°C to 70°C
