APLUSUS

Coilovers Kit for Hyundai Tuscani 2003-2008 24 Ways Adjustable Damper Shocks



Aluminum Camber Plate with Pillow Ball Mount

24 Step To Adjust Soft / Hard Adjustment According To Your Preference.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Damping adjustable Yes, 24 levels of rebound damping force

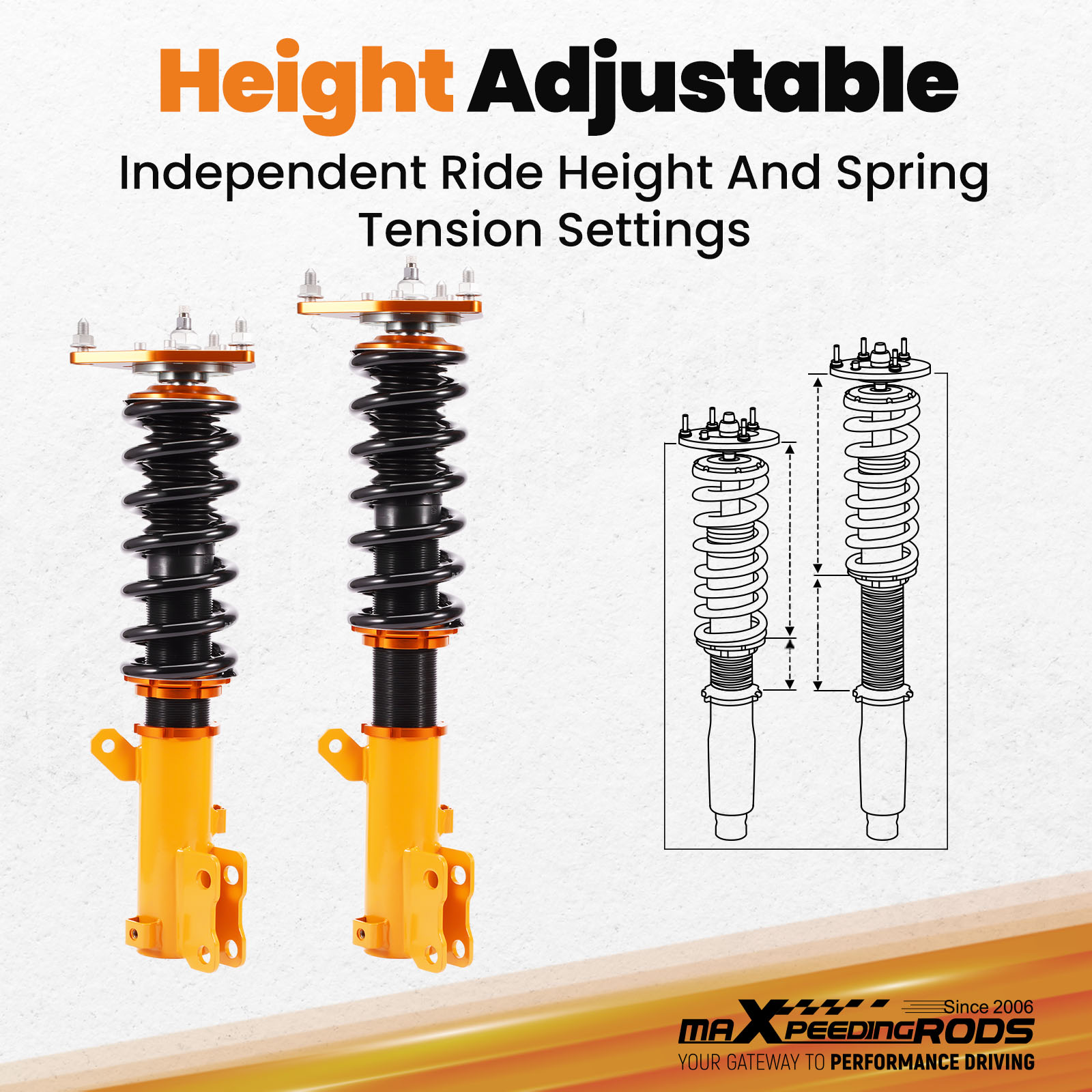

Height adjustable Yes, Lowering 1-3 inch
Front Spring length 230 mm
Rear Spring length 230 mm
Front spring length 8 kg/mm(448 lbs/in)
Rear spring length 6 kg/mm (336 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 2 Years

Features

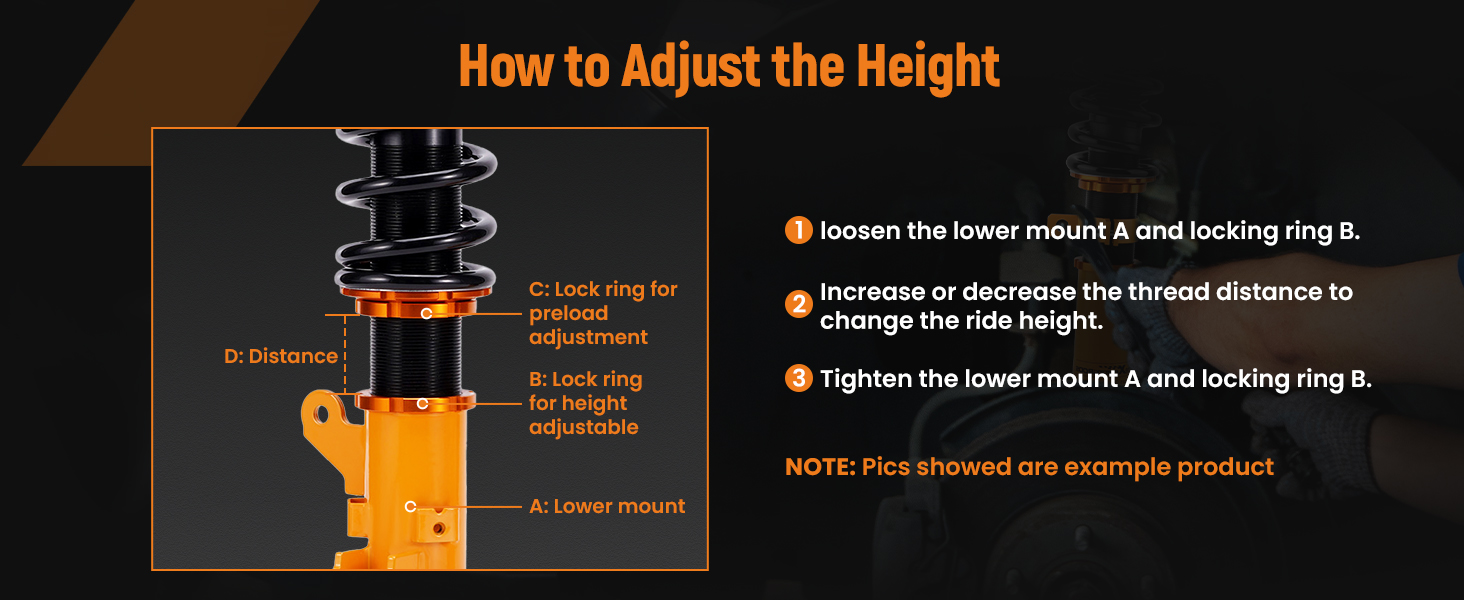

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

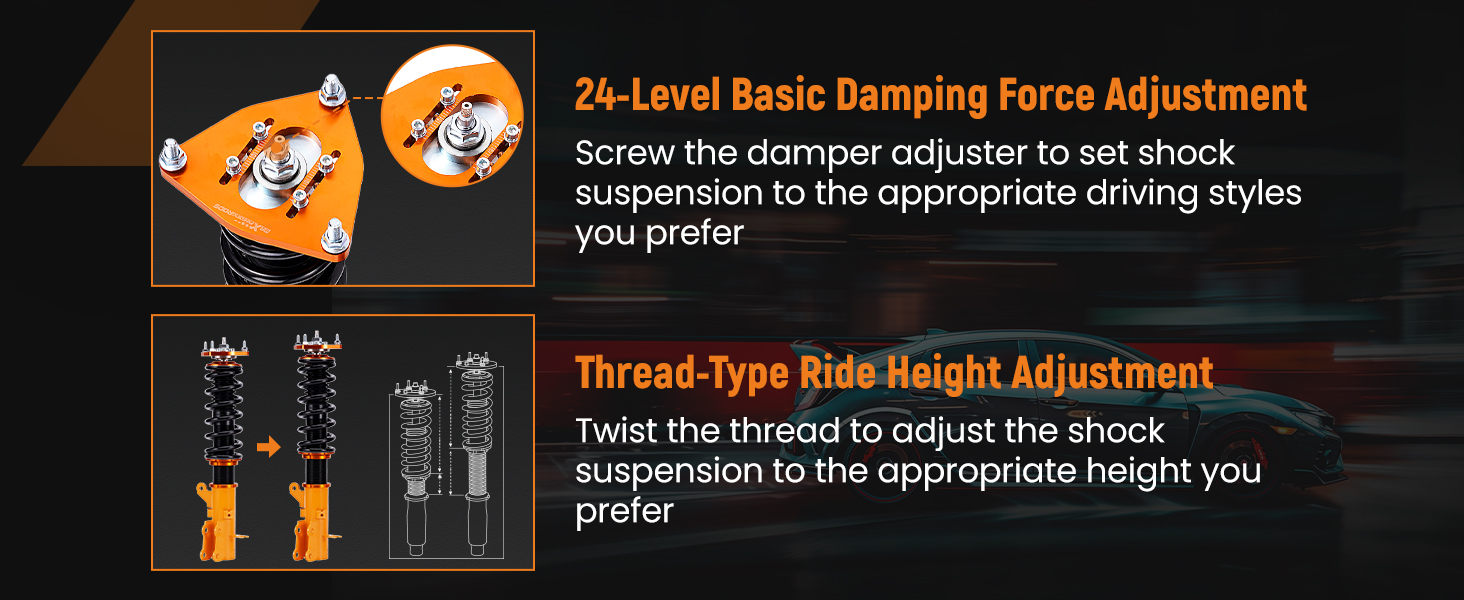

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars. Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

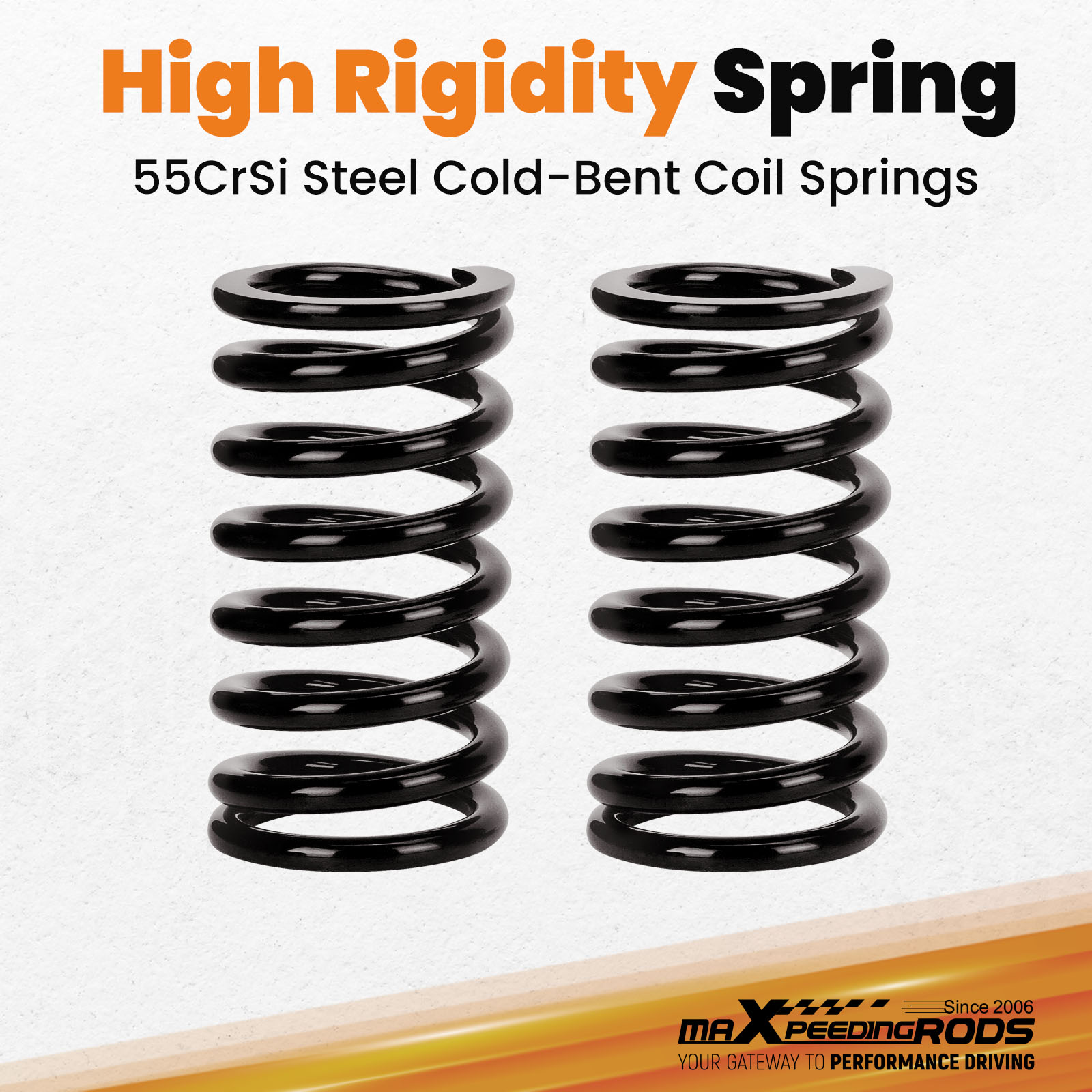

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.


Application


For Hyundai Tiburon 2nd. Gen 2003-2008 US Model
For Hyundai Coupe 2002–2009 (Europe and Middle East)
For Hyundai Tuscani 2003-2008 (South Korean)


Specifications

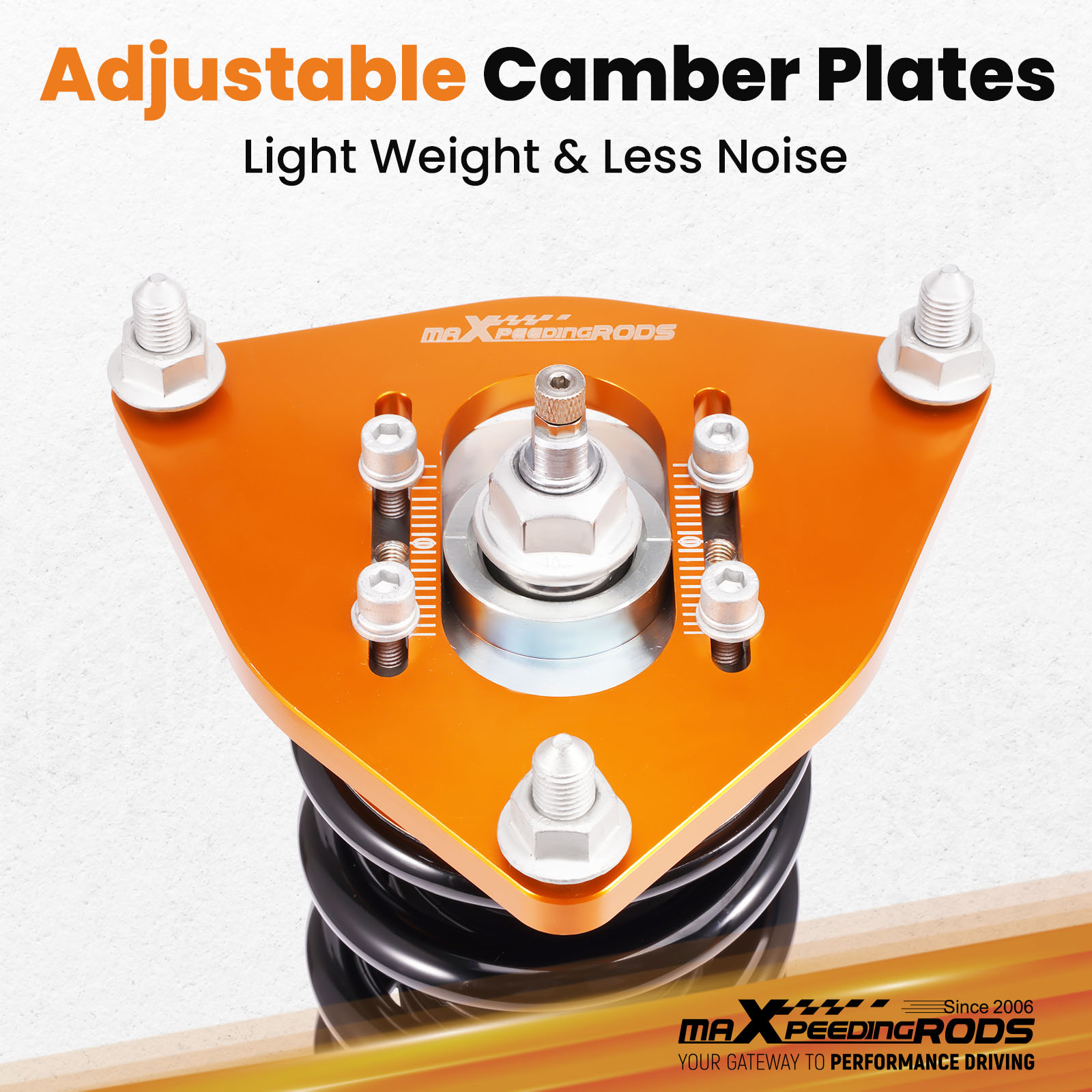

- Front top mounts: Pillow ball with camber plate
- Rear top mounts: Pillow ball
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models-
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 230 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; 24 Clicks of Rebound Damping Force Adjustment; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Full 1 Year Limited Warranty From Date Of Purchase.


Other items you might also like

  • M20 3/4-16 Oil Filter Relocation Kit Thermostatic Sandwich Plate AN10 Gold M20 3/4-16 Oil Filter Relocation Kit Thermostatic Sandwich Plate AN10 Gold
  • Universal Front Intercooler 27x7x2.5 2.5 Tube and Fin For Audi Jetta GTI Lancer Universal Front Intercooler 27x7x2.5 2.5 Tube and Fin For Audi Jetta GTI Lancer

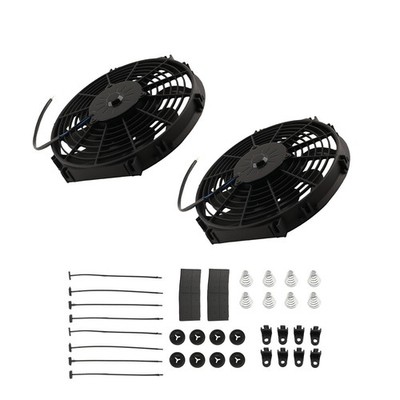

  • 12 inch High Performance System for Universal Engine Cooling Black 1730CFM 12 inch High Performance System for Universal Engine Cooling Black 1730CFM
