Name: Pulley Alignment Instrument
Model: PDL-02
Laser power: <2mW
Laser wavelength: 650NM
Accuracy: 0.1mm/m
Laser divergence angle: 30°
Laser line width: 1mm@2M
Working hours: 20H
Power supply mode: AAA battery*2
Size: 145*40*40MM
Installation method: magnetic suction
Packing weight: 2.5KG
Features:
*High precision, good effect;
*Save energy and reduce downtime for maintenance;
*Reduce vibration and noise, prolong the life of belt and pulley;

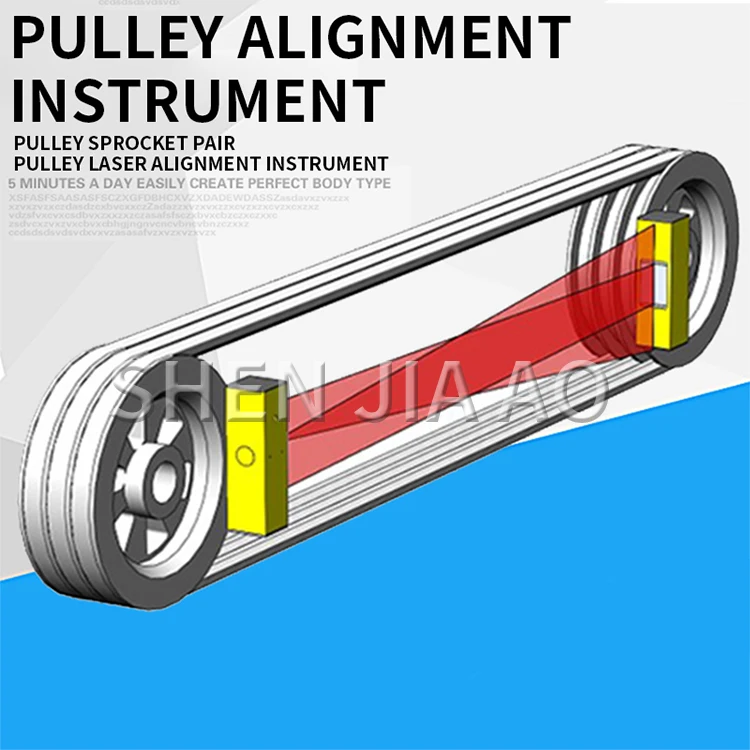

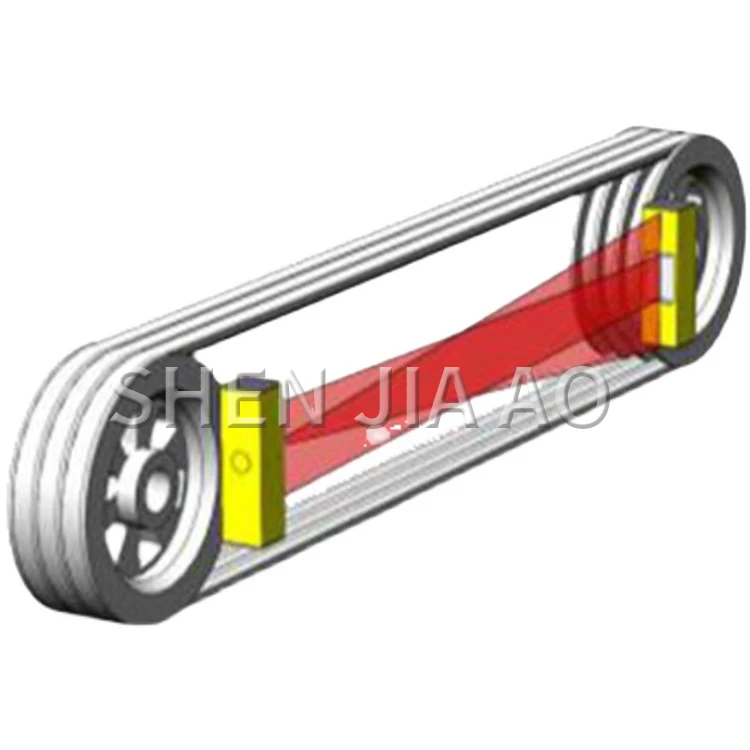

*Magnetic structure is used to adsorb on the pulley, which can be used to check the alignment of various pulleys;

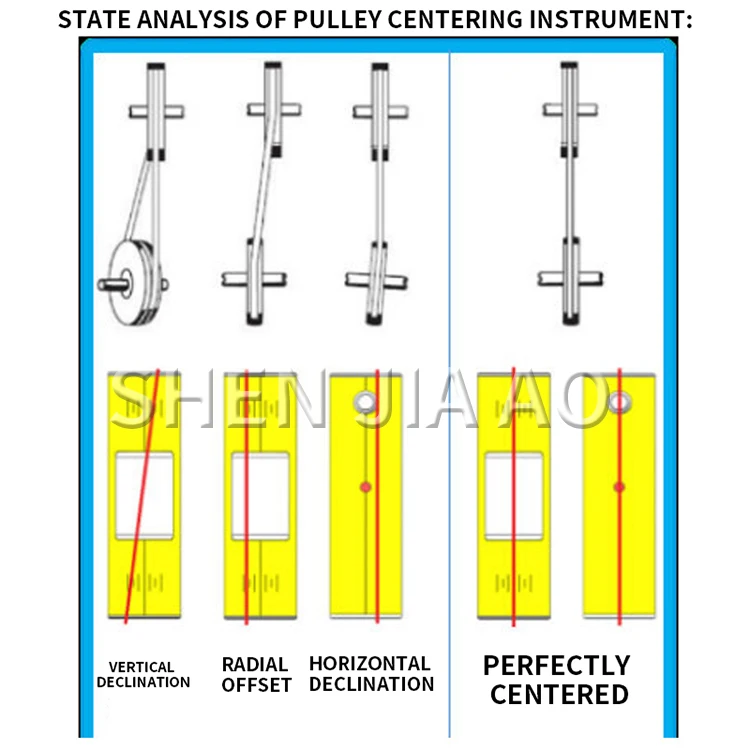

*Easy to use, no training required, one person can operate by observing the angle and parallelism deviation through the engraved line;
note:Color is randomly sent out
