SpeedyBee Bee35 3.5inch Frame 153mm Wheelbase
Product Name | SpeedyBee Bee35 Frame |

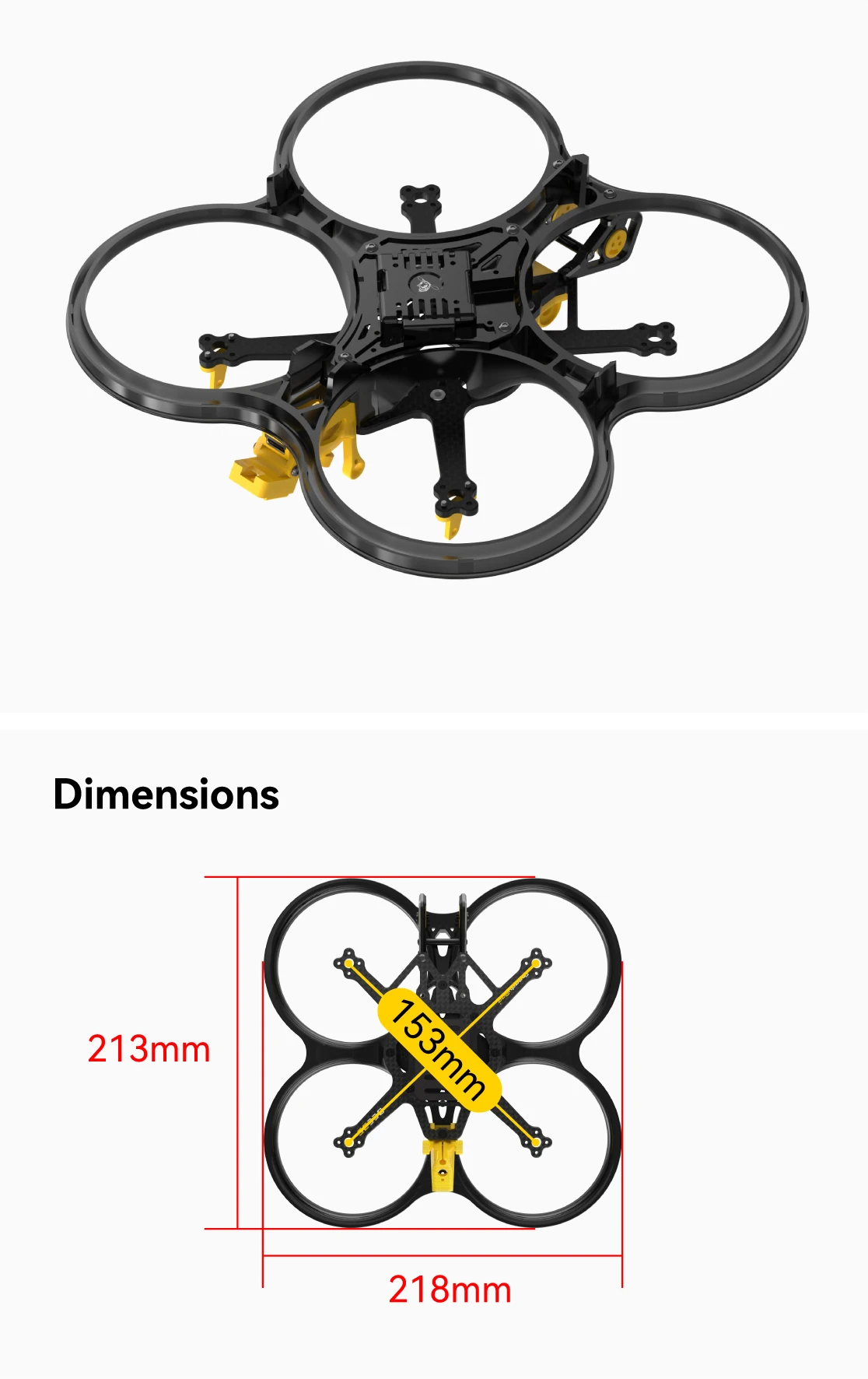

Wheelbase | 153mm |
Top Plate Thickness | 3.5mm |
Bottom Plate Thickness | 2mm |
Camera Mounting Distance | 19/20mm |
ESC/Motor Mounting Height | 24mm |
Flight Stack Mounting Holes | 20*20/25.5*25.5/30.5*30.5mm |
Video Transmitter Mounting Holes | 20*20/25.5*25.5 |
Propeller Size | 90mm |
Motor Mounting Holes | 12*12mm |
Weight | 138g |
CNC Heat Sink | 15g |
Camera Gimbal | 28g |
Recommended Motor | 1806/2004/2006 |
Recommended KV | 4S/2500-3500KV,6S/1800-2300KV |
Recommended Battery | 900-1500mAh 4S/6S |
