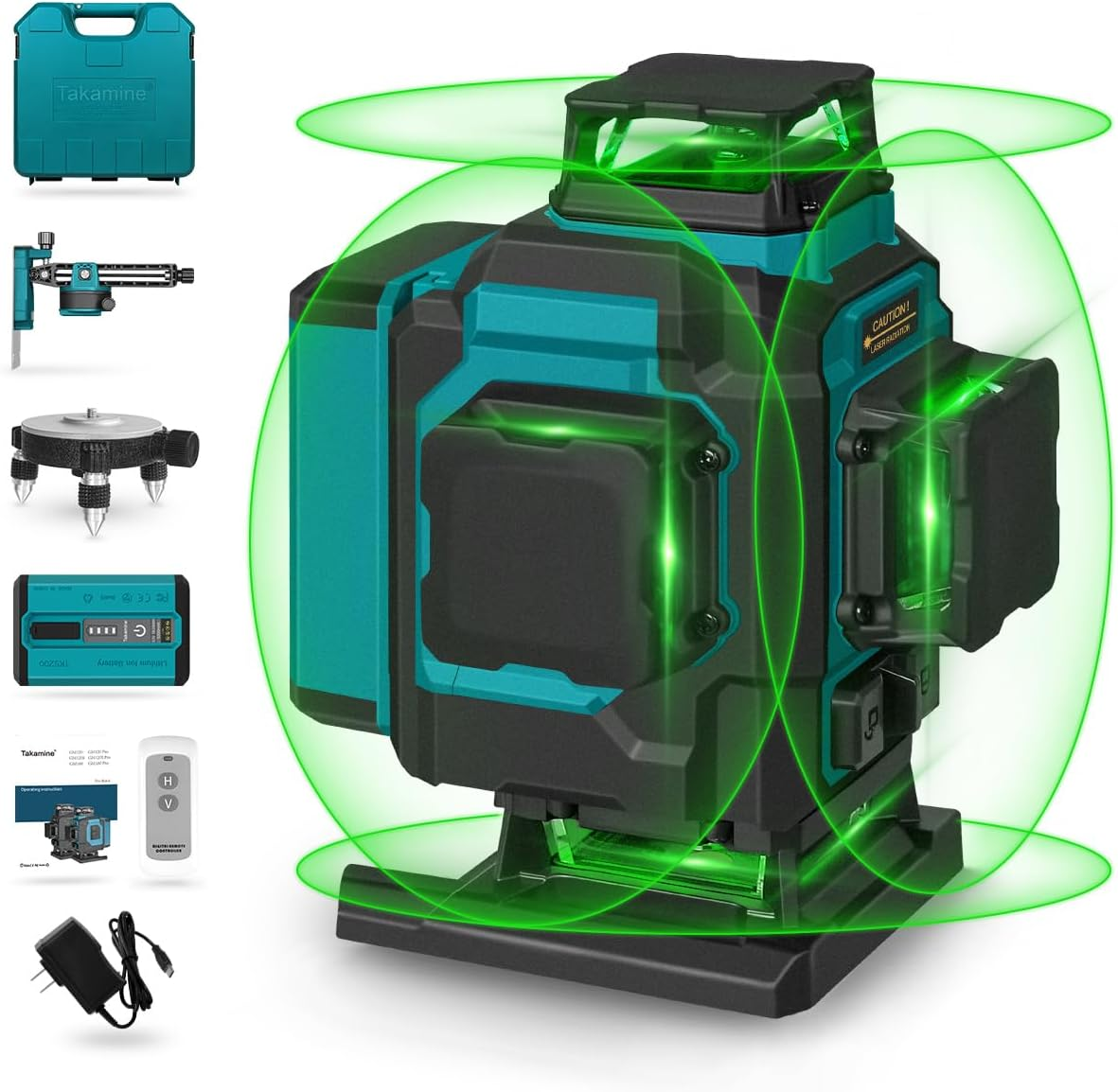

- 4 X 360° green laser line: Takamine GM160 pro laser level has 2 horizontal 360° planes (the one on the ground can hit a 1/2" ultra-low horizontal line, and the one on the top can hit the lowest 4" horizontal line from the top surface), 2 vertical 360° plane with 16 laser lines can cover the floor, wall and ceiling around the room. The horizontal and vertical lines intersect at an angle of 90° to help you quickly visualize and complete the square layout
- Ground/wall use and multiple installation methods: This line laser provides a 1/4" mounting thread for fixing on tripod or mounting pole. Equipped with 360° free rotating base, it can be rotated to desired angle. The base also has 1/4"-20 and 5/8"-11 mounting threads to adapt different tripod. It' equipped with a patented bracket that can be adjusted universally，which is currently the most adjustable in the market. It can be fixed to wall by magnetism or screws, so it can be used in more scenes
- This self-leveling laser level adopts the SHARP green laser unit from Japan, which has excellent brightness and higher stability. Under the same lighting conditions, the green beam is twice as bright as the red laser, with a working range of up to 130 feet (100 LUX), and an accuracy of 33 feet ± 1/9 inch. Using the Takamine line laser receiver in strong light or outdoor conditions, the outdoor pulse mode helps to extend the laser range to 200 feet
- Remote control and Type-c charging：With remote control, your calibration work becomes simple and quick. The newly upgraded Type-C charging speed is 60% faster than ordinary USB charging, and the external replaceable lithium battery makes it possible for you to work for a long time
- Durable design and packaging content: IP54 waterproof/dustproof to ensure that you can work normally and stably under complex working conditions. The surroundings are protected by TPR soft rubber, which is shock-resistant, abrasion-resistant and impact-resistant. The package includes 1x laser level, 1x detachable lithium-ion battery, 1x patented multifunctional magnetic stand, 1x 360° free rotating base, 1x Type-c power cord, 1x power adapter, 1x professional portable storage box, user manual
- Laser Class: Class 2 (IEC/EN60825-1/2014), Max output power <1mW
Product description
Self-leveling mode & Manual mode
- Self-leveling Mode：When the pendulum is unlocked, the machine will power on and self-leveling mode will be enabled. The laser beam will flash rapidly when the tool is ±4° out of self-leveling range.
- Manual Mode： Long Press the V button to enter manual mode, the laser tool can be placed at any angle for alignment.
Pulse Mode
- After power on ,longpress the button "H" on the laser level to turn on the pulse mode.
- Pulse mode extends the operating range to 200 feet. When used with the Takamine laser receiver, it can be used in brighter environments.
- Note: Please keep pulse mode when using with the receiver.
- Laser Level: Class II
Durable Design
- Takamine laser tool is completely covered with TPR soft rubber, providing a soft touch and enhanced protection.
- Waterproof/dustproof performance ensures you work well in hazardous working conditions.
Tough, Drop-Resistant Window
- This laser level uses zinc alloy as the material for making the Window, which is hard, wear-resistant and impact-resistant, so you don't have to suffer from accidental faults.
5200mAh Large-Capacity Lithium-ion Battery
- The laser tool uses a 3.7V / 5200mAh high-capacity lithium-ion battery which can ensure working for over 10 hours.
- 4 battery indicators on the lithium-ion battery pack let the user know the current battery level and charge status.
Removable Battery And Type-C Charging Port
- Type-c charging ensure faster charging speed.
More Installation Methods
- The internal threads on the laser level facilitate mounting to a tripod or laser mounting bar.
- The mounting threads on the bottom of the stand are designed to temporarily hold it in place or secure it to the tripod or laser mounting bar.
Bright Green Laser Diode
- This Takamine laser features a bright Japan SHARP green laser unit that is resistant to temperature changes and more stable.
- At the same power, the green laser is twice as bright as the red laser and has an operating range of up to 85 feet (300LUX) with accuracy to within ±1/9 inch at 33 feet.
-
| Item model number |
GM160 |
| Part Number |
HU-XI-201 |
| Style |
4x360° 16line |
| Power Source |
Battery Powered |
| Color |
Green |
| Brand |
Takamine |
| Material |
Rubber |
| Operation Mode |
Automatic |
| Item Weight |
3.53 ounces |
| Batteries |
1 Lithium Polymer batteries required. (included) |
| Batteries Included? |
Yes |
| Batteries Required? |
Yes |
| Battery Cell Type |
Lithium |
| Special Features |
green-line, self-leveling |
| Manufacturer |
Takamine |
| Product Dimensions |
12.3"L x 12.2"W |
| Included Components |
Batteries, Case, Charger |
