12V Pre-Wired Fuse Relay Box, 4-Pin 80A Relay Block and Kit, 2 Relays and 6 ATC/ATO Blade Fuses, for Cars Truck Marine Boat Jeep

Description

Item model number	80A 4mm² Box
Minimum Switching Voltage	12 Volts (DC)
Current Rating	80 Amps
Mounting Type	Screw Mount
Coil Voltage	12 Volts (DC)
Connector Type	Crimp
Item Weight	12.6 ounces
Operation Mode	Automatic
Contact Type	Normally Open
Contact Material	Copper
Specification Met	CE
Product Dimensions	4.33 x 4.33 x 4.21 inches

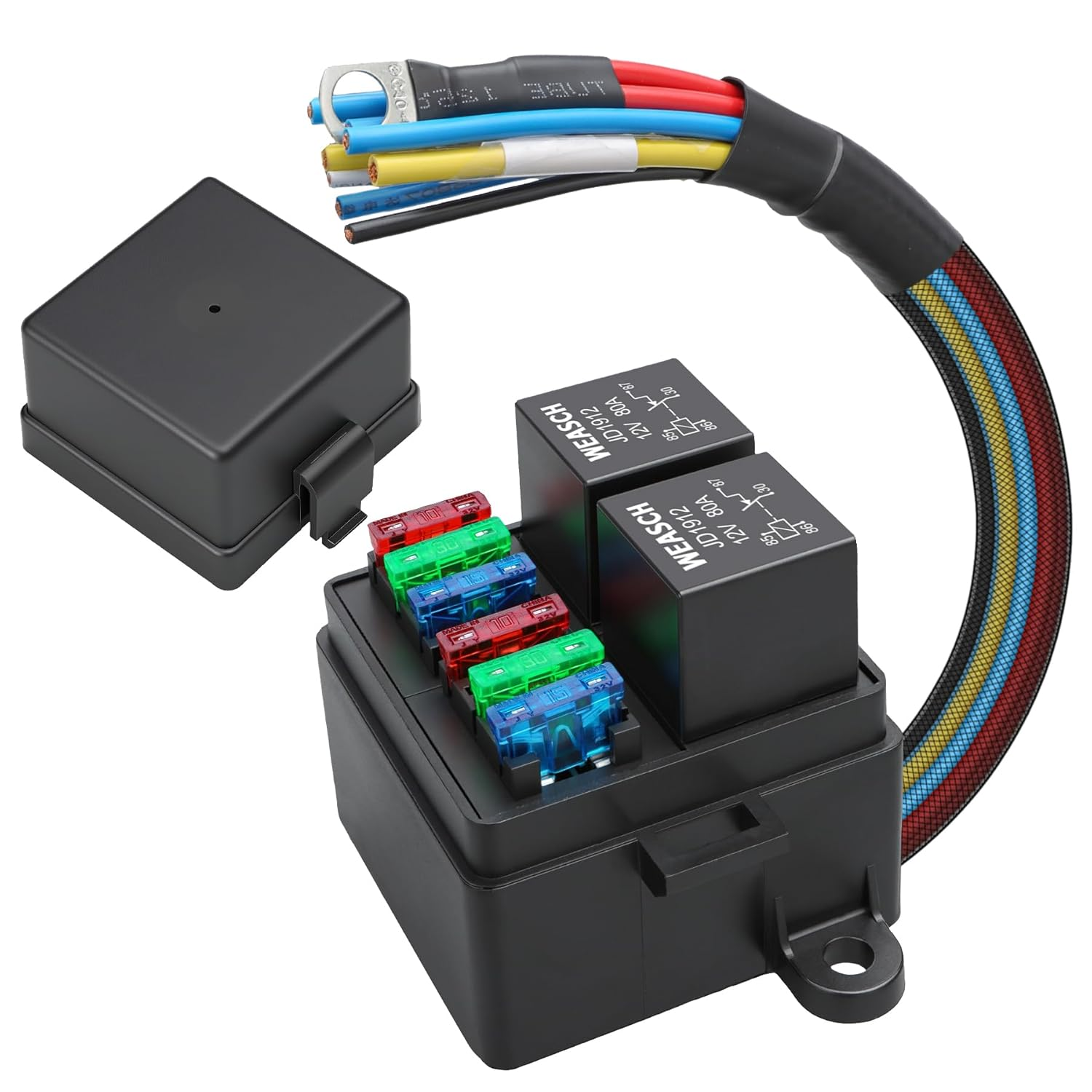

• This 12v relay box package includes 2pcs 4Pin 80A JD1912 Relays, 6pcs 10A, 15A, 30A ATC/ATO blade fuses. You can replace these fuses according to actual needs
• This relay fuse box adopts a pre-wired design, and the wires are connected in different colors, which is easy to distinguish and connect.The incoming wire diameter is 4mm², about 11AWG, which can withstand higher current
• This 12v relay box includes total 2 available slots for connecting, can make 2 relays connected neatly and tidily in one box, which also makes it easy to replace when one of the relays break down
• This relay box also includes 6 fuse slots for ATC/ATO fuses, which can select the fuse corresponding to the circuit current to protect the equipment from damage by excessive current, providing double protection for your circuit
• This fuse relay box is suitable for allmost types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, campers, boats, etc. It provides a versatile solution for managing electrical systems in a variety of vehicles, ensuring reliable performance and electrical safety
• ! Attention: Fuse box dimensions 102mm x 71mm x 80mm (4.02″ x 2.8″ x 3.15″), Please confirm whether the size meets your installation requirements before purchasing
