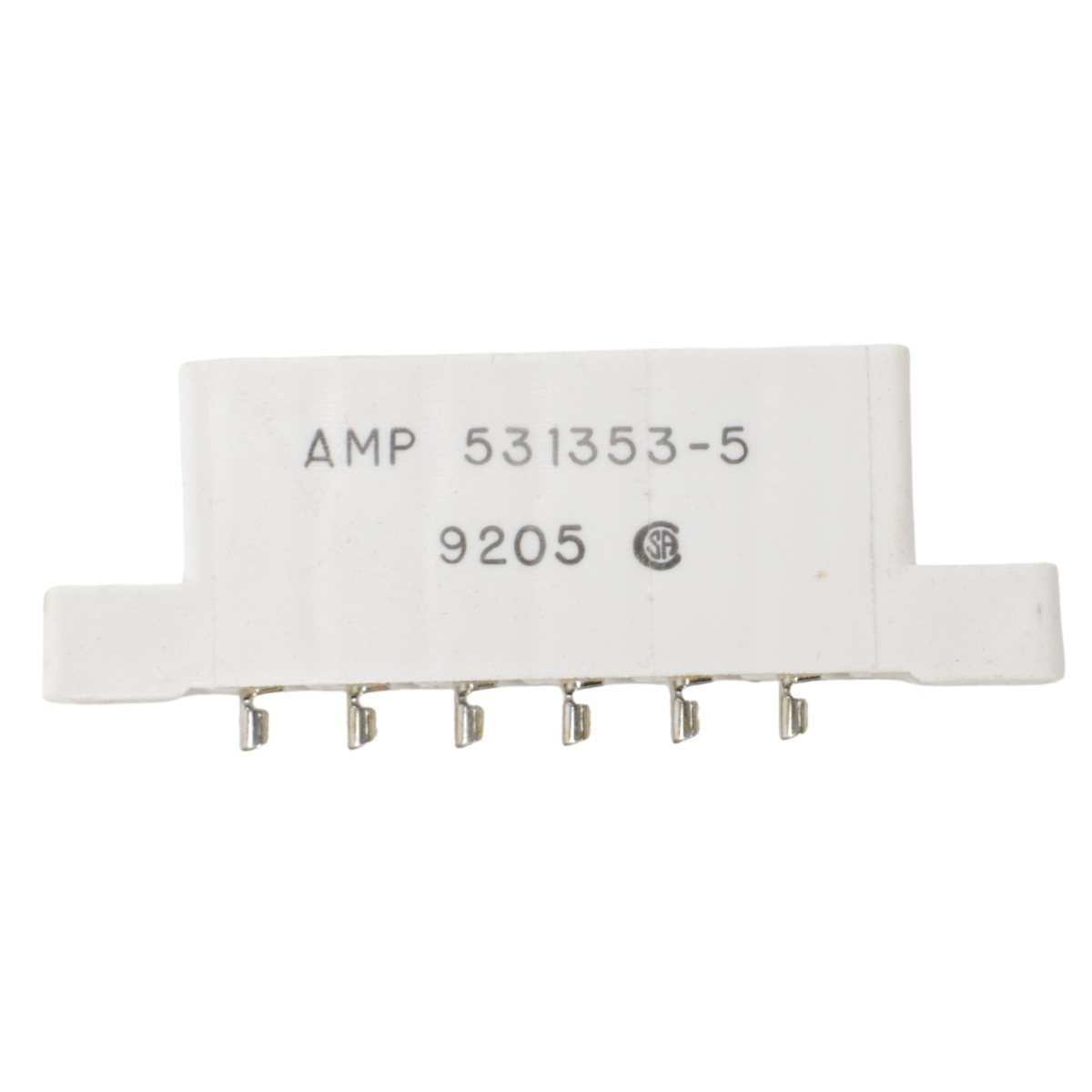

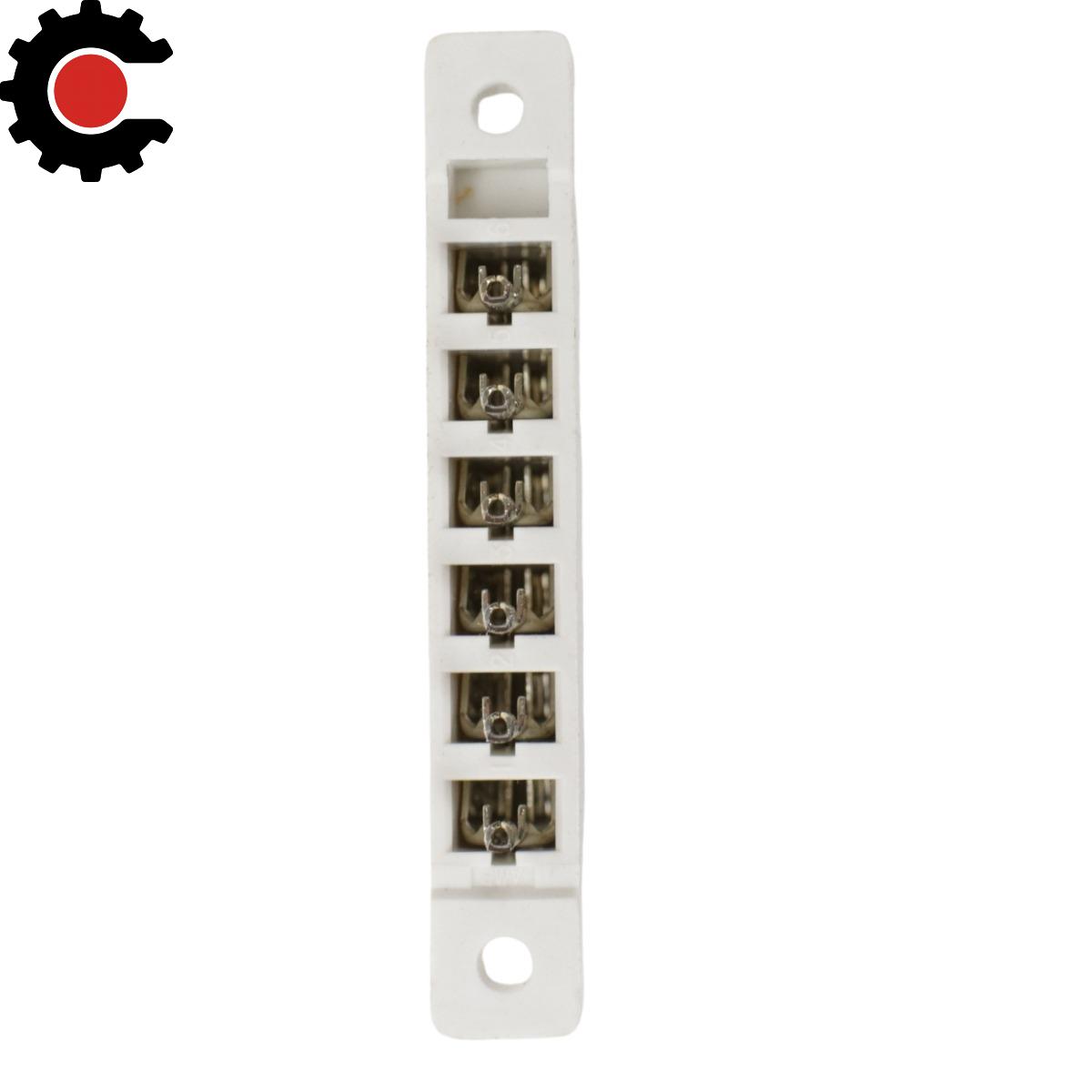

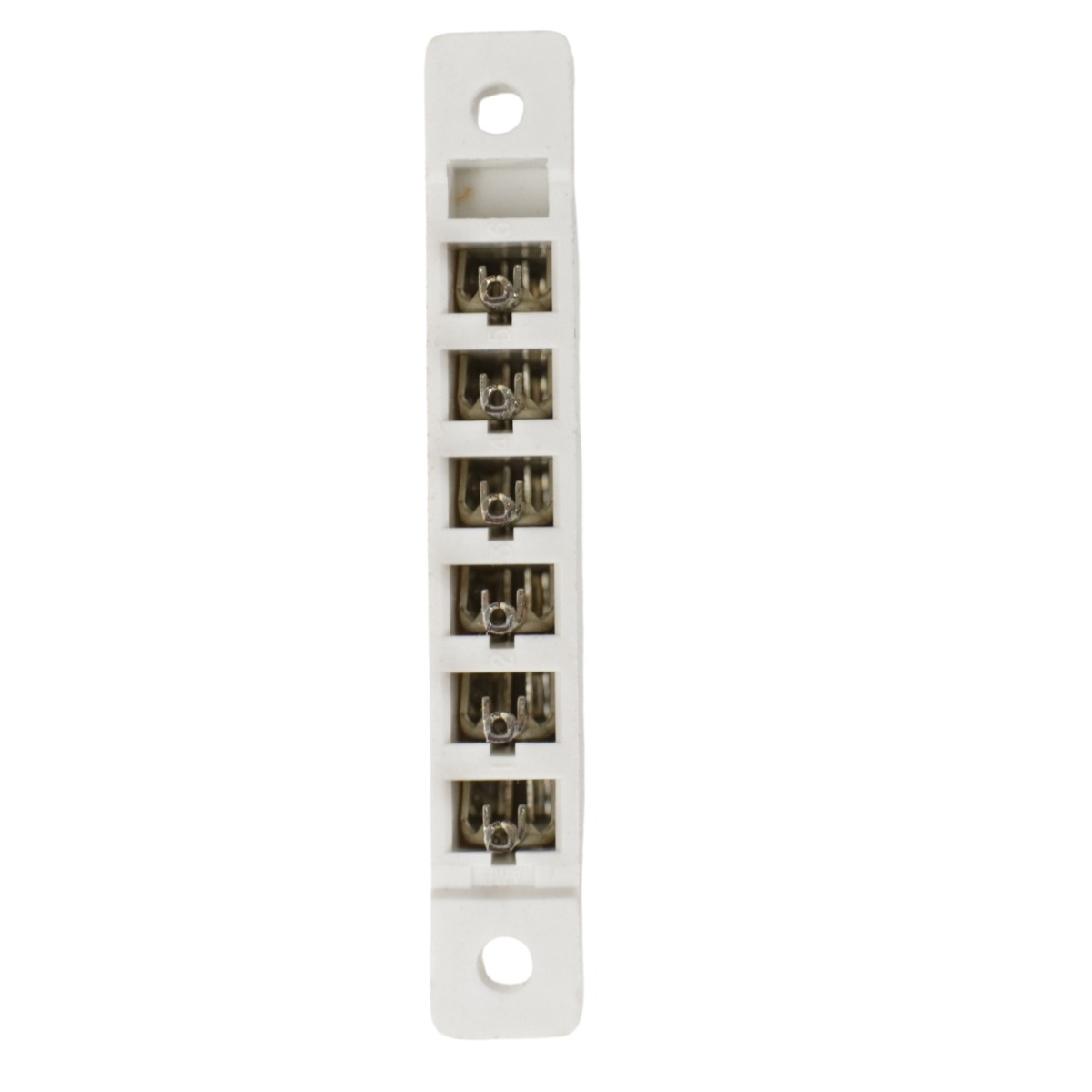

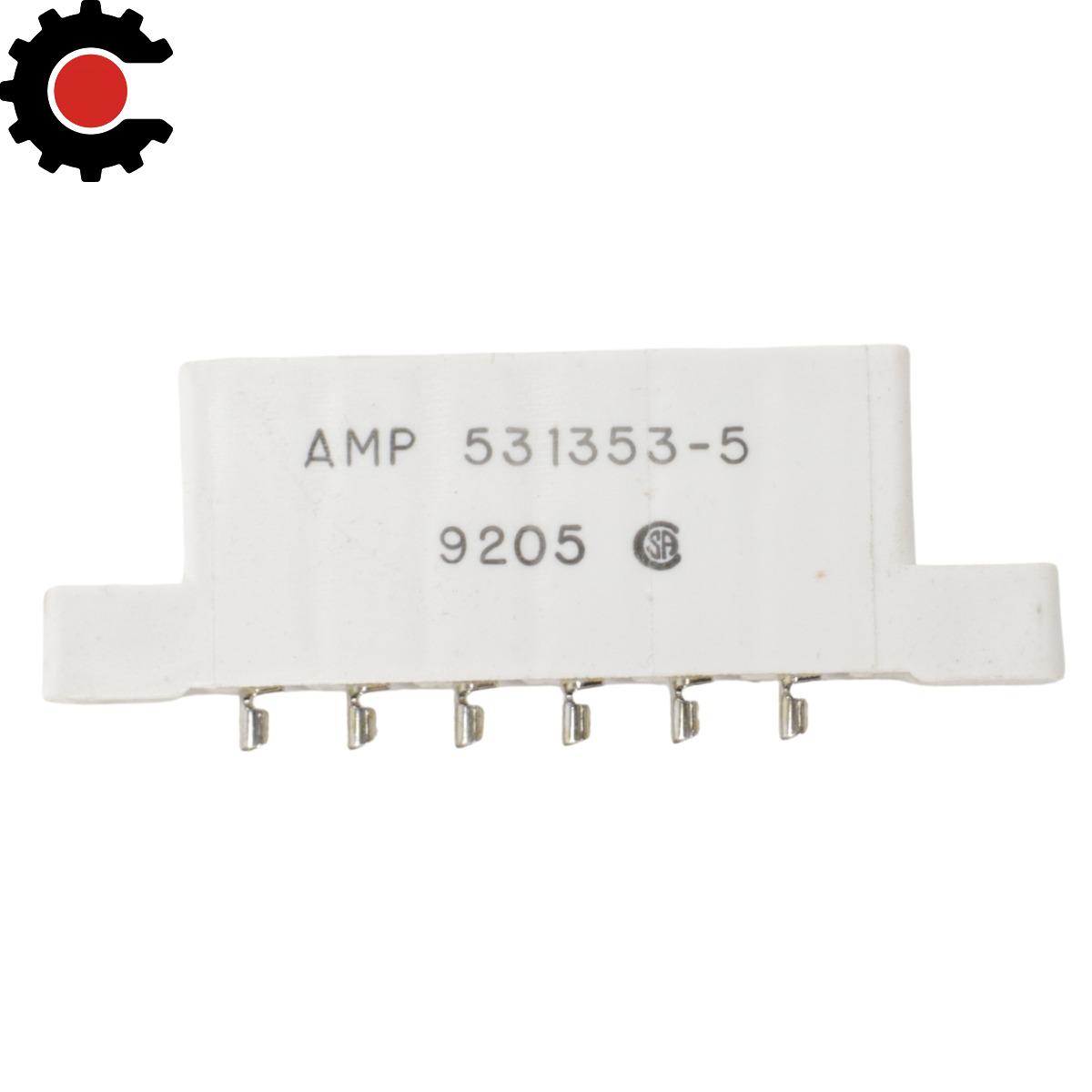

AMP 531-353-5 Panel Mount Card Edge Connector
The AMP 531-353-5 is a panel mount card edge connector from TE Connectivity AMP Connectors. It features six power positions arranged in two rows with female contacts and solder termination. The connector is designed for panel mounting and accepts 0.062 inch card thickness, using a glass-filled polyester housing.
Detailed Overview
AMP 531-353-5 Panel Mount Card Edge Connector
The AMP 531353-5 is a panel mount card edge connector manufactured by TE Connectivity AMP Connectors. This connector provides a six-position power interface using a dual-row female contact design and solder termination for secure board connections.
Connector Configuration
- Six power positions arranged in two rows
- Female contact design
- Panel mount configuration with mounting flanges
- Solder termination contacts
Construction and Materials
The connector housing is manufactured from glass-filled polyester and finished in a natural color. Contacts are formed from copper alloy and finished with tin plating to support electrical conductivity and durability.
Applications
- Power interconnects in electronic assemblies
- Panel-mounted card edge interfaces
- Industrial and OEM electronic equipment
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- AMP 531-353-5 panel mount card edge connector
Technical Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| Part Number | 531-353-5 |
| Connector Type | Card Edge Connector |
| Mounting Type | Panel Mount |
| Gender | Female |
| Number of Positions | 6 (Power) |
| Number of Rows | 2 |
| Card Thickness | 0.062 in (1.57 mm) |
| Pitch | 0.312 in (7.92 mm) |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | 15.0 µin (0.38 µm) |
| Insulation Material | Polyester, Glass Filled |
| Operating Temperature | -40°C to 95°C |
| Color | Natural |
