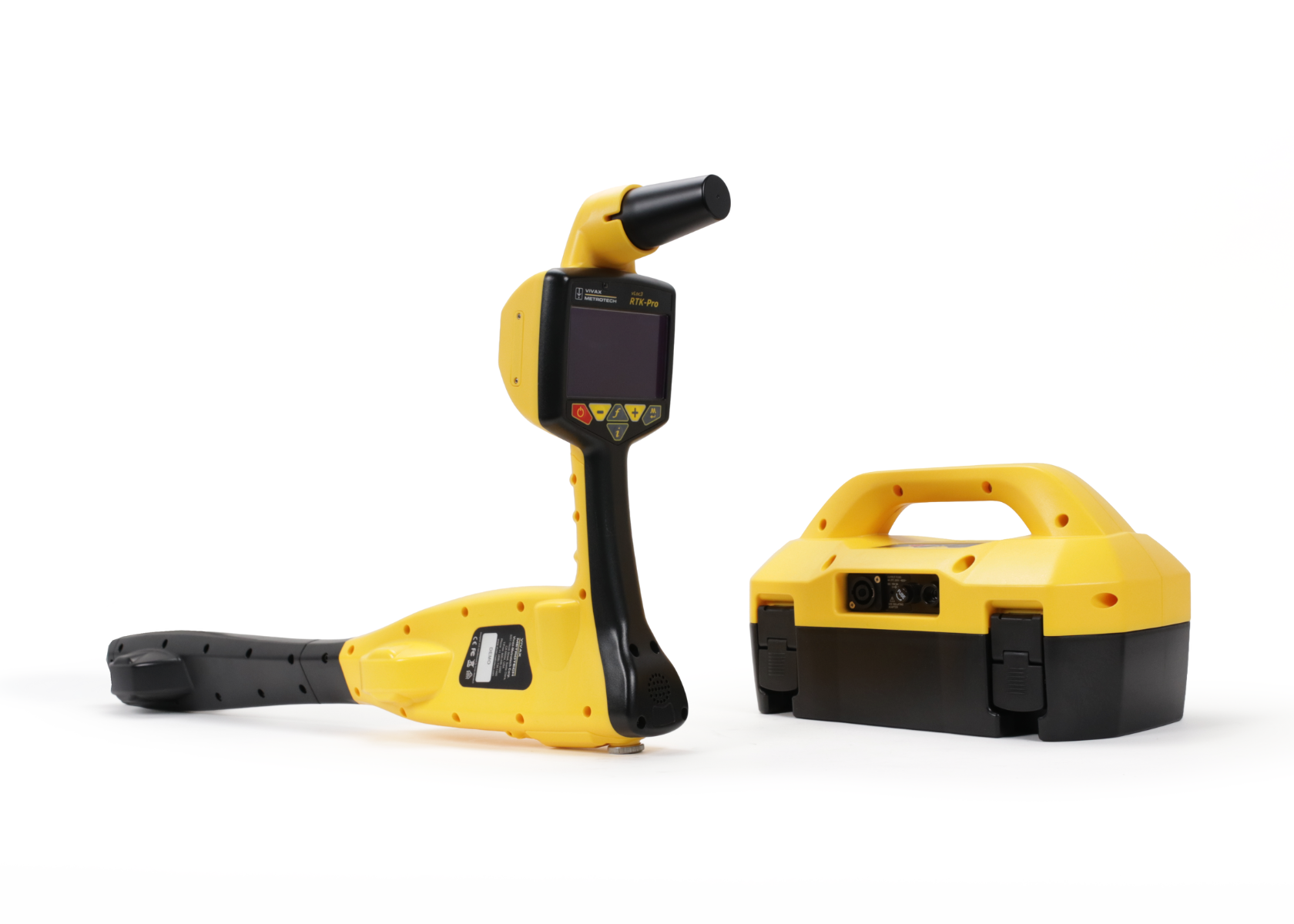

Vivax-Metrotech vLoc3 RTK-Pro Utility Locator with Loc3-25Tx Transmitter
Vivax-Metrotech vLoc3 RTK-Pro is an RTK GNSS utility locator for precision locating and utility-classified survey capture. Surveys are organized by Electric, Gas, Communications, Potable Water, and Reclaimed Water utilities when used with the Loc3-25Tx transmitter.
Detailed Overview

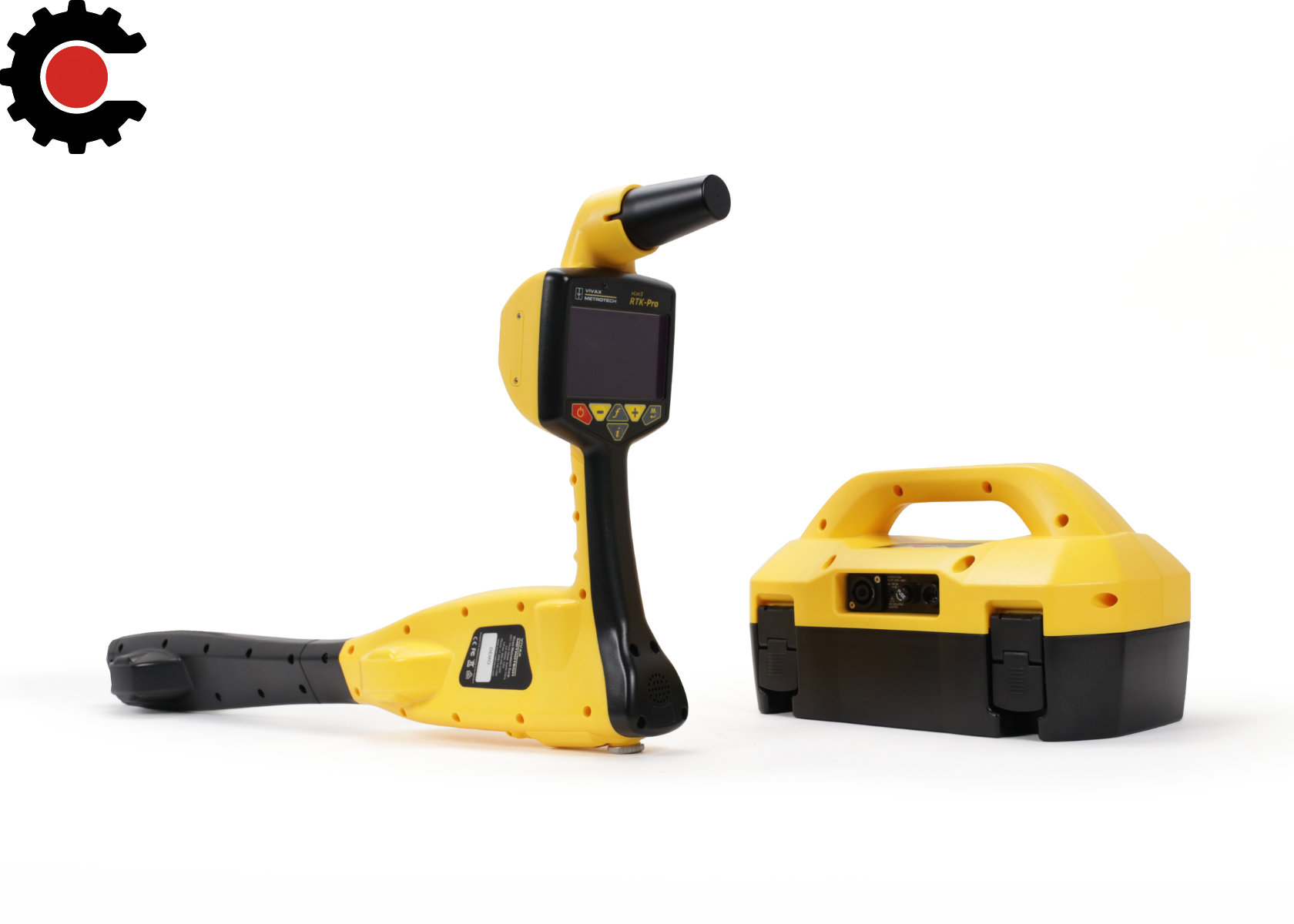

Vivax-Metrotech vLoc3 RTK-Pro RTK GNSS Utility Locator with Loc3-25Tx
The Vivax-Metrotech vLoc3 RTK-Pro combines precision utility locating with integrated RTK GNSS positioning to support disciplined survey capture during active locate operations. The system is designed for operators who require both signal-based locating and spatially accurate utility documentation within a single platform.

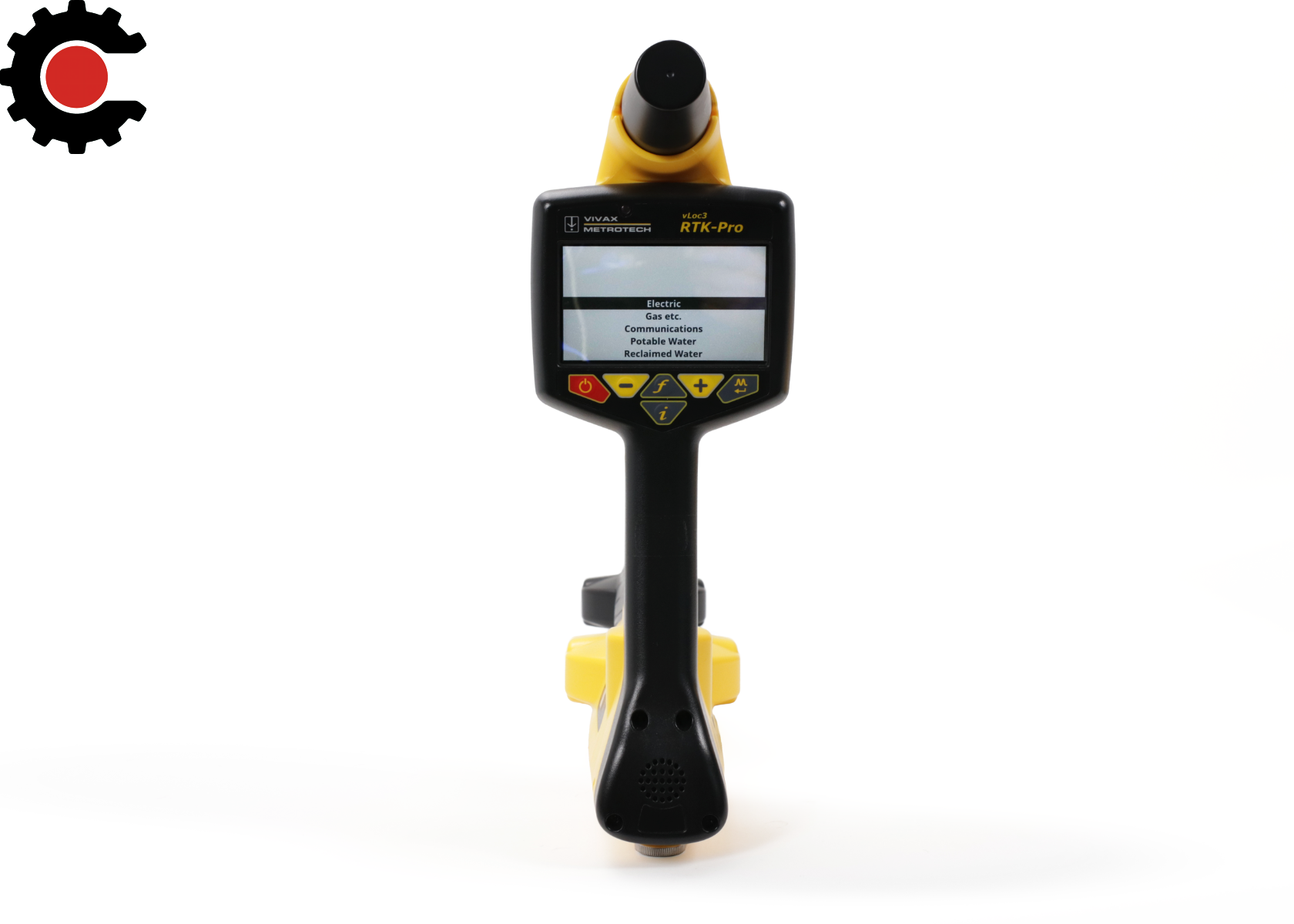

Utility-Based Survey Structure

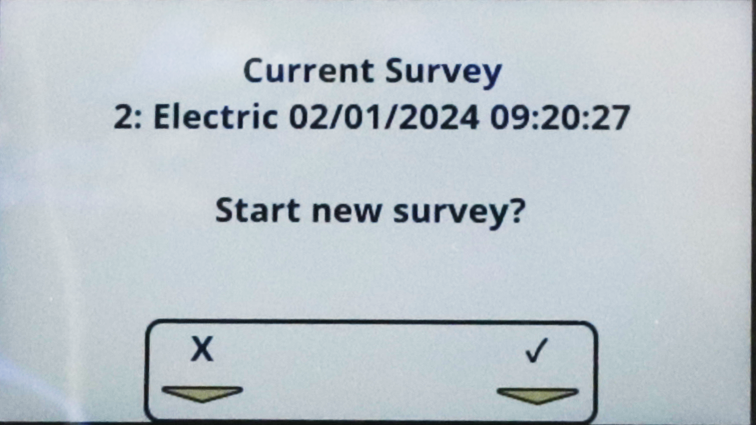

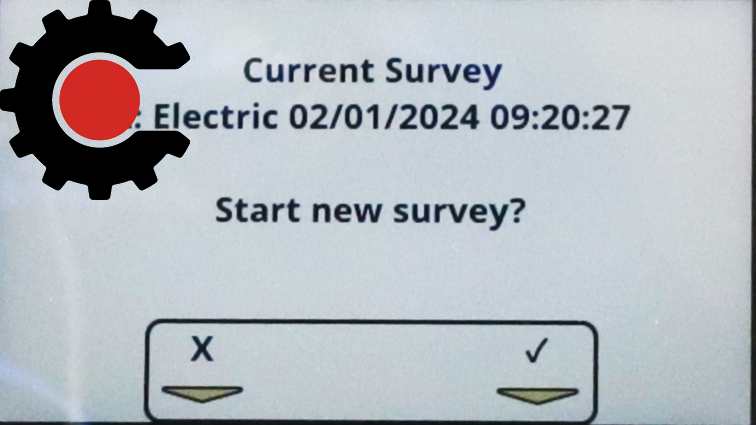

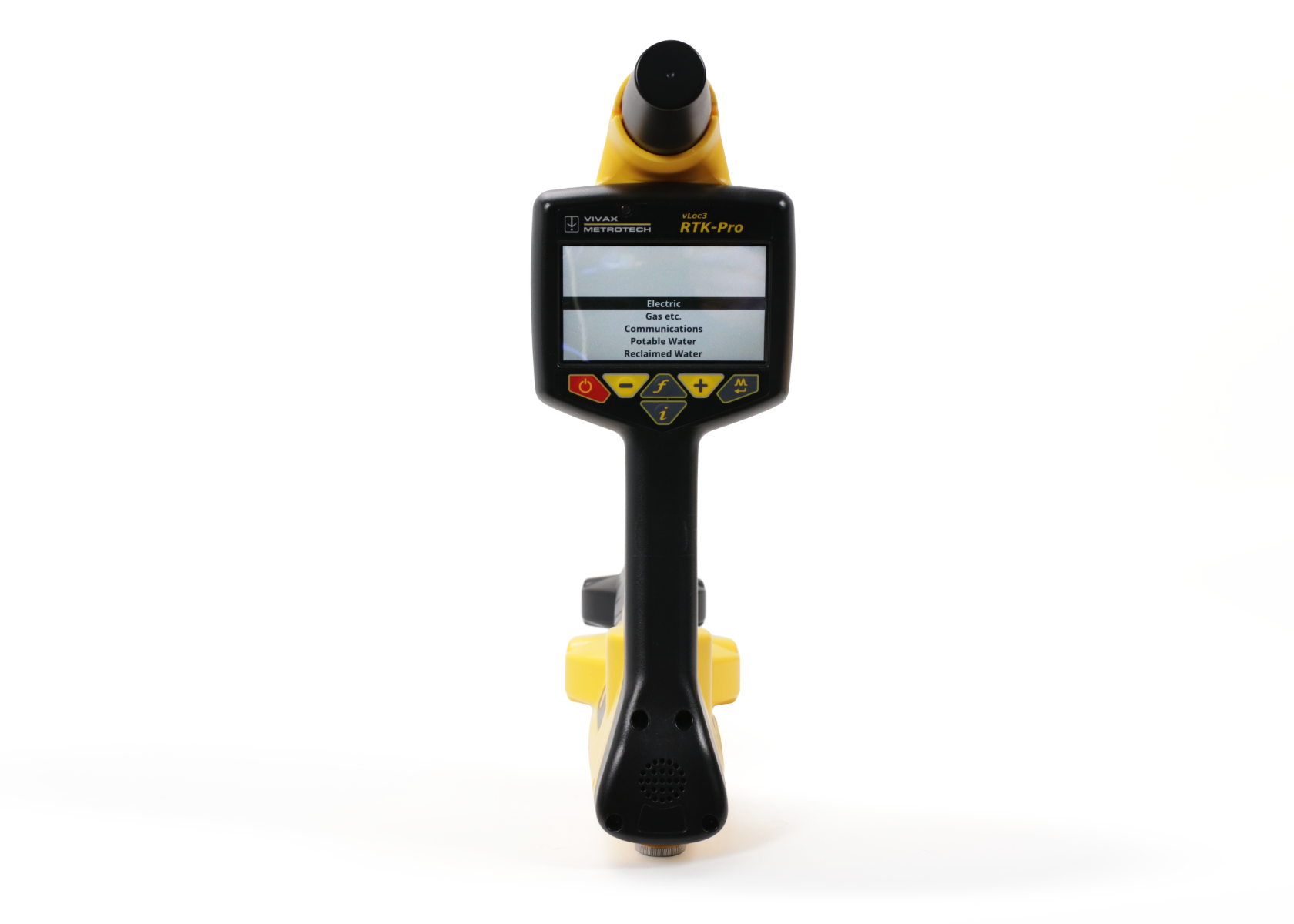

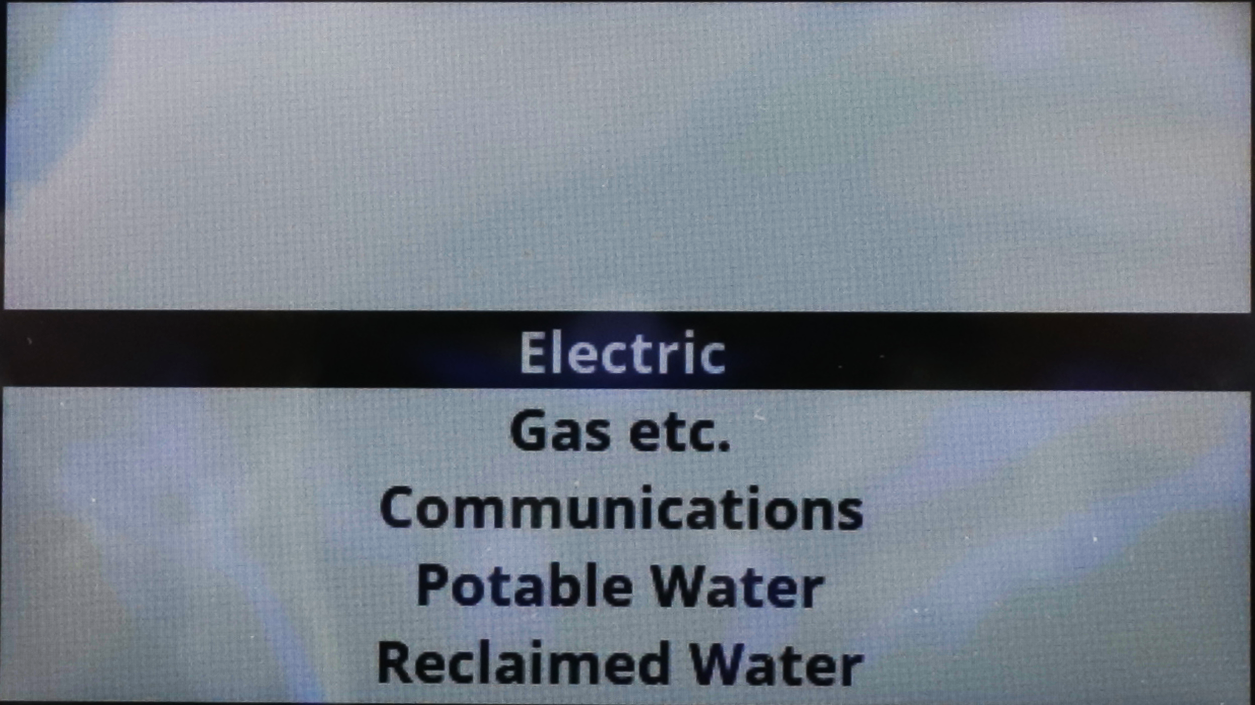

- Survey sessions are explicitly created by selecting the target utility type.

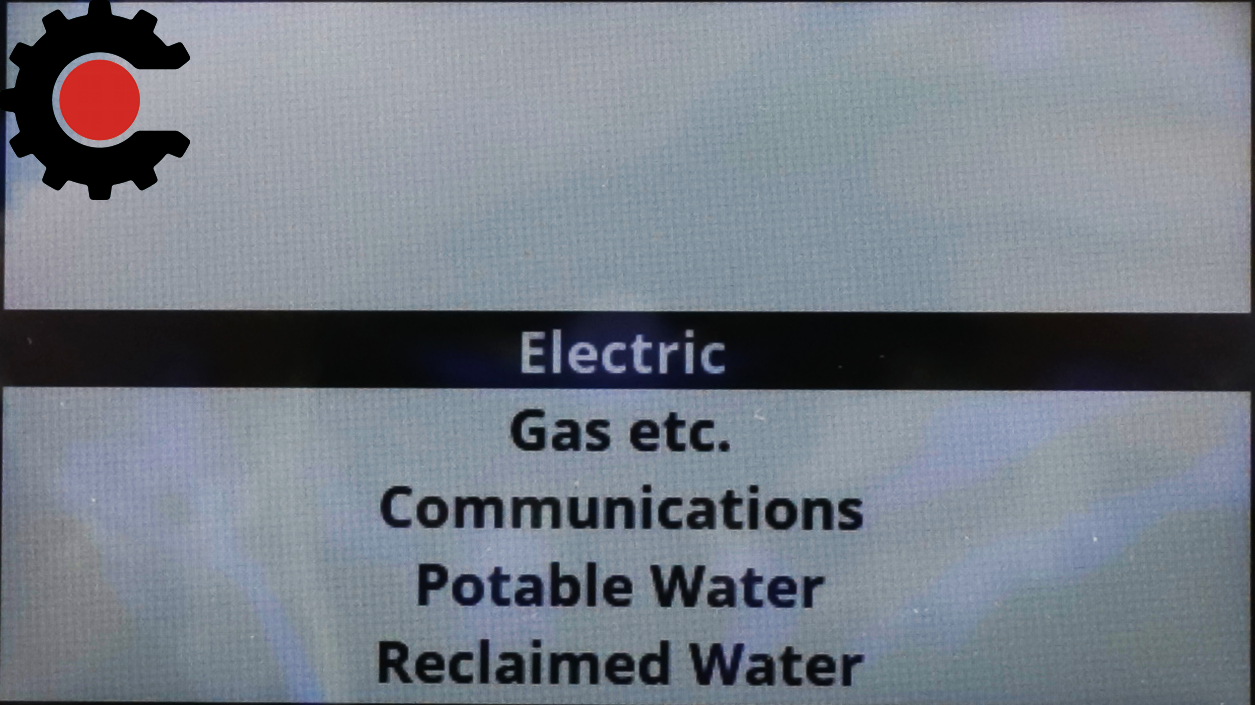

- Available classifications include Electric, Gas, Communications, Potable Water, and Reclaimed Water.
- All locate records are stored within the active survey, preserving separation by utility throughout data capture.
Signal Interpretation and Locate Guidance
The vLoc3 RTK-Pro supports multiple locating modes used to interpret signal behavior and utility alignment, including Peak and Null locating, Vector Locate guidance, Transverse Graph analysis, Plan View visualization, and dedicated Sonde locating. These modes provide directional, graphical, and field-shape feedback to assess locate quality and signal distortion during operation.
Survey-Grade Utility Documentation
- Recording of locate position with integrated GNSS and RTK correction input
- Association of spatial position with depth, current, and locate context
- Collection of utility-specific survey records suitable for mapping and asset documentation
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery

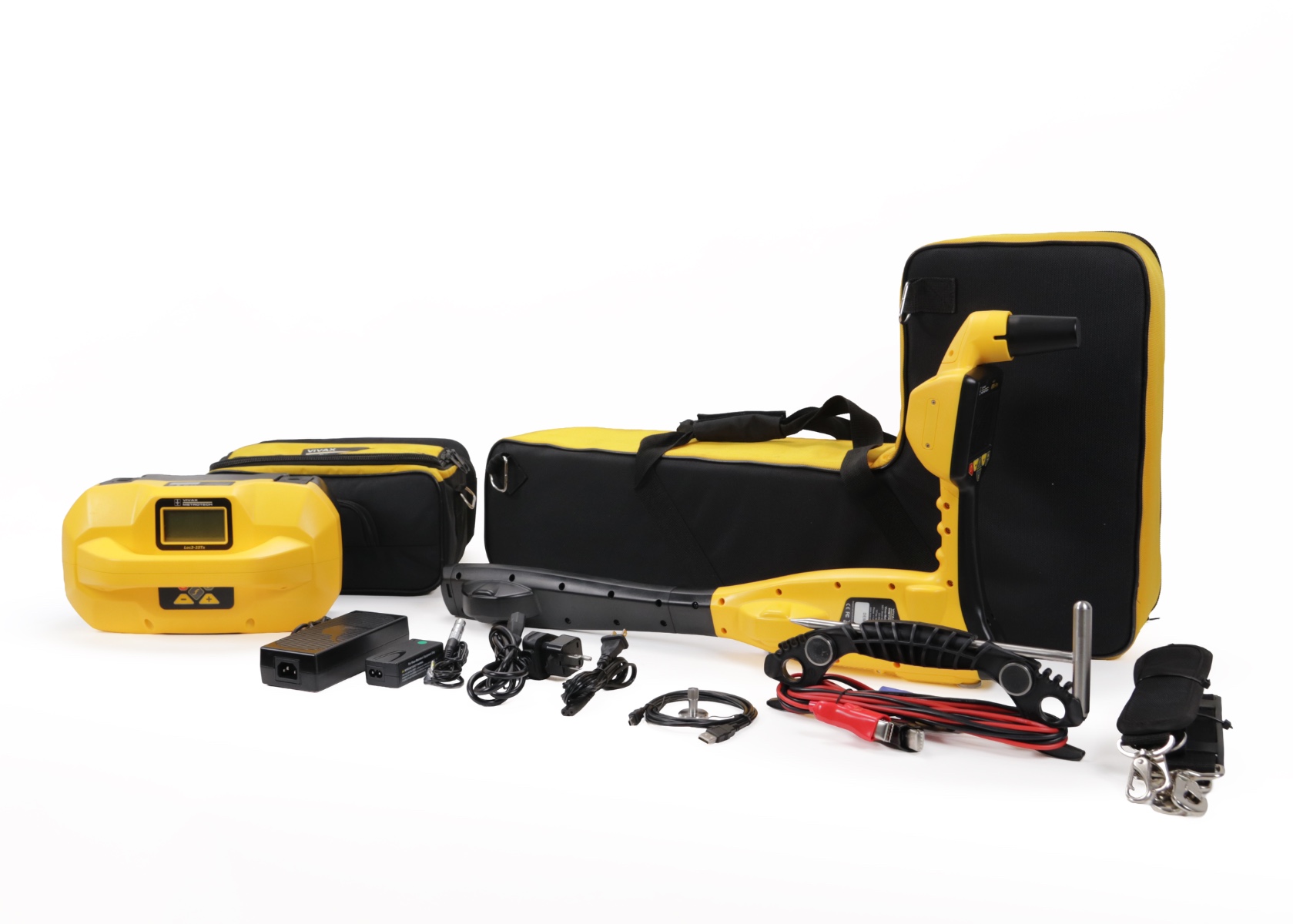

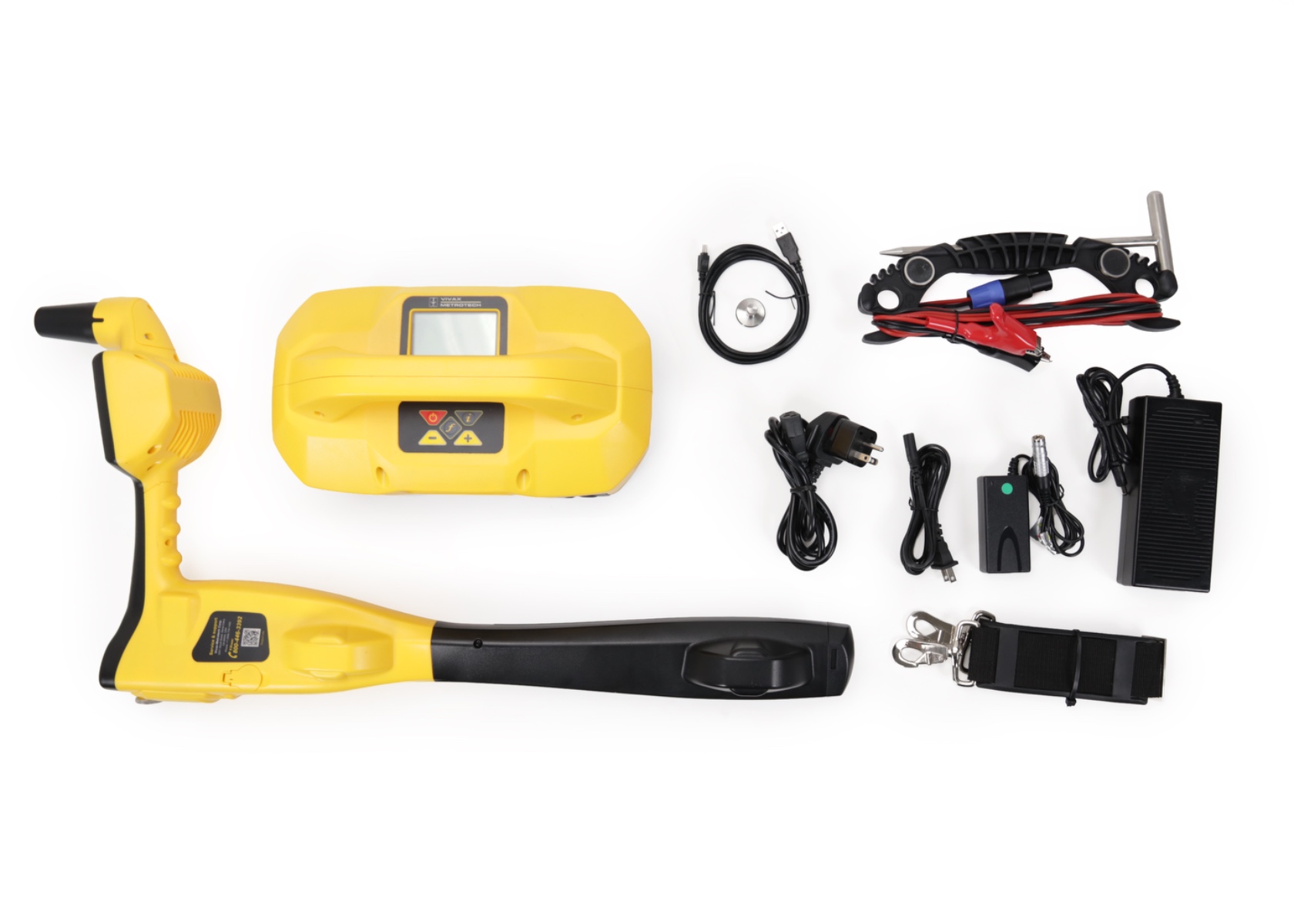

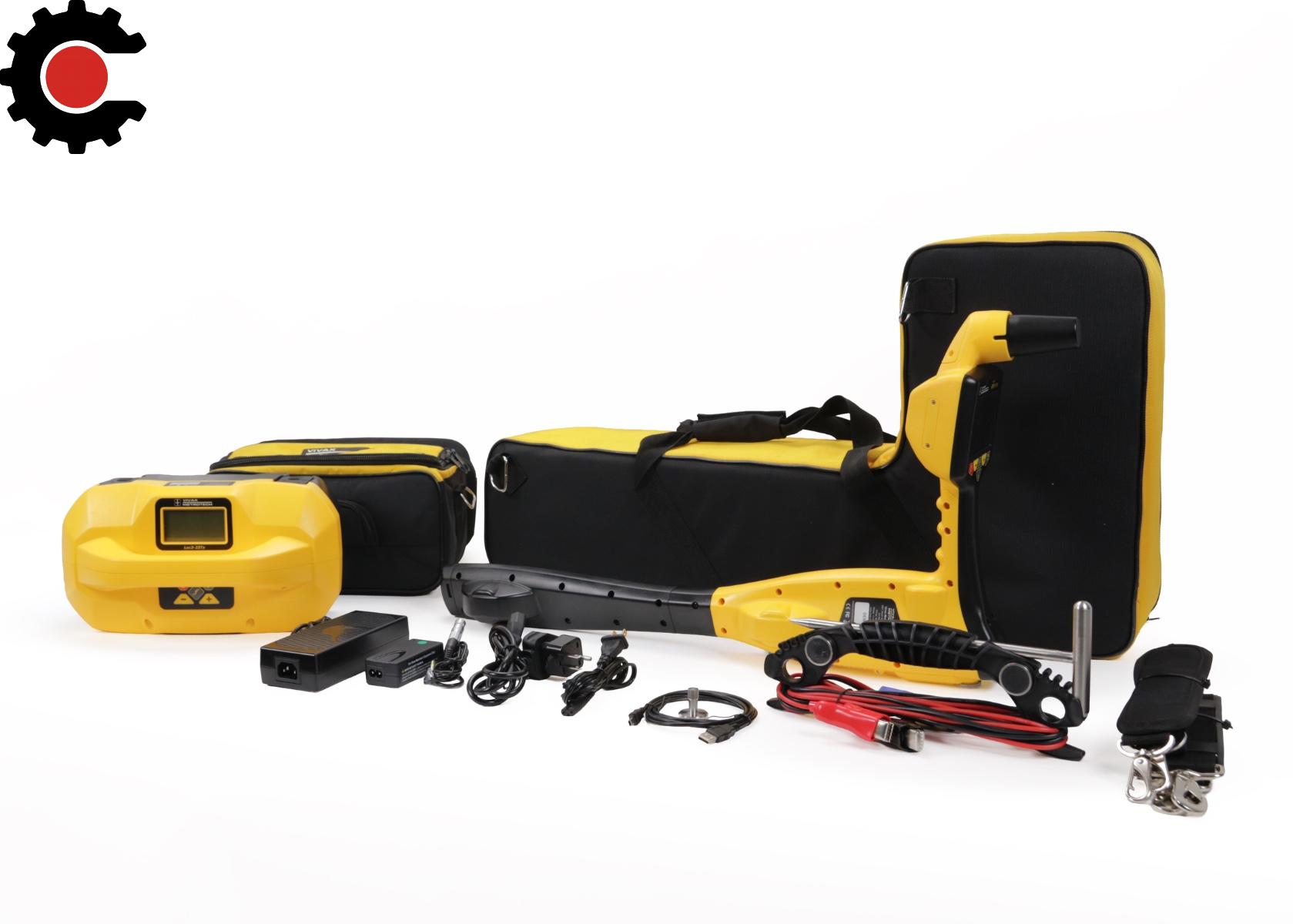

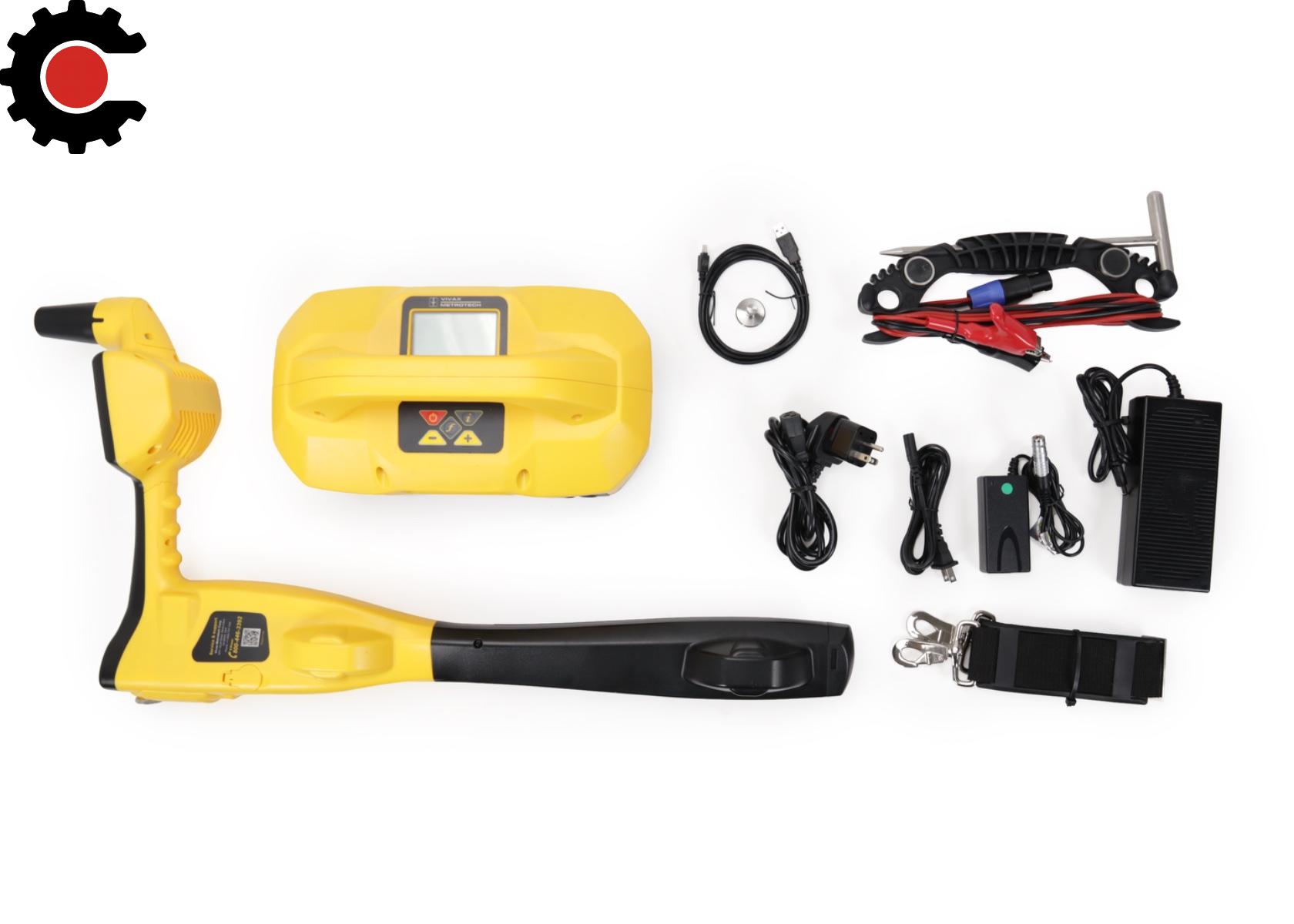

What's in the Box

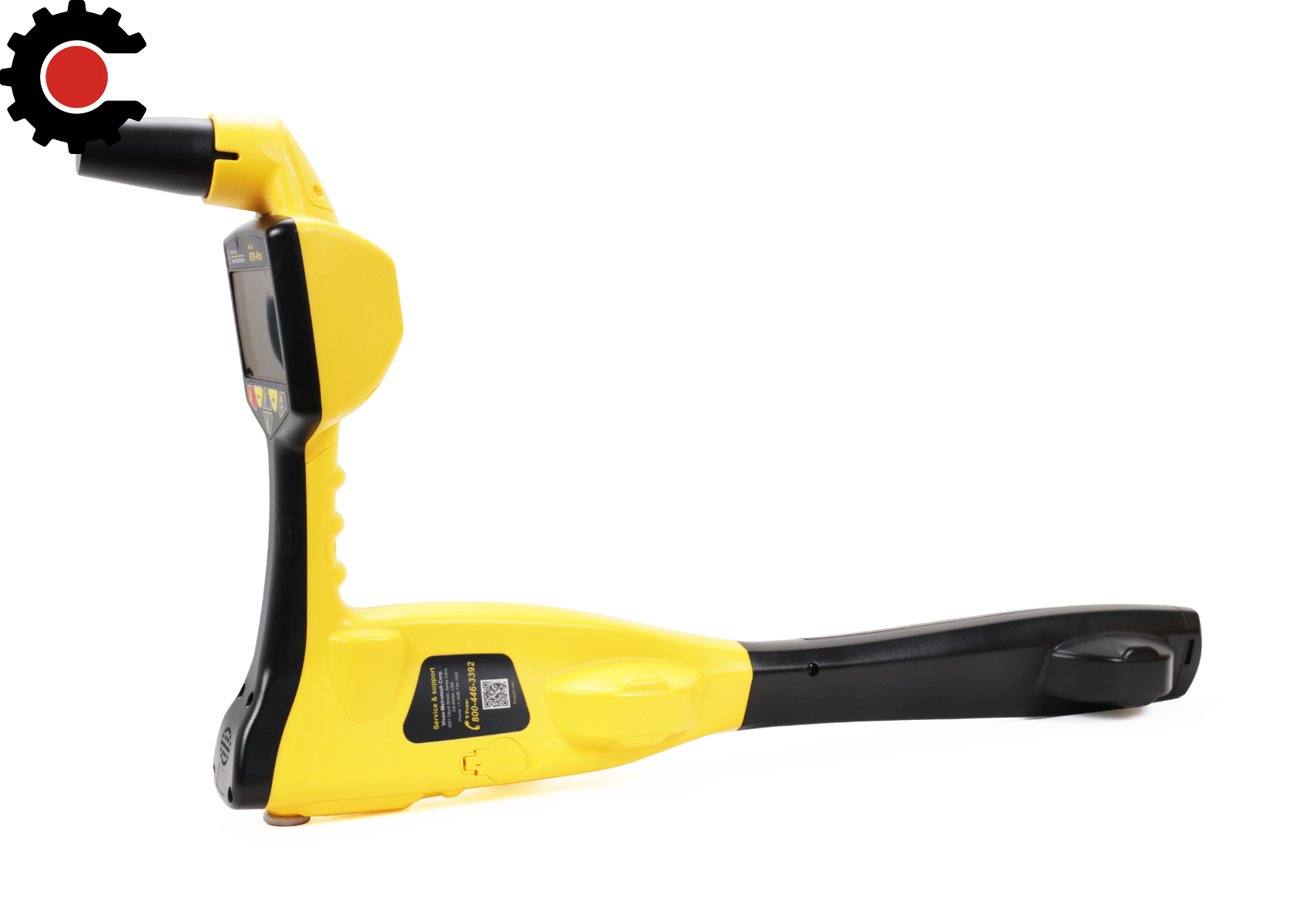

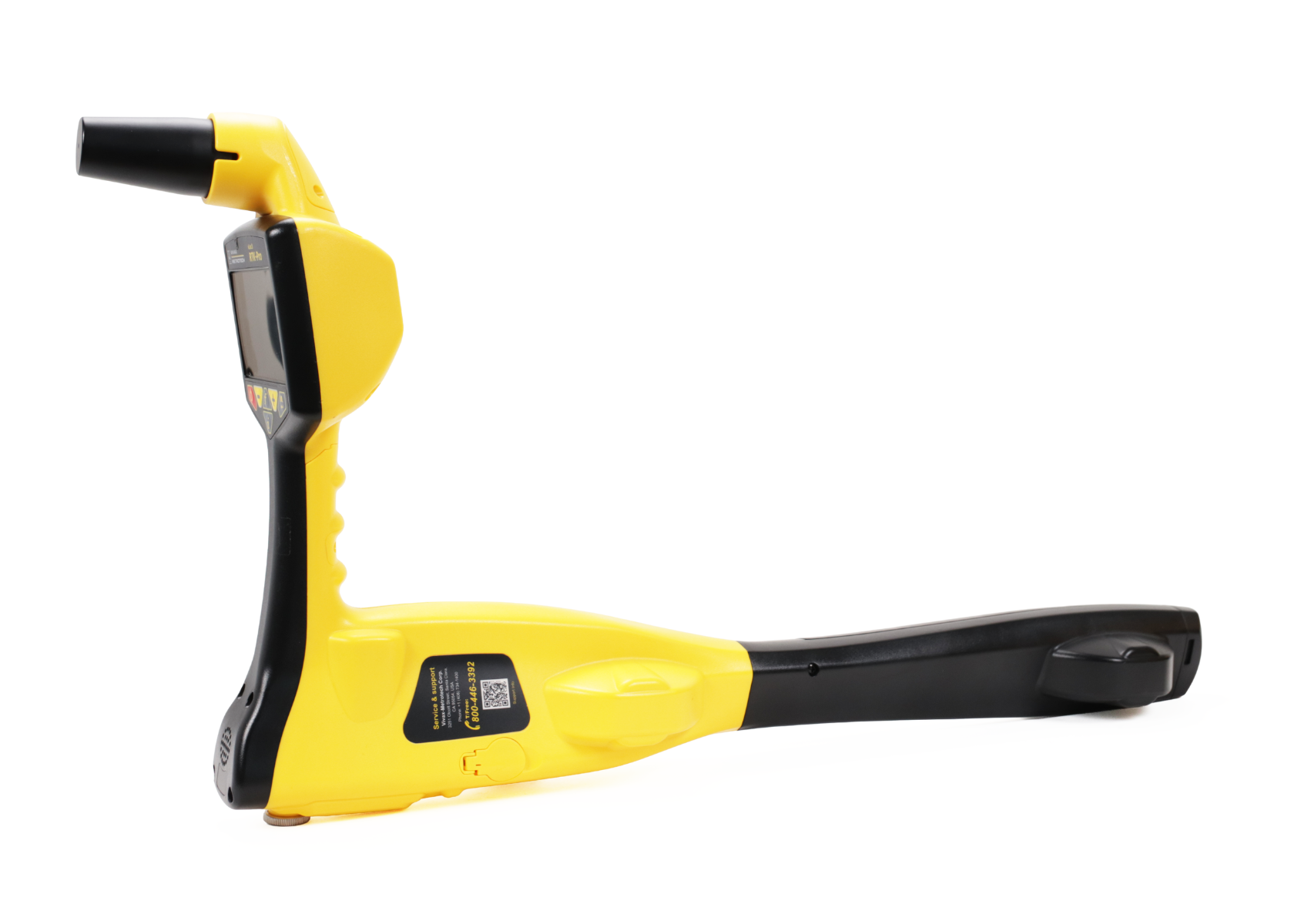

- 1 × Vivax-Metrotech vLoc3 RTK-Pro utility locator receiver

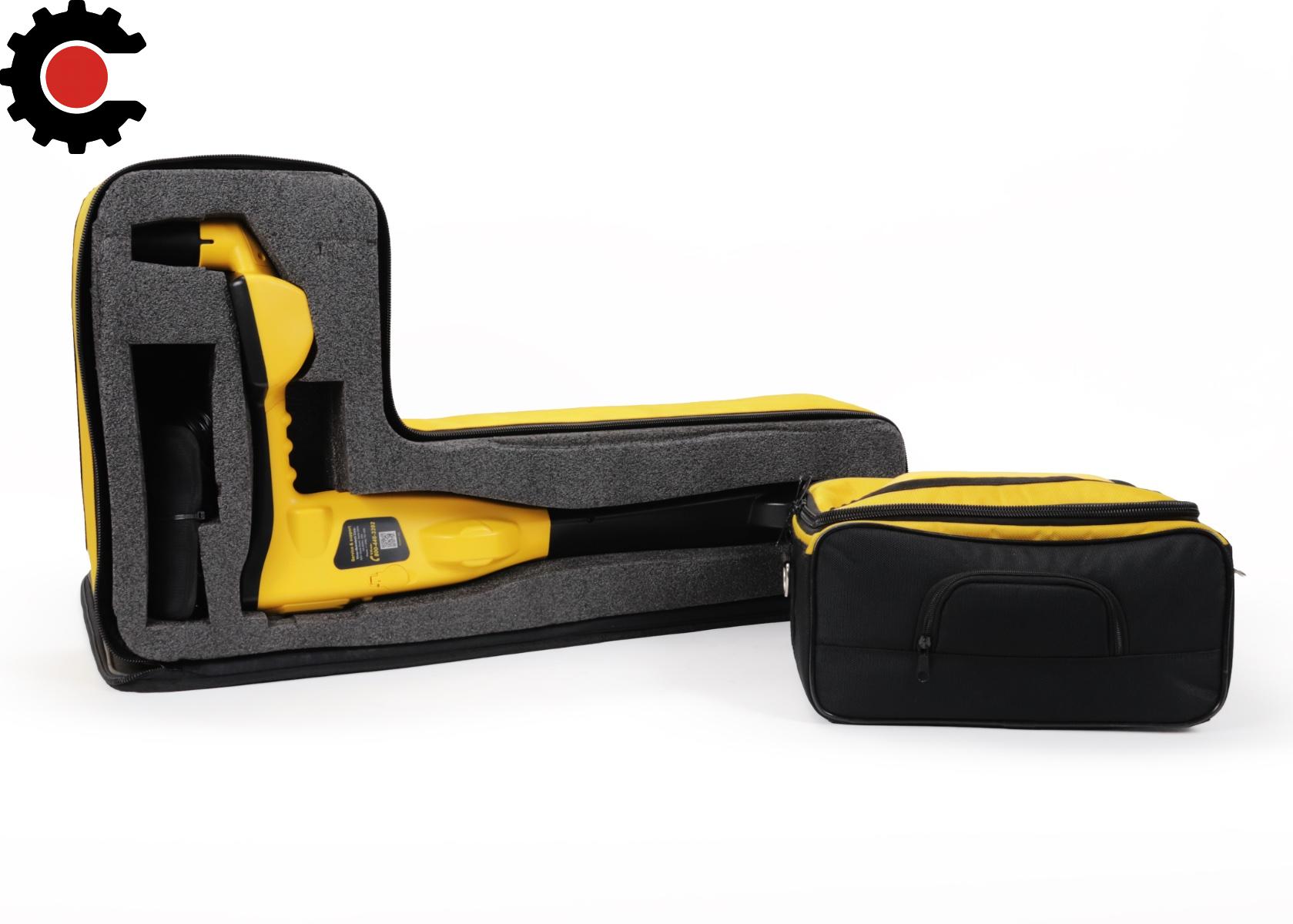

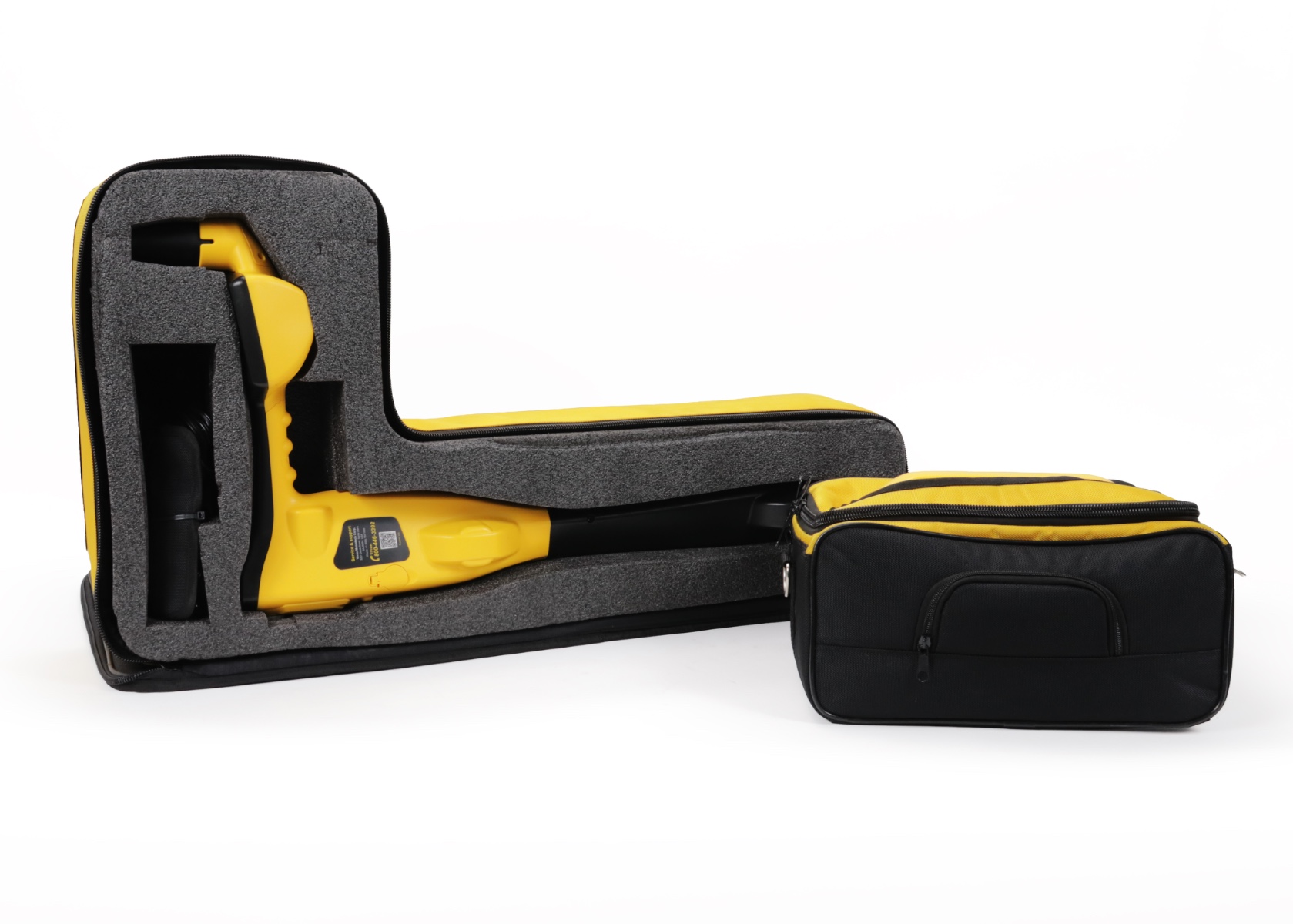

- 1 × Soft shell hard carry case for vLoc3 RTK-Pro
- 1 x AC Adapter/Charger

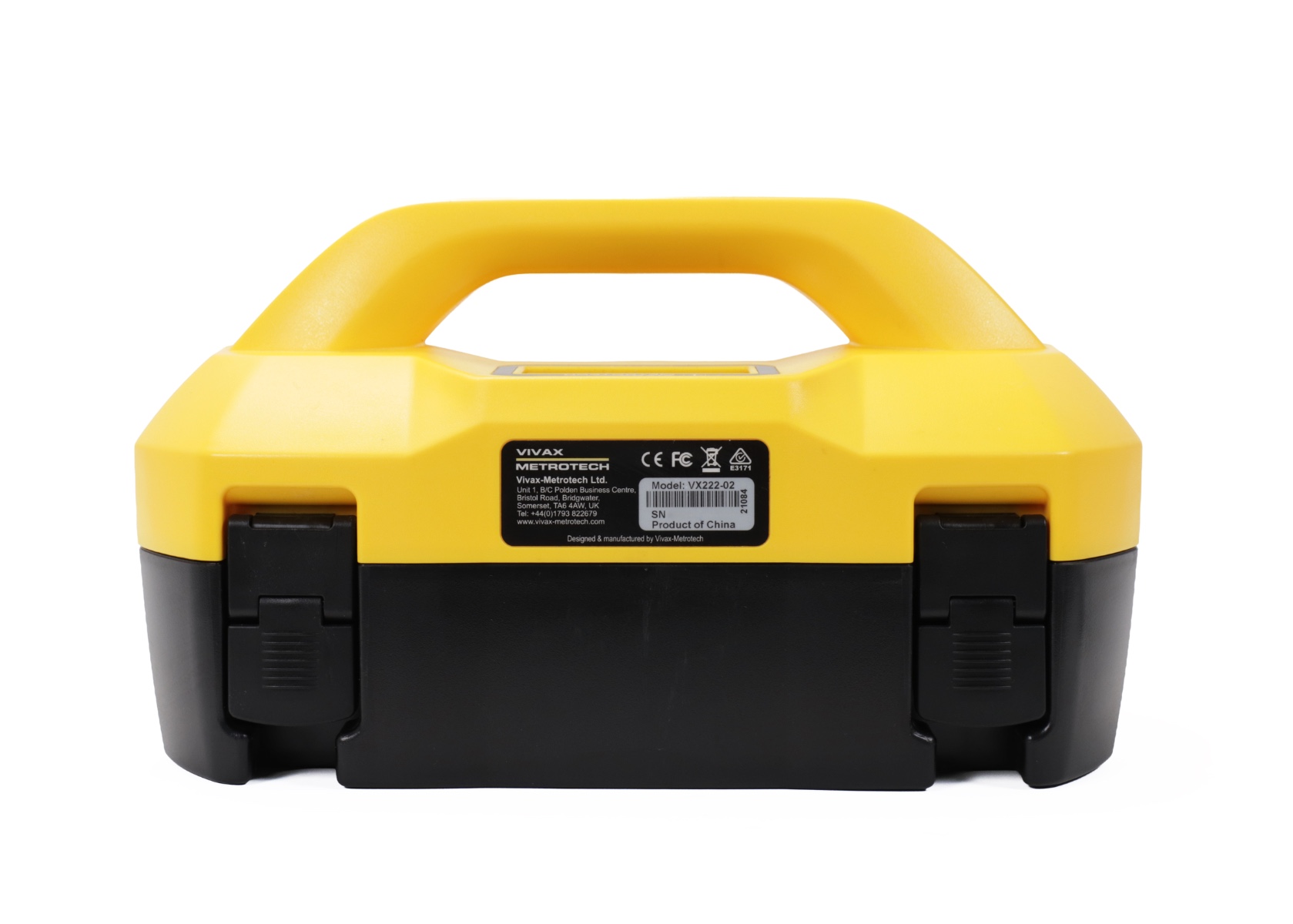

- 1 × Vivax-Metrotech Loc3-25Tx 25-watt transmitter
- 1 × Transmitter carry bag for Loc3-25Tx
- 1 x AC Adapter/Charger
- 1 × Direct connection lead set (red/black)
- 1 × Ground stake
- Magnet(s)
- 1 × USB data transfer cable
Technical Specifications
| Receiver — vLoc3 RTK-Pro | |
|---|---|
| Receiver Type | Multi-purpose utility locator with integrated RTK GNSS |
| GNSS | GPS, GLONASS, Galileo, BeiDou with RTK support |
| RTK Position Accuracy | 0.01 m + 1 ppm CEP |
| Display | 4.3 in high-visibility color display, 480 × 272 |
| Operating Frequencies | Configurable from 98 Hz to 200 kHz |
| Locate Modes | Peak, Peak with Arrows, Broad Peak, Null, Delta Null, Omni Peak, Omni Broad |
| Data Logging | Internal memory with survey-based data capture |
| Environmental Rating | IP65, NEMA 4 |
| Weight | 5.5 lb (2.5 kg) |

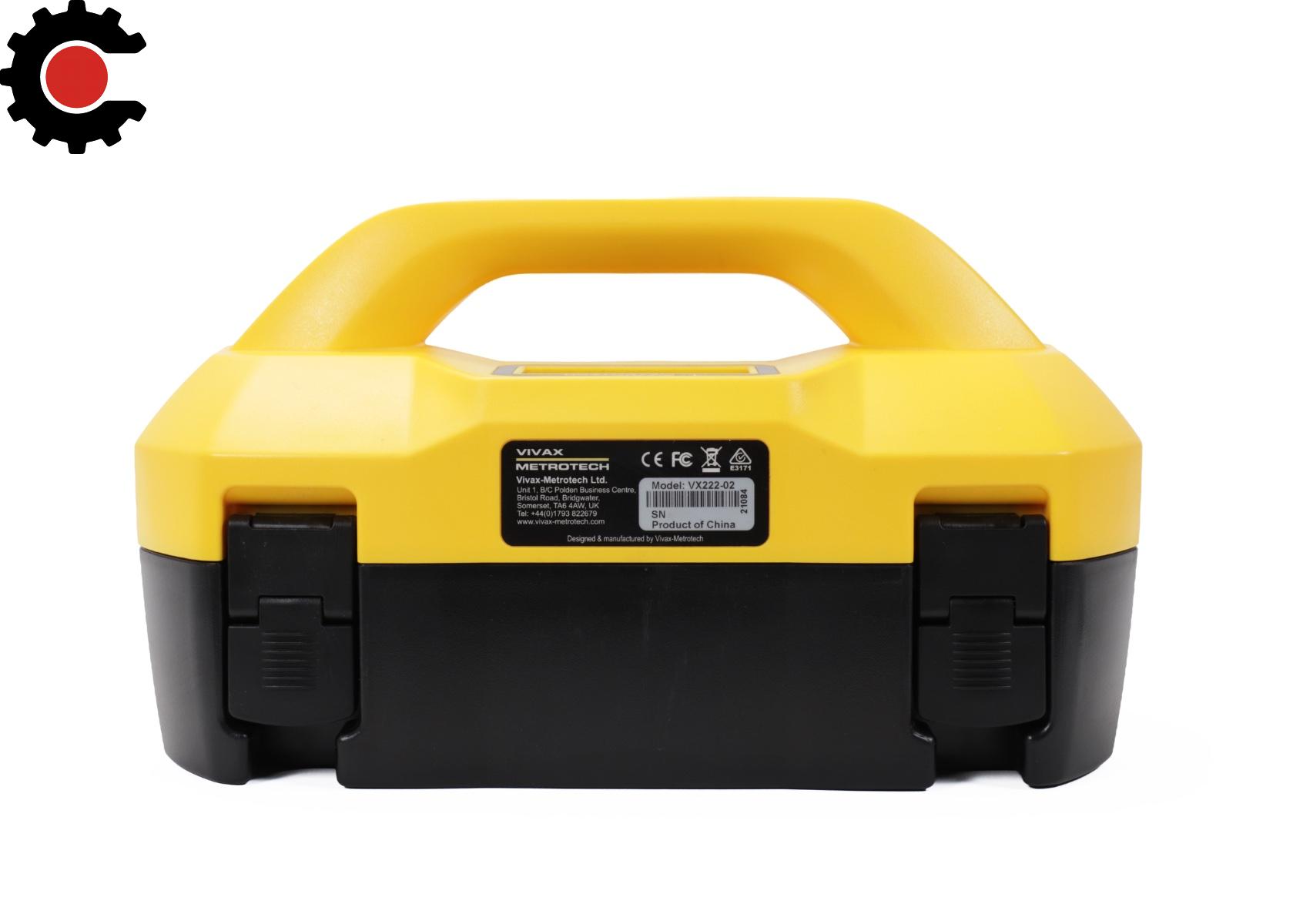

| Transmitter — Loc3-25Tx | |
| Transmitter Output Power | Up to 25 W (Li-ion rechargeable) |
| Operating Frequencies | Direct connection: 32 Hz to 9.82 kHz; Clamp mode: 8 kHz to 9.82 kHz |
| Maximum Output Voltage | 130 V peak (Li-ion or external power) |
| Maximum Output Current | 4 A peak |
| Operating Modes | Direct connection and inductive clamp |
| Environmental Rating | IP65, NEMA 4 |
| Weight | 7.05 lb (3.19 kg) |
