2x Brake Discs Pair Vented fits BMW X3 E83 3.0D Front 06 to 10 332mm Set Bosch


The benefits of NAPA Auto Parts

For any queries please contact using the contact seller link provided.
Description

2x Brake Discs Pair Vented fits BMW X3 E83 3.0D Front 06 to 10 332mm Set Bosch

BrandBosch
Placement on VehicleFront Axle

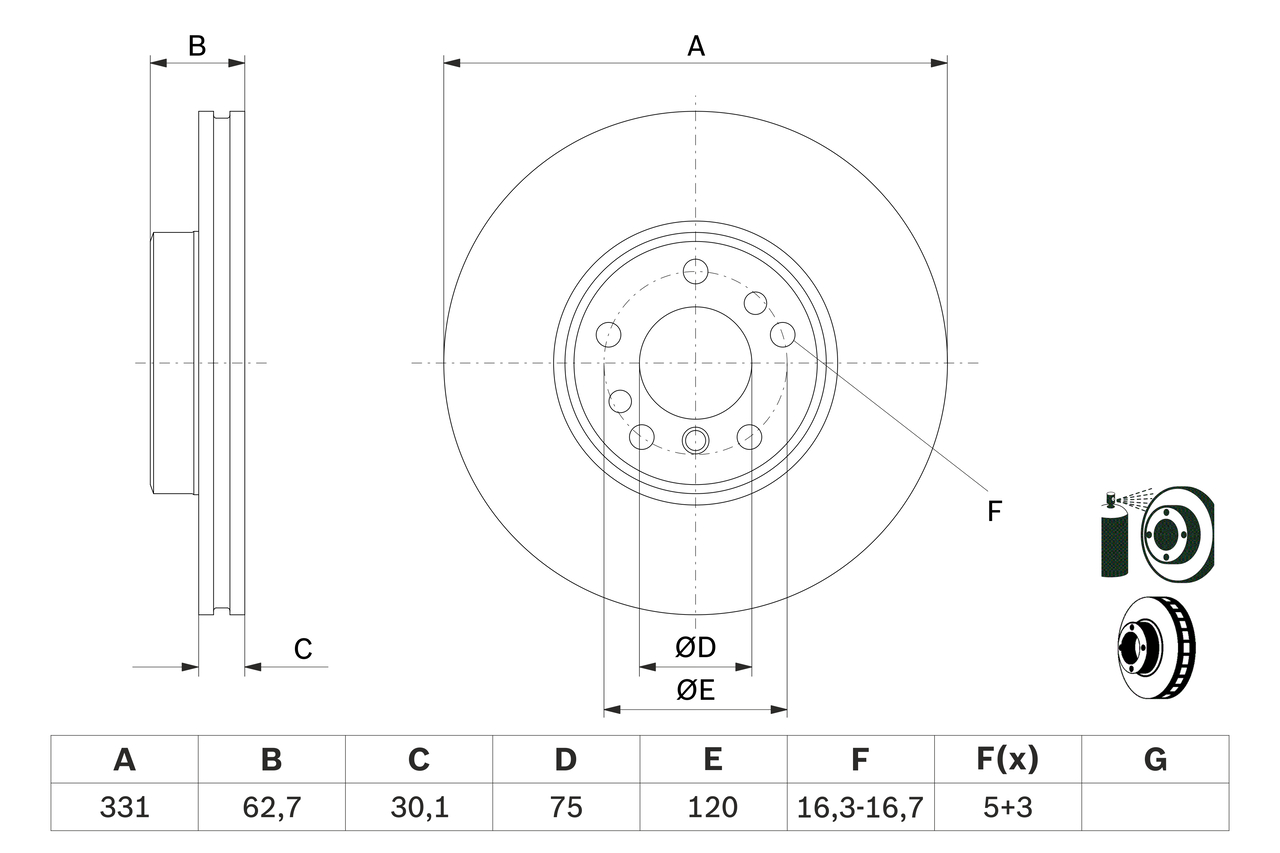

Height62.1 mm
Outer diameter332 mm
Brake Disc Thickness30 mm
Number of Holes5
Minimum thickness28.4 mm
Bolt Hole Circle Diameter120 mm
Centering Diameter75 mm
SurfaceCoated
MachiningHigh-carbon
Fulfils ECE normECE-R90
Drill Diameter, up to16.7 mm
Rotor StyleVented, Internally Vented
Replaces0986478973
TypeBrake Disc Rotor
FunctionBrake Disc


Cross references

APECDSK2223, SDK6228
ATE24 0130 0109 1, 24 0330 0109 1, 24 1130 0109 1
BENDIX562134B, BR813EURO
BOSCH0 986 478 973, 0 986 AB5 940, 0 986 AB6 490
BRADI1064624
BREMBO09 8697 80, 09 8697 81, 09C89611
CAR142089
DELPHIBG3628
FERODODDF1256, DDF12561, DDF1256C, DDF1256C1, DDF1256X, DDF1714C1
FTEBS5250, BS5250H, BS5250HB
GIRLING6041873, DF4187
GRAFDF29784
JURID562134J, 562134JC, 562134JC1
LPRB2521V, B2521VR
MAGNETI MARELLI353610646240, 360406016900
METELLI230784, 230784C, 800784
MINTEXBDS1184HC, MDC1131
NK201547, 311547
NUOVA TECNODELTAHPD089
OPTIMAL GERMANYBS6220HC
PAGID50321, 50321PRO, 50322, 50322PRO
PEX140812
PILENGAV813
QUINTON HAZELLBDC5250, BDC5250HC, BSF5250, MBD5250
RAICAMRD00072
REMSA660010
ROADHOUSE6197510, 6600 10
ROULUNDS RUBBERD1583
sbs1815201547, 1815341547
TEXTAR92107200, 92107203, 92107205, 92107300, 92107303, 92107305, 98200 1072, 98200 1073, 98200107201PRO, 98200107301, 98200107301PRO
TRUSTINGDF959
TRWDF4187, DF4187S
VALEO186808, 297808, 672828
ZIMMERMANN150129700, 150129720, 150129752, 150129800, 150129820, 150129850, 150129852, 150129853

Compatible with the following OEM references

BMW34116750713, 34116756045, 34116765457, 34116766036, 34116794300, 34116794304, 34116859679

Other references

BD872
E1 90R-02C0074/1656

Passenger/LCV Vehicles

VehicleBodyFuelFromToDriveValvesBHPKW
BMW X3 (E83) 3.0 sdSUVDiesel09/200608/2008AWD24286210
Fitting Position: Front Axle
BMW X3 (E83) xDrive 35 dSUVDiesel09/200808/2010AWD24286210
Construction Year to: 08/2010; Fitting Position: Front Axle
BMW X5 (E53) 3.0 dSUVDiesel04/200109/2003AWD24184135
Fitting Position: Front Axle
BMW X5 (E53) 3.0 dSUVDiesel10/200309/2006AWD24218160
Fitting Position: Front Axle
BMW X5 (E53) 3.0 dSUVDiesel10/200309/2006AWD24211155
Fitting Position: Front Axle
BMW X5 (E53) 3.0 iSUVPetrol04/200009/2006AWD24231170
Construction Year to: 09/2006; Fitting Position: Front Axle
BMW X5 (E53) 4.4 iSUVPetrol01/200009/2003AWD32286210
Fitting Position: Front Axle
BMW X5 (E53) 4.4 iSUVPetrol10/200310/2006AWD32320235
Fitting Position: Front Axle
