US Stock Qomolangma 31" x 39" Pneumatic Drawer-Type Large Format Heat Press

2 Years Warranty

24-hour technical support by email or calling
Door to Door Service by truck for USA customers

We have USA warehouse, it can save much shipping fee and time for you.

All of our products are high quality, perfect aftersales service. please buy with confidence!

Any questions, plz send us message, we will do our best for you.

Qomolangma 31 x 39" (80 x 100cm) Standard Drawer-Type Pneumatic Single Station Heat Printing Machine
Specifications:
WorktableSize: 31in x 39in (800mm x 1000mm)
Voltage: 220V, 50hz / 60hz,1P, 32A
Power: 7KW
Current: 32Amps
Time range: 0-999 Seconds
Temperature range: 32℉ - 482℉/0°C - 250°C ,suggested temperature under 428℉/220℃
Pressure: 0-114 Psi
Machine Size: 40 in(L) x 36.6 in(W) x 58 in(H)/1010 mm(L)x 930 mm(W) x 1470 mm(H)
The heat press can be taken apart , make sure the width of door is larger than 32.3 in/820 mm
Package Size: 60.2 in x 42.5 in x 37 in/1530 mm x 1080 mm x 940 mm
Gross Weight: 649 lbs /295kg

Warm Tips:
1.You need to prepare one air compressor. And the suggested specification is that power greater than 1.5 KW, capacity about 50 L, pressure more than 1 MPa.
2.This machine doesn't have any plug. you need to wire with yourself.



Attentions
1. This machine must connect to reliable ground wire, then come into use, to ensure safety operation and production.
2. The pressure should be chosen appropriately , do not adjust the pressure arbitrary, so as not to damage the machine due to over pressure.
3. Do not put your hands under the heating plate during the pressing process, so as to avoid scald.
4. During the pressing process, in the case of special circumstances, press the emergency stop button ,then the heating plate will automatically rise, so accident can be avoid.
5. At the end of the work, the staff must cut off the main electricity supply and turn off the gas source before leave.

Temperature and time requirements of different materials:
Pure cotton: 180-220 ℃ (356-428℉), 25sec
Polyester: 180℃ (356℉), 15sec
Pearl board: 180℃ (356℉), 120-180sec
Metal pendant: 180℃ (356℉), 60sec
Mouse pad: 180℃ (356℉), 15sec
Vitrolite: 220℃ (428℉), 180sec
Key ring pendant: 180℃ (356℉), 100sec
Ceramics: 180-220 ℃ (356-428℉), 180sec

Time and Temperature settings

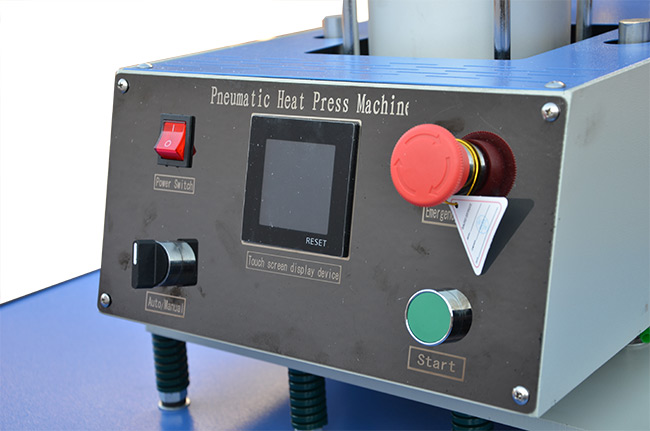

1.Temperature setting: press the "SET" button, then the numbers on the lower line blink, temperature-setting mode starts. You can press ▲and ▼ to adjust the temperature, press and hold the "SET" button for 2 seconds to confirm the setting.
2.Time setting: press the increase and decrease button to set time. The letter "H" stands for "hour", "M" for "minute", and "S" for "second".

Details:
