Arduino Due
Description:
1. TFT lcd at a much faster speed using 84 MHz Ardiuno due
2. The shield directs all LCD data contacts to the PC1-PC8 and PC12-19 ports, control contacts to the PD0-PD3, this design can provide a high data rate (three cycles per strobe recording on the LCD display) for maximum LCD speed display
3. SPI interface (for SD or flash control) is the path to the ISP header for Arduino Due to provide high-speed SPI transmission with DMA
The screen is compatible with Arduino Due and the following LCD:
2.2" TFT LCD Module (220x176)
2.8" TFT LCD Module (320x240)
3.2" TFT LCD Module with Microphone (320x240)
3.2" high resolution TFT LCD module and IC (480x320)
3.5" TFT LCD module with microphone (480x320) (full viewing angle IPS panel)
4.0" TFT LCD Module with Microphone (480x320)
4.3" TFT LCD Module with Microphone (480x272)
5.0" TFT LCD Module with Microphone (800x480)
7.0" TFT LCD Module with Microphone (800x480)
Features:

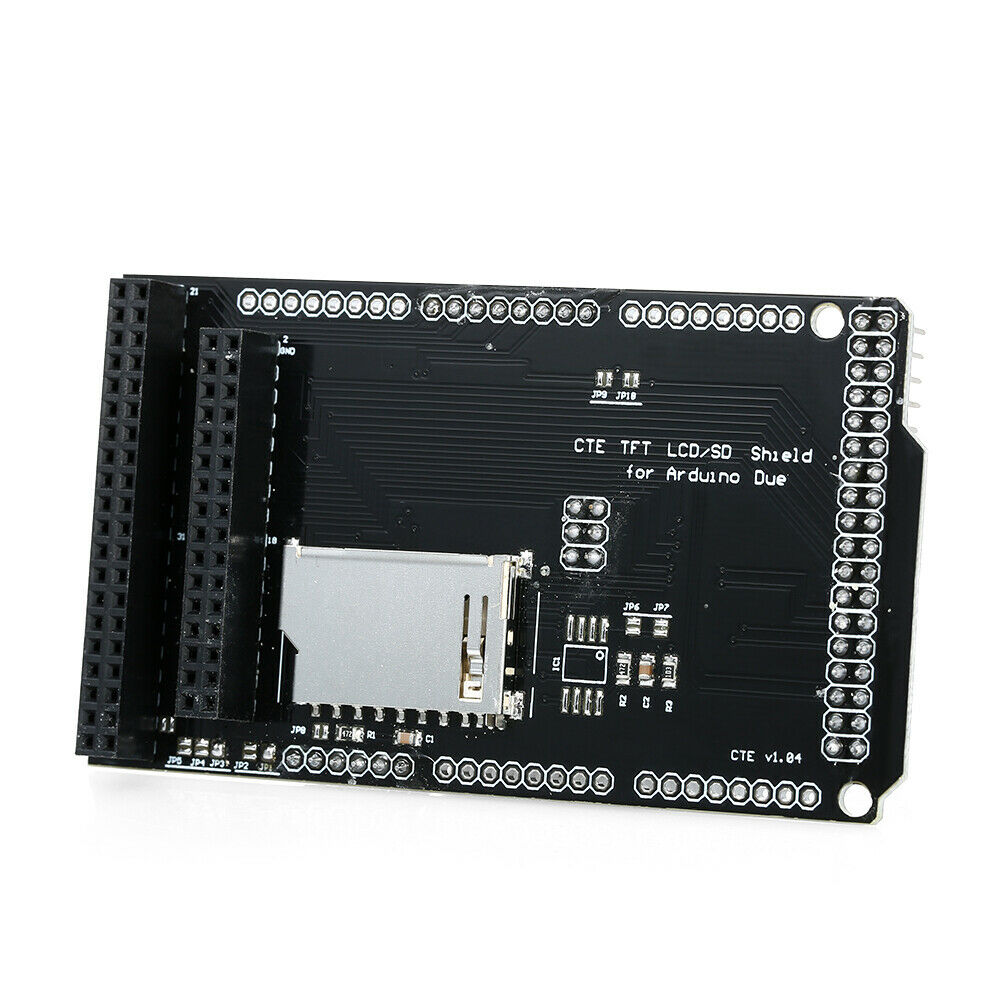

1. TFT lcd drive for Arduino Due, simply connected to the Arduino Due main board, without flying wires
2. Compatible with 40-pin version LCD display, which is widely used in thin-film transistors on thin-film transistors due to shield
3. Also comptabile with 32-pin LCD, which is widely used in STM32 breadboard
4. mini sd card with adjustable CS selection
5. On the SPI flash footprint with an adjustable CS selection, the IC font for drawing text on the LCD display is included in the update, and also supports the SPI Flash library

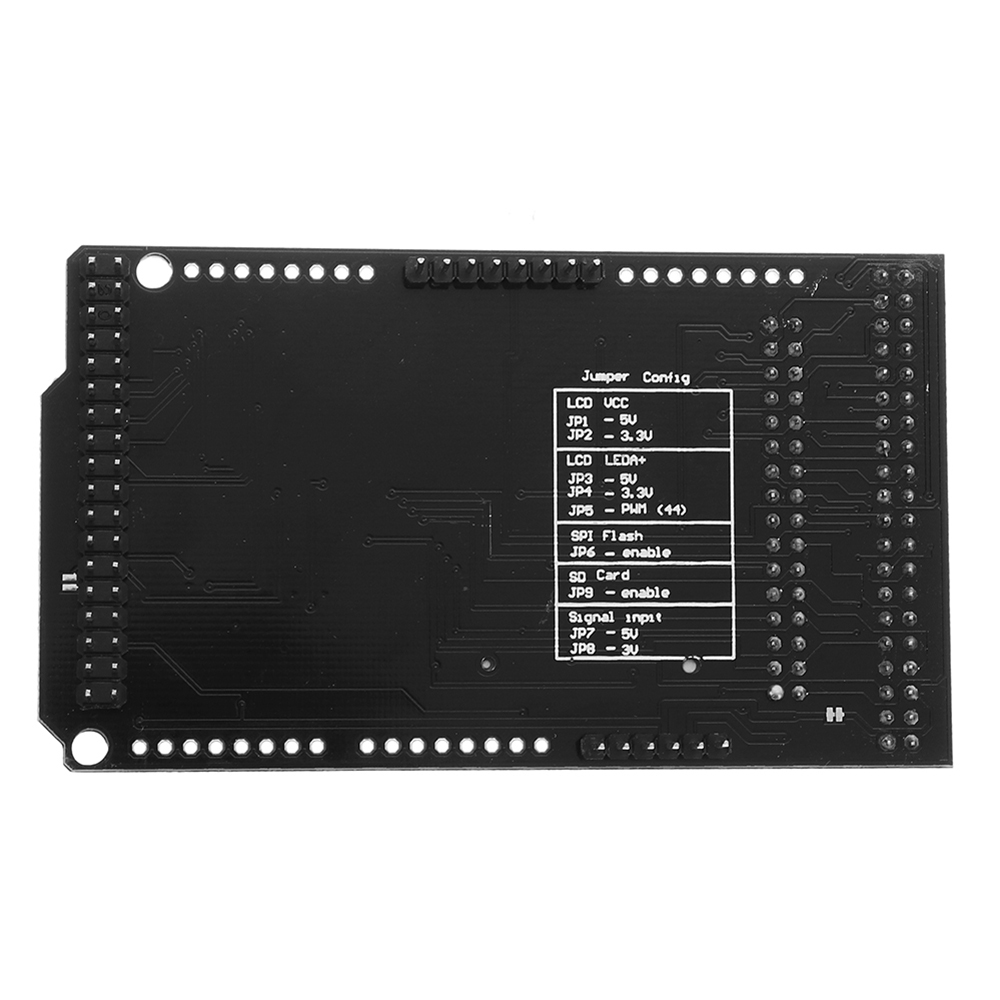

6. 3.3V and 5V LCD display selectable via solder jumpers
7. LCD backlight (LEDA +) 3.3 V, 5 V or PWM is selected via solder jumpers
8. Contacts are sent to reduce CPU cycles, faster display speeds.
Package includes:
1 x TFT/SD Shield Expansion Board For Arduino Due LCD Module
Arduino Mega 2560
Description:
1. IO for arduino MEGA officially 5 V, TFT lcd uses 3.3 V IO. This CTE TFT lcd / SD shield for arduino MEGA provides connection to the TFT lcd module directly without flying wires.
2. The shield uses true 5 V to 3.3 V level transfer IC, so it is compatible with many TFT LCD modules. Compatibility is the highest compared to conventional thin-film protections that use resistors or a buffer to "shift" 5 V to 3.3 V. Compatibility problems can arise when using this method to translate the input-output level to 3.3 V, especially at high write speed
3. The screen fits two types of pinout LCD TFT module:
(1) 40 pin lcd version, which is usually used in the previous version of the TFT mega-shield for Arduino MEGA 2560
(2) 32 pin version LCD display which is commonly used in STM32 Development Board (unsoldered)
4. For Arduino, the MEGA 3.3 V is 150 mA, the output may not be enough to drive a larger screen (for example, 7 ", 5" LCD modules). Thus, this shield has a built-in regulator 1A 3.3 V to supply enough current to the screen.

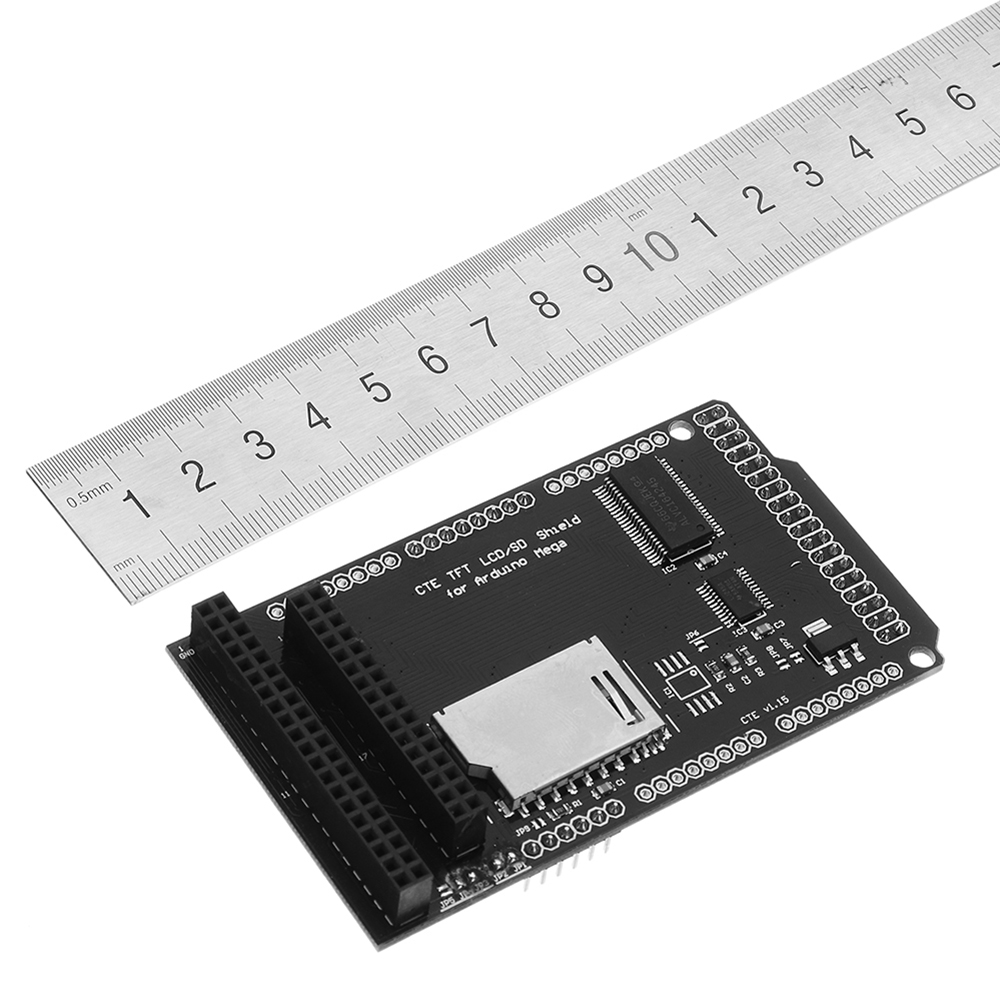

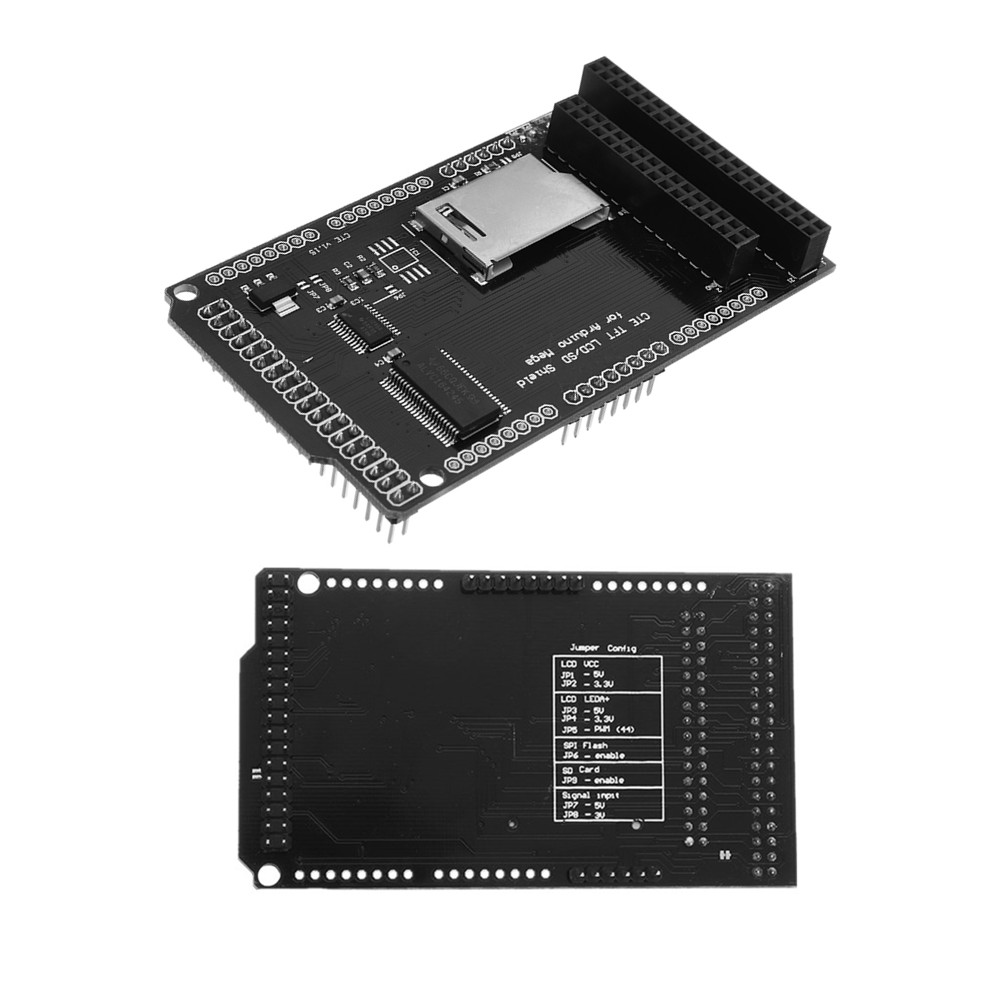

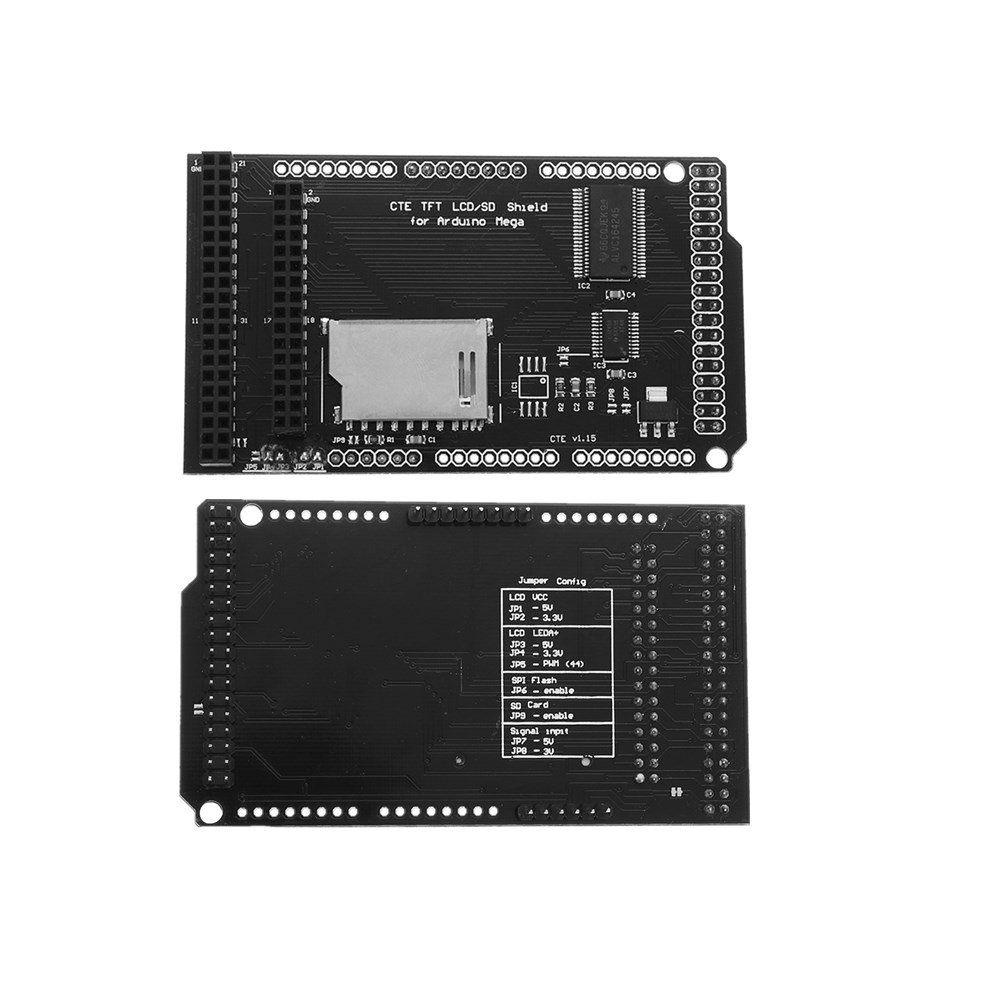

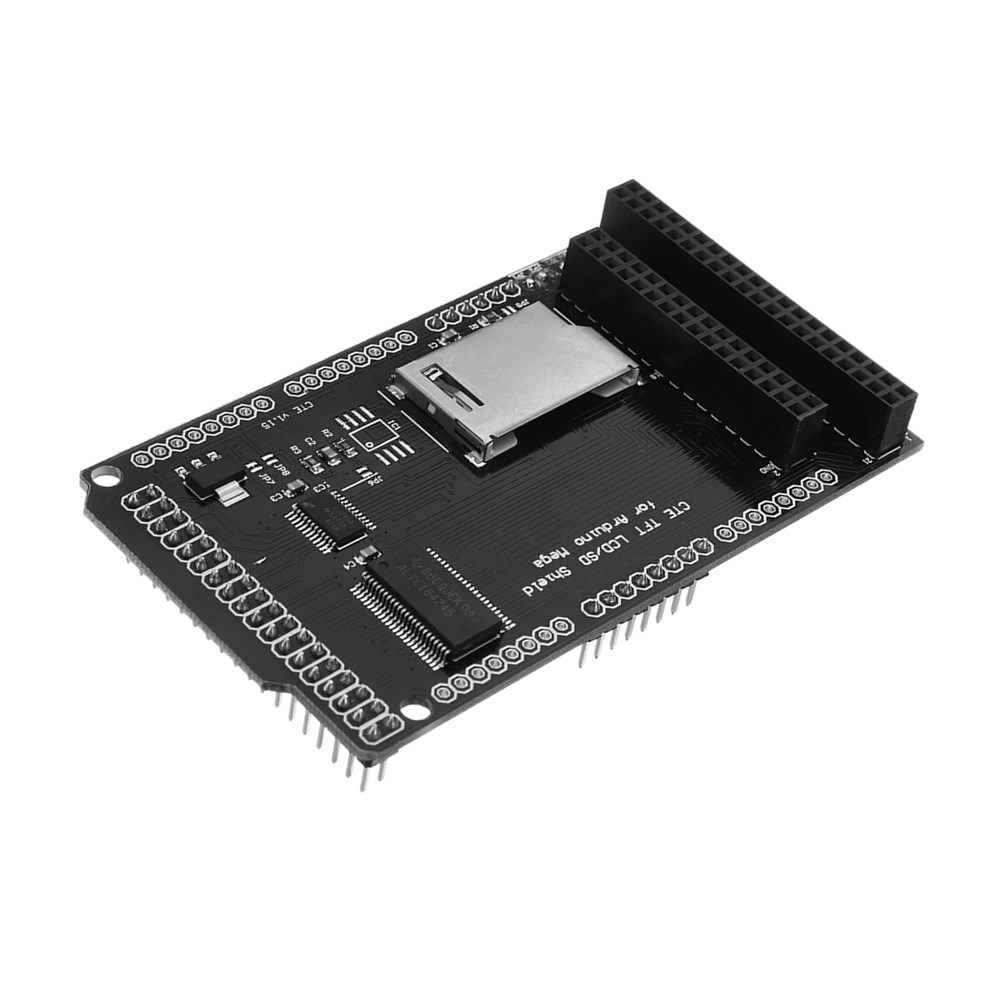

The shield is designed for Arduino MEGA 2560 and the following LCD display:
2.2 "TFT LCD Module (220x176)
2.8 "TFT LCD Module (320x240)
3.2 "TFT LCD module with IC font (320x240)
3.2 "High Resolution TFT lcd module with IC font (480x320)
3.5 "TFT LCD module with IC font (480x320) (full viewing angle IPS panel)
4.0 "TFT LCD module with IC font (480x320)
4.3 "TFT LCD module with IC font (480x272)
5.0 "TFT LCD Module Font IC (800x480)
7.0 "TFT LCD Module Font IC (800x480)
Package includes:
1 x TFT/SD Shield Expansion Board For Arduino Mega 2560
Description:
1. TFT lcd at a much faster speed using 84 MHz Ardiuno due
2. The shield directs all LCD data contacts to the PC1-PC8 and PC12-19 ports, control contacts to the PD0-PD3, this design can provide a high data rate (three cycles per strobe recording on the LCD display) for maximum LCD speed display
3. SPI interface (for SD or flash control) is the path to the ISP header for Arduino Due to provide high-speed SPI transmission with DMA
The screen is compatible with Arduino Due and the following LCD:
2.2" TFT LCD Module (220x176)
2.8" TFT LCD Module (320x240)
3.2" TFT LCD Module with Microphone (320x240)
3.2" high resolution TFT LCD module and IC (480x320)
3.5" TFT LCD module with microphone (480x320) (full viewing angle IPS panel)
4.0" TFT LCD Module with Microphone (480x320)
4.3" TFT LCD Module with Microphone (480x272)
5.0" TFT LCD Module with Microphone (800x480)
7.0" TFT LCD Module with Microphone (800x480)
Features:
1. TFT lcd drive for Arduino Due, simply connected to the Arduino Due main board, without flying wires
2. Compatible with 40-pin version LCD display, which is widely used in thin-film transistors on thin-film transistors due to shield
3. Also comptabile with 32-pin LCD, which is widely used in STM32 breadboard
4. mini sd card with adjustable CS selection
5. On the SPI flash footprint with an adjustable CS selection, the IC font for drawing text on the LCD display is included in the update, and also supports the SPI Flash library
6. 3.3V and 5V LCD display selectable via solder jumpers
7. LCD backlight (LEDA +) 3.3 V, 5 V or PWM is selected via solder jumpers
8. Contacts are sent to reduce CPU cycles, faster display speeds.
Package includes:
1 x TFT/SD Shield Expansion Board For Arduino Due LCD Module
Arduino Mega 2560
Description:
1. IO for arduino MEGA officially 5 V, TFT lcd uses 3.3 V IO. This CTE TFT lcd / SD shield for arduino MEGA provides connection to the TFT lcd module directly without flying wires.
2. The shield uses true 5 V to 3.3 V level transfer IC, so it is compatible with many TFT LCD modules. Compatibility is the highest compared to conventional thin-film protections that use resistors or a buffer to "shift" 5 V to 3.3 V. Compatibility problems can arise when using this method to translate the input-output level to 3.3 V, especially at high write speed
3. The screen fits two types of pinout LCD TFT module:
(1) 40 pin lcd version, which is usually used in the previous version of the TFT mega-shield for Arduino MEGA 2560
(2) 32 pin version LCD display which is commonly used in STM32 Development Board (unsoldered)
4. For Arduino, the MEGA 3.3 V is 150 mA, the output may not be enough to drive a larger screen (for example, 7 ", 5" LCD modules). Thus, this shield has a built-in regulator 1A 3.3 V to supply enough current to the screen.
The shield is designed for Arduino MEGA 2560 and the following LCD display:
2.2 "TFT LCD Module (220x176)
2.8 "TFT LCD Module (320x240)
3.2 "TFT LCD module with IC font (320x240)
3.2 "High Resolution TFT lcd module with IC font (480x320)
3.5 "TFT LCD module with IC font (480x320) (full viewing angle IPS panel)
4.0 "TFT LCD module with IC font (480x320)
4.3 "TFT LCD module with IC font (480x272)
5.0 "TFT LCD Module Font IC (800x480)
7.0 "TFT LCD Module Font IC (800x480)
Package includes:
1 x TFT/SD Shield Expansion Board For Arduino Mega 2560
