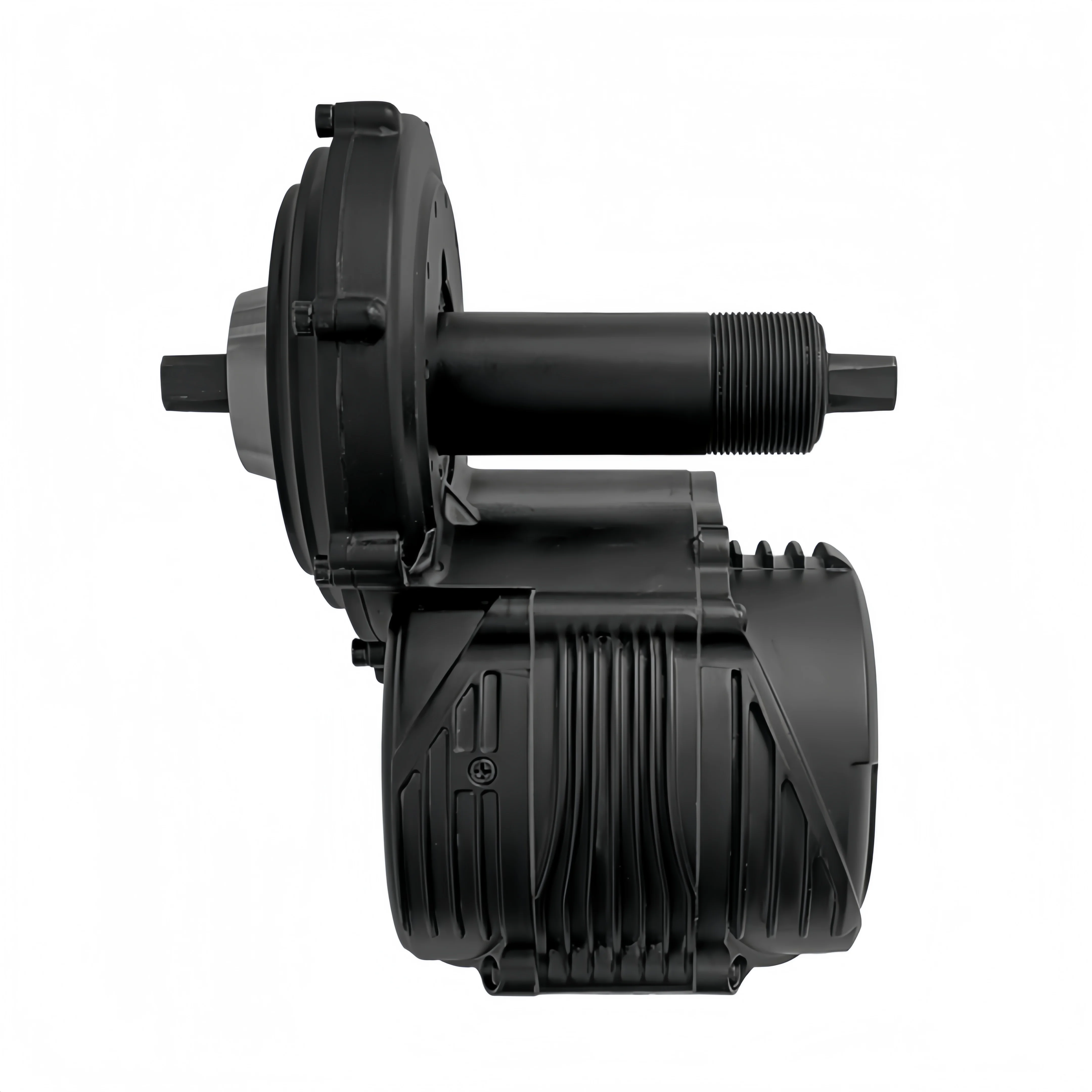

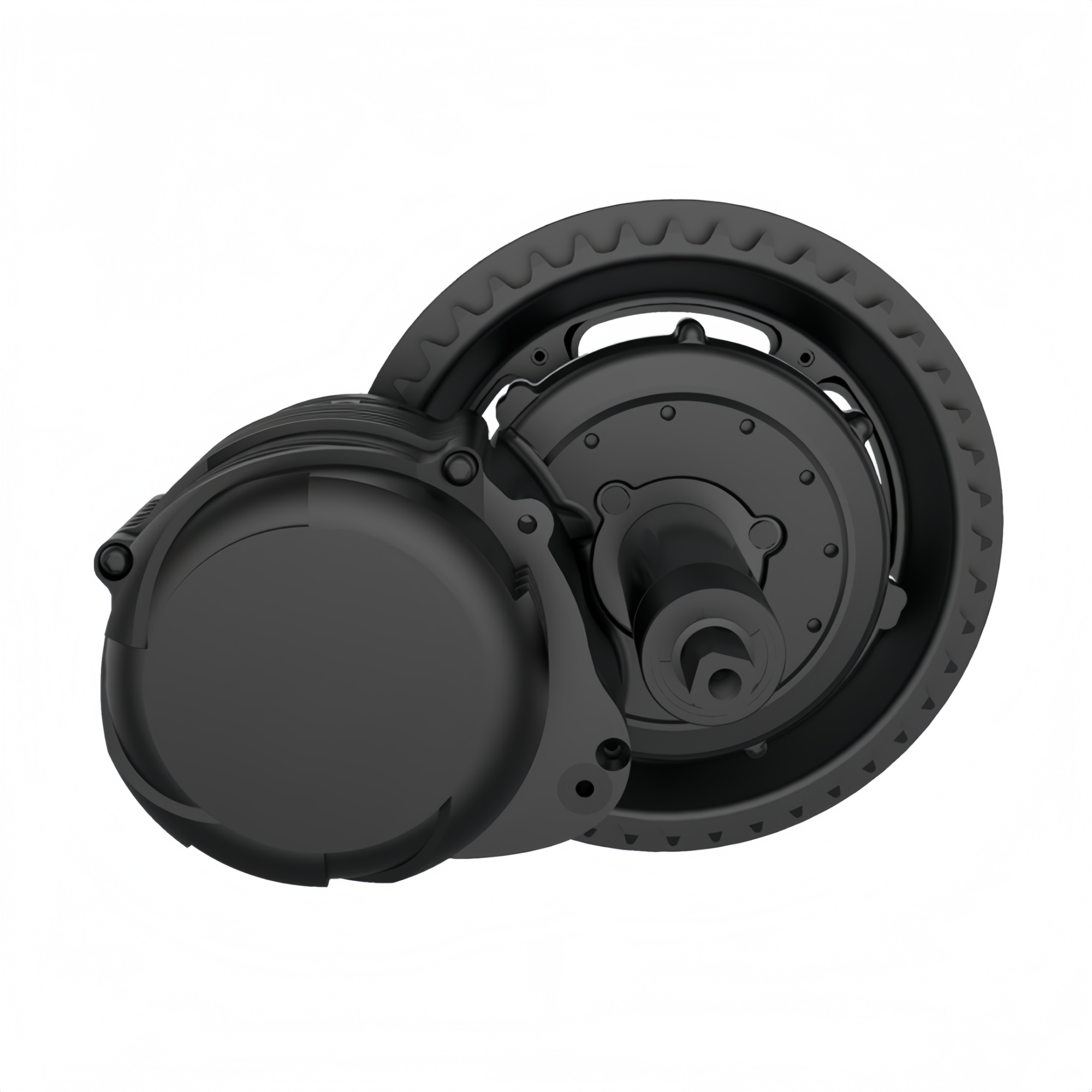

Tongsheng TSDZ8 48V 500W 750W Torque Sensor Mid Drive Motor Ebike Conversion Kit for 68-73mm Bottom Brakcet MTB
Meet the TSDZ8: 48V 500W/48V 750W upgraded motor with enhanced efficiency, reduced resistance, and extended lifespan. Optimized components boost durability and performance. Its low resistance ensures silky-smooth rides, even without electric help—effortless, reliable, built to last.

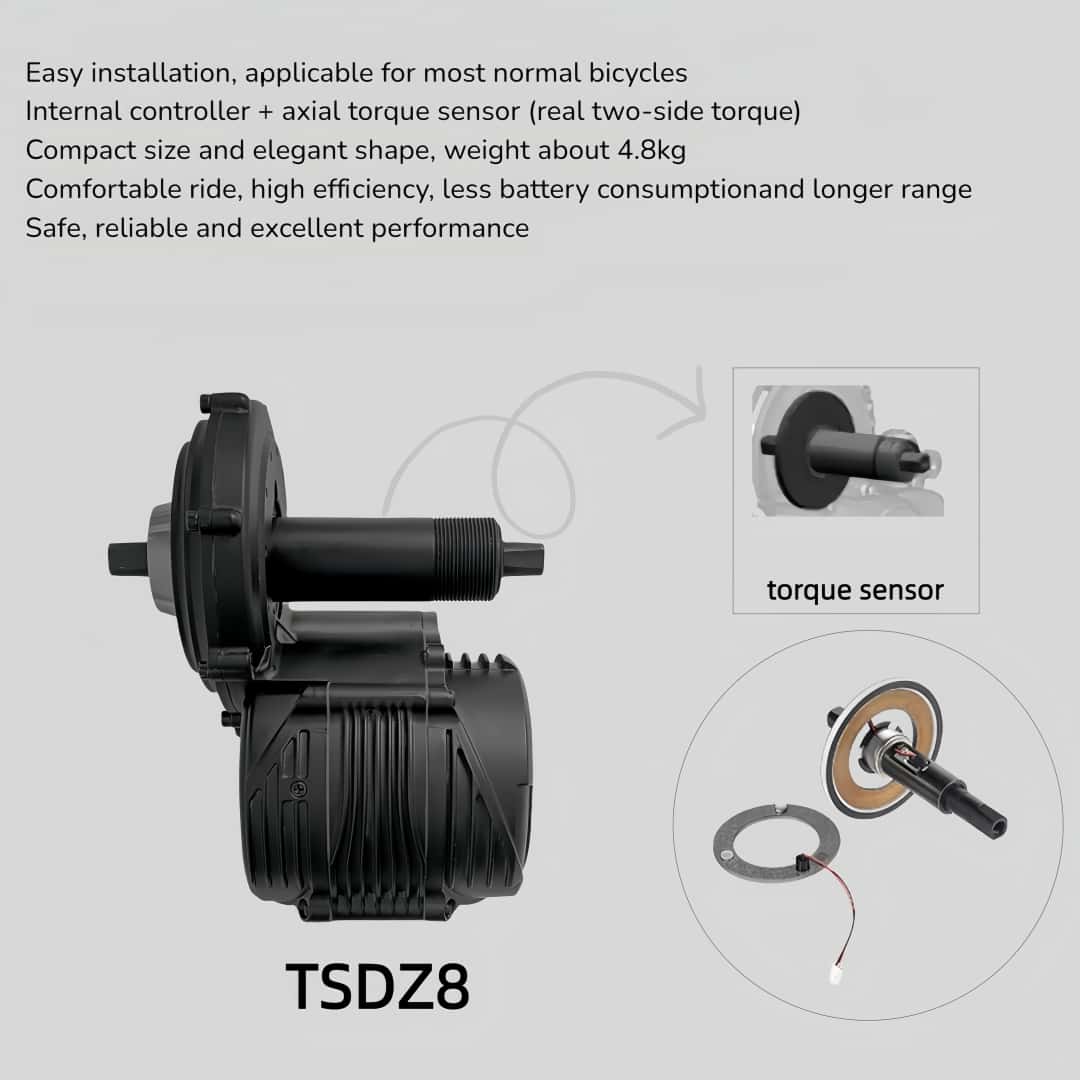

►Torque Sensor Technology:
Torque sensors create a smooth transition between manual pedaling and electric assistance, replicating the sensation of riding a traditional bicycle.Automatically adjusts power based on pedaling force for seamless transition between manual and electric riding
►Wide Compatibility:

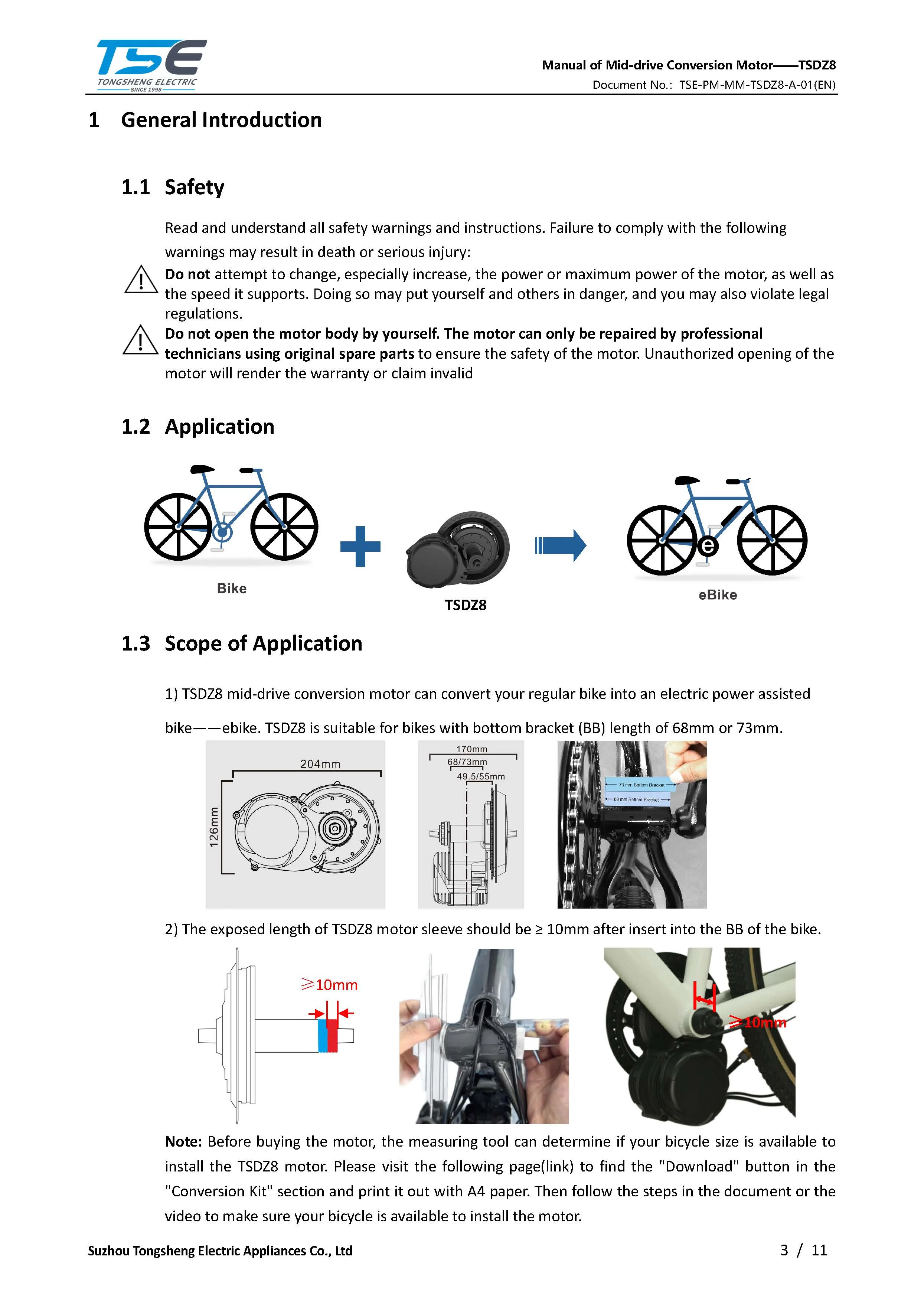

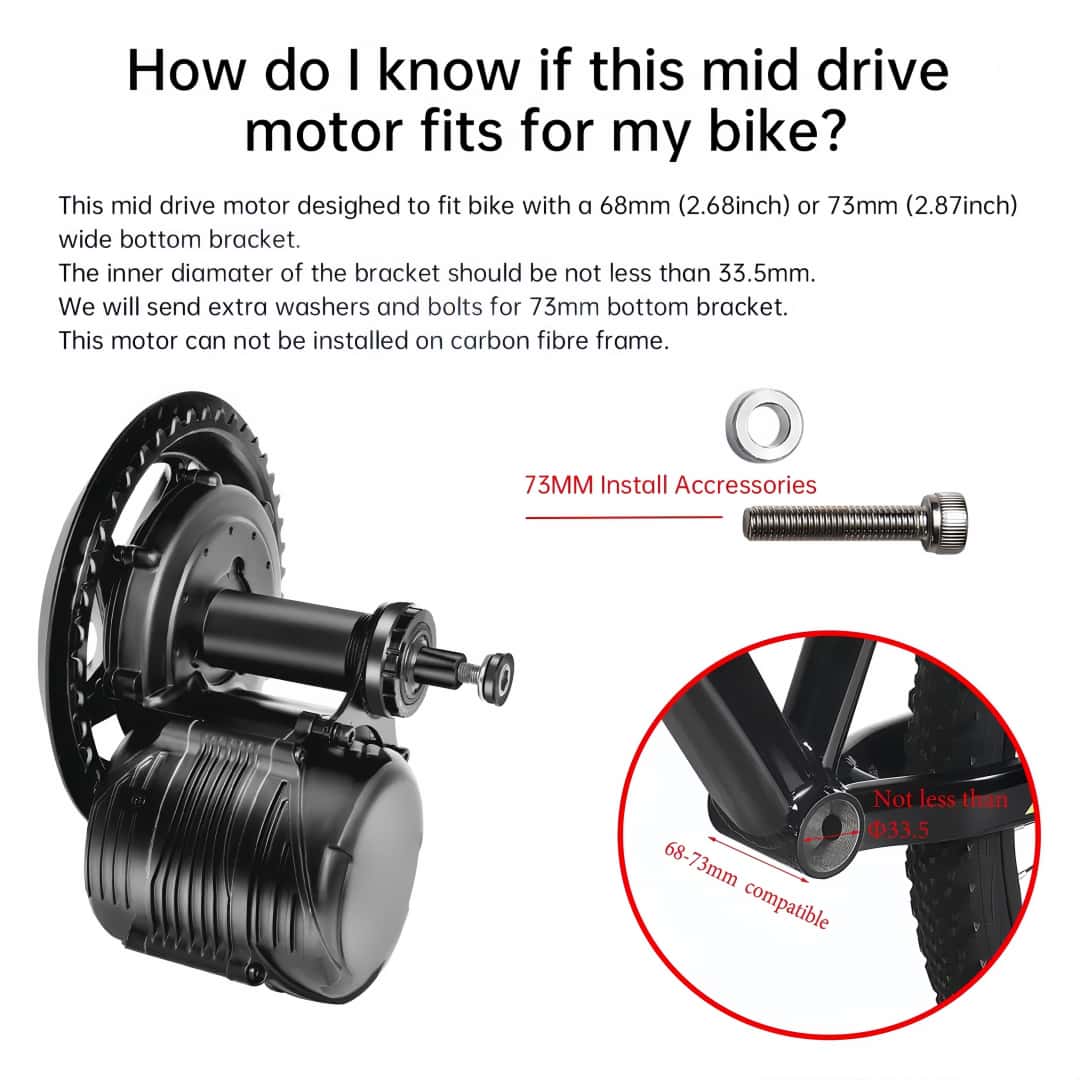

Fits most bikes with 68-73mm bottom bracket + 34-36mm inner diameter.
44T chainring; requires disc/V-brakes + chain drive.
Confirm frame compatibility before installation.
►Quiet Operation:
Experience a smooth and quiet ride, thanks to the innovative design that minimizes noise, so you can enjoy the beauty of your surroundings.

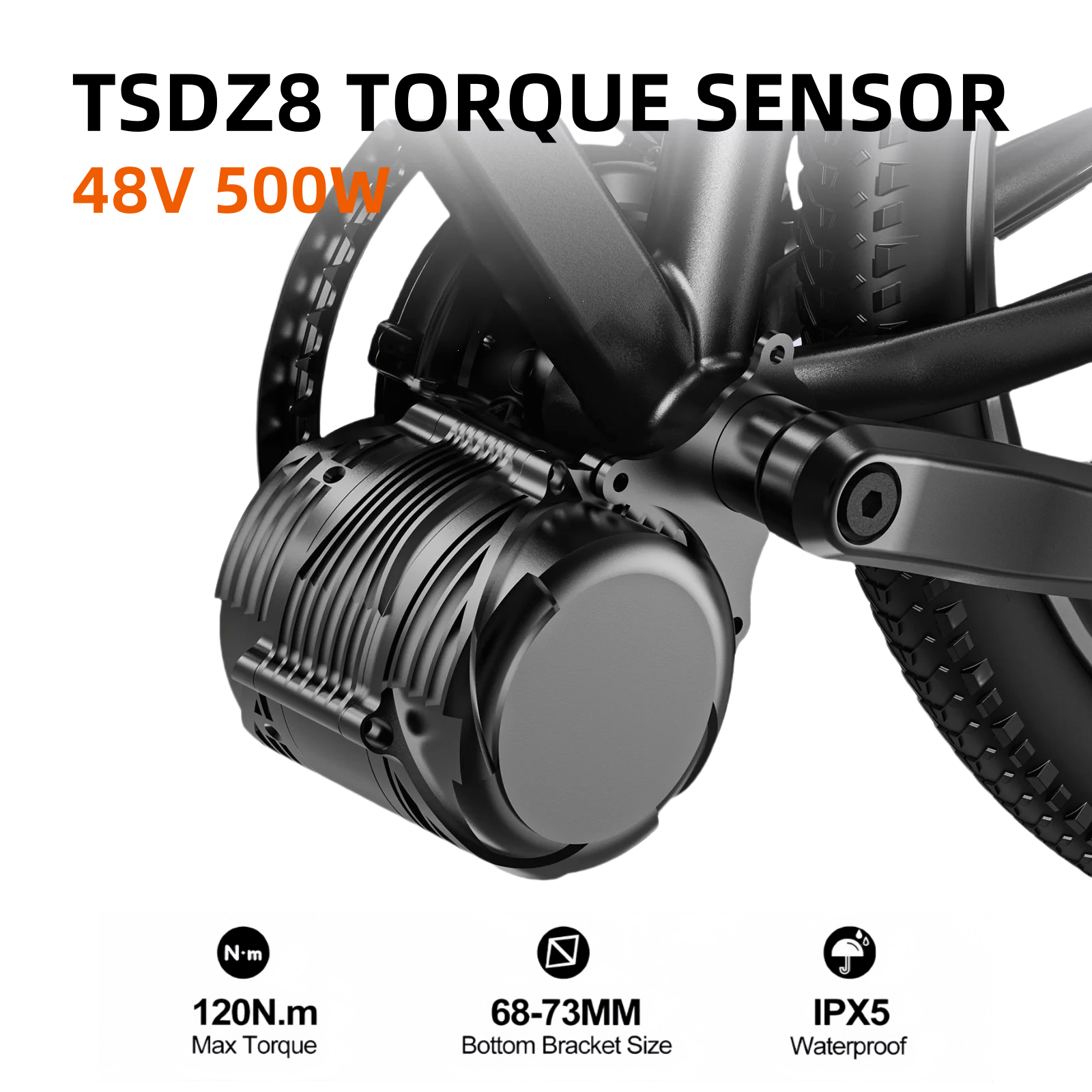

►Specification of Tongsheng TSDZ8 48V 500W:
Rated Voltage (DCV): 48V
Rated Power: 500W
Maximum Torque (N.m): 120

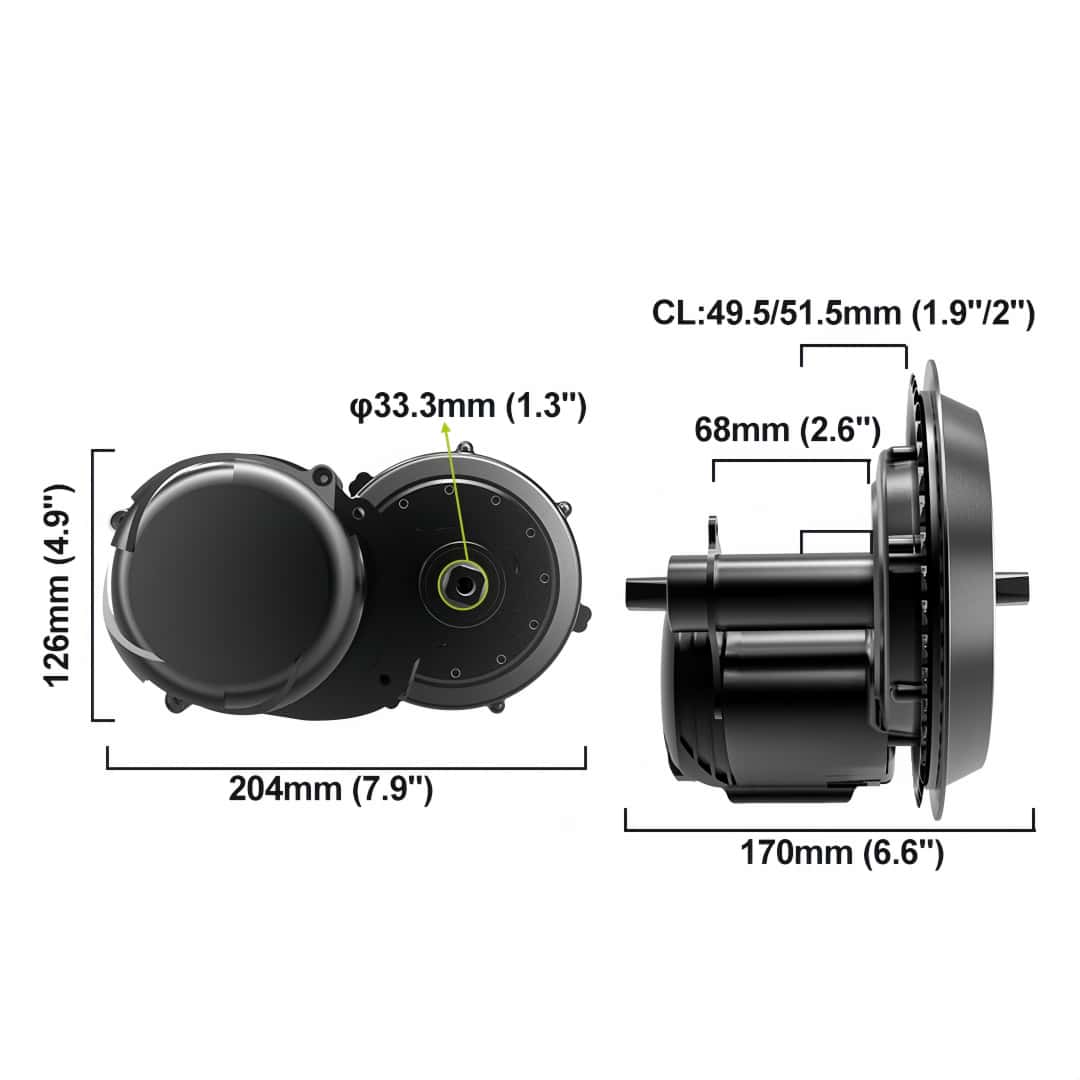

Dimensions (L x W x H): 204 x 170 x 126mm
Efficiency (%): ≥80
Reduction Ratio: 38
Rotation Speed (Rpm): 125
Assistance Ratio: 36% - 300%
Torque Sensor: Speed + Torque
Axle Standard: JIS
Noise (dB): <55
Power-off Brake: Yes
Headlight Power Supply Parameter (DCV/W): 6/3
Waterproof Grade / Salt Spray Test: 65/96
Recommended Models: E-TOUR/ E-CITY/ E-TREKKING / MTB
►Specification of Tongsheng TSDZ8 48V 750W:
Rated Power: 750W
Maximum Torque (N.m): 140
Dimensions (L x W x H): 204 x 170 x 126mm
Efficiency (%): ≥80
Reduction Ratio: 38
Rotation Speed (Rpm): 125
Assistance Ratio: 36% - 300%
Torque Sensor: Speed + Torque
Axle Standard: JIS
Noise (dB): <55
Power-off Brake: Yes
Headlight Power Supply Parameter (DCV/W): 6/3
Waterproof Grade / Salt Spray Test: 65/96
Recommended Models: E-TOUR/ E-CITY/ E-TREKKING / MTB

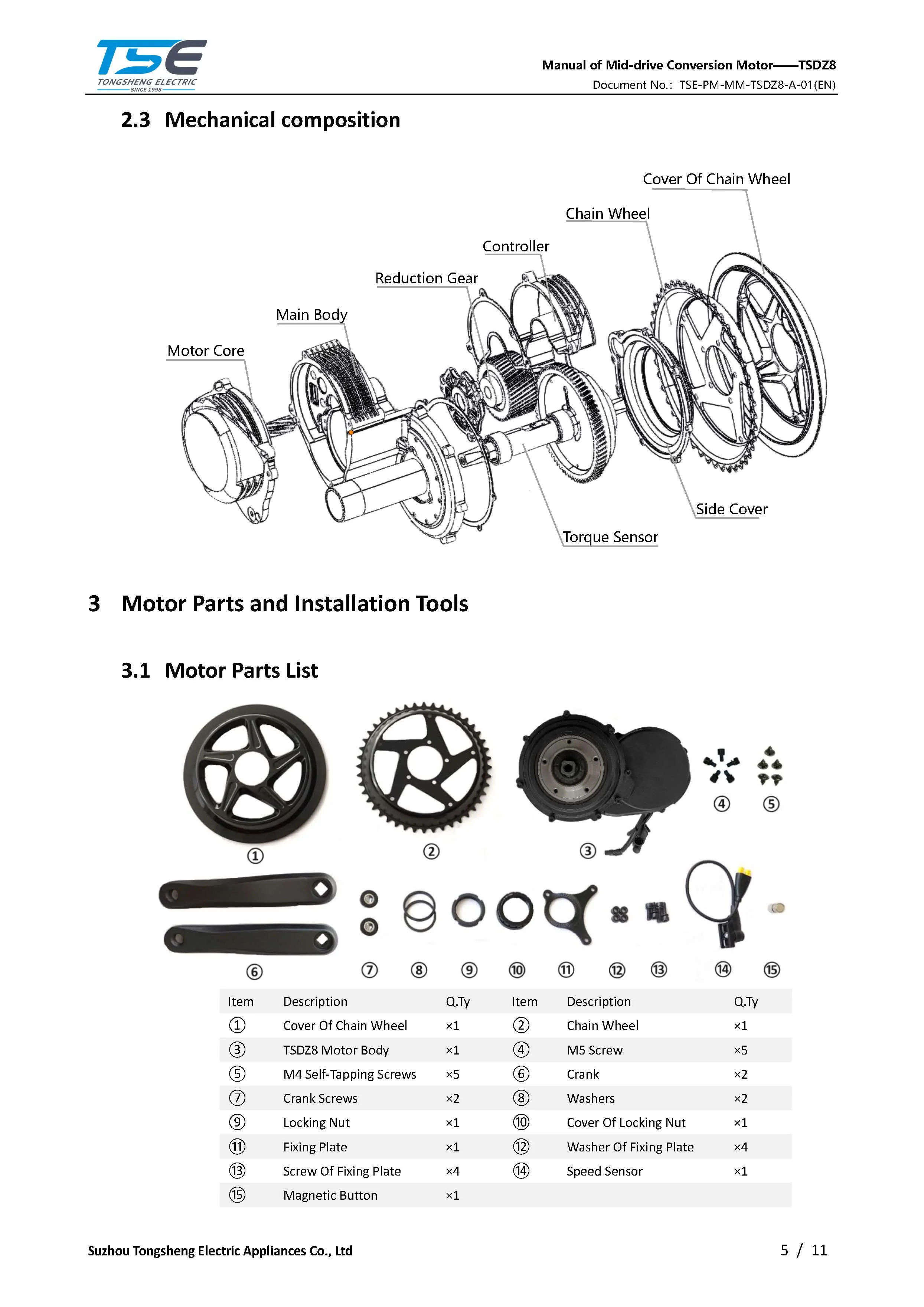

►Package:

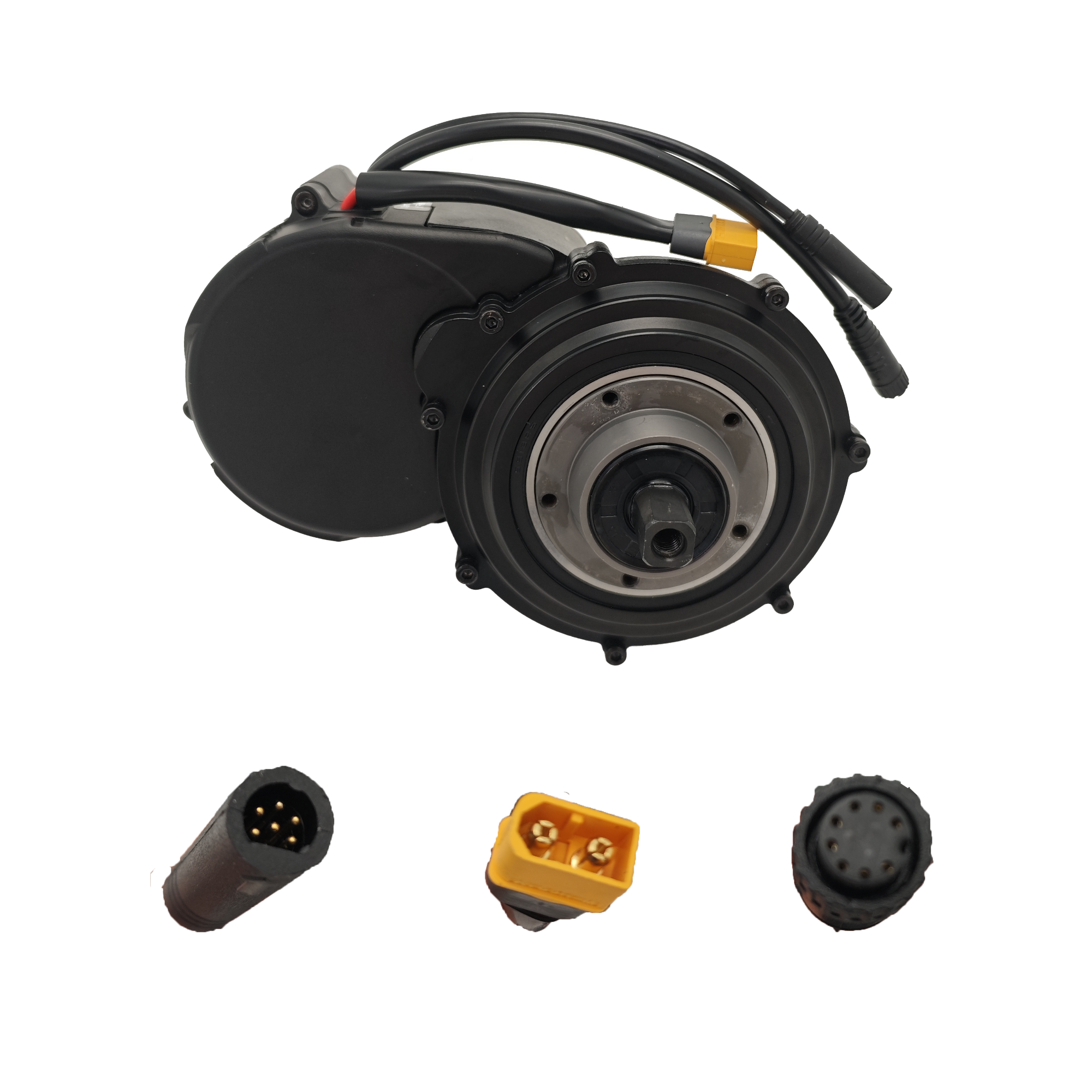

1. Tongsheng TSDZ8 48V 500W/48V 750W Mid-Drive Torque Sensor Motor

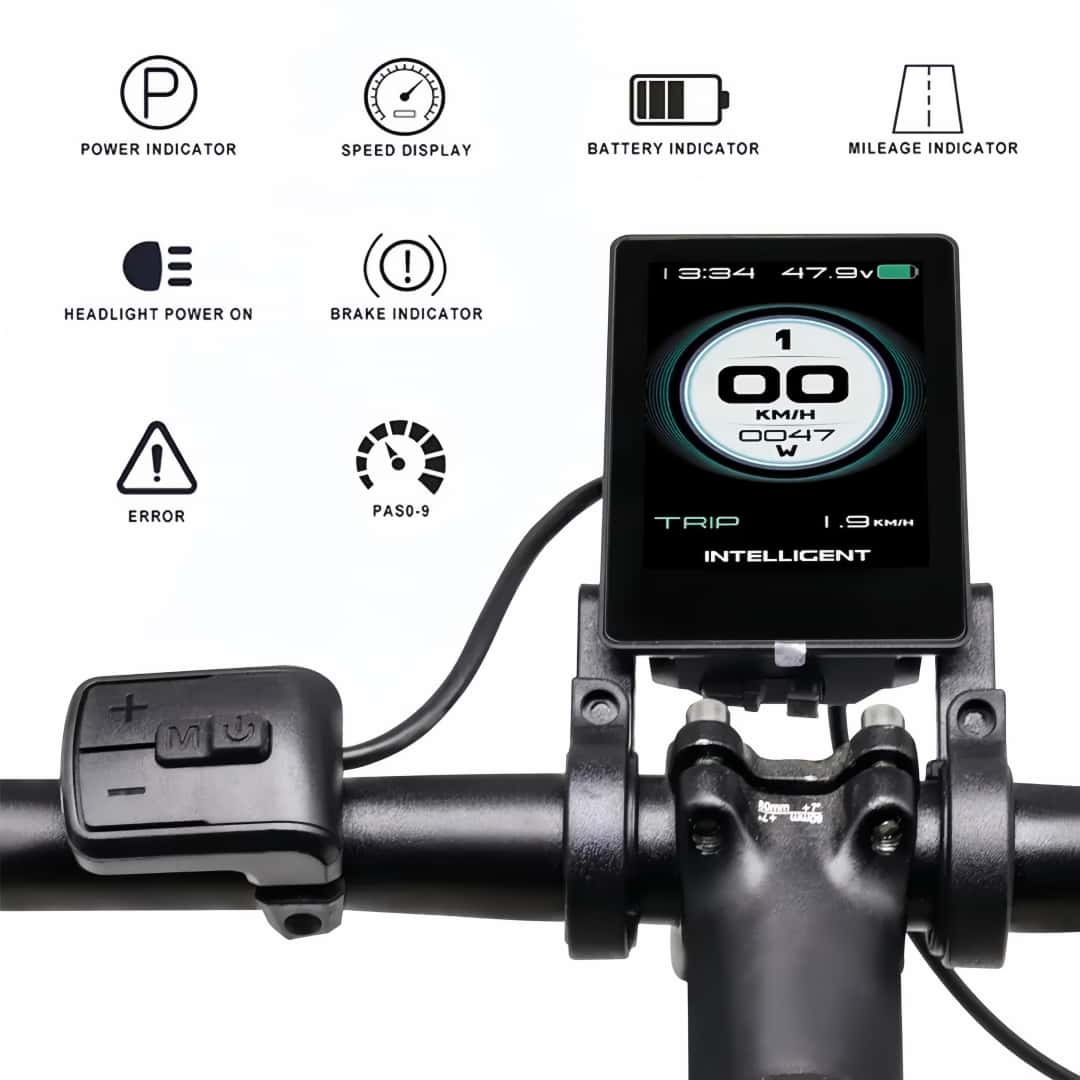

2. 860C OR B02N Color Display

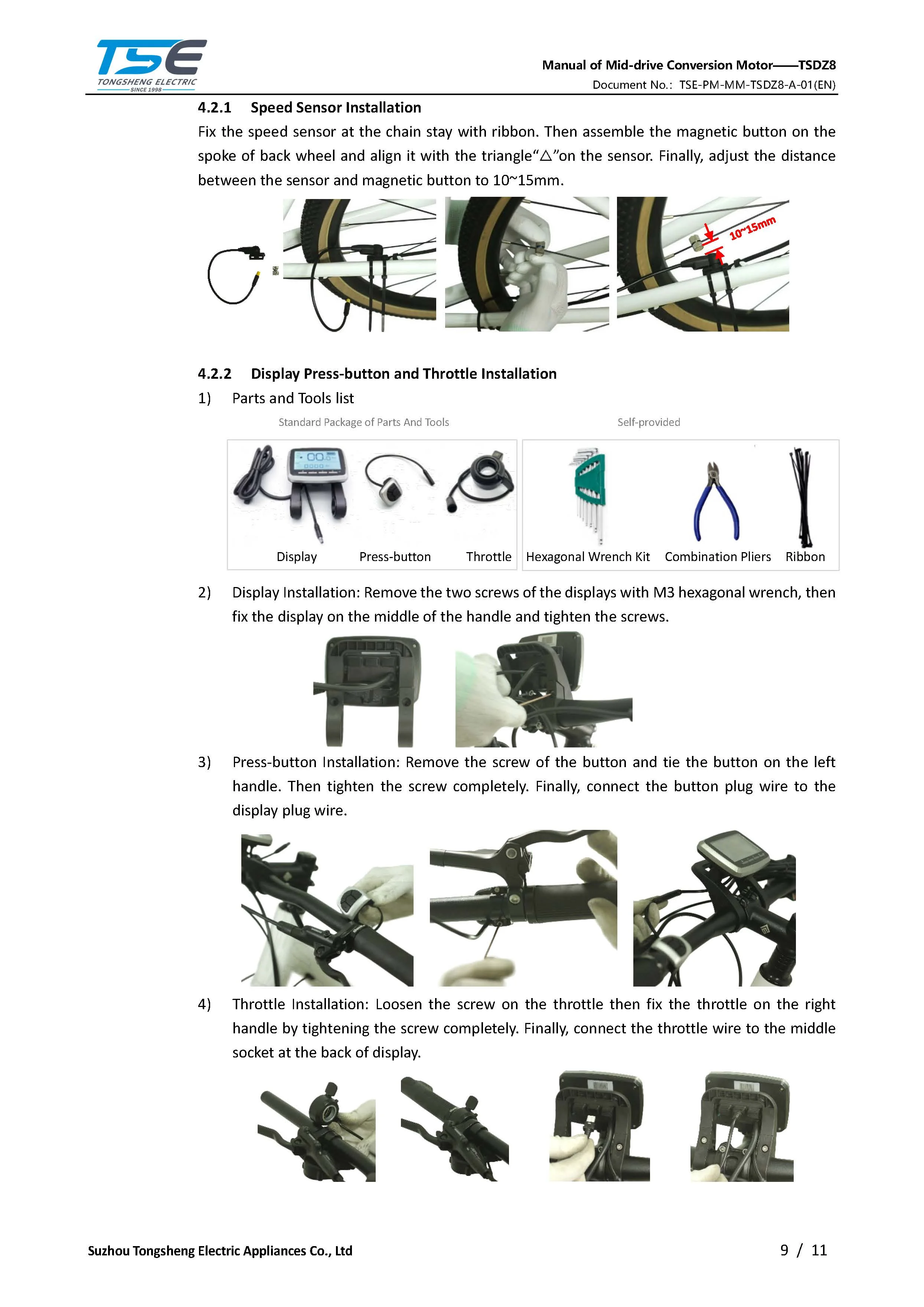

3. Speed sensor with magnets
4. Chainwheel 44T
5. Left Crank+Right Crank
6. Wrench

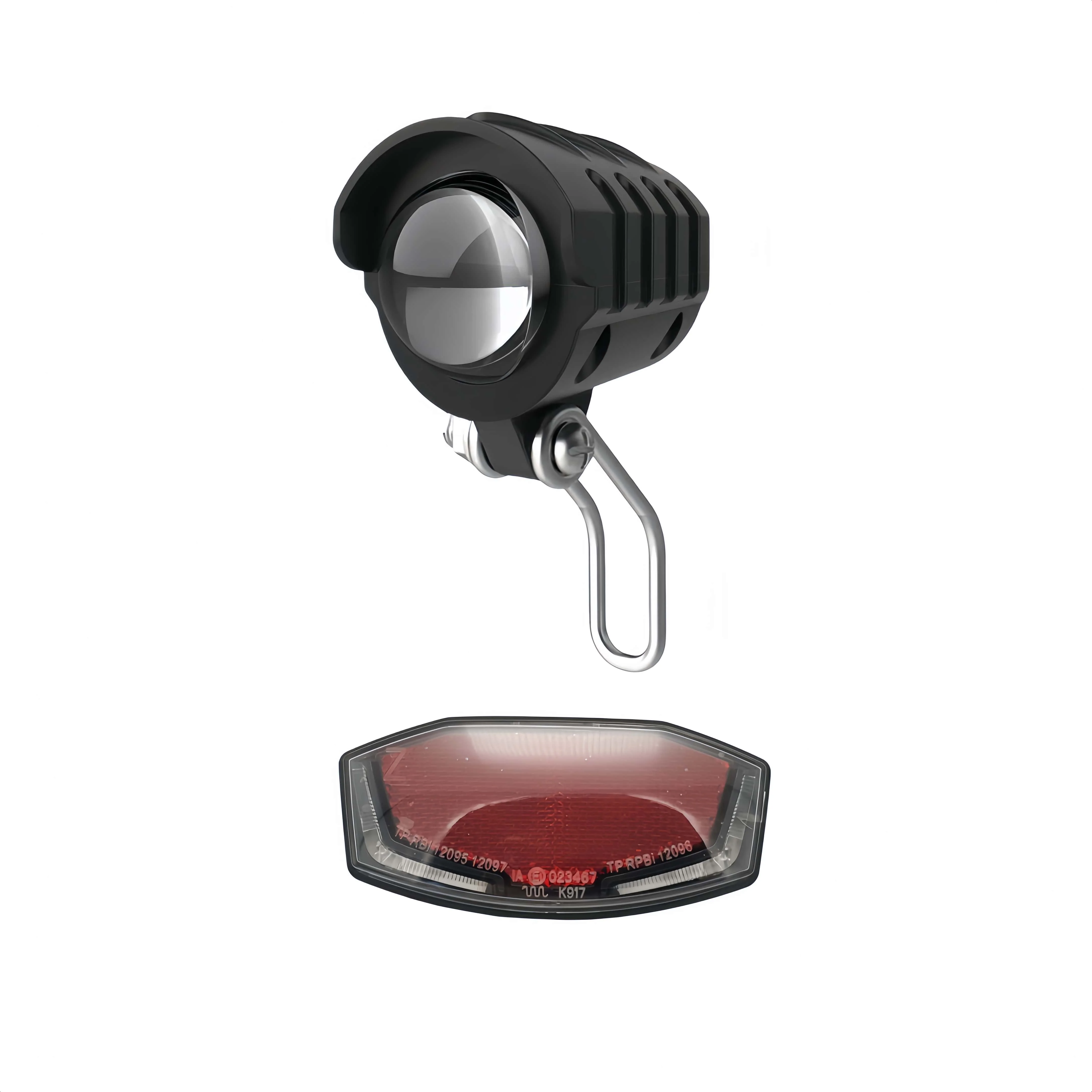

7. Lights
