Features:
- Using magnetic adsorption, can be used to calibrate all kinds of pulley.
- Aluminum pulley need to fixed with a fixture.
- High precision and excellent effect.
- Save energy and reduce maintenance downtime.
- Reduce vibration and noise and extend the service life of the belt and pulley.

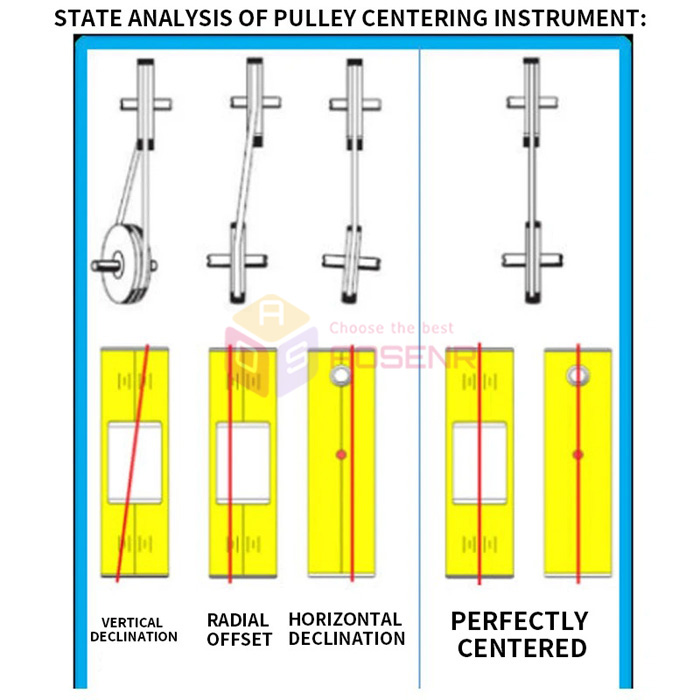

- Simple to use, no training is required, one person can operate by observing the angle and parallelism deviation through the engraved line.
Specification:
|
Type
|
Belt Pulley Laser Alignment Meter
|
|
Model
|
PDL-02
|
|
Laser transmitter/reflector
|
|
Laser power
|
<2mW
|
|
Wavelength
|
650nm
|
|
Accuracy
|
0.1mm/m
|
|
Divergence
|
30°
|
|
Laser line width
|
1mm@2meters
|
|
Working time
|
10h
|
|
Battery
|
2x AAA Batteries (not included)
|
|
Transmitter weight
|
430g
|
|
Reflector weight
|
370g
|
|
Dimension
|
145*40*40mm
|
|
Operating temperature
|
20~40℃
|
|
Storage temperature
|
-30~60℃
|
|
Installation form
|
Magnetic adsorption
|
|
Housing
|
Aluminum alloy, anodic oxidation
|
|
Packing box
|
|
Material
|
Black polyethylene
|
|
Weight of suitcase
|
1.5kg
|
|
Total weight
|
2.5kg
|
|
Dimension
|
210*167*90mm
|
Package Includes:
1 X Pulley Alignment Instrument
