NF-908 is mainly used for optical power measurement, support 850/980/1310/1490/1550/1625nm wavelength, with measurement range -60 to +8dBm. Meanwhile, it is designed with network cable continuity test and LED lighting functions.
Product Features:
【Optical Power Measurement】Support 850/980/1310/1490/1550/1625nm power loss measurement.
【Measurement range】-60 to + 8dBm.
【Fibers interface】Applicable to FC,ST, SC interface.
【RJ45 Network Test】Automatically scan, detect the order of the network cable.
【Small and Portable】Only Hand Control and One-piece detachable design can be used flexibly.
【Automatic Shutdown Function】Humanized design, after 30 minutes for no operation, it will automatically shutdown.
【Certification】Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
【100% Affordable】A lot cheaper than similar products with the same quality.
Product Functions:
1. Optical Power Meter Test

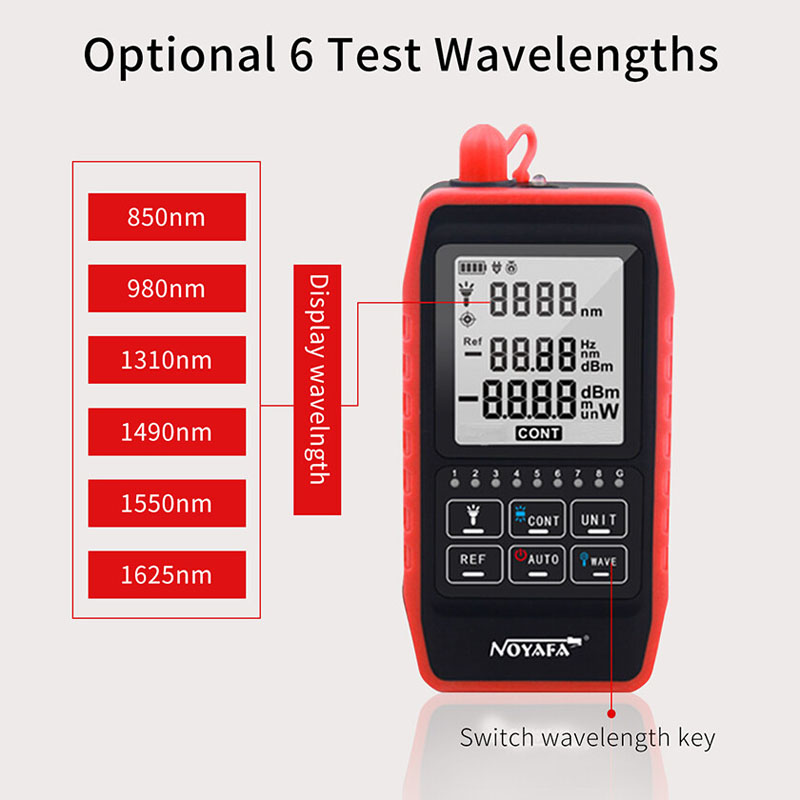

It support 850/980/1310/1490/1550/1625nm wave length & visual fault locator measurement, inserted the fiber to the optical power interface, switch to the corresponding wavelength by short pressing the "WAVE", to measure the power value.
2. Wire-map Test
The test mode is divided into slow test (1 second) and fast test(0.5 second). Insert one end of the network cable to be tested into the transmitter, the other end in to the remote, and press "CONT" to start test.
3. LED Lighting
The LED lighting function is convenient in a dark environment.
4. Automatic Shutdown
The device will automatically shut down after 30 minutes without any operation. By pressing "AUTO" to control whether this function is enabled.
Product Specifications:
Model | NF-908 |
wave | 850/980/1310/1490/1550/1625nm |
Measuring range | -60~8dBm |
Accuracy | 850/980nm±0.5dB |
CONT | √ |
REF | √ |
LED lamp | √ |
Rechargeable | Lithium battery 3.7v 700 mAh |
Package Includes:
1 x NF-908 Optical Power Meter
1 x Remote adapter
1 x Charging cable
1 x User manual
