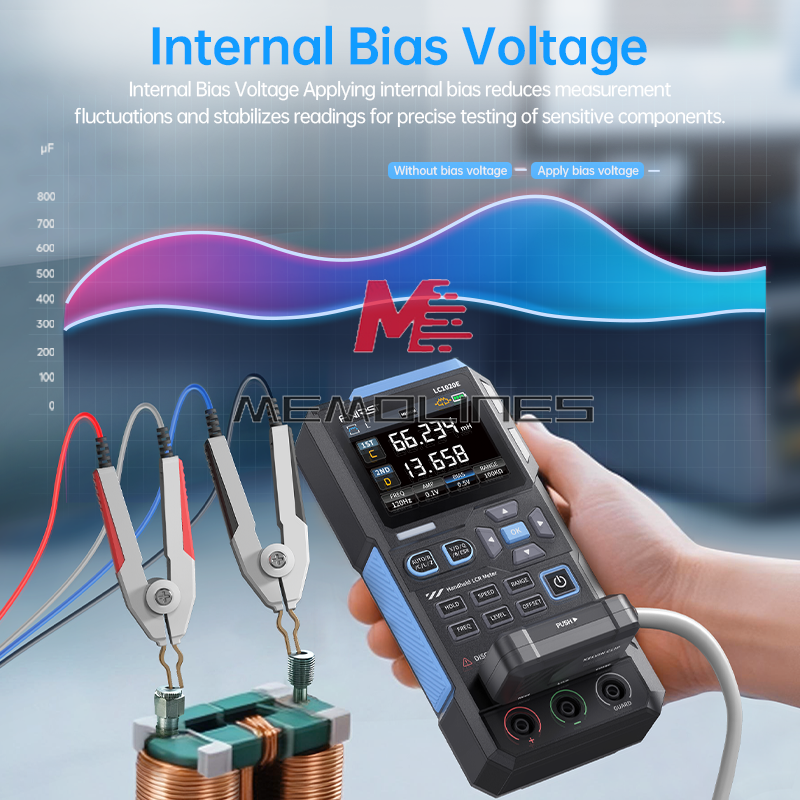

1. High precision and wide measurement range: The LC1020E offers a basic accuracy of 0.3%, ensuring reliable and precise readings for professional use. It supports a wide measurement range for inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for various components.
2. Multiple Selectable Test Levels: This LCR meter features five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V), enabling flexible and accurate analysis of component characteristics under various conditions, from general testing to high-frequency parameter analysis.
3. Dual test ports for versatility and accuracy: The device features a convenient three-terminal test socket and a five-terminal test slot for quick, daily measurements. The five-terminal configuration allows for complete four-terminal Kelvin measurements using professional test fixtures, ensuring the highest accuracy by minimizing lead impedance errors.

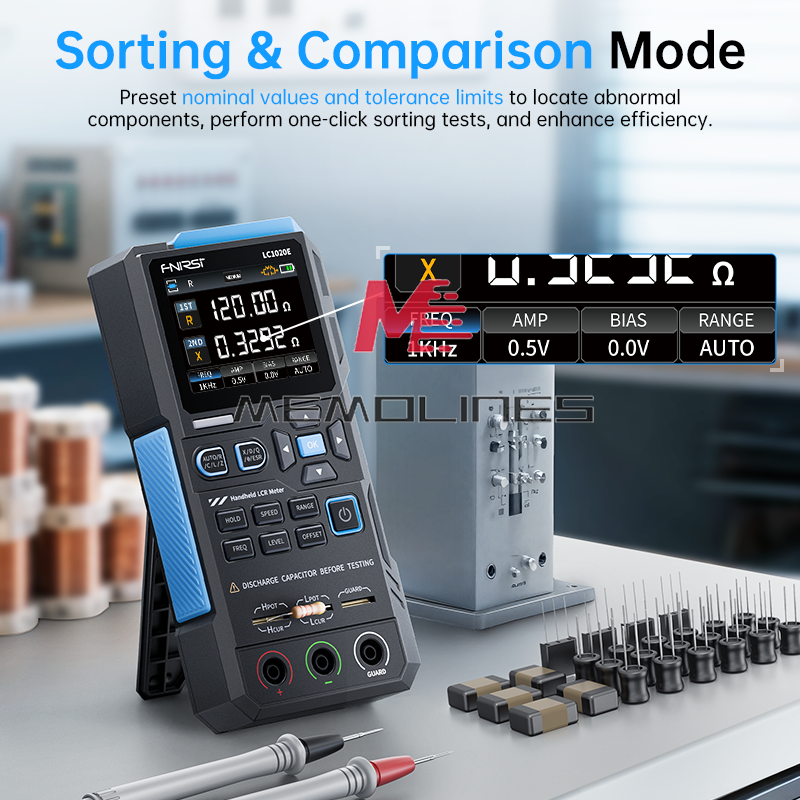

4. Intelligent component sorting and data logging: Significantly improve your batch testing efficiency with the intelligent comparison function. Set nominal values and tolerances (0.1%–99.9%) to automatically sort components and display audio-visual alerts for pass/fail results. The data logging mode records the number of successful and failed measurements for effective quality control.

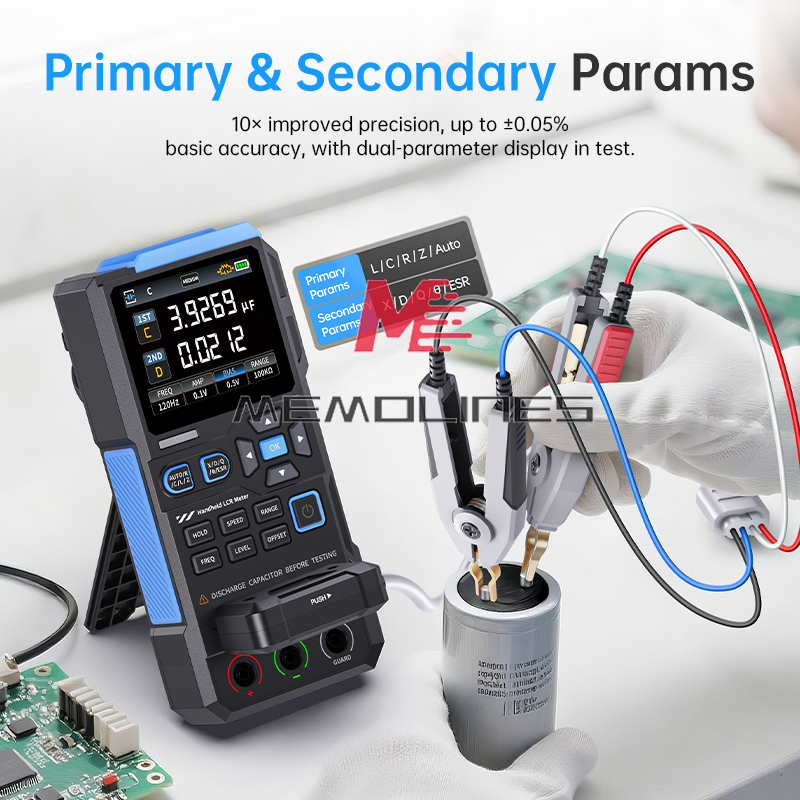

5. Portable design with a clear display, long battery life: The LC1020E is designed for laboratory, production line, and field use, featuring a compact chassis and a powerful 3.7V, 3000mAh rechargeable lithium battery. The 2.8-inch TFT color display clearly shows all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurement values anywhere.

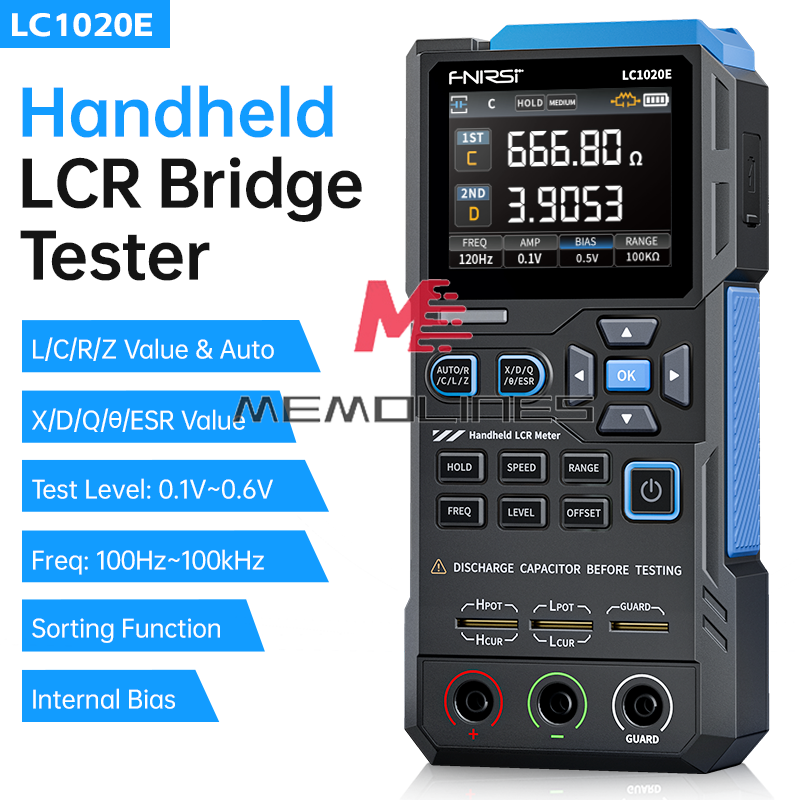

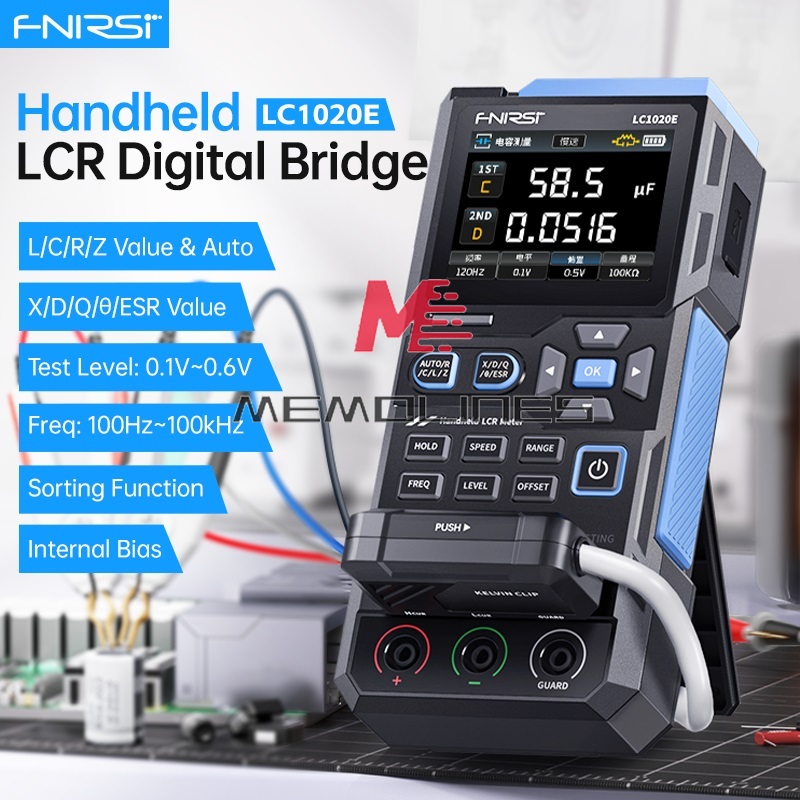

Product model: LC1020E
Battery capacity: 3000mAh lithium-ion battery
Test frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz
Basic accuracy: 0.3%
Display: 2.8-inch TFT LCD screen
Display digits: 4.5 digits for main parameters / 4.5 digits for secondary parameters
Measurement Parameters: Main Parameters: AUTO/R/C/L/Z, Secondary Parameters: X/D/Q/θ/ESR
Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10M
Test Level: 0.1V, 0.3V, 0.6V
Calibration Function: Open-circuit calibration, short-circuit calibration
Comparison Function: Used to calculate the relative error between the measured value and the nominal value of the component, displayed as a percentage, and provides screening results. The nominal value and tolerance can be set, with the tolerance range adjustable from 0.1% to 99.9%
Recording Function: Check whether the data of the tested component meets the set nominal value and tolerance value, and record the number of successful and failed measurements
Test Terminal Configuration: Three-terminal, five-terminal
Output Impedance: 100Ω
Communication Interface: USB-Type-C
Other: Language Settings, Screen Brightness, Sound Settings, Auto Shutdown, Calibration Settings, System Information

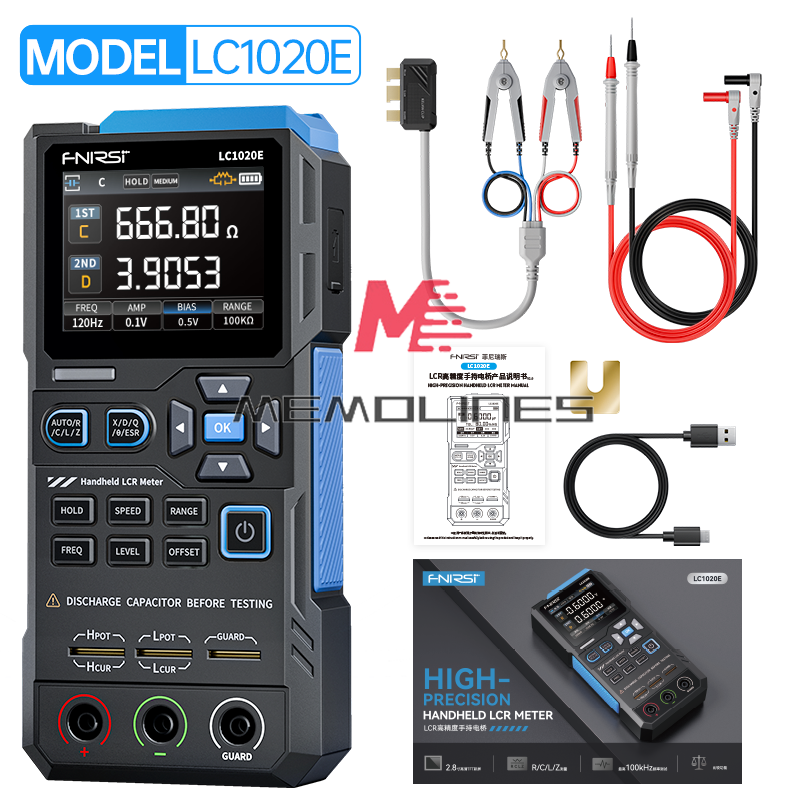

Shipping List:
Handheld Bridge *1
Type-C Charging Cable *1
LCR Shorting Plate *1
LC Clamp Kit *1
3001 Test Probes *1 (Set)
Manual *1

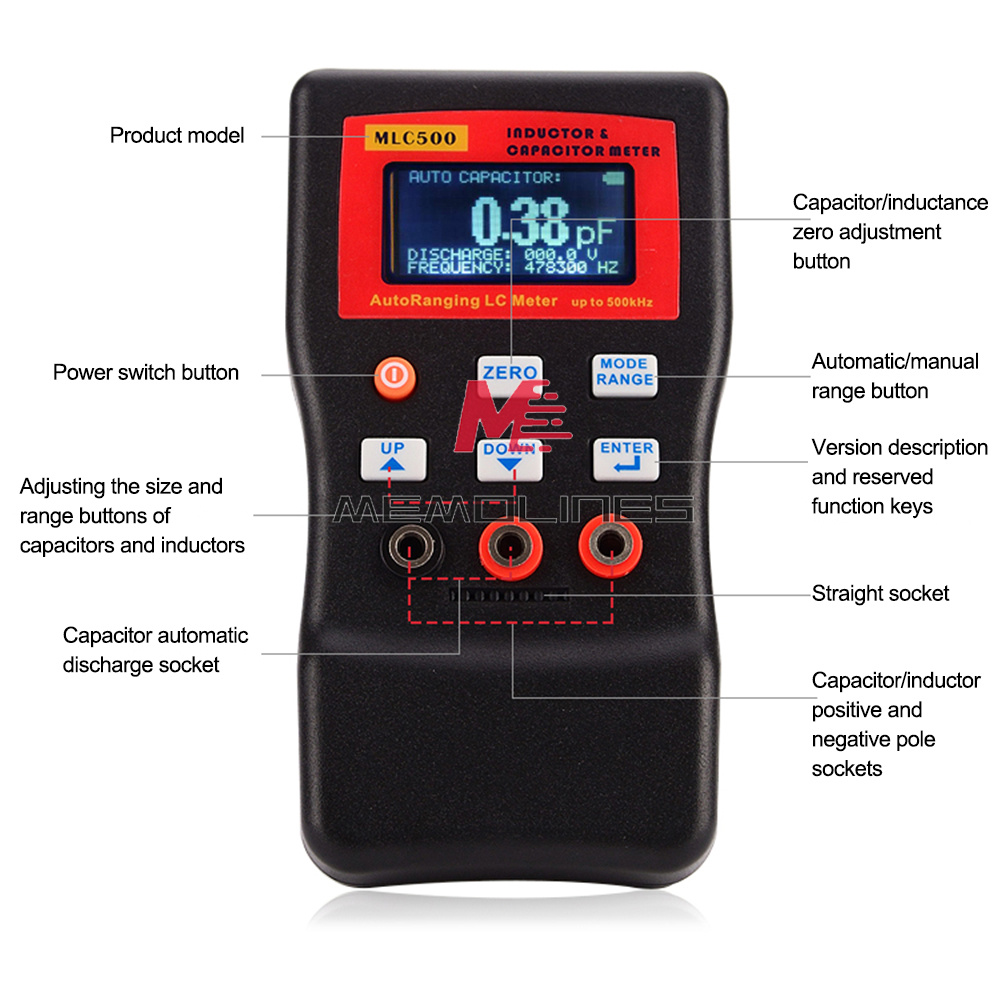

1. High resolution, five digit display: high precision 1%, minimum test, capacitance 1pF, inductance 1uH
2. Capacitor automatic discharge jack: test capacitance before the red handle can be inserted in the middle of the jack, clip the capacitor automatic discharge to prevent capacitor motherboard charged burn circuit board
3. Manual zero button: remove the error to facilitate accurate testing of small value components
4. Eight practical features: capacitance test, inductance test, automatic/manual measurement, automatic frequency adjustment, capacitance anti-burning, manual zeroing, USB power supply, connection to the computer function
5. Wide range of applications: instrument maintenance, school experiments, engineering development, scientific research projects, production lines, electronic equipment, etc.

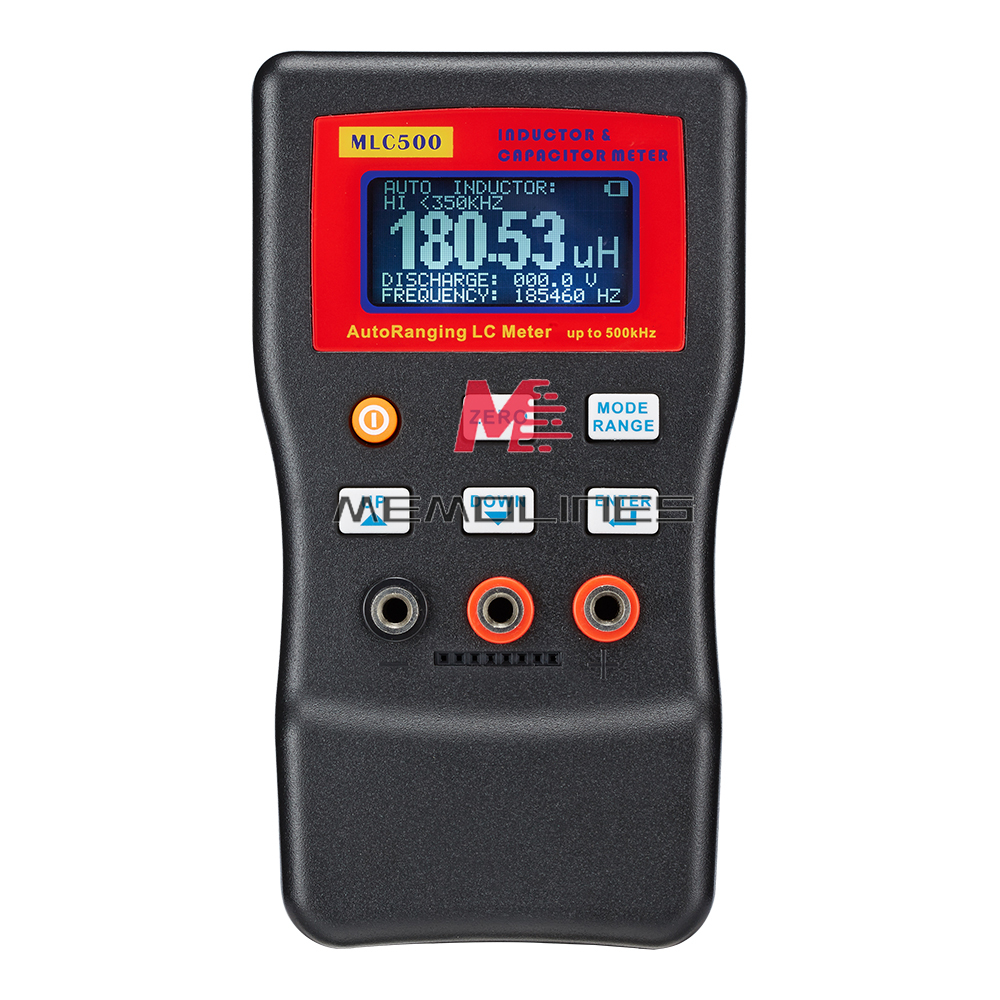

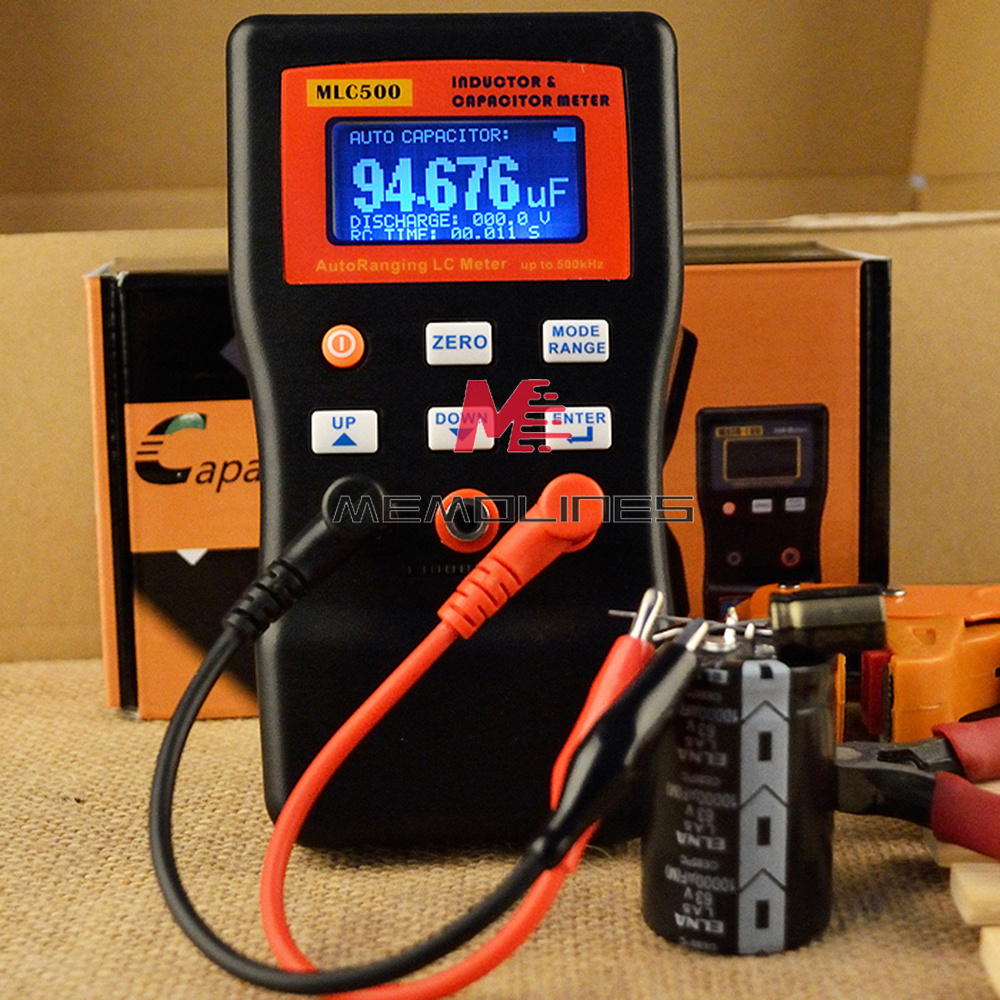

Product Model: MLC500
LCR measurement parameters: the main parameters: L / C
Measuring range mode: automatic
Zero function: open-circuit / short-circuit frequency sweep zero
Interface: Mini-USB (virtual serial port)
Charging interface: Mini-USB (500mA)
Test frequency: C: 10 to 500Khz, L: 10 to 360Khz
Display: 128 * 64 dot matrix LCD primary and secondary parameters are displayed simultaneously with backlight
Calibration: automatic calibration of internal standard capacitance at power on
Fuse protection: 200mA
Test level range: ~1.5Vrms
Battery: 2 * AA (two ordinary No. 5 batteries) (shipped without batteries)
Measuring speed/measuring time: <3 times/sec, 100mF large capacitance <30sec)
Display range: C:0.00pF~100.000mF, L:0.000uH~100.00H, HZ(LC test frequency):0~500000HZ, S(RC test time): 0.000~99.999

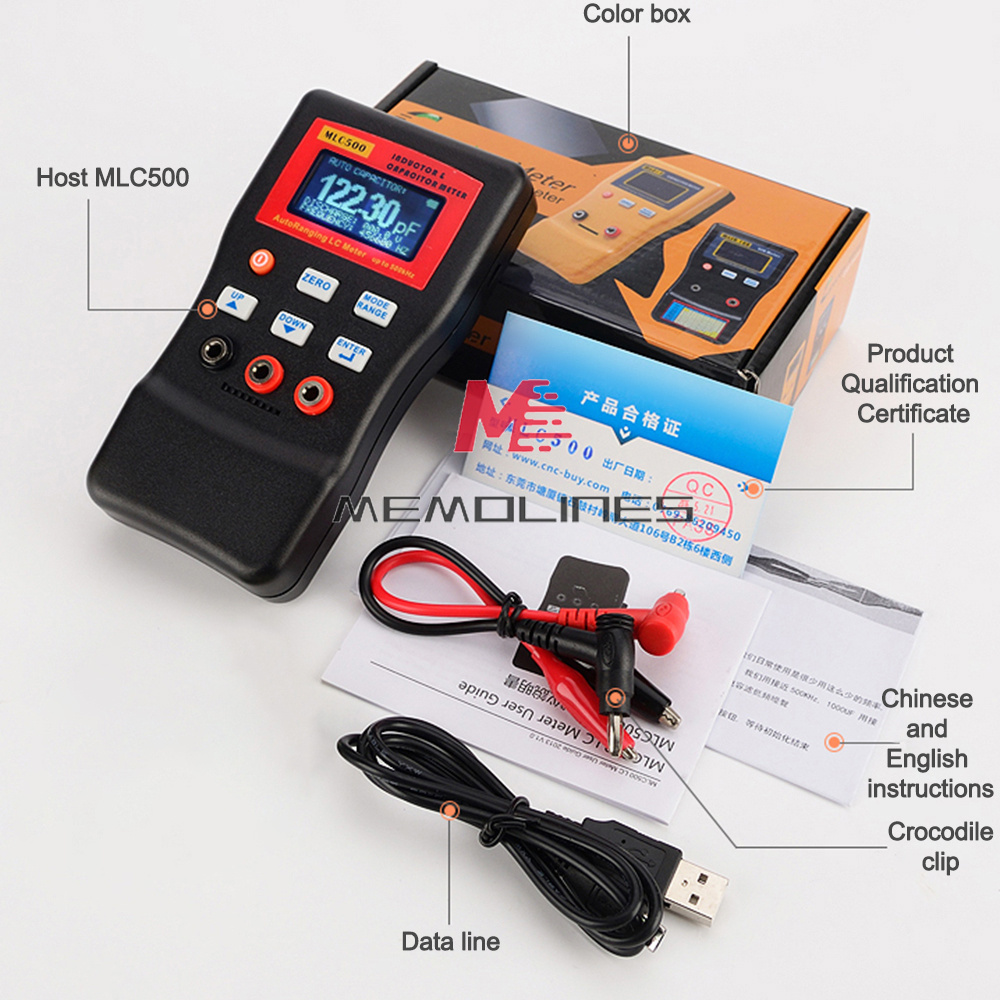

Host * 1
2.1.14-inch high-definition color display, clear and intuitive interface.
3. Memory stay, data retention: support data retention, at the same time automatically record data to generate EXCEL table, view the recorded data on the computer.
4. Interchangeable tweezers head flexible assembly: brass plated material, straight and curved two kinds of tweezers head can be changed, high hardness, more durable! Adapt to different application scenarios, provide more accurate measurement stability!
5. Lightweight and portable, portable: lightweight design, compact size, easy to carry!
Product Model: LCR-ST1
Capacitance range: 1pF-22mF
Inductance range: 1μh-10H
Resistance range: 10mΩ-10mΩ
Diode: conduction voltage 0.7V
Frequency test: 100Hz, 1kHz, 10KHz
Level test: 0.3V, 0.6V RMS
Parameter display: ESR, D value, Q value, Z value, X value
Display: 1.14-inch color screen
Charging interface: Type-C, 5V/A
Power supply: 250mAh lithium battery
Automatic Recognition Measurement: Support
Interchangeable tweezer tips: Stand
Auto Power Off: Support
Data retention: Support
1 x Smart Tweezer Bridge
2 x Tweezers Curved Legs
1 x Iron Sheet
1 x Type-C USB Cable
1 x Instruction Manual
1.Measurement of inductance: automatic identification to the inductance gear, contact the circuit board inductance on both sides can be, lightweight and convenient
2. Can switch the screen direction: short press the right direction key to move down the menu, the left direction key to move up the menu, select the screen direction to switch, press the power button to determine
3. Gold-plated tweezer head flexible assembly: gold-plated material tweezer head, adapt to different application scenarios
4. Automatic shutdown function: lithium battery direct charging and long-lasting battery life, saving energy and safety use
5.High-definition screen display: high-definition OLED reverse display screen, fearless and efficient work in dark environment.
6. A variety of measurable Functionality: can measure the buzzer, resistance, capacitance, diode, inductance function
Parameters:
Frequency: 100Hz,1KHz,10KHz
Voltage: 0.3V,0.6V
Calibration setting: 0Ω~10MΩ, OPEN
Language selection: Chinese/English
Screen Orientation: Left, Right
Volume setting: 0%~100
Backlight Brightness：10%~100%
Auto Power Off: Off, 5 minutes~120 minutes
Screen display: OLED display
Charging port: Type-C
Battery type: Li-ion 3.7V(Built-in lithium battery)
Package Includes:
LCR tweezer tester *1
Instruction manual *1
Type-C charging cable *1
Storage cloth bag*1
Features:
1. Electromagnetic Induction Precision Localization: Directly detects inductor faults without disassembly, doubling repair efficiency
2. Plug-and-Play Simplicity: Easy operation with button controls; USB-powered for portable troubleshooting
3. Green LED Fault Indication: Green light indicates normal operation; instant feedback reduces misdiagnosis
4. High Precision & Stability: Professional-grade detection technology ensures reliable motherboard repairs
5. One-Touch Fault Localization: Long press triggers rapid detection to pinpoint coil issues
Parameter:
Product Name: Inductor Tester
Power Supply: USB-powered
Operation: Long press to activate
Operational Indicator: Green light indicates normal inductor function and readiness
Dimensions: 75.5 x 26.5 x 6 mm
Function: Rapid fault diagnosis and precise fault point identification
Package include:
XA5 Tester *5
