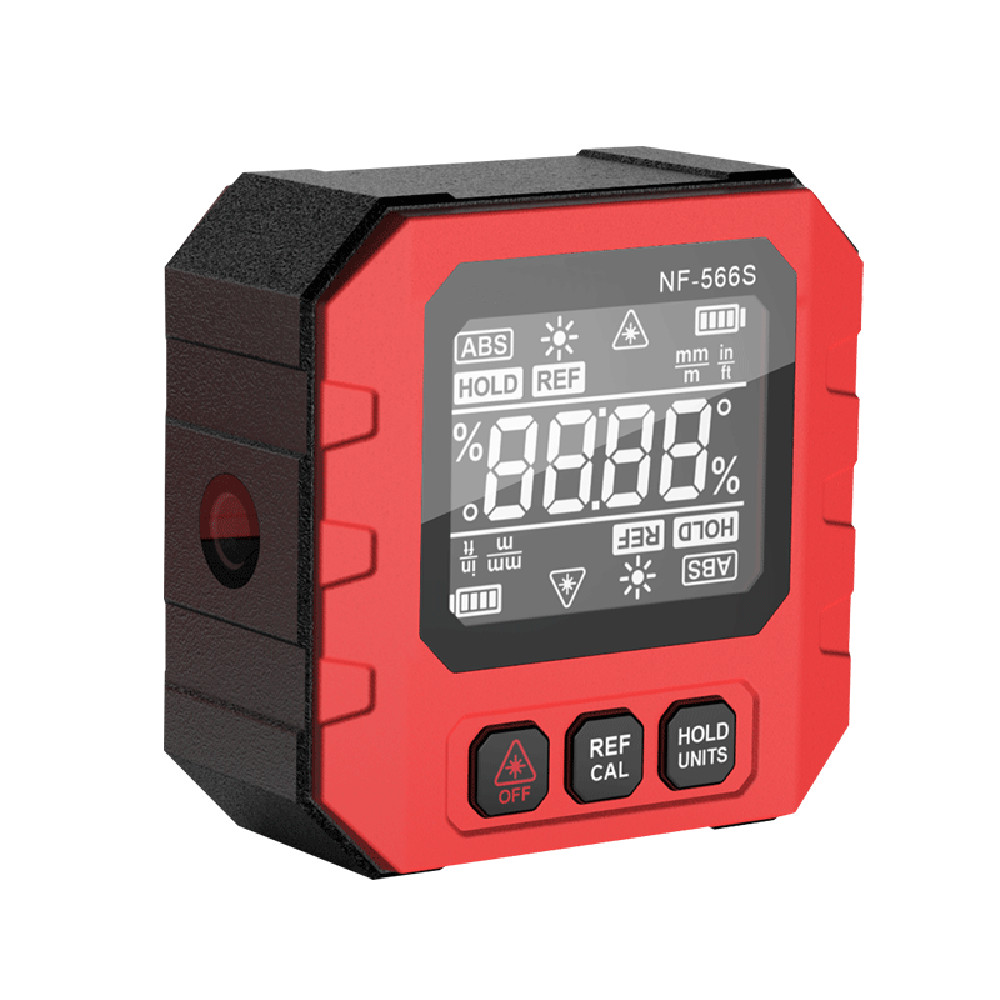

The NF-566 / NF-566S inclinometer with the backlight digital display screen, so you can see the number more clear. with the data hold function. It has become an indispensable and important measuring tool in the fields of , railway paving, civil , construction, decoration, industrial automation, intelligent platform, machining and so on.
Features:
The design appearance is atmospheric and integrated, and the color is prominent.
The digital display VA screen with backlight, backlighting allows you to see numbers in dark environments.
Five sides built-in strong , It is easy to adsorb on the measuring object for measurement
Button operation is convenient. Three buttons have clear functions, and there are to 6 combinations of long press and short press functions
With the data hold function, more convenient to use, give you a better use experience.
Portable Size: The small size of this tool is very convenient for everyday use, you can carry it in your tool bag without taking too much storage space.
The inclinometer has become an indispensable and important measuring tool in the fields of , railway paving, civil , construction, decoration, industrial automation, intelligent platform, machining and so on.
NF-566S with horizontal line, can be more obvious to highlight the reference
NF-566S with function, TYPE-C convenient and simple.
Specifications:
Model: NF-566 / NF-566S (Optional)
Scanning:
NF-566: No scanning
NF-566S: bidirectional scanning
Power Supply:
NF-566: 2 * AAA battery(Not include), without source
NF-566S: 3.7V 390mAh lithium battery, USB Type-C
User Interface: VA screen with backlight
Type of sensor: Six axis sensor
Magnetic force seat: Five sides are magnetic
Outer Frame Material: alloy
Measurement : 4*90°
Accuracy: ±0.2°
Resolution: 0.05°
Ambient : 0℃-50℃ (Controller only)
Measurement: point measurement based on horizontal
Relative/Absolute Angle Measurement: √
Angle Locking Function: √
Low Battery Reminder: √
Automatic Shutdown: 5 min
Material: ABS+
Item Size: 60 * 60 * 30 mm / 2.36 * 2.36 * 1.18 inch
Item Weight: 122g / 4.3oz
Package List:
1 * Digital Inclinometer
1 * User Manual (English)
