FUSION 3C, 3200W, ø4/5mm
- Up to 3.6 kg/h (8 lbs/h) output volume
- A surprisingly compact, handheld extrusion welder
- Robustly design
- Adjustment extrusion volume
- Various holding options
Details Robust extrusion welder

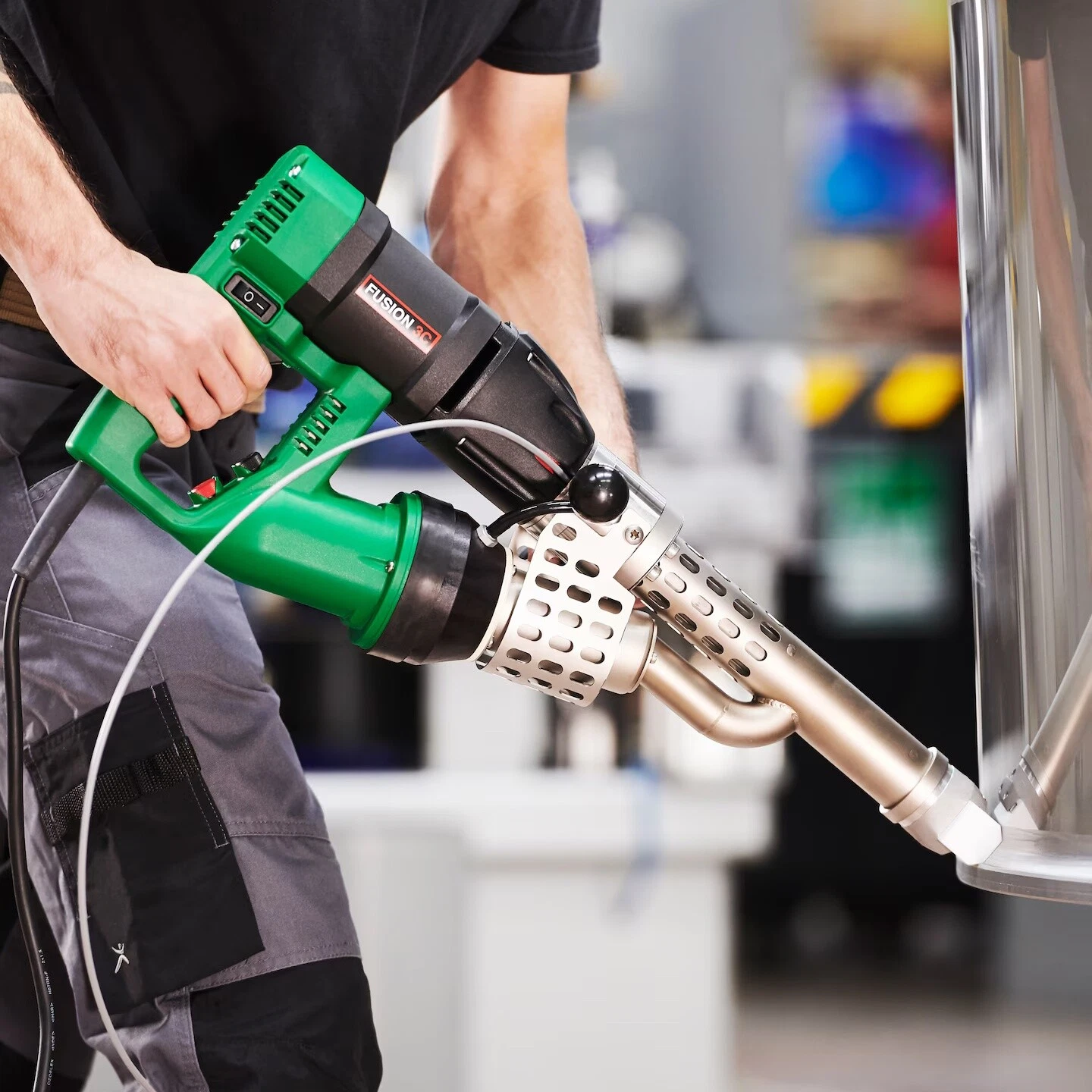

The FUSION 3C extrusion welder is great for equipment and container construction. The extruder also stands out with its sensible design. While the motor is installed on top, the handle and blower are located on the bottom of the tool. This arrangement makes the welder short and compact. In addition, it has a variety of holding options for various positions that users assume while welding. The FUSION 3C achieves an output volume of up to 3.6 kg/h (8 lbs/hr).
Technical Data
|
Article |
143.837 |
|
Voltage |
230 V |
|
Frequency |
50/60 Hz |
|
Power |
3200 W |
|
Welding rod |
ø 4–5 mm / 0.16–0.2 in |
|
Material output ø 4 mm |
2.1 - 2.6 kg/h |
|
Material output ø 5 mm |
2.7 - 3.6 kg/h |
|
Welding materials |
HDPE; LDPE; LLDPE; PP |
|
Weldable sheet/membrane thickness |
15 - 25 mm |
|
Air guide |
Internal |
|
Screw heating |
Air heated |
|
Air temperature control |
Open loop |
|
LQS |
No |
|
Display |
No |
|
Brushless blower motor |
No |
|
Brushless drive motor |
No |
|
LED Working light |
No |
|
Length |
588 mm |
|
Width |
98 mm |
|
Weight |
6.9 kg |
|
Power cable length |
3 m |
|
Plug |
CEE blue, 3 poles, 16A |
|
Noise emission level |
86 dB (A) |
|
Approvals |
CB Certification; CE |
|
Protection class |
II |
|
Country of origin |
Switzerland |
Highlights Compact design
√ Various ways to hold the extruder
The extruder is very easy to handle and has a grip on the bottom. The FUSION 3C is especially dynamic in its applications thanks to the various ways it can be held.
√ Surprisingly high output
Despite its compact design, the FUSION 3C has a very high output volume of up to 3.6 kg/h (8 lbs/hr).
√ Robust design
Thanks to its robust design, extrusion welding with the FUSION 3C can take place at almost any construction site.
