Product Features:

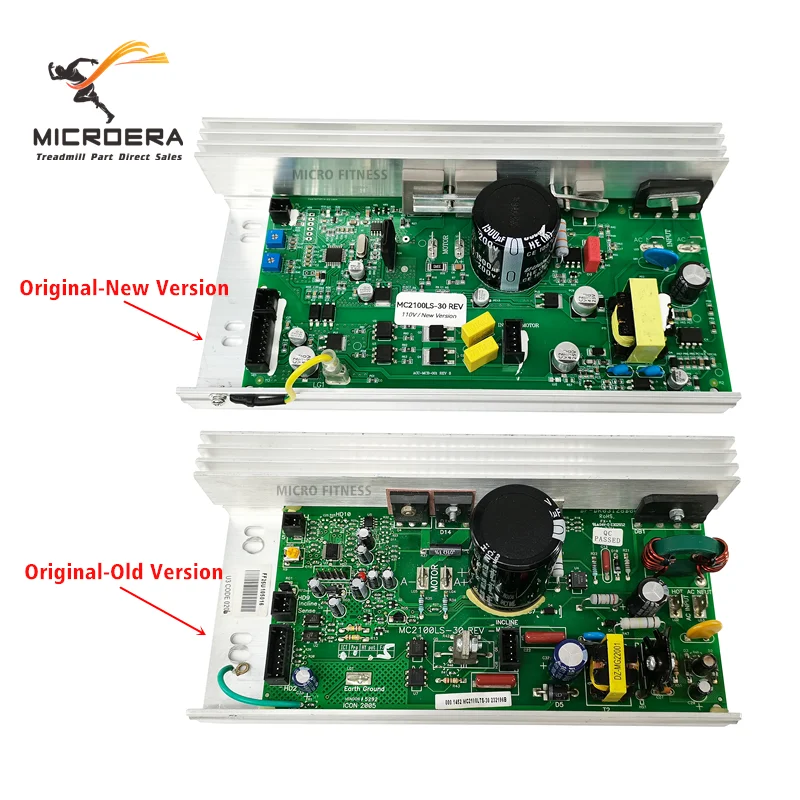

1. Original old version (not new): Same as the old board, but it is a "second-hand board/used", 80-90% new.
2. new version: The appearance is different from the original board (produced by other factories), but it is 100% compatible. (Please refer to the second main picture).
3. The power board is an electronic product. When ordering, the voltage must be distinguished. Wrong voltage may cause the new board to explode.
important hint:
1. Different treadmill models have different controller programs, please be sure to order according to the control model.
2. you don't know the model of the controller, please provide a photo of the old controller and send it to us for inspection.
3. Controllers of different models/programs are not compatible.
Specification:

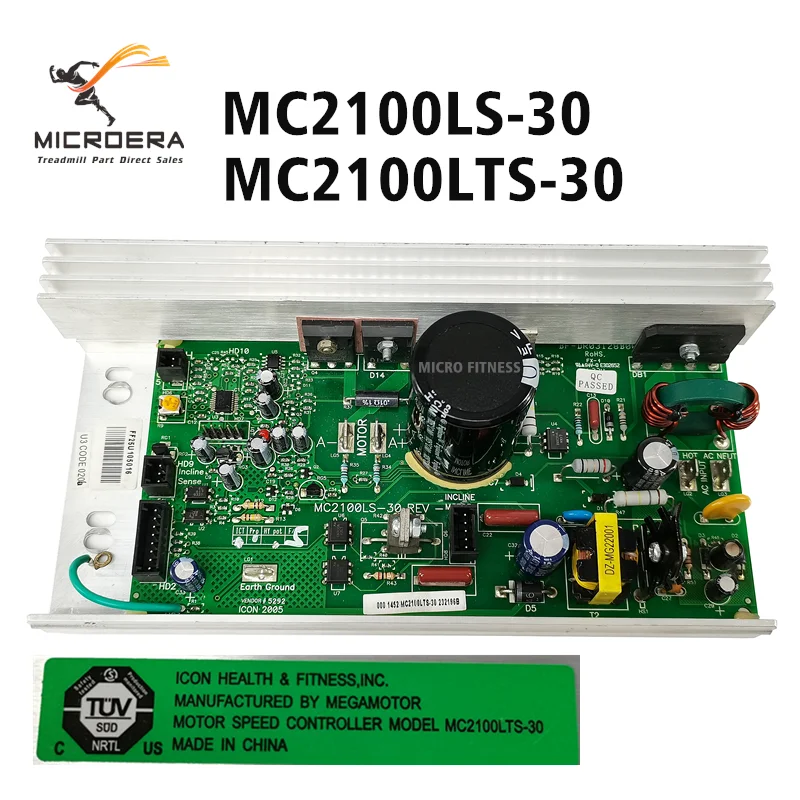

1. Part Model: MC2100LS-30 / MC2100LTS-30 REV.
2. Application: for treadmill repair.
3. Quantity: Motor Controller * 1pcs.
4. For 110V can use.
5. Warranty time: 90 days.
6. Stocking time: 1-7 days.
How to determine the failed controller：
E01: communication failure, sensor failure;
E02: you'd better test the motor first to check if there is any problem with motor, if motor work normal, then need to change controller.
E03: Sensor fault; treadmill will run few seconds then show E03;
E04: usually over-current fault, this situation is generally burned components on the controller;
E08: May be lift motor control fault.

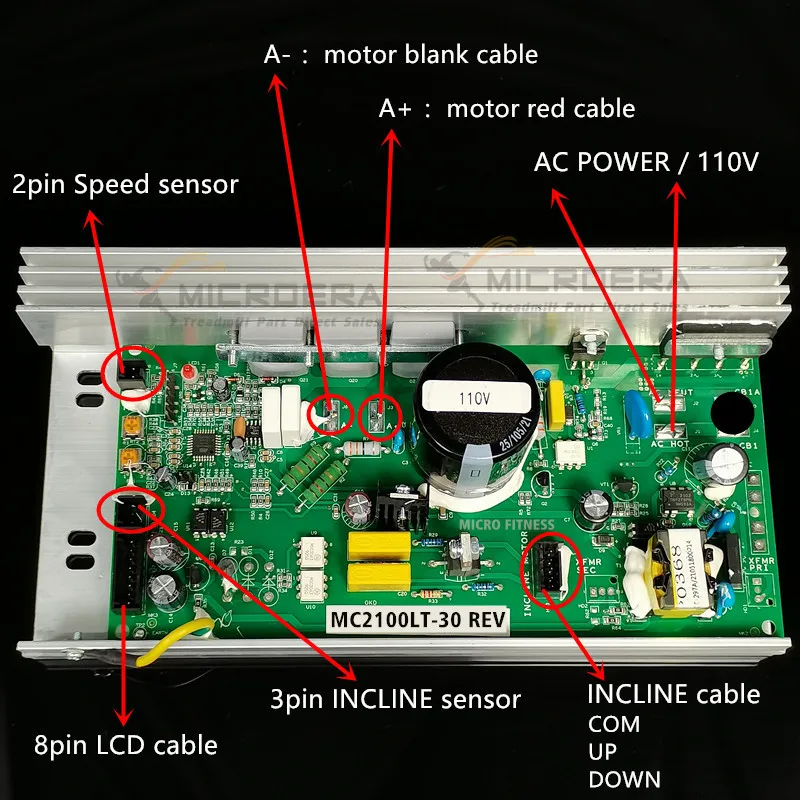

Wiring Diagram ↓

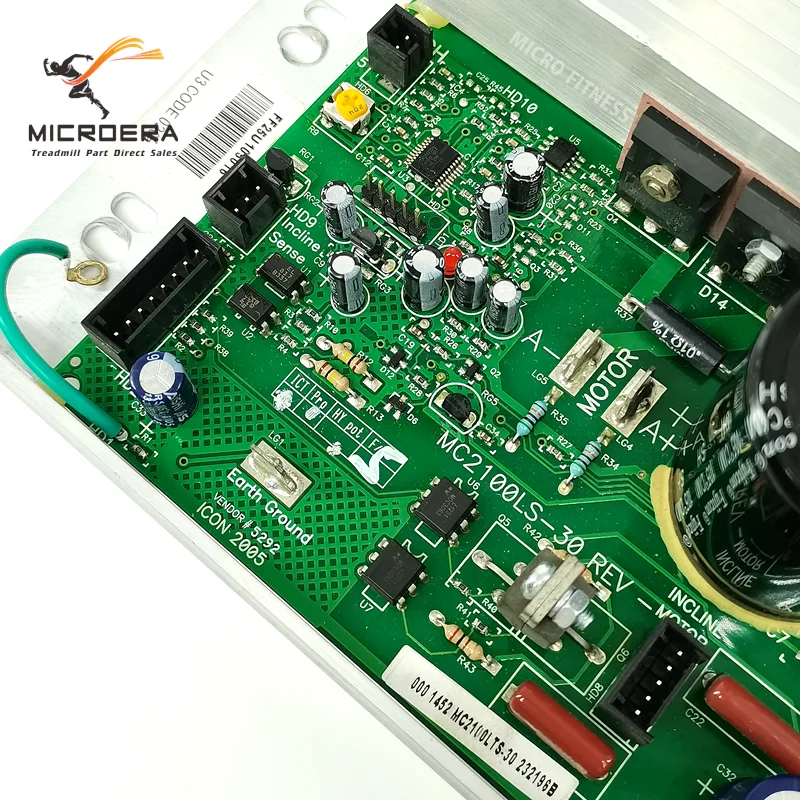

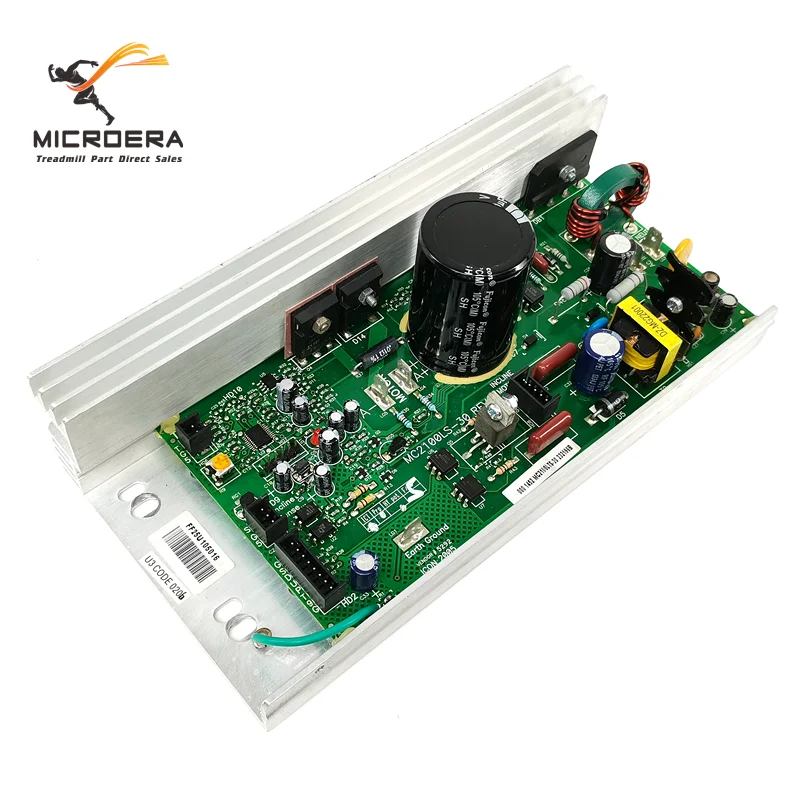

Original board ↓
For MC2100LTS-30 / MC2100LS-30 REV.
Please make sure that the motor is in working order before placing your order. How to identify whether the motor is in working order :
1.Use 2-3PCS 5# batteries.
2.Connect like photo.
3.See motor running or not.
Packed ：
User Feedback :
1.If you are satsdfied with our products and services.We sincerely invite you to leave positive feedback for us products.
2. Your 5 star positive comments are our greatest support and affirmation, as well as our driving force for progress. thanks.
3. If you are not satisfied with the product/have any questions, please contact us.
Warranty and return policy：
1. our product has been carefully inspeated by us. So we are pleased to offer our buyer satisfaction.
2. If the items are defective. pls informed us within 3 days of delivery. Pls contact your salesperson before returning the products. We will either replacement or refund upon receupt the defective item. Customers are responsible for the return shipping cost.
3.You can return the goods to us within the warranty day if the goods was broken.
4. If the goods are damaged due to the transportation process,we do not have responsibility,but we will try our best to help you to get the compensation from the transport company .
5. After getting the returned item, we will refund the customer at the item's price ( excluding the shipping costs to and from )
If you need other controller models, please contact our customer service. thanks ↓
