Bosch Starter Motor 0986011140 [PM221877]

Starter Motor 0986011140 Bosch

The benefits of NAPA Auto Parts

For any queries please contact using the contact seller link provided.

Description

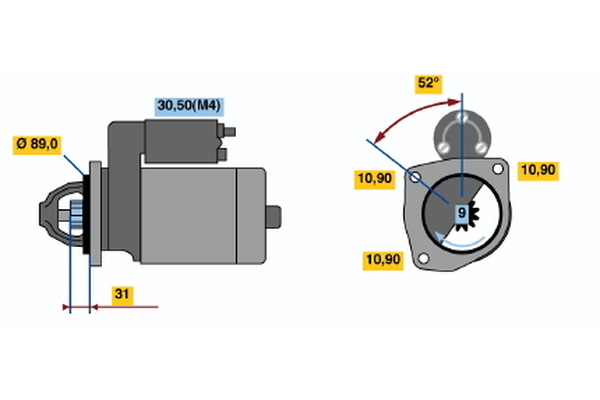

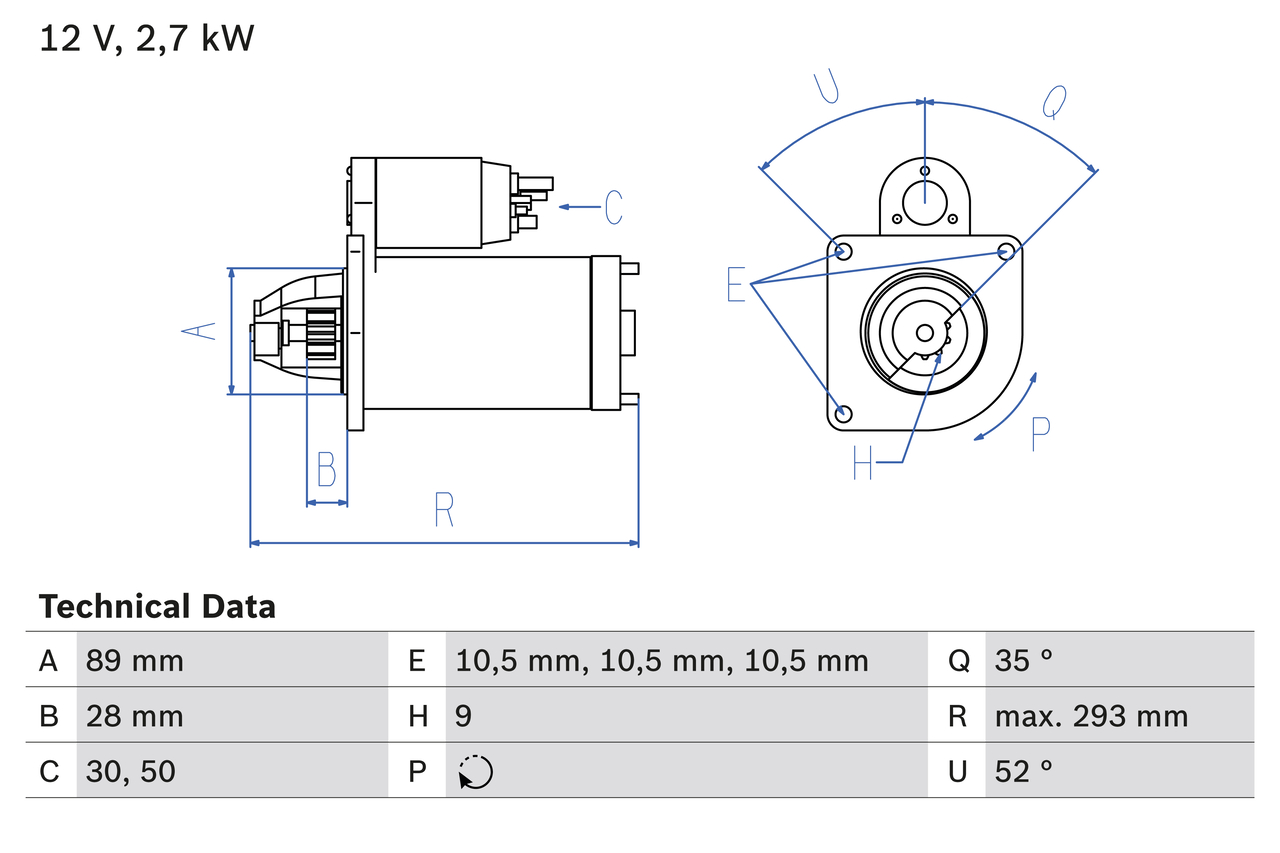

Starter Motor 0986011140 Bosch

Brand	Bosch
Part Number	0986011140
Length	293 mm
Voltage	12 V
Number of Teeth	9
Bore Diameter	10.5 mm
Rotation Direction	Clockwise rotation
Rated Power	2.7 kW
Number of mounting bores	3
Flange Diameter	89 mm
Note	Number of Thread Bores
Position / Degree	links °
Clamp	50, 30
Connecting Angle	52 °
Pinion Rest Position	28 mm
Bore Diameter 2	10.5 mm
Bore Diameter 3	10.5 mm
Note	Service exchange part
Starter Type	Self-supporting
Jaw opening angle measurement [Degree]	35 °
Fastening hole angle measurement [Degree]	52 °
Replaces	0986010990
Type	Starter

Cross references

BOSCH	0 001 362 305, 0 001 362 313, 0 986 010 990, 0 986 011 143
HC-PARTS	CS114
LUCAS ELECTRICAL	LRS00762, LRS762
MAGNETI MARELLI	063523623050, 943252071, MSN2053, MSR683

Compatible with the following OEM references

CASE IH	V941501, V941501EX
FENDT	G380900060010
INTERNATIONAL HARV.	V941501EX
IVECO	1174166, 1178026, 42522733
MAGIRUS-DEUTZ	01174166, 01178026, 01178686, 1174166, 1178026, 1178686

Other references

1114

Commercial Vehicles

Vehicle	Body	Fuel	From	To	Drive	Valves	BHP	KW
DEUTZ-FAHR DX 3.30	Tractor	Diesel	06/1986	12/1991	4x4	6	54 - 65	40 - 48
Model year from: 06/1986; Model year to: 12/1991
DEUTZ-FAHR DX 3.60	Tractor	Diesel	01/1986	12/1995	4x2	8	65	47
Model year from: 06/1986.; Also fits:- ;Model year from: 06/1986; Model year to: 12/1991. Please also note:- The product fitted must be identified on the vehicle or engine
DEUTZ-FAHR DX 3.60	Tractor	Diesel	01/1986	12/1995	4x4	8	65	47
Model year from: 06/1986.; Also fits:- ;Model year from: 06/1986; Model year to: 12/1991. Please also note:- The product fitted must be identified on the vehicle or engine
DEUTZ-FAHR DX 3.70	Tractor	Diesel	01/1985	12/1989	4x2	8	70	51
Model year from: 06/1986.; Also fits:- ;Model year from: 06/1986. Please also note:- The product fitted must be identified on the vehicle or engine
DEUTZ-FAHR DX 3.70	Tractor	Diesel	01/1985	12/1989	4x4	8	70	51
Model year from: 06/1986.; Also fits:- ;Model year from: 06/1986. Please also note:- The product fitted must be identified on the vehicle or engine
DEUTZ-FAHR DX 3.80	Tractor	Diesel	06/1986	12/1990	4x2	8	75	55
Model year from: 06/1986
DEUTZ-FAHR DX 3.90	Tractor	Diesel	06/1986	12/1989	4x2	8	75	55
Model year from: 06/1986
DEUTZ-FAHR DX 3.90	Tractor	Diesel	06/1986	12/1989	4x4	8	75	55
Model year from: 06/1986
DEUTZ-FAHR DX 6.05	Tractor	Diesel	01/1987	12/1991	4x4	12	98	72
FENDT Farmer 204 P, 204 V	Tractor	Diesel	01/1974	on	4x2	8	65	48
Model year from: 09/1986; Model year to: 02/1994.; Also fits:- ;Model year from: 09/1986; Model year to: 12/1991. Please also note:- The product fitted must be identified on the vehicle or engine
FENDT Farmer 204 PA, 204 VA	Tractor	Diesel	01/1974	on	4x4	8	65	48
Model year from: 09/1986; Model year to: 02/1994.; Also fits:- ;Model year from: 09/1986; Model year to: 12/1991. Please also note:- The product fitted must be identified on the vehicle or engine
FENDT GT 275 GT	Tractor	Diesel	01/1976	on	4x2	8	69	51
Model year from: 09/1986; Model year to: 02/1991.; Also fits:- ;Model year from: 09/1986; Model year to: 02/1991. Please also note:- The product fitted must be identified on the vehicle or engine
FENDT GT 350 GT	Tractor	Diesel	01/1996	on	4x2	6	50	37
IVECO MK 110-13 A	Platform/Chassis	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 110-13 AH	Dump Truck	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 130-13 A	Platform/Chassis	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 130-13 AH	Dump Truck	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 75-9 A	Platform/Chassis	Diesel	03/1983	02/1986	4x2	8	87	64
Engine Code: F4L 913; Model year from: 03/1983; Model year to: 02/1986
IVECO MK 75-9 H	Dump Truck	Diesel	03/1983	08/1985	4x2	8	87	64
Model year from: 03/1983
IVECO MK 80-13 A	Platform/Chassis	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 80-13 A	Platform/Chassis	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 80-13 AH	Dump Truck	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 80-13 AT	Truck Tractor	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 80-13 AW	Platform/Chassis	Diesel	01/1983	03/1985	4x4	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 80-13 AW	Platform/Chassis	Diesel	01/1983	03/1985	4x4	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 80-9 A	Platform/Chassis	Diesel	03/1983	02/1986	4x2	8	87	64
Model year from: 03/1983; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 80-9 AH	Dump Truck	Diesel	03/1983	02/1986	4x2	8	87	64
Model year from: 03/1983; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 90-13 A	Platform/Chassis	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current
IVECO MK 90-13 AH	Dump Truck	Diesel	01/1983	03/1985	4x2	12	131 - 135	96 - 99
Model year to: 03/1985; Vehicle Main Current: for vehicles with 12V main current

Bosch's portfolio of products is steeped in OE quality and provides one of the most comprehensive ranges of OE aftermarket parts, Bosch's continual investment in research and development allows it to be the worlds largest supplier of cutting edge automotive technology.
